QISG350-U151WCDMA Digital Mobile Phone

Quick Start Guide Welcome to HUAWEI HUAWEI G350-U151 Phone at a Glance All the pictures in this guide are for your reference only. Your phone's actual display features may be different to those described here, depending on its software version. Installing the SIM Card There are two steps to install the SIM card: 1 Remove the battery cover. 2 Insert the SIM card. (Optional)Installing the microSD Card Your mobile phone is already equipped with a large-volume built-in embedded MultiMediaCard (eMMC). If you want to expand your phone memory, you can also insert a microSD card. 1 Remove the battery cover. 2 Insert the microSD card into the card slot as shown in the diagram. Installing the Battery 1 Angle the edge labeled a (with the contacts) into the bottom end of the battery compartment. 2 Push the edge labeled b into the compartment until the battery clicks firmly into place. Charging the Battery Before charging the battery, ensure that it has been properly installed on your phone. 1 Connect the USB cable that came with your mobile phone to the charger. 2 Connect the other end of the USB cable to your mobile phone. Then, to start charging, plug the charger into an electrical outlet. If you charge your mobile phone while it is powered on, the battery icon on the notification bar indicates the charging status. When the battery icon changes to , your mobile phone is fully charged. Status Indicator The color of the status indicator tells you the status of your mobile phone's battery. Green:Electricity at 90% to a fully charged(when connected to charger). Orange:Electricity below 90%(when connected to charger). Red:battery low. Touchscreen Actions Using your finger on the touchscreen, you can operate your phone conveniently. Home Screen You can set up the Home screen according to your own preferences, for example by adding a shortcut or a widget to your Home screen, changing the wallpaper, or setting the number of Home screen extensions. To return to the Home screen from any of its extensions, press . When a new notification icon appears on the notification bar, place your finger on the notification bar and flick down to open the notification panel. Adding a New Home Screen Item 1 On the Home screen, touch to display the application list. 2 Press and hold an application icon, and then drag the icon to a blank area on the Home screen. Removing an Icon from the Home Screen 1 Touch and hold an item on the Home screen that you want to remove until your mobile phone vibrates. 2 Without lifting your finger, drag the item to the trash can. Wait until the item and the trash can turn red. 3 Release the item. Importing Contacts from a SIM Card 1 In the contacts list, touch press > Import/export . 2 Touch Import from SIM card. 3 Wait for the SIM card contents to be loaded. Touch one contact to import that contact individually to your mobile phone, or touch Select All to import all contacts to your mobile phone. 4 Touch . 5 If you have more than one account on your phone, touch the account into which you want to import the contacts. Adding a Contact 1 In the contact list, touch . 2 From the screen displayed, create a contact in your mobile phone, SIM card or your account. Add a new account if you do not have one. 3 Enter the contact's name, and then add detailed information such as phone numbers and address. 4 Touch Done to save the contact information. To save a contact from your call log, touch and hold the desired phone number to display the options menu, and then touch Add to contacts. Making a Call with the Phone Application On the home screen, touch to open the phone application. Your phone supports dual-card dual-standby mode, but the two SIM cards cannot be used simultaneously. When you are making a call with one SIM card, the other SIM card becomes unavailable, that is, no incoming calls can be received and the data services cannot be used. Creating and Sending a Multimedia Message On the home screen, touch to open the Messaging. You can use multimedia messages to make everyday communications very special. You can record a message and send it as an audio file, for example, sing "Happy Birthday" and send it to a friend, or send a slideshow of photographs of a special event. The possibilities are enormous. 1 Touch > Messaging, then . 2 Enter a phone number in the To field, or touch to select a contact from People. 3 Touch the composition text box to start composing your message. 4 If you want to enter a smiley, touch press , then Insert smiley. 5 Perform the following steps to convert a text message into a multimedia message:  Tou ch > Add subject to add the message subject. Your mobile phone is now in multimedia message mode.  Tou ch to attach a picture, an audio file, or a video clip to the message. 6 When you are ready to send the message, touch . Connecting Internet Get online using your phone's Wi-Fi to save your money. Turning On Wi-Fi 1 Touch > Settings. 2 Under WIRELESS & NETWORKS, touch the button next to WLAN. Opening the Browser Tou ch > Browser to open the home page. When known or open Wi-Fi networks and mobile data networks are available at the same time, your phone will preferably select a Wi-Fi network for Internet access. Opening a Webpage 1 In a browser window, touch the URL field at the top of the screen. 2 Use the keyboard to enter a webpage address. 3 As you enter the address, matching webpage addresses will appear on the screen. If you see the address you want, touch it and go directly to that webpage or complete entering your desired webpage. Turning Off Your Data Service When you are not using your data service, to eliminate unwanted data traffic, you can turn it off quickly. 1 Open the notification bar. 2 Touch > at the top of the screen to switch data services on or off. You can also touch , , or to turn the corresponding services on or off. App Center App Center is an application that enables you to access Huawei's application store from which you can download content such…

Text truncated - open the document above for the full version.

HUAWEI TECHNOLOGIES CO., LTD. Date: 2013-05-06 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISG350-U151 ATTESTATION FCC ID: QISG350-U151 Product: WCDMA Digital Mobile Phone Model: HUAWEI G350-U151 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

RF_160, Issue 02 HUAWEI TECHNOLOGIES CO., LTD. Declaration of Authorization We Name: HUAWEI TECHNOLOGIES CO., LTD. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C City:  SHENZHEN . Country:China . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: WCDMA Digital Mobile Phone Type designation: HUAWEI G350-U151 on our behalf. Date: 2013-05-20 City: SHENZHEN Name: Zhang Xinghai Function: EMC Laboratory Manager Signature:

HUAWEI TECHNOLOGIES CO., LTD. Date: 2013-05-20 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISG350-U151 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description 4 BOM List 5 Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

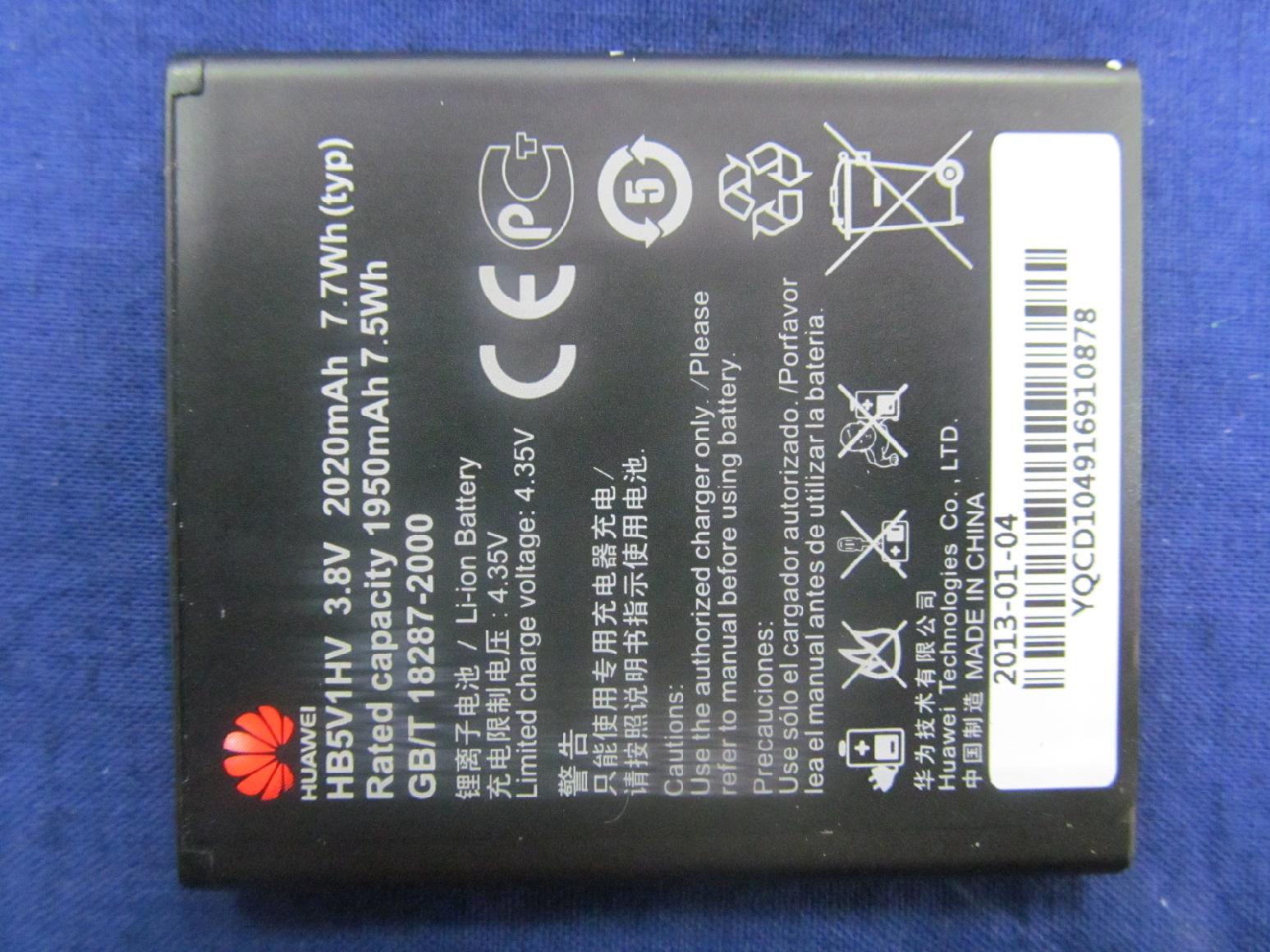

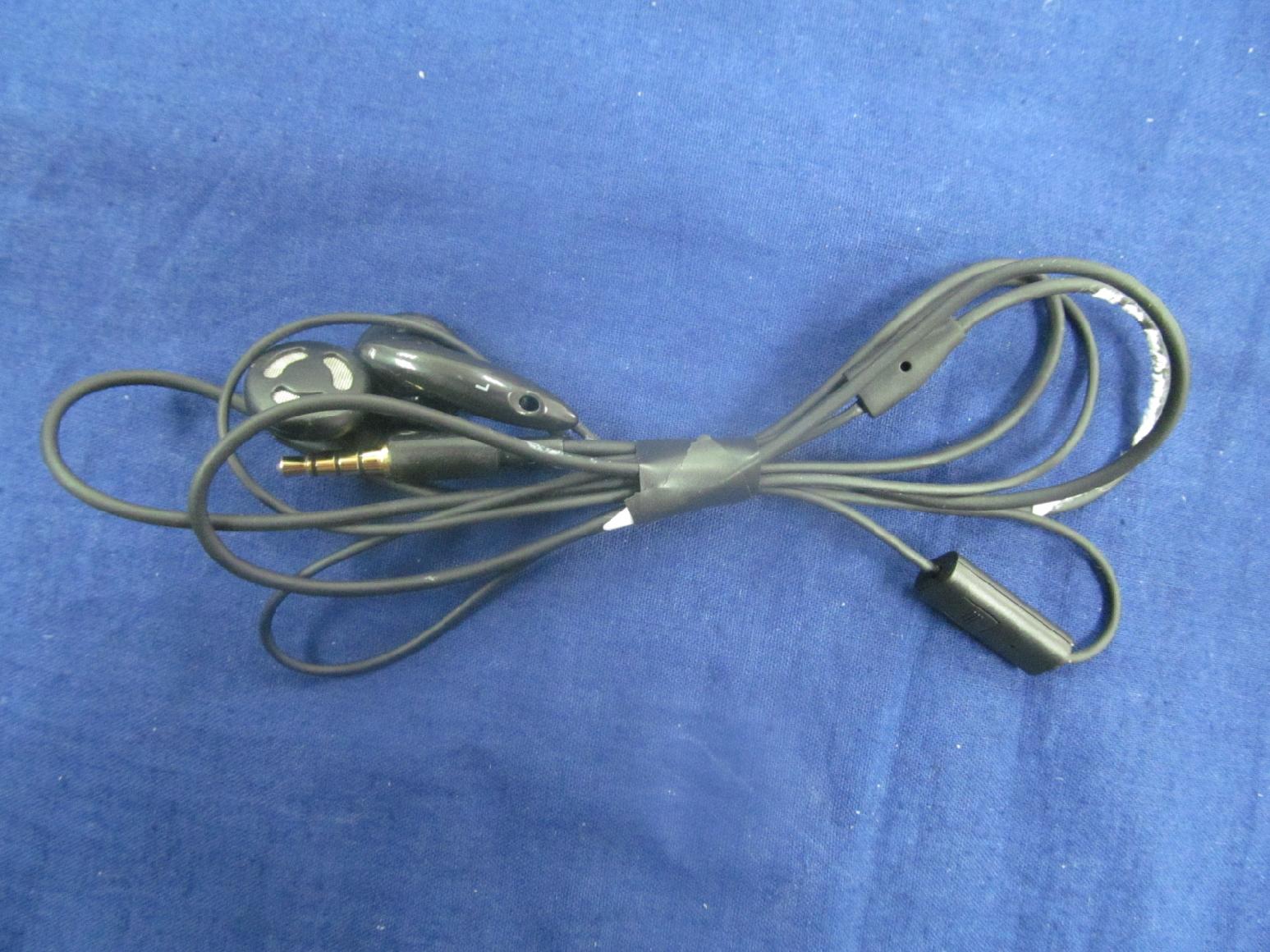

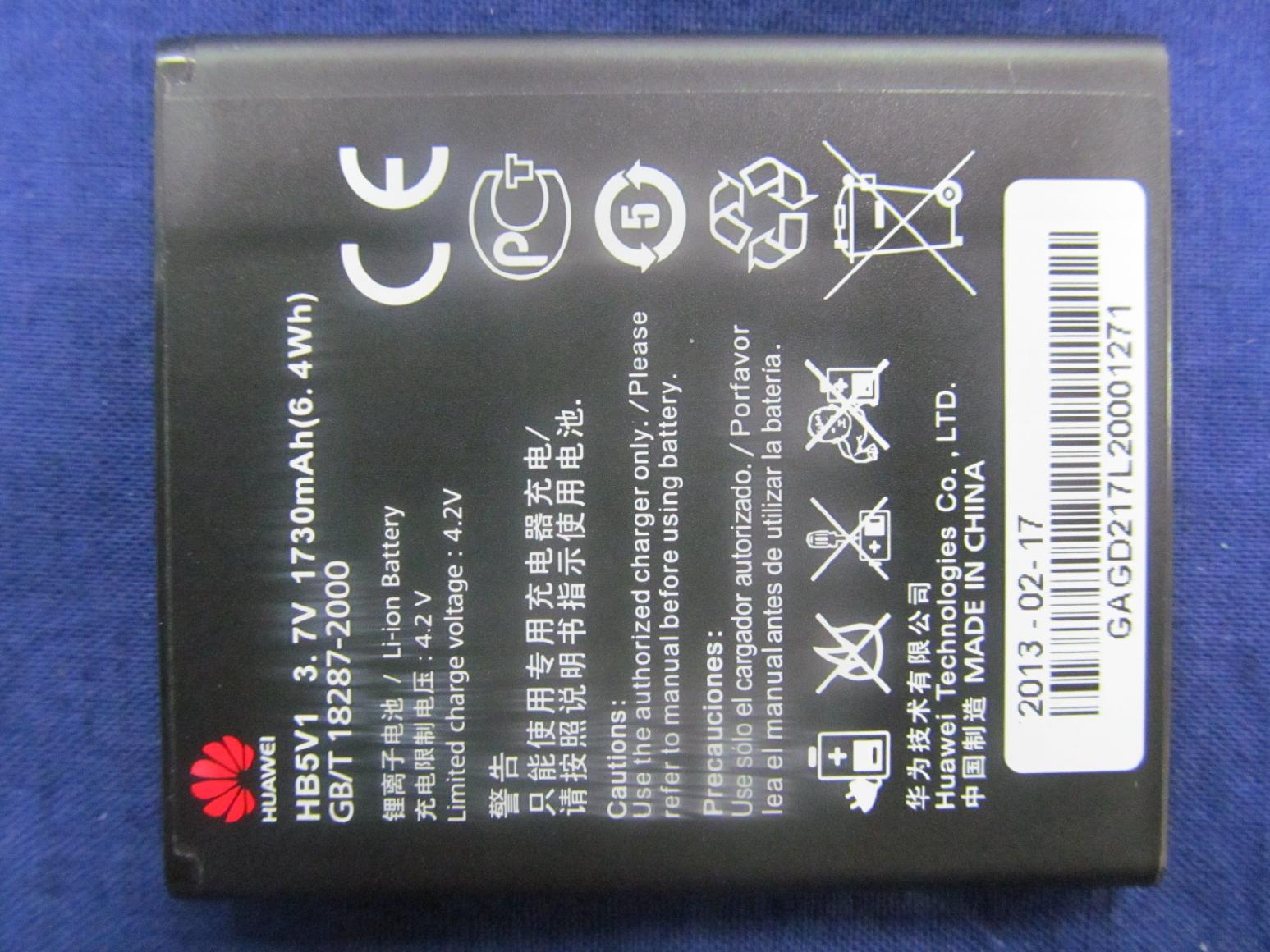

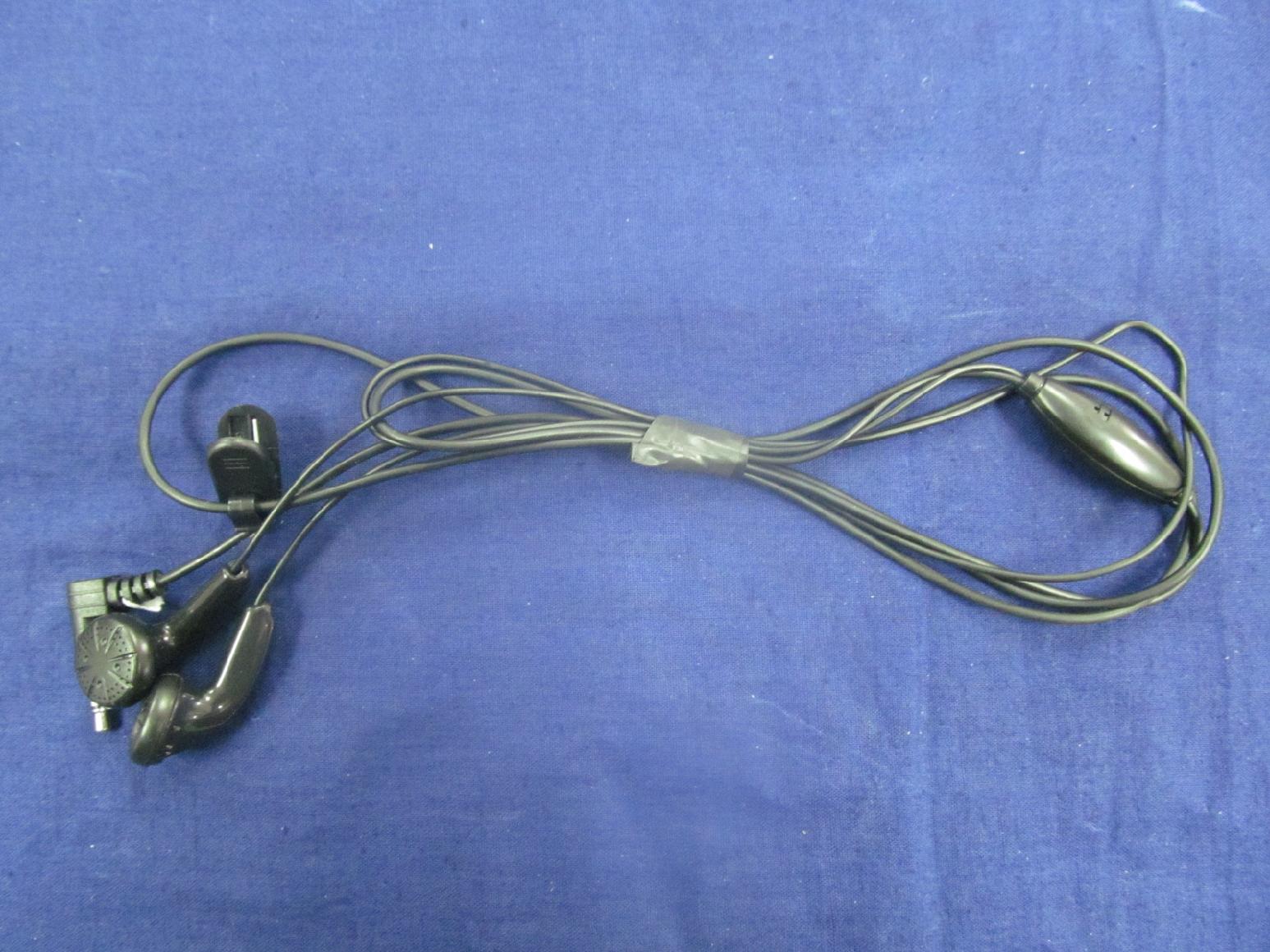

(1) EUT Photo (Single SIM Slot) (2) EUT Photo (Single SIM Slot) (3) EUT Photo (Single SIM Slot) (4) EUT Photo (Single SIM Slot) (5) EUT Photo (Single SIM Slot) (6) EUT Photo (Single SIM Slot) (7) EUT Photo (Dual SIM Slot) (8) EUT Photo (Dual SIM Slot) (9) EUT Photo (Dual SIM Slot) (10) EUT Photo (Dual SIM Slot) (11) EUT Photo (Dual SIM Slot) (12) EUT Photo (Dual SIM Slot) (13) EUT Photo (Battery #1) (14) EUT Photo (Battery #1) (15) EUT Photo (Battery #2) (16) EUT Photo (Battery #2) (17) EUT Photo (Battery #3) (18) EUT Photo (Battery #3) (19) EUT Photo (Battery #4) (20) EUT Photo (Battery #4) (21) EUT Photo (Battery #5) (22) EUT Photo (Battery #5) (23) EUT Photo (Adapter #1) (24) EUT Photo (Adapter #1) (25) EUT Photo (Adapter #2) (26) EUT Photo (Adapter #2) (27) EUT Photo (28) EUT Photo (Earphone #1) (29) EUT Photo (Earphone #2)

Single Card: Double Card:

(1) EUT Photo (Single SIM Slot) (2) EUT Photo (Single SIM Slot) (3) EUT Photo (Single SIM Slot) (4) EUT Photo (Single SIM Slot) (5) EUT Photo (Single SIM Slot) (6) EUT Photo (Single SIM Slot) (7) EUT Photo (Single SIM Slot) (8) EUT Photo (Single SIM Slot) (9) EUT Photo (Single SIM Slot) (10) EUT Photo (Single SIM Slot) (11) EUT Photo (Single SIM Slot) (12) EUT Photo (Dual SIM Slot) (13) EUT Photo (Dual SIM Slot) (14) EUT Photo (Dual SIM Slot) (15) EUT Photo (Dual SIM Slot) (16) EUT Photo (Dual SIM Slot) (17) EUT Photo (Dual SIM Slot) (18) EUT Photo (Dual SIM Slot) (19) EUT Photo (Dual SIM Slot) (20) EUT Photo (Dual SIM Slot) (21) EUT Photo (Dual SIM Slot) (22) EUT Photo (Dual SIM Slot) (23) EUT Photo (Dual SIM Slot)

Report No.: 133S023R-HP-US-P03V01 Page: 140 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 141 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 142 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 143 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 144 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 145 of 173 Appendix E. Dipole Calibration Data Report No.: 133S023R-HP-US-P03V01 Page: 146 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 147 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 148 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 149 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 150 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 151 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 152 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 153 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 154 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 155 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 156 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 157 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 158 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 159 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 160 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 161 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 162 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 163 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 164 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 165 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 166 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 167 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 168 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 169 of 173 Appendix F. DAE Calibration Data Report No.: 133S023R-HP-US-P03V01 Page: 170 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 171 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 172 of 173 Report No.: 133S023R-HP-US-P03V01 Page: 173 of 173

Report No.: 133S023R-HP-US-P03V01 Page: 141 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 142 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 143 of 171 Appendix E. Dipole Calibration Data Report No.: 133S023R-HP-US-P03V01 Page: 144 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 145 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 146 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 147 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 148 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 149 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 150 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 151 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 152 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 153 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 154 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 155 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 156 of 171

Report No.: 133S023R-HP-US-P03V01 Page: 157 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 158 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 159 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 160 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 161 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 162 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 163 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 164 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 165 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 166 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 167 of 171 Appendix F. DAE Calibration Data Report No.: 133S023R-HP-US-P03V01 Page: 168 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 169 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 170 of 171 Report No.: 133S023R-HP-US-P03V01 Page: 171 of 171

Report No.: 133S023R-HP-US-P03V01 Page: 1 of 173 SAR Test Report Product Name : WCDMA Digital Mobile Phone Model No. : HUAWEI G350-U151 FCC ID : QISG350-U151 Applicant : Huawei Technologies Co., Ltd Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt : 12/03/2013 Date of Test : 28/03/2013 Issued Date : 06/06/2013 Report No. : 133S023R-HP-US-P03V01 Report Version : V2.3 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 133S023R-HP-US-P03V01 Page: 2 of 173 Test Report Certification Issued Date: 06/06/2013 Report No.: 133S023R-HP-US-P03V01 Product Name : WCDMA Digital Mobile Phone Applicant : Huawei Technologies Co., Ltd Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Manufacturer : Huawei Technologies Co., Ltd Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Model No. : HUAWEI G350-U151 FCC ID : QISG350-U151 Brand Name : HUAWEI EUT Voltage : DC 3.7V Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003,47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) Head: 0.873 W/kg Body: 1.159 W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-TechDevelopment Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No.: 133S023R-HP-US-P03V01 Page: 3 of 173 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI China : CNAS Report No.: 133S023R-HP-US-P03V01 Page: 4 of 173 TABLE OF CONTENTS Description Page 1. General Information ................................................................................................. 6 1.1. EUT Description ......................................................................................................... 6 1.2. Test Environment ........................................................................................................ 9 1.3. EUT Antenna Locations .............................................................................................. 9 1.4. Simultaneous Transmission Configurations .............................................................. 11 1.5. SAR Test Exclusions Applied .................................................................................... 13 1.6. Power Reduction for SAR ......................................................................................... 13 1.7. Guidance Documents ............................................................................................... 13 2. SAR Measurement System .................................................................................... 14 2.1. DASY5 System Description ...................................................................................... 14 2.1.1. Applications ................................................................................................... 15 2.1.2. Area Scans .................................................................................................... 15 2.1.3. Zoom Scan (Cube Scan Averaging) .............................................................. 15 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging ......................................... 15 2.2. DASY5 E-Field Probe ............................................................................................... 16 2.2.1. Isotropic E-Field Probe Specification ............................................................. 16 2.3. Boundary Detection Unit and Probe Mounting Device .............................................. 17 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ............................... 17 2.5. Robot ........................................................................................................................ 18 2.6. Light Beam Unit ........................................................................................................ 18 2.7. Device Holder ........................................................................................................... 19 2.8. SAM Twin Phantom .................................................................................................. 19 3. Tissue Simulating Liquid ....................................................................................... 20 3.1. The composition of…

Text truncated - open the document above for the full version.

FCC Part22H&24E Test Report Industry Canada RSS-132/RSS-133 Product Name : WCDMA Digital Mobile Phone Model No. : HUAWEI G350-U151 FCC ID : QISG350-U151 Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt : 12/03/2013 Test Date : 13/03/2013~06/04/2013 Issued Date : 21/04/2013 Report No. : 133S023R-HP-US-P07V01 Report Version : V 2.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 133S023R-HP-US-P07V01 Page: 2 of 124 Test Report Certification Issued Date : 21/04/2013 Report No. : 133S023R-HP-US-P07V01 Product Name : WCDMA Digital Mobile Phone Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Manufacturer : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Model No. : HUAWEI G350-U151 FCC ID : QISG350-U151 EUT Voltage : DC 3.7V Brand Name : HUAWEI Applicable Standard : FCC CFR Title 47 Part 2,TIA/EIA 603-C FCC Part22 Subpart H, FCC Part24 Subpart E Industry Canada RSS-132, Issue 3 Industry Canada RSS-133, Issue 6 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No.: 133S023R-HP-US-P07V01 Page: 3 of 124 Laboratory Information We, QuieTek Corporation , are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI China : CNAS Report No.: 133S023R-HP-US-P07V01 Page: 4 of 124 TABLE OF CONTENTS Description Page 1. General Information....................................................................................................6 1.1. EUT Description .........................................................................................................6 1.2. Mode of Operation......................................................................................................9 1.3. Tested System Details..............................................................................................10 1.4. Configuration of Tested System................................................................................ 11 1.5. EUT Exercise Software.............................................................................................12 2. Technical Test........................................................................................................... 13 2.1. Summary of Test Result............................................................................................13 2.2. Test Environment...................................................................................................... 14 3. Peak Output Power ..................................................................................................15 3.1. Test Equipment.........................................................................................................15 3.2. Test Setup................................................................................................................. 16 3.3. Limit..........................................................................................................................16 3.4. Test Procedure .........................................................................................................16 3.5. Uncertainty ...............................................................................................................18 3.6. Test Result................................................................................................................ 19 4. Modulation Characteristic.........................................................................................28 4.1. Test Equipment.........................................................................................................28 4.2. Test Setup................................................................................................................. 28 4.3. Limit..........................…

Text truncated - open the document above for the full version.

Report No.: 133S023R-HP-US-P07V01 Page: 51 of 124 6. Spurious Emission At Antenna Terminals (+/- 1MHz) 6.1. Test Equipment Spurious Emission At Antenna Terminals (+/- 1MHz) / AC-6 Instrument Manufacturer Type No. Serial No Cali. Due Date PSA Series Spectrum Analyzer Agilent E4440A MY49420184 2014.03.30 Radio Communication Tester R&S CMU 200 117088 2014.03.30 Dual Directional Coupler Agilent 778D 20160 2014.03.30 10dB Coaxial Coupler Agilent 87300C MY44300299 2014.03.30 Temperature/Humidity Meter Zhicheng ZC1-2 AC6-TH 2014.01.11 6.2. Test Setup Report No.: 133S023R-HP-US-P07V01 Page: 52 of 124 6.3. Limit The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. 6.4. Test Procedure In the 1MHz bands immediately outside and adjacent to the frequency block a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed to measure the out of band Emissions. 6.5. Uncertainty The measurement uncertainty is defined as ± 1.2 dB. Report No.: 133S023R-HP-US-P07V01 Page: 53 of 124 6.6. Test Result Product WCDMA Digital Mobile Phone Test Item Spurious Emission At Antenna Terminals (+/- 1MHz) Test Mode Mode 1: GSM 850 Link Date of Test 2013/04/01 Test Site AC-6 Figure Channel 128 (824.20MHz) Figure Channel 251 (848.80MHz) Report No.: 133S023R-HP-US-P07V01 Page: 54 of 124 Product WCDMA Digital Mobile Phone Test Item Spurious Emission At Antenna Terminals (+/- 1MHz) Test Mode Mode 2: PCS1900 Link Date of Test 2013/04/01 Test Site AC-6 Figure Channel 512 (1850.20MHz) Figure Channel 810 (1909.80MHz) Report No.: 133S023R-HP-US-P07V01 Page: 55 of 124 Product WCDMA Digital Mobile Phone Test Item Spurious Emission At Antenna Terminals (+/- 1MHz) Test Mode Mode 3: EDGE 850 Link Date of Test 2013/04/01 Test Site AC6 Figure Channel 128 (824.20MHz) Figure Channel 251 (848.80MHz) Report No.: 133S023R-HP-US-P07V01 Page: 56 of 124 Product WCDMA Digital Mobile Phone Test Item Spurious Emission At Antenna Terminals (+/- 1MHz) Test Mode Mode 4: EDGE1900 Link Date of Test 2013/04/01 Test Site AC6 Figure Channel 512 (1850.20MHz) Figure Channel 810 (1909.80MHz) Report No.: 133S023R-HP-US-P07V01 Page: 57 of 124 Product WCDMA Digital Mobile Phone Test Item Spurious Emission At Antenna Terminals (+/- 1MHz) Test Mode Mode 5: WCDMA Band II Link Date of Test 2013/04/01 Test Site AC6 Figure Channel 9262 (1852.40MHz) Figure Channel 9538 (1907.60MHz) Report No.: 133S023R-HP-US-P07V01 Page: 58 of 124 Product WCDMA Digital Mobile Phone Test Item Spurious Emission At Antenna Terminals (+/- 1MHz) Test Mode Mode 6: WCDMA Band V Link Date of Test 2013/04/01 Test Site AC6 Figure Channel 4132 (826.40MHz) Figure Channel 4233 (846.60MHz) Report No.: 133S023R-HP-US-P07V01 Page: 59 of 124 Product WCDMA Digital Mobile Phone Test Item Spurious Emission At Antenna Terminals (+/- 1MHz) Test Mode Mode 7: HSDPA Band II Link Date of Test 2013/04/01 Test Site AC6 Figure Channel 9262 (1852.40MHz) Figure Channel 9538 (1907.60MHz) Report No.: 133S023R-HP-US-P07V01 Page: 60 of 124 Product WCDMA Digital Mobile Phone Test Item Spurious Emission At Antenna Terminals (+/- 1MHz) Test Mode Mode 8: HSDPA Band V Link Date of Test 2013/04/01 Test Site AC6 Figure Channel 4132 (826.40MHz) Figure Channel 4233 (846.60MHz) Report No.: 133S023R-HP-US-P07V01 Page: 61 of 124 Product WCDMA Digital Mobile Phone Test Item Spurious Emission At Antenna Terminals (+/- 1MHz) Test Mode Mode 9: HSUPA Band II Link Date of Test 2013/04/01 Test Site AC6 Figure Channel 9262 (1852.40MHz) Figure Channel 9538 (1907.60MHz) Report No.: 133S023R-HP-US-P07V01 Page: 62 of 124 Product WCDMA Digital Mobile Phone Test Item Spurious Emission At Antenna Terminals (+/- 1MHz) Test Mode Mode 10: HSUPA Band V Link Date of Test 2013/04/01 Test Site AC6 Figure Channel 4132 (826.40MHz) Figure Channel 4233 (846.60MHz) Report No.: 133S023R-HP-US-P07V01 Page: 63 of 124 7. Spurious Emission 7.1. Test Equipment Spurious Emission / AC-5 Instrument Manufacturer Type No. Serial No Cali. Due Date PSA Series Spectrum Analyzer Agilent E4440A MY49420184 2014.03.30 Radio Communication Tester R&S CMU 200 117088 2014.03.30 Dual Directional Coupler Agilent 778D 20160 2014.03.30 10dB Coaxial Coupler Agilent 87300C MY44300299 2014.03.30 PSG Analog Signal Generator Agilent E8257D MY44321116 2014.03.30 Preamplifier QuieTek AP-025C CHM-0503006 2014.04.11 Preamplifier Miteq NSP1800-25 1364185 2013.05.04 Bilog Antenna Teseq GmbH CBL6112D 27612 2013.10.15 Half Wave Tuned Dipole Antenna COM-POWER AD-100 40137 2013.11.24 Broad-Band Horn Antenna Schwarzbeck BBHA9120D 737 20…
