QISG5000GSM Mobile Phone

G5000 GSM Mobile Phone User Guide Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. 1 1 Getting to Know Your Phone Your Phone The following figure shows the appearance of your phone. 1 2 3 4 5 6 11 7 8 9 10 13 14 15 16 12 17 1 Torch 10 Microphone 2 Earpiece 11 Number keys 3 Charger 12 End/Power key 4 Screen 13 Name 2 key 5 Volume/Scroll key 14 Confirm key 6 Navigation keys 15 Keypad lock key 2 7 Name 1 key 16 Torch key 8 SOS key 17 Headset 9 Call/Answer key Keys and Functions Press... To...
Make a call from subscriber identity module (SIM) card.
Answer a call.
Access All calls in standby mode.
Power the phone on or off (press and hold the key for about 3 seconds).
End or reject a call.
Return to standby mode.
Select the option displayed in the lower left corner of the screen.
Access Name 1 in standby mode.
Make a automatic answer, when there is a Relative Call.
Select the option displayed in the lower right corner of the screen.
Access Name 2 in standby mode.
Access the main menu in standby mode.
Confirm a selection. 3 Press... To...
Access Calendar (press ) in standby mode.
Access Alarm (press ) in standby mode.
Access Inbox (press ) in standby mode.
Access Contact list (press ) in standby mode.
Customize the navigation keys, you can select Menu > Settings > Phone settings > Direction key setup. Adjust the volume when calling, listening to FM Radio or playing music. Access SOS in standby mode or any other menu mode. Turn the torch on or off in any situation. Lock or unlock the keypad in standby mode
Enter the number 0 or a space.
Access Magnifier in standby mode (press and hold the keys for about 3 seconds). 4 Press... To... through
Enter numbers, letters, and symbols.
Call voicemail in standby mode (press and hold the key for about 3 seconds).
Speed-dial phone numbers in standby mode (press and hold the – keys for about 3 seconds).
Select an option labeled with the corresponding number.
Enter * (press the key once), + (press the key twice), P (press the key three times), and W (press the key four times) in standby mode.
Display the symbol list in editing mode.
Access FM Radio in standby mode (press and hold the keys for about 3 seconds).
Enter #.
Switch between text input methods in editing mode.
Lock the keypad in standby mode (press and hold the key for about 3 seconds). 5 Screen Icons Icon Indicates... Signal strength. General Packet Radio Service (GPRS) signal. Ring only enabled. Vib. only enabled. Vib. and ring enabled. Vib. then ring enabled. Silence profile activated. Headset profile activated. Missed calls. Call forwarding enabled. New text messages. New multimedia messages. Alarms enabled. Keypad locked. Battery level. Bluetooth activated. 6 2 Getting Started Installing the SIM Cards and the Battery You can install up to two SIM cards in the phone at the same time. When installing a SIM card, ensure that the gold contact area faces down, and that the beveled edge of the SIM card aligns with that of the SIM card slot. Removing the Battery and the SIM Cards Before removing the battery and the SIM cards, ensure that your phone is powered off. 7 Installing the microSD Card Before installing or removing a microSD card, power the phone off. When the phone is powered back on, it indicates whether the microSD card has been installed correctly. You can expand your phone's memory capacity by installing a microSD card. When installing a microSD card, ensure that the gold contact area faces down. Charging the Battery 1. Connect the charger to an AC power socket. 2. Connect the charger to the charger jack on the phone. 3. Wait until the battery is completely charged. During the charging process, the charging icon is displayed in animation. When the charging icon becomes static, the battery is fully charged. 4. Disconnect the charger from the phone. 5. Disconnect the charger from the AC power socket. Navigating the Main Menu 1. In standby mode, press (Menu). 8 2. Press to scroll to the desired application and press (OK) or to access the application. 3. Press or to scroll to the desired option, and press (OK) or to access the option. 4. Press (Back) to return to the previous menu. To return to standby mode, press . Phone Lock The phone lock protects your phone from unauthorized use. By default, the phone lock is disabled. Once the phone lock is enabled, you must enter the phone unlock code each time you power on the phone. The preset phone unlock code is 1234. You can change this code into any numeric string between four and eight digits. If you forget the phone unlock code, contact your service provider. PIN and PUK The personal identification number (PIN) protects your SIM card from unauthorized use. The PIN unblocking key (PUK) unlocks a blocked PIN. Both the PIN and the PUK are provided with the SIM card. For details, contact your service provider. To enable the PIN lock: 1. Press and select Settings > Security settings > SIM1 or SIM2 security > PIN lock. 2. Enter the PIN and press (OK) or . 9 If you enter the incorrect PIN a specified number of times, the phone prompts you to enter the PUK. If you enter the incorrect P…

Text truncated - open the document above for the full version.

Date:2012/3/21 To whom it may concern, Label Location Justification FCC ID: QISG5000 Request is hereby submitted by Huawei Technologies Co., Ltd. to request an alternative method of positively identifying the equipment, pursuant to 47CFR§2.925 (f) of the FCC Rules. The FCC identifier for mobile Phone will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches: * Marketing the device without the battery installed, or * Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements. If you have questions or need further information, please contact the under signed。 Sincerely, Signature: Name: Zhang Xinghai

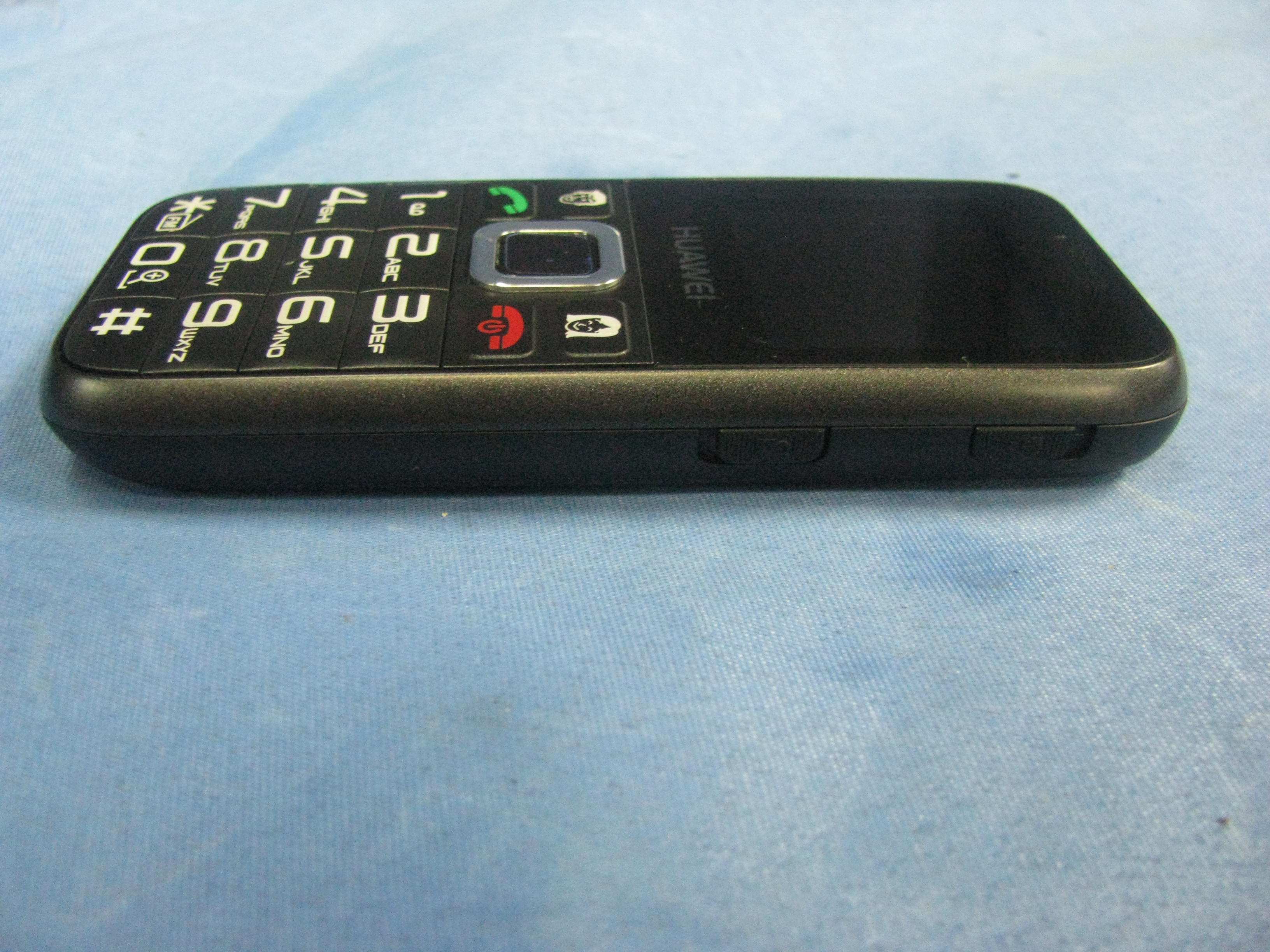

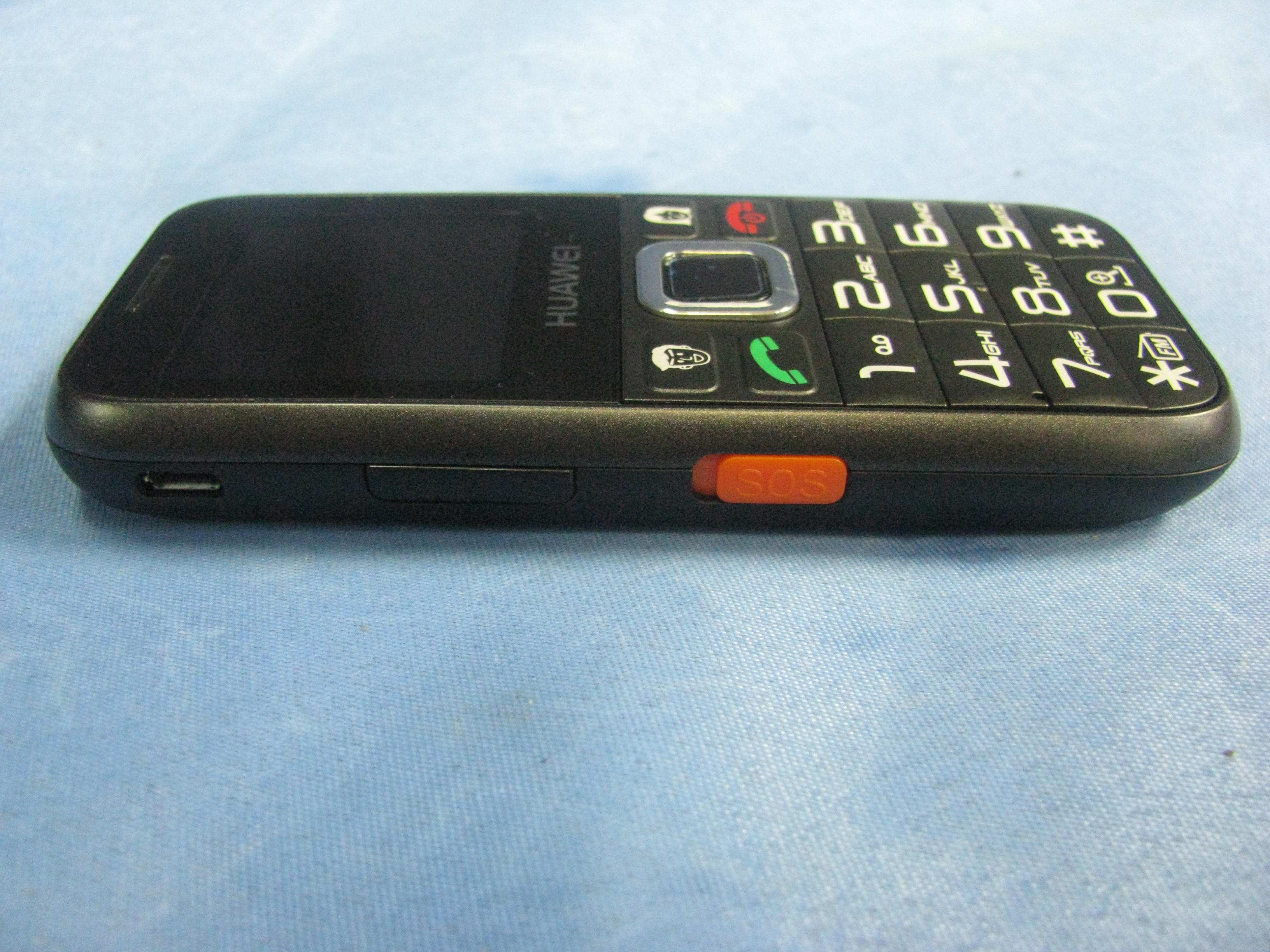

External Photos

Label Artwork and Location Label Size: 18 x 10 mm

Internal Photos

No.2012SAR00033 Page 1 of 103 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2012SAR00033 For Huawei Technologies Co., Ltd. GSM Mobile Phone Model name: HUAWEI G5000 With Hardware Version: L170_MB_V1.0 Software Version: ZL170A25D: G5000S_V100R001B603C00SP01 FCCID: QISG5000 Issued Date: 2012-03-30 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com Revision Version Report Number Revision Date Memo 2012SAR00033 00 2012/03/27 Initial creation of test report 2012SAR00033 01 2012/03/30 Update the information of MU, frequency ranges and equipment list No. 2012SAR00033 Page 3 of 103 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................5 1.1 TESTING LOCATION........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT................................................................................................................................. 5 1.3 PROJECT DATA............................................................................................................................................... 5 1.4 SIGNATURE..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................6 3 CLIENT INFORMATION..............................................................................................................7 3.1 APPLICANT INFORMATION.............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 8 5 TEST METHODOLOGY ..............................................................................................................9 5.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR)....................................................................................10 6.1 INTRODUCTION............................................................................................................................................. 10 6.2 SAR DEFINITION.......................................................................................................................................... 10 7 SAR MEASUREMENT SETUP ................................................................................................. 11 7.1 MEASUREMENT SET-UP................................................................................................................................11 7.2 DASY4 OR DASY5 E-FIELD PROBE SYSTEM................................................................................................ 12 7.3 E-FIELD PROBE CALIBRATION...................................................................................................................... 12 7.4 OTHER TEST EQUIPMENT............................................................................................................................. 13 7.4.1 DATA ACQUISITION ELECTRONICS(DAE) ................................................................................................. 13 7.4.2 ROBOT....................................................................................................................................................... 14 7.4.3 MEASUREMENT SERVER............................................................................................................................ 14 7.4.4 DEVICE HOLDER FOR PHANTOM................................................................................................................ 15 7.4.5 PHANTOM.................................................................................................................................................. 15 8. POSITION OF THE WIRELESS DEVICE IN RELATION TO THE PHANTOM........................17 8.1 GENERAL CONSIDERATIONS.......................................................................................................................... 17 8.2 BODY-WORN DEVICE.................................................................................................................................... 18 8.3 DESKTOP DEVICE.......................................................................................................................................... 18 8.4 DUT SETUP PHOTOS.................................................................................................................................... 20 9 TISSUE SIMULATING LIQUIDS ....................................…

Text truncated - open the document above for the full version.

SAR evaluation considerations for handsets with multiple transmitters and antennas Procedure: FCC KDB 648474 v01r05 SAR evaluation considerations for handsets with multiple transmitters and antennas. Equipment: A mobile phone contains GSM850/1900 transmitter and Bluetooth transmitter with FCC ID： QISG5000. Measurement data: The closest distance between the GSM850/1900 antenna and Bluetooth antenna is 60mm. The maximum output power of Bluetooth transmitter is 4.54mW. The maximum SAR value for GSM850/1900 transmitter is 0.518 W/kg (1-g). Conclusion: Based on the output power of Bluetooth transmitter, antenna separation and the SAR value of GSM850/1900 transmitter, stand-alone Bluetooth SAR evaluation is not required. The sum of 1-g SAR is 0.518 W/kg + 0 W/kg = 0.518 W/kg, which is less than 1.6 W/kg. Therefore, simultaneous transmission SAR evaluation is not required.

Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com 19 March, 2012 Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, China Tel.: (86) 755- 89650288 Fax: (86) 755- 89650226 Dear Mr. Zhang Xinghai: Enclosed you will find your file copy of an Original Grant of Part 22 and Part 24 Certification report (FCC ID: QISG5000). Model: HUAWEI G5000. For your reference, TCB will normally take another 2 weeks for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Leung Wai Leung, Tommy Deputy General Manager Enclosure Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com List of Exhibits Exhibit Type File Description Filename Test Report Test Report report.pdf Operational Description Technical Description descri.pdf Test Report Bandwidth Plot bw.pdf Test Report Spurious Emissions cspurious.pdf Test Report Bandedge Plot be.pdf RF Exposure Info SAR Report sar report. pdf Cover Letter SAR Justification sar justification.pdf External Photos External Photo external photos.pdf Internal Photos Internal Photo internal photos.pdf ID Label/Location Info Label Artwork and Location label.pdf Cover Letter Label Location Justification justification.pdf Block Diagrams Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf User Manual User Manual manual.pdf Part List/Tune Up Info Tune Up Procedure tuneup.pdf Part List/Tune Up Info Part List partlist.pdf Cover Letter Letter of Agency letter of agency.pdf Cover Letter Confidentiality Request request.pdf • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 22H&24E_a Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com TEST REPORT Report Number: SZ12030095-1 Application for Original Grant of 47 CFR Part 22 and Part 24 Certification GSM Mobile Phone FCC ID: QISG5000 Prepared and Checked by: Approved by: Billy Li Leung Wai Leung, Tommy Team Leader Deputy General Manager 19 March, 2012 19 March, 2012 INTERTEK TESTING SERVICES TRF: FCC 22H&24E_a Test Report Number: SZ12030095-1 Page 1 of 20 FCC ID: QISG5000 GENERAL INFORMATION Applicant Name: Huawei Technologies Co.,Ltd Applicant Address: Bantian, Longgang District, Shenzhen, China FCC Specification Standard: FCC Part 22: 2011 FCC Part 24: 2011 FCC ID: QISG5000 FCC Model(s): HUAWEI G5000 Type of EUT: GSM 850/1900 Transceiver with Bluetooth Description of EUT: GSM Mobile Phone Serial Number: N/A Sample Receipt Date: 05 March, 2012 Date of Test: 19 March, 2012 Report Date: 19 March, 2012 Environmental Conditions: Temperature: 25 ± 10°C Humidity: 10 to 90% INTERTEK TESTING SERVICES TRF: FCC 22H&24E_a Test Report Number: SZ12030095-1 Page 2 of 20 FCC ID: QISG5000 Table of Contents 1.0 Summary of Test Results.................................................................................................................................. 3 1.1 Statement of Compliance................................................................................................................................ 3 2.0 General Description............................................................................................................................................ 4 2.1 Product Description........................................................................................................................................... 4 2.2 Test Methodology.............................................................................................................................................. 5 2.3 Test Facility........................................................................................................................................................ 5 3.0 System Test Configuration................................................................................................................................ 6 3.1 Justification.........................................................................................................................................................6 3.2 Details of EUT and Description of Accessories.............................................................................................. 8 3.3 Measurement Uncertainty.............................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES GSM 850 A Offset 10.3 dB LVL Ref 40 dBmAtt 60 dB ** 150 kHz/Center 824 MHzSpan 1.5 MHz * 3DB RBW 3 kHz SWT 170 ms * VBW 10 kHz * *1 RM VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -16.84 dB m 823.979000000 MHz -13DBM A Offset 10.3 dB LVL Ref 40 dBmAtt 60 dB ** 150 kHz/Center 849 MHzSpan 1.5 MHz * * RBW 3 kHz VBW 10 kHz SWT 170 ms 3DB * *1 RM VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -14.34 dB m 849.021000000 MHz -13dBm INTERTEK TESTING SERVICES GSM 1900 A Offset 10.3 dB LVL Ref 40 dBmAtt 60 dB ** 150 kHz/Center 1.85 GHzSpan 1.5 MHz * * RBW 3 kHz VBW 10 kHz SWT 170 ms 3DB * *1 RM VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -21.47 dB m 1.849982000 GHz -13dBm A Offset 10.3 dB LVL Ref 40 dBmAtt 60 dB ** 150 kHz/Center 1.91 GHzSpan 1.5 MHz * * RBW 3 kHz VBW 10 kHz SWT 170 ms 3DB * *1 RM VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -20.13 dB m 1.910018000 GHz -13dBm INTERTEK TESTING SERVICES GPRS 850 A Offset 10.3 dB LVL Ref 38 dBmAtt 60 dB * 150 kHz/Center 824 MHzSpan 1.5 MHz * * 3DB RBW 3 kHz VBW 10 kHz SWT 170 ms *1 RM VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -14.73 dB m 823.997000000 MHz -13DBM A Att 60 dB * Offset 10.3 dB LVL Ref 38 dBm Center 849 MHzSpan 1.5 MHz150 kHz/ * 3DB RBW 3 kHz SWT 170 ms * VBW 10 kHz *1 RM VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -15.12 dBm 849.024000000 MHz -13DBM INTERTEK TESTING SERVICES GPRS 1900 A Offset 10.3 dB LVL Ref 38 dBmAtt 60 dB * 150 kHz/Center 1.85 GHzSpan 1.5 MHz * * 3DB RBW 3 kHz VBW 10 kHz SWT 170 ms *1 RM VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -19.05 dB m 1.849997000 GHz -13DBM A Offset 10.3 dB LVL Att 60 dB * * 3DB RBW 3 kHz SWT 170 ms * VBW 10 kHz *1 RM MAXH Ref 38 dBm Center 1.91 GHzSpan 1.5 MHz150 kHz/ -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -20.12 dBm 1.910021000 GHz -13DBM

INTERTEK TESTING SERVICES GSM 850 (99% bandwidth) A 1 PK MAXH Ref 40.3 dBm Offset 10.3 dB LVL Att 40 dB * Center 836.6 MHzSpan 1 MHz100 kHz/ * 3DB RBW 10 kHz VBW 30 kHz SWT 10 ms -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 28.91 dBm 836.606000000 MHz OBW246.000000000 kHz T1 Temp 1 [T1 OBW] 14.54 dBm 836.478000000 MHz T2 Temp 2 [T1 OBW] 13.50 dBm 836.724000000 MHz GSM 1900 (99% bandwidth) A Ref 40.3 dBm Offset 10.3 dB LVL Att 40 dB * Center 1.88 GHzSpan 1 MHz100 kHz/ * 3DB RBW 10 kHz VBW 30 kHz SWT 10 ms 1 PK MAXH -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 24.44 dBm 1.880000000 GHz OBW246.000000000 kHz T1 Temp 1 [T1 OBW] 10.01 dBm 1.879878000 GHz T2 Temp 2 [T1 OBW] 9.28 dBm 1.880124000 GHz INTERTEK TESTING SERVICES GPRS 850 (99% bandwidth) A Ref 40.3 dBm Offset 10.3 dB LVL Att 40 dB * Center 836.6 MHzSpan 1 MHz100 kHz/ 1 PK MAXH * 3DB RBW 10 kHz VBW 30 kHz SWT 10 ms -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 27.76 dBm 836.612000000 MHz OBW244.000000000 kHz T1 Temp 1 [T1 OBW] 12.75 dBm 836.478000000 MHz T2 Temp 2 [T1 OBW] 14.20 dBm 836.722000000 MHz GPRS 1900 (99% bandwidth) A Ref 40.3 dBm Offset 10.3 dB LVL Att 40 dB * Center 1.88 GHzSpan 1 MHz100 kHz/ * 3DB RBW 10 kHz VBW 30 kHz SWT 10 ms 1 PK MAXH -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 24.48 dBm 1.880000000 GHz OBW244.000000000 kHz T1 Temp 1 [T1 OBW] 10.62 dBm 1.879880000 GHz T2 Temp 2 [T1 OBW] 9.28 dBm 1.880124000 GHz INTERTEK TESTING SERVICES GSM 850 (26dB bandwidth) A 1 PK MAXH Ref 40.3 dBm Offset 10.3 dB LVL Att 40 dB * Center 836.6 MHzSpan 1 MHz100 kHz/ * 3DB RBW 10 kHz VBW 30 kHz SWT 10 ms -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 28.58 dBm 836.630000000 MHz ndB [T1] 26.00 dB BW 322.000000000 kHz T1 Temp 1 [T1 ndB] 2.51 dBm 836.440000000 MHz T2 Temp 2 [T1 ndB] 2.69 dBm 836.762000000 MHz GSM 1900 (26dB bandwidth) A 1 PK MAXH Ref 40.3 dBm Offset 10.3 dB LVL Att 40 dB * Center 1.88 GHzSpan 1 MHz100 kHz/ * 3DB RBW 10 kHz VBW 30 kHz SWT 10 ms -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 23.95 dBm 1.879984000 GHz ndB [T1] 26.00 dB BW 320.000000000 kHz T1 Temp 1 [T1 ndB] -2.81 dBm 1.879840000 GHz T2 Temp 2 [T1 ndB] -1.55 dBm 1.880160000 GHz INTERTEK TESTING SERVICES GPRS 850 (26dB bandwidth) A Ref 40.3 dBm Offset 10.3 dB LVL Att 40 dB * Center 836.6 MHzSpan 1 MHz100 kHz/ * 3DB RBW 10 kHz VBW 30 kHz SWT 10 ms 1 PK MAXH -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 27.35 dBm 836.588000000 MHz ndB [T1] 26.00 dB BW 324.000000000 kHz T1 Temp 1 [T1 ndB] 1.03 dBm 836.438000000 MHz T2 Temp 2 [T1 ndB] 1.53 dBm 836.762000000 MHz GPRS 1900 (26dB bandwidth) A Ref 40.3 dBm Offset 10.3 dB LVL Att 40 dB * Center 1.88 GHzSpan 1 MHz100 kHz/ 3DB SWT 10 ms 1 PK MAXH * RBW 10 kHz VBW 30 kHz -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 24.70 dBm 1.879994000 GHz ndB [T1] 26.00 dB BW 316.000000000 kHz T1 Temp 1 [T1 ndB] -1.28 dBm 1.879844000 GHz T2 Temp 2 [T1 ndB] -1.55 dBm 1.880160000 GHz

INTERTEK TESTING SERVICES GSM 850 A Att 40 dB * Offset 10.3 dB LVL Ref 35 dBm 89.9 MHz/Start 1 MHzStop 900 MHz * 3DB RBW 100 kHz SWT 90 ms * VBW 300 kHz 1 PK VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 32.02 dB m 837.070000000 MHz D1 -13 dBm A Att 40 dB * Offset 10.3 dB LVL Ref 35 dBm 820 MHz/Start 800 MHzStop 9 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 820 ms 1 PK VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 30.67 dB m 832.800000000 MHz D1 -13 dBm INTERTEK TESTING SERVICES GSM 1900 A Att 40 dB * Offset 10.3 dB LVL Ref 35 dBm 194.9 MHz/Start 1 MHzStop 1.95 GHz * * 3DB RBW 1 MHz VBW 3 MHz SWT 10 ms 1 PK VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 27.10 dB m 1.883734000 GHz D1 -13 dBm A Att 40 dB * Offset 10.3 dB LVL Ref 35 dBm 1.77 GHz/Start 1.8 GHzStop 19.5 GHz * * RBW 1 MHz VBW 3 MHz SWT 360 ms 3DB 1 PK VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 27.15 dB m 1.870800000 GHz D1 -13 dBm INTERTEK TESTING SERVICES GPRS 850 A Offset 10.3 dB LVL Ref 38 dBmAtt 40 dB * 89.9 MHz/Start 1 MHzStop 900 MHz 1 PK MAXH * 3DB RBW 100 kHz SWT 90 ms * VBW 300 kHz -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 32.18 dB m 837.070000000 MHz D1 -13 dBm A Offset 10.3 dB LVL Ref 38 dBmAtt 40 dB * 1 PK MAXH 820 MHz/Start 800 MHzStop 9 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 820 ms -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 31.64 dBm 832.800000000 MHz D1 -13 dBm INTERTEK TESTING SERVICES GPRS 1900 A Offset 10.3 dB LVL Ref 38 dBmAtt 40 dB * 1 PK MAXH 194.9 MHz/Start 1 MHzStop 1.95 GHz * * 3DB RBW 1 MHz VBW 3 MHz SWT 10 ms -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 26.86 dB m 1.883734000 GHz D1 -13 dBm A Offset 10.3 dB LVL Ref 38 dBmAtt 40 dB * 1 PK MAXH 1.77 GHz/Start 1.8 GHzStop 19.5 GHz * * 3DB RBW 1 MHz VBW 3 MHz SWT 360 ms -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 26.88 dB m 1.883734000 GHz D1 -13 dBm
