QISG526-L33LTE/UMTS Smart Phone, Ascend G526

Quick Start Guide G526 Getting to know your phone Thank you for choosing the HUAWEI smartphone. First, let's take a look at a few basics: Press and hold the power button to power on your phone. After your phone is powered up, you can use the power button to turn the screen off and on. Headset jack Power Volume key Charger/ Data port Front cameraEarpiece BackHomeMenu Status indicator Preparing your phone To insert a SIM card, the battery and a microSD card please perform the few steps shown in the following figures. Your phone is shipped with the battery partially charged. It is recommended that you fully charge the battery before using it for the first time. Remove the battery cover Insert the microSD card (optional) 1 3 Insert the SIM card 2 Insert the battery Charge the battery 4 6 5 Close the battery cover a b Locking and unlocking the screen When you are not using your phone, press the power button to turn off the screen. After being idle for a specified period of time, your phone automatically locks its screen. Follow the onscreen instructions and drag to unlock the screen or open an application. Personalizing your Home screen The unique Me Widget can group widgets that you often use. You can touch an icon to open a widget. Touch and hold Me Widget until your phone vibrates, and then touch to customize your Me Widget. Status bar Display area 10:30 Managing contacts Touch to open People. From the contact list, touch > Manage contacts to import contacts from the SIM card, microSD card, or another Bluetooth device. Touch the Groups tab page to group your contacts for easier management. Create contact Making a call Touch to open the dialer. You can dial a phone number directly or touch to choose a contact. You can also touch a phone number in places like messages, email and webpages to make a call. To answer an incoming call, drag to . ********** Sending messages Touch to open Messaging. Adding a photo or audio clip to a text message turns it into a multimedia message. You can also save attachments from multimedia messages. Happy birthday! Attach file ********** Taking a photo or video Touch to open Camera. In photo mode, let your camera focus automatically or touch the screen to focus the camera. Then touch to take a photo. In video mode, frame the scene and touch to record a video. In photo mode, open the settings menu and touch > Quick to turn on Quick mode. This lets you take several photos in rapid succession by touching quickly. Open option menu Zoom in or out View photos and videos taken A Switch between photo and video modes Listening to music Touch to open Play Music. You can copy songs to your phone and immerse yourself with extraordinary audio experience anytime. You can play songs by name, artist, album and more. Progress bar Playlist screen Music player controls Back For more help Need more help? Touch to open Help Center. Want to obtain the user guide? Search for and download the User Guide from www.huaweidevice.com. Want to learn more about Huawei Emotion UI? Visit en.ui.vmall.com for the latest information. ?? Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment • Please consult your doctor and the device manufacturer to determine if operation of your phone may interfere with the operation of your medical device. • Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. • Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. • Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset • To prevent possible hearing damage, do not listen at high volume levels for long periods. • Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. • Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives • Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. • Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security • Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. • Concentrate on driving. Your first responsibility is to drive safely. • Do not hold the device while driving. Use hands-free accessories. • When you must make or answer a call, pull off the road safely and park the vehicle first. • RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. • Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates. • Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment • Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the …

Text truncated - open the document above for the full version.

Justification Letter Date (14/06/2013) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby to do the Justification on original FCC application: LTE/UMTS Smart Phone, G536-L33, FCC ID: QISG526-L33 as following: G526-L33 is a LTE/WCDMA /GSM Smart phone. The GSM supports four bands. The WCDMA supports W1900、W850 and W1700. LTE supports B4 and B7. G526-L22 is a LTE/WCDMA /GSM Smart phone. The GSM supports two bands. The WCDMA supports W850. LTE supports B7. The difference between GL526-L22 (Product Type: LTE/UMTS Smart Phone; Model No.: G526-L22; FCC ID: QISG526-L22, Grant date: 2013-06-06) and G526-L33: 1) G526-L33 added the transmitter components for WCDMA1700( UMTS Band 4) and WCDMA1900( UMTS Band 2) , LTE Bands 4. The PCB and circuit are the same. 2) With different model no. The followed table is show the different between the 2 Models. G526-L22 G526-L33 GSM four bands the same the same WCDMA bands W850 W1900/ W1700/ W850 LTE bands B7 B4/B7 FLASH the same The same Mainboard the same the same Appearance the same the same Bluetooth mode the same the same WLAN mode the same the same BT/ WLAN antenna the same the same GSM/ WCDMA antenna the same the same External camera the same the same internal camera the same the same Adapter the same the same Battery the same the same Chipset the same the same Memory the same the same Form factor Bar type, Internal antenna the same RF Parameter The same RF Parameter in the same band the same BT RF Parameter the same the same Dimension the same the same Weight the same the same Bluetooth the same the same External camera the same the same Main Frequency NV The same NV in the same band The same NV in the same band BT conducted power the same the same WIFI conducted power the same the same So in FCC application for G526-L33 (FCC ID: QISG526-L33), Test data for Bluetooth is from report “SYBH(Z-RF)003042013-2002 ” in FCC application for G526- L22(FCC ID: QISG526-L22,Grant date: 2013-06-06), and this data according to Part 15C remains valid and applicable and they are representative of the compliance of G526-L33. Test data for WIFI is from report “SYBH(Z-RF)003042013-2003 ” in FCC application for G526- L22(FCC ID: QISG526-L22, Grant date: 2013-06-06), and this data according to Part 15C remains valid and applicable and they are representative of the compliance of G526-L33. Test data for GSM/WCDMA/LTE is refer to new test report “SYBH(Z-EMC)004042013-2001”, and this data according to Part 22/24/27 are representative of the compliance of G526-L33. Test data for Part 15B Unintentional Radiator is refer to new test report “SYBH(Z-EMC)005042013-2”, and this data according to Part 15B are representative of the compliance of G526-L33. SAR Test data for GSM850/1900, UMTS850, WIFI in submitted report “SYBH(Z-SAR)005042013-2” refer to report “RHA1304-0036SAR01R5” in FCC application for G526-L22(FCC ID: QISG526-L22, Grant date: 2013-06-06), also new SAR test data for G526-L33, which repeated all the SAR test on UMTS1900/1700, LTE Band 4&7. So all the data according to OET Bulletin No. 65, Supplement C- 2001, IEEE 1528-2003, IEEE Std C95.1-1999V remains valid and applicable and they are representative of the compliance G526-L33. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Date (06/03/2013) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Bu Cookies Phone: +86-755-88286998 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISG526-L33 This authorization is valid until further written notice from Huawei Technologies Co., Ltd. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, 518129 Guangdong, P.R.China Tel: +86-755-2878-1879 ; Fax: +86-755-2878-1889 Date: May 17, 2013 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISG526-L33, has a battery, But the battery will not be placed in the battery compartment when delivery, it is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2013-5-15 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISG526-L33 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure KDB Inquiry Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2013-08-28: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

Huawei Technologies Co., Ltd Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China +86 755 28780808 www.huawei.com Declaration of Letter Product Type: LTE/UMTS Smart Phone Model No.: HUAWEI G526-L33, G526-L33 FCC ID: QISG526-L33 Both two models were identical, only difference is the model name. And two models have the same technical construction, including software design, RF module, antennas, circuit design and PCB layout. There are no differences between the two models (HUAWEI G526-L33, G526-L33) on electrical and mechanical construction. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

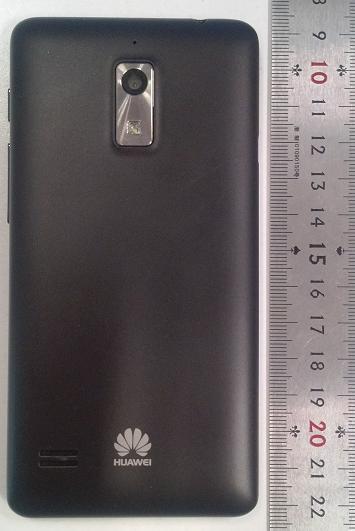

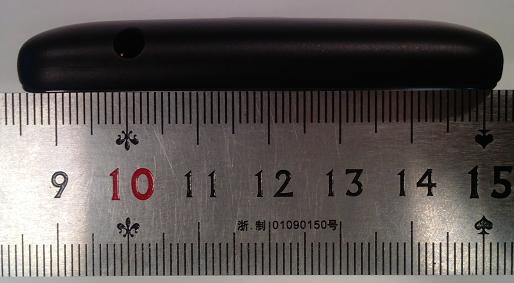

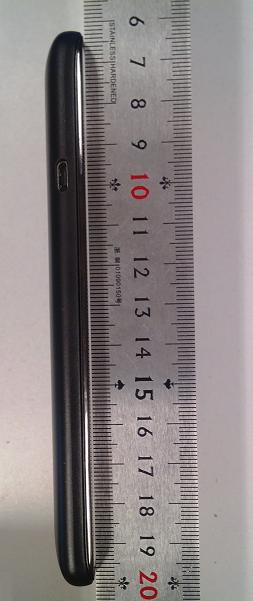

HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page1,Total 5 External Photos of HUAWEI G526-L33, G526-L33 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page2,Total 5 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page3,Total 5 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page4,Total 5 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page5,Total 5

HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page1,Total 6 Internal Photos of HUAWEI G526-L33, G526-L33 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page2,Total 6 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page3,Total 6 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page4,Total 6 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page5,Total 6 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page6,Total 6

HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page1, Total 4 Label Location HUAWEI G526-L33, G526-L33 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page2, Total 4 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page3, Total 4 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page4, Total 4 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page5, Total 4

HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page1,Total 6 Internal Photos of HUAWEI G526-L33, G526-L33 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page2,Total 6 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page3,Total 6 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page4,Total 6 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page5,Total 6 HUAWEI G526-L33, G526-L33 LTE/UMTS Smart Phone; HUAWEI Ascend G526 SECRET Page6,Total 6

Report No.:SYBH(Z-SAR) 005042013-2 FCC ID:QISG526-L33 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-ES-Head SystemPerformanceCheck-D835-ES-Body SystemPerformanceCheck-D1800-ES-Head SystemPerformanceCheck-D1800-ES-Body SystemPerformanceCheck-D1800-ES-Body SystemPerformanceCheck-D1900-ES-Head SystemPerformanceCheck-D1900-ES-Body SystemPerformanceCheck-D2450-ES-Head SystemPerformanceCheck-D2450-ES-Body SystemPerformanceCheck-D2600-ES-Body Date: 2013-5-14 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.922 S/m; ε r = 41.859; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.53 W/kg Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.998 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.50 W/kg SAR(1 g) = 2.4 W/kg; SAR(10 g) = 1.64 W/kg Maximum value of SAR (measured) = 2.58 W/kg 0 dB = 2.58 W/kg = 4.12 dBW/kg Date: 2013-5-16 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.982 S/m; ε r = 56.024; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.43 W/kg Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.506 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 3.60 W/kg SAR(1 g) = 2.49 W/kg; SAR(10 g) = 1.67 W/kg Maximum value of SAR (measured) = 2.67 W/kg 0 dB = 2.67 W/kg = 4.27 dBW/kg Date: 2013-4-25 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1800-ES-Head DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1800 MHz; σ = 1.454 S/m; ε r = 38.472; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.53, 5.53, 5.53); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 11.0 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.019 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 19.4 W/kg SAR(1 g) = 10.3 W/kg; SAR(10 g) = 5.37 W/kg Maximum value of SAR (measured) = 11.6 W/kg 0 dB = 11.6 W/kg = 10.64 dBW/kg Date: 2013-5-18 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1800-ES-Body DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1800 MHz; σ = 1.536 S/m; ε r = 53.164; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.21, 5.21, 5.21); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.1 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.187 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 15.8 W/kg SAR(1 g) = 8.95 W/kg; SAR(10 g) = 4.75 W/kg 0 dB = 10.1 W/kg = 10.06 dBW/kg Date: 2013-5-22 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1800-ES-Body DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1800 MHz; σ = 1.543 S/m; ε r = 53.029; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.21, 5.21, 5.21); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.2 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.187 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 15.8 W/kg SAR(1 g) = 8.99 W/kg; SAR(10 g) = 4.77 W/kg 0 dB = 10.2 W/kg = 10.07 dBW/kg Date: 2013-4-24 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-ES-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = …

Text truncated - open the document above for the full version.

Report No.:SYBH(Z-SAR) 005042013-2 FCC ID:QISG526-L33 Appendix B. SAR Measurement Plots Table of contents GSM850 Head GSM850 Body GSM1900 Head GSM1900 Body UMTS Band V Head UMTS Band V Body UMTS Band IV Head UMTS Band IV Body UMTS Band II Head UMTS Band II Body LTE Band IV Body LTE Band VII Body WiFi 802.11b Head WiFi 802.11b Body Date: 2013-5-14 Test Laboratory: HUAWEI SAR/HAC Lab G526-L33 GSM850 190CH Right hand touch cheeck with battery 1# DUT: HUAWEI G526-L33, G526-L33; Type: LTE/UMTS Smart Phone; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.924 S/m; ε r = 42.052; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.570 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.413 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.691 W/kg SAR(1 g) = 0.555 W/kg; SAR(10 g) = 0.420 W/kg Maximum value of SAR (measured) = 0.585 W/kg 0 dB = 0.585 W/kg = -2.33 dBW/kg Date: 2013-5-14 Test Laboratory: HUAWEI SAR/HAC Lab G526-L33 GSM850 190CH Right hand touch cheeck with battery 2# DUT: HUAWEI G526-L33, G526-L33; Type: LTE/UMTS Smart Phone; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.924 S/m; ε r = 42.052; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.552 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.609 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.684 W/kg SAR(1 g) = 0.551 W/kg; SAR(10 g) = 0.416 W/kg Maximum value of SAR (measured) = 0.581 W/kg 0 dB = 0.581 W/kg = -2.36 dBW/kg Date: 2013-5-14 Test Laboratory: HUAWEI SAR/HAC Lab G526-L33 GSM850 190CH Right hand touch cheeck with battery 3# DUT: HUAWEI G526-L33, G526-L33; Type: LTE/UMTS Smart Phone; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.924 S/m; ε r = 42.052; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.547 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.573 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.680 W/kg SAR(1 g) = 0.544 W/kg; SAR(10 g) = 0.413 W/kg Maximum value of SAR (measured) = 0.569 W/kg 0 dB = 0.569 W/kg = -2.45 dBW/kg Date: 2013-5-16 Test Laboratory: HUAWEI SAR/HAC Lab G526-L33 GSM850 GPRS 2TS 128CH Towards Ground 15mm with battery 1# DUT: HUAWEI G526-L33, G526-L33; Type: LTE/UMTS Smart Phone; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 824.4 MHz;Duty Cycle: 1:4.10015 Medium parameters used: f = 824 MHz; σ = 0.97 S/m; ε r = 56.221; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.707 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.584 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 0.953 W/kg SAR(1 g) = 0.783 W/kg; SAR(10 g) = 0.601 W/kg Maximum value of SAR (measured) = 0.822 W/kg 0 dB = 0.822 W/kg = -0.85 dBW/kg Date: 2013-5-16 Test Laboratory: HUAWEI SAR/HAC Lab G526-L33 GSM850 GPRS 2TS 128CH Towards Ground 15mm with battery 2# DUT: HUAWEI G526-L33, G526-L33; Type: LTE/UMTS Smart Phone; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 824.4 MHz;Duty Cycle: 1:4.10015 Medium parameters used: f = 824 MHz; σ = 0.97 S/m; ε r = 56.221; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.690 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.561 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.815 W/kg SAR(1 g) = 0.652 W/kg; SAR(10 g) = 0.493 W/kg Maximum value of SAR (measured) = 0.684 W/kg 0 dB = 0.684 W/kg = -1.65 dBW/kg Date: 2013-5-16 Test Laboratory: HUAWEI SAR/HAC Lab G526-L33 GSM850 GPRS 2TS 128CH Towards Ground 15mm with battery 3# DUT: HUAWEI G526-L33, G52…

Text truncated - open the document above for the full version.

Justification of the extended calibration of Dipole D835V2 SN: 4d126 Referred to 450824 D02 Dipole SAR Validation Verification v01, Published on Nov 17 2009, Otherwise, according to the IEEE Standard 1528a-2005 recommended annual calibration is expected, when happened as below the following: 1) When the most recent return-loss, measured at least annually, deviates by more than 20% from the previous measurement (i.e. 0.2 of the dB value) or not meeting the required -20 dB return-loss specification; 2) When the most recent measurement of the real or imaginary parts of the impedance, measured at least annually, deviates by more than 5 Ω from the previous measurement. Dipole835 Head TST Target Value Measured Value Difference Impedance transformed to feed point 52.2Ω-2.4jΩ 50.4Ω+1.17jΩ R=-1.8Ω, X=3.57Ω Return Loss - 30.0dB -31.73dB -5.77% Dipole835 Body TST Target Value Measured Value Difference Impedance transformed to feed point 47.8Ω-4.4jΩ 50.36Ω-0.85jΩ R=2.56Ω, X=3.55Ω Return Loss -25.9dB -27.3dB -5.41% Measure Data 2011-11-07 2012-09-13 -- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Justification of the extended calibration of Dipole D1800V2 SN: 2d184 Per KDB 450824, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole1800 Head TST Target Value Measured Value Difference Impedance transformed to feed point 49.7Ω-2.3jΩ 50.08Ω-2.27jΩ R=38Ω, X=0.03Ω Return Loss -32.8dB -33.14dB -1.04% Dipole1800 Body TST Target Value Measured Value Difference Impedance transformed to feed point 45.3Ω-2.3jΩ 45.230Ω-2.36jΩ R=0.07Ω, X=-0.06Ω Return Loss -25.2dB -25.39dB -0.75% Measured Date 2011-03-08 2013-03-07 ----- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Justification of the extended calibration of Dipole D1900V2 SN:5d143 Referred to 450824 D02 Dipole SAR Validation Verification v01, Published on Nov 17 2009, Otherwise, according to the IEEE Standard 1528a-2005 recommen…
