G5730 GSM Mobile Phone User Guide Huawei Technologies Co., Ltd. Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China Tel: +86-755-28780808 Global Hotline: +86-755-28560808 E-mail: [email protected] Website: www.huawei.com aCopyright © Huawei Technologies Co., Ltd. 2009. All rights reserved. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. 1 Contents 1 Getting Started.......................1 Installing the MicroSD Card, SIM Card and Battery...................1 Charging the Battery.............1 2 Getting to Know Your Phone...2 Your Phone...........................2 Keys and Functions................4 Screen Icons........................6 3 Voice Services........................8 Making a Call........................8 Answering a Call...................9 4 Text Entry............................10 Changing the Text Input Modes .........................................10 Deleting Text.......................10 Entering Text......................11 Entering Digits....................11 Entering Symbols................11 5 Messaging............................12 Writing and Sending a Text Message.............................12 Writing and Sending a Multimedia Message.............................12 6 Contacts...............................14 Creating a Contact...............14 Searching for a Contact........14 7 Camera.................................15 Taking a Photo....................15 Shortcut Keys on the Camera Screen...............................15 Taking a Video....................16 8 Radio....................................17 Searching for Channels.........17 2 Listening to the Radio...........17 Operations On the FM Screen.18 9 Bluetooth.............................19 Enabling or Disabling the Bluetooth Function...............19 Pairing a Device with the Phone .........................................19 Bluetooth Settings................19 Viewing Phone Information....20 10 Multimedia.........................21 Video Player........................21 Music Player........................21 Adding a New Play List in Music Player.................................22 11 Being used as a USB Disk....22 12 WAP...................................23 13 Warnings and Precautions..23 1 1 Getting Started Installing the MicroSD Card, SIM Card and Battery Ensure that the golden contact area on the SIM card is facing downward, and the beveled corner is properly aligned with the SIM card slot. 123 45 Charging the Battery During the charging, the charging icon is displayed in animation. When the charging icon becomes static, the battery is fully charged, disconnect the charger from the phone. 1 2 2 Getting to Know Your Phone Your Phone The following figure shows the appearance of your phone and it is for your reference only. 1 7 9 10 11 12 13 2 3 4 5 8 6 14 15 1 Navigation keys ( ) 2 Left soft key ( ) 3 Answer key ( ) 4 Confirm key ( ) 5 Number keys 3 6 * key ( ) 7 # key ( ) 8 Camera key ( ) 9 End key ( ) 10 Right soft key ( ) 11 Volume down key ( ) 12 Music key ( ) 13 Volume up key ( ) 14 Charger jack 15 Headset jack 4 Keys and Functions Press ... To ... l Make a call. l Answer an incoming call. l View call logs in standby mode. l Power on or power off the phone (by pressing and holding it). l End a call, or reject an incoming call. l Return to standby mode. Select the option displayed on the lower left corner of the screen. Press ... To ... Select the option displayed on the lower right corner of the screen. l Display the main menu in standby mode. l Confirm a selection. l Scroll through the features on a menu screen or an option screen. l Access the functions for which shortcuts are predefined in standby mode. 5 Press ... To ... - l Enter numbers, letters, and characters. l Call the voice mail center in standby mode (by pressing and holding the 1 key). l Speed-dial phone numbers in standby mode (by pressing and holding the 2–9 keys). Press ... To ... l In standby mode, press the key once to enter *, twice to enter +, three times to enter P, and four times to enter W. l Enable or disable the meeting mode in standby mode (by pressing and holding it). Enter #. , Adjust the volume. Access to the Music Player screen. Access to the Camera screen. 6 Screen Icons You can know the phone status through the icons displayed on the top line of the screen. Ico n Indicates... Signal strength. Roaming status. Battery power level. Edge signal. Ring alert type. Vibrate alert type. Ring and Vibrate alert type. Vibrate then ring alert type. Silence alert type. Ico n Indicates... Missed call(s). Call forwarding. Unread text message. Unread multimedia message. Unread push message. An alarm is activated. The keypad is locked. Audio background playing. The Bluetooth function is enabled and the device is set to visible. The Bluetooth function is enabled but the device is set to invisible. 7 Ico n Indicates... The microSD card is installed and is available for use. The headset is connected and is available for use. 8 3 Voice Services Making a Call 1. In standby mode, enter the phone number. l To make an international call, press twice consecutively to enter the plus sign (+). Then enter the international long distance code, country code or re…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISG5730 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

HUAWEI G5730 GSM Mobile Phone SECRET Page1,Total 3 External Photos of HUAWEI G5730 HUAWEI G5730 GSM Mobile Phone SECRET Page2,Total 3 HUAWEI G5730 GSM Mobile Phone SECRET Page3,Total 3

No.: RZA2009-0733 OET 65 TEST REPORT Test name Electromagnetic Field (Specific Absorption Rate) Product GSM Mobile Phone Model HUAWEI G5730 FCC ID QISG5730 Client HUAWEI Technologies Co., Ltd. TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 2of 202 GENERAL TERMS 1. The test report is invalid if not marked with “exclusive stamp for the data report” or the stamp of the TA. 2. Any copy of the test report is invalid if not re-marked with the “exclusive stamp for the test report” or the stamp of TA. 3. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 4. The test report is invalid if there is any evidence of erasure and/or falsification. 5. If there is any dissidence for the test report, please file objection to the test center within 15 days from the date of receiving the test report. 6. Normally, entrust test is only responsible for the samples that have undergone the test. 7. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permissions of TA. Address: Room4,No.399,Cailun Rd,Zhangjiang Hi-Tech Park, Pudong Shanghai,China Post code: 201203 Telephone: +86-021-50791141/2/3 Fax：+86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 3of 202 GENERAL SUMMARY Product GSM Mobile Phone Model HUAWEI G5730 Client HUAWEI Technologies Co., Ltd. Type of test Entrusted Manufacturer HUAWEI Technologies Co., Ltd. Arrival Date of sample June 11 th , 2009 Place of sampling (Blank) Carrier of the samples Peng Wang Quantity of the samples One Date of product (Blank) Base of the samples (Blank) Items of test SAR Series number/IMEI 862795000000333 Standard(s) ANSI/IEEE Std C95.1-1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE 1528–2003: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head Due to Wireless Communications Devices: Experimental Techniques. OET Bulletin 65 supplement C, published June 2001 including DA 02-1438, published June 2002: Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits. Transition Period for the Phantom Requirements of Supplement C to OET Bulletin 65. IEC 62209-1: Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 1: Procedure to determine the Specific Absorption Rate (SAR) for hand-held devices used in close proximity to the ear (frequency range of 300 MHz to 3 GHz). IEC 62209-2:2008(106/162/CDV): Human exposure to radio frequency fields from handheld and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 2: Procedure to determine the Specific Absorption Rate (SAR)for wireless communication devices used in close proximity to the human body .( frequency rang of 30MHz to 6GHz ) Conclusion Localized Specific Absorption Rate (SAR) of this portable wireless equipment has been measured in all cases requested by the relevant standards cited in Clause 7.2 of this test report. Maximum localized SAR is below exposure limits specified in the relevant standards cited in Clause 7.1 of this test report. General Judgment: Pass (Stamp) Date of issue: June 26 th , 2009 Comment The test result only responds to the measured sample. Approved by Weizhong Yang Revised by Minbao Ling Performed by Jinchang Li TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 4of 202 TABLE OF CONTENT 1. COMPETENCE AND WARRANTIES........................................................................................... 6 2. GENERAL CONDITIONS.............................................................................................................6 3. DESCRIPTION OF EUT ..............................................................................................................7 3.1. A DDRESSING INFORMATION RELATED TO EUT ..........................................................................7 3.2. C ONSTITUENTS OF EUT ..........................................................................................................7 3.3. T EST ITEM..............................................................................................................................8 3.4. G ENERAL DESCRIPTION..........................................................................................................8 4. OPERATIONAL CONDITIONS DURING TEST ........................................................................... 9 4.1. G ENERAL DESCRIPTION OF TEST PROCEDURES.........................................................................9 4.2. GSM TEST CONFIGURATION....................................................................................................9 5. SAR MEASUREMENTS SYSTEM CONFIGURATION .............................................................. 10 5.1. SAR MEASUREMENT SET-UP.................................................................................................10 5.2. D ASY4 E-FIELD PROBE SYSTEM............................................................................................ 11 5.2.1. EX3DV4 Probe Specification ....................................................................................... 11 5.2.2. E-field Probe Calibration ..............................................................................................12 5.3. O THER TEST EQUIPMENT......................................................................................................12 5.3.1. Device Holder for Transmitters ....................................................................................12 5.3.2. Phantom..........…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 101of 202 GSM 850 GPRS (4 timeslots uplink) Towards Phantom Middle Slide Close Date/Time: 6/25/2009 2:07:38 AM Communication System: GSM850 + GPRS(4Up); Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 837 MHz; σ = 1.01 mho/m; ε r = 55.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3660; ConvF(9.1, 9.1, 9.1); Calibrated: 9/3/2008 Electronics: DAE4 Sn452; Calibrated: 11/18/2008 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Phantom Middle/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.442 mW/g Towards Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.0 V/m; Power Drift = -0.147 dB Peak SAR (extrapolated) = 0.544 W/kg SAR(1 g) = 0.408 mW/g; SAR(10 g) = 0.296 mW/g Maximum value of SAR (measured) = 0.432 mW/g Figure 73 Body , Towards Phantom, Slide Close GSM 850 GPRS (4 timeslots uplink) Channel 190 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 102of 202 Figure 74 Z-Scan at power reference point [Body, Towards Phantom, Slide Close GSM 850 GPRS (4 timeslots uplink) Channel 190] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 103of 202 GSM 1900 Left Cheek Middle Slide Open Date/Time: 6/13/2009 1:12:41 PM Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Left Section DASY4 Configuration: Probe: EX3DV4 - SN3660; ConvF(7.35, 7.35, 7.35); Calibrated: 9/3/2008 Electronics: DAE4 Sn452; Calibrated: 11/18/2008 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Middle/Area Scan (51x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.469 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.85 V/m; Power Drift = 0.025 dB Peak SAR (extrapolated) = 0.571 W/kg SAR(1 g) = 0.384 mW/g; SAR(10 g) = 0.242 mW/g Maximum value of SAR (measured) = 0.470 mW/g Figure 75 Left Hand Touch Cheek Slide Open GSM 1900 Channel 661 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 104of 202 Figure 76 Z-Scan at power reference point (Left Hand Touch Cheek Slide Open GSM 1900 Channel 661) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 105of 202 GSM 1900 Left Tilt Middle Slide Open Date/Time: 6/13/2009 1:33:21 PM Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Left Section DASY4 Configuration: Probe: EX3DV4 - SN3660; ConvF(7.35, 7.35, 7.35); Calibrated: 9/3/2008 Electronics: DAE4 Sn452; Calibrated: 11/18/2008 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilt Middle/Area Scan (51x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.355 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.64 V/m; Power Drift = -0.020 dB Peak SAR (extrapolated) = 0.380 W/kg SAR(1 g) = 0.246 mW/g; SAR(10 g) = 0.151 mW/g Maximum value of SAR (measured) = 0.302 mW/g Figure 77 Left Hand Tilt 15° Slide Open GSM 1900 Channel 661 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 106of 202 Figure 78 Z-Scan at power reference point (Left Hand Tilt 15° Slide Open GSM 1900 Channel 661) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 107of 202 GSM 1900 Right Cheek High Slide Open Date/Time: 6/13/2009 1:53:26 PM Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1910 MHz; σ = 1.42 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Right Section DASY4 Configuration: Probe: EX3DV4 - SN3660; ConvF(7.35, 7.35, 7.35); Calibrated: 9/3/2008 Electronics: DAE4 Sn452; Calibrated: 11/18/2008 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek High/Area Scan (51x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.668 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.76 V/m; Power Drift = -0.070 dB Peak SAR (extrapolated) = 0.805 W/kg SAR(1 g) = 0.513 mW/g; SAR(10 g) = 0.303 mW/g Maximum value of SAR (measured) = 0.641 mW/g Figure 79 Right Hand Touch Cheek Slide Open GSM 1900 Channel 810 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 108of 202 Figure 80 Z-Scan at power reference point (Right Hand Touch Cheek Slide Open GSM 1900 Channel 810) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 109of 202 GSM 1900 Right Cheek Middle Slide Open Date/Time: 6/13/2009 12:18:16 PM Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Right Section DASY4 Configuration: Probe: EX3DV4 - SN3660; ConvF(7.35, 7.35, 7.35); Calibrated: 9/3/2008 Electronics: DAE4 Sn452; Calibrated: 11/18/2008 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Middle/Area Scan (51x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.666 mW/g Cheek Mi…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 156of 202 Figure 128 Z-Scan at power reference point [Body, Towards Ground, Slide Close GSM 1900 GPRS (4 timeslots uplink) Channel 810] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 157of 202 GSM 1900 GPRS (4 timeslots uplink) Towards Ground Middle Slide Close Date/Time: 6/25/2009 9:16:49 AM Communication System: GSM 1900+GPRS(4Up); Frequency: 1880 MHz;Duty Cycle: 1:2 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3660; ConvF(7.45, 7.45, 7.45); Calibrated: 9/3/2008 Electronics: DAE4 Sn452; Calibrated: 11/18/2008 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Middle/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.333 mW/g Towards Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.34 V/m; Power Drift = 0.032 dB Peak SAR (extrapolated) = 0.460 W/kg SAR(1 g) = 0.290 mW/g; SAR(10 g) = 0.178 mW/g Maximum value of SAR (measured) = 0.318 mW/g Towards Ground Middle/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.34 V/m; Power Drift = 0.032 dB Peak SAR (extrapolated) = 0.347 W/kg SAR(1 g) = 0.232 mW/g; SAR(10 g) = 0.154 mW/g Maximum value of SAR (measured) = 0.248 mW/g Figure 129 Body, Towards Ground, Slide Close GSM 1900 GPRS (4 timeslots uplink) Channel 661 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 158of 202 Figure 130 Z-Scan at power reference point [Body, Towards Ground, Slide Close GSM 1900 GPRS (4 timeslots uplink) Channel 661] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 159of 202 GSM 1900 GPRS (4 timeslots uplink) Towards Ground Low Slide Close Date/Time: 6/25/2009 10:51:42 AM Communication System: GSM 1900+GPRS(4Up); Frequency: 1850.2 MHz;Duty Cycle: 1:2 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.5 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3660; ConvF(7.45, 7.45, 7.45); Calibrated: 9/3/2008 Electronics: DAE4 Sn452; Calibrated: 11/18/2008 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Low/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.179 mW/g Towards Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.30 V/m; Power Drift = 0.038 dB Peak SAR (extrapolated) = 0.247 W/kg SAR(1 g) = 0.158 mW/g; SAR(10 g) = 0.101 mW/g Maximum value of SAR (measured) = 0.172 mW/g Towards Ground Low/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.30 V/m; Power Drift = 0.038 dB Peak SAR (extrapolated) = 0.202 W/kg SAR(1 g) = 0.139 mW/g; SAR(10 g) = 0.095 mW/g Maximum value of SAR (measured) = 0.147 mW/g Figure 131 Body, Towards Ground, Slide Close GSM 1900 GPRS (4 timeslots uplink) Channel 512 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 160of 202 Figure 132 Z-Scan at power reference point [Body, Towards Ground, Slide Close GSM 1900 GPRS (4 timeslots uplink) Channel 512] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 161of 202 GSM 1900 GPRS (4 timeslots uplink) Towards Phantom Middle Slide Close Date/Time: 6/25/2009 8:58:24 AM Communication System: GSM 1900+GPRS(4Up); Frequency: 1880 MHz;Duty Cycle: 1:2 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3660; ConvF(7.45, 7.45, 7.45); Calibrated: 9/3/2008 Electronics: DAE4 Sn452; Calibrated: 11/18/2008 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Phantom Middle/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.101 mW/g Towards Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.94 V/m; Power Drift = 0.080 dB Peak SAR (extrapolated) = 0.132 W/kg SAR(1 g) = 0.094 mW/g; SAR(10 g) = 0.067 mW/g Maximum value of SAR (measured) = 0.099 mW/g Figure 133 Body, Towards Phantom, Slide Close GSM 1900 GPRS (4 timeslots uplink) Channel 661 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 162of 202 Figure 134 Z-Scan at power reference point [Body, Towards Phantom, Slide Close GSM 1900 GPRS (4 timeslots uplink) Channel 661] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 163of 202 ANNEX D: PROBE CALIBRATION CERTIFICATE TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 164of 202 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 165of 202 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 166of 202 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 167of 202 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 168of 202 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 169of 202 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 170of 202 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 171of 202 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 172of 202 ANNEX E: D835V2 DIPOLE CALIBRATION CERTIFICATE TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 173of 202 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 174of 202 TA Technology (Shanghai) Co., Ltd. Test Rep…

Text truncated - open the document above for the full version.

FCC Test Report of HUAWEI G5730 FCC ID: QISG5730 Security Level: Public Report No: SYBHZ(R)E014062009EB-2 Confidential Information of HUAWEI. No Distribution without Permission Page1, Total2 Appendix A Modulation Characteristics According to FCC Part 2.1047 & Part22 Subpart H FCC Test Report of HUAWEI G5730 FCC ID: QISG5730 Security Level: Public Report No: SYBHZ(R)E014062009EB-2 Confidential Information of HUAWEI. No Distribution without Permission Page2, Total2 GSM850 (Channel 192, slot 3) TM1: GSM/GPRS

FCC Test Report of HUAWEI G5730 FCC ID: QISG5730 Security Level: Public Report No: SYBHZ(R)E014062009EB-2 Confidential Information of HUAWEI. No Distribution without Permission Page1, Total3 Appendix C Band Edges Compliance According to FCC Part 2.1051 & 22.917 FCC Test Report of HUAWEI G5730 FCC ID: QISG5730 Security Level: Public Report No: SYBHZ(R)E014062009EB-2 Confidential Information of HUAWEI. No Distribution without Permission Page2, Total3 Cellular Band TM1 Left Edge Channel 128 FCC Test Report of HUAWEI G5730 FCC ID: QISG5730 Security Level: Public Report No: SYBHZ(R)E014062009EB-2 Confidential Information of HUAWEI. No Distribution without Permission Page3, Total3 Right Edge Channel 251

FCC Test Report of HUAWEI G5730 FCC ID: QISG5730 Security Level: Public Report No: SYBHZ(R)E014062009EB-3 Confidential Information of Huawei. No Distribution without Written Permission Page 1, Total4 Appendix B Occupied Bandwidth According to FCC part 2.1049 and part 24 Subpart E FCC Test Report of HUAWEI G5730 FCC ID: QISG5730 Security Level: Public Report No: SYBHZ(R)E014062009EB-3 Confidential Information of Huawei. No Distribution without Written Permission Page 2, Total4 PCS 1900 Channel 512, slot 3 FCC Test Report of HUAWEI G5730 FCC ID: QISG5730 Security Level: Public Report No: SYBHZ(R)E014062009EB-3 Confidential Information of Huawei. No Distribution without Written Permission Page 3, Total4 Channel 661, slot 3 FCC Test Report of HUAWEI G5730 FCC ID: QISG5730 Security Level: Public Report No: SYBHZ(R)E014062009EB-3 Confidential Information of Huawei. No Distribution without Written Permission Page 4, Total4 Channel 810, slot 3

FCC Test Report of HUAWEI G5730 FCC ID: QISG5730 Security Level: Public Report No: SYBHZ(R)E014062009EB-3 Confidential Information of Huawei. No Distribution without Written Permission Page 1, Total3 Appendix C Band Edges Compliance According to FCC part 2.1051 and part 24.238 FCC Test Report of HUAWEI G5730 FCC ID: QISG5730 Security Level: Public Report No: SYBHZ(R)E014062009EB-3 Confidential Information of Huawei. No Distribution without Written Permission Page 2, Total3 PCS Band TM1 Left Edge Channel 512 FCC Test Report of HUAWEI G5730 FCC ID: QISG5730 Security Level: Public Report No: SYBHZ(R)E014062009EB-3 Confidential Information of Huawei. No Distribution without Written Permission Page 3, Total3 Right Edge Channel 810

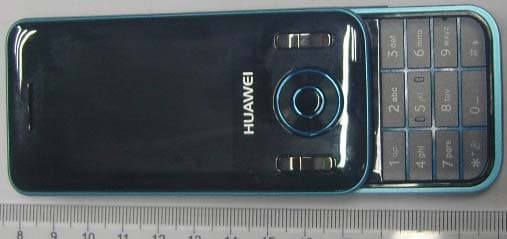

TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 195of 202 ANNEX H: THE EUT APPEARANCES AND TEST CONFIGURATION 6-a: close 6-b: open Picture 6: Constituents of EUT TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 196of 202 7-a: close 7-b: open Picture 7: Left Hand Touch Cheek Position TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 197of 202 8-a: close 8-b: open Picture 8: Left Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 198of 202 9-a: close 9-b: open Picture 9: Right Hand Touch Cheek Position TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 199of 202 10-a: close 10-b: open Picture 10: Right Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 200of 202 11-a: close 11-b: open Picture 11: Body, The EUT display towards ground, the distance from handset to the bottom of the Phantom is 20mm) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 201of 202 12-a: close 12-b: open Picture 12: Body, The EUT display towards phantom, the distance from handset to the bottom of the Phantom is 20mm) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2009-0733 Page 202of 202 6-a: close 6-a: open Picture 13: Body with earphone, The EUT display towards ground, the distance from handset to the bottom of the Phantom is 20mm)
