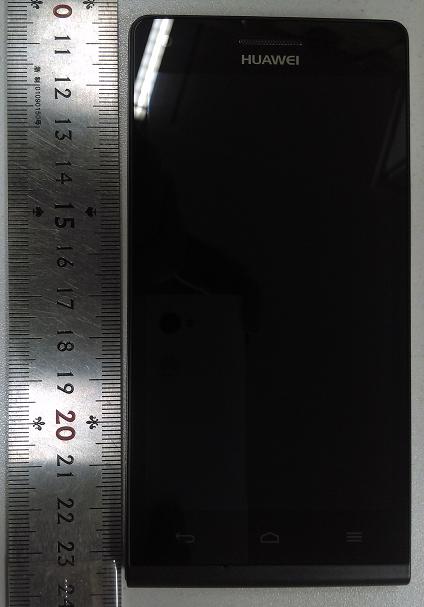

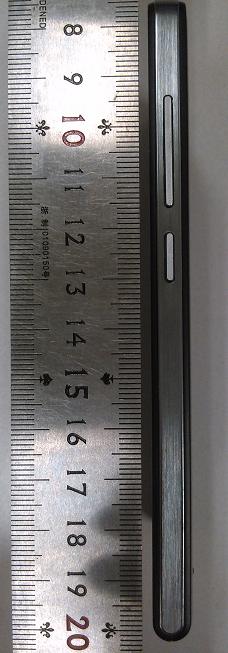

HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page1,Total 5 External Photos of HUAWEI G6-L11, G6-L11, P7 mini HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page2,Total 5 HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page3,Total 5 HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page4,Total 5 HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page5,Total 5

Huawei Technologies Co.,Ltd Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: 0086-0755-28970299 ; Fax: 0086-0755-89650226 Date: March 5, 2014 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISG6-L11, has a battery, But the battery will not be placed in the battery compartment when delivery, it is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page1, Total 4 Label Location HUAWEI G6-L11, G6-L11, P7 mini HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page2, Total 4 HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page3, Total 4 HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page4, Total 4 HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page5, Total 4

HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page1,Total 7 Internal Photos of HUAWEI G6-L11, G6-L11, P7 mini HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page2,Total 7 HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page3,Total 7 HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page4,Total 7 HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page5,Total 7 HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page6,Total 7 HUAWEI G6-L11, G6-L11, P7 mini LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini SECRET Page7,Total 7

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Product Name: LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini Model: HUAWEI G6-L11, G6-L11, P7 mini Report No.: SYBH(Z-SAR)022012014-2 FCC ID: QISG6-L11 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2014-03-18 2014-03-18 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report No.: SYBH(Z-SAR)022012014-2 FCC ID:QISG6-L11 2014-03-18 Page 2 of 51 Table of Contents 1 General Information ............................................................................................................................................... 4 1.1 Statement of Compliance .............................................................................................................................. 4 1.2 RF exposure limits ......................................................................................................................................... 5 1.3 EUT Description ............................................................................................................................................ 6 1.3.1 General Description ............................................................................................................................... 7 1.4 Test specification(s) ...................................................................................................................................... 8 1.5 Testing laboratory .......................................................................................................................................... 8 1.6 Applicant and Manufacturer .......................................................................................................................... 8 1.7 Application details .......................................................................................................................................... 8 1.8 Ambient Condition ........................................................................................................................................ 8 2 SAR Measurement System ................................................................................................................................. 9 2.1 SAR Measurement Set-up ........................................................................................................................... 9 2.2 Test environment ......................................................................................................................................... 10 2.3 Data Acquisition Electronics description .................................................................................................... 10 2.4 Probe description ......................................................................................................................................... 11 2.5 Phantom description .................................................................................................................................... 12 2.6 Device holder description ............................................................................................................................ 13 2.7 Test Equipment List ..................................................................................................................................... 14 3 SAR Measurement Procedure .......................................................................................................................... 15 3.1 Scanning procedure .................................................................................................................................... 15 3.2 Spatial Peak SAR Evaluation ...................................................................................................................... 16 3.3 Data Storage and Evaluation ...................................................................................................................... 17 4 System Verification Procedure ............................................................................................................................ 19 4.1 Tissue Verification ....................................................................................................................................... 19 4.2 System Check ............................................................................................................................................. 21 4.3 System check Procedure............................................................................................................................. 22 5 SAR measurement variability and uncertainty .................................................................................................... 23 5.1 SAR measurement variability ...................................................................................................................... 23 5.2 SAR measurement uncertainty ................................................................................................................... 23 6 SAR Test Configuration ...................................................................................................................................... 24 6.1 GSM Test Configuration .............................................................................................................................. 24 6.2 LTE Test Configuration..........…

Text truncated - open the document above for the full version.

Report No.:SYBH (Z-SAR)022012014-2 FCC ID: QISG6-L11 QISU2801-346369A-U280134 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-ES-Head SystemPerformanceCheck-D835-ES-Body SystemPerformanceCheck-D1900-ES-Head SystemPerformanceCheck-D1900-ES-Body SystemPerformanceCheck-D2450-ES-Head SystemPerformanceCheck-D2450-ES-Body SystemPerformanceCheck-D2600-ES-Head SystemPerformanceCheck-D2600-ES-Body Date: 2014-2-24 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.936 S/m; ε r = 42.309; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.26, 6.26, 6.26); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/d=15mm, Pin=250mW/Area Scan (6x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.80 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 48.271 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 3.61 W/kg SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 2.83 W/kg 0 dB = 2.80 W/kg = 4.47 dBW/kg Date: 2014-2-23 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.958 S/m; ε r = 53.456; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.06, 6.06, 6.06); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/d=15mm, Pin=250mW/Area Scan (6x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.79 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 51.091 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 3.55 W/kg SAR(1 g) = 2.43 W/kg; SAR(10 g) = 1.6 W/kg Maximum value of SAR (measured) = 2.84 W/kg 0 dB = 2.79 W/kg = 4.45 dBW/kg Date: 2014-2-26 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-ES-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.413 S/m; ε r = 40.542; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.15, 5.15, 5.15); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 11.2 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 88.540 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 18.3 W/kg SAR(1 g) = 10.1 W/kg; SAR(10 g) = 5.28 W/kg Maximum value of SAR (measured) = 12.6 W/kg 0 dB = 11.2 W/kg = 10.48 dBW/kg Date: 2014-2-27 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-ES-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.49 S/m; ε r = 50.822; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.72, 4.72, 4.72); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 12.5 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 69.423 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 9.91 W/kg; SAR(10 g) = 5.13 W/kg Maximum value of SAR (measured) = 12.6 W/kg 0 dB = 12.5 W/kg = 10.97 dBW/kg Date: 2014-3-6 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-ES-Head DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.823 S/m; ε r = 38.863; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.52, 4.52, 4.52); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/d=10mm, Pin=250mW/Area Scan (7x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 17.7 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.190 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 29.2 W/kg SAR(1 g) = 13.9 W/kg; SAR(10 g) = 6.32 W/kg Maximum value of SAR (measured) = 18.4 W/kg 0 dB = 17.7 W/kg = 12.48 dBW/kg Date: 2014-3-5 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-ES-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: UID 0,…

Text truncated - open the document above for the full version.

Justification of the extended calibration of Dipole D1900V2 SN: 5d143 Per KDB 865664, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole1900 Head TST Target Value Measured Value Difference Impedance transformed to feed point 53.5Ω+5.8jΩ 53.26Ω+5.99jΩ R=-0.24Ω, X=0.19Ω Return Loss -23.7dB -25.10dB -5.91% Dipole1900 Body TST Target Value Measured Value Difference Impedance transformed to feed point 48.4Ω+6.1jΩ 50.44Ω+6.40jΩ R=2.04Ω, X=0.3Ω Return Loss -23.9dB -24.91dB -4.23% Measured Date 2011-09-26 2013-09-12 ----- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Justification of the extended calibration of Dipole D2600V2 SN:1021 Per KDB 865664, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole2600 Head TST Target Value Measured Value Difference Impedance transformed to feed point 49.7Ω-3.6jΩ 48.16Ω-3.74jΩ R=-1.54Ω, X=-0.14Ω Return Loss -28.9dB -27.61dB 4.46% Dipole2600 Body TST Target Value Measured Value Difference Impedance transformed to feed point 47.3Ω-2.4jΩ 47.83Ω-2.66jΩ R=0.53Ω, X=-0.26Ω Return Loss -28.5dB -26.94dB 5.47% Measured Date 2011-11-22 2013-09-12 ----- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

FCC RF Test Report Product Name: LTE/UMTS Smart Phone; HUAWEI Ascend G6, HUAWEI Ascend P7 mini Model Number: HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2001-2002 FCC ID：QISG6-L11 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 20 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-1 and 6369A-3. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 20 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2014-01-28 Start Date of Test: 2014-02-05 End Date of Test: 2014-02-15 Test Result: Pass Approved by Senior Engineer: 2014-02-24 Dai Linjun Date Name Signature Prepared by: 2014-02-24 Ling Kaiyun Date Name Signature RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 20 Modification Record No. Last Report No. Modification Description First Report RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 20 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 3 Description of the Equipment under Test (EUT) ..................................................................................................... 8 3.1 General Description ................................................................................................................................... 8 3.2 EUT Identity ............................................................................................................................................... 8 3.3 Technical Description ............................................................................................................................... 10 4 General Test Conditions / Configurations ............................................................................................................. 11 4.1 Test Modes .............................................................................................................................................. 11 4.2 EUT Configurations .................................................................................................................................. 11 4.3 Test Environments ................................................................................................................................... 12 4.4 Antenna requirements .............................................................................................................................. 12 4.5 Description of tests................................................................................................................................... 13 4.6 Test Setups .............................................................................................................................................. 15 4.7 Test Conditions ........................................................................................................................................ 18 5 Main Test Instruments .......................................................................................................................................... 20 RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 20 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 2, Subpart J 2012 47 CFR FCC Part 15, Subpart C 2012 Test Method: FCC KDB 558074 D01 DTS Meas Guidance v03r01 ANSI C63.10-2009, American National Standard for Testing…

Text truncated - open the document above for the full version.

RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 114 Appendix for Test report RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 114 Appendix A: DTS (6 dB) Bandwidth In this document, the "DTS6dBBW" refers to the measured "DTS (6 dB) Bandwidth" value. In this Appendix, the "fc(DTS6dBBW)" refers to the centre of the measured "DTS6dBBW". The introduction of the "fc(DTS6dBBW)" is due to that other measurements use it as the spectrum analyzer setting. For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. Part I - Test Results Test Mode Test Channel Frequency[MHz] DTS6dBBW[MHz] Verdict 11B L 2412 8.76 pass 11B M 2437 9.18 pass 11B H 2462 8.80 pass 11G L 2412 16.47 pass 11G M 2437 16.52 pass 11G H 2462 16.48 pass 11N20 L 2412 17.63 pass 11N20 M 2437 17.73 pass 11N20 H 2462 17.69 pass RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 114 Part II - Test Plots 2.1 11B_L RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 114 2.2 11B_M RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 114 2.3 11B_H RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 114 2.4 11G_L RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 114 2.5 11G_M RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 114 2.6 11G_H RF Test Report of HUAWEI G6-L11, G6-L11, P7 mini Report No: SYBH(Z-RF)012012014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 114 2.7 11N20_L RF Test Report of HUAWEI G6-L11, G6-L11, P7 mi…

Text truncated - open the document above for the full version.
