HUAWEI TECHNOLOGIES CO., LTD. Date: 2012-8-30 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISG6153W ATTESTATION FCC ID: QISG6153W Product: GSM Mobile Phone Model: HUAWEI G6153W We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Zhang Xinghai/manager HUAWEI TECHNOLOGIES CO., LTD.

RF_160, Issue 02 HUAWEI TECHNOLOGIES CO., LTD. Declaration of Authorization We Name: HUAWEI TECHNOLOGIES CO., LTD. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C City: SHENZHEN Country: China Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: GSM Mobile Phone Type designation: HUAWEI G6153W on our behalf. Date: 2012-8-30 City: SHENZHEN Name: Zhang Xinghai (2) Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

HUAWEI TECHNOLOGIES CO., LTD. Date: 2012-8-30 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISG6153W Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description 4 BOM List 5 Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________________ Zhang Xinghai/manager HUAWEI TECHNOLOGIES CO., LTD.

HUAWEI TECHNOLOGIES CO., LTD. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Attestation for FCC Declaration of Conformity FCC ID: QISG6153W Date: 2012/08/30 Please be notified that we, the undersigned, HUAWEI TECHNOLOGIES CO., LTD. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DOC. And the DoC procedure shall be carried out prior to marketing the device in the US. The test report number supporting the DOC is 128187R-ITUSP01V02Testing in regards to this report was done by QuieTek Corp., located at No.5-22, Rueishu Keng, Rueiping Tsuen, Linkou Shiang, Taipei County 244, Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Zhang Xinghai/manager HUAWEI TECHNOLOGIES CO., LTD.

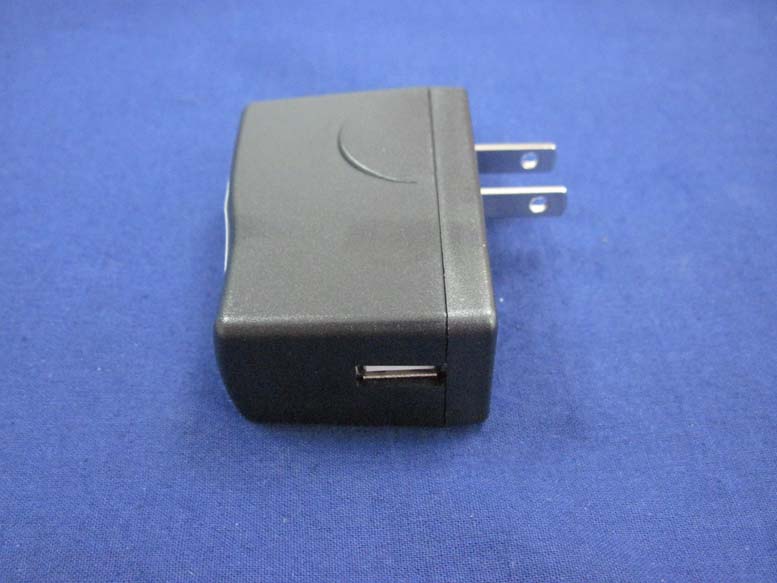

¾ EUT Photograph (1) EUT Photo (Dual SIM Slot) (2) EUT Photo (Dual SIM Slot) (3) EUT Photo (Dual SIM Slot) (4) EUT Photo (Dual SIM Slot) (5) EUT Photo (Dual SIM Slot) (6) EUT Photo (Dual SIM Slot) (7) EUT Photo (Adapter #1) (8) EUT Photo (Adapter #1) (9) EUT Photo (Adapter #2) (10) EUT Photo (Adapter #2) (11) EUT Photo (12) EUT Photo

Single card label: Dual card label:

(1) EUT Photo (Dual SIM Slot) (2) EUT Photo (Dual SIM Slot) (3) EUT Photo (Dual SIM Slot) (4) EUT Photo (Dual SIM Slot) (5) EUT Photo (Dual SIM Slot) (6) (7) EUT Photo (Dual SIM Slot) (8) EUT Photo (Dual SIM Slot) (9) EUT Photo (Dual SIM Slot) (10) EUT Photo (Dual SIM Slot) (11) EUT Photo (Single SIM Slot) (12) EUT Photo (Single SIM Slot) (13) EUT Photo (Single SIM Slot) (14) EUT Photo (Single SIM Slot) (15) EUT Photo (Single SIM Slot) (16) EUT Photo (Battery #1) (17) EUT Photo (Battery #1) (18) EUT Photo (Battery #2) (19) EUT Photo (Battery #2) (20) EUT Photo (Battery #3) (21) EUT Photo (Battery #3) (22) EUT Photo (Battery #4) (23) EUT Photo (Battery #4)

Report No.: 128S003R-HP-US-P03V01 Page: 1 of 135 SAR Test Report Product Name : GSM Mobile Phone Model No. : HUAWEI G6153W FCC ID : QISG6153W Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt : 06/08/2012 Date of Test : 15/08/2012 Issued Date : 29/08/2012 Report No. : 128S003R-HP-US-P03V01 Report Version : V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 128S003R-HP-US-P03V01 Page: 2 of 135 Test Report Certification Issued Date: 29/08/2012 Report No.: 128S003R-HP-US-P03V01 Product Name : GSM Mobile Phone Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Manufacturer : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Model No. : HUAWEI G6153W FCC ID : QISG6153W Brand Name : HUAWEI EUT Voltage : DC 3.7V Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003,47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) Head: 1.210 W/kg Body: 1.050 W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Engineering Supervisor: Robin Wu) Approved By : (Manager: Marlin Chen) Report No.: 128S003R-HP-US-P03V01 Page: 3 of 135 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3 rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No.: 128S003R-HP-US-P03V01 Page: 4 of 135 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................6 1.1. EUT Description ..................................................................................................6 1.2. Test Procedure ....................................................................................................8 1.3. Test Environment.................................................................................................8 2. SAR Measurement System ......................................................................................9 2.1. DASY5 System Description.................................................................................9 2.1.1. Applications ...................................................................................................10 2.1.2. Area Scans ....................................................................................................10 2.1.3. Zoom Scan (Cube Scan Averaging) ..............................................................10 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging .........................................10 2.2. DASY5 E-Field Probe........................................................................................ 11 2.2.1. Isotropic E-Field Probe Specification ............................................................. 11 2.3. Boundary Detection Unit and Probe Mounting Device ......................................12 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................12 2.5. Robot.................................................................................................................13 2.6. Light Beam Unit .................................................................................................13 2.7. Device Holder ....................................................................................................14 2.8. SAM Twin Phantom...........................................................................................14 3. Tissue Simulating Liquid .......................................................................................15 3.1. The composition of the tissue simulating liquid .................................................15 3.2. Tissue Calibration Result...................................................................................16 3.3. Tissue Dielectric Parameters for Head and Body Phantoms .............................17 4. SAR Measurement Procedure ...............................................................................18 4.1. SAR System Validation......................................................................................18 …

Text truncated - open the document above for the full version.

Report No.: 128S003R-HP-US-P03V01 Page: 96 of 135 Appendix D. Probe Calibration Data Report No.: 128S003R-HP-US-P03V01 Page: 97 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 98 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 99 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 100 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 101 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 102 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 103 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 104 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 105 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 106 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 107 of 135 Appendix E. Dipole Calibration Data Report No.: 128S003R-HP-US-P03V01 Page: 108 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 109 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 110 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 111 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 112 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 113 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 114 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 115 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 116 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 117 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 118 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 119 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 120 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 121 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 122 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 123 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 124 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 125 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 126 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 127 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 128 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 129 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 130 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 131 of 135 Appendix F. DAE Calibration Data Report No.: 128S003R-HP-US-P03V01 Page: 132 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 133 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 134 of 135 Report No.: 128S003R-HP-US-P03V01 Page: 135 of 135

FCC Part15.247 Test Report Product Name : GSM Mobile Phone Model No. : HUAWEI G6153W FCC ID : QISG6153W Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt : 06/08/2012 Test Date : 06/08/2012~20/08/2012 Issued Date : 21/08/2012 Report No. : 128S003R-RF-US-P06V02 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 128S003R-RF-US-P06V02 Page: 2 of 100 Test Report Certification Issued Date : 21/08/2012 Report No. : 128S003R-RF-US-P06V02 Product Name : GSM Mobile Phone Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Manufacturer : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Model No. : HUAWEI G6153W FCC ID : QISG6153W EUT Voltage : DC 3.7V Trade Name : HUAWEI Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2012; ANSI C63.4: 2009; ANSI C63.10: 2009 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Engineering Supervisor: Robin Wu) Approved By : (Manager: Marlin Chen) Report No.: 128S003R-RF-US-P06V02 Page: 3 of 100 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No.: 128S003R-RF-US-P06V02 Page: 4 of 100 TABLE OF CONTENTS Description Page 1. General Information .......................................................................................................6 1.1. EUT Description .........................................................................................................6 1.2. Mode of Operation .....................................................................................................9 1.3. Tested System Details..............................................................................................10 1.4. Configuration of Tested System ............................................................................... 11 1.5. EUT Exercise Software ............................................................................................12 2. Technical Test ..............................................................................................................13 2.1. Summary of Test Result ...........................................................................................13 2.2. Test Environment.....................................................................................................14 3. Conducted Emission ....................................................................................................15 3.1. Test Equipment ........................................................................................................15 3.2. Test Setup ................................................................................................................15 3.3. Limit..........................................................................................................................16 3.4. Test Procedure.........................................................................................................16 3.5. Uncertainty ...............................................................................................................16 3.6. Test Result...............................................................................................................17 4. Radiated Emission.......................................................................................................19 4.1. Test Equipment ........................................................................................................19 4.2. Test Setup ................................................................................................................20 4.3. Limit.........................................................................…

Text truncated - open the document above for the full version.

Part22&24-Test Photograph Description: ERP Test Setup Description: Substitution Antenna for ERP Test Description: EIRP Test Setup Description: Substitution Antenna for EIRP Test SAR-Test Setup Photographs Test Setup Photographs Left-Cheek Touch Left-Tilt 15° Right-Cheek Touch Right-Tilt 15° Body SAR Back 15mm Body SAR Front 15mm Body SAR Back 15mm with Headset Body SAR Front 15mm with Headset Depth of the liquid in the phantom – Zoom in Note: The position used in the measurements were according to IEEE 1528 - 2003 Part 15C-Test Setup Photograph Description: Conducted Emission Test Setup Description: Radiated Emission Test Setup for Below 30MHz Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for 1~18GHz Description: Radiated Emission Test Setup for Above 18GHz
