QISG620S-L03Smart Phone

Quick Start Guide G620S Your phone at a glance Thank you for choosing the HUAWEI Ascend G620S. Before you start, let's take a look at your new phone. Press the power button to turn on or turn off the screen. To forcibly restart your phone, press and hold the power button until your phone vibrates. Headset jack Power button Volume button Micro USB port Front camera Earpiece Return Home Menu Status indicator Installing the SIM card Follow the instructions in the figures below to install your micro-SIM cardSIM card. Then press and hold the power button to power on your phone. )NGXMKZNKVNUTK 3 1 5VKTZNKHGZZKX_IU\KX 2 /TYKXZZNKSOIXU9/3IGXJ /TYKXZZNKSOIXU9*IGXJUVZOUTGR Locking and unlocking the screen Press the power button to lock the screen. Your phone automatically locks its screen after being idle for a specified period of time. You can touch > Display > Sleep to set the screen timeout period. If the screen is off, press the power button to turn it on. Slide your finger toward any direction to unlock the screen. Calling Touch and enter a phone number on the dialer. Your phone then displays matching contacts. Touch a contact to place a call. Alternatively, touch and enter the initials or first few letters of a contact's name to quickly find the contact. From the displayed matching contacts, touch the contact you want to call. You can also touch a number from Messaging, Email, or Browser to place a call. 400 Messaging Touch to open Message. Attaching a file to a text message converts the message into a multimedia message. You can save photos, audio clips, or videos from received multimedia messages. When you are typing, flick down from the status bar to open the notification panel, and touch to switch the input method. Attach a file ********** Hello! Camera Touch to launch Camera. Frame the scene you want to capture, and have the phone automatically focus itself or touch the screen to focus on a specific object. Touch to take a photo or touch to shoot a video. When the screen is locked, press the volume down button twice quickly to launch the camera and take a photo. A Select shooting mode View your photos Phone Manager Phone Manager can help you manage application permissions, optimize the system, clean up your storage, and save battery power. Touch to open Phone Manager. Flick left for more functions More information For the full user guide, go to http://consumer.huawei.com/ en/ and search for HUAWEI Ascend G620S. Want to learn more about Huawei EMUI? Visit http://en.ui.vmall.com/ for the latest information. This guide is for reference only. The actual product, including but not limited to the color, size, and screen layout, may vary. All statements, information, and recommendations in this guide do not constitute a warranty of any kind, express or implied. Personal Information and Data Security The use of some functions or third-party applications on your device could result in your personal information and data being lost or becoming accessible to others. Several measures are recommended to help you protect personal and confidential information. • Place your device in a safe area to prevent it from unauthorized use. • Set your device screen to lock and create a password or unlock pattern to open it. • Periodically back up personal information kept on your SIM/UIM card, memory card, or stored in your device memory. If you change to a different device, be sure to move or delete any personal information on your old device. • If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without opening them. • If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your personal information. • If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access. When these services are not in use, turn them off. • Install or upgrade device security software and regularly scan for viruses. • Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should be scanned for viruses. • Install security software or patches released by Huawei or third-party application providers. • Some applications require and transmit location information. As a result, a third-party may be able to share your location information. • Your device may provide detection and diagnostic information to third-party application providers. Third party vendors use this information to improve their products and services. • If you have concerns about the security of your personal information and data, please contact [email protected]. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment • Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. • Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. • Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset • To prevent possible hearing damage, do not listen at high volume levels for long periods. • Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. • Exposure to high volumes while driving may cause …

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-9- 22 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISG620S-L03 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-03-22: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District,Shenzhen,518129,P.R.C Tel: 0086-0755-28970299 ; Fax: 0086-0755-89650226 Date: September 22, 2014 Statement We, Huawei Technologies Co., Ltd, states that our device, FCC ID: QISG620S-L03, has a battery, But the battery will not be placed in the battery compartment when delivery, it is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

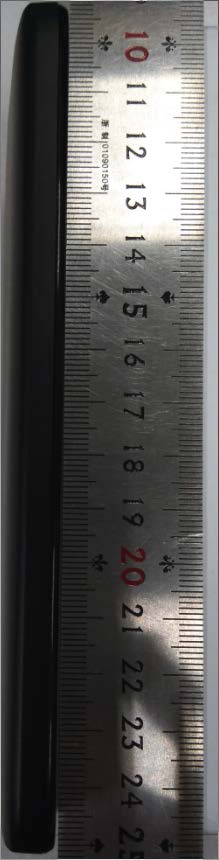

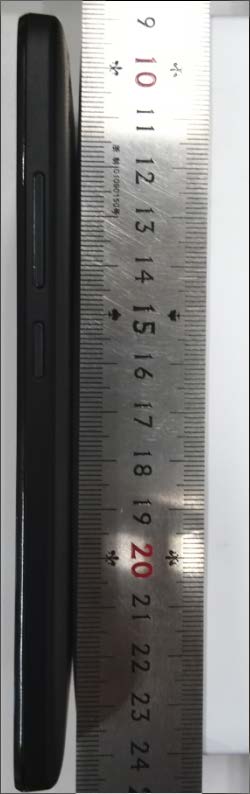

HUAWEI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page1,Total 5 External Photos of HUAWEI G620S-L03, G620S-L03 HUAWEI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page2,Total 5 HUAWEI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page3,Total 5 HUAWEI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page4,Total 5 HUAWEI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page5,Total 5

HUAW EI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page1, Total 4 Label Location HUAWEI G620S-L03, G620S-L03 HUAW EI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page2, Total 4 HUAW EI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page3, Total 4 HUAW EI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page4, Total 4

HUAWEI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page1,Total 7 Internal Photos of HUAWEI G620S-L03, G620S-L03 HUAWEI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page2,Total 7 HUAWEI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page3,Total 7 HUAWEI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page4,Total 7 HUAWEI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page5,Total 7 HUAWEI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page6,Total 7 HUAWEI G620S-L03, G620S-L03 Smart Phone; HUAWEI Ascend G620S SECRET Page7,Total 7

Report No.: SYBH (Z-SAR)020082014-2 FCC ID:QISG620S-L03 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-EX-Head SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1750-EX-Head SystemPerformanceCheck-D1750-EX-Body SystemPerformanceCheck-D1900-EX-Head SystemPerformanceCheck-D1900-EX-Body SystemPerformanceCheck-D2450-EX-Head SystemPerformanceCheck-D2450-EX-Body SystemPerformanceCheck-D2600-EX-Head SystemPerformanceCheck-D2600-ES-Body Date: 2014-9-9 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: UID 0, CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.894 S/m; ε r = 39.683; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(9.09, 9.09, 9.09); Calibrated: 2014-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2013-11-25 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=15mm, Pin=250mW/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.54 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.54 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 3.54 W/kg SAR(1 g) = 2.33 W/kg; SAR(10 g) = 1.51 W/kg Maximum value of SAR (measured) = 2.74 W/kg 0 dB = 2.54 W/kg = 4.06 dBW/kg Date: 2014-9-6 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: UID 0, CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.972 S/m; ε r = 53.451; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(9.06, 9.06, 9.06); Calibrated: 2014-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2013-11-25 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=15mm, Pin=250mW/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.41 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.23 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.57 W/kg SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.59 W/kg Maximum value of SAR (measured) = 2.61 W/kg 0 dB = 2.41 W/kg = 3.83 dBW/kg Date: 2014-9-10 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1750-EX-Head DUT: Dipole 1750 MHz D1750V2; Type: D1750V2; Serial: D1750V2 - SN:1123 Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1750 MHz; σ = 1.331 S/m; ε r = 39.618; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(8.03, 8.03, 8.03); Calibrated: 2014-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2013-11-25 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.44 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 85.34 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 16.0 W/kg SAR(1 g) = 8.83 W/kg; SAR(10 g) = 4.61 W/kg Maximum value of SAR (measured) = 11.1 W/kg 0 dB = 9.44 W/kg = 9.75 dBW/kg Date: 2014-9-10 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1750-EX-Body DUT: Dipole 1750 MHz D1750V2; Type: D1750V2; Serial: D1750V2 - SN:1123 Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1750 MHz; σ = 1.531 S/m; ε r = 51.509; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(7.28, 7.28, 7.28); Calibrated: 2014-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2013-11-25 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.64 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 81.08 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 16.1 W/kg SAR(1 g) = 9.01 W/kg; SAR(10 g) = 4.73 W/kg Maximum value of SAR (measured) = 11.3 W/kg 0 dB = 9.64 W/kg = 9.84 dBW/kg Date: 2014-9-4 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-EX-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d142 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.385 S/m; ε r = 39.346; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(7.6, 7.6, 7.6); Calibrated: 2014-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2013-11-25 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 11.8 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 82.90 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 18.1 W/kg SAR(1 g) = 9.93 W/kg; SAR(10 g) = 5.19 W/kg Maximum value of SAR (measured) = 12.4 W/kg 0 dB = 11.8 W/kg = 10.70 dBW/kg Date: 2014-9-4 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: …

Text truncated - open the document above for the full version.

Justification of the extended calibration of Dipole D 835V2 SN:4d059 Per KDB 865664, we have Measured the Impedance and Return Loss as below, and the r etur n los s is <-20dB, with 20% of prior calibration; t he real or imaginary parts of t he impedance is with 5 ohm of prior calibr ation . Therefore the verification result should support extended calibration. Dipole835Head TST Target Value Measured Value Difference Impedance transformed to feed point 51.7Ω-2.7jΩ 50.43Ω-2.79jΩ R=-1.27Ω, X=-0.09Ω Return Loss -30.2dB -30.16dB 0.13% Dipole835 Body TST Target Value Measured Value Difference Impedance transformed to feed point 47.1Ω-4.7jΩ 46.74Ω-4.96jΩ R=-0.36Ω, X=-0.26Ω Return Loss -24.9dB -24.63dB 1.08% Measured Date 2013-05-02 2014-05-01 ----- Impedance Test-Head Return Loss Test-Head

Justification of the extended calibration of Dipole D1900V2 SN: 5d143 Per KDB 865664, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole1900 Head TST Target Value Measured Value Difference Impedance transformed to feed point 53.5Ω+5.8jΩ 53.26Ω+5.99jΩ R=-0.24Ω, X=0.19Ω Return Loss -23.7dB -25.10dB -5.91% Dipole1900 Body TST Target Value Measured Value Difference Impedance transformed to feed point 48.4Ω+6.1jΩ 50.44Ω+6.40jΩ R=2.04Ω, X=0.3Ω Return Loss -23.9dB -24.91dB -4.23% Measured Date 2011-09-26 2013-09-12 ----- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Product Name: Smart Phone; HUAWEI Ascend G620S Model: HUAWEI G620S-L03, G620S-L03 Report No.: SYBH(Z-SAR)020082014-2 FCC ID: QISG620S-L03 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2014-09-21 2014-09-21 The test results of this test report relate exclusively to the item(s) tested . The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report No.: SYBH(Z-SAR)020082014-2 FCC ID:QISG620S-L03 2014-09-21 Page 2 of 94 Table of Contents 1 General Information ............................................................................................................................................... 5 1.1 Statement of Compliance .............................................................................................................................. 5 1.2 RF exposure limits ......................................................................................................................................... 6 1.3 EUT Description ............................................................................................................................................ 7 1.3.1 General Description ............................................................................................................................... 9 1.3.2 Hotspot power reduction specification ................................................................................................... 9 1.4 Test specification(s) .................................................................................................................................... 10 1.5 Testing laboratory ........................................................................................................................................ 10 1.6 Applicant and Manufacturer ........................................................................................................................ 10 1.7 Application details ........................................................................................................................................ 10 1.8 Ambient Condition ...................................................................................................................................... 10 2 SAR Measurement System ................................................................................................................................. 11 2.1 SAR Measurement Set-up .......................................................................................................................... 11 2.2 Test environment ......................................................................................................................................... 12 2.3 Data Acquisition Electronics description .................................................................................................... 12 2.4 Probe description ......................................................................................................................................... 13 2.5 Phantom description .................................................................................................................................... 14 2.6 Device holder description ............................................................................................................................ 15 2.7 Test Equipment List ..................................................................................................................................... 16 3 SAR Measurement Procedure ............................................................................................................................ 17 3.1 Scanning procedure .................................................................................................................................... 17 3.2 Spatial Peak SAR Evaluation ...................................................................................................................... 18 3.3 Data Storage and Evaluation ...................................................................................................................... 19 4 System Verification Procedure ............................................................................................................................ 21 4.1 Tissue Verification ....................................................................................................................................... 21 4.2 System Check ............................................................................................................................................. 24 4.3 System check Procedure............................................................................................................................. 25 5 SAR measurement variability and uncertainty .................................................................................................... 26 5.1 SAR measurement variability ...................................................................................................................... 26 5.2 SAR measurement uncertainty ................................................................................................................... 26 6 SAR Test Configuration ....................................................................................................................................... 27 6.1 GSM Test Configuration ...............................................…

Text truncated - open the document above for the full version.

Report No.:SYBH (Z-SAR)020082014-2 FCC ID: QISG620S-L03 Appendix B. SAR Measurement Plots Table of contents GSM850 Head GSM850 Body GSM1900 Head GSM1900 Body UMTS Band V Head UMTS Band V Body UMTS Band IV Head UMTS Band IV Body UMTS Band II Head UMTS Band II Body LTE Band II Head LTE Band II Body LTE Band IV Head LTE Band IV Body LTE Band VII Head LTE Band VII Body WiFi 2450 MHz Head WiFi 2450 MHz Body Date: 2014-9-9 Test Laboratory: HUAWEI SAR/HAC Lab G620S-L03 GSM850 128CH Left hand touch cheek DUT: HUAWEI Ascend G620S; Type: Smart Phone; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 824.2 MHz;Duty Cycle: 1:8.30042 Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.883 S/m; ε r = 39.824; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(9.09, 9.09, 9.09); Calibrated: 2014-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2013-11-25 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.445 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.03 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.538 W/kg SAR(1 g) = 0.432 W/kg; SAR(10 g) = 0.334 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.475 W/kg 0 dB = 0.475 W/kg = -3.23 dBW/kg Date: 2014-9-7 Test Laboratory: HUAWEI SAR/HAC Lab G620S-L03 GSM850 190CH Back side 15mm DUT: HUAWEI Ascend G620S; Type: Smart Phone; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.974 S/m; ε r = 53.43; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(9.06, 9.06, 9.06); Calibrated: 2014-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2013-11-25 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.614 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.52 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.703 W/kg SAR(1 g) = 0.563 W/kg; SAR(10 g) = 0.432 W/kg Maximum value of SAR (measured) = 0.617 W/kg 0 dB = 0.617 W/kg = -2.10 dBW/kg Date: 2014-9-7 Test Laboratory: HUAWEI SAR/HAC Lab G620S-L03 GSM850 GPRS 2TS 128CH Back side 10mm DUT: HUAWEI Ascend G620S; Type: Smart Phone; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-2TS (0); Frequency: 824.4 MHz;Duty Cycle: 1:4.10015 Medium parameters used (interpolated): f = 824.4 MHz; σ = 0.961 S/m; ε r = 53.564; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(9.06, 9.06, 9.06); Calibrated: 2014-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2013-11-25 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.870 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.41 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.989 W/kg SAR(1 g) = 0.795 W/kg; SAR(10 g) = 0.618 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.868 W/kg 0 dB = 0.868 W/kg = -0.62 dBW/kg Date: 2014-9-4 Test Laboratory: HUAWEI SAR/HAC Lab G620S-L03 GSM1900 810CH Left hand touch cheek DUT: G620S-L03; Type: HUAWEI Ascend G620S; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 1909.8 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 1910 MHz; σ = 1.394 S/m; ε r = 39.303; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(7.6, 7.6, 7.6); Calibrated: 2014-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2013-11-25 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Head/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.285 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.723 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.388 W/kg SAR(1 g) = 0.260 W/kg; SAR(10 g) = 0.164 W/kg Maximum value of SAR (measured) = 0.306 W/kg 0 dB = 0.306 W/kg = -5.14 dBW/kg Date: 2014-9-5 Test Laboratory: HUAWEI SAR/HAC Lab G620S-L03 GSM1900 661CH Back side 15mm DUT: HUAWEI Ascend G620S; Type: Smart Phone; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 1880 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 1880 MHz; σ = 1.518 S/m; ε r = 51.46; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(7.17, 7.17, 7.17); Calibrated: 2014-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2013-11-25 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.634 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.557 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.858 W/kg SAR(1 g) = 0.520 W/kg; SAR(10 g) = 0.296 W/…
