QISG630-U20Smart Phone HUAWEI Ascend G630

Quick Start Guide G630 HUAWEI Your phone at a glance Thank you for choosing the HUAWEI Ascend G630 smartphone. Before you start, let's take a look at your new phone. Headset jack Light sensor Return MicrophoneMicro USB port Menu Home Power button Volume button Front camera Earpiece Status indicator Installation Follow the instructions in the following figures to complete the installation. Then press and hold the power button to power on your phone. Press and hold the power button for 10 or more seconds to restart your phone. Open the battery cover. 1 Insert the micro-SIM card. 2 Open the microSD card cover. 3 G H Push the microSD card cover toward the top of the phone to release it. G H Flip the microSD card cover open. 6 Install the battery cover. 7 Charge the phone. 4 Place the microSD card into the card slot. 5 Fasten the microSD card cover. G H Close the microSD card cover. G H Push the microSD card cover back into its original position. Locking and unlocking the screen Your phone automatically locks its screen after being idle for a specified period of time. Alternatively, you can press the power button to manually lock the screen. You can go to and touch Display > Sleep to set the screen timeout period. Follow the onscreen instructions and drag to unlock the screen or open an application. Managing contacts Touch to open People. From the contact list, touch > Manage contacts to import contacts from the SIM card, microSD card, or another Bluetooth device. Touch the Groups tab page to group your contacts for easier management. )XKGZKG IUTZGIZ Placing a call Touch and enter a phone number on the dialer. If you have existing contacts on your phone, your phone automatically displays matching results as you type. Touch a number to place a call. You can also touch a number from Contacts, Messaging, Email, or Browser to place a call. 400 Messaging Touch to open Message. Attaching a file to a text message converts the message into a multimedia message. You can save photos, audio clips, or videos from received multimedia messages. When you are typing, open the notification panel and touch to switch the input method. 'ZZGIN GLORK .GVV_(OXZNJG_ ********** Camera Touch to open Camera. Have the phone automatically focus itself or touch the screen to focus on a specific object. Then touch to take a photo. To shoot a video, frame the scene you want to record and touch to start shooting. A 8KVRG_ VNUZUUX \OJKU 9]OZIN HKZ]KKT VNUZUGTJ \OJKUSUJKY 5VKT UVZOUT SKT[ Listening to music Touch to open Music. Play your songs by name, artist, or album, and mark your favorite songs. Huawei Beam Huawei Beam lets you quickly share data between two Near Field Communication (NFC) enabled phones. Go to and touch NFC. Touch NFC then Huawei Beam. To beam a web page or contact to another phone, place the two phones back to back and touch the content. More information For the full user guide, go to http://consumer.huawei.com/en/ and search for HUAWEI Ascend G630. Want to learn more about Huawei Emotion UI? Visit http://en.ui.vmall.com/ for the latest information. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment • Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. • Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. • Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset • To prevent possible hearing damage, do not listen at high volume levels for long periods. • Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. • Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives • Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. • Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security • Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. • Concentrate on driving. Your first responsibility is to drive safely. • Do not hold the device while driving. Use hands-free accessories. • When you must make or answer a call, pull off the road safely and park the vehicle first. • RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. • Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates. • Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment • Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions. • Do not use your device during thunderstorms to protect your device a…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-02-28 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISG630-U20 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2014-04-28: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226 Tel: 0086-0755-28970299

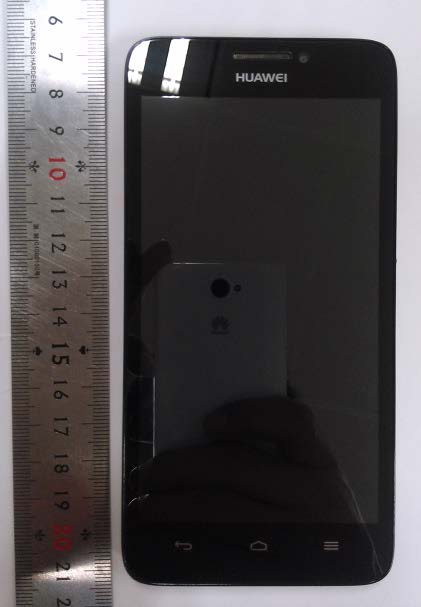

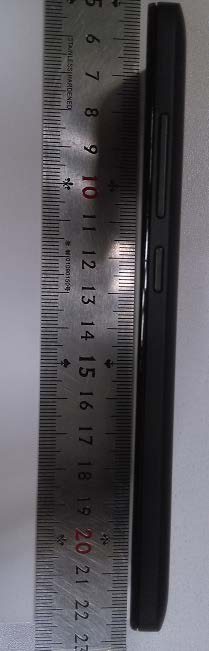

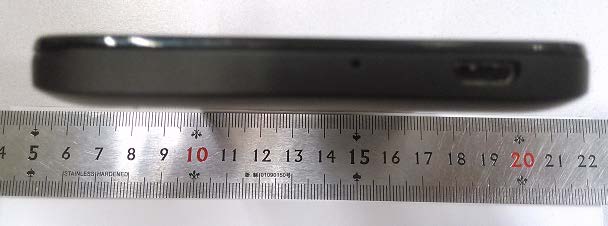

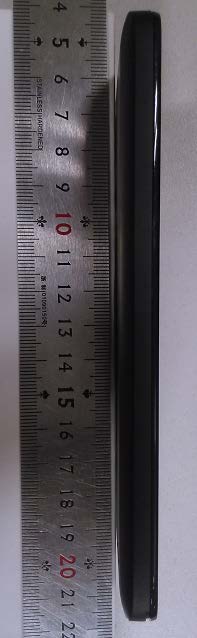

HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page1,Total 5 External Photos of HUAWEI G630-U20, G630-U20 HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page2,Total 5 HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page3,Total 5 HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page4,Total 5 HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page5,Total 5

Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, 518129 Guangdong, P.R.China Tel: 0086-0755-2897-0299 ; Fax: 0086-0755-8965-0226 Date: March 6, 2014 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISG630-U20, has a battery, But the battery will not be placed in the battery compartment when delivery, it is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page1, Total 4 Label Location HUAWEI G630-U20, G630-U20 HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page2, Total 4 HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page3, Total 4 HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page4, Total 4

HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page1,Total 7 Internal Photos of HUAWEI G630-U20, G630-U20 HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page2,Total 7 HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page3,Total 7 HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page4,Total 7 HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page5,Total 7 HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page6,Total 7 HUAWEI G630-U20, G630-U20 Smart Phone; HUAWEI Ascend G630 SECRET Page7,Total 7

Report No.:SYBH (Z-SAR)020022014-2 FCC ID: QISG630-U20 QISU2801-346369A-U280134 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-ES-Head SystemPerformanceCheck-D835-ES-Body SystemPerformanceCheck-D1900-ES- Head SystemPerformanceCheck-D1900-ES- Body SystemPerformanceCheck-D2450-ES-Head SystemPerformanceCheck-D2450-ES-Body Date: 2014-2-21 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.931 S/m; ε r = 42.236; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.26, 6.26, 6.26); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/d=15mm, Pin=250mW/Area Scan (6x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.74 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.031 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 3.52 W/kg SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.53 W/kg Maximum value of SAR (measured) = 2.77 W/kg 0 dB = 2.77 W/kg = 4.43 dBW/kg Date: 2014-2-21 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.955 S/m; ε r = 53.515; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.06, 6.06, 6.06); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/d=15mm, Pin=250mW/Area Scan (6x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.69 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.136 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 3.67 W/kg SAR(1 g) = 2.51 W/kg; SAR(10 g) = 1.65 W/kg Maximum value of SAR (measured) = 2.92 W/kg 0 dB = 2.92 W/kg = 4.65 dBW/kg Date: 2014-2-26 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-ES-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.413 S/m; ε r = 40.542; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.15, 5.15, 5.15); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 11.2 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 88.540 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 18.3 W/kg SAR(1 g) = 10.1 W/kg; SAR(10 g) = 5.28 W/kg Maximum value of SAR (measured) = 12.6 W/kg 0 dB = 12.6 W/kg = 10.99 dBW/kg Date: 2014-2-26 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-ES-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.55 S/m; ε r = 51.534; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.72, 4.72, 4.72); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/d=10mm, Pin=250mW/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.62 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 88.049 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 18.6 W/kg SAR(1 g) = 10.5 W/kg; SAR(10 g) = 5.44 W/kg Maximum value of SAR (measured) = 13.3 W/kg 0 dB = 13.3 W/kg = 11.25 dBW/kg Date: 2014-3-3 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-ES-Head DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:735 Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.823 S/m; ε r = 38.863; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.52, 4.52, 4.52); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 18.1 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.909 V/m; Power Drift = 0.26 dB Peak SAR (extrapolated) = 29.8 W/kg SAR(1 g) = 14.1 W/kg; SAR(10 g) = 6.42 W/kg Maximum value of SAR (measured) = 18.6 W/kg 0 dB = 18.6 W/kg = 12.69 dBW/kg Date: 2014-2-28 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-ES-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:735 Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used…

Text truncated - open the document above for the full version.

Report No.:SYBH (Z-SAR)020022014-2 FCC ID: QISG630-U20 6369A-U280134 Appendix B. SAR Measurement Plots Table of contents GSM850 Head GSM850 Body GSM1900 Head GSM1900 Body WiFi 2450 MHz Head WiFi 2450 MHz Body Date: 2014-2-21 Test Laboratory: HUAWEI SAR/HAC Lab G630-U20 GSM850 190CH Left hand touch cheek DUT: HUAWEI G630-U20, G630-U20; Type: Smart Phone; HUAWEI Ascend G630; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.93 S/m; ε r = 42.079; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.26, 6.26, 6.26); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.228 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.576 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.271 W/kg SAR(1 g) = 0.217 W/kg; SAR(10 g) = 0.166 W/kg Maximum value of SAR (measured) = 0.236 W/kg 0 dB = 0.236 W/kg = -6.27 dBW/kg Date: 2014-2-21 Test Laboratory: HUAWEI SAR/HAC Lab G630-U20 GSM850 190CH Left hand tilt 15 degree DUT: HUAWEI G630-U20, G630-U20; Type: Smart Phone; HUAWEI Ascend G630; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.93 S/m; ε r = 42.079; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.26, 6.26, 6.26); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.124 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.447 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.142 W/kg SAR(1 g) = 0.116 W/kg; SAR(10 g) = 0.090 W/kg Maximum value of SAR (measured) = 0.126 W/kg 0 dB = 0.126 W/kg = -8.98 dBW/kg Date: 2014-2-21 Test Laboratory: HUAWEI SAR/HAC Lab G630-U20 GSM850 190CH Right hand touch cheek DUT: HUAWEI G630-U20, G630-U20; Type: Smart Phone; HUAWEI Ascend G630; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.93 S/m; ε r = 42.079; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.26, 6.26, 6.26); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.204 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.400 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.228 W/kg SAR(1 g) = 0.186 W/kg; SAR(10 g) = 0.143 W/kg Maximum value of SAR (measured) = 0.203 W/kg 0 dB = 0.203 W/kg = -6.92 dBW/kg Date: 2014-2-21 Test Laboratory: HUAWEI SAR/HAC Lab G630-U20 GSM850 190CH Right hand tilt 15 degree DUT: HUAWEI G630-U20, G630-U20; Type: Smart Phone; HUAWEI Ascend G630; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.93 S/m; ε r = 42.079; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.26, 6.26, 6.26); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.116 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.884 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.132 W/kg SAR(1 g) = 0.108 W/kg; SAR(10 g) = 0.083 W/kg Maximum value of SAR (measured) = 0.119 W/kg 0 dB = 0.119 W/kg = -9.26 dBW/kg Date: 2014-2-21 Test Laboratory: HUAWEI SAR/HAC Lab G630-U20 GSM850 190CH Left hand touch cheek with battery 2# DUT: HUAWEI G630-U20, G630-U20; Type: Smart Phone; HUAWEI Ascend G630; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.93 S/m; ε r = 42.079; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.26, 6.26, 6.26); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.226 W/kg Configuration/Head/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.722 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.272 W/kg SAR(1 g) = 0.217 W/kg; SAR(10 g) = 0.165 W/kg Maximum value of SAR (measured) = 0.238 W/kg 0 dB = 0.238 W/kg = -6.24 dBW/kg Date: 2014-2-21 Test Laboratory: HUAWEI SAR/HAC Lab G630-U20 GSM850 190CH Front side 15mm DUT: HUAWEI G630-U20, G630-U20; Type: Smart Phone; HUAWEI Ascend G630; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency…

Text truncated - open the document above for the full version.

Justification of the extended calibration of Dipole D1900V2 SN: 5d143 Per KDB 865664, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole1900 Head TST Target Value Measured Value Difference Impedance transformed to feed point 53.5Ω+5.8jΩ 53.26Ω+5.99jΩ R=-0.24Ω, X=0.19Ω Return Loss -23.7dB -25.10dB -5.91% Dipole1900 Body TST Target Value Measured Value Difference Impedance transformed to feed point 48.4Ω+6.1jΩ 50.44Ω+6.40jΩ R=2.04Ω, X=0.3Ω Return Loss -23.9dB -24.91dB -4.23% Measured Date 2011-09-26 2013-09-12 ----- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Product Name: Smart Phone; HUAWEI Ascend G630 Model: HUAWEI G630-U20, G630-U20 Report No.: SYBH(Z-SAR)020022014-2 FCC ID: QISG630-U20 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2014-03-12 2014-03-12 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report No.: SYBH(Z-SAR)020022014-2 FCC ID:QISG630-U20 2014-03-12 Page 2 of 41 Table of Contents 1 General Information ............................................................................................................................................... 4 1.1 Statement of Compliance .............................................................................................................................. 4 1.2 RF exposure limits ......................................................................................................................................... 5 1.3 EUT Description ............................................................................................................................................ 6 1.3.1 General Description ............................................................................................................................... 7 1.4 Test specification(s) ...................................................................................................................................... 8 1.5 Testing laboratory .......................................................................................................................................... 8 1.6 Applicant and Manufacturer .......................................................................................................................... 8 1.7 Application details .......................................................................................................................................... 8 1.8 Ambient Condition ........................................................................................................................................ 8 2 SAR Measurement System ................................................................................................................................. 9 2.1 SAR Measurement Set-up ........................................................................................................................... 9 2.2 Test environment ......................................................................................................................................... 10 2.3 Data Acquisition Electronics description .................................................................................................... 10 2.4 Probe description ......................................................................................................................................... 11 2.5 Phantom description .................................................................................................................................... 12 2.6 Device holder description ............................................................................................................................ 13 2.7 Test Equipment List ..................................................................................................................................... 14 3 SAR Measurement Procedure .......................................................................................................................... 15 3.1 Scanning procedure .................................................................................................................................... 15 3.2 Spatial Peak SAR Evaluation ...................................................................................................................... 16 3.3 Data Storage and Evaluation ...................................................................................................................... 17 4 System Verification Procedure ............................................................................................................................ 19 4.1 Tissue Verification ....................................................................................................................................... 19 4.2 System Check ............................................................................................................................................. 21 4.3 System check Procedure............................................................................................................................. 22 5 SAR measurement variability and uncertainty .................................................................................................... 23 5.1 SAR measurement variability ...................................................................................................................... 23 5.2 SAR measurement uncertainty ................................................................................................................... 23 6 SAR Test Configuration ...................................................................................................................................... 24 6.1 GSM Test Configuration .............................................................................................................................. 24 6.2 WiFi 2.4G Test Configuration ..................................…

Text truncated - open the document above for the full version.

RF Test Report of HUAWEI G630-U20, G630-U20 Report No: SYBH(Z-RF)011022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 85 Appendix for test report RF Test Report of HUAWEI G630-U20, G630-U20 Report No: SYBH(Z-RF)011022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 85 1Appendix_A: Effective (Isotropic) Radiated Power Output Data Part I - Test Results Test Band Test Mode Test Channel Conducted Power [dBm] ERP [dBm] Limit [dBm] Verdict GSM850 GSM/TM1 LCH 33.08 27.83 38.5 PASS MCH 33.21 27.96 38.5 PASS HCH 33.19 27.94 38.5 PASS GSM/TM2 LCH 27.33 22.08 38.5 PASS MCH 27.32 22.43 38.5 PASS HCH 27.31 22.27 38.5 PASS Test Band Test Mode Test Channel Conducted Power [dBm] EIRP [dBm] Limit [dBm] Verdict GSM1900 GSM/TM1 LCH 30.19 28.8 33 PASS MCH 29.8 28.2 33 PASS HCH 29.7 28.1 33 PASS GSM/TM2 LCH 26.02 24.42 33 PASS MCH 25.98 24.6 33 PASS HCH 25.95 24.35 33 PASS RF Test Report of HUAWEI G630-U20, G630-U20 Report No: SYBH(Z-RF)011022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 85 Note1: a, For getting the ERP (Efficient Radiated Power) or EIRP (Efficient Isotropic Radiated Power) in substitution method, the following formula should be taken to calculate it, ERP [dBm] = SGP [dBm] -…
