QISG630-U251Smart Phone HUAWEI Ascend G630

Quick Start Guide G630 HUAWEI Your phone at a glance Thank you for choosing the HUAWEI Ascend G630 smartphone. Before you start, let's take a look at your new phone. Headset jack Light sensor Return MicrophoneMicro USB port Menu Home Power button Volume button Front camera Earpiece Status indicator Installation Follow the instructions in the following figures to complete the installation. Then press and hold the power button to power on your phone. Press and hold the power button for 10 or more seconds to restart your phone. Open the battery cover. 1 Insert the micro-SIM card. 2 Open the microSD card cover. 3 G H Push the microSD card cover toward the top of the phone to release it. G H Flip the microSD card cover open. 6 Install the battery cover. 7 Charge the phone. 4 Place the microSD card into the card slot. 5 Fasten the microSD card cover. G H Close the microSD card cover. G H Push the microSD card cover back into its original position. Locking and unlocking the screen Your phone automatically locks its screen after being idle for a specified period of time. Alternatively, you can press the power button to manually lock the screen. You can go to and touch Display > Sleep to set the screen timeout period. Follow the onscreen instructions and drag to unlock the screen or open an application. Managing contacts Touch to open People. From the contact list, touch > Manage contacts to import contacts from the SIM card, microSD card, or another Bluetooth device. Touch the Groups tab page to group your contacts for easier management. )XKGZKG IUTZGIZ Placing a call Touch and enter a phone number on the dialer. If you have existing contacts on your phone, your phone automatically displays matching results as you type. Touch a number to place a call. You can also touch a number from Contacts, Messaging, Email, or Browser to place a call. 400 Messaging Touch to open Message. Attaching a file to a text message converts the message into a multimedia message. You can save photos, audio clips, or videos from received multimedia messages. When you are typing, open the notification panel and touch to switch the input method. 'ZZGIN GLORK .GVV_(OXZNJG_ ********** Camera Touch to open Camera. Have the phone automatically focus itself or touch the screen to focus on a specific object. Then touch to take a photo. To shoot a video, frame the scene you want to record and touch to start shooting. A 8KVRG_ VNUZUUX \OJKU 9]OZIN HKZ]KKT VNUZUGTJ \OJKUSUJKY 5VKT UVZOUT SKT[ Listening to music Touch to open Music. Play your songs by name, artist, or album, and mark your favorite songs. More information For the full user guide, go to http://consumer.huawei.com/en/ and search for HUAWEI Ascend G630. Want to learn more about Huawei Emotion UI? Visit http://en.ui.vmall.com/ for the latest information. This guide is for reference only. The actual product, including but not limited to the color, size, and screen layout, may vary. All statements, information, and recommendations in this guide do not constitute a warranty of any kind, express or implied. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment • Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. • Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. • Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset • To prevent possible hearing damage, do not listen at high volume levels for long periods. • Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. • Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives • Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. • Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security • Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. • Concentrate on driving. Your first responsibility is to drive safely. • Do not hold the device while driving. Use hands-free accessories. • When you must make or answer a call, pull off the road safely and park the vehicle first. • RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. • Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates. • Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment • Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions. • Do not use your device during thunderstorms to protect your device against any …

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-03-25 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISG630-U251 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure KDB Inquiry Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2014-07-25: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager For and Behalf of: Huawei Technologies Co., Ltd. Phone: 0086-755-28970299 Fax: 0086-755-89650226 Email: [email protected] Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C

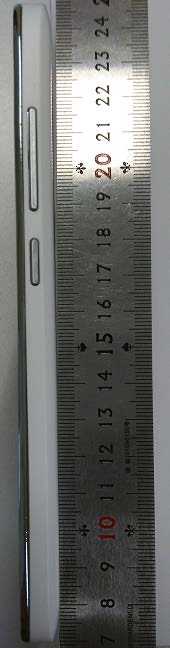

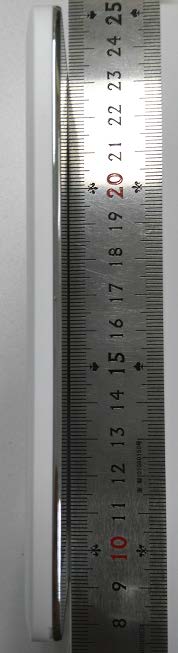

HUAWEI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page1,Total 5 External Photos of HUAWEI G630-U251, G630-U251 HUAWEI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page2,Total 5 HUAWEI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page3,Total 5 HUAWEI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page4,Total 5 HUAWEI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page5,Total 5

HUAW EI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page1, Total 4 Label Location HUAWEI G630-U251, G630-U251 HUAW EI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page2, Total 4 HUAW EI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page3, Total 4

Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, 518129 Guangdong, P.R.China Tel: 0086-0755-2897-0299 ; Fax: 0086-0755-8965-0226 Date: March 26, 2014 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISG630-U251, has a battery, But the battery will not be placed in the battery compartment when delivery, it is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Te l : 0086-0755-28970299 Fax: 0086-0755-89650226

HUAWEI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page1,Total 6 Internal Photos of HUAWEI G630-U251, G630-U251 HUAWEI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page2,Total 6 HUAWEI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page3,Total 6 HUAWEI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page4,Total 6 HUAWEI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page5,Total 6 HUAWEI G630-U251, G630-U251 Smart Phone; HUAWEI Ascend G630 SECRET Page6,Total 6

EMC Test Report Product Name: Smart Phone; HUAWEI Ascend G630 Model Number: HUAWEI G630-U251, G630-U251 Report No: SYBH(Z-EMC)054022014-2 FCC ID: QISG630-U251 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 EMC Test Report of G630-U251 FCC ID: QISG630-U251 Security Level: secret Report No.: SYBH(Z-EMC)054022014-2 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total19 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 5. The test report is invalid if not marked with "exclusive stamp for the test report". 6. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing and approving the test report. 7. The test report is invalid if there is any evidence of erasure and/or falsification. 8. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 9. Normally, the test report is only responsible for the samples that have undergone the test. 10. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. EMC Test Report of G630-U251 FCC ID: QISG630-U251 Security Level: secret Report No.: SYBH(Z-EMC)054022014-2 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total19 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Test Item: Feb.16, 2014 Start Date of Test: Feb.21, 2014 End Date of Test: Mar.03, 2014 Test Result: Pass Approved By 2014-03-12 Liu Chunlin (Lab Manager) Date Name Signature Prepared by 2014-03-12 Su Yuguang (Test Engineer) Date Name Signature EMC Test Report of G630-U251 FCC ID: QISG630-U251 Security Level: secret Report No.: SYBH(Z-EMC)054022014-2 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total19 TABLE OF CONTENT 1 General Information .......................................................................................................................... 5 1.1 EUT Description ........................................................................................................................ 5 1.2 Test Site Information .................................................................................................................. 7 1.3 Applied Standards ..................................................................................................................... 7 2 Summary of Results ......................................................................................................................... 8 3 System Configuration during EMC Test ........................................................................................... 9 3.1 Test Mode .................................................................................................................................. 9 3.2 Test System Configuration ........................................................................................................ 9 3.3 Cables Used during Test ......................................................................................................... 11 3.4 Associated Equipment Used during Test ................................................................................ 11 4 Electromagnetic Interference (EMI) ............................................................................................... 12 4.1 Radiated Disturbance 30MHz to 18GHz ................................................................................. 12 4.2 Conducted Disturbance 0.15 MHz to 30MHz.......................................................................... 14 5 Main Test Instruments .................................................................................................................... 15 6 System Measurement Uncertainty ................................................................................................. 16 7 Test Data and Graph ...................................................................................................................... 17 7.1 Radiated Disturbance .............................................................................................................. 17 7.2 Conducted Disturbance ........................................................................................................... 19 EMC Test Report of G630-U251 FCC ID: QISG630-U251 Security Level: secret Report No.: SYBH(Z-EMC)054022014-2 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total19 1 General Information 1.1 EUT Description EUT Description Product Name Smart Phone; HUAWEI Ascend G630 Model Number HUAWEI G630-U251, G630-U251 Input voltage DC 3.8V TX Frequency GSM 850:824MHz To 849MHz GSM1900:1850MHz To 1910MHz WCDMA V 850:824MHz To 849MHz WCDMA II:1850MHz To 1910MHz BT: 2402MHz To 2480MHz WIFI: 2412MHz To 2462MHz RX Frequency GSM850:869MHz To 894MHz GSM1900:1930MHz To 1990MHz WCDMA V:869MHz To 894MHz WCDMA II:1930MHz To 1990MHz BT: 2402 MHz To 2480MHz WIFI: 241…

Text truncated - open the document above for the full version.

EMC Test Report of G630-U251 FCC ID: QISG630-U251 Security Level: secret Report No.: SYBH(Z-EMC)054022014-2 Confidential Information of Huawei. No Distribution without Permission Page1, Total5 Photos of EUT EMC Test Report of G630-U251 FCC ID: QISG630-U251 Security Level: secret Report No.: SYBH(Z-EMC)054022014-2 Confidential Information of Huawei. No Distribution without Permission Page2, Total5 Figure1 EUT Appearance EMC Test Report of G630-U251 FCC ID: QISG630-U251 Security Level: secret Report No.: SYBH(Z-EMC)054022014-2 Confidential Information of Huawei. No Distribution without Permission Page3, Total5 Photos of Test Setup EMC Test Report of G630-U251 FCC ID: QISG630-U251 Security Level: secret Report No.: SYBH(Z-EMC)054022014-2 Confidential Information of Huawei. No Distribution without Permission Page4, Total5 1 Radiated Emissions Radiated Disturbance Emissions (below 1GHz) Radiated Disturbance Emissions (1GHz to18GHz) EMC Test Report of G630-U251 FCC ID: QISG630-U251 Security Level: secret Report No.: SYBH(Z-EMC)054022014-2 Confidential Information of Huawei. No Distribution without Permission Page5, Total5 2 Conducted Emissions Conducted Emissions with AC Ports ----------------------------------------------------------- END-----------------------------------------------------------
