QISG6610VGSM MOBILE PHONE

G6610V GSM Mobile Phone User Guide Copyright © Huawei Technologies Co., Ltd. 2010. All rights reserved. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. i Table of Contents 1 Getting to Know Your Phone ........................... 1 Your Phone.................................................... 1 Keys and Functions ........................................ 2 Screen Icons ................................................. 3 2 Getting Started ................................................ 4 Installing the SIM Card and the Battery ............ 4 Removing the SIM Card and the Battery ........... 5 Installing the microSD Card ............................ 5 Charging the Battery ...................................... 6 Using Function Menus ..................................... 6 Phone Lock ................................................... 7 PIN and PUK.................................................. 7 Locking the Keypad ........................................ 8 3 Call Function ................................................... 8 Making a Call................................................. 8 Answering a Call ............................................ 9 4 Text Input ....................................................... 9 Changing the Text Input Mode ......................... 9 Entering a Word ........................................... 10 Entering a Digit ........................................... 10 Entering a Symbol ....................................... 10 5 Messaging ..................................................... 11 Writing and Sending a Text Message .............. 11 Writing and Sending a Multimedia Message ..... 11 ii 6 Email ............................................................. 12 Creating an Email Account ............................ 12 Activating an Email Account .......................... 13 Writing and Sending an Email ........................ 13 7 Contacts ........................................................ 14 Creating a Contact ....................................... 14 Searching for a Contact ................................ 14 8 Multimedia .................................................... 15 Camera ...................................................... 15 Video Recorder ............................................ 15 Video Player ................................................ 16 Audio Player ................................................ 17 Sound Recorder ........................................... 17 FM Radio ..................................................... 18 Scheduling FM Program Recording ................. 19 Slide Show .................................................. 19 9 TV ................................................................. 19 TV .............................................................. 19 10 Bluetooth .................................................... 20 Synchronizing Data ...................................... 20 Using a Bluetooth Headset ............................ 21 Transferring Data ......................................... 21 11 Fun & Game ................................................. 21 MSN ........................................................... 22 Nimbuzz ..................................................... 22 iii 12 WAP ............................................................ 22 Network Settings ......................................... 23 Connecting to the Network ............................ 24 13 Warnings and Precautions ........................... 24 1 1 Getting to Know Your Phone Your Phone The following figure shows the appearance of your phone and is provided only for your reference. 1 Earpiece 7 Keypad 2 Screen 8 Charger/Headset jack 3 Navigation keys 9 End/Power key 4 Left soft key 10 TV key 5 MSN key 11 Right soft key 6 Call/Answer key 12 Confirm key 2 Keys and Functions Press ... To ...  Make a call.  Answer an incoming call.  View call logs in standby mode.  Power on or power off the phone (by pressing and holding the key for about 3s).  End a call or reject an incoming call.  Return to the standby mode.  Display Menu in standby mode.  Select a highlighted item.  Display Phonebook list in standby mode.  Return to the previous menu.  Display Menu in standby mode.  Confirm a selection.  Scroll through the submenues on a menu screen or the options on an option screen.  Acess the functions assigned to the keys as shortcuts in standby mode. 3 Press ... To ...  Enter digits, letters, and symbols.  Call the voicemail in standby mode by pressing and holding the 1 key for about 3s.  Speed-dial phone numbers in standby mode by pressing and holding the keys 2–9 for about 3s.  Select a submenu item labeled with the corresponding number. Enable or disable the Silent mode in standby mode (by pressing and holding the key for about 3s).  Shortcuts to MSN.  Shortcuts to TV. Screen Icons Icon Indicates ... Signal strength GPRS signal. The Ring only alert type is activated. The Vib.only alert type is activated. The Vib.and ring alert type is activated. The Vib.then ring alert type is activated. 4 Icon Indicates ... The Bluetooth function is enabled. The Headset profile is activated. Missed call(s). The call forwarding function is…

Text truncated - open the document above for the full version.

Statement We, Huawei Technologies Co., Ltd., states that our device, FCC ID: QISG6610V, has no space to put the label except the battery compartment of this device. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. _______________ Zhang Xinghai

Huawei Technologies Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: March 19, 2010 SUBJECT: FCC Application for FCC ID: QISG6610V To Whom It May Concern: We , Huawei Technologies Co., Ltd., hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Contact Person: Zhang Xinghai

Huawei Technologies Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QISG6610V Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: Schem.pdf) Block Diagram (file: BlkDia.pdf) Parts List (file: PartsLst.pdf) Operation Description (file: OpDes.pdf) Tune Up Procedure (file: TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Zhang Xinghai Attached: Copy of FCC Confidentiality Policy Rev. 1/1/03

Huawei Technologies Co., Ltd. Huawei industrial Base, Bantian, Longgang, Shenzhen 518129, P.R. China Date: March 19, 2010 Power of Attorney To whom it may concern, Please be notified that I, Zhang Xinghai have designated Roy Wu in Sporton International Inc., a as the person responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. This authorization is limited to the product of as following: FCC ID: QISG6610V If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Zhang Xinghai Company: Huawei Technologies Co., Ltd. TEL: +86-755-2878-1879 FAX: 86-755-2878-1889 E-mail: [email protected]

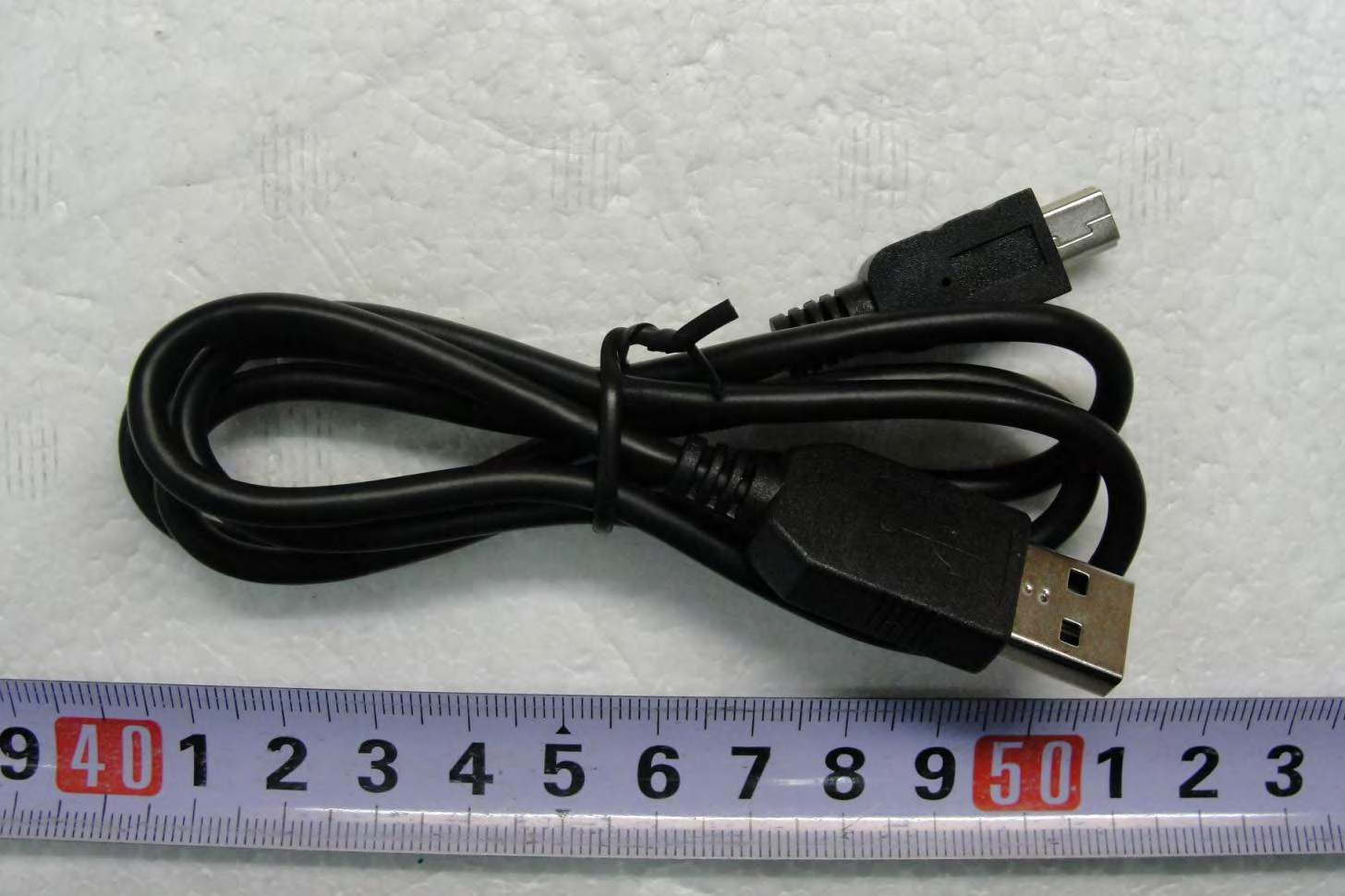

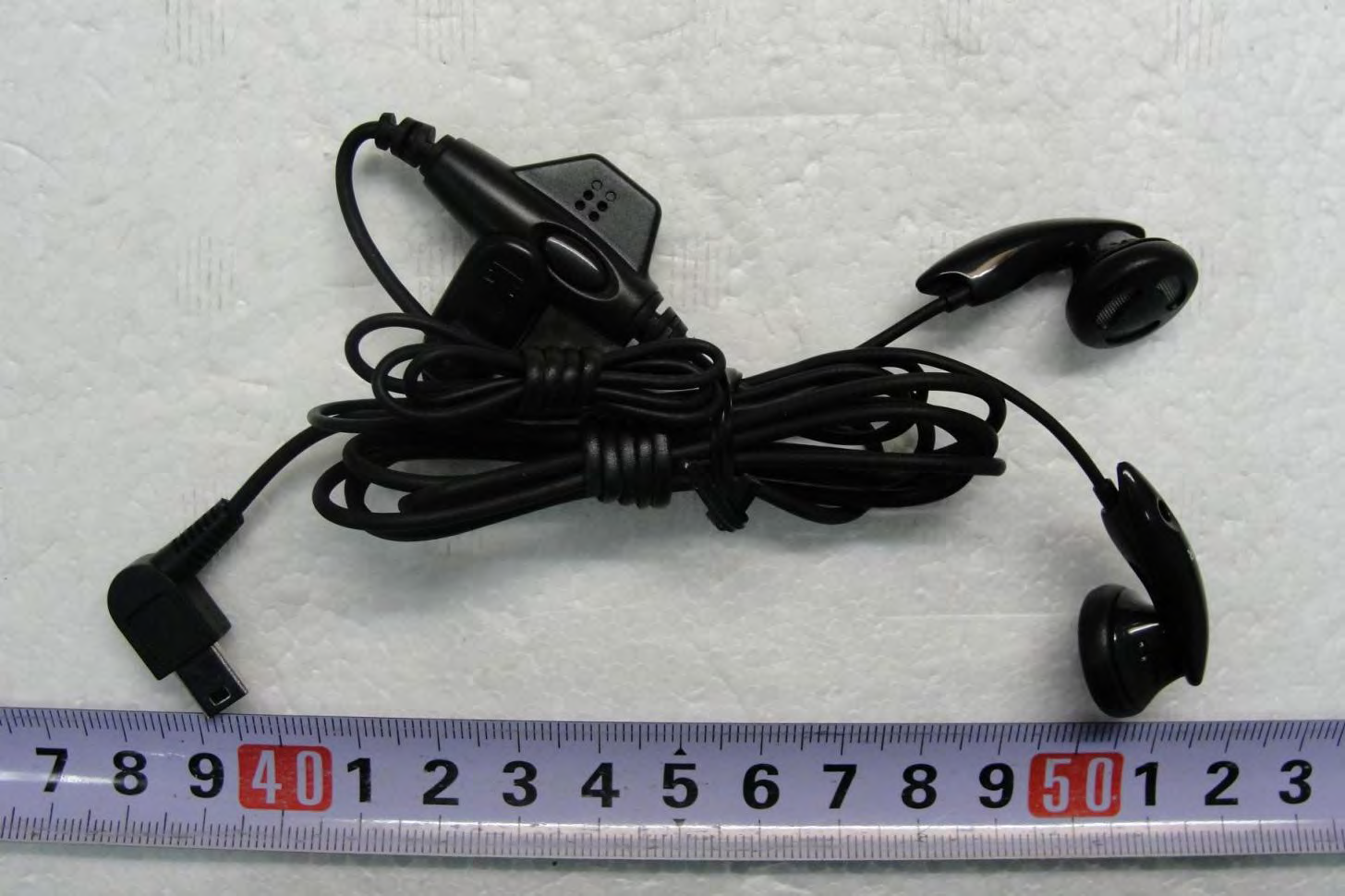

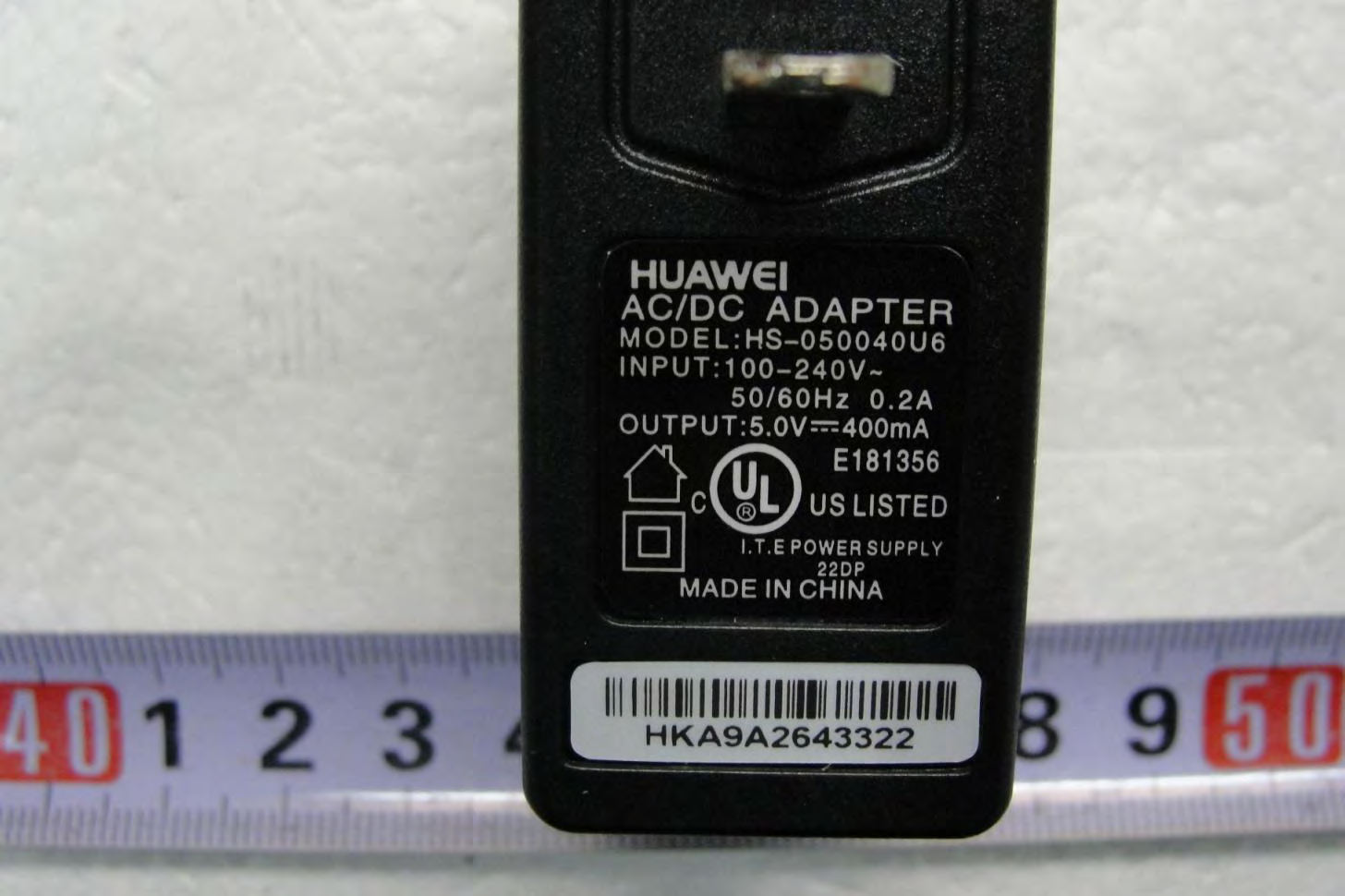

Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V 1. External Photograph of EUT Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V 720510 Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V List of Accessory: Specification of Accessory AC Adapter Brand Name HUAWEI Model Name HS-050040U6 Power Rating I/P:100-240Vac, 50-60Hz, 0.2A; O/P: 5.0Vdc, 400mA Battery Brand Name HUAWEI Model Name HB4G1 Power Rating 3.7Vdc, 1000mAh Type Li-ion Earphone Brand Name HUAWEI Model Name EMC179P-YE54 Signal Line Type 1.5 meter non-shielded cable without ferrite core USB Cable Brand Name HUAWEI Model Name SU081230 Signal Line Type 0.87 meter non-shielded cable without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V 720510

Label Location

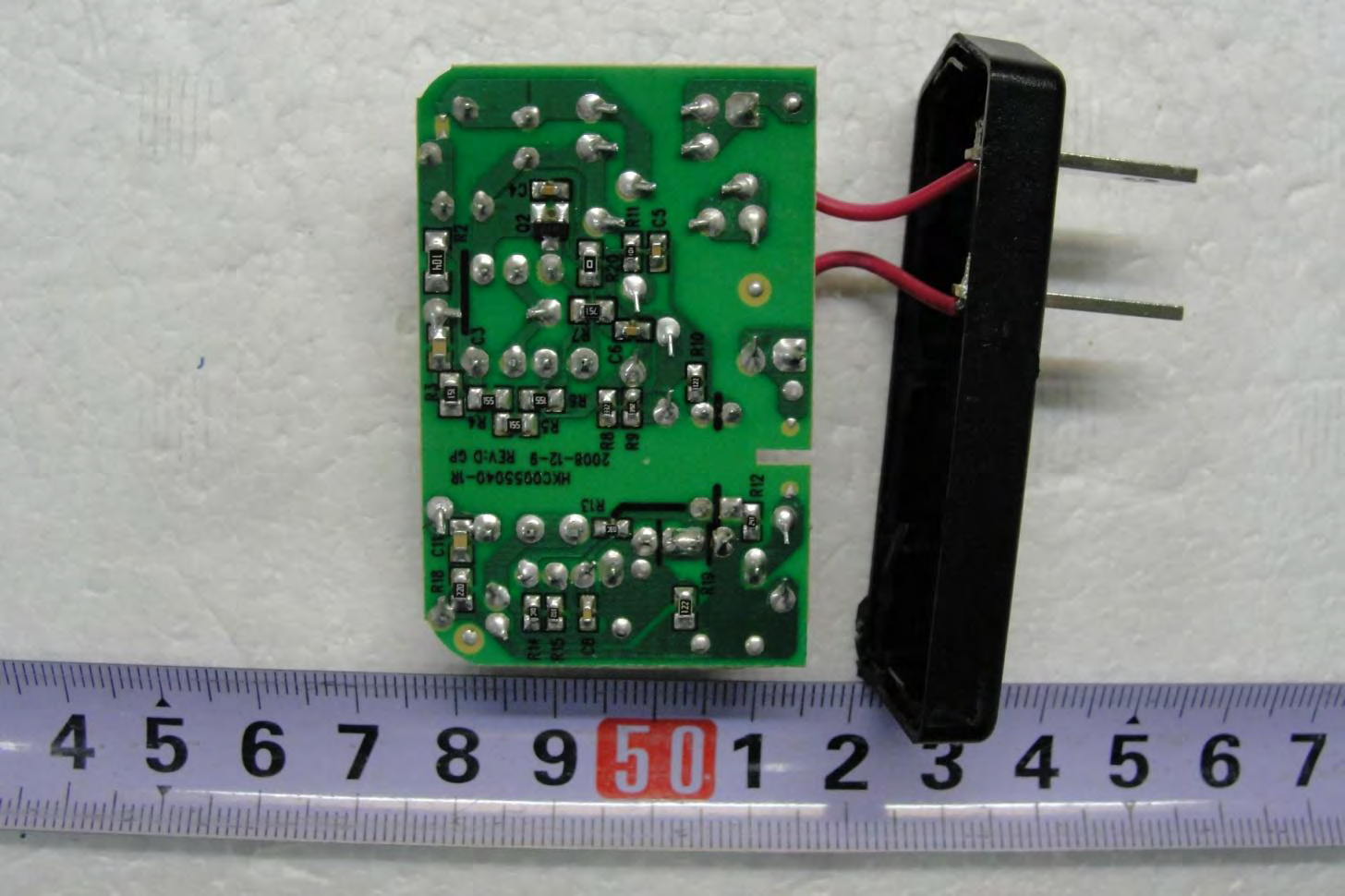

Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V 3. Internal Photograph of EUT Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V 8 cm GSM Antenna <Tx/Rx> Bluetooth Antenna <Tx/Rx> Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 32 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V GSM Antenna <Tx/Rx> Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 33 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V GSM Antenna <Tx/Rx> Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 34 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V GSM Antenna <Tx/Rx> Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 35 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V Bluetooth Antenna <Tx/Rx> Photographs of EUT Report No.: EP020301 Model Name: HUAWEI G6610V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 36 of 36 TEL : 86-0512-5790-0158 Issued Date : Mar. 05, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V 720510 Bluetooth Antenna <Tx/Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 22, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V FCC SAR Test Report Report No. : FA020301 FCC SAR Test Report APPLICANT : HUAWEI TECHNOLOGIES CO., LTD. EQUIPMENT : GSM Mobile Phone BRAND NAME : HUAWEI MODEL NAME : HUAWEI G6610V FCC ID : QISG6610V STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Feb. 01, 2010 and completely tested on Feb. 02, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 22, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG6610V FCC SAR Test Report Report No. : FA020301 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................15 5.7.1 Data Storage .........…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/2/1 System Check_835MHz_100201 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_100201 Medium parameters used: f = 835 MHz; σ = 0.92 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.04 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.6 V/m; Power Drift = -0.00423 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 0.969 mW/g; SAR(10 g) = 0.632 mW/g Maximum value of SAR (measured) = 1.05 mW/g 0 dB = 1.05mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/2/2 System Check_1900MHz_100202 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_100202 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.32, 7.32, 7.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.58 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.7 V/m; Power Drift = -0.054 dB Peak SAR (extrapolated) = 7.51 W/kg SAR(1 g) = 3.93 mW/g; SAR(10 g) = 2.03 mW/g Maximum value of SAR (measured) = 4.39 mW/g 0 dB = 4.39mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/2/1 #01 GSM850_Right Check_Ch189 DUT: 012901 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100201 Medium parameters used: f = 837 MHz; σ = 0.922 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.364 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.3 V/m; Power Drift = -0.151 dB Peak SAR (extrapolated) = 0.417 W/kg SAR(1 g) = 0.343 mW/g; SAR(10 g) = 0.264 mW/g Maximum value of SAR (measured) = 0.358 mW/g 0 dB = 0.358mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/2/1 #01 GSM850_Right Check_Ch189_2D DUT: 012901 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100201 Medium parameters used: f = 837 MHz; σ = 0.922 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.364 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.3 V/m; Power Drift = -0.151 dB Peak SAR (extrapolated) = 0.417 W/kg SAR(1 g) = 0.343 mW/g; SAR(10 g) = 0.264 mW/g Maximum value of SAR (measured) = 0.358 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/2/1 #02 GSM850_Right Tilted_Ch189 DUT: 012901 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100201 Medium parameters used: f = 837 MHz; σ = 0.922 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.306 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.9 V/m; Power Drift = -0.091 dB Peak SAR (extrapolated) = 0.469 W/kg SAR(1 g) = 0.279 mW/g; SAR(10 g) = 0.175 mW/g Maximum value of SAR (measured) = 0.307 mW/g Configuration/Ch189/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.9 V/m; Po…
