QISG6620GSM Mobile Phone

G6620 GSM Mobile Phone xiaoCopyright © Huawei Technologies Co., Ltd. 2010. All rights reserved. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. i Contents 1 Getting to Know Your Phone ................................................1 Your Phone ........................................................................................... 1 Keys and Functions ........................................................................... 2 Screen Icons ......................................................................................... 4 2 Getting Started .......................................................................5 Installing the SIM Card and the Battery ................................... 5 Removing the Battery and the SIM Card ................................. 5 Installing a microSD Card ............................................................... 6 Charging the Battery ........................................................................ 6 Accessing a Function Menu .......................................................... 7 Accessing a Quick Menu ................................................................ 7 Automatically Switching Between Profiles .............................. 8 Phone Lock ........................................................................................... 8 Mass Storage ....................................................................................... 9 PIN and PUK ........................................................................................ 9 Locking the Keypad ........................................................................ 10 Entertainment .................................................................................... 11 3 Call Functions ....................................................................... 12 Making a Call ..................................................................................... 12 Answering a Call ............................................................................... 12 4 Text Input ............................................................................. 13 Changing the Text Input Mode .................................................. 13 ii Traditional Input Mode.................................................................. 14 Predictive Input Mode ................................................................... 14 Chinese Text Input Mode ............................................................. 14 Digit Input Mode ............................................................................. 15 Switching Between Input Methods .......................................... 15 Entering a Digit or Symbol .......................................................... 15 5 Messaging ............................................................................ 16 Writing and Sending a Text Message ..................................... 16 Writing and Sending a Multimedia Message ...................... 17 6 Phonebook ........................................................................... 18 Creating a Contact .......................................................................... 18 Searching for a Contact ................................................................ 18 Setting the Preferred Storage..................................................... 19 Copying the Contacts .................................................................... 19 7 Video Recorder .................................................................... 20 8 Video Player ......................................................................... 20 9 Sound Recorder ................................................................... 21 10 Answer machine ................................................................ 22 11 Ebook Reader ..................................................................... 23 12 Camera ................................................................................ 23 13 Audio Player ....................................................................... 24 14 FM Radio ............................................................................ 25 15 Java Application ................................................................ 26 16 Services ............................................................................... 28 Network Settings ............................................................................. 28 iii Selecting a SIM card ....................................................................... 29 Connecting to a Network ............................................................. 29 17 Bluetooth ............................................................................ 30 Synchronizing Data ......................................................................... 30 Using a Bluetooth Headset.......................................................... 30 Transferring Data ............................................................................. 31 18 STK ...................................................................................... 31 19 Chat Functions ................................................................... 32 20 Warnings and Precautions .......................…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen China Attestation for FCC Declaration of Conformity FCC ID: QISG6620 Date: 2010/06/30 Please be notified that we, the undersigned, Huawei Technologies Co.,Ltd declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DOC. The test report number supporting the DOC is 106S033R-HP-US-P07V01. Testing in regards to this report was done by QuieTek Corp., located at No.5-22, Rueishu Keng, Rueiping Tsuen, Linkou Shiang, Taipei County 244, Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, ________________________ Zhang Xinghai/manager Huawei Technologies Co.,Ltd

Huawei Technologies Co.,Ltd Date: June 30, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISG6620 ATTESTATION FCC ID: QISG6620 Product: GSM Mobile Phone Model: HUAWEI G6620 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Zhang Xinghai/manager Huawei Technologies Co.,Ltd

RF_160, Issue 02 Huawei Technologies Co.,Ltd Declaration of Authorization We Name: Huawei Technologies Co.,Ltd Address: Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 City: ......... SHENZHEN ................................................................ Country:.........China ............................................................................ Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: ......GSM Mobile Phone...... Type designation: ......HUAWEI G6620................................................ Trademark: ...... Huawei .................. .................................. on our behalf. Date: ...... 2010/06/30................. City: ...... SHENZHEN .......................... Name: ...... Zhang Xinghai ................................ (2) Function: ......Manager............................... Signature: .......................................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Huawei Technologies Co.,Ltd Date: June 30, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISG6620 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description 4 BOM List 5 Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________________ Zhang Xinghai/manager Huawei Technologies Co.,Ltd

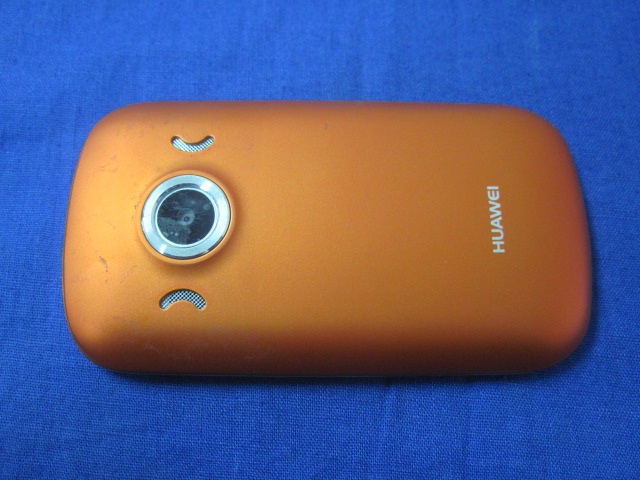

GSM Mobile Phone (M/N: HUAWEI G6620) EUT Photograph – External Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo

GSM Mobile Phone (M/N: HUAWEI G6620)

GSM Mobile Phone (M/N: HUAWEI G6620) EUT Photograph – Internal Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo Battery-front (11) EUT Photo Battery-back

Report No：106S033R-HPUS-P03V01 Page: 1 of 110 SAR Test Report Product Name : GSM Mobile Phone Model No. : HUAWEI G6620 FCC ID : QISG6620 Applicant : HUAWEI TECHNOLOGIES CO., LTD. Address : Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 Date of Receipt : 18. Jun, 2010 Date of Test : 21. Jun, 2010 ~ 15. Jul, 2010 Issued Date : 15. Jul, 2010 Report No. : 106S033R-HPUS-P03V01 Report Version : V2.1 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No：106S033R-HPUS-P03V01 Page: 2 of 110 Test Report Certification Issued Date: 15.Jul, 2010 Report No: 106S033R-HPUS-P03V01 Product Name : GSM Mobile Phone Applicant : HUAWEI TECHNOLOGIES CO., LTD. Address : Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 Manufacturer : HUAWEI TECHNOLOGIES CO., LTD. Address : Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 FCC ID : QISG6620 Model No. : HUAWEI G6620 Trade Name : HUAWEI EUT Voltage : DC 3.6-4.2V Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003, 47CFR § 2.1093, RSS102 Issue 3 Test Result : Max. SAR Measurement (1g) Head: 0.950 W/kg Body: 1.520 W/kg Performed Location : SuZhou EMC laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392, IC Lab Code: 4075B Documented By : (Engineering ADM: Alice Ni) Tested By : (Engineering Supervisor: Marlin Chen) Approved By : (Engineering Manager: Dream Cao) Report No：106S033R-HPUS-P03V01 Page: 3 of 110 Laboratory Information We , QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited by the following accreditation Bodies in compliance with ISO 17025, EN 45001 and Guide 25: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://tw.quietek.com/modules/myalbum/ The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : +886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No：106S033R-HPUS-P03V01 Page: 4 of 110 TABLE OF CONTENTS Description Page 1. General Information ................................................................................................. 6 1.1. EUT Description .................................................................................................. 6 1.2. Test Environment ................................................................................................. 6 2. SAR Measurement System ...................................................................................... 7 2.1. DASY5 System Description ................................................................................. 7 2.1.1. Applications ..................................................................................................... 8 2.1.2. Area Scans ...................................................................................................... 8 2.1.3. Zoom Scan (Cube Scan Averaging) ................................................................ 8 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging ........................................... 8 2.2. DASY5 E-Field Probe .......................................................................................... 9 2.2.1. Isotropic E-Field Probe Specification ............................................................... 9 2.3. Boundary Detection Unit and Probe Mounting Device ...................................... 10 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................ 10 2.5. Robot ................................................................................................................. 10 2.6. Light Beam Unit ................................................................................................. 11 2.7. Device Holder .................................................................................................... 12 2.8. SAM Twin Phantom ........................................................................................... 12 3. Tissue Simulating Liquid ....................................................................................... 13 3.1. The composition of the tissue simulating liquid ................................................. 13 3.2. Tissue Calibration Result ................................................................................... 14 3.3. Tissue Dielectric Parameters for Head and Body Phantoms ............................. 15 4. SAR Measurement Procedure ............................................................................... 16 4.1. SAR System Validation ...................................................................................... 16 4.1.1. Validation Dipoles .......................................................................................... 16 4.1.2. Validation Result ..............................................................…

Text truncated - open the document above for the full version.

FCC Part15.247 Test Report Product Name : GSM Mobile Phone Model No. : HUAWEI G6620 FCC ID : QISG6620 Applicant ： HUAWEI TECHNOLOGIES CO., LTD Address ： Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 Date of Receipt ： Jun. 18, 2010 Test Date ： Jun. 18, 2010 ~ Jul. 14, 2010 Issued Date ： Jul. 14, 2010 Report No. ： 106S033R-RF-US-P06V01 Report Version ： V2.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 106S033R-RF-US-P06V01 Page: 2 of 84 Test Report Certification Issued Date : Jul. 14, 2010 Report No. : 106S033R-RF-US-P06V01 Product Name : GSM Mobile Phone Applicant : HUAWEI TECHNOLOGIES CO., LTD Address : Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 Manufacturer : HUAWEI TECHNOLOGIES CO., LTD Address : Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 Model No. : HUAWEI G6620 FCC ID : QISG6620 EUT Voltage : DC 3.6~4.2V Trade Name : HUAWEI Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2008 ANSI C63.4: 2009 ANSI C63.10: 2009 Test Result : Complied Performed Location : SuZhou EMC laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392, IC Lab Code: 4075B Documented By : ( Engineering ADM: Alice Ni ) Reviewed By : ( Engineering Supervisor: Marlin Chen ) Approved By : ( Engineering Manager: Dream Cao ) Report No： 106S033R-RF-US-P06V01 Page: 3 of 84 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/emc/accreditations/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No： 106S033R-RF-US-P06V01 Page: 4 of 84 TABLE OF CONTENTS Description Page 1. General Information.................................................................................................... 7 1.1. EUT Description ......................................................................................................... 7 1.2. Mode of Operation ..................................................................................................... 9 1.3. Tested System Details .............................................................................................. 10 1.4. Configuration of Tested System ............................................................................... 11 1.5. EUT Exercise Software ............................................................................................ 12 2. Technical Test ........................................................................................................... 13 2.1. Summary of Test Result ........................................................................................... 13 2.2. Test Environment ..................................................................................................... 14 3. Conducted Emission ................................................................................................ 15 3.1. Test Equipment ........................................................................................................ 15 3.2. Test Setup ................................................................................................................ 15 3.3. Limit .......................................................................................................................... 16 3.4. Test Procedure ......................................................................................................... 16 3.5. Uncertainty ............................................................................................................... 16 3.6. Test Result ............................................................................................................... 17 4. Radiated Emission ................................................................................................... 19 4.1. Test Equipment ........................................................................................................ 19 4.2. Test Setup ................................................................................................................ 20 4.3. Limit .......................................................................................................................... …

Text truncated - open the document above for the full version.

Page: 1 of 6 GSM Mobile Phone (M/N: HUAWEI G6620) Test Setup Photographs for FCC 22&24 Description: ERP Test Setup Page: 2 of 6 Description: Substitution Antenna for ERP Test Description: EIRP Test Setup Page: 3 of 6 Description: Substitution Antenna for EIRP Test Description: Radiated Spurious Emission Test Setup for Below 1 GHz Page: 4 of 6 Description: Substitution Antenna Test Setup for Below 1 GHz Description: Radiated Spurious Emission Test Setup for Above 1 GHz Page: 5 of 6 Description: Substitution Antenna Test Setup for Above 1 GHz Description: Front View of Conducted Emission Test Setup Page: 6 of 6 Description: Back View of Conducted Emission Test Setup Description: Radiated Emission Test Setup for Below 1GHz Page: 7 of 6 Description: Radiated Emission Test Setup for Above 1GHz Description: Radiated Emission Test Setup for Above 18GHz Page: 8 of 6 SAR Test Setup Test Setup Photographs Left-Cheek Touch Left-Tilt 15° Page: 9 of 6 Right-Cheek Touch Right-Tilt 15° Page: 10 of 6 Body SAR back 15mm Body SAR Back 15mm with Headset Page: 11 of 6 Body SAR Front 15mm with Headset Depth of the liquid in the phantom – Zoom in Note: The position used in the measurements were according to IEEE 1528 - 2003
