QISG7-L01Smart Phone

Quick Start Guide Your phone at a glance Thank you for choosing the Huawei smartphone. Before you start, let's take a look at your new phone. Press and hold the power button to power on your phone. To power off your phone, press and hold the power button, and touch Power off > OK. To forcibly restart your phone, press and hold the power button until your phone vibrates. Headset jack Status indicator Micro USB port Micro- phone Earpiece Front camera Light sensor Volume button Power button microSD card tray micro-SIM card tray Home Return Recent (View recently used applications ) NFC sensor area (make sure the front panel of your phone is touching the other NFC device) Getting started Keep the SIM eject tool away from children and, to avoid injury or damaging your phone, exercise caution when using it. Caution Your phone's built-in battery is not user-removable. To replace the battery, contact an authorized Huawei service center. Do not attempt to remove it yourself. Follow the instructions in the following figures to install your micro-SIM card and microSD card. Before you insert or remove the micro-SIM card, power off your phone. 12 34 Locking and unlocking the screen Press the power button to lock the screen. After your phone is idle for a specified period of time, its screen automatically locks. If the screen is off, press the power button to turn it on. Slide your finger in any direction to unlock the screen. Flick up from the bottom of the screen to quickly launch commonly used applications without unlocking the screen. Calling and messaging Touch to place a call using the dialer. You can also touch a phone number in a message, email, web page, or other screen to place a call. Touch to send a text or multimedia message. You can save photos, audio clips, or videos from received multimedia messages. Camera Touch . Flick left or right to switch between photo and video capture modes. Frame the scene you want to capture. Let your camera focus automatically or touch the screen to focus on a specific object. Then touch to take a photo. In all focus mode, you can change the focus point on a photo after it's been taken. Internet connection You can access the Internet through Wi-Fi or a mobile network. Flick down from the status bar to open the notification panel. Touch to turn on the mobile network. Touch and hold to go to the Wi-Fi settings screen. Turn on Wi-Fi and follow the onscreen instructions to connect your phone to a Wi-Fi network. Backing up data You can use the Backup app to back up your phone's data and restore it later. Touch Mgmt. > . Select the data you want to back up, such as your contacts, messages, and photos. Then follow the onscreen instructions. Phone Manager Touch . You can scan your phone for potential hazards with one touch. Follow the onscreen instructions to use one-touch optimization or manually clean the system storage or manage your applications. Flick left to view more functions. You can then clear system trash, set the harassment filter, choose a power saving mode, manage your notifications and application permissions, and more. For more information Want to obtain the full user guide? Download the HUAWEI Ascend G7 User Guide from http://consumer.huawei.com/en. All pictures and illustrations in this guide, including but not limited to the phone color, size, and display content, are for your reference only. The actual product may vary. Nothing in this guide constitutes a warranty of any kind, express or implied. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment • Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. • Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. • Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset • To prevent possible hearing damage, do not listen at high volume levels for long periods. • Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. • Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives • Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. • Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security • Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. • Concentrate on driving. Your first responsibility is to drive safely. • Do not hold the device while driving. Use hands-free accessories. • When you must make or answer a call, pull off the road safely and park the vehicle first. • RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. • Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates. • Do not use your device while flying in an …

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-9- 29 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISG7-L01 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-03-29: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

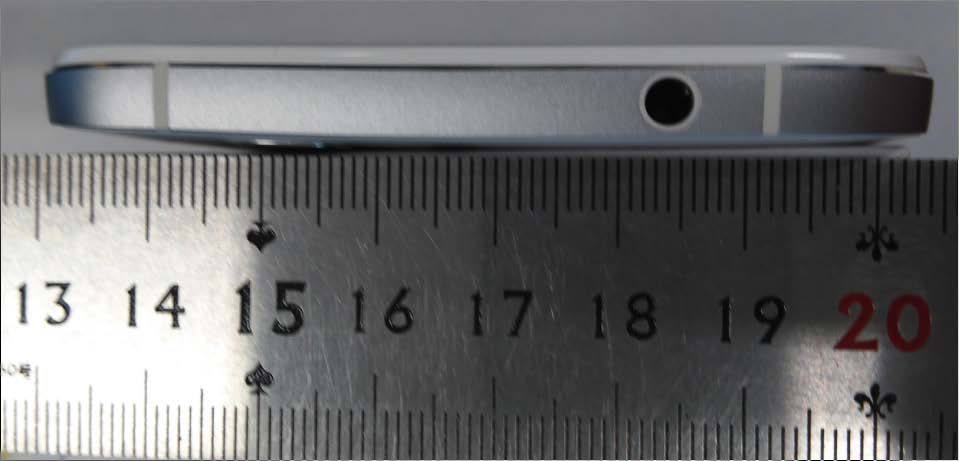

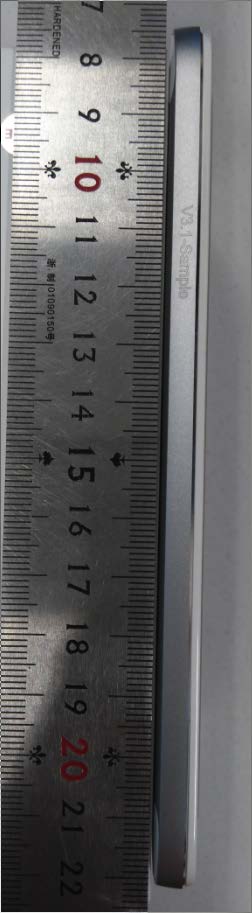

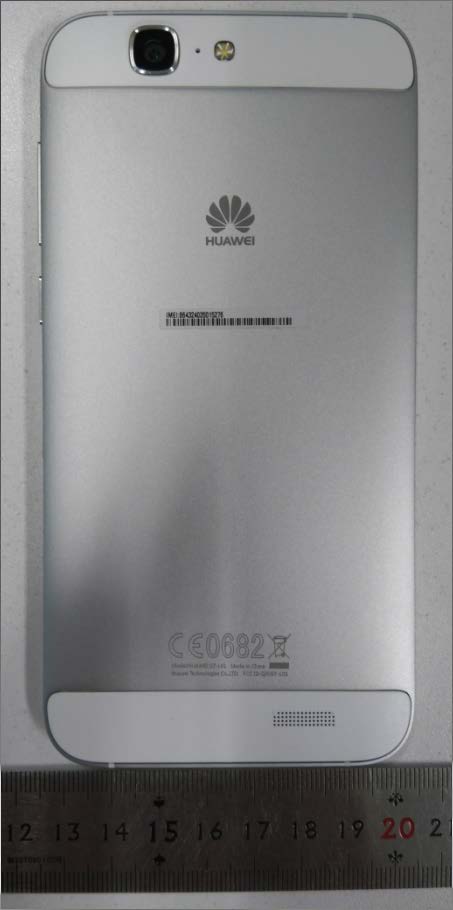

HUAWEI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page1,Total 6 External Photos of HUAWEI G7-L01, G7-L01 HUAWEI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page2,Total 6 HUAWEI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page3,Total 6 HUAWEI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page4,Total 6 HUAWEI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page5,Total 6 HUAWEI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page6,Total 6

Huawei Technologies Co.,Ltd Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District,Shenzhen,518129,P.R.C Tel: 0086-0755-28970299 ; Fax: 0086-0755-89650226 Date: September 30, 2014 Statement We, Huawei Technologies Co., Ltd, states that our device, FCC ID: QISG7-L01, has a battery, But the battery will be placed in the battery compartment when delivery, it is not visible to the users as they purchase the products. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

HUAW EI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page1, Total 4 Label Location HUAWEI G7-L01, G7-L01 HUAW EI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page2, Total 4 HUAW EI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page3, Total 4

HUAWEI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page1,Total 6 Internal Photos of HUAWEI G7-L01, G7-L01 HUAWEI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page2,Total 6 HUAWEI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page3,Total 6 HUAWEI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page4,Total 6 HUAWEI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page5,Total 6 HUAWEI G7-L01, G7-L01 Smart Phone; HUAWEI Ascend G7 SECRET Page6,Total 6

FCC RF Test Report Product Name: Smart Phone; HUAWEI Ascend G7 Model Number: HUAWEI G7-L01, G7-L01 Report No: SYBH(Z-RF)002082014-2005 FCC ID: QISG7-L01 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of HUAWEI G7-L01, G7-L01 Report No: SYBH(Z-RF)002082014-2005 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total16 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of HUAWEI G7-L01, G7-L01 Report No: SYBH(Z-RF)002082014-2005 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total16 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2014-08-27 Start Date of Test: 2014-08-28 End Date of Test: 2014-09-22 Test Result: Pass Approved by Senior Engineer: 2014-09-22 Liu Chunlin Date Name Signature Prepared by: 2014-09-22 Zhang Guocai Date Name Signature RF Test Report of HUAWEI G7-L01, G7-L01 Report No: SYBH(Z-RF)002082014-2005 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total16 Contents 1 General Information .................................................................................................................................. 5 1.1 APPLIED STANDARD ............................................................................................................................... 5 1.2 TEST LOCATION ..................................................................................................................................... 5 1.3 TEST ENVIRONMENTAL CONDITION ......................................................................................................... 5 2 Summary .................................................................................................................................................... 6 3 Product Description .................................................................................................................................. 7 3.1 PRODUCT INFORMATION ........................................................................................................................ 7 3.2 EUT IDENTITY ....................................................................................................................................... 7 4 Main Test Instruments .............................................................................................................................. 9 5 Test Results ............................................................................................................................................. 10 5.1 20DB BANDWIDTH MEASUREMENT ....................................................................................................... 10 5.2 IN-BAND RADIATED SPURIOUS EMISSION MEASUREMENTS .................................................................... 11 5.3 RADIATED SPURIOUS EMISSION MEASUREMENTS, OUT-OF-BAND .......................................................... 13 5.4 FREQUENCY STABILITY ........................................................................................................................ 16 RF Test Report of HUAWEI G7-L01, G7-L01 Report No: SYBH(Z-RF)002082014-2005 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total16 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 02: 2013 FCC Part 15 Subpart C (15.225): 2013 1.2 Test Location Test Location 1: Reliability Laboratory of Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C 1.3 Test Environmental Condition Ambient Temperature: 20 – 25 °C Ambient Relative Humidity: 45 – 55 % Atmospheric Pressure: 101 kPa RF Test Report of HUAWEI G7-L01, G7-L01 Report No: SYBH(Z-RF)002082014-2005 Confidential Information of Huawei. No Distribution without Written Permission Page6, Total16 2 Summary FCC Part Section Test Description Test Limit Test Condition Test Result Referenc e TRANSMITTER MODE 15.225 (a) In-Band Emissions 15,848μV/m @ 30m 13.553 – 13.567 MHz RADIATED Pass Section 5.2 2.1049 20 dB Bandwidth N/A Pass Section 5.1 15.225(b) In-Band Emissions 334μV/m @ 30m 13.410 – 13.553 MHz 13.567 – 13.710 MHz Pass Section 5.2 15.225(c) In-Band Emissions 106μV/m @ 30m 13.110 – 13.410 MHz 13.710 – 14.010 MHz Pass Section 5.2 15.225(d) 15.209 Out-of-Band Emissions Emissions outside of the specified band (13.110 – 14.010 MHz) must meet the radiated limits detailed in 15.209 Pass Section 5.3 15.225(e) Frequency Stability Tolerance ± 0.01% of Operating Frequency Temperatur e Chamber Pass Section 5.4 15.207 AC Conducted E…

Text truncated - open the document above for the full version.

RF Test Report of HUAWEI G7-L01, G7-L01 Photos of Test Setup RF Test Report of HUAWEI G7-L01, G7-L01 For GSM &LTE 1． Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) RF Test Report of HUAWEI G7-L01, G7-L01 Radiated Spurious Emission (1GHz to18GHz) Radiated Spurious Emission (above 18GHz) RF Test Report of HUAWEI G7-L01, G7-L01 For Bluetooth & WLAN 1．Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) Radiated Spurious Emission (1GHz to18GHz) RF Test Report of HUAWEI G7-L01, G7-L01 Radiated Spurious Emission (above 18GHz) RF Test Report of HUAWEI G7-L01, G7-L01 Conducted Emissions Conducted Emissions for AC Ports RF Test Report of HUAWEI G7-L01, G7-L01 For NFC 1 Photos of Test Setups Radiated Spurious Emission (9K~30MHz) Radiated Spurious Emission (30M~1GHz) --------------------------------------------The END-------------------------------------------
