QISG7-L03Smart Phone

Quick Start Guide Your phone at a glance Thank you for choosing the Huawei smartphone. Before you start, let's take a look at your new phone. Press and hold the power button to power on your phone. To power off your phone, press and hold the power button, and touch Power off > OK. To forcibly restart your phone, press and hold the power button until your phone vibrates. Headset jack Status indicator Micro USB port Micro- phone Earpiece Front camera Light sensor Volume button Power button microSD card tray micro-SIM card tray Home Return Recent (View recently used applications ) Getting started Keep the SIM eject tool away from children and, to avoid injury or damaging your phone, exercise caution when using it. Caution Your phone's built-in battery is not user-removable. To replace the battery, contact an authorized Huawei service center. Do not attempt to remove it yourself. Follow the instructions in the following figures to install your micro-SIM card and microSD card. Before you insert or remove the micro-SIM card, power off your phone. 12 34 Locking and unlocking the screen Press the power button to lock the screen. After your phone is idle for a specified period of time, its screen automatically locks. If the screen is off, press the power button to turn it on. Slide your finger in any direction to unlock the screen. Flick up from the bottom of the screen to quickly launch commonly used applications without unlocking the screen. Calling and messaging Touch to place a call using the dialer. You can also touch a phone number in a message, email, web page, or other screen to place a call. Touch to send a text or multimedia message. You can save photos, audio clips, or videos from received multimedia messages. Camera Touch . Flick left or right to switch between photo and video capture modes. Frame the scene you want to capture. Let your camera focus automatically or touch the screen to focus on a specific object. Then touch to take a photo. In all focus mode, you can change the focus point on a photo after it's been taken. Internet connection You can access the Internet through Wi-Fi or a mobile network. Flick down from the status bar to open the notification panel. Touch to turn on the mobile network. Touch and hold to go to the Wi-Fi settings screen. Turn on Wi-Fi and follow the onscreen instructions to connect your phone to a Wi-Fi network. Backing up data You can use the Backup app to back up your phone's data and restore it later. Touch Tools > . Select the data you want to back up, such as your contacts, messages, and photos. Then follow the onscreen instructions. Phone Manager Touch . You can scan your phone for potential hazards with one touch. Follow the onscreen instructions to use one-touch optimization or manually clean the system storage or manage your applications. Flick left to view more functions. You can then clear system trash, set the harassment filter, choose a power saving mode, manage your notifications and application permissions, and more. For more information Want to obtain the full user guide? Download the HUAWEI Ascend G7 User Guide from http://consumer.huawei.com/en. All pictures and illustrations in this guide, including but not limited to the phone color, size, and display content, are for your reference only. The actual product may vary. Nothing in this guide constitutes a warranty of any kind, express or implied. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment • Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. • Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. • Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset • To prevent possible hearing damage, do not listen at high volume levels for long periods. • Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. • Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives • Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. • Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security • Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. • Concentrate on driving. Your first responsibility is to drive safely. • Do not hold the device while driving. Use hands-free accessories. • When you must make or answer a call, pull off the road safely and park the vehicle first. • RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. • Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates. • Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt …

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District,Shenzhen,518129,P.R.C Tel: 0086-0755-28970299 ; Fax: 0086-0755-89650226 Date: November 25, 2014 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISG7-L03, has a battery, But the battery will be placed in the battery compartment when delivery, it is not visible to the users as they purchase the products. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-11-29 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISG7-L03 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-04-29: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

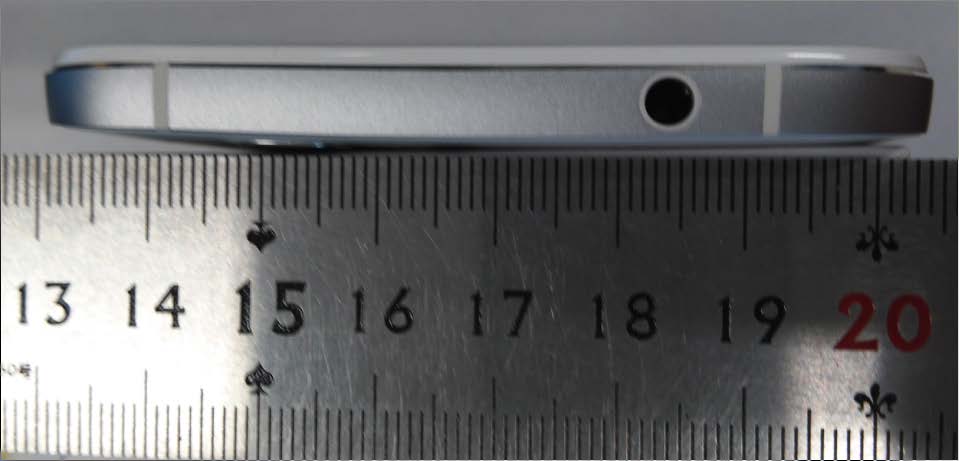

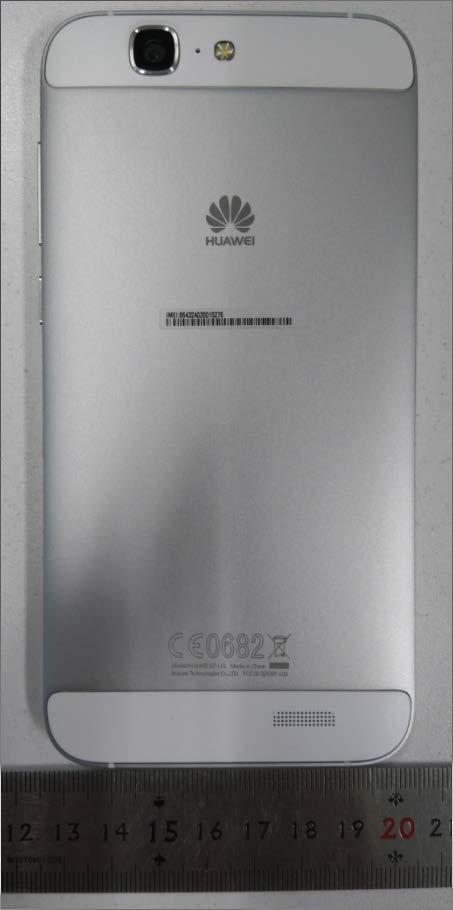

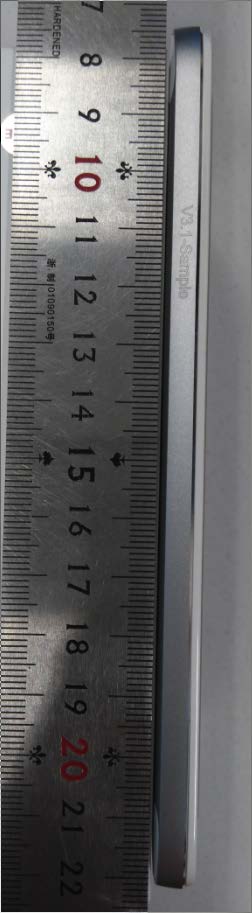

HUAWEI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page1,Total 6 External Photos of HUAWEI G7-L03, G7-L03 HUAWEI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page2,Total 6 HUAWEI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page3,Total 6 HUAWEI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page4,Total 6 HUAWEI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page5,Total 6 HUAWEI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page6,Total 6

HUAW EI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page1, Total 4 Label Location HUAWEI G7-L03, G7-L03 HUAW EI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page2, Total 4 HUAW EI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page3, Total 4

HUAWEI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page1,Total 6 Internal Photos of HUAWEI G7-L03, G7-L03 HUAWEI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page2,Total 6 HUAWEI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page3,Total 6 HUAWEI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page4,Total 6 HUAWEI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page5,Total 6 HUAWEI G7-L03, G7-L03 Smart Phone, HUAWEI Ascend G7 SECRET Page6,Total 6

Report No.: SYBH (Z-SAR)015102014-2 FCC ID:QISG7-L03 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-ES-Head SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1750-ES-He ad SystemPerformanceCheck-D1750-ES-Body SystemPerformanceCheck-D1900-ES-Head SystemPerformanceCheck-D1900-EX-Body SystemPerformanceCheck-D2450-ES-Head SystemPerformanceCheck-D2450-EX-Body SystemPerformanceCheck-D2600-ES-Head SystemPerformanceCheck-D2600-ES-Body Date: 2014-11-8 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: UID 0, CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.928 S/m; ε r = 39.804; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.58, 6.58, 6.58); Calibrated: 2014-9- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2014-4-30 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=15mm, Pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.63 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.67 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.61 W/kg SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.57 W/kg Maximum value of SAR (measured) = 2.83 W/kg 0 dB = 2.63 W/kg = 4.21 dBW/kg Date: 2014-11-9 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: UID 0, CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.972 S/m; ε r = 53.451; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.08, 9.08, 9.08); Calibrated: 2014-4- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn851; Calibrated: 2014-7-24 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=15mm, Pin=250mW/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.62 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 50.48 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 3.50 W/kg SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 2.75 W/kg 0 dB = 2.62 W/kg = 4.18 dBW/kg Date: 2014-11-9 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1750-ES-Head DUT: Dipole 1750 MHz D1750V2; Type: D1750V2; Serial: D1750V2 - SN:1123 Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1750 MHz; σ = 1.391 S/m; ε r = 39.185; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.25, 5.25, 5.25); Calibrated: 2014-9- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2014-4-30 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.57 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 82.81 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 15.7 W/kg SAR(1 g) = 8.85 W/kg; SAR(10 g) = 4.73 W/kg Maximum value of SAR (measured) = 11.2 W/kg 0 dB = 9.57 W/kg = 9.81 dBW/kg Date: 2014-11-14 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1750-ES-Body DUT: Dipole 1750 MHz D1750V2; Type: D1750V2; Serial: D1750V2 - SN:1123 Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1750 MHz; σ = 1.499 S/m; ε r = 54.199; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.93, 4.93, 4.93); Calibrated: 2014-9- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2014-4-30 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.9 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 82.34 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 16.3 W/kg SAR(1 g) = 9.3 W/kg; SAR(10 g) = 4.93 W/kg Maximum value of SAR (measured) = 11.7 W/kg 0 dB = 10.9 W/kg = 10.37 dBW/kg Date: 2014-11-10 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-ES-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.437 S/m; ε r = 40.491; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.09, 5.09, 5.09); Calibrated: 2014-9- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2014-4-30 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.97 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 89.72 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 18.0 W/kg SAR(1 g) = 10 W/kg; SAR(10 g) = 5.25 W/kg Maximum value of SAR (measured) = 12.6 W/kg 0 dB = 8.97 W/kg = 9.53 dBW/kg Date: 2014-11- 13 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - …

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)015102014-2 FCC ID: QISG7-L03 Appendix B. SAR Measurement Plots Table of contents GSM850 Head GSM850 Body GSM1900 Head GSM1900 Body UMTS Band V Head UMTS Band V Body UMTS Band IV Head UMTS Band IV Body UMTS Band II Head UMTS Band II Body LTE Band II Head LTE Band II Body LTE Band IV Head LTE Band IV Body LTE Band VII Head LTE Band VII Body WiFi 2450 MHz Head WiFi 2450 MHz Body Date: 2014-11-9 Test Laboratory: HUAWEI SAR/HAC Lab G7-L03 GSM850 251CH Right hand tilt 15 degree with battery 2#-Secondary antenna DUT: HUAWEI G7-L03, G7-L03; Type: Smart Phone, HUAWEI Ascend G7; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 848.8 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 849 MHz; σ = 0.94 S/m; ε r = 39.623; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.58, 6.58, 6.58); Calibrated: 2014-9- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2014-4-30 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.605 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.06 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.07 W/kg SAR(1 g) = 0.508 W/kg; SAR(10 g) = 0.291 W/kg Maximum value of SAR (measured) = 0.669 W/kg 0 dB = 0.605 W/kg = -2.18 dBW/kg Date: 2014-11-10 Test Laboratory: HUAWEI SAR/HAC Lab G7-L03 GSM850 190CH Back Side 15mm-Main antenna DUT: HUAWEI G7-L03, G7-L03; Type: Smart Phone, HUAWEI Ascend G7; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.974 S/m; ε r = 53.43; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.08, 9.08, 9.08); Calibrated: 2014-4- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn851; Calibrated: 2014-7-24 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.194 W/kg Configuration/Body/Zoom Scan (5x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.30 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.239 W/kg SAR(1 g) = 0.183 W/kg; SAR(10 g) = 0.137 W/kg Maximum value of SAR (measured) = 0.203 W/kg 0 dB = 0.194 W/kg = -7.12 dBW/kg Date: 2014-11-10 Test Laboratory: HUAWEI SAR/HAC Lab G7-L03 GSM850 GPRS 2TS 190CH Back Side 10mm-Main antenna DUT: HUAWEI G7-L03, G7-L03; Type: Smart Phone, HUAWEI Ascend G7; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-2TS (0); Frequency: 836.6 MHz;Duty Cycle: 1:4.10015 Medium parameters used: f = 837 MHz; σ = 0.974 S/m; ε r = 53.43; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.08, 9.08, 9.08); Calibrated: 2014-4- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn851; Calibrated: 2014-7-24 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.440 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.99 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.656 W/kg SAR(1 g) = 0.370 W/kg; SAR(10 g) = 0.210 W/kg 0 dB = 0.440 W/kg = -3.57 dBW/kg Date: 2014-11-10 Test Laboratory: HUAWEI SAR/HAC Lab G7-L03 GSM1900 810CH Right hand touch cheek with battery 2#-Secondary antenna DUT: HUAWEI G7-L03, G7-L03; Type: Smart Phone, HUAWEI Ascend G7; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 1909.8 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 1910 MHz; σ = 1.45 S/m; ε r = 40.608; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.09, 5.09, 5.09); Calibrated: 2014-9- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2014-4-30 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.754 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.73 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.37 W/kg SAR(1 g) = 0.713 W/kg; SAR(10 g) = 0.361 W/kg Maximum value of SAR (measured) = 0.929 W/kg 0 dB = 0.754 W/kg = -1.23 dBW/kg Date: 2014-11-14 Test Laboratory: HUAWEI SAR/HAC Lab G7-L03 GSM1900 661CH Back Side 15mm-Main antenna DUT: HUAWEI G7-L03, G7-L03; Type: Smart Phone, HUAWEI Ascend G7; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 1880 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 1880 MHz; σ = 1.511 S/m; ε r = 53.846; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.35, 7.35, 7.35); Calibrated: 2014-4- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn851; Calibrated: 2014-7-24 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.221 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.213 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.376 W/kg SAR(1 g) = 0.229 W/kg; SAR(10 g) = 0.129 W/kg Maximum value of SAR (measured) = 0.277 W/kg 0 dB = 0.221 W/kg = -6.56 dBW/kg Date: 2014-11-14 Test Laboratory: HUAWEI SAR/HAC …

Text truncated - open the document above for the full version.

Justification of the extended calibration of Dipole D 835V2 SN:4d059 Per KDB 865664, we have Measured the Impedance and Return Loss as below, and the r etur n los s is <-20dB, with 20% of prior calibration; t he real or imaginary parts of t he impedance is with 5 ohm of prior calibr ation . Therefore the verification result should support extended calibration. Dipole835Head TST Target Value Measured Value Difference Impedance transformed to feed point 51.7Ω-2.7jΩ 50.43Ω-2.79jΩ R=-1.27Ω, X=-0.09Ω Return Loss -30.2dB -30.16dB 0.13% Dipole835 Body TST Target Value Measured Value Difference Impedance transformed to feed point 47.1Ω-4.7jΩ 46.74Ω-4.96jΩ R=-0.36Ω, X=-0.26Ω Return Loss -24.9dB -24.63dB 1.08% Measured Date 2013-05-02 2014-05-01 ----- Impedance Test-Head Return Loss Test-Head

FCC RF Test Report Product Name: Smart Phone, HUAWEI Ascend G7 Model Number: HUAWEI G7-L03, G7-L03 Report No: SYBH(Z-RF)023102014-2004 FCC ID：QISG7-L03 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of G760-L03 Report No: SYBH(Z-RF)023102014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 15 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of G760-L03 Report No: SYBH(Z-RF)023102014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 15 Approved by Senior Engineer: 2014-11-20 Liu Chunlin Date Name Signature Prepared by: 2014-11-20 Zhang Guocai Date Name Signature Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2014-11-02 Start Date of Test: 2014-11-02 End Date of Test: 2014-11-15 Test Result: Pass RF Test Report of G760-L03 Report No: SYBH(Z-RF)023102014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 15 Modification Record No. Last Report No. Modification Description 1 First report. RF Test Report of G760-L03 Report No: SYBH(Z-RF)023102014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 15 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 3 Description of the Equipment under Test (EUT) ..................................................................................................... 8 3.1 General Description ................................................................................................................................... 8 3.2 EUT Identity ............................................................................................................................................... 8 3.3 Technical Description ................................................................................................................................. 9 4 General Test Conditions / Configurations ............................................................................................................. 10 4.1 EUT Configurations .................................................................................................................................. 10 4.2 Test Environments ................................................................................................................................... 10 4.3 Test Setups .............................................................................................................................................. 11 4.4 Test Conditions ........................................................................................................................................ 14 5 Main Test Instruments .......................................................................................................................................... 15 RF Test Report of G760-L03 Report No: SYBH(Z-RF)023102014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 15 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 2, Subpart J 2013 47 CFR FCC Part 15, Subpart C 2013 Test Method: FCC KDB 558074 D01 DTS Meas Guidance v03r02 ANSI C63.10-2009, American National Standard for Testing Unlicensed Wireless Devices. 1.2 Test Location Test Location 1: Reliability Laboratory of Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C 1.3 Test Environment Condition Ambient Temperature: 19.5to 25 °C Ambient Relative Humidity: 40 to 55 % Atmospheric Pressure: Not applicable RF Test Report of G760-L03 Report No: SYBH(Z-RF)023102014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 15 2 Test Summary Test Item FCC Part No. Requirements Test Result Verdict DTS (6 dB) Bandwid…

Text truncated - open the document above for the full version.

RF Test Report of G760-L03 Report No: SYBH(Z-RF)023102014-1005 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 125 Appendix for Test report RF Test Report of G760-L03 Report No: SYBH(Z-RF)023102014-1005 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 125 Appendix A: DTS (6 dB) Bandwidth In this document, the "DTS6dBBW" refers to the measured "DTS (6 dB) Bandwidth" value. In this Appendix, the "fc(DTS6dBBW)" refers to the centre of the measured "DTS6dBBW". The introduction of the "fc(DTS6dBBW)" is due to that other measurements use it as the spectrum analyzer setting. For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. Part I - Test Results Test Mode Test Channel Frequency[MHz] Ant DTS6dBBW[MHz] Verdict 11B L 2412 Ant 1 7.58 pass 11B M 2437 Ant 1 7.60 pass 11B H 2462 Ant 1 7.53 pass 11G L 2412 Ant 1 16.55 pass 11G M 2437 Ant 1 16.50 pass 11G H 2462 Ant 1 16.54 pass 11N20 L 2412 Ant 1 17.64 pass 11N20 M 2437 Ant 1 17.63 pass 11N20 H 2462 Ant 1 17.69 pass RF Test Report of G760-L03 Report No: SYBH(Z-RF)023102014-1005 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 125 Part II - Test Plots 2.1 11B_L@Ant 1 RF Test Report of G760-L03 Report No: SYBH(Z-RF)023102014-1005 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 125 2.2 11B_M@Ant 1 RF Test Report of G760-L…
