QISG7205GSM Digital Mobile Phone

Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. i Contents 1 Getting to Know Your Phone ........................... 2 Your Phone .................................................. 2 Keys and Functions ....................................... 3 Main Screen Icons ......................................... 4 2 Getting Started .............................................. 5 Installing the SIM Card and the Battery ............ 5 Removing the Battery and the SIM Card ........... 6 Installing a microSD Card ............................... 6 Charging the Battery ..................................... 7 Customizing the Home Screen ........................ 7 Working with the Main Menu ........................... 8 Accessing a Shortcut Menu ............................. 9 Phone Lock .................................................. 9 Mass Storage ............................................. 10 PIN and PUK .............................................. 10 Locking the Keypad ..................................... 11 3 Voice Services .............................................. 12 Making a Call ............................................. 12 Handling Incoming Calls ............................... 13 4 Text Input .................................................... 13 Changing the Text Input Mode ...................... 13 Multi-Tap Input Mode ................................... 14 Predictive Input Mode .................................. 15 Entering Digits ........................................... 15 ii Entering Symbols ........................................ 16 5 Messaging .................................................... 16 Writing and Sending a Text Message .............. 16 Writing and Sending a Multimedia Message ..... 17 6 Email (Optional) ........................................... 19 Creating an Email Account ............................ 19 Activating an Email Account .......................... 20 Writing and Sending an Email ....................... 20 7 Voice Mail .................................................... 21 Adding or Changing a Voicemail Number ........ 21 8 Phonebook ................................................... 22 Creating a Contact ...................................... 22 Searching for a Contact ............................... 22 Setting the Preferred Storage ....................... 23 Copying Contacts ........................................ 23 Contact Group ............................................ 24 9 Multimedia ................................................... 25 Camera ..................................................... 25 Video Recorder ........................................... 25 Media Player .............................................. 26 Image Viewer ............................................. 27 FM Radio ................................................... 27 Sound Recorder .......................................... 28 TV (for G7205) ........................................... 28 TV (for G7206) ........................................... 29 10 WAP Browser ............................................. 30 Configuring Network Settings ....................... 30 iii Accessing a Website .................................... 31 11 Bluetooth ................................................... 31 Synchronizing Data ..................................... 32 Connecting a Bluetooth Headset to Your Phone 32 Transferring Data ........................................ 33 12 Chat Functions ........................................... 33 Facebook (Link) .......................................... 34 Facebook (Client) ........................................ 34 13 File Manager .............................................. 34 14 Tools .......................................................... 35 Alarm........................................................ 35 Calendar ................................................... 35 Tasks ........................................................ 35 Ebook ....................................................... 35 Calculator .................................................. 36 Unit Converter ............................................ 36 Currency Exchanger .................................... 36 15 App Store ................................................... 36 Installing a Java Application.......................... 37 Running a Java Application ........................... 37 Removing a Java Application ......................... 38 16 Opera (Optional) ........................................ 38 Configuring Network Settings ....................... 38 Accessing a Website .................................... 39 17 Nimbuzz (Optional) .................................... 40 Configuring Network Settings ....................... 40 Accessing Nimbuzz ...................................... 40 iv 18 FAQs .......................................................... 41 19 Warnings and Precautions .......................... 44 1  Features marked as "optional" may vary according to service providers. For details, contact your service provider.  Features marked with "for G7205" are only provided on G7205. Features marked with "fo…

Text truncated - open the document above for the full version.

Rev. 1/1/03 Huawei Technologies Co.,Ltd Bantian, Longgang District,Shenzhen, China Tel: +86-755-2878-1879, Fax: +86-755-2878-1889 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QISG7205 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: HUAWEI G7205_Schem.pdf) Block Diagram (file: HUAWEI G7205_BlkDia.pdf) Parts List (file: HUAWEI G7205_PartsLst.pdf) Operation Description (file: HUAWEI G7205_OpDes.doc) Tune Up Procedure (file: HUAWEI G7205_TunPro.doc) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Xinghai Zhang

Huawei Technologies Co.,Ltd Bantian, Longgang District,Shenzhen, China Tel: +86-755-2878-1879, Fax: +86-755-2878-1889 Date: March 9, 2011 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISG7205, has no space to put the label except the battery compartment of this device. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Xinghai Zhang

Huawei Technologies Co.,Ltd Bantian, Longgang District,Shenzhen, China Tel: +86-755-2878-1879, Fax: +86-755-2878-1889 Date: March 4, 2011 Power of Attorney To whom it may concern, Please be notified that we, Huawei Technologies Co.,Ltd., have designated Roy Wu in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: QISG7205 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Zhang Xinghai Company: Huawei Technologies Co.,Ltd TEL: +86-755-2878-1879 FAX: +86-755-2878-1889 E-mail: [email protected]

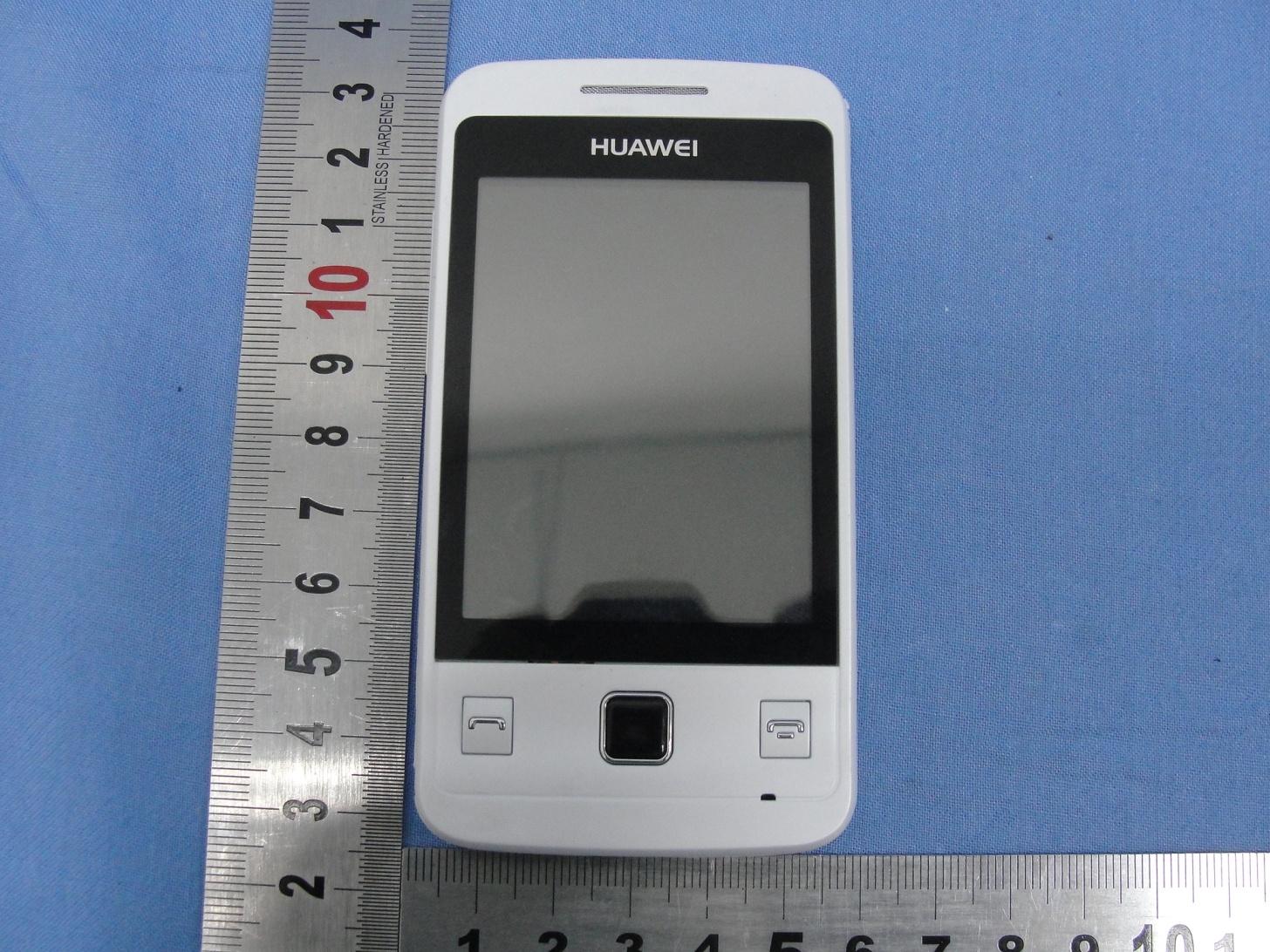

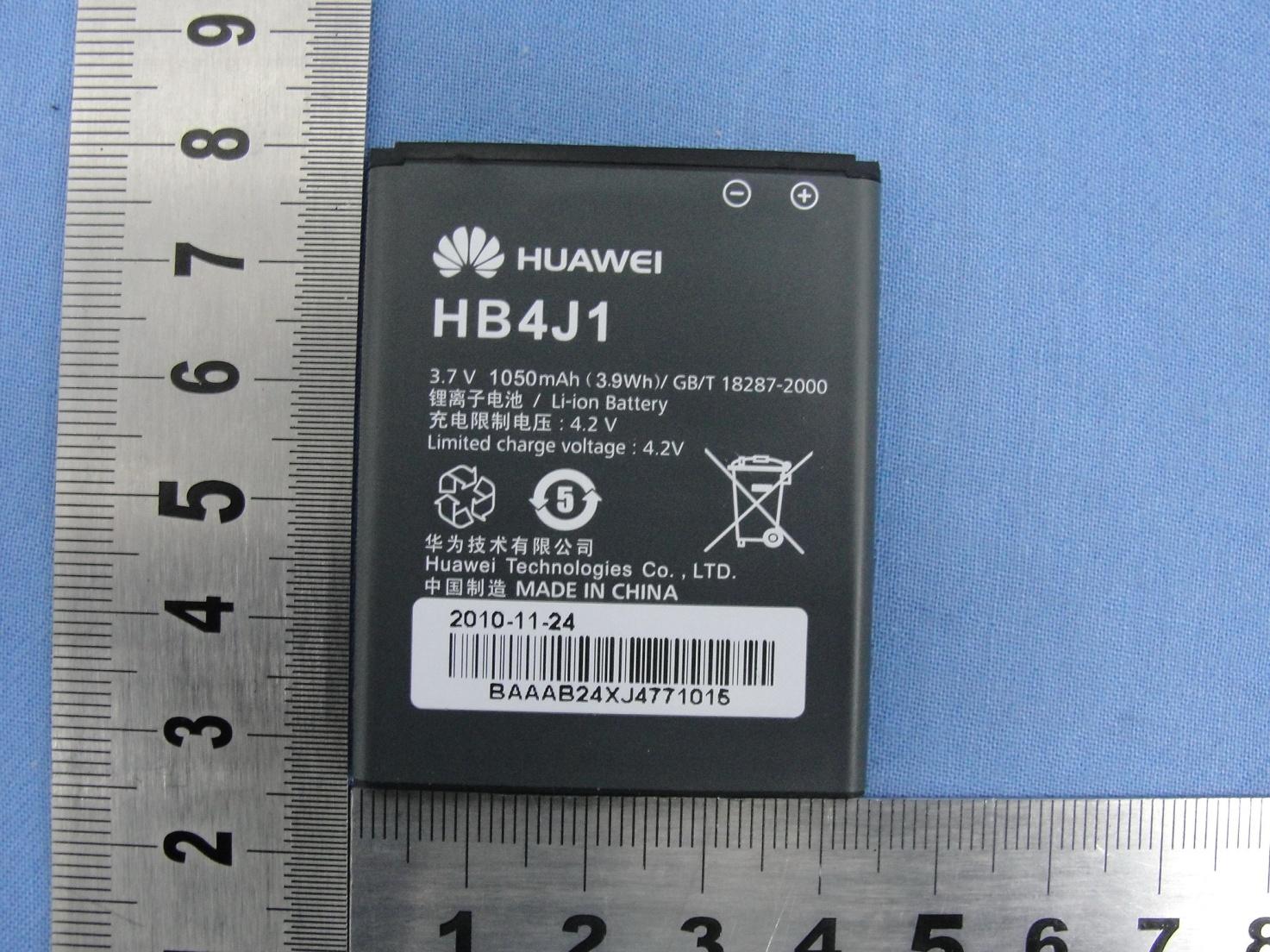

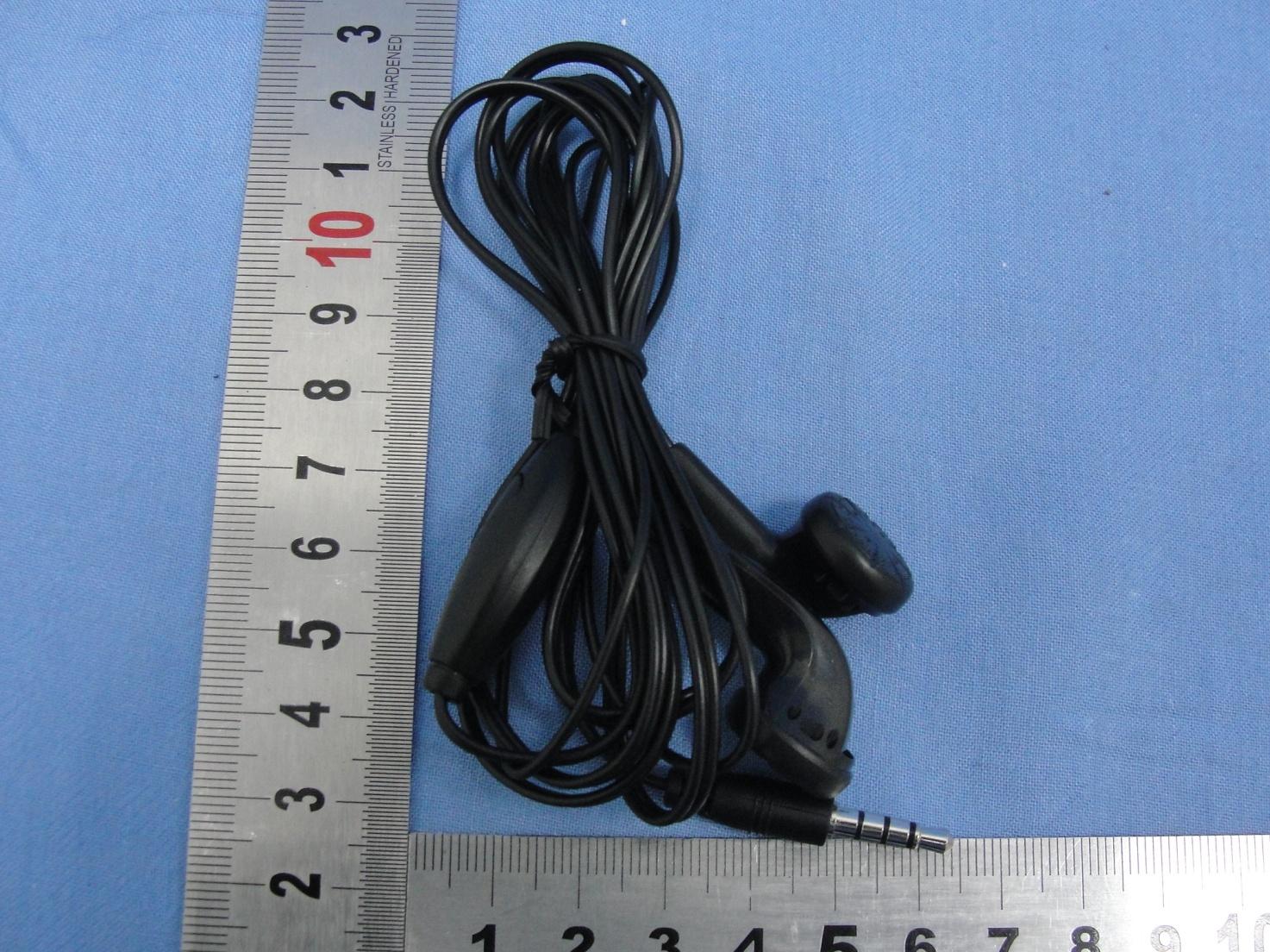

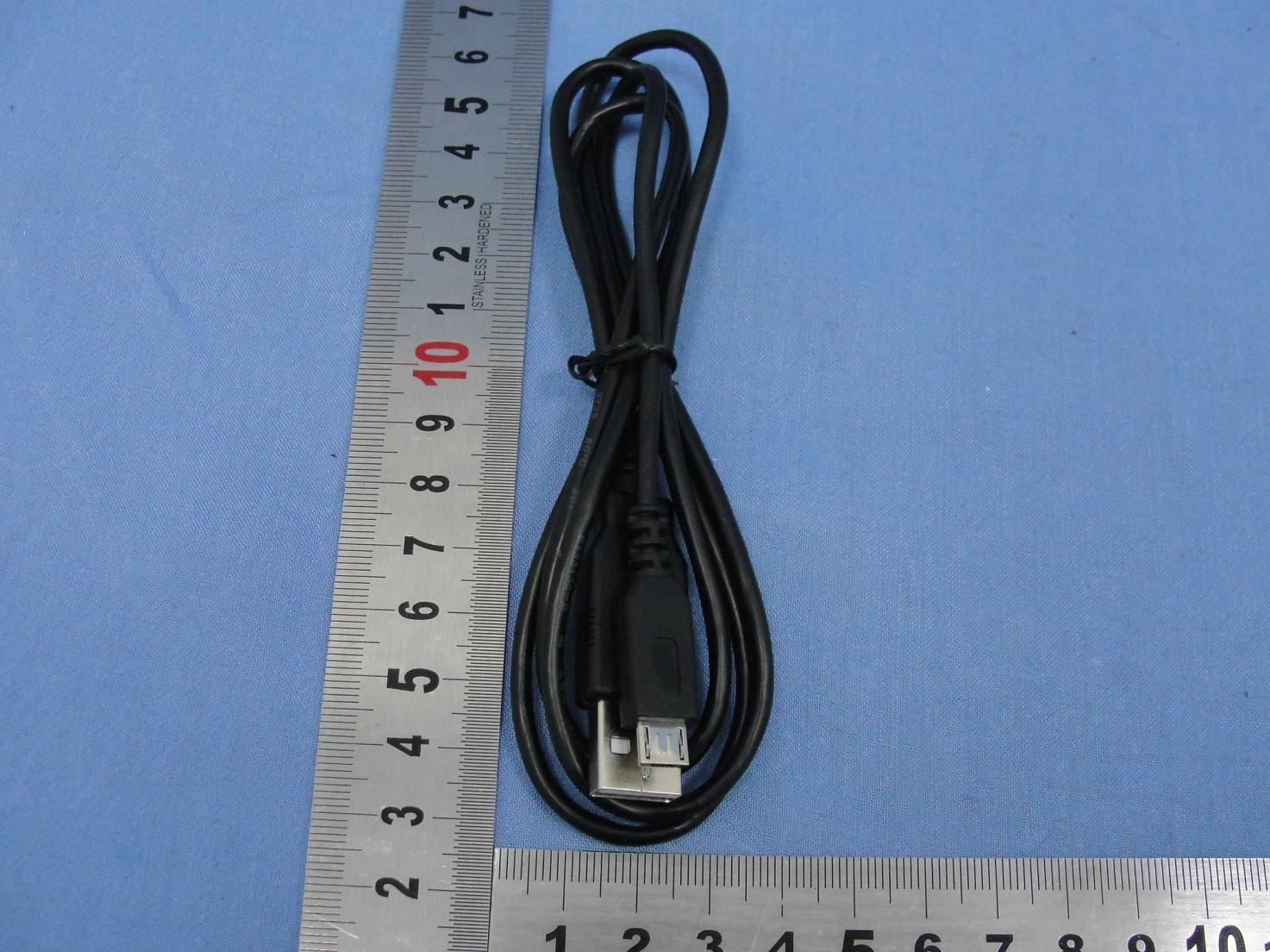

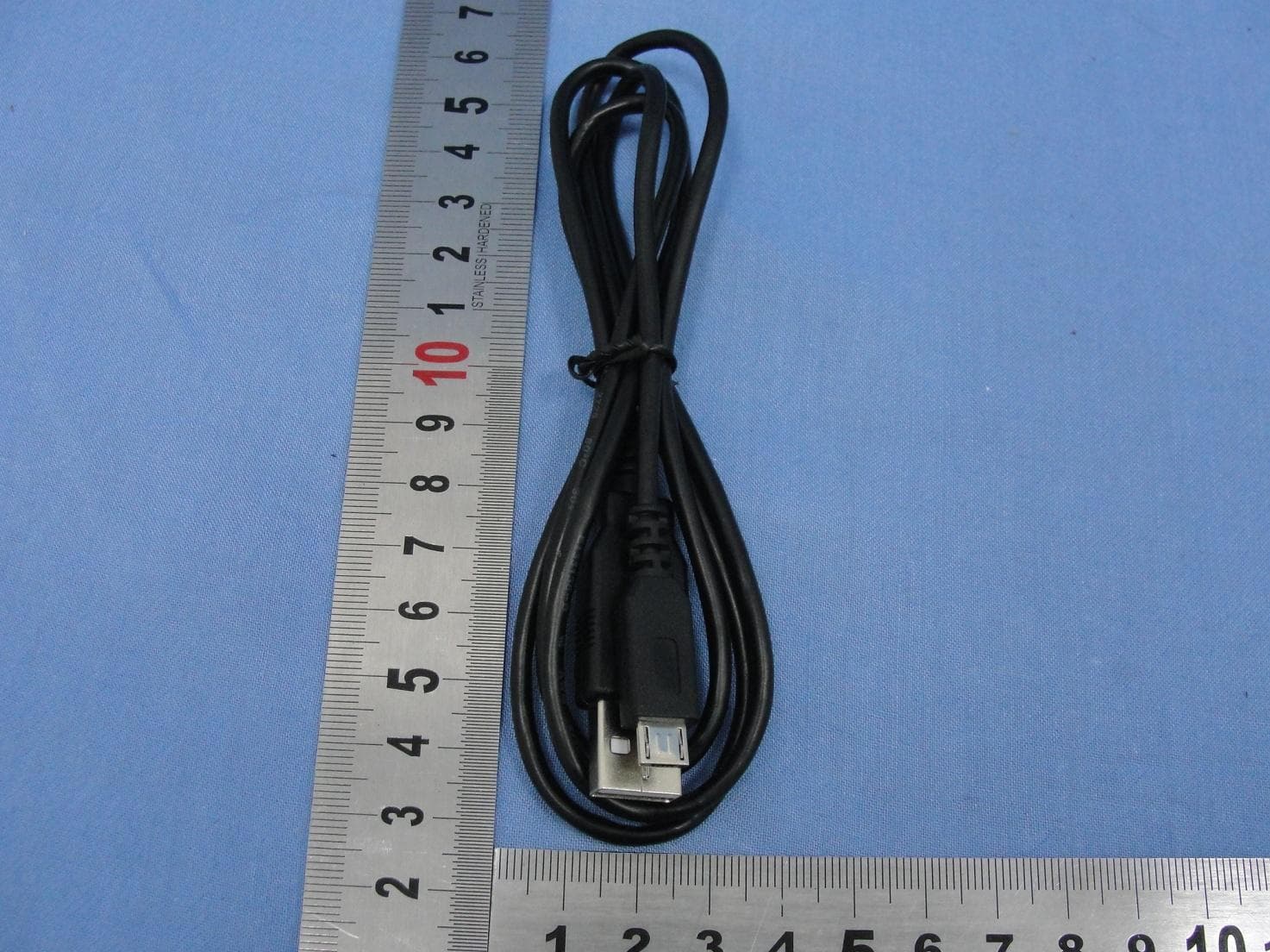

Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 1. External Photograph of EUT Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 720510 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HUAWEI Model Name ZW003AV0500035 AC Adapter 2 Brand Name HUAWEI Model Name ZW003AV0500055 Battery Brand Name HUAWEI Model Name HB4J1 Earphone Brand Name LIANYUN Model Name TS300-03MS44-06 USB Cable Brand Name LIOU YUANE(SU ZHOU)ELECTRONIC CO. Model Name SP-YHD-MF-011 LCD Panel Brand Name GIANTPLUS Model Name KGM1031A1 Camera Brand Name RICHTEK Model Name SHYHD54_V5 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 720510 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Adapter 1 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Adapter 2 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205

Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 3. Internal Photograph of EUT Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 Bluetooth Antenna <Tx/Rx> Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 TV Antenna

Photographs of EUT Report No.: EP112544 Brand Name: HUAWEI / Model Name: HUAWEI G7205 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 1 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 720510 1.9 cm WWAN Antenna <Tx/Rx> Bluetooth Antenna <Tx/Rx> TV Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 FCC SAR Test Report Report No. : FA112544 FCC SAR Test Report APPLICANT : HUAWEI TECHNOLOGIES CO., LTD. EQUIPMENT : GSM Digital Mobile Phone BRAND NAME : HUAWEI MODEL NAME : HUAWEI G7205 FCC ID : QISG7205 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jan. 25, 2011 and completely tested on Feb. 24, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG7205 FCC SAR Test Report Report No. : FA112544 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................17 5.7.1 Data Storage .....…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-2-17 System Check_Head_835MHz_110217 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_110217 Medium parameters used: f = 835 MHz; σ = 0.903 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.56 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.1 V/m; Power Drift = 0.0163 dB Peak SAR (extrapolated) = 3.6 W/kg SAR(1 g) = 2.39 mW/g; SAR(10 g) = 1.56 mW/g Maximum value of SAR (measured) = 2.58 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-2-17 System Check_Body_835MHz_110217 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110217 Medium parameters used: f = 835 MHz; σ = 0.974 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.57 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51 V/m; Power Drift = 0.00673 dB Peak SAR (extrapolated) = 3.54 W/kg SAR(1 g) = 2.38 mW/g; SAR(10 g) = 1.58 mW/g Maximum value of SAR (measured) = 2.57 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-2-17 System Check_Head_1900MHz_110218 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110216 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.39, 7.39, 7.39); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 10.8 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.2 V/m; Power Drift = 0.00719 dB Peak SAR (extrapolated) = 18.9 W/kg SAR(1 g) = 9.61 mW/g; SAR(10 g) = 4.87 mW/g Maximum value of SAR (measured) = 10.7 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-2-17 System Check_Body_1900MHz_110217 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110217 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.26, 7.26, 7.26); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.9 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87 V/m; Power Drift = 0.00519 dB Peak SAR (extrapolated) = 20.7 W/kg SAR(1 g) = 10.6 mW/g; SAR(10 g) = 5.37 mW/g Maximum value of SAR (measured) = 11.8 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-2-24 System Check_Head_2450MHz_110224 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110224 Medium parameters used: f = 2450 MHz; σ = 1.81 mho/m; ε r = 37.6; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.77, 6.77, 6.77); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 14.8 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 89 V/m; Power Drift = -0.00313 dB Peak SAR (extrapolated) = 29.6 W/kg SAR(1 g) = 12.7 mW/g; SAR(10 g) = 5.57 mW/g Maximum value of SAR (measured) = 14.3 mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-2-17 #06 GSM850_Right Cheek_Ch251 DUT: 112404 Communication System: Generic GSM; Frequency: 848.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110217 Medium parameters used: f = 849 MHz; σ = 0.917 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Ambient Tempera…
