QISG7500GSM Mobile Phone

i Contents 1 Read Before Proceed ing ..................................................... 1 Personal Informat ion and Data Security ................................ 1 Legal Not ice .......................................................................... 2 2 Gett ing Started .................................................................. 6 Your Phone............................................................................. 6 Preparing and Instal ling ......................................................... 8 Power On or Off Your Mobile Phone ..................................... 10 Touchscreen Act ions ............................................................ 10 Locking and Unlocking the Screen ....................................... 11 Home Screen ....................................................................... 11 Not if icat ion Panel ............................................................... 13 Customizing the Home Screen............................................. 13 Moving Icons on the Applicat ion Screen .............................. 14 Creat ing New Folders on the Applicat ion Screen ................ 15 Using a microSD Card .......................................................... 15 Backing Up data by using Backup to SD ............................... 16 3 Cal l ing ............................................................................. 17 Making a Cal l........................................................................ 17 Answering or Reject ing a Cal l .............................................. 18 Other Operat ions During a Cal l............................................ 18 Using the Cal l log ................................................................. 19 Using Airplane Mode ............................................................ 20 ii 4 Contacts ........................................................................... 20 Opening the Contacts Applicat ion ....................................... 20 Import ing Contacts from a SIM/USIM Card .......................... 20 Adding a Contact ................................................................. 20 Adding a Contact to Your Favorites ...................................... 21 Searching for a Contact ........................................................ 21 Edit ing a Contact ................................................................. 21 Managing Groups ................................................................. 21 5 Using the Onscreen Keyboard ............................................. 22 Displaying the Keyboard ...................................................... 22 6 Messaging ........................................................................ 23 SMS and MMS ..................................................................... 23 Email .................................................................................... 24 7 Getting Connected............................................................. 25 Turning on the Data Service ................................................. 25 Wi-Fi .................................................................................... 26 Sharing Your Phone’s Data Connect ion ................................ 27 Browser ................................................................................ 27 Bluetooth ............................................................................. 29 8 Entertainment .................................................................. 30 Taking Photos and Recording Videos ................................... 30 Using the Gallery .................................................................. 32 Using the Movies.................................................................. 33 Enjoying Music ..................................................................... 33 Listening to the FM Radio .................................................... 34 iii 9 Google Services ................................................................. 35 Creat ing a Google Account .................................................. 35 Gmail ................................................................................... 36 Tal k ...................................................................................... 36 Maps .................................................................................... 36 YouTube ............................................................................... 37 10 Synchronizing Information ............................................... 37 Adding an Exchange Account .............................................. 37 Removing an Account .......................................................... 38 Conf iguring General Synchronizat ion Sett ings .................... 38 11 Using Other Appl icat ions .................................................38 Backing Up Data .................................................................. 38 Calendar ............................................................................... 38 Clock .................................................................................... 39 Calculator ............................................................................. 39 12 Managing Your Mobile Phone ............................................ 39 Sett ing the Date and Time ................................................... 39 Sett ing the Display .............................................................. 39 Audio Prof iles ...................................................................... 40 Sett ing Phone Services ........................................................ 40 Protect ing Your Mobile Phone ............................................. 41 Managing Applicat ions ........................................................ 42 Managing Your Mobile Phone Memory ................................ 42 Restoring Factory Data ........................................................ 43 iv 13 FAQs...............…

Text truncated - open the document above for the full version.

HUAWEI TECHNOLOGIES CO., LTD. Date: 2013-03-12 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISG7500 ATTESTATION FCC ID: QISG7500 Product: GSM Mobile Phone Model: HUAWEI G7500 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Zhang Xinghai/manager HUAWEI TECHNOLOGIES CO., LTD.

RF_160, Issue 02 HUAWEI TECHNOLOGIES CO., LTD. Declaration of Authorization We Name: HUAWEI TECHNOLOGIES CO., LTD. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C City: ......... SHENZHEN ................................................................ Country:.........China ............................................................................ Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: GSM Mobile Phone Type designation: HUAWEI G7500 on our behalf. Date: 2013-03-12 City: SHENZHEN Name: Zhang Xinghai (2) Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

HUAWEI TECHNOLOGIES CO., LTD. Date: 2013-03-12 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISG7500 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description 4 BOM List 5 Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________________ Zhang Xinghai/manager HUAWEI TECHNOLOGIES CO., LTD.

HUAWEI TECHNOLOGIES CO., LTD. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Attestation for FCC Declaration of Conformity FCC ID: QISG7500 Date: 2013/03/12 Please be notified that we, the undersigned, HUAWEI TECHNOLOGIES CO., LTD. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DOC. And the DoC procedure shall be carried out prior to marketing the device in the US. The test report number supporting the DOC is 133025R-ITUSP01V02Testing in regards to this report was done by QuieTek Corp., located at No.5-22, Rueishu Keng, Rueiping Tsuen, Linkou Shiang, Taipei County 244, Taiw an, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Zhang Xinghai/manager HUAWEI TECHNOLOGIES CO., LTD.

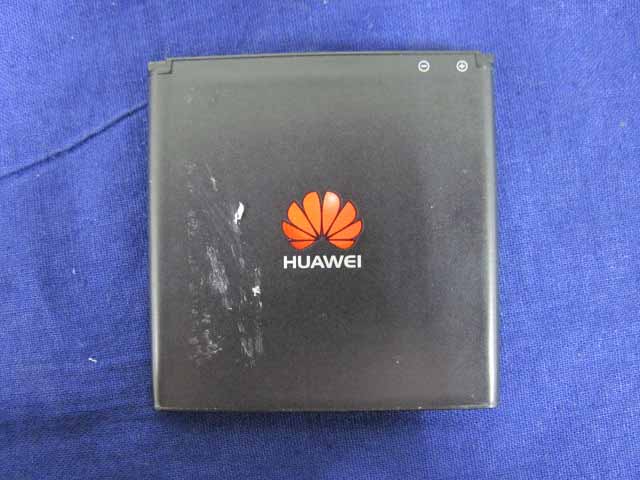

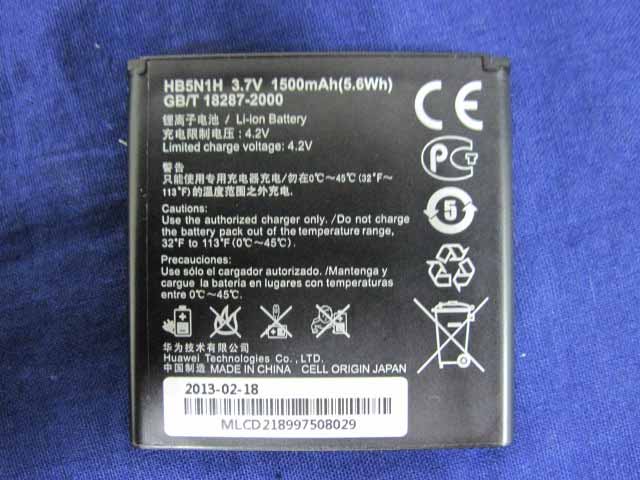

(1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (Battery #1) (8) EUT Photo (Battery #1) (9) EUT Photo (Battery #2) (10) EUT Photo (Battery #2) (11) EUT Photo (12) EUT Photo

(1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo For SAR

Report No.: 132S031R-HP-US-P03V01 Page: 1 of 147 SAR Test Report Product Name : GSM Mobile Phone Model No. : HUAWEI G7500 FCC ID : QISG7500 Applicant : HUAWEI TECHNOLOGIES CO., LTD Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt : 26/02/2013 Date of Test : 06/03/2013 Issued Date : 23/04/2013 Report No. : 132S031R-HP-US-P03V01 Report Version : V1.1 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 132S031R-HP-US-P03V01 Page: 2 of 147 Test Report Certification Issued Date: 23/04/2013 Report No.: 132S031R-HP-US-P03V01 Product Name : GSM Mobile Phone Applicant : HUAWEI TECHNOLOGIES CO., LTD Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Manufacturer : HUAWEI TECHNOLOGIES CO., LTD Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Model No. : HUAWEI G7500 FCC ID : QISG7500 Brand Name : HUAWEI EUT Voltage : DC 3.7V Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003,47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) Head: 0.540 W/kg Body: 1.452 W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Alice Ni) Reviewed By : (Sunny Sun) Approved By : (Robin Wu) Report No.: 132S031R-HP-US-P03V01 Page: 3 of 147 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3 rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No.: 132S031R-HP-US-P03V01 Page: 4 of 147 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................... 6 1.1. EUT Description .................................................................................................. 6 1.2. Test Environment ................................................................................................. 8 1.3. EUT Antenna Locations ....................................................................................... 8 1.4. Simultaneous Transmission Configurations ......................................................... 9 1.5. SAR Test Exclusions Applied ............................................................................... 9 1.6. Guidance Documents ........................................................................................ 10 2. SAR Measurement System ...................................................................................... 10 2.1. DASY5 System Description ............................................................................... 11 2.1.1. Applications ................................................................................................... 12 2.1.2. Area Scans .................................................................................................... 12 2.1.3. Zoom Scan (Cube Scan Averaging) ............................................................... 12 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging .......................................... 12 2.2. DASY5 E-Field Probe ........................................................................................ 13 2.2.1. Isotropic E-Field Probe Specification ............................................................. 13 2.3. Boundary Detection Unit and Probe Mounting Device ...................................... 14 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ......................... 14 2.5. Robot ................................................................................................................. 15 2.6. Light Beam Unit ................................................................................................. 15 2.7. Device Holder .................................................................................................... 16 2.8. SAM Twin Phantom ........................................................................................... 16 3. Tissue Simulating Liquid ........................................................................................... 17 3.1. The composition of the tissue simulating liquid ................................................. 17 3.2. Tissue Calibration Result ................................................................................... 18 3.3. Tissue …

Text truncated - open the document above for the full version.

FCC Part22H&24E Test Report Product Name : GSM Mobile Phone Model No. : HUAWEI G7500 FCC ID : QISG7500 Applicant : HUAWEI TECHNOLOGIES CO.,LTD Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt : 26/02/2013 Test Date : 26/02/2013~18/03/2013 Issued Date : 19/03/2013 Report No. : 132S031R-HP-US-P07V01 Report Version : V 1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 132S031R-HP-US-P07V01 Page: 2 of 64 Test Report Certification Issued Date : 19/03/2013 Report No. : 132S031R-HP-US-P07V01 Product Name : GSM Mobile Phone Applicant : HUAWEI TECHNOLOGIES CO.,LTD Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Manufacturer : HUAWEI TECHNOLOGIES CO.,LTD Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Model No. : HUAWEI G7500 FCC ID : QISG7500 EUT Voltage : DC 3.7V Brand Name : HUAWEI Applicable Standard : FCC CFR Title 47 Part 2,TIA/EIA 603-C FCC Part22 Subpart H, FCC Part24 Subpart E Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No.: 132S031R-HP-US-P07V01 Page: 3 of 64 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI China : CNAS Report No.: 132S031R-HP-US-P07V01 Page: 4 of 64 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................... 6 1.1. EUT Description ......................................................................................................... 6 1.2. Mode of Operation ...................................................................................................... 8 1.3. Tested System Details ................................................................................................ 9 1.4. Configuration of Tested System ................................................................................ 10 1.5. EUT Exercise Software ............................................................................................. 11 2. Technical Test ........................................................................................................... 12 2.1. Summary of Test Result............................................................................................ 12 2.2. Test Environment ...................................................................................................... 13 3. Peak Output Power .................................................................................................. 14 3.1. Test Equipment ......................................................................................................... 14 3.2. Test Setup................................................................................................................. 15 3.3. Limit .......................................................................................................................... 15 3.4. Test Procedure ......................................................................................................... 15 3.5. Uncertainty ............................................................................................................... 17 3.6. Test Result ................................................................................................................ 18 3.7. Test Photograph ....................................................................................................... 21 4. Modulation Characteristic ......................................................................................... 23 4.1. Test Equipment ......................................................................................................... 23 4.2. Test Setup................................................................................................................. 23 4.3. Limit ...............…

Text truncated - open the document above for the full version.

Report No.: 132S031R-HP-US-P07V01 Page: 29 of 64 Figure Channel 189 (836.40MHz) Figure Channel 251 (848.80MHz) Report No.: 132S031R-HP-US-P07V01 Page: 30 of 64 Product GSM Mobile Phone Test Item Occupied Bandwidth Test Mode Mode 2: PCS 1900 Link Date of Test 2013/03/01 Test Site AC-6 Channel No. Frequency (MHz) -26dB Occupied Bandwidth (kHz) 99% Occupied Bandwidth (kHz) 512 1850.20 315.95 242.73 661 1880.00 312.11 247.54 810 1909.80 314.95 245.87 Figure Channel 512 (1850.20MHz) Report No.: 132S031R-HP-US-P07V01 Page: 31 of 64 Figure Channel 661 (1880.00MHz) Figure Channel 810 (1909.80MHz) Report No.: 132S031R-HP-US-P07V01 Page: 32 of 64 6. Spurious Emission At Antenna Terminals (+/- 1MHz) 6.1. Test Equipment Spurious Emission At Antenna Terminals (+/- 1MHz) / AC-6 Instrument Manufacturer Type No. Serial No Cali. Due Date PSA Series Spectrum Analyzer Agilent E4440A MY49420184 2013.04.10 Radio Communication Tester R&S CMU 200 117088 2013.04.18 Dual Directional Coupler Agilent 778D 20160 2013.04.18 10dB Coaxial Coupler Agilent 87300C MY44300299 2013.04.18 Temperature/Humidity Meter Zhicheng ZC1-2 AC6-TH 2014.01.11 6.2. Test Setup Report No.: 132S031R-HP-US-P07V01 Page: 33 of 64 6.3. Limit The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. 6.4. Test Procedure In the 1MHz bands immediately outside and adjacent to the frequency block a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed to measure the out of band Emissions. 6.5. Uncertainty The measurement uncertainty is defined as ± 1.2 dB. Report No.: 132S031R-HP-US-P07V01 Page: 34 of 64 6.6. Test Result Product GSM Mobile Phone Test Item Spurious Emission At Antenna Terminals (+/- 1MHz) Test Mode Mode 1: GSM 850 Link Date of Test 2013/03/01 Test Site AC-6 Figure Channel 128 (824.20MHz) Figure Channel 251 (848.80MHz) Report No.: 132S031R-HP-US-P07V01 Page: 35 of 64 Product GSM Mobile Phone Test Item Spurious Emission At Antenna Terminals (+/- 1MHz) Test Mode Mode 2: PCS1900 Link Date of Test 2013/03/01 Test Site AC-6 Figure Channel 512 (1850.20MHz) Figure Channel 810 (1909.80MHz) Report No.: 132S031R-HP-US-P07V01 Page: 36 of 64 7. Spurious Emission 7.1. Test Equipment Spurious Emission / AC-5 Instrument Manufacturer Type No. Serial No Cali. Due Date PSA Series Spectrum Analyzer Agilent E4440A MY49420184 2013.04.10 Radio Communication Tester R&S CMU 200 117088 2013.04.18 Dual Directional Coupler Agilent 778D 20160 2013.04.18 10dB Coaxial Coupler Agilent 87300C MY44300299 2013.04.18 PSG Analog Signal Generator Agilent E8257D MY44321116 2013.04.18 Preamplifier QuieTek AP-025C CHM-0503006 2013.05.04 Preamplifier Miteq NSP1800-25 1364185 2013.05.04 Bilog Antenna Teseq GmbH CBL6112D 27612 2013.10.15 Half Wave Tuned Dipole Antenna COM-POWER AD-100 40137 2013.11.24 Broad-Band Horn Antenna Schwarzbeck BBHA9120D 737 2013.11.24 Broad-Band Horn Antenna Schwarzbeck BBHA9120D 499 2014.06.08 Temperature/Humidity Meter Zhicheng ZC1-2 AC5-TH 2014.01.11 Report No.: 132S031R-HP-US-P07V01 Page: 37 of 64 7.2. Test Setup Radiated Spurious Measurement: below 1GHz Radiated Spurious Measurement: above 1GHz 7.3. Limit The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. Report No.: 132S031R-HP-US-P07V01 Page: 38 of 64 7.4. Test Procedure Conducted Spurious Measurement: a) Place the EUT on a bench and set it in transmitting mode. b) Connect a low loss RF cable from the antenna port to a spectrum analyzer and CMU200 by a Directional Couple. c) EUT Communicate with CMU200, then select a channel for testing. d) Add a correction factor to the display of spectrum, and then test. e) The resolution bandwidth of the spectrum analyzer was set at 1 MHz, sufficient scans were taken to show the out of band Emission if any up to 10 th harmonic. Radiated Spurious Measurement: a) The EUT shall be placed at the specified height on a support, and in the position closest to normal use as declared by provider. b) The test antenna shall be oriented initially for vertical polarization and shall be chosen to correspond to the frequency of the transmitter c) The output of the test antenna shall be connected to the measuring receiver. d) The transmitter shall be switched on and the measuring receiver shall be tuned to the frequency of the transmitter under test. e) The test antenna shall be raised and lowered through the specified range of height until a maximum signal level is detected by the measuring receiver. f) The transmitter shall then be rotated through 360° in the horizontal plane, until the maximum signal level is detected by the measuring receiver. g) The test antenna shall be raised and lowered again through the specified range of height until a maximum signal level is detected by the measuring receiver. v) The maximum signal level detected by the measuring receiver shall be noted. h) The transmitter shall be replaced by a substitution antenna. i) The substitution antenna shall be orientated for vertical polarization and the length of the substitution antenna shall be adjusted to correspond to the frequency of the transmitter. j) The substitution antenna shall be connected to a calibrated signal generator. k) If necessary, the input attenuator setting of the measuring receiver shall be adjusted in order to increase the sensitivity of the measuring receiver. l) The test antenna shall be raised and lowered through the specified range of height to ensure that the maximum signal is received. m) The input signal to the substitution antenna shall be adjusted to the level that produces a level detected by the measuring receiver, that is equal to the level noted while the transmitter radiated power was measured, corrected for the change of input attenuator setting of th…

Text truncated - open the document above for the full version.

Test Setup Photograph for Part 15.247(BT) Description: Conducted Emission Test Setup Description: Radiated Emission Test Setup for Below 30MHz Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for 1~18GHz Description: Radiated Emission Test Setup for Above 18GHz Test Setup Photograph for Part 15.247(WiFi) Description: Conducted Emission Test Setup Description: Radiated Emission Test Setup for Below 30MHz Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for 1~18GHz Description: Radiated Emission Test Setup for Above 18GHz Test Photograph for 22&24 Description: ERP Test Setup Description: Substitution Antenna for ERP Test Description: EIRP Test Setup Description: Substitution Antenna for EIRP Test Test Setup Photographs for SAR Left-Cheek Touch Left-Tilt 15° Right-Cheek Touch Right-Tilt 15° Body SAR Back 10mm Body SAR Front 10mm Body SAR Back 10mm with Headset#1 Body SAR Back 10mm with Headset#2 Body SAR Bottom 10mm for GSM Body SAR Left Side 10mm for GSM Body SAR Right Side 10mm for GSM Body SAR Top 10mm for Wi-Fi Body SAR Right Side 10mm for Wi-Fi Depth of the liquid in the phantom – Zoom in Note: The position used in the measurements were according to IEEE 1528 – 2003
