Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-04-07 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISGRA-L09 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-06-10: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

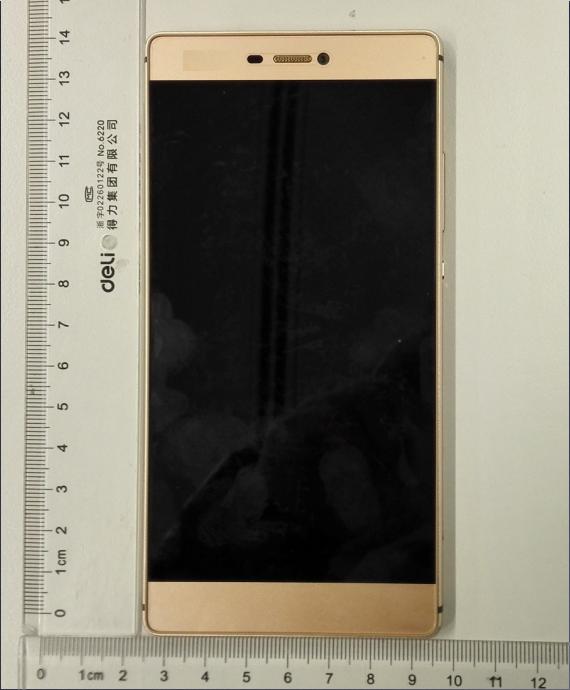

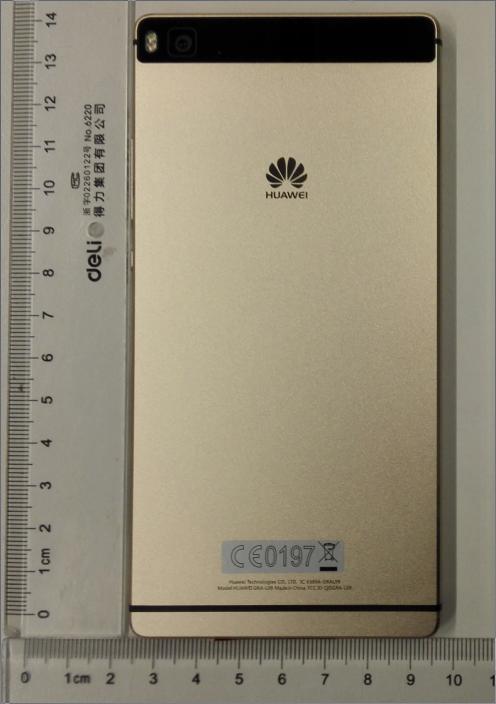

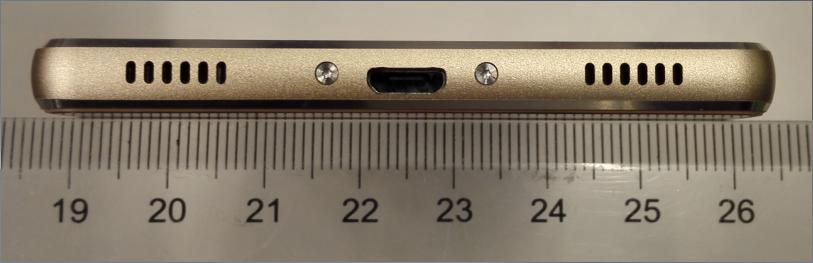

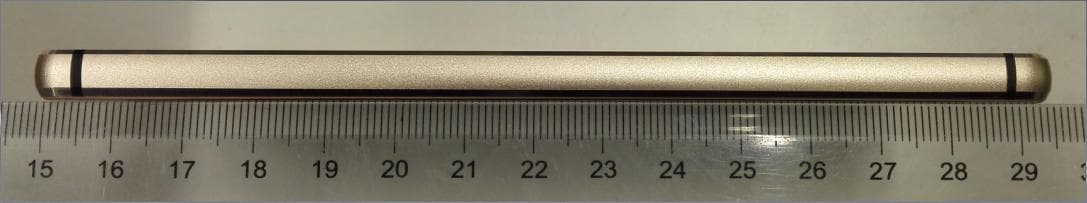

External Photos of HUAW EI GRA-L09 SECRET Page1,Total 4 External Photos of HUAWEI GRA-L09 External Photos of HUAW EI GRA-L09 SECRET Page2,Total 4 External Photos of HUAW EI GRA-L09 SECRET Page3,Total 4 External Photos of HUAW EI GRA-L09 SECRET Page4,Total 4

HUAWEI GRA-L09 SECRET Page1, Total 1 ID Label HUAWEI GRA-L09 HUAWEI GRA-L09 SECRET Page2, Total 1 HUAWEI GRA-L09 SECRET Page3, Total 1

HUAWEI GRA-L09 SECRET Page1,Total 5 Internal Photos of HUAWEI GRA-L09 HUAWEI GRA-L09 SECRET Page2,Total 5 HUAWEI GRA-L09 SECRET Page3,Total 5 HUAWEI GRA-L09 SECRET Page4,Total 5 HUAWEI GRA-L09 SECRET Page5,Total 5

Report N No.: RHA15 SA TA T 502-0012SA AR Product Model N FCC ID Applica n Manufac Date of i Techn R02R1 TE Name Name nt cturer issue nology ST Smart Pho HUAWEI G QISGRA-L Huawei Te Huawei Te April 3, 20 y (Sha TESTING No. L2264 RE one GRA-L09 L09 echnologie echnologie 015 angha POR es Co., Ltd es Co., Ltd ai) Co Page RT . . o., Ltd e 1 of 370 . TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 2 of 370 GENERAL SUMMARY Reference Standard(s) FCC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1- 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. IEEE Std 1528a-2005: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01 Mobile Portable RF Exposure v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 648474 D04 Handset SAR v01r02: SAR Evaluation Considerations for Wireless Handsets. KDB 941225 D01 SAR test for 3G devices v03: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D05 SAR for LTE Devices v02r03 SAR Test Considerations for LTE Handsets and Data Modems KDB 941225 D06 Hotspot Mode SAR v02: SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities KDB 248227 D01 SAR meas for 802 11 a b g v01r02: SAR Measurement Procedures for 802.11a/b/g Transmitters. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards for the tested bands only. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Kai Xu Director Revised by Jiangpeng Lan SAR Manager Performed by Liang Ye SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 3 of 370 TABLE OF CONTENT 1. General Information ..................................................................................................................... 6 1.1. Notes of the Test Report ....................................................................................................... 6 1.2. Testing Laboratory ................................................................................................................ 6 1.3. Applicant Information ............................................................................................................ 7 1.4. Manufacturer Information ...................................................................................................... 7 1.5. Information of EUT ................................................................................................................ 8 1.6. EUT Antenna Locations ...................................................................................................... 10 1.7. The Maximum Reported SAR 1g .......................................................................................... 12 1.8. Test Date ............................................................................................................................ 14 2. SAR Measurements System Configuration ................................................................................ 15 2.1. SAR Measurement Set-up .................................................................................................. 15 2.2. DASY5 E-field Probe System ............................................................................................. 16 2.2.1. EX3DV4 Probe Specification ....................................................................................... 16 2.2.2. E-field Probe Calibration .............................................................................................. 17 2.3. Other Test Equipment ......................................................................................................... 17 2.3.1. Device Holder for Transmitters .................................................................................... 17 2.3.2. Phantom ...................................................................................................................... 18 2.4. Scanning Procedure ........................................................................................................... 18 2.5. Data Storage and Evaluation .............................................................................................. 20 2.5.1. Data Storage ................................................................................................................ 20 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 20 3. Laboratory Environment ............................................................................................................. 22 4. Tissue-equivalent Liquid ............................................................................................................ 23 4.1. Tissue-equivalent Liquid Ingredients ................................................................................... 23 4.2. Tissue-equivalent Liquid Properties .................................................................................... 26 5. Sy stem Check ............................................................................................................................ 27 5.1. Description of System Check ..................................................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 311 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 312 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 313 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 314 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 315 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 316 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 317 of 370 ANNEX F: D835V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 318 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 319 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 320 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 321 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 322 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 323 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 324 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 325 of 370 ANNEX G: D1750V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 326 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 327 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 328 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 329 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 330 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 331 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 332 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 333 of 370 ANNEX H: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 334 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 335 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 336 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 337 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 338 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 339 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 340 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 341 of 370 ANNEX I: D2450V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 342 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 343 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 344 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 345 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 346 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 347 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 348 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 349 of 370 ANNEX J: D2600V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 350 of 370 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1502-0012SAR02R1 Page 351 of 370

RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 84 Appendix for test report RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 84 1Appendix_A: Effective (Isotropic) Radiated Power Output Data Part I - Test Results Test Band Test Mode Test Channel Measured[dBm] ERP/EIRP [dBm] Limit [dBm] Verdict GSM850 GSM/TM1 LCH 32.4 23.5 38.5 PASS MCH 32.63 23.73 38.5 PASS HCH 32.58 23.68 38.5 PASS GSM/TM2 LCH 26.36 17.46 38.5 PASS MCH 26.52 17.62 38.5 PASS HCH 26.42 17.52 38.5 PASS GSM1900 GSM/TM1 LCH 29.64 26.64 33 PASS MCH 29.44 26.44 33 PASS HCH 29.59 26.59 33 PASS GSM/TM2 LCH 26.27 23.27 33 PASS MCH 26.18 23.18 33 PASS HCH 26.16 23.16 33 PASS RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 84 Note1: a, For getting the ERP (Efficient Radiated Power) or EIRP (Efficient Isotropic Radiated Power) in substitution method, the following formula should be taken to calculate it, ERP [dBm] = SGP [dBm] - Cable Loss [dB] + Gain [dBd] EIRP [dBm] = SGP [dBm] - Cable Loss [dB] + Gain [dBi] b, SGP=Signal Generator Level Note2: RBW > emission bandwidth, VBW > 3 x RBW . Detector: RMS RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 84 2Appendix_B: Peak-to-Average Ratio Part I - Test Results Test Band Test Mode Test Channel Measured[dB] Limit [dB] Verdict GSM850 GSM/TM1 LCH 0.15 13 PASS MCH 0.16 13 PASS HCH 0.17 13 PASS GSM/TM2 LCH 2.96 13 PASS MCH 3 13 PASS HCH 3.05 13 PASS GSM1900 GSM/TM1 LCH 0.13 13 PASS MCH 0.13 13 PASS HCH 0.12 13 PASS GSM/TM2 LCH 3 13 PASS MCH 3.1 13 PASS HCH 2.91 13 PASS RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 84 3Appendix_C: Modulation Characteristics Part I - Test Plots 3.1 For GSM 3.1.1 Test Band = GSM850 3.1.1.1 Test Mode = GSM/TM1 3.1.1.1.1 Test Channel = MCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 84 3.1.1.2 Test Mode = GSM/TM2 3.1.1.2.1 Test Channel = MCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 84 3.1.2 Test Band = GSM1900 3.1.2.1 Test Mode = GSM/TM1 3.1.2.1.1 Test Channel = MCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 84 3.1.2.2 Test Mode = GSM/TM2 3.1.2.2.1 Test Channel = MCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 84 4Appendix_D: Bandwidth Part I - Test Results Test Band Test Mode Test Channel Occupied Bandwidth [kHz] Emission Bandwidth [kHz] Verdict GSM850 GSM/TM1 LCH 242.31 318.06 Pass MCH 240.34 314.26 Pass HCH 242.48 314.93 Pass GSM/TM2 LCH 246.95 313.62 Pass MCH 248.59 325.91 Pass HCH 248.64 319.64 Pass GSM1900 GSM/TM1 LCH 242.85 316.84 Pass MCH 244.20 315.02 Pass HCH 241.35 311.77 Pass GSM/TM2 LCH 248.18 310.07 Pass MCH 247.99 306.07 Pass HCH 248.33 324.61 Pass RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 84 Part II - Test Plots 4.1 For GSM 4.1.1 Test Band = GSM850 4.1.1.1 Test Mode = GSM/TM1 4.1.1.1.1 Test Channel = LCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 84 4.1.1.1.2 Test Channel = MCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 84 4.1.1.1.3 Test Channel = HCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 84 4.1.1.2 Test Mode = GSM/TM2 4.1.1.2.1 Test Channel = LCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 84 4.1.1.2.2 Test Channel = MCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 84 4.1.1.2.3 Test Channel = HCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 84 4.1.2 Test Band = GSM1900 4.1.2.1 Test Mode = GSM/TM1 4.1.2.1.1 Test Channel = LCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 17 of 84 4.1.2.1.2 Test Channel = MCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 18 of 84 4.1.2.1.3 Test Channel = HCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 19 of 84 4.1.2.2 Test Mode = GSM/TM2 4.1.2.2.1 Test Channel = LCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 20 of 84 4.1.2.2.2 Test Channel = MCH RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 21 of 84…

Text truncated - open the document above for the full version.

RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 298 Appendix for test report RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 298 1Appendix_A: Effective (Isotropic) Radiated Power Output Data Part I - Test Results Test Band(LTE) Test Mode Test Bandwidth Test Channel Test RB Measured[dBm] EIRP[ dBm] Limit [dBm] Verdict BAND2 LTE/TM1 1.4 LCH RB1#0 21.82 18.82 33 PASS RB1#3 22.02 19.02 33 PASS RB1#5 21.93 18.93 33 PASS RB3#0 21.81 18.81 33 PASS RB3#2 21.92 18.92 33 PASS RB3#3 21.89 18.89 33 PASS RB6#0 20.85 17.85 33 PASS MCH RB1#0 22.03 19.03 33 PASS RB1#3 22.1 19.1 33 PASS RB1#5 22.07 19.07 33 PASS RB3#0 22.03 19.03 33 PASS RB3#2 22.04 19.04 33 PASS RB3#3 21.98 18.98 33 PASS RB6#0 21 18 33 PASS RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 298 Test Band(LTE) Test Mode Test Bandwidth Test Channel Test RB Measured[dBm] EIRP[ dBm] Limit [dBm] Verdict HCH RB1#0 22.28 19.28 33 PASS RB1#3 22.62 19.62 33 PASS RB1#5 22.43 19.43 33 PASS RB3#0 22.56 19.56 33 PASS RB3#2 22.56 19.56 33 PASS RB3#3 22.49 19.49 33 PASS RB6#0 21.56 18.56 33 PASS 3 LCH RB1#0 21.47 18.47 33 PASS RB1#7 22.23 19.23 33 PASS RB1#14 21.86 18.86 33 PASS RB8#0 20.87 17.87 33 PASS RB8#4 21.12 18.12 33 PASS RB8#7 21.03 18.03 33 PASS RB15#0 20.99 17.99 33 PASS MCH RB1#0 21.57 18.57 33 PASS RB1#7 22.02 19.02 33 PASS RB1#14 21.74 18.74 33 PASS RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 298 Test Band(LTE) Test Mode Test Bandwidth Test Channel Test RB Measured[dBm] EIRP[ dBm] Limit [dBm] Verdict RB8#0 20.85 17.85 33 PASS RB8#4 20.92 17.92 33 PASS RB8#7 20.94 17.94 33 PASS RB15#0 20.81 17.81 33 PASS HCH RB1#0 21.97 18.97 33 PASS RB1#7 22.5 19.5 33 PASS RB1#14 22.27 19.27 33 PASS RB8#0 21.23 18.23 33 PASS RB8#4 21.39 18.39 33 PASS RB8#7 21.53 18.53 33 PASS RB15#0 21.31 18.31 33 PASS 5 LCH RB1#0 21.48 18.48 33 PASS RB1#13 22.22 19.22 33 PASS RB1#24 21.56 18.56 33 PASS RB12#0 20.89 17.89 33 PASS RB12#6 21.12 18.12 33 PASS RB12#13 20.82 17.82 33 PASS RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 298 Test Band(LTE) Test Mode Test Bandwidth Test Channel Test RB Measured[dBm] EIRP[ dBm] Limit [dBm] Verdict RB25#0 20.9 17.9 33 PASS MCH RB1#0 21.56 18.56 33 PASS RB1#13 22.04 19.04 33 PASS RB1#24 21.31 18.31 33 PASS RB12#0 20.7 17.7 33 PASS RB12#6 20.92 17.92 33 PASS RB12#13 20.65 17.65 33 PASS RB25#0 20.66 17.66 33 PASS HCH RB1#0 21.98 18.98 33 PASS RB1#13 22.53 19.53 33 PASS RB1#24 21.85 18.85 33 PASS RB12#0 21.22 18.22 33 PASS RB12#6 21.38 18.38 33 PASS RB12#13 21.2 18.2 33 PASS RB25#0 21.38 18.38 33 PASS 10 LCH RB1#0 21.63 18.63 33 PASS RB1#25 22.24 19.24 33 PASS RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 298 Test Band(LTE) Test Mode Test Bandwidth Test Channel Test RB Measured[dBm] EIRP[ dBm] Limit [dBm] Verdict RB1#49 21.85 18.85 33 PASS RB25#0 20.66 17.66 33 PASS RB25#13 20.83 17.83 33 PASS RB25#25 20.65 17.65 33 PASS RB50#0 20.65 17.65 33 PASS MCH RB1#0 21.96 18.96 33 PASS RB1#25 22.06 19.06 33 PASS RB1#49 21.49 18.49 33 PASS RB25#0 20.75 17.75 33 PASS RB25#13 20.67 17.67 33 PASS RB25#25 20.46 17.46 33 PASS RB50#0 20.66 17.66 33 PASS HCH RB1#0 22.42 19.42 33 PASS RB1#25 22.68 19.68 33 PASS RB1#49 22.1 19.1 33 PASS RB25#0 21.19 18.19 33 PASS RB25#13 21.31 18.31 33 PASS RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 298 Test Band(LTE) Test Mode Test Bandwidth Test Channel Test RB Measured[dBm] EIRP[ dBm] Limit [dBm] Verdict RB25#25 21.23 18.23 33 PASS RB50#0 21.25 18.25 33 PASS 15 LCH RB1#0 22.04 19.04 33 PASS RB1#38 22.16 19.16 33 PASS RB1#74 22.27 19.27 33 PASS RB38#0 21.1 18.1 33 PASS RB38#19 21.02 18.02 33 PASS RB38#39 20.98 17.98 33 PASS RB75#0 21.06 18.06 33 PASS MCH RB1#0 22.35 19.35 33 PASS RB1#38 22 19 33 PASS RB1#74 21.47 18.47 33 PASS RB38#0 21.17 18.17 33 PASS RB38#19 20.94 17.94 33 PASS RB38#39 20.63 17.63 33 PASS RB75#0 20.79 17.79 33 PASS HCH RB1#0 22.82 19.82 33 PASS RF Test Report of HUAWEI GRA-L09 Report No: SYBH(Z-RF) 013022015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 298 Test Band(LTE) Test Mode Test Bandwidth Test Channel Test RB Measured[dBm] EIRP[ dBm] Limit [dBm] Verdict RB1#38 22.72 19.72 33 PASS RB1#74 22.17 19.17 33 PASS RB38#0 21.71 18.71 33 PASS RB38#19 21.42 18.42 33 PASS RB38#39 21.37 18.37 33 PASS RB75#0 21.35 18.35 33 PASS 20 LCH RB1#0 22.38 19.38 33 PASS RB1#50 22.37 19.37 33 PASS RB1#99 22.88 19.88 33 PASS RB50#0 21.18 18.18 33 PASS RB50#25 20.96 17.96 33 PASS RB50#50 21.6 18.6 33 PASS RB100#0 21.54 18.54 33 PASS MCH RB1#0 22.94 19.94 33 PASS RB1#50 21.97 18.97 33 PASS RB1#99 22.1 19.1 33 PASS RB50#0 21.28 18.28 33 PASS RF Test Report of HUAW…
