QISH1511Smart Phone

Safety + Warranty Seguridad + Garantía Sécurité + Garantie English / Español / Français Contents Contenido Contenu 1.0 English 1.1 Safety & regulatory details3 1.2 Safety guidelines4 1.3 Regulatory information6 1.4 Limited warranty10 2.0 Español 2.1 Detalles de seguridad y reglamentarios21 2.2 Lineamientos de seguridad22 2.3 Información legal25 2.4 Garantía limitada29 3.0 Français 3.1 Détails concernant la sécurité et la réglementation41 3.2 Consignes de sécurité42 3.3 Renseignements concernant la réglementation45 3.4 Garantie limitée50 ENGLISH Safety + Warranty 3 1.1 Safety & regulatory details Please read all of the safety information carefully before using your d evice to ensure its s afe and proper operation and to learn how to dispose of your device properly. Online safety information To read the complete safety and regulatory information for this product: 1. Visit http://consumer.huawei.com/en/. 2. Search for “Nexus 6P”. 3. Download the document titled Safety , Regulatory, and Legal Information for your phone. Electronic labels To view regulatory marks and related information on your phone, go to Settings > About phone > Regulatory information. 4 1.2 Safety guidelines Operation and safety • To prevent possible hearing damage, do not listen at high volume levels for long periods. • Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. • Using an unapproved or incompatible power adapter, cha r ger, or battery may damage your device, shorten its lifespan, or cause a fire, explosion, or other hazards. • Choose only accessories approved for use with this model by th e device manufacturer. The use of any other types of accessories may void the warranty, may violate local regulations and laws, and may be dangerous. Please contact your retailer for information about the availability of approved accessories in your area. • Ideal operating temperatures are 0 °C (32 °F) to 35 °C ( 95°F). Id eal storage temperatures are -20 °C (-4 °F) to 60 °C (140 °F). • Pacemaker manufacturers recommend that a minimum d i stance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. 5 • Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves, or radiators. • Observe local laws and regulations while using the device. T o reduce the risk of accidents, do not use your wireless device while driving. • While flying in an aircraft or immediately before boarding, o n ly use your device according to instructions provided. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. • To prevent damage to your device's parts or internal ci rcu its, do not use it in dusty, smoky, damp, or dirty environments or near magnetic fields. • When charging the device, make sure the power adapter is pl u gged into a socket near the devices and is easily accessible. • Unplug the charger from electrical outlets and the device when not in use. • When the device has a built-in, non-removable battery, do not at tempt to remove the battery, otherwise the device may be damaged. To replace the battery, take the device to an authorized service center. • Do not use, store or transpo r t the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. • Do not use any chemical detergent, powder, or other chem ica l agents (such as alcohol and benzene) to clean the device or accessories. These substances may cause damage to parts or present a fire hazard. Use a clean, soft, and dry cloth to clean the device and accessories. • Dispose of this device, the battery, and accessories a c cording to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion, or other hazards. 6 1.3 Regulatory information FCC regulatory compliance Body worn operation The device complies with RF specif ications when used near your ear or at a distance of 1.5 cm from your body. Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement. Certification information (SAR) This device is also designed t o meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). The SAR limit adopted by the USA is 1.6 W/kg averaged over on e gram of tissue. The highest SAR value reported to the FCC for this device type complies with this limit. The highest SAR value reported to the FCC for this device ty pe when using at the ear is 1.49 W/kg, and when properly worn on the body is 0.81 W/kg, , and when using the Wi-Fi hotspot function is 1.44 W/Kg. FCC statement This equipment has been tested and found to comply with the l i mits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by 7 turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separa…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-9-11 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISH1511 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-12-28: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base, Bantian, Longgang, Shenzhen, P.R China Post ZIP：518129 Page ：1/1 To: TUVPS Fax : NULL From:Zhang Xinghai Fax:0086-0755-89650266 Tel:0086-0755-28970299 Email address: [email protected] Http: www.huawei.com Subject：Letter of Authorization 2015-09-11 To whom it may concern: We the undersigned, hereby authorize TUVPS to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by TUVPS on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Huawei Technologies Co., Ltd. . Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

23_Electronic Label Letter V1.0 Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-09-14 Oakland Mills Road Columbia MD 21046 Subject: Electronic Label Letter FCC ID:QISH1511 To Whom It May Concern: Pursuant to the provisions of KDB 784748 D02 e labeling v01, we hereby provide the following statement: This device have a integrated display screen can present the required label information electronically (e-label) in lieu of a physical label or nameplate. The end user can access the electronic label with three steps. The information of electronic label is programmed by Huawei, any can’t be modified by any third party. If have any questions concerning the above, please contact the undersigned. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Date: September 08, 2015 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Attn: Office of Engineering and Technology Re: HAC Attestation - FCC ID: QISH1511 To whom it may concern: HUAWEI TECHNOLOGIES CO., LTD. hereby declares that the reported MIF values are based on worst case operating modes for all air interfaces for which the HAC rating is provided based on the current methodology for determining MIF values. SPEAG test files: UID Communication System Name MIF(dB) 10011-CAB UMTS-FDD (WCDMA) -27.23 10021-DAB GSM-FDD (TDMA, GMSK) 3.63 10290-AAB CDMA2000, RC1, SO55, Full Rate -19.47 10291-AAB CDMA2000, RC3, SO55, Full Rate -19.70 Sincerely, ____________________ Zhang Xinghai HUAWEI TECHNOLOGIES CO., LTD. Tel：0086-0755- 28970299 E-mail：[email protected]

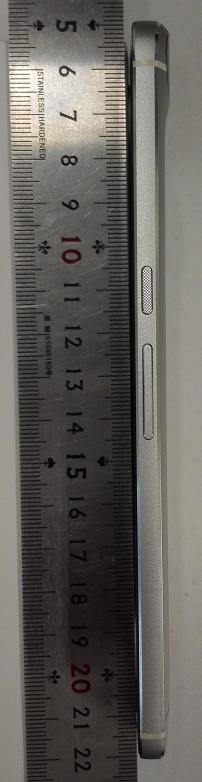

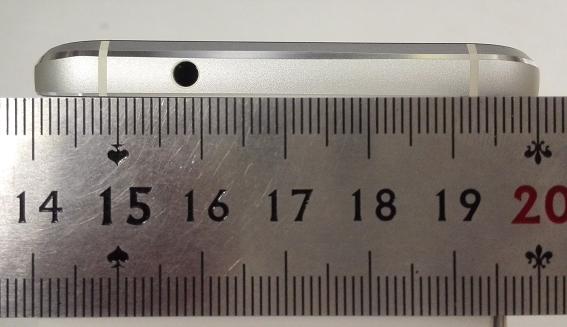

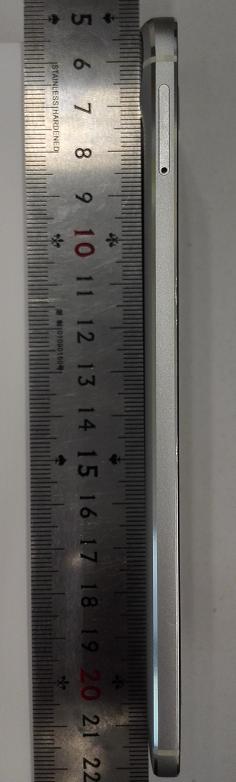

H1511 Smart Phone; SECRET Page1,Total 5 External Photos of H1511 H1511 Smart Phone; SECRET Page2,Total 5 H1511 Smart Phone; SECRET Page3,Total 5 H1511 Smart Phone; SECRET Page4,Total 5 H1511 Smart Phone; SECRET Page5,Total 5

H1511 Smart Phone; SECRET Page1, Total 4 H1511 H1511 Smart Phone; SECRET Page2, Total 4 Setting-About phone-certification

H1511 Smart Phone; SECRET Page1,Total 5 Internal Photos of H1511 H1511 Smart Phone; SECRET Page2,Total 5 H1511 Smart Phone; SECRET Page3,Total 5 H1511 Smart Phone; SECRET Page4,Total 5 H1511 Smart Phone; SECRET Page5,Total 5

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Product Name: Smart Phone Model: H1511 Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2015-09-17 2015-09-17 The test results of this test report relate exclusively to the item(s) tested . The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 2015-09-17 Page 2 of 312 Table of Contents 1 General Information ............................................................................................................................................... 6 1.1 Statement of Compliance .............................................................................................................................. 6 1.2 RF exposure limits ......................................................................................................................................... 7 1.3 EUT Description ............................................................................................................................................ 8 1.3.1 General Description ............................................................................................................................. 11 1.3.2 TDD LTE additional specification ......................................................................................................... 12 1.3.3 Power reduction specification .............................................................................................................. 12 1.3.4 Downlink LTE CA additional specification ........................................................................................... 14 1.3.5 Dynamic antenna switching specification ............................................................................................ 16 1.3.6 802.11g/a Wi-Fi CDD and 802.11 n/ac Wi-Fi MIMO specification ...................................................... 16 1.4 Test specification(s) .................................................................................................................................... 17 1.5 Testing laboratory ........................................................................................................................................ 17 1.6 Applicant and Manufacturer ........................................................................................................................ 17 1.7 Application details ........................................................................................................................................ 17 1.8 Ambient Condition ...................................................................................................................................... 17 2 SAR Measurement System ................................................................................................................................. 18 2.1 SAR Measurement Set-up .......................................................................................................................... 18 2.2 Test environment ......................................................................................................................................... 19 2.3 Data Acquisition Electronics description .................................................................................................... 19 2.4 Probe description ......................................................................................................................................... 20 2.5 Phantom description .................................................................................................................................... 21 2.6 Device holder description ............................................................................................................................ 22 2.7 Test Equipment List ..................................................................................................................................... 23 3 SAR Measurement Procedure ............................................................................................................................ 24 3.1 Scanning procedure .................................................................................................................................... 24 3.2 Spatial Peak SAR Evaluation ...................................................................................................................... 25 3.3 Data Storage and Evaluation ...................................................................................................................... 26 4 System Verification Procedure ............................................................................................................................ 28 4.1 Tissue Verification ....................................................................................................................................... 28 4.2 System Check ............................................................................................................................................. 35 4.3 System check Procedure............................................................................................................................. 37 5 SAR measurement variability and uncertainty .................................................................................................... 38 5.1 SAR measurement variability …

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 2015-09-17 Page 118 of 312 Bandwidth Modulation RB size RB offset Tune-up Channel Channel Channel 18675CH 18900CH 19125CH 15MHz QPSK 1 0 22.80 22.49 22.38 22.37 1 38 22.80 21.90 21.82 21.76 1 74 22.80 21.93 22.03 21.84 36 0 21.80 21.05 20.82 21.01 36 18 21.80 20.97 20.80 20.87 36 39 21.80 20.78 20.74 20.79 75 0 21.80 20.93 20.81 21.07 16QAM 1 0 21.80 21.19 21.11 21.13 1 38 21.80 20.64 20.52 20.58 1 74 21.80 20.73 20.60 20.69 36 0 20.80 19.99 19.91 20.02 36 18 20.80 19.84 19.72 19.87 36 39 20.80 19.68 19.76 19.72 75 0 20.80 19.88 19.85 20.02 Bandwidth Modulation RB size RB offset Tune-up Channel Channel Channel 18700CH 18900CH 19100CH 20MHz QPSK 1 0 22.80 22.55 22.40 22.43 1 50 22.80 21.71 21.68 21.76 1 99 22.80 21.78 21.77 21.82 50 0 21.80 21.03 21.00 21.05 50 25 21.80 20.83 20.65 20.80 50 50 21.80 20.72 20.66 20.69 100 0 21.80 20.98 20.82 20.86 16QAM 1 0 21.80 21.90 21.86 21.93 1 50 21.80 21.13 21.21 21.30 1 99 21.80 21.31 21.29 21.41 50 0 20.80 20.14 20.14 20.08 50 25 20.80 19.81 19.78 19.79 50 50 20.80 19.68 19.69 19.77 100 0 20.80 19.99 19.86 19.95 Table 73: Conducted power measurement results of LTE Band II Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 2015-09-17 Page 119 of 312 Main antenna(Voice) + WiFi station: Bandwidth Modulation RB size RB offset Tune-up Channel Channel Channel 18607CH 18900CH 19193CH 1.4MHz QPSK 1 0 21.00 20.04 20.13 20.03 1 3 21.00 20.08 20.09 20.08 1 5 21.00 19.97 20.02 20.11 3 0 21.00 19.87 19.78 19.89 3 2 21.00 19.95 19.92 20.02 3 3 21.00 19.88 19.90 19.96 6 0 21.00 19.96 20.25 20.10 16QAM 1 0 21.00 20.18 20.10 20.06 1 3 21.00 20.22 20.00 20.03 1 5 21.00 19.79 19.83 20.20 3 0 21.00 20.02 20.00 20.14 3 2 21.00 20.07 20.01 20.24 3 3 21.00 19.95 19.87 20.08 6 0 21.00 19.94 19.60 19.71 Bandwidth Modulation RB size RB offset Tune-up Channel Channel Channel 18615CH 18900CH 19185CH 3MHz QPSK 1 0 21.00 20.14 20.18 20.07 1 7 21.00 20.15 20.17 20.19 1 14 21.00 20.15 20.13 20.09 8 0 21.00 20.27 20.03 20.10 8 4 21.00 20.04 20.30 20.37 8 7 21.00 19.99 20.13 19.93 15 0 21.00 20.09 20.13 20.03 16QAM 1 0 21.00 20.23 20.03 20.30 1 7 21.00 20.26 20.22 20.27 1 14 21.00 20.36 20.03 20.17 8 0 21.00 19.84 20.49 20.42 8 4 21.00 20.19 20.26 19.79 8 7 21.00 20.20 20.28 19.87 15 0 21.00 20.23 20.09 20.15 Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 2015-09-17 Page 120 of 312 Bandwidth Modulation RB size RB offset Tune-up Channel Channel Channel 18625CH 18900CH 19175CH 5MHz QPSK 1 0 21.00 20.33 20.30 20.34 1 13 21.00 20.25 20.27 20.14 1 24 21.00 20.24 20.17 20.10 12 0 21.00 20.25 20.40 20.48 12 6 21.00 20.24 20.40 20.08 12 13 21.00 20.30 20.20 20.26 25 0 21.00 20.38 20.13 20.15 16QAM 1 0 21.00 20.38 20.39 20.00 1 13 21.00 20.42 20.07 20.11 1 24 21.00 20.39 20.36 20.28 12 0 21.00 20.09 20.32 20.20 12 6 21.00 20.37 20.11 20.24 12 13 21.00 20.17 20.49 20.66 25 0 21.00 20.20 20.51 20.08 Bandwidth Modulation RB size RB offset Tune-up Channel Channel Channel 18650CH 18900CH 19150CH 10MHz QPSK 1 0 21.00 20.67 20.44 20.54 1 25 21.00 20.24 20.08 20.05 1 49 21.00 20.27 20.16 20.30 25 0 21.00 20.57 20.62 20.52 25 13 21.00 20.26 19.97 19.88 25 25 21.00 20.16 20.31 20.11 50 0 21.00 20.83 20.42 20.68 16QAM 1 0 21.00 20.81 20.48 20.48 1 25 21.00 20.38 19.92 20.12 1 49 21.00 20.39 20.23 20.10 25 0 21.00 20.72 20.51 20.44 25 13 21.00 20.24 19.95 20.11 25 25 21.00 20.41 20.30 20.25 50 0 21.00 20.18 19.92 19.92 Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 2015-09-17 Page 121 of 312 Bandwidth Modulation RB size RB offset Tune-up Channel Channel Channel 18675CH 18900CH 19125CH 15MHz QPSK 1 0 21.00 20.93 20.78 20.86 1 38 21.00 20.22 20.17 20.10 1 74 21.00 20.53 20.49 20.32 36 0 21.00 20.87 20.94 20.79 36 18 21.00 19.97 20.30 19.83 36 39 21.00 20.69 20.22 20.23 75 0 21.00 20.86 20.74 20.95 16QAM 1 0 21.00 20.76 20.96 20.90 1 38 21.00 20.12 20.45 20.06 1 74 21.00 20.32 20.38 20.37 36 0 21.00 20.84 20.95 20.91 36 18 21.00 20.34 20.28 20.25 36 39 21.00 20.53 20.28 20.51 75 0 21.00 20.44 20.57 20.11 Bandwidth Modulation RB size RB offset Tune-up Channel Channel Channel 18700CH 18900CH 19100CH 20MHz QPSK 1 0 21.00 20.94 20.90 20.95 1 50 21.00 20.02 20.03 19.98 1 99 21.00 20.34 20.41 20.33 50 0 21.00 20.89 20.84 20.87 50 25 21.00 19.95 19.89 20.06 50 50 21.00 20.52 20.33 20.13 100 0 21.00 20.97 20.67 21.07 16QAM 1 0 21.00 20.00 19.74 20.01 1 50 21.00 20.40 20.27 20.21 1 99 21.00 20.88 20.54 20.45 50 0 21.00 19.89 19.65 20.19 50 25 21.00 20.23 20.44 20.33 50 50 21.00 20.89 20.73 20.21 100 0 21.00 19.89 19.48 20.07 Table 74: Conducted power measurement results of LTE Band II Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 2015-09-17 Page 122 of 312 Main antenn(Voice) + WiFi Hotspot: Bandwidth Modulation RB size RB offset Tune-up Channel Channel Channel 18607CH 18900CH 19193CH 1.4MHz QPSK 1 0 20.00 18.83 18.74 18.73 1 3 20.00 18.89 18.80 18.74 1 5 20.00 18.82 18.74 18.77 3 0 20.00 18.74 18.55 18.56 3 2 20.00 18.77 18.65 18.66 3 3 20.00 18.75 18.60 18.57 6 0 20.00 18.87 18.69 18.65 16QAM 1 0 20.00 19.00 18.91 18.88 1 3 20.00 19.01 18.88 18.98 1 5 20.00 19.10 19.08 18.91 3 0 20.00 18.86 18.67 18.71 3 2 20.00 18.84 18.74 18.74 3 3 20.00 18.79 18.70 18.70 6 0 20.00 18.82 18.84 18.84 Bandwidth Modulation RB size RB offset Tune-up Channel Channel Channel 18615CH 18900CH 19185CH 3MHz QPSK 1 0 20.00 19.10 18.88 18.92 1 7 20.00 19.00 18.76 18.83 1 14 20.00 19.12 18.83 18.79 8 0 20.00 18.90 18.80 18.70 8 4 20.00 18.89 18.75 18.71 8 7 20.00 18.83 18.73 18.66 15 0 20.00 18.88 18.73 18.75 16QAM 1 0 20.00 19.03 18.92 18.91 1 7 20.00 19.00 18.88 18.89 1 14 20.00 18.91 18.81 18.81 8 0 20.00 18.96 18.91 18.73 8 4 20.00 18.95 18.83 18.78 8 7 20.00 18.89 18.83 18.79 15 0 20.00 18.92 18.81 18.79 Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 2015-09-17 Page 123 of 312 Bandwidth Modulation RB size RB offset Tune-up Channel Channel Channel 18625CH 18900CH 19175CH 5MHz QPSK 1 0 20.00 19.05 18.89 18.90 1 13 20.00 19.02 18.89 18.85 1 24 20.00 18.90 18.85 18.…

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 2015-09-17 Page 202 of 312 Band (GHz) Mode Antenna Channel Frequency (MHz) Data Rate (Mbps) Tune- up Average Power (dBm) SAR Test (Yes/No) Power Setting Level 5.8 802.11a 2TX CDD CH 149 5745 6M 17.50 Not Required No 13 CH 153 5765 17.50 Not Required No CH 157 5785 17.50 Not Required No CH 161 5805 17.50 Not Required No CH 165 5825 17.50 Not Required No 802.11n 20M 2TX MIMO CH 149 5745 6.5M 17.50 Not Required No CH 153 5765 17.50 Not Required No CH 157 5785 17.50 Not Required No CH 161 5805 17.50 Not Required No CH 165 5825 17.50 Not Required No 802.11n 40M 2TX MIMO CH 151 5755 13.5M 17.50 Not Required No CH 159 5795 17.50 Not Required No 802.11ac 20M 2TX MIMO CH 149 5745 6.5M 17.50 Not Required No CH 153 5765 17.50 Not Required No CH 157 5785 17.50 Not Required No CH 161 5805 17.50 Not Required No CH 165 5825 17.50 Not Required No 802.11ac 40M 2TX MIMO CH 151 5755 13.5M 17.50 Not Required No CH 159 5795 17.50 Not Required No 802.11ac 80M 2TX MIMO CH 155 5775 29.3M 17.50 16.15 Yes Table 113: Conducted power measurement results of WiFi 5G(Power Setting Level 13). Note: 1) The Average conducted power of WiFi is measured with RMS detector. Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 2015-09-17 Page 203 of 312 Band (GHz) Mode Antenna Channel Frequency (MHz) Data Rate (Mbps) Tune- up Average Power (dBm) SAR Test (Yes/No) Power Setting Level 5.2 802.11a 2TX CDD CH 36 5180 6M 16.50 Not Required No 12 CH 40 5200 16.50 Not Required No CH 44 5220 16.50 Not Required No CH 48 5240 16.50 Not Required No 802.11n 20M 2TX MIMO CH 36 5180 6.5M 16.50 Not Required No CH 40 5200 16.50 Not Required No CH 44 5220 16.50 Not Required No CH 48 5240 16.50 Not Required No 802.11n 40M 2TX MIMO CH 38 5190 13.5M 16.50 Not Required No CH 46 5230 16.50 Not Required No 802.11ac 20M 2TX MIMO CH 36 5180 6.5M 16.50 Not Required No CH 40 5200 16.50 Not Required No CH 44 5220 16.50 Not Required No CH 48 5240 16.50 Not Required No 802.11ac 40M 2TX MIMO CH 38 5190 13.5M 16.50 Not Required No CH 46 5230 16.50 Not Required No 802.11ac 80M 2TX MIMO CH 42 5210 29.3M 16.50 15.05 No Band (GHz) Mode Antenna Channel Frequency (MHz) Data Rate (Mbps) Tune- up Average Power (dBm) SAR Test (Yes/No) Power Setting Level 5.3 802.11a 2TX CDD CH 52 5260 6M 16.50 Not Required No 12 CH 56 5280 16.50 Not Required No CH 60 5300 16.50 Not Required No CH 64 5320 16.50 Not Required No 802.11n 20M 2TX MIMO CH 52 5260 6.5M 16.50 Not Required No CH 56 5280 16.50 Not Required No CH 60 5300 16.50 Not Required No CH 64 5320 16.50 Not Required No 802.11n 40M 2TX MIMO CH 54 5270 13.5M 16.50 Not Required No CH 62 5310 16.50 Not Required No 802.11ac 20M 2TX MIMO CH 52 5260 6.5M 16.50 Not Required No CH 56 5280 16.50 Not Required No CH 60 5300 16.50 Not Required No CH 64 5320 16.50 Not Required No 802.11ac 40M 2TX MIMO CH 54 5270 13.5M 16.50 Not Required No CH 62 5310 16.50 Not Required No 802.11ac 80M 2TX MIMO CH 58 5290 29.3M 16.50 14.63 No Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 2015-09-17 Page 204 of 312 Band (GHz) Mode Antenna Channel Frequency (MHz) Data Rate (Mbps) Tune- up Average Power (dBm) SAR Test (Yes/No) Power Setting Level 5.5 802.11a 2TX CDD CH 100 5500 6M 16.50 Not Required No 12 CH 104 5520 16.50 Not Required No CH 108 5540 16.50 Not Required No CH 112 5560 16.50 Not Required No CH 116 5580 16.50 Not Required No CH 120 5600 16.50 Not Required No CH 124 5620 16.50 Not Required No CH 128 5640 16.50 Not Required No CH 132 5660 16.50 Not Required No CH 136 5680 16.50 Not Required No CH 140 5700 16.50 Not Required No CH 144 5720 16.50 Not Required No 8.2.11n 20M 2TX MIMO CH 100 5500 6.5M 16.50 Not Required No CH 104 5520 16.50 Not Required No CH 108 5540 16.50 Not Required No CH 112 5560 16.50 Not Required No CH 116 5580 16.50 Not Required No CH 120 5600 16.50 Not Required No CH 124 5620 16.50 Not Required No CH 128 5640 16.50 Not Required No CH 132 5660 16.50 Not Required No CH 136 5680 16.50 Not Required No CH 140 5700 16.50 Not Required No CH 144 5720 16.50 Not Required No Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 2015-09-17 Page 205 of 312 Band (GHz) Mode Antenna Channel Frequency (MHz) Data Rate (Mbps) Tune- up Average Power (dBm) SAR Test (Yes/No) Power Setting Level 5.5 8.2.11n 40M 2TX MIMO CH 102 5510 13.5M 16.50 Not Required No 12 CH 110 5550 16.50 Not Required No CH 118 5590 16.50 Not Required No CH 126 5630 16.50 Not Required No CH 134 5670 16.50 Not Required No CH 142 5710 16.50 Not Required No 8.2.11ac 20M 2TX MIMO CH 100 5500 6.5M 16.50 Not Required No CH 104 5520 16.50 Not Required No CH 108 5540 16.50 Not Required No CH 112 5560 16.50 Not Required No CH 116 5580 16.50 Not Required No CH 120 5600 16.50 Not Required No CH 124 5620 16.50 Not Required No CH 128 5640 16.50 Not Required No CH 132 5660 16.50 Not Required No CH 136 5680 16.50 Not Required No CH 140 5700 16.50 Not Required No CH 144 5720 16.50 Not Required No 8.2.11ac 40M 2TX MIMO CH 102 5510 13.5M 16.50 Not Required No CH 110 5550 16.50 Not Required No CH 118 5590 16.50 Not Required No CH 126 5630 16.50 Not Required No CH 134 5670 16.50 Not Required No CH 142 5710 16.50 Not Required No 8.2.11ac 80M 2TX MIMO CH 106 5530 29.3M 16.50 14.36 No CH 122 5610 16.50 14.55 No CH 138 5690 16.50 14.52 No Table 114: Conducted power measurement results of WiFi 5G(Power Setting Level 12). Note: 1) The Average conducted power of WiFi is measured with RMS detector. 2) SAR is not tested for this simultaneous transmission reduced power level as the more conservative SAR test results at the maximum output power level without any power reduction are used to satisfy the simultaneous transmission SAR test exclusion.(Refer to Section 7.3 for details) Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 2015-09-17 Page 206 of 312 Band (GHz) Mode Antenna Channel Frequency (MHz) Data Rate (Mbps) Tune- up Average Power (dBm) SAR Test (Yes /No) Power Setting Level 5.2 802.11a 2TX CDD CH 36 5180* 6M 15.50 Not Required No 11 …

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)011072015-2 FCC ID: QISH1511 2015-09-17 Page 293 of 312 7.2.28 SAR measurement Result of LTE Band XLI (Main Antenna) Table 235: Head SAR test results of LTE Band XLI Test Position of Body-Worn with 15mm Test channel / Freq.(MHz) Test Mode SAR Value (W/kg) Power Drift (dB) Conducted Power (dBm) Tune-up Power (dBm) Scaled SAR 1-g (W/kg) Liquid Temp. 1-g 10-g Test data with battery 1# 1RB Front Side 41055/2636. 5 20M QPSK 1RB#50 0.185 0.095 0.180 22.26 22.70 0.205 21.5°C Back Side 41055/2636. 5 20M QPSK 1RB#50 0.228 0.112 0.180 22.26 22.70 0.252 21.5°C 50%RB Front Side 41055/2636. 5 20M QPSK 50%RB#0 0.158 0.084 -0.080 21.39 21.70 0.170 21.5°C Back Side 41055/2636. 5 20M QPSK 50%RB#0 0.186 0.098 0.150 21.39 21.70 0.200 21.5°C Table 236: Body-Worn SAR test results of LTE Band XLI Test Position of Head Test channel / Freq.(MHz) Test Mode SAR Value (W/kg) Power Drift (dB) Conducted Power (dBm) Tune-up Power (dBm) Scaled SAR 1-g (W/kg) Liquid Temp. 1-g 10-g…
