QISH882LCDMA/LTE Smart phone

Welcome to HUAWEI Quick Start Guide HUAWEI H882L Phone at a Glance All the pictures in this guide are for your reference only. Your phone's actual display features may be different to those described here, depending on its software version. Key Functions at Your Fingertips • Press and hold to power on your mobile phone. • When your mobile phone is powered on, press and hold this button to display the options menu. You can then choose to power off the phone or perform shortcut operations. • Press to lock the screen when your mobile phone is active. Touch to open the menu on an active screen. • Touch to return to the Home screen. • Touch and hold to display recently used applications. Headset jackPower Charger/ Data port Speaker Earpiece Volume key Back Home Menu Front camera Status indicator Rear camera Flashlight Inserting a SIM card To install a SIM card, perform the operations shown in the following figures. 1. Remove the battery cover. 2. Insert the SIM card into the SIM card slot with its metal contacts facing down. Installing the microSD card You can insert a microSD card to expand your phone's storage capacity. To do so, perform the operations shown in the following figure. To remove the microSD card: 1. On the home screen, touch > Settings and then the All tab. 2. Touch Storage > Unmount SD card. 3. Carefully remove the microSD card. • Touch to return to the previous screen or exit the application you are running. • Touch to hide the keyboard. Installing the battery To install the battery, perform the operations shown in the following figures. 1. Align the battery's metal contacts with those at the bottom of the battery compartment (refer to position a in the preceding figure). 2. Press the other end of the battery (position b in the preceding figure) against your phone to fix it to the battery compartment. 3. Close the battery cover. Charging the battery 1. Connect your charger to the provided USB cable. 2. Connect the charger to a power outlet. 3. Connect your phone to the USB cable to start charging. Battery indicator light The battery indicator shows your phone's battery level. • Blinking red: The battery level is lower than 10%. • Steady red (when charging): The battery level is lower than 10%. • Steady yellow (when charging): The battery level is higher than 10%. a b • Steady green (when charging): The battery level is almost or already full. The charging is complete when the screen shows that the battery level is 100%. Gestures Touch: Touch to select an item or open an application. Touch and hold: Touch and leave your finger on the screen for 2 seconds or longer. You can touch and hold an application, a widget, or a blank area to display the related option menu. Flick: Where applicable, swipe your finger in the direction you want the screen to move. For example, you can flick left or right across the notification panel to dismiss a notification. Drag: Touch and hold an item and then drag it to another position. You can re-arrange icons on the home screen this way. Home Screen You can set up the Home screen according to your own preferences, for example by adding a shortcut or a widget to your Home screen, changing the wallpaper, or setting the number of Home screen extensions. To return to the Home screen from any of its extensions, press . When a new notification icon appears on the notification bar, place your finger on the notification bar and flick down to open the notification panel. Moving an Application Icon 1. On the Home screen, touch and hold the icon you want to move. 2. Drag the icon to the desired location and release it. To move additional icons, repeat the preceding steps. Pinch: Pinch two fingers together to zoom out or stretch them apart to zoom in on a map, web page, or picture. 10:23 Copying contacts 1. On the home screen, touch > People. 2. On the People screen, touch . 3. Touch Manage contacts > Copy contacts. 4. From the displayed option menu, select where the contacts you wish to copy are from. 5. Touch the contact you wish to copy or touch Select all to select all contacts. 6. Touch Copy and select the account to which you wish to copy the contacts. Adding a Contact 1. In the contact list, touch . 2. From the screen displayed, create a contact in your mobile phone, SIM card or your account. Add a new account if you do not have one. 3. Enter the contact's name, and then add detailed information such as phone numbers and address. 4. Touch DONE to save the contact information. To save a contact from your call log, touch and hold the desired phone number to display the options menu, and then touch Add to contacts. Smart dialing Smart dialing lets you quickly find contacts by entering their names or numbers. 1. On the home screen, touch > Phone. 2. Enter a phone number or contact name. Matching contacts in your phone and phone numbers in your call log are then displayed in a list. 3. From the list, select the contact you wish to call. 4. To end the call, touch . Creating and Sending a Multimedia Message You can use multimedia messages to make everyday communications very special. You can record a message and send it as an audio file, for example, sing "Happy Birthday" and send it to a friend, or send a slideshow of photographs of a special event. The possibilities are enormous. 1. Touch > Messaging, then . 2. Enter a phone number in the To field, or touch to select a contact from People. 3. Touch the composition text box to start composing your message. 4. Perform the following steps to convert a text message into a multimedia message: • Touch > Add subject to add the message subject. Your mobile phone is now in multimedia message mode. • Touch to attach a picture, an audio file, or a video clip to the message. 5. When you are ready to send the message, touch Send MMS. Connecting Internet Get online using your phone's Wi-Fi to save your money. Connecting to a Wi-Fi ® network 1. On the home screen, touch > Settings and then the All tab. 2. In the WIRELESS …

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. We, HUAWEI TECHNOLOGIES CO., LTD., declare on our sole responsibility that the product (variant) The PCB is the same among HUAWEI H882L , H882L, Marina and Y301-A3, and they have the same functions. The only difference among HUAWEI H882L , H882L, Marina and Y301-A3 is: they have different Models names. Sincerely, Wang yixin For and Behalf of: Huawei Technologies Co., Ltd. Q19. Huawei Building, No.156 Beiqing Rd. Z-park, Shi-Chuang-Ke-Ji-Shi-Fan-Yuan, Hai-Dian Districk, Beijing. P. R. China 010-60612899

THIS MUST BE SIGNED BY THE APPLICANT AND SHOULD BE PLACED ON APPLICANTS LETTERHEAD ONLY IF AGENT IS SUBMITTING APPLICATION 022311 – 6 Authority to Act as Agent Date: 2013-3-6 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______ TA Technology (Shanghai) Co., Ltd.______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____(Typically 8 – 12 months)_____ By: __________________________ _______ZhangXingHai________ (Signature 1 ) (Print name) Title: EMC Laboratory Manager On behalf of: Huawei Technologies Co., Ltd. (Company Name) Telephone: 0086-755-89651014___ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD Request for Confidentiality Date: 2013-3-1 Subject: Confidentiality Request for: __QISH882L____ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ____KDB inquiry needs long term confidential______ _ Huawei Technologies Co.,Ltd._ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___90___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: _EMC Laboratory Manager__ _ Zhang Xinghai_______ (Signature/Title 2 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

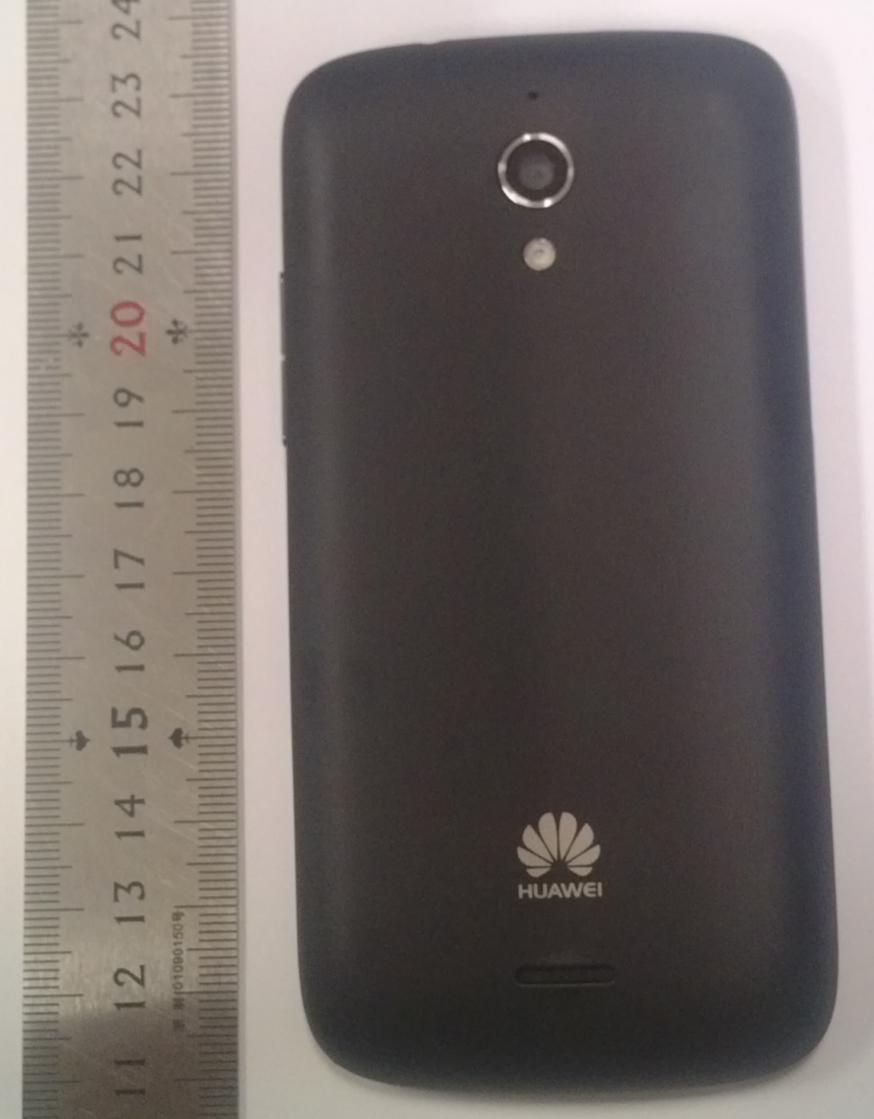

HUAWEI H882L,H882L,Marina,Y301-A3 Page1,Total 5 External Photos of HUAWEI H882L,H882L,Marina,Y301-A3 HUAWEI H882L,H882L,Marina,Y301-A3 Page2,Total 5 HUAWEI H882L,H882L,Marina,Y301-A3 Page3,Total 5 HUAWEI H882L,H882L,Marina,Y301-A3 Page4,Total 5 HUAWEI H882L,H882L,Marina,Y301-A3 Page5,Total 5

Battery -1(SN: MAICB01X19102164) Battery -2 (SN: MPCCA25919100430) HW-050100U2W (S/N: HWBYAAC71603712) HW-050100U2W (S/N: HWHKAACA2815804) HW-050100U1W(S/N: TPACB0219072) HW-050100U1W(S/N: HKAC10619057)

HUAWEI H882L,H882L,Marina,Y301-A3 Page1,Total 8 Internal Photos of HUAWEI H882L,H882L,Marina,Y301-A3 HUAWEI H882L,H882L,Marina,Y301-A3 Page2,Total 8 HUAWEI H882L,H882L,Marina,Y301-A3 Page3,Total 8 HUAWEI H882L,H882L,Marina,Y301-A3 Page4,Total 8 HUAWEI H882L,H882L,Marina,Y301-A3 Page5,Total 8 HUAWEI H882L,H882L,Marina,Y301-A3 Page6,Total 8 HUAWEI H882L,H882L,Marina,Y301-A3 Page7,Total 8 HUAWEI H882L,H882L,Marina,Y301-A3 Page8,Total 8

Report No.: RHA1301-0016SAR01R1 Page 1 of 241 TESTING No. L2264 OET 65 TEST REPORT Product Name CDMA/LTE Smart phone Model Name HUAWEI H882L,H882L,Marina,Y301-A3 FCC ID QISH882L Client Huawei Technologies Co., Ltd. Manufacturer Huawei Technologies Co., Ltd. Date of issue March 12, 2013 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 2 of 241 GENERAL SUMMARY Standard(s) FCC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1, 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLTEIN 65 Edition 97-01 June 2001 including DA 02-1438 June 19, 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. RSS-102 Issue 4 March 2010: Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands). KDB 941225 D01 SAR test for 3G devices v02 SAR Measurement Procedures for 3G Devices– CDMA 2000 / Ev-Do / WCDMA / HSDPA / HSPA – KDB 941225 D05 SAR for LTE Devices v02r01 SAR Test Considerations for LTE Handsets and Data Modems KDB 447498 D01 Mobile Portable RF Exposure v05 Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 648474 D04 SAR Handsets Multi Xmiter and Ant v01 SAR Evaluation Considerations for Wireless Handsets KDB 248227 D01 SAR meas for 802 11abg v01r02 SAR measurement Procedures for 802 11a/b/g transmitters KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01 SAR Measurement Requirements for 100 MHz to 6 GHz Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards for the tested bands only. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 3 of 241 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................... 5 1.2. Testing Laboratory.................................................................................................................... 5 1.3. Applicant Information................................................................................................................ 6 1.4. Manufacturer Information ......................................................................................................... 6 1.5. Information of EUT ................................................................................................................... 7 1.6. The Maximum Reported SAR 1g Vaules .................................................................................. 10 1.7. Maximum Conducted Power of Each Tested Mode................................................................ 10 1.8. Test Date................................................................................................................................ 10 2. SAR Measurements System Configuration ................................................................................ 11 2.1. SAR Measurement Set-up...................................................................................................... 11 2.2. DASY5 E-field Probe System ................................................................................................. 12 2.2.1. ES3DV3 Probe Specification ....................................................................................... 12 2.2.2. E-field Probe Calibration .............................................................................................. 13 2.3. Other Test Equipment ............................................................................................................. 13 2.3.1. Device Holder for Transmitters .................................................................................... 13 2.3.2. Phantom...................................................................................................................... 14 2.4. Scanning Procedure ............................................................................................................... 14 2.5. Data Storage and Evaluation .................................................................................................. 16 2.5.1. Data Storage................................................................................................................ 16 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 16 3. Laboratory Environment............................................................................................................. 18 4. Tissue-equivalent Liquid ............................................................................................................ 19 4.1. Tissue-equivalent Liquid Ingredients ...................................................................................... 19 4.2. Tissue-equivalent Liquid Properties........................................................................................ 21 5. System Check .................................................................................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 213 of 241 ANNEX E: D835V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 214 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 215 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 216 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 217 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 218 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 219 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 220 of 241

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 221 of 241 ANNEX F: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 222 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 223 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 224 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 225 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 226 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 227 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 228 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 229 of 241 ANNEX G: D2450V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 230 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 231 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 232 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 233 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 234 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 235 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 236 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 237 of 241 ANNEX H: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 238 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 239 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 240 of 241 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1301-0016SAR01R1 Page 241 of 241

Report No. RHA1301-0016HAC01R1 Page 1 of 116 TESTING No. L2264 ANSI C63.19 TEST REPORT Product Name CDMA/LTE Smart phone Model HUAWEI H882L,H882L,Marina,Y301-A3 FCC ID QISH882L Client Huawei Technologies Co., Ltd. Manufacturer Huawei Technologies Co., Ltd. Date of issue March 20,2013 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1301-0016HAC01R1 Page 2 of 116 GENERAL SUMMARY Reference Standard(s) ANSI C63.19-2007: American National Standard Methods of Measurement of Compatibility between Wireless Communications Devices and Hearing Aids. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. General Judgment: M4 (RF Emission) Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1301-0016HAC01R1 Page 3 of 116 TABLE OF CONTENT 1. General Information ..................................................................................................................... 4 1.1. Notes of the Test Report.......................................................................................................4 1.2. Testing Laboratory ................................................................................................................ 4 1.3. Applicant Information ............................................................................................................ 5 1.4. Manufacturer Information ...................................................................................................... 5 1.5. Information of EUT................................................................................................................ 6 1.6. The Ambient Conditions during Test..................................................................................... 9 1.7. The Total M-rating of each tested band................................................................................ 9 1.8. Test Date .............................................................................................................................. 9 2. Test Information ......................................................................................................................... 10 2.1. Operational Conditions during Test ..................................................................................... 10 2.1.1. General Description of Test Procedures...................................................................... 10 2.1.2. CDMA Test Configuration ............................................................................................ 10 2.2. HAC RF Measurements System Configuration................................................................... 11 2.2.1. HAC Measurement Set-up........................................................................................... 11 2.2.2. Probe System .............................................................................................................. 12 2.2.3. Test Arch Phantom & Phone Positioner...................................................................... 13 2.3. RF Test Procedures............................................................................................................ 14 2.4. System Check..................................................................................................................... 16 2.5. Probe Modulation Factor.....................................................................................................18 2.6. Conducted Output Power Measurement............................................................................. 20 3. Test Results ............................................................................................................................... 21 3.1. ANSI C63.19-2007 Limits ................................................................................................... 21 3.2. Summary Test Results........................................................................................................ 22 4. Measurement Uncertainty .......................................................................................................... 25 5. Main Test Instruments ................................................................................................................ 27 ANNEX A: System Check Results..................................................................................................... 28 ANNEX B: Graph Results.................................................................................................................. 32 ANNEX C: E-Probe Calibration Certificate ........................................................................................80 ANNEX D: H-Probe Calibration Certificate........................................................................................90 ANNEX E: CD835V3 Dipole Calibration Certificate......................................................................... 100 ANNEX F: CD1880V3 Dipole Calibration Certificate ....................................................................... 106 ANNEX G: DAE4 Calibration Certificate...........................................................................................112 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1301-0016HAC01R1 Page 4 of 116 1. General Information 1.1. Notes of the Test Report TA Technology (Shanghai) Co., Ltd. has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L2264. TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 428261. TA Technology (Shanghai) Co., Ltd. has been listed by industry Canada to perform electromagnetic emission measur…

Text truncated - open the document above for the full version.

Report No. RHA1301-0016HAC02R1 Page 1 of 80 TESTING No. L2264 ANSI C63.19 TEST REPORT Product Name CDMA/LTE Smart phone Model HUAWEI H882L,H882L,Marina,Y301-A3 FCC ID QISH882L Client Huawei Technologies Co., Ltd. Manufacturer Huawei Technologies Co., Ltd. Date of issue March 20,2013 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1301-0016HAC02R1 Page 2 of 80 GENERAL SUMMARY Reference Standard(s) ANSI C63.19-2007: American National Standard Methods of Measurement of Compatibility between Wireless Communications Devices and Hearing Aids. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. General Judgment: T4 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1301-0016HAC02R1 Page 3 of 80 TABLE OF CONTENT 1. General Information ..................................................................................................................... 4 1.1. Notes of the Test Report.......................................................................................................4 1.2. Testing Laboratory ................................................................................................................ 4 1.3. Applicant Information ............................................................................................................ 5 1.4. Manufacturer Information ...................................................................................................... 5 1.5. Information of EUT................................................................................................................ 6 1.6. The Ambient Conditions during Test..................................................................................... 9 1.7. T-Coil signal quality categories of each tested Mode............................................................ 9 1.8. Test Date .............................................................................................................................. 9 2. Test Information ......................................................................................................................... 10 2.1. Operational Conditions during Test ..................................................................................... 10 2.1.1. General Description of Test Procedures...................................................................... 10 2.1.2. CDMA Test Configuration ............................................................................................ 10 2.2. T-Coil Measurements System Configuration ...................................................................... 11 2.2.1. T-coil Measurement Set-up.......................................................................................... 11 2.2.2. AM1D Probe ................................................................................................................13 2.2.3. Audio Magnetic Measurement Instrument (AMMI)...…

Text truncated - open the document above for the full version.
