QISHG232F300Mbps Wireless Router

HG232f 300Mbps Wireless Router User Guide HUAWEI TECHNOLOGIES CO., LTD. HG232f 300Mbps Wireless Router V100R001 User Guide Issue 02 Date 2012-11-12 Part Number 202547 Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service. Please feel free to contact our local office or company headquarters. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd. and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers. Thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd. reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS’’. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD. BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. HG232f 300Mbps Wireless Router User Guide Contents i Contents 1 Warnings and Precautions .................................................................................. 1-1 2 Product Introduction ............................................................................................ 2-1 3 Hardware Installation .......................................................................................... 3-1 3.1 Selecting a Position for the Router .............................................................................. 3-1 3.2 Installing the Hardware ............................................................................................... 3-1 3.3 Connecting the Cables ................................................................................................. 3-2 3.3.1 Installing the Router on a Community Broadband Network ........................... 3-2 3.3.2 Installing the Router on an ADSL Broadband Network .................................. 3-3 3.3.3 Installing the Router on a CATV Broadband Network ................................... 3-4 3.4 Powering On the Router .............................................................................................. 3-5 4 Configuration of Internet Access Parameters .................................................. 4-1 4.1 Logging In to the Web-based Configuration Utility .................................................... 4-1 4.2 Using the Setup Wizard ............................................................................................... 4-6 5 Configuration of WLAN Parameters ................................................................. 5-1 5.1 Setting Up a Wireless Connection Manually ............................................................... 5-1 5.1.1 Procedure on Computers Running Windows 7 ............................................... 5-1 5.1.2 Procedure on Computers Running Windows XP ............................................ 5-2 5.2 Setting Up a Wireless Connection with the WPS Button ............................................ 5-4 6 Configuring Frequently Used Functions .......................................................... 6-1 6.1 Configuring Multiple Computers to Access the Internet Simultaneously ................... 6-1 6.2 Enabling or Disabling the WLAN Function ................................................................ 6-2 6.3 Improving the Security of a WLAN ............................................................................ 6-3 6.3.1 Hiding the Name of a WLAN ......................................................................... 6-3 6.3.2 Changing the Name of a WLAN ..................................................................... 6-5 6.3.3 Using Secure Encryption ................................................................................. 6-5 6.3.4 Allowing Only Specified Computers to Be Connected to a WLAN ............... 6-7 6.4 Controlling the Internet Access Rights of Computers ................................................. 6-8 6.5 Prohibiting Computers from Accessing Specified Web Sites.................................... 6-12 6.6 Setting the Available Bandwidth of a Computer ...................................…

Text truncated - open the document above for the full version.

Warnings and Precautions To use the device properly and safely, read these warnings and precautions carefully and strictly observe them during operation. Unless otherwise specified, the term "device" refers to the device and its accessories. Basic Requirements >During storage, transportation, and operation of the device, keep it dry and prevent it from colliding with other objects. >Do not dismantle the device. In case of any fault, contact an authorized service center for assistance or repair. >Without authorization, no organization or individual can change the mechanical, safety, or performance design of the device. >When using the device, observe all applicable laws and regulations and respect the legal rights of other people. Environmental Requirements for Using the Device >Before connecting and disconnecting cables, stop using the device, and then disconnect it from the power supply. Ensure that your hands are dry during operation. >Keep the device far from sources of heat and fire, such as a heater or a candle. >Keep the device far from electronic appliances that generate strong magnetic or electric fields, such as a microwave oven or a refrigerator. >Place the device on a stable surface. >Place the device in a cool and well-ventilated indoor area. Do not expose the device to direct sunlight. Use the device in an area with a temperature ranging from 0°C to 40°C. >Do not block the openings on the device with any object. Reserve a minimum space of 10 cm around the device for heat dissipation. >Do not place any object (such as a candle or a water container) on the device. If any foreign object or liquid enters the device, stop using the device immediately, power it off, remove all the cables connected to it, and then contact an authorized service center. >During thunderstorms, power off the device, and then remove all the cables connected to it to prevent it from getting damaged due to lightning strikes. Precautions for Using Wireless Devices >When using the device, ensure that the antenna of the device is at least 20 cm away from all persons. >Do not use the device where using wireless devices is prohibited or may cause interference or danger. >The radio waves generated by the device may interfere with the operation of electronic medical devices. If you are using any electrical medical device, contact its manufacturer for the restrictions on the use of the device. >Do not take the device into operating rooms, intensive care units (ICUs), or coronary care units (CCUs). Areas with Inflammables and Explosives >Do not use the device where inflammables or explosives are stored, for example, in a gas station, oil depot, or chemical plant. Otherwise, explosions or fires may occur. In addition, follow the instructions indicated in text or symbols. >Do not store or transport the device in the same box as inflammable liquids, gases, or explosives. Accessory Requirements >Use only the accessories supplied or authorized by the device manufacturer. Otherwise, the performance of the device may get affected, the warranty for the device or the laws and regulations related to telecommunications terminals may become null and void, or an injury may occur. >Do not use the power adapter if its cable is damaged. Otherwise, electric shocks or fires may occur. >Ensure that the power adapter meets the specifications indicated on the device nameplate. >Ensure that the power adapter meets the requirements of Clause 2.5 in IEC60950-1/EN60950-1 and it is tested and approved according to national or local standards. >For pluggable device, the socket-outlet shall be installed near the device and shall be easily accessible. Safety of Children Keep the device and its accessories out of the reach of children. Otherwise, they may damage the device and its accessories by mistake, or they may swallow the small components of the device, causing suffocation or other dangerous situations.. Maintenance >If the device is not used for a long time, power it off, and then remove all the cables connected to it. >If any exception occurs, for example, if the device emits any smoke or unusual sound or smell, stop using the device immediately, power it off, remove all the cables connected to it, and then contact an authorized service center. >Do not trample, pull, or overbend any cable. Otherwise, the cable may get damaged, causing malfunction of the device. >Before cleaning the device, stop using it, power it off, and then remove all the cables connected to it. >Use a clean, soft, and dry cloth to clean the device shell. Do not use any cleaning agent or spray to clean the device shell. Disposal and Recycling Information This symbol on the device (and any included batteries) indicates that the device (and any included batteries) should not be disposed of as normal household garbage. Do not dispose of your device or batteries as unsorted municipal waste. The device (and any batteries) should be handed over to a certified collection point for recycling or proper disposal at the end of its life. For more detailed information about the recycling of the device or batteries, contact your local city office, the household waste disposal service, or the retail store where you purchased this device. The disposal of this device is subject to the Waste from Electrical and Electronic Equipment (WEEE) Directive of the European Union. The purpose for separating WEEE and batteries from other waste is to minimize any environmental impact and health hazard due to the presence of hazardous substances. Reduction of Hazardous Substances This device is compliant with the EU Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Regulation (Regulation No 1907/2006/EC of the European Parliament and of the Council) and the EU Restriction of Hazardous Substances (RoHS) Directive (Directive 2002/95/EC of the European Parliament and of the Council). For more information about the REACH compliance of the device, visit the Web site www. hua…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd October 23, 2012 To whom it may concern: We the undersigned, hereby authorize EMCCert DR. RAŠEK GmbH and Neutron Engineering, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by EMCCert DR. RAŠEK GmbH and Neutron Engineering, Inc. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Huawei Technologies Co., Ltd Sincerely, Signature: Name: Zhang Xinghai Title: EMC Laboratory Manager

Huawei Technologies Co.,Ltd January 3, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd would like the following documents regarding this submission for FCC ID: QISHG232F to be kept confidential. 1. Schematic 2. Block diagram 3. Operational description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Name: Zhang Xinghai Title: EMC Laboratory Manager

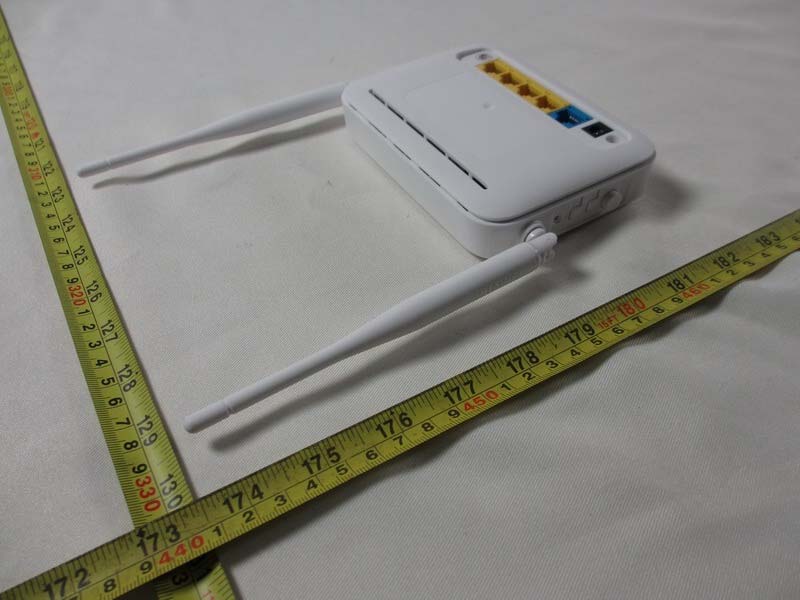

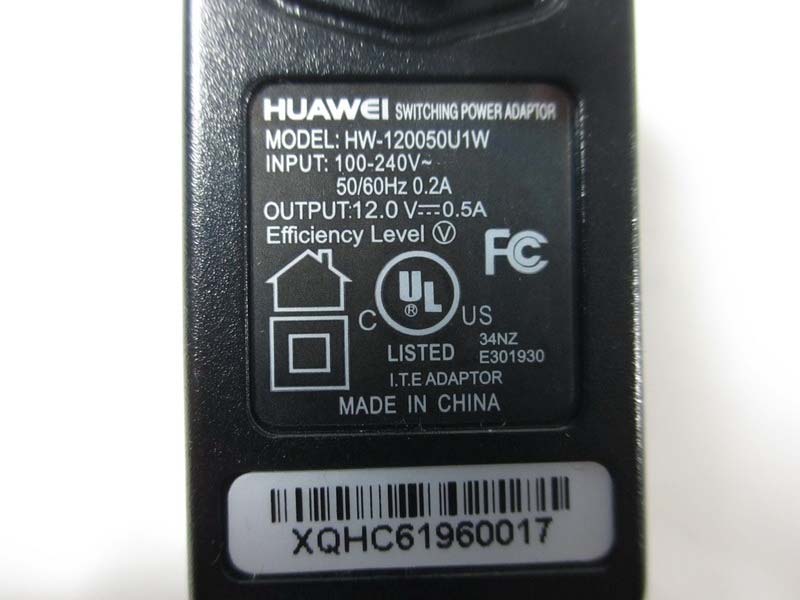

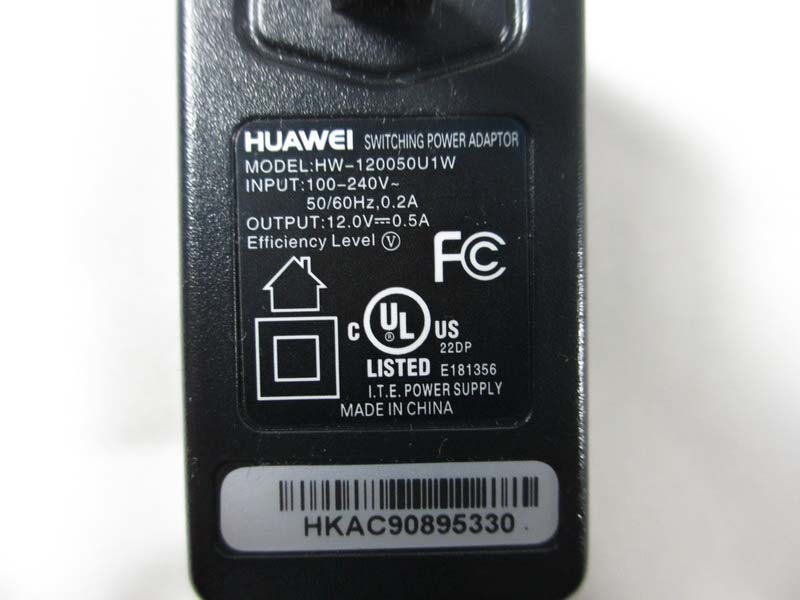

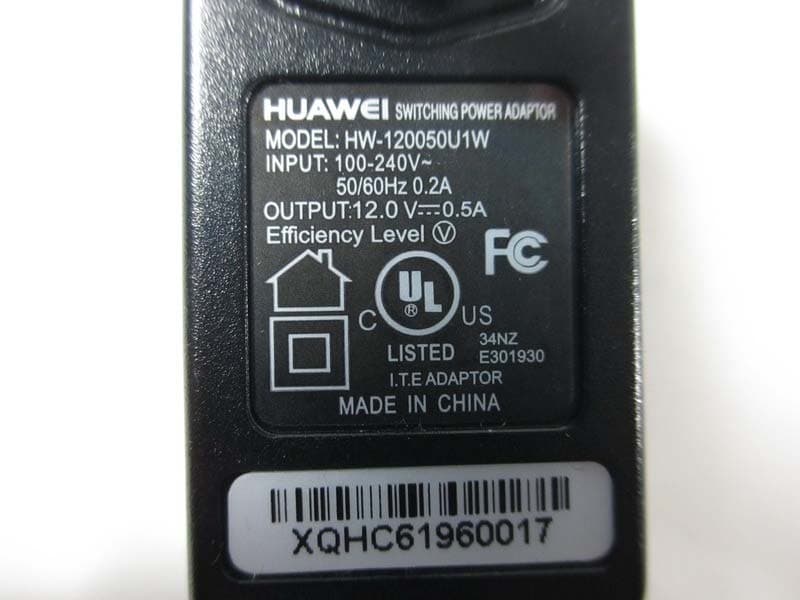

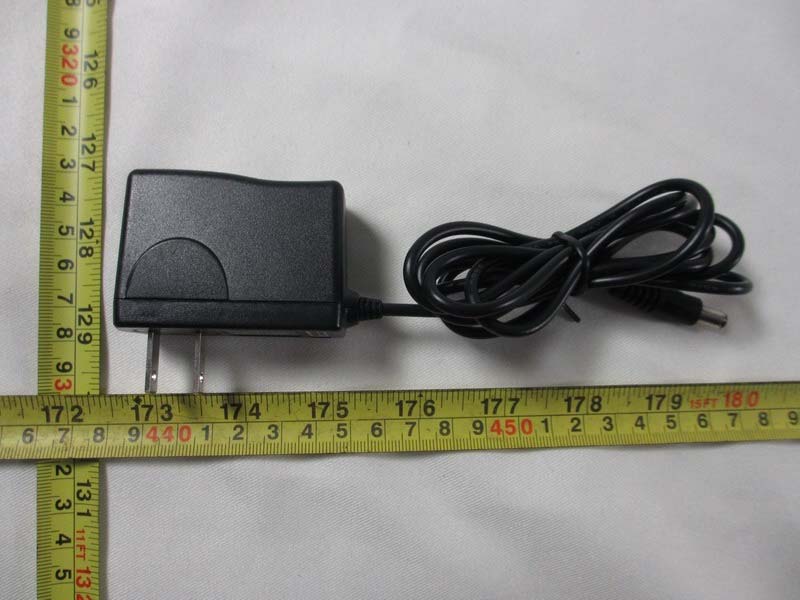

Neutron Engineering Inc. Project No.: 1212C315 Page 2 of 10 Neutron Engineering Inc. Project No.: 1212C315 Page 3 of 10 Neutron Engineering Inc. Project No.: 1212C315 Page 4 of 10 Manufacturer : UE Neutron Engineering Inc. Project No.: 1212C315 Page 5 of 10 Manufacturer : XQ Neutron Engineering Inc. Project No.: 1212C315 Page 6 of 10 Manufacturer : HK

7.0mm

Neutron Engineering Inc. Project No.: 1212C315 Page 7 of 10 Neutron Engineering Inc. Project No.: 1212C315 Page 8 of 10 Neutron Engineering Inc. Project No.: 1212C315 Page 9 of 10 Neutron Engineering Inc. Project No.: 1212C315 Page 10 of 10

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: QISHG232F Project No. : 1212C315 Equipment : 300Mbps Wireless Router Model : HG232f Applicant : Huawei Technologies Co., Ltd. Address : Bantian, Longgang District, Shenzhen China According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 0 Tongyu TT-2403-W1 Dipole N/A 2.0 TX/RX 1 Tongyu TT-2403-W1 Dipole N/A 2.0 TX/RX Note: The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R) Operating Mode TX Mode 1TX 2TX 802.11b V (ANT0 or ANT1) - 802.11g V (ANT0 or ANT1) - 802.11n(20MHz) - V (ANT0 & ANT1) 802.11n(40MHz) - V (ANT0 & ANT1) Neutron Engineering Inc. TEST RESULTS EUT： 300Mbps Wireless Router Model Name ： HG232f Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 12.35 17.1791 0.005419391 Complies 2 1.5849 13.43 22.0293 0.006949451 Complies 2 1.5849 12.06 16.0694 0.005069331 Complies EUT： 300Mbps Wireless Router Model Name ： HG232f Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 15.76 37.6704 0.011883661 Complies 2 1.5849 14.92 31.0456 0.009793781 Complies 2 1.5849 13.83 24.1546 0.007619921 Complies Neutron Engineering Inc. EUT： 300Mbps Wireless Router Model Name ： HG232f Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 ANT 0+ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 14.40 27.5423 0.008688611 Complies 2 1.5849 14.47 27.9898 0.008829791 Complies 2 1.5849 14.24 26.5461 0.008374341 Complies EUT： 300Mbps Wireless Router Model Name ： HG232f Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 ANT 0+ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 15.60 36.3078 0.011453821 Complies 2 1.5849 15.26 33.5738 0.010591331 Complies 2 1.5849 15.29 33.8065 0.010664741 Complies

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C315 Page 1 of 159 FCC Radio Test Report FCC ID: QISHG232F This report concerns (check one) : Original Grant Class II Change Issued Date : Jan. 17, 2013 Project No. : 1212C315 Equipment : 300Mbps Wireless Router Model Name : HG232f Applicant : Huawei Technologies Co., Ltd. Address : Bantian, Longgang District, Shenzhen China Manufacturer : Huawei Technologies Co., Ltd. Address : Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Dec. 29, 2012 Date of Test: Dec. 29, 2012 ~ Jan. 16, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C315 Page 2 of 159 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C315 Page 3 of 159 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 24 4.2.1 RADIATED EMISSION LIMITS 24 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 25 4.2.3 TEST PROCEDURE 26 4.2.4 DEVIATION FROM TEST STANDARD 26 4.2.5 TEST SETUP 27 4.2.6 EUT OPERATING CONDITIONS 28 4.2.7 TEST RESULTS (9K~ 30MHZ) 29 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 30 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 49 5 . BANDWIDTH TEST 97 5.1 APPLIED PROCEDURES / LIMIT 97 5.1.1 MEASUREMENT INSTRUMENTS LIST 97 5.1.2 TEST PROCEDURE 97 5.1.3 DEVIATION FROM STANDARD 97 5.1.4 TEST SETUP 97 5.1.5 EUT OPERATION CONDITIONS 97 5.1.6 TEST RESULTS 98 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C315 Page 4 of 159 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 106 6.1 APPLIED PROCEDURES / LIMIT 106 6.1.1 MEASUREMENT INSTRUMENTS LIST 106 6.1.2 TEST PROCEDURE 106 6.1.3 DEVIATION FROM STANDARD 106 6.1.4 TEST SETUP 106 6.1.5 EUT OPERATION CONDITIONS 106 6.1.6 TEST RESULTS 107 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 110 7.1 APPLIED PROCEDURES / LIMIT 110 7.1.1 MEASUREMENT INSTRUMENTS LIST 110 7.1.2 TEST PROCEDURE 110 7.1.3 DEVIATION FROM STANDARD 110 7.1.4 TEST SETUP 110 7.1.5 EUT OPERATION CONDITIONS 110 7.1.6 TEST RESULTS 111 8 . POWER SPECTRAL DENSITY TEST 141 8.1 APPLIED PROCEDURES / LIMIT 141 8.1.1 MEASUREMENT INSTRUMENTS LIST 141 8.1.2 TEST PROCEDURE 141 8.1.3 DEVIATION FROM STANDARD 141 8.1.4 TEST SETUP 141 8.1.5 EUT OPERATION CONDITIONS 141 8.1.6 TEST RESULTS 142 9 . EUT TEST PHOTO 156 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C315 Page 5 of 159 1. CERTIFICATION Equipment : 300Mbps Wireless Router Brand Name : HUAWEI Model Name : HG232f Applicant : Huawei Technologies Co., Ltd. Factory : Huawei Technologies Co., Ltd. Address : Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Date of Test : Dec. 29, 2012 ~ Jan. 16, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1212C315) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C315 Page 6 of 159 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.209/15.205 Radiated Spurious Emission PASS 15.247(e) Powe…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C315 Page 156 of 159 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C315 Page 157 of 159 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C315 Page 158 of 159 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C315 Page 159 of 159 Radiated Measurement Photos Above 1000MHz
