QISHG550C1Home Gateway

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com APPENDIX A Lettery of Agency "I, an officer of HUAWEI Technologies Co., LTD. do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 68 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By Yingzhe Li Signature Printed Title Cooperation Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com APPENDIX B Confidentility Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: HUAWEI Technologies Co., LTD. FCC ID: :QISHG550C1 To whom it may concern, Request is hereby submitted by HUAWEI Technologies Co., LTD. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: HUAWEI Technologies Co., LTD. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Cooperation Manager HUAWEI Technologies Co., LTD.

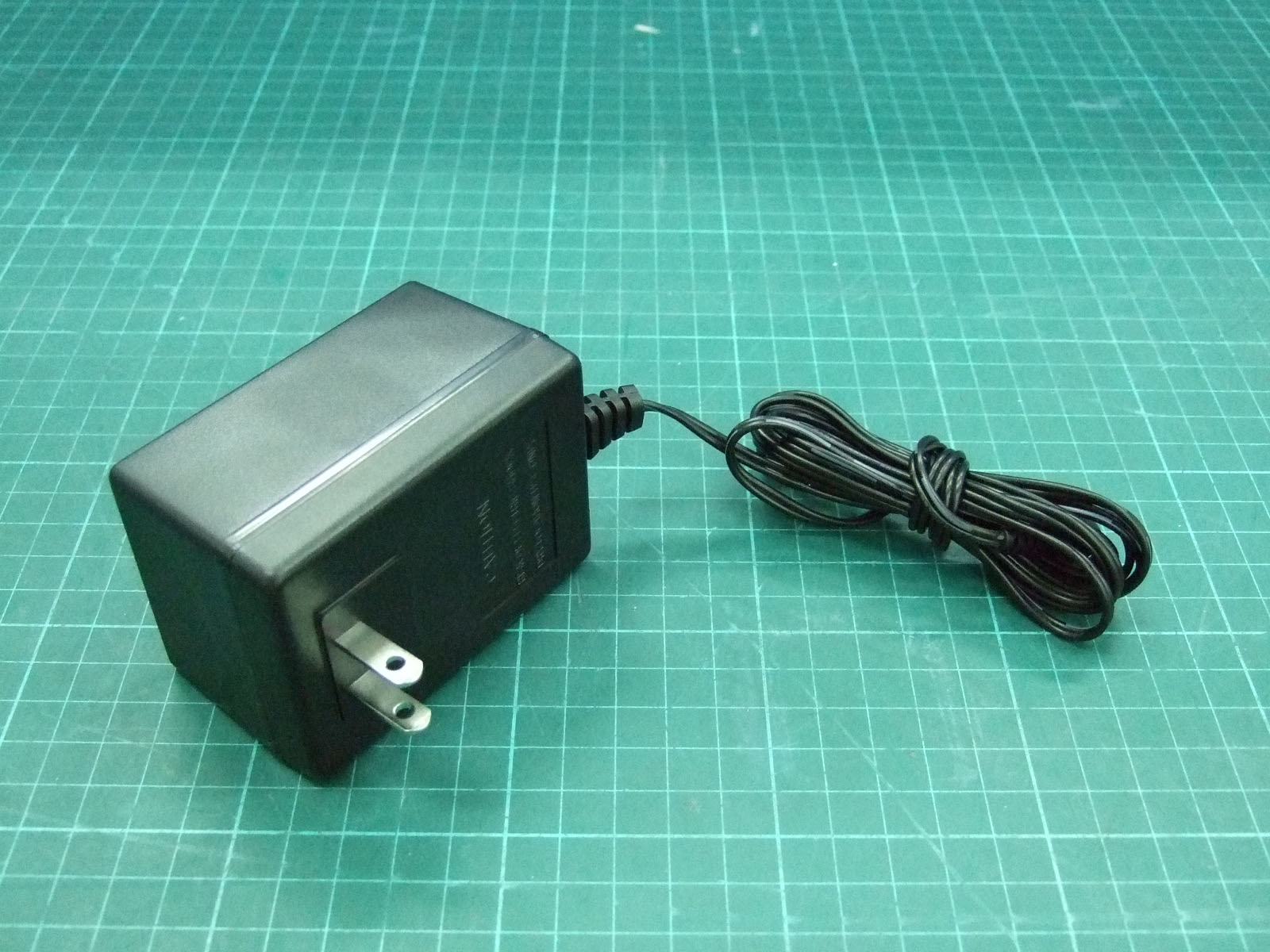

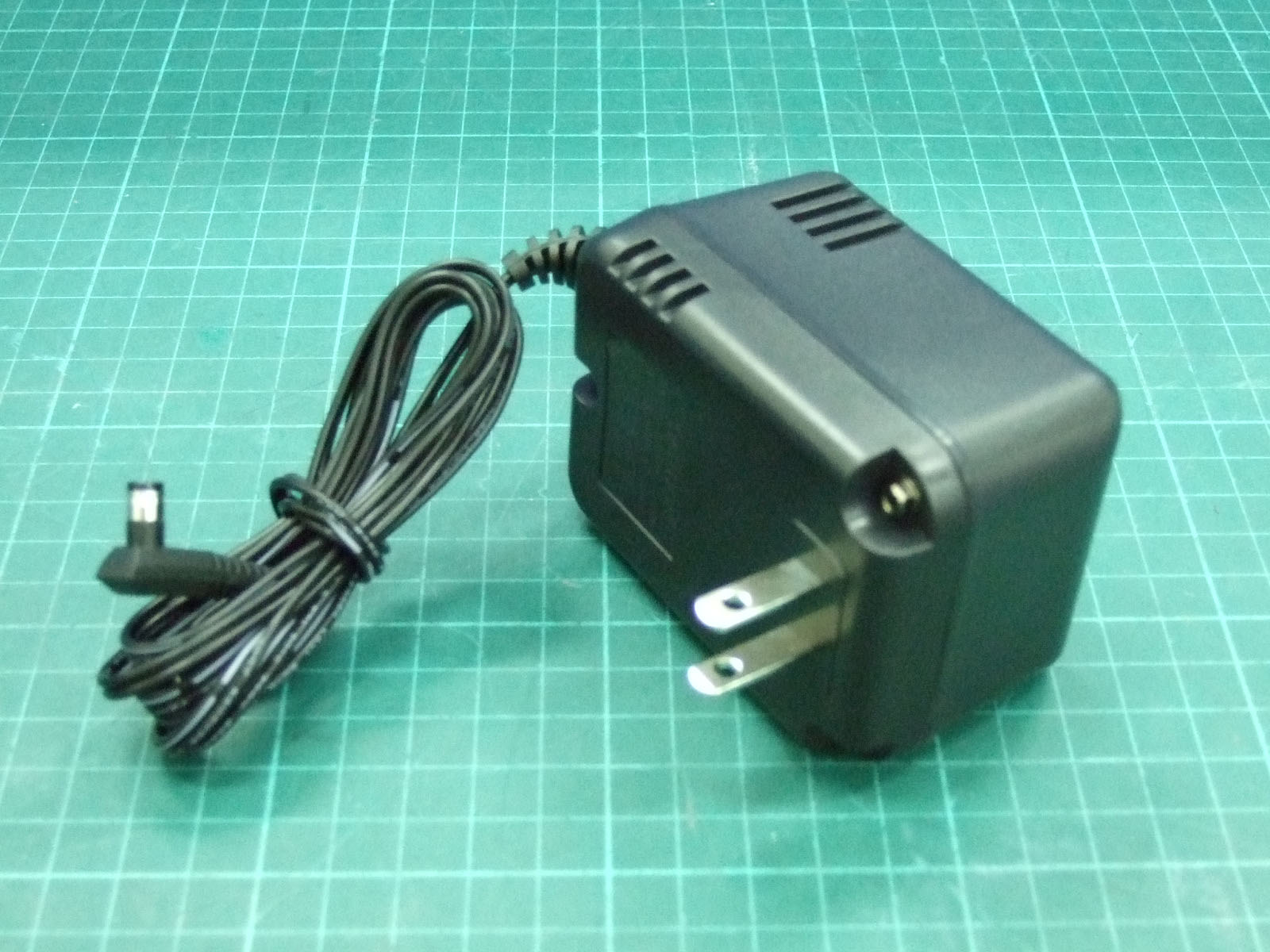

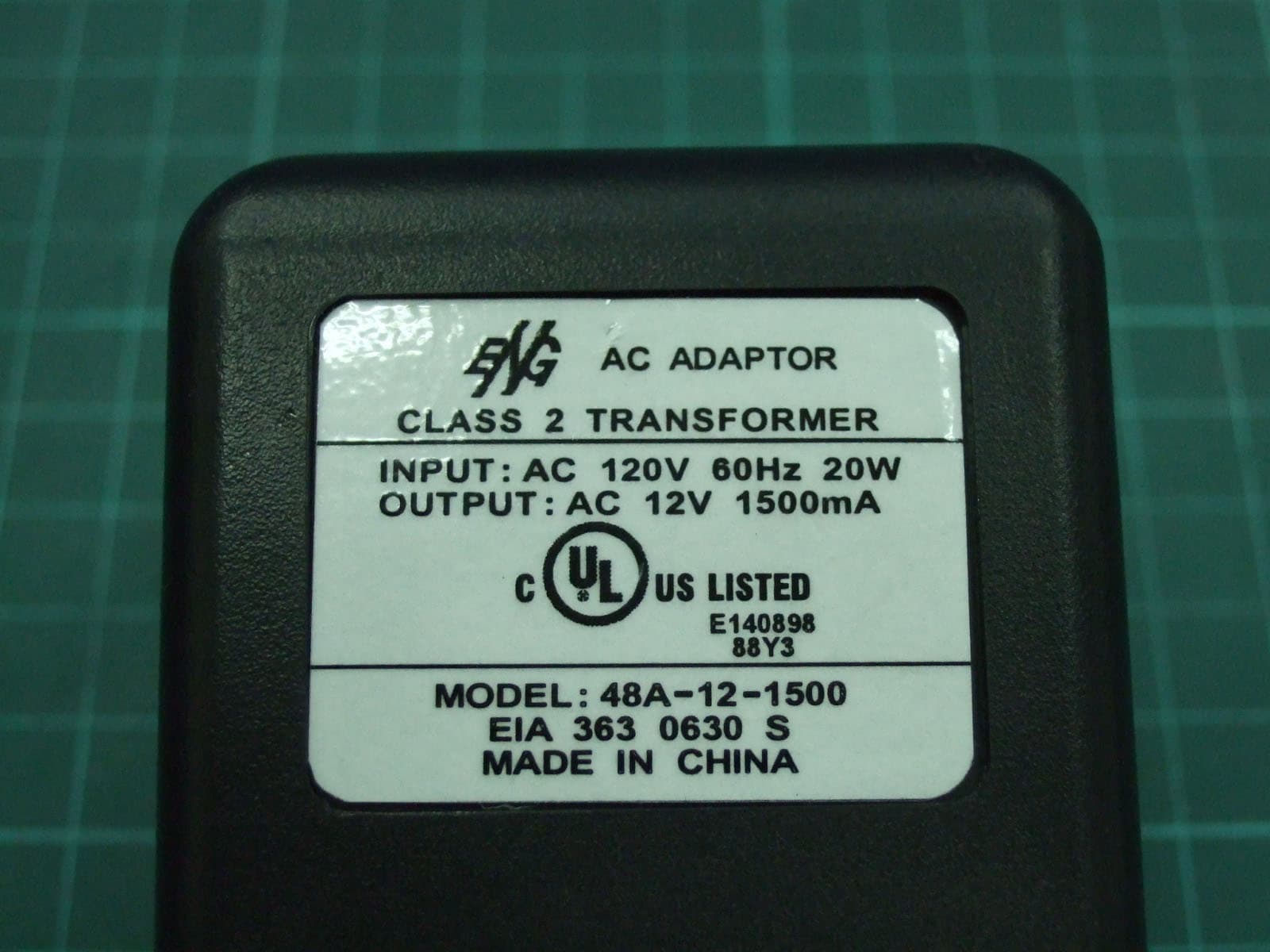

Photo 1: External photo of EUT EchoLife HG550 Photo 2: External photo of EUT EchoLife HG550 Photo 3: External photo of adapter AM-121500A Photo 4: External photo of adapter AM-121500A Photo 5: External photo of adapter 48A-12-1500 Photo 6: External photo of adapter 48A-12-1500

4.70mm FCC ID Label Location 70mm

Photo 1: Internal photo of EUT EchoLife HG550 Photo 2: Internal photo of EUT EchoLife HG550 Photo 3: Internal photo of EUT EchoLife HG550 Photo 4: Internal photo of EUT EchoLife HG550 Photo 5: Internal photo of EUT EchoLife HG550 Photo 6: Internal photo of EUT EchoLife HG550 Photo 7: Internal photo of EUT EchoLife HG550

FCC ID. :QISHG550C1 Report No.: EME-061004 Page 1 of 5 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-061004 Model No. : EchoLife HG550 Issued Date : Aug. 22, 2006 Applicant : Huawei Technologies Co., Ltd Bantian, Longgang District, Shenzhen, Guandong 518129 P.R.C. Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 5 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Rico Deng Project Engineer Reviewed By Jerry Liu FCC ID. :QISHG550C1 Report No.: EME-061004 Page 2 of 5 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 4. Test results .................................................................................................................... 5 FCC ID. :QISHG550C1 Report No.: EME-061004 Page 3 of 5 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 Home Gateway-Model: EchoLife HG550 FCC ID: QISHG550C1 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Pass FCC ID. :QISHG550C1 Report No.: EME-061004 Page 4 of 5 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. :QISHG550C1 Report No.: EME-061004 Page 5 of 5 3. RF Exposure calculations From FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4*π*20 2 = 0.00995 (mW/cm 2 ) 4. Test results Test Mode: 802.11b (DSSS Modulation) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412 1.58 59.290.01869 1.0 6 (middle) 2437 1.58 60.530.01908 1.0 11 (highest) 2462 1.58 58.080.01837 1.0 Test Mode: 802.11g (OFDM Modulation) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412 1.58 128.82 0.04061 1.0 6 (middle) 2437 1.58 131.83 0.04156 1.0 11 (highest) 2462 1.58 130.02 0.04099 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

FCC ID. : QISHG550C1 Report No.: EME-061004 Page 1 of 66 EMC TEST REPORT Report No. : EME-061004 Model No. : EchoLife HG550 Issued Date : Aug. 22, 2006 Applicant : Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, Guandong 518129 P.R.C. Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 66 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Rico Deng Project Engineer Reviewed By Jerry Liu FCC ID. : QISHG550C1 Report No.: EME-061004 Page 2 of 66 Table of Contents Summary of Tests ..............................................................................................................4 1. General information ......................................................................................................5 1.1 Identification of the EUT ........................................................................................5 1.2 Additional information about the EUT....................................................................5 1.3 Antenna description.................................................................................................6 1.4 Peripherals equipment .............................................................................................6 2. Test specifications .........................................................................................................7 2.1 Test standard............................................................................................................7 2.2 Operation mode .......................................................................................................7 2.3 Test equipment ........................................................................................................8 3. Minimum 6dB Bandwidth test ......................................................................................9 3.1 Operating environment............................................................................................9 3.2 Test setup & procedure ............................................................................................9 3.3 Measured data of Minimum 6dB Bandwidth test results ........................................9 4. Maximum Output Power test ......................................................................................16 4.1 Operating environment..........................................................................................16 4.2 Test setup & procedure ..........................................................................................16 4.3 Measured data of Maximum Output Power test results ........................................16 5. RF Antenna Conducted Spurious test..........................................................................17 5.1 Operating environment..........................................................................................17 5.2 Test setup & procedure ..........................................................................................17 5.3 Measured data of the highest RF Antenna Conducted Spurious test result ..........17 6. Radiated Emission test ................................................................................................36 6.1 Operating environment..........................................................................................36 6.2 Test setup & procedure ..........................................................................................36 6.3 Emission limits ......................................................................................................37 6.4 Radiated spurious emission test data.....................................................................38 6.4.1 Measurement results: frequencies equal to or less than 1 GHz..........................38 6.4.2 Measurement results: frequency above 1GHz ...................................................39 7. Power Spectrum Density test ......................................................................................45 7.1 Operating environment..........................................................................................45 7.2 Test setup & procedure ..........................................................................................45 FCC ID. : QISHG550C1 Report No.: EME-061004 Page 3 of 66 7.3 Measured data of Power Spectrum Density test results ........................................45 8. Emission on the band edge..........................................................................................52 8.1 Operating environment..........................................................................................52 8.2 Test setup & procedure ..........................................................................................52 8.3 Test Result .............................................................................................................53 8.3.1 Conducted Method .............................................................................................53 8.3.2 Radiated Method ................................................................................................61 9. Power Line Conducted Emission test §FCC 15.207 ...................................................63 9.1 Operating environment..........................................................................................63 9.2 Test setup & procedure ..........................................................................................63 9.3 Emission limit .......................................................................................................64 9.4 Uncertainty of Conducted Emission .....................................................…
