QISHG622Home Gateway

HUAWEI HG622 Home Gateway User Guide HUAWEI TECHNOLOGIES CO., LTD. HUAWEI HG622 Home Gateway V100R001 User Guide Issue 01 Date 2009-11-10 Part Number 202193 Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service. Please feel free to contact our local office or company headquarters. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] Copyright © Huawei Technologies Co., Ltd. 2009. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers. Thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Contents 1 Warnings and Precautions ....................................................................... 1 2 Connecting the Cables and Getting Started............................................ 7 2.1 Simple Connection .......................................................................................7 2.2 Connecting One Telephone ..........................................................................8 2.3 Getting Started .............................................................................................9 3 Setting the Network-Access Parameters ................................................. 9 3.1 Accessing the Network Through the Embedded PPP Dial-Up Software on the HG622 ...........................................................................................................9 3.2 Accessing the Network Through the PPP Dial-Up Software on Your Computer ...........................................................................................................10 4 Configuring the Wireless Network Connection.................................... 11 5 Using the WPS function.......................................................................... 12 6 Configuring the HG622 .......................................................................... 13 6.1 Changing the Administrator Password Used for Logging In to the Web-Based Configuration Utility ......................................................................13 6.2 Enabling or Disabling the Wireless Network Function ..............................13 6.3 Changing the Wireless Network Name and the Access Password .............14 6.4 Changing the IP Address Used for Logging In to the Web-Based Configuration Utility .........................................................................................14 6.5 Downloading Files Through the USB Port.................................................15 6.6 Restoring Default Settings..........................................................................15 i 7 FAQs......................................................................................................... 16 8 Appendix .................................................................................................. 19 8.1 Indicators....................................................................................................19 8.2 Interfaces and Buttons ................................................................................21 8.3 Default Settings ..........................................................................................21 8.4 Technical Specifications.............................................................................22 ii 1 Warnings and Precautions To use the device properly and safely, read these warnings and precautions carefully and strictly observe them during operation. Unless otherwise specified, the device described in this section includes the device and its accessories. Basic Requirements z During storage, transportation, and operation of the device, keep it dry and prevent it from colliding with other objects. z Do not dismantle the device. In case of any fault, contact an authorized service center for assistance or repair. z Without aut…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Date: December 02, 2009 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISHG622 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________________ Zhang Xinghai/manager Huawei Technologies Co.,Ltd

RF_160, Issue 02 Huawei Technologies Co.,Ltd Declaration of Authorization We Name: Huawei Technologies Co.,Ltd Address: Huawei Base BanTian Longgang Shenzhen 518129 P.R.C City: ......... SHENZHEN ................................................................ Country:.........China ............................................................................ Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Home Gateway ............ ...................... Type designation: HG622......... .............................. Trademark: HUAWEI .................. ............................... on our behalf. Date: ...... 2009/12/02................. City: ...... SHENZHEN .......................... Name: ...... Zhang Xinghai ................................ (2) Function: ......Manager............................... Signature: .......................................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Huawei Technologies Co.,Ltd Huawei Base BanTian Longgang Shenzhen 518129 P.R.C SHENZHEN China Attestation for FCC Declaration of Conformity FCC ID: QISHG622 Date: 2009/12/02 Please be notified that we, the undersigned, Huawei Technologies Co.,Ltd declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DOC. The test report number supporting the DOC is 09B464R-IT-US-P01V01. Testing in regards to this report was done by QuieTek Corp., located at No.5-22, Rueishu Keng, Rueiping Tsuen, Linkou Shiang, Taipei County 244, Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Zhang Xinghai/manager Huawei Technologies Co.,Ltd

Huawei Technologies Co.,Ltd Date: December 02, 2009 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISHG622 ATTESTATION FCC ID: QISHG622 Product: Home Gateway Model: HG622 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Zhang Xinghai/manager Huawei Technologies Co.,Ltd

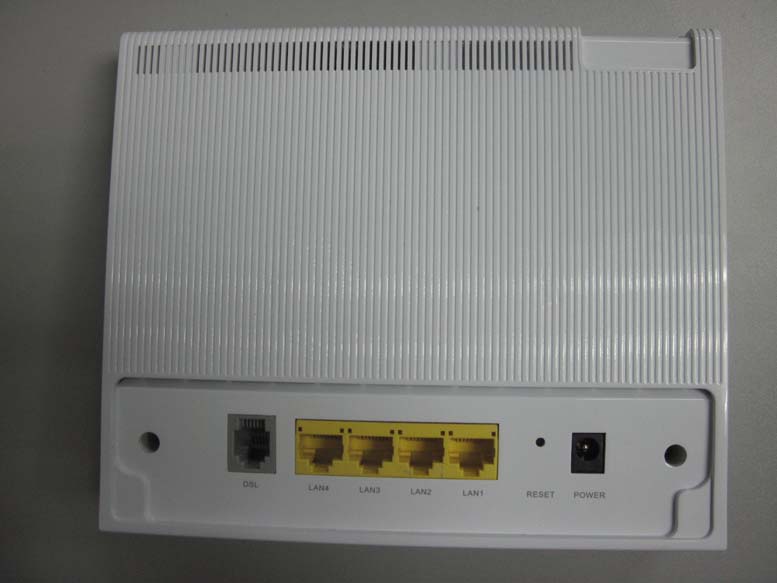

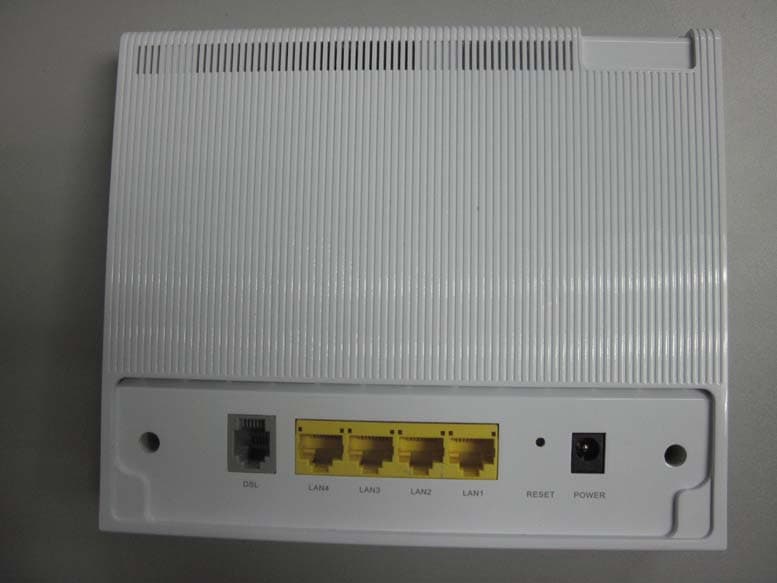

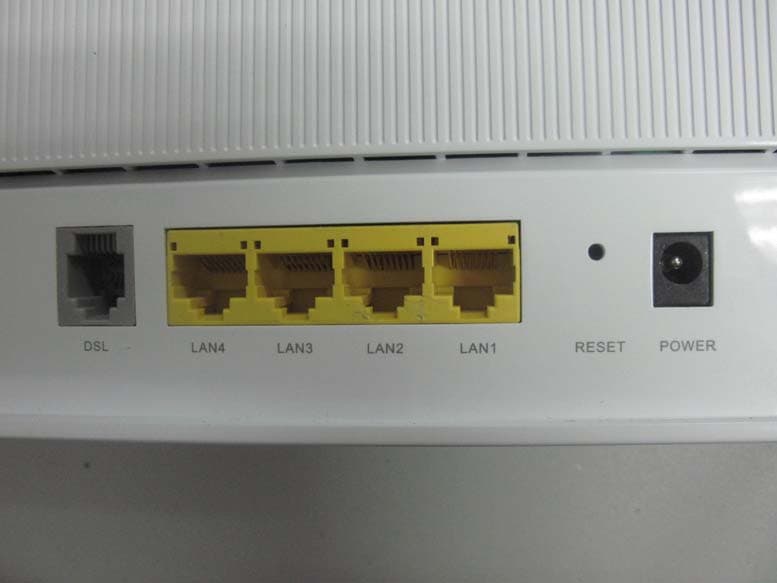

Home Gateway (M/N: HG622) EUT Photograph-External Photographs (1) EUT Photo (HG622) (2) EUT Photo (HG622) (3) EUT Photo (HG622) (4) EUT Photo (HG622) (5) EUT Photo (HG622) (6) EUT Photo (HG622)

73.0 2 7 . 0 3 . 0 2.9 0678 FCC ID:QISHG622 US:HAUxxxxxHG622 This Product Complies With 47CFR PART 68 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. MODEL: HG622 NAME: Home Gateway POWERRATING 12 V; 1.5 A 5mm

Home Gateway (M/N: HG622) Label Location: at the bottom of the device

Home Gateway (M/N: HG622) EUT Photograph-Internal Photographs (1) EUT Photo (HG622) (2) EUT Photo (HG622) (3) EUT Photo (HG622) (4) EUT Photo (HG622) (5) EUT Photo (HG622)

RF Exposure Evaluation Declaration Product Name : Home Gateway Model No. : HG622 FCC ID : QISHG622 Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. Date of Receipt : Nov.24, 2009 Test Date : Nov.24,2009~Dec.22,2009 Issued Date : Dec.22, 2009 Report No. : 09BS117R-RF-US Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by CNLA, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 09BS117R-RF-US Page: 2 of 5 Test Report Certification Issued Date : Dec. 22, 2009 Report No. : 09BS117R-RF-US Product Name : Home Gateway Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. Manufacturer : Huawei Technologies Co., Ltd. Address : Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. Model No. : HG622 FCC ID : QISHG622 EUT Voltage : 12Vdc Brand Name : HUAWEI Applicable Standard : FCC OET 65 Test Result : Complied Performed Location : SuZhou EMC laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : ( Engineering ADM: Alice Ni ) Reviewed By : ( Engineering Supervisor: Marlin Chen ) Approved By : ( Engineering Manager: Dream Cao ) Report No： 09BS117R-RF-US Page: 3 of 5 Laboratory Information We , QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited by the following accreditation Bodies in compliance with ISO 17025, EN 45001 and Guide 25: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://tw.quietek.com/modules/myalbum/ The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : +886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, DGT, CNLA Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No： 09BS117R-RF-US Page: 4 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No： 09BS117R-RF-US Page: 5 of 5 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : Home Gateway Test Item : RF Exposure Evaluation Test Site : AC-6 Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: Test Mode Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 802.11bgn(20MHz) 2412~2462 347 0.109328 802.11(40MHz) 2422~2452 264 0.083316

FCC Part15 Subpart C Test Report Product Name : Home Gateway Model No. : HG622 FCC ID : QISHG622 Applicant ： Huawei Technologies Co., Ltd. Address ： Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. Date of Receipt : Nov.24, 2009 Test Date : Nov.24,2009~Dec.22,2009 Issued Date : Dec.22, 2009 Report No. : 09BS117R-RF-US-P05V01 Report Version : V1.1 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by CNLA, NVLAP or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：09BS117R-RF-US-P05V01 Page: 2 of 192 Test Report Certification Issued Date : Dec.22, 2009 Report No. : 09BS117R-RF-US-P05V01 Product Name : Home Gateway Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. Manufacturer : Huawei Technologies Co., Ltd. Address : Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. Model No. : HG622 FCC ID : QISHG622 EUT Voltage : DC 12 V Trade Name : HUAWEI Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2008 ANSI C63.4: 2003 Test Result : Complied Performed Location : SuZhou EMC laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : ( Engineering ADM: Alice Ni ) Reviewed By : ( Engineering Supervisor: Marlin Chen ) Approved By : ( Engineering Manager: Dream Cao ) Report No：09BS117R-RF-US-P05V01 Page: 3 of 192 Laboratory Information We , QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited by the following accreditation Bodies in compliance with ISO 17025, EN 45001 and Guide 25: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://tw.quietek.com/modules/myalbum/ The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : +886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, DGT, CNLA Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No：09BS117R-RF-US-P05V01 Page: 4 of 192 TABLE OF CONTENTS Description Page 1. General Information .......................................................................................................6 1.1. EUT Description .........................................................................................................6 1.2. Mode of Operation .....................................................................................................8 1.3. Tested System Details................................................................................................9 1.4. Configuration of Tested System ...............................................................................10 1.5. EUT Exercise Software ............................................................................................ 11 2. Technical Test ..............................................................................................................12 2.1. Summary of Test Result ...........................................................................................12 2.2. Test Environment.....................................................................................................13 3. Conducted Emission ....................................................................................................14 3.1. Test Equipment ........................................................................................................14 3.2. Test Setup ................................................................................................................14 3.3. Limit..........................................................................................................................15 3.4. Test Procedure.........................................................................................................15 3.5. Uncertainty ...............................................................................................................15 3.6. Test Result...............................................................................................................16 4. Radiated Emission.......................................................................................................22 4.1. Test Equipment ........................................................................................................22 4.2. Test Setup ................................................................................................................23 4.3. Limit..........................................................................................................................24 4.4. Test Procedure......................................................................................................…

Text truncated - open the document above for the full version.

Report No：09BS117R-RF-US-P05V01 Page: 141 of 192 Product : Home Gateway Test Item : Operation Frequency Range of 20dB Bandwidth Test Mode : Mode 4: Transmit at 802.11n (40MHz) (Chain 1) Channel 03 (2422MHz) Channel 09 (2452MHz) Report No：09BS117R-RF-US-P05V01 Page: 142 of 192 8. Occupied Bandwidth 8.1. Test Equipment Occupied Bandwidth / AC-6 Instrument Manufacturer Type No. Serial No. Cal. Date Spectrum Analyzer Agilent N9020A MY49100159 2009/05/06 Temperature/Humidity Meter zhicheng ZC1-2 QT-TH007 2009/03/30 Note: All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 8.2. Test Setup 8.3. Limit The minimum 6 dB bandwidth shall be at least 500 kHz. 8.4. Test Procedure The EUT was tested according to DTS test procedure of Oct 2002 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 100 kHz, Span greater than RBW. 8.5. Uncertainty The measurement uncertainty is defined as ± 1 kHz Report No：09BS117R-RF-US-P05V01 Page: 143 of 192 8.6. Test Result Product : Home Gateway Test Item : 6dB Occupied Bandwidth Test Mode : Mode 1: Transmit by 802.11b (Chain 0) Channel No. Frequency (MHz) Occupied Bandwidth (kHz) Limit (kHz) Result 01 2412 12031 500 Pass 06 2437 12081 500 Pass 11 2462 12056 500 Pass Channel 01 (2412MHz) Report No：09BS117R-RF-US-P05V01 Page: 144 of 192 Channel 06 (2437MHz) Channel 11 (2462MHz) Report No：09BS117R-RF-US-P05V01 Page: 145 of 192 Product : Home Gateway Test Item : 6dB Occupied Bandwidth Test Mode : Mode 2: Transmit by 802.11g (Chain 0) Channel No. Frequency (MHz) Occupied Bandwidth (kHz) Limit (kHz) Result 01 2412 16508 500 Pass 06 2437 16483 500 Pass 11 2462 16508 500 Pass Channel 01 (2412MHz) Report No：09BS117R-RF-US-P05V01 Page: 146 of 192 Channel 06 (2437MHz) Channel 11 (2462MHz) Report No：09BS117R-RF-US-P05V01 Page: 147 of 192 Product : Home Gateway Test Item : 6dB Occupied Bandwidth Test Mode : Mode 3: Transmit by 802.11n (20MHz) (Chain 0) Channel No. Frequency (MHz) Occupied Bandwidth (kHz) Limit (kHz) Result 01 2412 17584 500 Pass 06 2437 17409 500 Pass 11 2462 17409 500 Pass Channel 01 (2412MHz) Report No：09BS117R-RF-US-P05V01 Page: 148 of 192 Channel 06 (2437MHz) Channel 11 (2462MHz) Report No：09BS117R-RF-US-P05V01 Page: 149 of 192 Product : Home Gateway Test Item : 6dB Occupied Bandwidth Test Mode : Mode 4: Transmit by 802.11n (40MHz) (Chain 0) Channel No. Frequency (MHz) Occupied Bandwidth (kHz) Limit (kHz) Result 03 2422 36200 500 Pass 06 2437 36200 500 Pass 09 2452 36290 500 Pass Channel 03 (2422MHz) Report No：09BS117R-RF-US-P05V01 Page: 150 of 192 Channel 06 (2437MHz) Channel 09 (2452MHz) Report No：09BS117R-RF-US-P05V01 Page: 151 of 192 Product : Home Gateway Test Item : Occupied Bandwidth Test Mode : Mode 1: Transmit by 802.11b (Chain 1) Channel No. Frequency (MHz) Occupied Bandwidth (kHz) Limit (kHz) Result 01 2412 12056 500 Pass 06 2437 12006 500 Pass 11 2462 12006 500 Pass Channel 01 (2412MHz) Report No：09BS117R-RF-US-P05V01 Page: 152 of 192 Channel 06 (2437MHz) Channel 11 (2462MHz) Report No：09BS117R-RF-US-P05V01 Page: 153 of 192 Product : Home Gateway Test Item : Occupied Bandwidth Test Mode : Mode 2: Transmit at 802.11g (Chain 1) Channel No. Frequency (MHz) Occupied Bandwidth (kHz) Limit (kHz) Result 01 2412 16483 500 Pass 06 2437 16458 500 Pass 11 2462 16508 500 Pass Channel 01 (2412MHz) Report No：09BS117R-RF-US-P05V01 Page: 154 of 192 Channel 06 (2437MHz) Channel 11 (2462MHz) Report No：09BS117R-RF-US-P05V01 Page: 155 of 192 Product : Home Gateway Test Item : Occupied Bandwidth Test Mode : Mode 3: Transmit at 802.11n (20MHz) (Chain 1) Channel No. Frequency (MHz) Occupied Bandwidth (kHz) Limit (kHz) Result 01 2412 17459 500 Pass 06 2437 17409 500 Pass 11 2462 17334 500 Pass Channel 01 (2412MHz) Report No：09BS117R-RF-US-P05V01 Page: 156 of 192 Channel 06 (2437MHz) Channel 11 (2462MHz) Report No：09BS117R-RF-US-P05V01 Page: 157 of 192 Product : Home Gateway Test Item : Occupied Bandwidth Test Mode : Mode 4: Transmit at 802.11n (40MHz) (Chain 1) Channel No. Frequency (MHz) Occupied Bandwidth (kHz) Limit (kHz) Result 03 2422 35790 500 Pass 06 2437 35840 500 Pass 09 2452 35790 500 Pass Channel 03 (2422MHz) Report No：09BS117R-RF-US-P05V01 Page: 158 of 192 Channel 06 (2437MHz) Channel 09 (2452MHz) Report No：09BS117R-RF-US-P05V01 Page: 159 of 192 9. Power Output 9.1. Test Equipment Power Output / AC-6 Instrument Manufacturer Type No. Serial No. Cal. Date Wideband Peak Power Meter Anritsu ML2495A 0905006 2009/02/12 Power Sensor Anritsu MA2411B 0846014 2009/01/12 Temperature/Humidity Meter zhicheng ZC1-2 QT-TH007 2009/03/09 Note: All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 9.2. Test Setup 9.3. Limit The maximum peak power shall be less 1 Watt (30dBm). Note: the conducted output power limit specified above is based on the use the antennas with directional gains that do not exceed 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values above, as appropriate, by the amount in dB that the directional gain of antenna exceeds 6 dBi. Report No：09BS117R-RF-US-P05V01 Page: 160 of 192 9.4. Test Procedure The EUT was tested according to DTS test procedure of Oct 2002 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Use the wideband power meter to test peak power and record the result. 9.5. Uncertainty The measurement uncertainty is defined as ± 1.27 dB Report No：09BS117R-RF-US-P05V01 Page: 161 of 192 9.6. Test Result Power output test was verified over all data rates of each mode shown as below, and then choose the maximum power output (blue marker) for final test of each channel. Data Rate (Mbps) 20MHz Bandwidth 40MHz Bandwidth MCS Index for 802.11n Spatial Streams 802.11b802.11g 800ns GI400ns GI800ns GI 400ns GI 0 1 1 6 6.5 7.2 13.5 15.0 1 1 2 9 13.0 14.4 27.0 30.0 2 1 5.5 12 19.5 21.7 40.5 45.0 3 1 11 18 26.0 28.9 54.0 60…

Text truncated - open the document above for the full version.

Report No：09BS117R-RF-US-P05V01 Page: 171 of 192 Product : Home Gateway Test Item : Power Spectral Density Test Mode : Mode 2: Transmit at 802.11g (Chain 0) Measurement PPSD (dBm) Channel No. Frequency (MHz) Chain 0Chain 1 To t a l PPSD (dBm) Limit (dBm/3kHz) Result 01 2412 -15.67 N/A -15.67 8 Pass 06 2437 -20.98 N/A -20.98 8 Pass 11 2462 -14.53 N/A -14.53 8 Pass Channel 01 (2412MHz) Report No：09BS117R-RF-US-P05V01 Page: 172 of 192 Channel 06 (2437MHz) Channel 11 (2462MHz) Report No：09BS117R-RF-US-P05V01 Page: 173 of 192 Product : Home Gateway Test Item : Power Spectral Density Test Mode : Mode 3: Transmit at 802.11n (20MHz) (Chain 0) Measurement PPSD (dBm) Channel No. Frequency (MHz) Chain 0Chain 1 To t a l PPSD (dBm) Limit (dBm/3kHz) Result 01 2412 -16.97 N/A -16.97 8 Pass 06 2437 -22.53 N/A -22.53 8 Pass 11 2462 -16.99 N/A -16.99 8 Pass Channel 01 (2412MHz) Report No：09BS117R-RF-US-P05V01 Page: 174 of 192 Channel 06 (2437MHz) Channel 11 (2462MHz) Report No：09BS117R-RF-US-P05V01 Page: 175 of 192 Product : Home Gateway Test Item : Power Spectral Density Test Mode : Mode 4: Transmit at 802.11n (40MHz) (Chain 0) Measurement PPSD (dBm) Channel No. Frequency (MHz) Chain 0Chain 1 To t a l PPSD (dBm) Limit (dBm/3kHz) Result 03 2422 -20.77 N/A -20.77 8 Pass 06 2437 -20.49 N/A -20.49 8 Pass 09 2452 -20.28 N/A -20.28 8 Pass Channel 03 (2422MHz) Report No：09BS117R-RF-US-P05V01 Page: 176 of 192 Channel 06 (2437MHz) Channel 09 (2452MHz) Report No：09BS117R-RF-US-P05V01 Page: 177 of 192 Product : Home Gateway Test Item : Power Spectral Density Test Mode : Mode 1: Transmit at 802.11b (Chain 1) Measurement PPSD (dBm) Channel No. Frequency (MHz) Chain 0Chain 1 To t a l PPSD (dBm) Limit (dBm/3kHz) Result 01 2412 N/A -18.31 -18.31 8 Pass 06 2437 N/A -18.17 -18.17 8 Pass 11 2462 N/A -18.17 -18.17 8 Pass Channel 01 (2412MHz) Report No：09BS117R-RF-US-P05V01 Page: 178 of 192 Channel 06 (2437MHz) Channel 11 (2462MHz) Report No：09BS117R-RF-US-P05V01 Page: 179 of 192 Product : Home Gateway Test Item : Power Spectral Density Test Mode : Mode 2: Transmit at 802.11g (Chain 1) Measurement PPSD (dBm) Channel No. Frequency (MHz) Chain 0Chain 1 To t a l PPSD (dBm) Limit (dBm/3kHz) Result 01 2412 N/A -14.98 -14.98 8 Pass 06 2437 N/A -14.05 -14.05 8 Pass 11 2462 N/A -14.26 -14.26 8 Pass Channel 01 (2412MHz) Report No：09BS117R-RF-US-P05V01 Page: 180 of 192 Channel 06 (2437MHz) Channel 11 (2462MHz) Report No：09BS117R-RF-US-P05V01 Page: 181 of 192 Product : Home Gateway Test Item : Power Spectral Density Test Mode : Mode 3: Transmit at 802.11n (20MHz) (Chain 1) Measurement PPSD (dBm) Channel No. Frequency (MHz) Chain 0Chain 1 To t a l PPSD (dBm) Limit (dBm/3kHz) Result 01 2412 N/A -16.10 -16.10 8 Pass 06 2437 N/A -16.14 -16.14 8 Pass 11 2462 N/A -15.37 -15.37 8 Pass Channel 01 (2412MHz) Report No：09BS117R-RF-US-P05V0…

Text truncated - open the document above for the full version.
