QISHG8045AEchoLife HG8045A

Quick Start EchoLife HG8045A GPON Terminal 1 Safety Precautions To use the device properly and safely, read the safety precautions carefully before using the device and strictly observe these precautions when using the device. „ Do not look directly into the optical port without eye protection. „ Keep the device out of the reach of children as the components or accessories may be swallowed. „ Install the device in strict compliance with the requirements of the supplier. Reserve a space of at least 10 cm above and around the device for heat dissipation. During the installation, keep the device away from electric appliances that generate strong magnetic or electric fields, such as microwave ovens, refrigerators, and mobile phones. „ The power supply voltage of the device must meet the requirements on the input voltage of the device. „ Do not use any power adapters that are not in the standard configuration. Otherwise, the device may be abnormal or unsafe. „ Dry your hands before connecting or disconnecting cables. Stop the device and switch off the power before connecting or disconnecting cables. „ Do not place any object on the device, so that the device will not be damaged due to overheating or deformation. „ Prevent objects, such as metal, from entering the device through the heat dissipation hole. „ Switch off the power and disconnect all cables, including the power cable, optical fiber, and network cable, during periods of lightning activities. „ Do not lead the strength member of the optical fiber or other metal parts indoors. Do not install telephone lines, network cables, power adapters or power adapter cables outdoors. Adopting these measures will help prevent device damage and bodily injuries which are especially prone during thunderstorms. „ If an abnormality occurs, for example, liquid entering the device, smoke, unusual sound, and smell, stop the device immediately, switch off the power, disconnect all cables (such as the power cable, optical cable, and network cable) to the device, and contact the authorized service center. „ Do not disassemble the device without permission. In the case of a device fault, contact the authorized service center. „ Dispose of the packing materials, expired batteries, and old or abandoned devices in accordance to local laws and regulations (recycling them is strongly recommended). „ Do not change the structure, safety design, or performance design of the device without prior authorization. 2 Product Overview ProductFunction HG8045A „ 4 Ethernet ports „ Wi-Fi access Technical Specifications NOTE The appearance shown in this document may be different from the actual appearance of the product. The actual product provided by the carrier prevails. Installing the GPON Terminal 1. Do not install GPON terminals outdoors or on the outdoor cabinets. 2. GPON terminals can be mounted onto a wall or be placed on a workbench. Do not install GPON terminals in other modes, such as the ceiling. 3.The terminal cannot be connected to other devices such as GPON terminals, switch and router. The schematic diagram for placing the device on a desk horizontally is as follows: ItemSpecifications Dimensions (L x W x H)176 mm x 138 mm x 28 mm Weight (including the power adapter)About 350 g Power supply11 - 14 V DC, 1 A Power adapter input100 - 240 V AC, 50 - 60 Hz Maximum power consumption≤8 W Working temperature0 o C - +40 o C Working humidity5% - 95% (non-condensing) System power supplySee the nameplate on the device. 3 Mounting a GPON terminal onto the wall Step 1 Mark the positions of two holes used for mounting a GPON terminal, ensure that the two holes have the same spacing as the two mounting holes. Step 2 Select a proper drill according to the outer diameter of the screws. Use a hammer drill to drill the marked positions on the wall. Then clean the wall and install two expansion bolts. Step 3 Use a screwdriver to fasten the screws into the expansion bolts, leaving the heads of the screws 3 mm over the wall. Then install the GPON terminal to the screws. 4 Connecting Cables The connections between the HG8045A and other devices are shown as follows. 1 Power switch 2 Optical port 3 Power port 4 Ethernet port 5 Reset 6 WLAN switch 7 WPS switch 5 NOTE 1.The optical connector connected to the OPTICAL port is an SC/UPC connector, and the type of the optical connector connected to the optical port in the wall is determined by practical conditions. 2.To ensure normal use of fibers, make sure that the fiber bend radius is larger than 30 mm. Step 2 Use a network cable to connect the LAN port to a PC or the Ethernet port on the IP STB. Step 3 Use a power adapter to connect the POWER port to the power socket. Step 4 Press the ON/OFF power switch. Step 5 Press the WLAN switch to enable the Wi-Fi access function. By default, this function is enabled. Step 6 Press the WPS switch to enable the WPS encryption function. The preceding figure connects the power adapter as an example. When connecting the backup battery unit , please see the usage guide to the backup battery for details . NOTE Before enabling the WPS encryption function of a GPON terminal, ensure that the function is set in the system software in advance. After successful setting, press the WPS switch for the settings to take effect. NOTE Step 1 Use an optical fiber to connect the optical port on the ONT and the optical port on the wall. The optical port of the HG8045A is at the back of the device. Logging in to the Web Configuration Window Step 1 Set the IP address of the PC in the same subnet as the management IP address of the GPON terminal. For example, -IP address: 192.168.100.100 -Subnet mask: 255.255.255.0 Step 2 Enter the management IP address of the GPON terminal in the address bar of Internet Explorer and press Enter. The login window is displayed. NOTE The default management IP address and subnet mask of the GPON terminal are as follows: -IP address: 192.168.100.1 -Subnet mask: 255.255.255.0 6 NOTE -If you do n…

Text truncated - open the document above for the full version.

HUAWEI TECHNOLOGIES CO., LTD. Date: 2014-01-26 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISHG8045A ATTESTATION FCC ID: QISHG8045A Product: GPON Terminal Model: EchoLife HG8045A We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, EMC lab manager: Zhang Xinghai HUAWEI TECHNOLOGIES CO., LTD.

RF_160, Issue 02 HUAWEI TECHNOLOGIES CO., LTD. Declaration of Authorization We Name: HUAWEI TECHNOLOGIES CO., LTD. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C City:  SHENZHEN . Country:China . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: GPON Terminal Type designation: EchoLife HG8045A on our behalf. Date: 2014-01-26 City: SHENZHEN Name: Zhang Xinghai Function: EMC lab manager: Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

HUAWEI TECHNOLOGIES CO., LTD. Date: 2014-04-02 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISHG8045A Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ EMC lab manager: Zhang Xinghai HUAWEI TECHNOLOGIES CO., LTD.

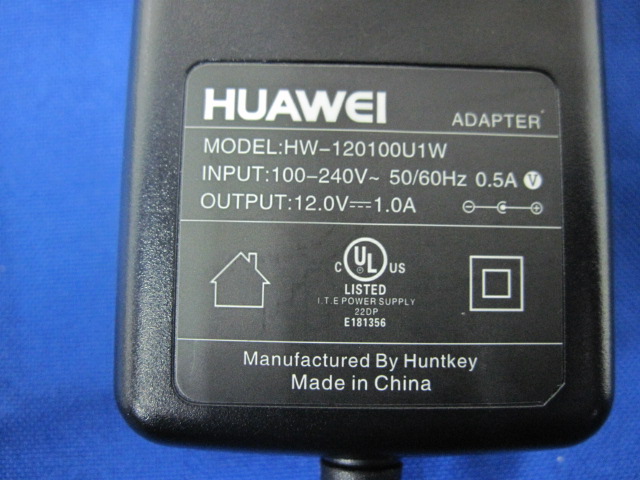

EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (Adapter 1#) (8) EUT Photo (Adapter 1#) (9) EUT Photo (Adapter 2#) (10) EUT Photo (Adapter 2#) (11) EUT Photo (Adapter 3#) (12) EUT Photo (Adapter 3#) (13) EUT Photo (Adapter 4#) (14) EUT Photo (Adapter 4#)

PROD ID:210231XXXXXXXXXX Y XXXXXXXXXX MAC:00259ED3XXXX-XX(X) SN:48575443XXXXXXXX FCC ID:QISHG8045A Network Name:CLAROXXXX Wireless Key:XXXXXXXXXXXXXXXX

EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo

RF Exposure Evaluation Declaration Product Name : GPON Terminal Model No. : EchoLife HG8045A FCC ID : QISHG8045A Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen,518129, P.R.C Date of Receipt : Dec. 30, 2013 Issued Date : Jan. 13, 2014 Report No. : 1410061R-RF-US-P20V01 Report Version : V 1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 1410061R-RF-US-P20V01 Page: 2 of 5 Test Report Certification Issued Date : Jan. 13, 2014 Report No. : 1410061R-RF-US-P20V01 Product Name : GPON Terminal Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Manufacturer : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Model No. : EchoLife HG8045A FCC ID : QISHG8045A EUT Voltage : 100V~240V AC Brand Name : HUAWEI Applicable Standard : KDB 447498D01V05V02 FCC Part1.1310(b) Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No: 1410061R-RF-US-P20V01 Page: 3 of 5 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC Japan :VCCI China :CNAS Report No: 1410061R-RF-US-P20V01 Page: 4 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 1410061R-RF-US-P20V01 Page: 5 of 5 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : GPON Terminal Test Item : RF Exposure Evaluation Test Site : AC-6 Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is 5dBi in logarithm scale. Output Power into Antenna & RF Exposure Evaluation Distance: Test Mode Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 802.11b/g/n(20MHz) 2412~2462 289.0680 0.181857 802.11n(40MHz) 2422~2452 239.3316 0.150567 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2. The End

Test Report FCC Part15 Subpart C Product Name : GPON Terminal Model No. : EchoLife HG8045A FCC ID : QISHG8045A Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen,518129, P.R.C Date of Receipt : Dec. 30, 2013 Test Date : Dec. 30, 2013~Jan. 12, 2014 Issued Date : Jan. 13, 2014 Report No. : 1410061R-RF-US-P05V01 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 1410061R-RF-US-P05V01 Page: 2 of 266 Test Report Certification Issued Date : Jan. 13, 2014 Report No. : 1410061R-RF-US-P05V01 Product Name : GPON Terminal Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Manufacturer : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Model No. : EchoLife HG8045A FCC ID QISHG8045A EUT Voltage : 100V~240V AC Brand Name : HUAWEI Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2009; KDB 558074 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No: 1410061R-RF-US-P05V01 Page: 3 of 266 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC Japan : VCCI China : CNAS Report No: 1410061R-RF-US-P05V01 Page: 4 of 266 TABLE OF CONTENTS Description Page 1. General Information ........................................................................................................ 6 1.1. EUT Description ...................................................................................................... 6 1.2. Mode of Operation ................................................................................................... 9 1.3. Tested System Details ........................................................................................... 10 1.4. Configuration of Tested System ............................................................................. 11 1.5. EUT Exercise Software .......................................................................................... 12 2. Technical Test ............................................................................................................... 13 2.1. Summary of Test Result ......................................................................................... 13 2.2. Test Environment ................................................................................................... 14 3. Conducted Emission .................................................................................................... 15 3.1. Test Equipment ...................................................................................................... 15 3.2. Test Setup.............................................................................................................. 15 3.3. Limit ....................................................................................................................... 16 3.4. Test Procedure ...................................................................................................... 16 3.5. Uncertainty ............................................................................................................ 16 3.6. Test Result ............................................................................................................. 17 4. Radiated Emission ....................................................................................................... 19 4.1. Test Equipment ...................................................................................................... 19 4.2. Test Setup.............................................................................................................. 20 4.3. Limit ....................................................................................................................... 2 1 4.4. Test Procedure ............…

Text truncated - open the document above for the full version.

Report No: 1410061R-RF-US-P05V01 Page: 76 of 266 Channel 06 (2437MHz)-5 Channel 06 (2437MHz)-6 Report No: 1410061R-RF-US-P05V01 Page: 77 of 266 Channel 06 (2437MHz)-7 Channel 11 (2462MHz)-1 Report No: 1410061R-RF-US-P05V01 Page: 78 of 266 Channel 11 (2462MHz)-2 Channel 11 (2462MHz)-3 Report No: 1410061R-RF-US-P05V01 Page: 79 of 266 Channel 11 (2462MHz)-4 Channel 11 (2462MHz)-5 Report No: 1410061R-RF-US-P05V01 Page: 80 of 266 Channel 11 (2462MHz)-6 Channel 11 (2462MHz)-7 Report No: 1410061R-RF-US-P05V01 Page: 81 of 266 Product : GPON Terminal Test Item : RF Antenna Conducted Spurious Test Site : TR-8 Test Mode : Mode 3: Transmit by 802.11n(20MHz) Ant 0 Channel 01 (2412MHz)-1 Report No: 1410061R-RF-US-P05V01 Page: 82 of 266 Channel 01 (2412MHz)-2 Channel 01 (2412MHz)-3 Report No: 1410061R-RF-US-P05V01 Page: 83 of 266 Channel 01 (2412MHz)-4 Channel 01 (2412MHz)-5 Report No: 1410061R-RF-US-P05V01 Page: 84 of 266 Channel 01 (2412MHz)-6 Channel 01 (2412MHz)-7 Report No: 1410061R-RF-US-P05V01 Page: 85 of 266 Channel 06 (2437MHz)-1 Channel 06 (2437MHz)-2 Report No: 1410061R-RF-US-P05V01 Page: 86 of 266 Channel 06 (2437MHz)-3 Channel 06 (2437MHz)-4 Report No: 1410061R-RF-US-P05V01 Page: 87 of 266 Channel 06 (2437MHz)-5 Channel 06 (2437MHz)-6 Report No: 1410061R-RF-US-P05V01 Page: 88 of 266 Channel 06 (2437MHz)-7 Channel 11 (2462MHz)-1 Report No: 1410061R-RF-US-P05V01 Page: 89 of 266 Channel 11 (2462MHz)-2 Channel 11 (2462MHz)-3 Report No: 1410061R-RF-US-P05V01 Page: 90 of 266 Channel 11 (2462MHz)-4 Channel 11 (2462MHz)-5 Report No: 1410061R-RF-US-P05V01 Page: 91 of 266 Channel 11 (2462MHz)-6 Channel 11 (2462MHz)-7 Report No: 1410061R-RF-US-P05V01 Page: 92 of 266 Product : GPON Terminal Test Item : RF Antenna Conducted Spurious Test Site : TR-8 Test Mode : Mode 3: Transmit by 802.11n(20MHz) Ant 1 Channel 01 (2412MHz)-1 Report No: 1410061R-RF-US-P05V01 Page: 93 of 266 Channel 01 (2412MHz)-2 Channel 01 (2412MHz)-3 Report No: 1410061R-RF-US-P05V01 Page: 94 of 266 Channel 01 (2412MHz)-4 Channel 01 (2412MHz)-5 Report No: 1410061R-RF-US-P05V01 Page: 95 of 266 Channel 01 (2412MHz)-6 Channel 01 (2412MHz)-7 Report No: 1410061R-RF-US-P05V01 Page: 96 of 266 Channel 06 (2437MHz)-1 Channel 06 (2437MHz)-2 Report No: 1410061R-RF-US-P05V01 Page: 97 of 266 Channel 06 (2437MHz)-3 Channel 06 (2437MHz)-4 Report No: 1410061R-RF-US-P05V01 Page: 98 of 266 Channel 06 (2437MHz)-5 Channel 06 (2437MHz)-6 Report No: 1410061R-RF-US-P05V01 Page: 99 of 266 Channel 06 (2437MHz)-7 Channel 11 (2462MHz)-1 Report No: 1410061R-RF-US-P05V01 Page: 100 of 266 Channel 11 (2462MHz)-2 Channel 11 (2462MHz)-3 Report No: 1410061R-RF-US-P05V01 Page: 101 of 266 Channel 11 (2462MHz)-4 Channel 11 (2462MHz)-5 Report No: 1410061R-RF-US-P05V01 Page: 102 of 266 Channel 11 (2462MHz)-6 Channel 11 (2462MHz)-7 Report No: 1410061R-RF-US-P05V01 Page: 103 of 266 Product : GPON Terminal Test Item : RF Antenna Conducted Spurious Test Site : TR-8 Test Mode : Mode 4: Transmit by 802.11n(40MHz) Ant 0 Channel 03 (2422MHz)-1 Report No: 1410061R-RF-US-P05V01 Page: 104 of 266 Channel 03 (2422MHz)-2 Channel 03 (2422MHz)-3 Report No: 1410061R-RF-US-P05V01 Page: 105 of 266 Channel 03 (2422MHz)-4 Channel 03 (2422MHz)-5 Report No: 1410061R-RF-US-P05V01 Page: 106 of 266 Channel 03 (2422MHz)-6 Channel 03 (2422MHz)-7 Report No: 1410061R-RF-US-P05V01 Page: 107 of 266 Channel 06 (2437MHz)-1 Channel 06 (2437MHz)-2 Report No: 1410061R-RF-US-P05V01 Page: 108 of 266 Channel 06 (2437MHz)-3 Channel 06 (2437MHz)-4 Report No: 1410061R-RF-US-P05V01 Page: 109 of 266 Channel 06 (2437MHz)-5 Channel 06 (2437MHz)-6 Report No: 1410061R-RF-US-P05V01 Page: 110 of 266 Channel 06 (2437MHz)-7 Channel 09 (2452MHz)-1 Report No: 1410061R-RF-US-P05V01 Page: 111 of 266 Channel 09 (2452MHz)-2 Channel 09 (2452MHz)-3 Report No: 1410061R-RF-US-P05V01 Page: 112 of 266 Channel 09 (2452MHz)-4 Channel 09 (2452MHz)-5 Report No: 1410061R-RF-US-P05V01 Page: 113 of 266 Channel 09 (2452MHz)-6 Channel 09 (2452MHz)-7 Report No: 1410061R-RF-US-P05V01 Page: 114 of 266 Product : GPON Terminal Test Item : RF Antenna Conducted Spurious Test Site : TR-8 Test Mode : Mode 4: Transmit by 802.11n(40MHz) Ant 1 Channel 03 (2422MHz)-1 Report No: 1410061R-RF-US-P05V01 Page: 115 of 266 Channel 03 (2422MHz)-2 Channel 03 (2422MHz)-3 Report No: 1410061R-RF-US-P05V01 Page: 116 of 266 Channel 03 (2422MHz)-4 Channel 03 (2422MHz)-5 Report No: 1410061R-RF-US-P05V01 Page: 117 of 266 Channel 03 (2422MHz)-6 Channel 03 (2422MHz)-7 Report No: 1410061R-RF-US-P05V01 Page: 118 of 266 Channel 06 (2437MHz)-1 Channel 06 (2437MHz)-2 Report No: 1410061R-RF-US-P05V01 Page: 119 of 266 Channel 06 (2437MHz)-3 Channel 06 (2437MHz)-4 Report No: 1410061R-RF-US-P05V01 Page: 120 of 266 Channel 06 (2437MHz)-5 Channel 06 (2437MHz)-6 Report No: 1410061R-RF-US-P05V01 Page: 121 of 266 Channel 06 (2437MHz)-7 Channel 09 (2452MHz)-1 Report No: 1410061R-RF-US-P05V01 Page: 122 of 266 Channel 09 (2452MHz)-2 Channel 09 (2452MHz)-3 Report No: 1410061R-RF-US-P05V01 Page: 123 of 266 Channel 09 (2452MHz)-4 Channel 09 (2452MHz)-5 Report No: 1410061R-RF-US-P05V01 Page: 124 of 266 Channel 09 (2452MHz)-6 Channel 09 (2452MHz)-7 Report No: 1410061R-RF-US-P05V01 Page: 125 of 266 6. Radiated Emission Band Edge 6.1. Test Equipment Radiated Emission Band Edge / AC-5 Instrument Manufacturer Type No. Serial No. Cali. Due Date Spectrum Analyzer Agilent N9020A MY49100159 2014.03.30 Preamplifier Miteq NSP1800-25 1364185 2014.05.04 Preamplifier QuieTek AP-040G CHM-0906001 2014.05.04 Bilog Antenna Teseq GmbH CBL6112D 27612 2014.10.15 DRG Horn ETS-Lindgren 3117 00123988 2014.01.21 Coaxial Cable Huber+Suhner SUCOFLEX 106 AC5-C1 2014.03.01 Coaxial Cable Huber+Suhner SUCOFLEX 106 AC5-C2 2014.03.01 Coaxial Cable Huber+Suhner SUCOFLEX 102 AC5-C3 2014.03.01 EMI Receiver Agilent N9038A MY51210196 2014.06.09 Temperature/Humidity Meter Zhichen ZC1-2 AC5-TH 2015.01.08 Note 1: All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standa…

Text truncated - open the document above for the full version.

Report No: 1410061R-RF-US-P05V01 Page: 126 of 266 6.2. Test Setup 6.3. Limit Radiated emissions which fall in the restricted bands, as defined in Section 15.205(a) of FCC part 15, must also comply with the radiated emission limits specified in Section 15.209(a) (see Section 15.205(c)). 6.4. Test Procedure The EUT was setup according to ANSI C63.4, 2009 and tested according to KDB 558074 for compliance to FCC 47CFR 15.247 requirements. The EUT is placed on a turn table which is 0.8 meter above ground. The turn table is rotated 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna is scanned from 1 meter to 4 meters to find out the maximum emission level. This is repeated for both horizontal and vertical polarization of the antenna. In order to find the maximum emission, all of the interface cables were manipulated according to ANSI C63.4: 2009 on radiated measurement. 6.5. Uncertainty The measurement uncertainty above 1G is defined as ± 3.9 dB Report No: 1410061R-RF-US-P05V01 Page: 127 of 266 6.6. Test Result All of the test result shown indicates the worst case, and spectrum analyzer parameters setting as shown below: Peak detector: RBW = 1MHz, VBW = 3MHz, sweep time = 200ms; Average detector: RBW = 1MHz, VBW = 10Hz, sweep time = auto. Measure Level = Reading Level + Cable Loss + Antenna Factor - Preamplifier Gain In case the emission is fail due to the used RB/VB is too wide, marker-delta method of FCC Public Notice will be followed. Site: AC5 Time: 2014/01/11 - 19:56 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988(1-18GHz) Polarity: Vertical EUT: GPON Terminal Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2412MHz by 802.11b Ant 0 No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 2368.968 64.085 27.200 -9.915 74.000 36.885 PK 2 2390.000 59.320 22.333 -14.680 74.000 36.988 PK 3 * 2410.016 108.976 71.889 N/A N/A 37.087 PK Report No: 1410061R-RF-US-P05V01 Page: 128 of 266 Site: AC5 Time: 2014/01/11 - 19:58 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988(1-18GHz) Polarity: Vertical EUT: GPON Terminal Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2412MHz by 802.11b Ant 0 No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 2369.360 53.797 16.910 -0.203 54.000 36.888 AV 2 2390.000 46.279 9.292 -7.721 54.000 36.988 AV 3 * 2411.136 104.536 67.443 N/A N/A 37.092 AV Report No: 1410061R-RF-US-P05V01 Page: 129 of 266 Site: AC5 Time: 2014/01/11 - 19:59 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988(1-18GHz) Polarity: Horizontal EUT: GPON Terminal Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2412MHz by 802.11b Ant 0 No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 2330.384 54.509 17.390 -19.491 74.000 37.119 PK 2 2390.000 50.912 13.265 -23.088 74.000 37.648 PK 3 * 2410.464 89.463 51.632 N/A N/A 37.831 PK Report No: 1410061R-RF-US-P05V01 Page: 130 of 266 Site: AC5 Time: 2014/01/11 - 20:00 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988(1-18GHz) Polarity: Horizontal EUT: GPON Terminal Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2412MHz by 802.11b Ant 0 No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 2329.992 41.755 4.639 -12.245 54.000 37.116 AV 2 2390.000 39.167 1.520 -14.833 54.000 37.648 AV 3 * 2409.232 85.558 47.738 N/A N/A 37.820 AV Report No: 1410061R-RF-US-P05V01 Page: 131 of 266 Site: AC5 Time: 2014/01/12 - 09:23 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988(1-18GHz) Polarity: Vertical EUT: GPON Terminal Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2462MHz by 802.11b Ant 0 No Fla g Ma rk Frequency (MHz) Measur…

Text truncated - open the document above for the full version.
