QISK2540EDGE/GPRS USB Stick

Copyright © 2008 Huawei Technologies Co., Ltd. All Rights Reserved No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. i Table of Contents Getting to Know the EG162G................................................ 1 Requirements for the Computer ............................................ 2 Preparing the EG162G......................................................... 2 Installation Guide................................................................ 4 Safety Information .............................................................. 6 1 Thank you for purchasing Huawei EG162G USB Stick (hereinafter referred to as the EG162G). Note: „ This manual briefs the profiles of EG162G, including the preparation, installation/uninstall process, and safety precautions. „ You are highly recommended to read the manual before using the EG162G. „ The actual signal strength and the transmission rate are affected by the environment. The electromagnetic wave emitted from the PC or laptop may cause disturbance to wireless signals. When the signal is weak or the rate is not satisfying, you are recommended to use the provided USB cable. Getting to Know the EG162G This is a sketch for EG162G. The actual product may differ. 2 USB connector Connects to the USB interface of the computer. SIM card slot Fixes and bears the SIM card. Indicator It indicates the status of the EG162G. „ Green, blinking twice every 3s: The EG162G is powered on. „ Green, blinking once every 3s: The EG162G is registered to a GSM/GPRS/EDGE network. „ Green, always on: The GSM/GPRS/EDGE connection is set up. „ Blue, always on: SIM card is not installed. SIM card is invalid. PIN code is required. „ Blue, blinking once every 3s: The EG162G fails to search the network. „ Off: The EG162G is offline or removed from a laptop. Requirements for the Computer To use the EG162G, the computer must meet the following requirements. „ Windows 2000 SP4, Windows XP SP2, Windows Vista „ Mac OS X 10.4 and 10.5 with latest upgrades „ The hardware configuration shall meet the recommended hardware 3 requirements for running the installed OS „ Display resolution: 800 × 600 or above Preparing the EG162G 1. Press the right and left side of the cover, remove it, and take out the SIM card slot. 2. Insert the SIM card into the card slot, with the contact area on the card is facing down and the beveled corner on the card is facing inwards. Make sure that the SIM card is fully in place. 3. Insert the card slot with the SIM card into the EG162G. 4 Installation Guide The procedure for installing the management program is subject to the operating system installed on your laptop. The following section takes Windows XP as an example. Installing the EG162G 1. Connect the EG162G to the USB interface of the computer. 2. The OS auto detects and recognizes new hardware and starts the installation wizard. 5 Note: If the auto-run program does not respond, go to the driver path. Find and double-click the AutoRun.exe, and then the program will run. 3. Follow the prompts of the installation wizard. 4. After the program is installed, the shortcut icon for management program is displayed on the desktop. Launching the Management Program After the EG162G is installed, management program is launched automatically. Then every time the EG162G is connected to the computer, the management program is launched automatically. You can double-click the shortcut icon on the desktop to launch the management program. Uninstalling the Management Program 1. Click Start Menu. 2. Click Control Panel. 3. Find the management program, and click Add/Remove Program to uninstall it. Note: It is recommended to restart the computer after the uninstall to ensure that mangagement program is completely cleared. Removing the EG162G 1. Log out of the mangagement program. 2. Remove the EG162G. 6 Safety Information Read the safety information carefully to ensure the correct and safe use of your wireless device. Interference Do not use your wireless device if using the device is prohibited or when it cause danger or interference with electric devices. Medical Device „ Do not use your wireless device and follow the rules and regulations set forth by the hospitals and health care facilities. „ Some wireless devices may affect the performance of the hearing aids. For any such problems, consult your service provider. „ If you are using an electronic medical device, consult the doctor or device manufacturer to confirm whether the radio wave affects the operation of this device. Area with Inflammables and Explosives To prevent explosions and fires in areas that are stored with inflammable and explosive devices, do not use your wireless device and observe the rules. Areas stored with inflammables and explosives include but are not limited to the following: „ Gas station „ Fuel depot (such as the bunk below the deck of a ship) „ Container/Vehicle for storing or transporting fuels or chemical products „ Area where the air contains chemical substances and particles (such as granule, dust, or metal powder) 7 „ Area indicated with the "Explosives" sign „ Area indicated with the "Power off bi-direction wireless equipment" sign „ Area where you are generally suggested to stop the engine of a vehicle Traffic Security „ Observe local laws and regulations while using the wireless device. To prevent accidents, do not use your wire…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. AddressHuawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP518129 Page 1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com SubjectLetter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISK2540 to be kept confidential: 1. Schematic diagram . 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Ture-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2008-02-18 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISK2540 Product Name: EDGE/GPRS USB Stick Product Model: K2540/EG162G To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 90 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify CETECOM with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely,

EG162G SECRET Page1,Total 6 External Photos of HUAWEI EG162G EG162G SECRET Page2,Total 6 EG162G SECRET Page3,Total 6 EG162G SECRET Page4,Total 6 EG162G SECRET Page5,Total 6 EG162G SECRET Page6,Total 6

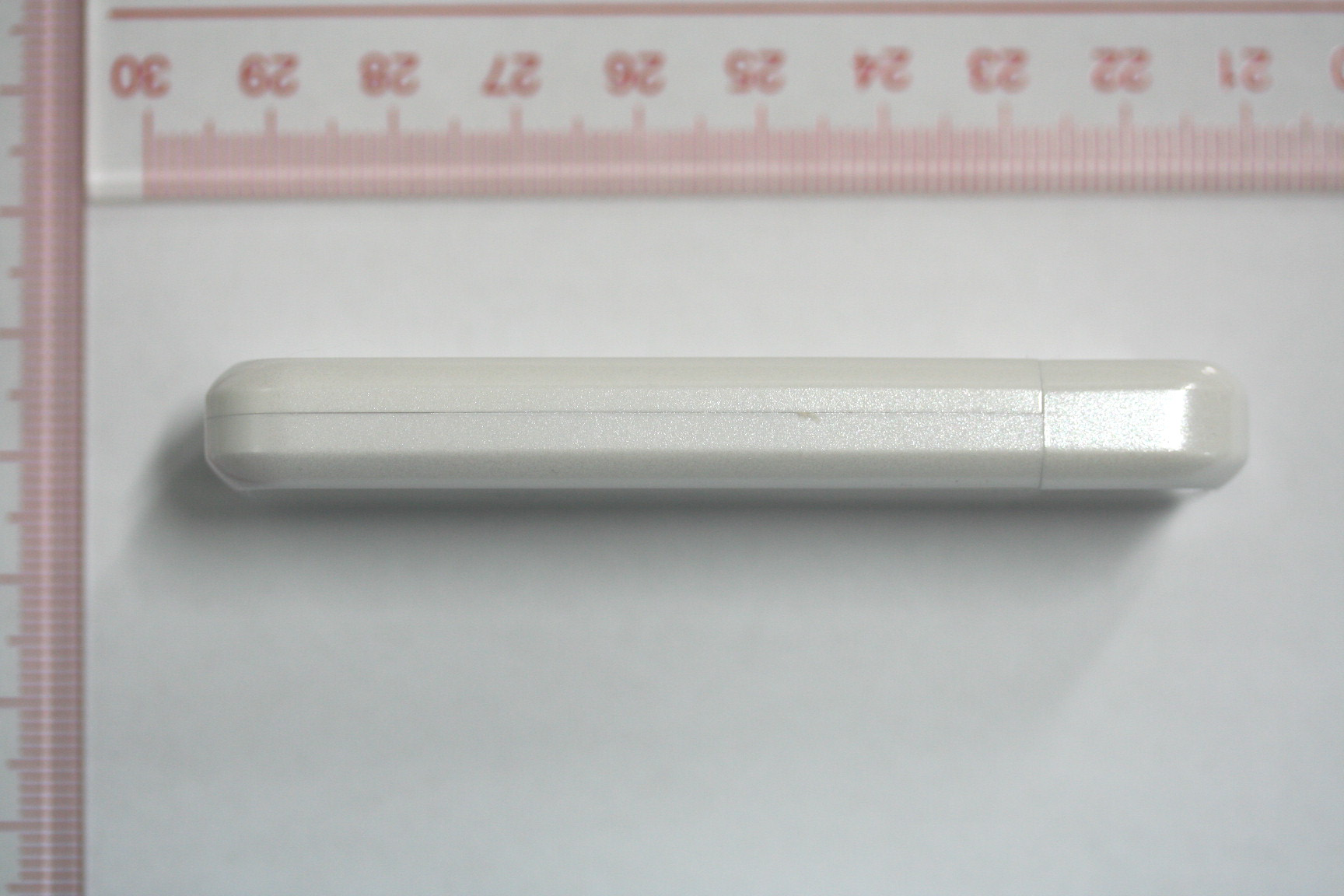

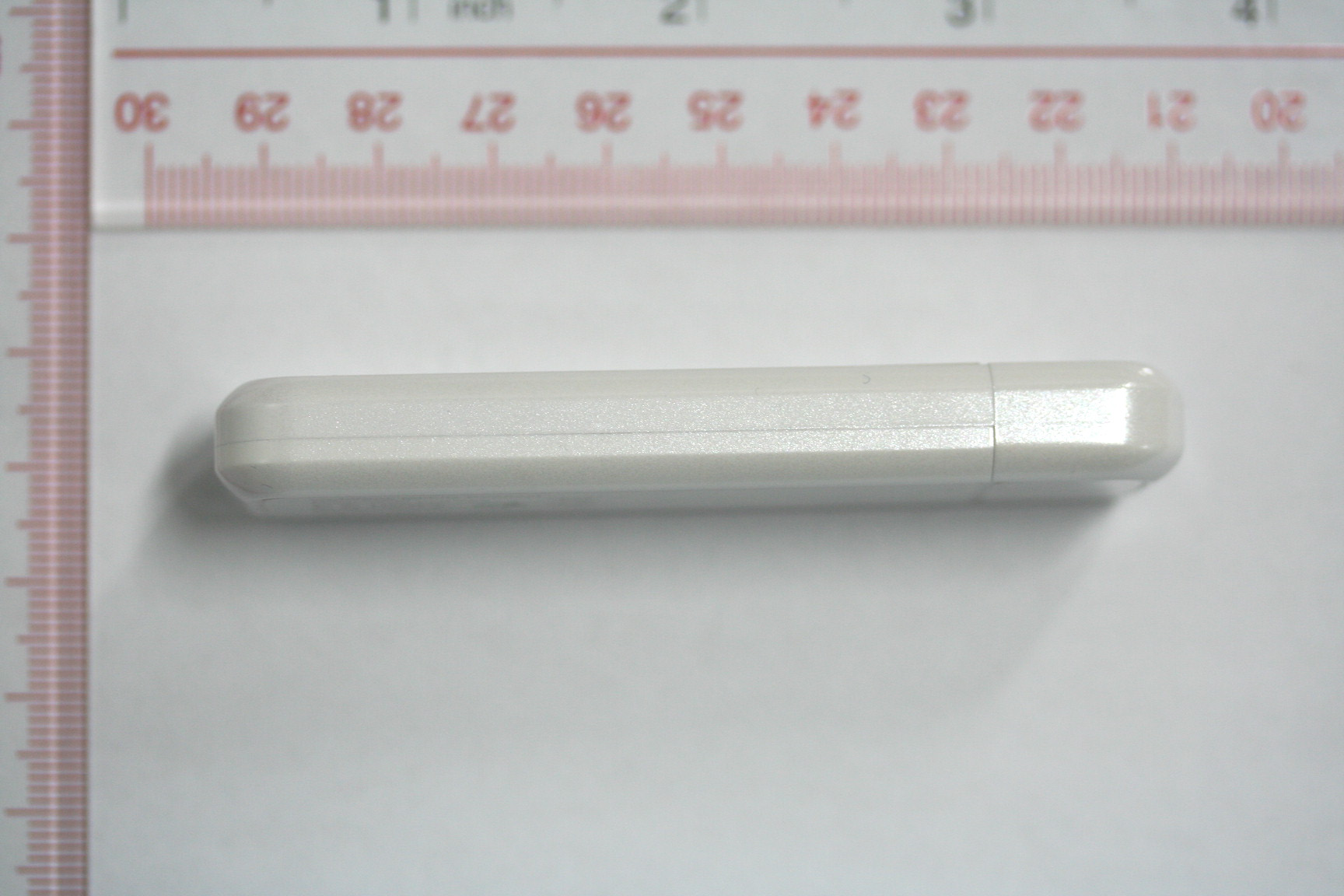

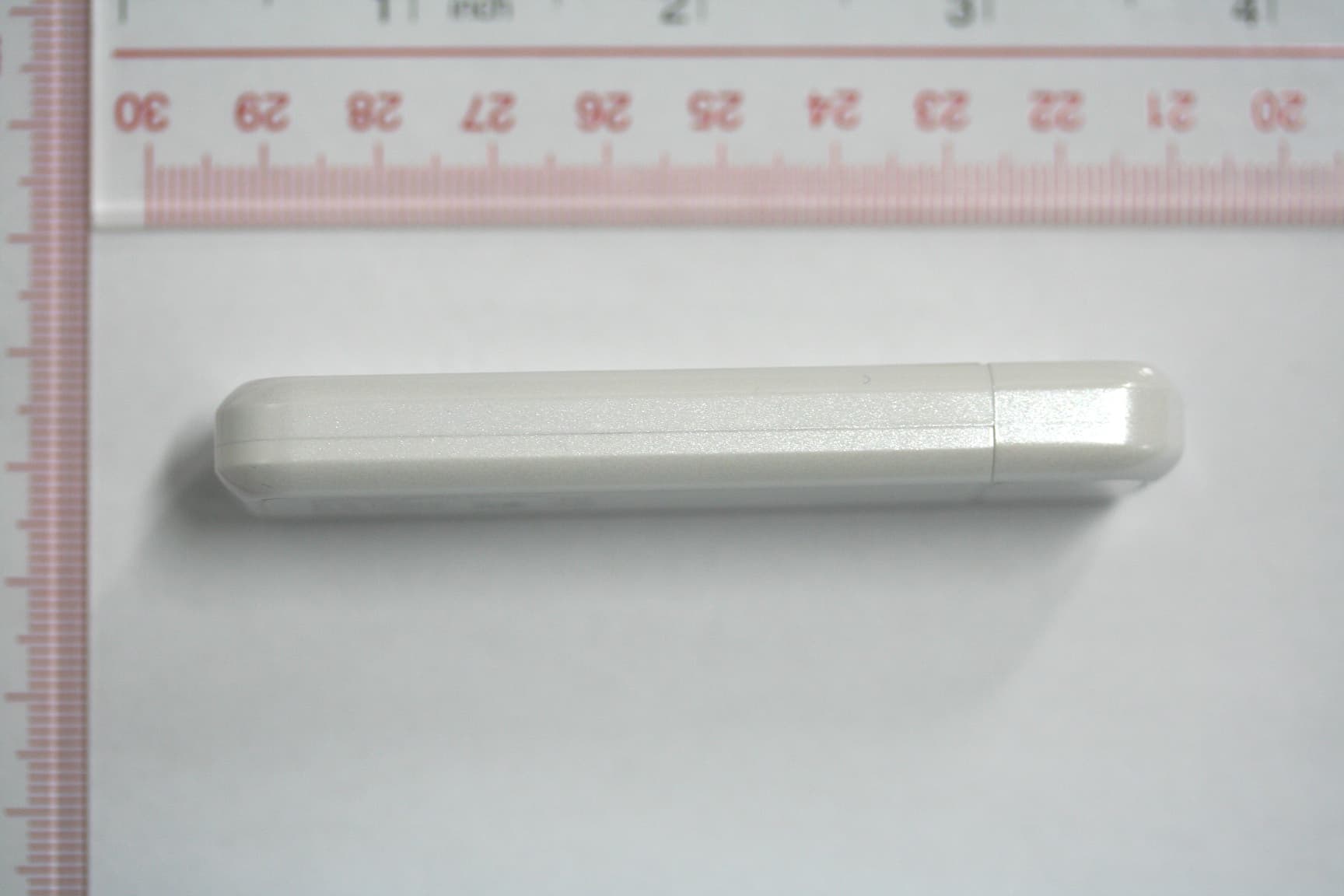

K2540 SECRET Page1,Total 6 External Photos of HUAWEI K2540 K2540 SECRET Page2,Total 6 K2540 SECRET Page3,Total 6 K2540 SECRET Page4,Total 6 K2540 SECRET Page5,Total 6 K2540 SECRET Page6,Total 6

In diesem PDF-Paket sind mehrere Dateien zusammengefasst. Zum Arbeiten mit Dokumenten eines PDF-Pakets wird die Verwendung von Adobe Reader oder Adobe Acrobat Version 8 oder höher empfohlen. folgende Vorteile stehen Ihnen bei einem Update auf die neueste Version zur Verfügung: • Optimierte und integrierte PDF-Anzeige • Einfaches Drucken • Schnelle Suchfunktionen Sie haben die aktuelle Version von Adobe Reader noch nicht? Klicken Sie hier zum Herunterladen der neuesten Version von Adobe Reader Verfügen Sie bereits über Adobe Reader 8, klicken Sie auf eine in diesem PDF-Paket enthaltene Datei, um diese anzuzeigen.

EG162G SECRET Page1,Total 7 Internal Photos of HUAWEI EG162G EG162G SECRET Page2,Total 7 EG162G SECRET Page3,Total 7 EG162G SECRET Page4,Total 7 EG162G SECRET Page5,Total 7 EG162G SECRET Page6,Total 7 EG162G SECRET Page7,Total 7

HUAWEI K2540/EG162G Electromagnetic Radiation Exposure Estimation 1 EMF Exposure Estimation for K2540/EG162G 1 Introduction HUAWEI EG162G EDGE/GPRS/GSM DUALMODE 4BAND USB STICK is subscriber equipment in the GSM system. The GSM/GPRS/EDGE frequency band includes GSM850, EGSM900, DCS1800 and PCS1900, EG162G implements such functions as RF signal receiving/transmitting, EDGE/GPRS/GSM protocol processing, data service etc. Externally it provides USB interface (to connect to the notebook etc.), USIM card interface and antenna interface. K2540 is the model name for Vodafone. Between these K2540 and EG162G, the PCB and antenna are all the same, the differences are: 1. Lens of EG162G is different from K2540. 2. Nameplate of EG162G is different from K2540. 3. There are 3 kinds of external color of EG162G, they are red, white and black. The external color of K2540 is only white. 2 Limits and Guidelines on Exposure to Electromagnetic Fields According to the FCC Part 2.1091, we know: mobile device (transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters radiating structure(s) and the body of the user or nearby persons). And the Cellular radiotelephone service and PCS services are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if they operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more, or if they operate at frequencies above 1.5 GHz and their ERP is 3 watts or more. The radiated power of 850M/1900M for K2540/EG162G is 2W/1W, so for K2540/EG162G only the 850M band is need to be subjected to routine the environmental evaluation for RF exposure. Uncontrolled limits are used for general public. General population/uncontrolled exposure apply in situations is which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. The exposure levels can be expressed in terms of power density, electric field strength, or magnetic field strength, as averaged over 30 minutes for the general public and 6 minutes for trained HUAWEI K2540/EG162G Electromagnetic Radiation Exposure Estimation 2 personnel. The exposure criterion is frequency dependent, and a chart covering the range from 3 kHz to 100 GHz can be found in NCRP No.86 (references IEEE C95.1-1999). Below are the limits. Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) 0.003-0.1 0.1-3.0 3.0-30 30-100 100-300 300-3000 3000-15,000 15,000-100,000 614 614 1842/f 61.4 61.4 -- -- -- 163 16.3/f 16.3/f 16.3/f 0.163 -- -- -- (100)* (100)* (900/f2)* 1.0 1.0 f/300 10 10 Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) 0.003-0.1 0.1-1.34 1.34-3.0 3.0-30 30-100 100-300 300-3000 3000-15,000 15,000-100,000 614 614 823.8/f 823.8/f 27.5 27.5 -- -- -- 163 16.3/f 16.3/f 16.3/f 158.3 / f1.668 0.0729 -- -- -- (100)* (100)* (180/f2)* ((180/f2)* 0.2 0.2 f/1500 f/1500 10 Power density S [mW/cm2] for controlled area at 850 MHz 83.2 300 850 300 )( === MHzf S mW/cm 2 Power density S [mW/cm2] for uncontrolled area at 850 MHz 566.0 1500 850 1500 )( === MHzf SmW/cm 2 S= 0.566 mW/ cm 2 = 5.66 W/m 2 for uncontrolled exposure Reference levels are provided for exposure assessment to determine whether the basic restrictions on exposure of humans to electromagnetic fields are exceeded. The basic HUAWEI K2540/EG162G Electromagnetic Radiation Exposure Estimation 3 restrictions on exposure to electromagnetic fields are based directly on established health effects and biological considerations. 3 Location of EUT The EUT uses one monopole antenna. The source of the radiation is mounted on terminal; generally the direction of the antenna position is uprightness tabletop. The highest level of emission would be expected in close vicinity of the antenna and in line of sight to the antenna. 4 Prediction of the Exposure to Electromagnetic Fields Calculations can be made on a site by site basis to ensure the power density is below the limits given above, or guidelines can be done beforehand to ensure the minimum distances from the antenna is maintained through the site planning. The calculations are based on FCC OET 65 Appendix B. 4.1 Calculation of the Safe Distance Below method describes a theoretical approach to calculate possible exposure to electromagnetic radiation around a base station transceiver antenna. Precise statements are basically only possible either with measurements or complex calculations considering the complexity of the environment (e.g. soil conditions, near buildings and other obstacles) which causes reflections, scattering of electromagnetic fields. The maximum output power (given in EIRP) of a base station is usually limited by license conditions of the network operator. A rough estimation of the expected exposure in power flux density on a given point can be made with the following equation. The calculations are based on FCC OET 65 Appendix B. π∗∗ ∗ = )(4 )( 2 mr GWP S numeric Whereas: P = Maximum output power in W of the site G numeric = Numeric gain of the antenna relative to isotropic antenna R = distance between the antenna and the point of exposure in meters HUAWEI K2540/EG162G Electromagnetic Radiation Exposure Estimation 4 4.2 Technical Description K2540/EG162G Technical Specification: Output power: 2W (33 dBm) for GSM850MHz Transmitter frequency band GSM850 Number of antenna ports: 1 Frequency range: 850M Uplink:824 M~849M Downlink:869 M~894M Gain: <1dBi GSM850 Mechanical specification (Height) 19.2mm for GSM850 4.3 Estimation of compliance …

Text truncated - open the document above for the full version.

NO.:RZA2008-0150FCC OET 65 TEST REPORT Test name Electromagnetic Field (Specific Absorption Rate) Product EDGE/GPRS USB Stick Model K2540/EG162G FCC ID QISK2540 Client HUAWEI Technologies Co., Ltd. TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2008-0150FCC Page 2of 113 GENERAL TERMS 1. The test report is invalid if not marked with “exclusive stamp for the data report” or the stamp of the TA. 2. Any copy of the test report is invalid if not re-marked with the “exclusive stamp for the test report” or the stamp of TA. 3. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 4. The test report is invalid if there is any evidence of erasure and/or falsification. 5. If there is any dissidence for the test report, please file objection to the test center with in 15 days from the date of receiving the test report. 6. Normally, entrust test is only responsible for the samples that have undergone the test. 7. This test report cannot be used partially or in full for publicity and/or promotional purposes with out previous written permissions of TA. Address: Room4,No.399,Cailun Rd,Zhangjiang Hi-Tech Park, Pudong Shanghai,China Post code: 201203 Telephone: +86-021-50791141/2/3 Fax：+86-021-50791147 Website: http://www.ta-shanghai.com E-mail: [email protected] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA20 08-0150 FCC Page 3of 113 GENERAL SUMMARY Product EDGE/GPRS USB Stick Model K2540/EG16 2G Client HUAWEI Technologies Co., Ltd. Type o f tes t Entrusted Manufac turer HUAWEI Technologies Co., Ltd. Arr ival Date o f sampl e Feb .5 th , 2008 Place o f sampling (Blank) Carrier o f the sampl es Ting Z hang Quantit y of the sampl es One Date of product (Blank) Base o f the sampl es (Blank) Items o f test SAR Series number D82AA1081 2800 056(K25 40)/ D82AA10812 800 124(EG162G) Standard(s) EN 50 360–2 001: Product standard for the measurement of Specific Absorption Rate related to human exposure to electromagnetic fields from mobile phones. EN 50 361–2 001: Basic standard for the measurement of Specific Absorption Rate related to human exposure to electromagnetic fields from mobile phones. ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic F ields, 3 kHz to 300 G Hz IEEE 1528–2003 : Recommend ed Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experi men tal Tech niques . OET Bulletin 65 (Edi tion 97 -01 ) and Supplement C (Edi tion 01 -01 ): Additional Information for Eval uating Compli ance of Mobile and Portable Devices with F CC Li mits. IEC 62209-2 (Draft): Human exposure to radio frequency fields from hand-held and bo dy- mounted wire less communication devices – Human mod els, in strumentation, and procedu res –Part 2: Procedure to de termine the Specific Absorption Rate (SAR)in the head and bo dy for 30 MHz to 6GHz Handh eld and Body-Mounted Devices us ed in close pr oximity to the bo dy. Vodafone SAR_Data_cards_V1.1: Global Test Specification for Terminals for Performance Measurements –Per formance TST- Specific Absor ption Rate (SAR) for Data Cards and External Antennas. Conclu sion Localized Specific Absorption Rate (SAR) of this portab le wireless eq uip ment has been measured in all cases requested by the relevant stan dards cited in Cl ause 6.2 of thi s test report. Maximum localized SAR is be low expo sure li mits specified in the relevant stan dards cited in Clau se 6.1 of this test report. General Judgment: Pass (Stamp) Date of iss ue: Feb. 17 th ,2008 Comment TX F req. Band: GSM850 GSM1900 Max. Power: 2Watt 1Watt The tes t result on ly re spo nds to the measured sample. Approved by chenguang zheng Revised by weizhong yang Performed by minbao ling TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2008-0150FCC Page 4of 113 TABLE OF CONTENT 1. COMPETENCE AND WARRANTIES........................................................................................... 6 2. GENERAL CONDITIONS.............................................................................................................6 3. DESCRIPTION OF EUT ..............................................................................................................6 3.1. ADDRESSING INFORMATION RELATED TO EUT ..............................................................................................6 3.2. CONSTITUENTS OF EUT.................................................................................................................................7 3.3. GENERAL DESCRIPTION.................................................................................................................................7 4. OPERATIONAL CONDITIONS DURING TEST ........................................................................... 8 4.1. SCHEMATIC TEST CONFIGURATION................................................................................................................8 4.2. POSITION OF MODULE IN PORTABLE DEVICES.................................................................................................9 4.3. PICTURE OF HOST PRODUCT.........................................................................................................................10 5. SAR MEASUREMENTS SYSTEM CONFIGURATION .............................................................. 12 5.1. SAR MEASUREMENT SET-UP.......................................................................................................................12 5.2. DASY4 E-FIELD PROBE SYSTEM..................................................................................................................13 5.3. E-FIELD PROBE CALIBRATION......................................................................................................................14 5.4. OTHER TEST EQUIPMENT....…

Text truncated - open the document above for the full version.

In diesem PDF-Paket sind mehrere Dateien zusammengefasst. Zum Arbeiten mit Dokumenten eines PDF-Pakets wird die Verwendung von Adobe Reader oder Adobe Acrobat Version 8 oder höher empfohlen. folgende Vorteile stehen Ihnen bei einem Update auf die neueste Version zur Verfügung: • Optimierte und integrierte PDF-Anzeige • Einfaches Drucken • Schnelle Suchfunktionen Sie haben die aktuelle Version von Adobe Reader noch nicht? Klicken Sie hier zum Herunterladen der neuesten Version von Adobe Reader Verfügen Sie bereits über Adobe Reader 8, klicken Sie auf eine in diesem PDF-Paket enthaltene Datei, um diese anzuzeigen.

FCC Test Report Product Name: EDGE/GPRS USB Stick Model Number: K2540/EG162G Report No: SYBH (R) 045012008EB-2 FCC ID: QISK2540 Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of K2540/EG162G FCC ID: QISK2540 Security Level: Public Report No: SYBH (R) 045012008EB-2 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total31 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has obtained the accreditation of THE AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION (A2LA), and Accreditation Council Certificate Number: 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-1. 5. The laboratory also has been listed by the VCCI to perform EMC measurements. The accreditation number is R2364, C2583, and T256. 6. The test report is invalid if not marked with "exclusive stamp for the test report". 7. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 8. The test report is invalid if there is any evidence of erasure and/or falsification. 9. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 10. Normally, the test report is only responsible for the samples that have undergone the test. 11. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC Test Report of K2540/EG162G FCC ID: QISK2540 Security Level: Public Report No: SYBH (R) 045012008EB-2 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total31 Huawei Technologies Co Ltd Huawei Industrial Base, Bantian Longgang Shenzhen 518128, P.R China Tel: +86 755 89651014 Fax: +86 755 89652518 REPORT ON FCC Test of EDGE/GPRS USB Stick M/N: K2540/EG162G Report No: SYBH(R)045012008EB-2 REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 22: Subpart H; CONCLUSION There are 7 items need to be tested, 7 items have been tested. The sample of the model completely meets the requirements Final Judgement: Pass General Manager 2008.2.19 Date Name signature Technical Responsibility For Area of Testing 2008.2.19 Date Name signature Test Lab Engineer 2008.2.19 Date Name signature FCC Test Report of K2540/EG162G FCC ID: QISK2540 Security Level: Public Report No: SYBH (R) 045012008EB-2 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total31 Contents 1 Summary.................................................................................................................................................... 5 2 Product Description.................................................................................................................................. 6 2.1 PRODUCTION INFORMATION................................................................................................................... 6 2.2 MODIFICATION INFORMATION.................................................................................................................. 6 3 Test Site Description................................................................................................................................. 7 3.1 TESTING PERIOD................................................................................................................................... 7 3.2 GENERAL SET UP DESCRIPTION............................................................................................................. 7 4 Product Description.................................................................................................................................. 8 4.1 TECHNICAL CHARACTERISTICS............................................................................................................... 8 4.2 EUT IDENTIFICATION LIST.................................................................................................................... 10 5 Main Test Instruments............................................................................................................................. 11 6 Transmitter Measurements..................................................................................................................... 12 6.1 EFFECTIVE RADIATED POWER OF TRANSMITTER (ERP)......................................................................... 12 6.2 CONDUCTED POWER OF TRANSMITTER................................................................................................. 16 6.3 MODULATION CHARACTERISTICS.......................................................................................................... 18 6.4 OCCUPIED BANDWIDTH........................................................................................................................ 20 6.5 BAND EDGES COMPLIANCE.................................................................................................................. 22 6.6 SPURIOUS EMISSION AT ANTENNA TERMINAL........................................................................................ 24 6.7 FREQUENCY STABILITY........................................................................................................................ 26 7 System Measurement Uncertainty......................................................................................................... 30 8 Appendic…

Text truncated - open the document above for the full version.

In diesem PDF-Paket sind mehrere Dateien zusammengefasst. Zum Arbeiten mit Dokumenten eines PDF-Pakets wird die Verwendung von Adobe Reader oder Adobe Acrobat Version 8 oder höher empfohlen. folgende Vorteile stehen Ihnen bei einem Update auf die neueste Version zur Verfügung: • Optimierte und integrierte PDF-Anzeige • Einfaches Drucken • Schnelle Suchfunktionen Sie haben die aktuelle Version von Adobe Reader noch nicht? Klicken Sie hier zum Herunterladen der neuesten Version von Adobe Reader Verfügen Sie bereits über Adobe Reader 8, klicken Sie auf eine in diesem PDF-Paket enthaltene Datei, um diese anzuzeigen.

FCC Test Report Product Name: EDGE/GPRS USB Stick Model Number: K2540/EG162G Report No: SYBH (R) 045012008EB-3 FCC ID: QISK2540 Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of K2540/EG162G FCC ID: QISK2540 Security Level: Public Report No: SYBH (R) 045012008EB-3 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total32 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has obtained the accreditation of THE AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION (A2LA…

Text truncated - open the document above for the full version.
