QISK3771HSPA USB Stick

Quick Start Guide Vodafone Mobile Broadband USB Stick K3770 & K3771 Designed by Vodafone Welcome to the world of mobile communications 1 Welcome 2 Set up your USB Stick 3 Start the application 4 Connect – Standard window 5 Settings – Advanced window 6 SMS text messaging 8 SMS contacts 9 USB Stick LED lights 9 Signal strength 10 Hints and tips 12 Glossary 1 Your new Vodafone Mobile Broadband USB Stick lets you connect your computer to the internet over the Vodafone high- speed mobile phone network. Browse the web You can now access the web and any other internet ser vice wherever there’s a mobile phone network. Pick up emails Keep up to date with your emails, wherever you are. You can also access your personal email accounts – even web-based accounts like Hotmail. Send and receive SMS text messages You can send and receive SMS text messages straight from your computer. The SMS application provides an easy way to view messages, write new ones, and manage contact details. System Requirements To use this USB Stick and the Vodafone Mobile Broadband application, you need: A computer running Microsoft – ® Windows ® 7, Windows Vista™ (SP2 recommended), or Windows ® XP SP3, or an Apple Mac running Mac OS ® X 10.4.11 (Intel ® ) or 10.5.8, or above. 10.6.4 or above recommended - 10.4.11 not supported on PowerPC. At least 100 MB free disk space and 256 MB RAM memory – A USB socket – Administrator rights on your computer. – Welcome 2 Slide the back cover off the USB Stick, and insert your SIM as • shown. Plug the USB Stick fi rmly into your computer’s USB port. • Securing the cap of the USB Stick (if required).• Set up your USB Stick 3 On Microsoft Windows computers The fi rst time you plug your USB Stick into your computer, it should be set up automatically. If for some reason setup does not start, right-click on the VMB Lite 10.x.x.x drive in ‘My Computer’, (Start menu>Computer on Vista), select ‘Explore’ and double-click the fi le called setup_vmb_lite.exe on the USB Stick. Follow the on-screen instructions. Setting up your USB Stick may take a few minutes, but once setup is complete, the Vodafone Mobile Broadband Lite application should start automatically. If for some reason it does not start, select Vodafone Mobile Broadband from the Windows Start menu. On Mac OS X computers The fi rst time you plug in your USB Stick, it will show up on your desktop as a Vodafone Mobile Broadband disk. Drag the Vodafone Mobile Broadband icon from the disk window into the Applications folder on your hard disk. Double-click the Vodafone Mobile Broadband icon in your Applications folder to start the application. The application will start, identify your device, create the correct mobile connection settings and select a mobile network. Once the application is ready to connect, the Connect button will be enabled. For further details, select Vodafone Mobile Broadband Help in the Help menu. Start the application The first time you run the application, your USB Stick will usually be set as the current device. If it is not, open the ‘Devices’ view, and select your USB Stick there. 4 Connect/Disconnect Connect to the internet via the mobile phone network or Wi-Fi, to browse the web or use email Status Check the status of the current connection Start SMS application Send, receive and manage SMS messages and contacts Advanced Switch to Advanced to show more detail Help View Help topics 5 1 4 2 3 4 5 3 1 2 As a rule, anywhere you can make a call on your mobile phone, you should be able to open a mobile connection. Connect – Standard window 5 9 8 10 6 7 The connection type icons are animated whenever a connection is open. Application menu View Options, Support and Updates, or exit the application Views Check the status of all connections, prioritise connections, check your usage, and manage devices or shortcuts Ribbon Customise settings for the items in each view Connections View the status of all connection types Standard Switch to Standard to show just the current connection Settings – Advanced window 6 7 8 10 9 6 Click SMS on the Shortcuts bar at the bottom of the Vodafone Mobile Broadband Lite application to open the SMS application. To send an SMS Click New at the left-hand end of the SMS toolbar to create a new SMS text message. Address Enter the recipients here, or choose them from Contacts Message Write your message here Send Click on the Send button to send your message. After your SMS has been sent, it will be stored in the Sent list. 2 1 3 The number displayed to the person who receives your message will be from your data SIM, not your mobile phone. Use a short ‘signature’ to make sure people know you sent them a message: Settings/Messages/ Signature. 2 3 SMS Text Messaging 1 7 Receiving SMS When you receive a new message, an SMS Notifi cation is shown briefl y so you can respond to it directly. The received message can also be read from the Inbox in the main SMS window. The SMS application will receive text messages whenever you have mobile network coverage. 8 Click Contacts on the SMS navigation bar to open the Contacts list, in which you can save SMS numbers that you use frequently as contacts with names. New SMS Contact Clicking the New button on the SMS toolbar opens a new contact window. Enter the name and number of your contact using the international format for the number, eg. +447774477000. On Mac OS X, contacts are saved in the OS X Address Book application. SMS Contacts 9 Signal strength The LED light on your USB Stick shows which kind of mobile network has been found, and whether the USB Stick is connected to that network. Green blinking A GPRS network has been found – you could connect Green solid Connected via GPRS Blue blinking A 3G network has been found – you could connect Blue solid Connected via 3G Light blue solid Connected via 3G Broadband. The strength of the mobile or Wi-Fi network signal is shown by the symbol to the left of the Connect button, and by the icon in the Windows Notifi cation a…

Text truncated - open the document above for the full version.

Copyright © Huawei Technologies Co., Ltd. 2009. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Warnings and Precautions This section contains important information pertaining to the operating instructions of your device. It also contains information about how to use your device safely. Read this information carefully before using the device. Electronic Device Do not use your device if using the device is prohibited. Do not use the device when using the device causes danger or interference with electronic devices. Medical Device z Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device when using the device is prohibited. z Some wireless devices may affect the performance of hearing aids or pacemakers. For any such problems, consult your service provider. z If you are using an electronic medical device, consult the doctor or the device manufacturer to confirm whether radio waves affect the operation of this device. Potentially Explosive Atmosphere Do not use your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not use your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity. Traffic Security z Observe local laws and regulations while using the device. To prevent accidents, do not use your wireless device while driving. z RF signals may affect electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. z In a motor vehicle, do not place the device over the air bag or in the air bag deployment area. Otherwise, the device may hurt you owing to the strong force when the air bag inflates. z Do not use your device while flying in an aircraft and before boarding an aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft and disrupt the wireless telephone network. It may also be considered illegal. Operating Environment z Do not use the device in dusty, damp, and dirty places or places with magnetic fields. Otherwise, it may result in malfunction of the circuit. z On a stormy day with thunder, do not use your device when it is being charged, to prevent any danger caused by lightning. z While using the device, observe the local laws and regulations, and respect others' privacy and legal rights. Safety of Children Comply with all precautions with regard to children's safety. Letting the child play with your device or its accessories, which may include parts that can be detached from the device, may be dangerous, as it may present a choking hazard. Ensure that small children are kept away from the device and accessories. Accessories Use the accessories delivered only by the manufacturer. Using accessories of other manufacturers or vendors with this device model may invalidate any approval or warranty applicable to the device, result in the non-operation of the d…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Declaration of Letter To whom it may concern: FCC ID: QISK3771, Model: K3771 QISE173S-3, Model: E173s-3. This is to advise and officially, that we, HUAWEI TECHNOLOGIES CO., LTD., declare that the PCB and support band of E173s-3 and K3771 is same, the reference conduct power and the antenna are same too. The different of them are the shell shape and K3771 don’t support SD card. E173s-3 K3771 GSM four band The same The same WCDMA 2100M The same The same WCDMA 850M The same The same antenna The same The same Appearance Different Different PCB The same The same MicroSD Receptacle Different Different Sincerely, Zhang Ting For and Behalf of: Huawei Technologies Co., Ltd. Huawei Industrial Base, Bantian, Longgang, Shenzhen, P.R China 0086-755-36834647

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISK3771 to be kept confidential: 1. Schematic diagram . 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2011-02-01 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISK3771 Product Name: HSPA USB Stick Product Model: K3770 To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 90 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify CETECOM with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely,

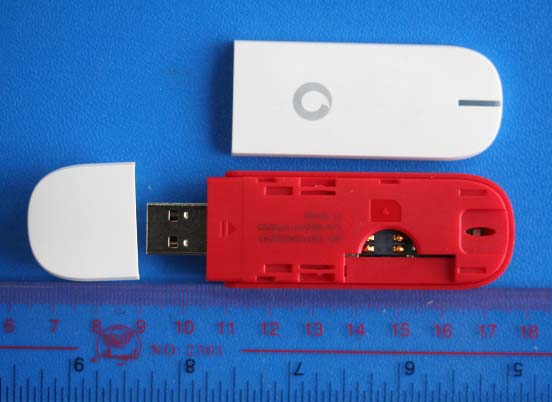

K3771 SECRET Page1, Total5 External Photos of K3771 K3771 SECRET Page2, Total5 K3771 SECRET Page3, Total5 K3771 SECRET Page4, Total5 K3771 SECRET Page5, Total5

K3771 SECRET Page1, Total1 ID Label Location_ K3771

K3771 SECRET Page1, Total3 Internal Photos of K3771 K3771 SECRET Page2, Total3 K3771 SECRET Page3, Total3

Report No.: RZA1101-0121SAR TESTING No. L2264 OET 65 TEST REPORT Product Name HSPA USB Stick Model K3771 FCC ID QISK3771 Client Huawei Technologies Co., Ltd. TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name HSPA USB Stick Model K3771 FCC ID QISK3771 Report No. RZA1101-0121SAR Client Huawei Technologies Co., Ltd. Manufacturer Huawei Technologies Co., Ltd. Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radio frequency Emissions. KDB 447498 D02 SAR Procedures for Dongle Xmtr v02: SAR Measurement Procedures for USB Dongle Transmitters. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: January 28 th , 2011 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Du Ruwei TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 3 of 121 TABLE OF CONTENT 1. General Information ........................................................................................................................ 5 1.1. Notes of the Test Report.......................................................................................................... 5 1.2. Testing Laboratory ................................................................................................................... 5 1.3. Applicant Information ............................................................................................................... 6 1.4. Manufacturer Information ......................................................................................................... 6 1.5. Information of EUT................................................................................................................... 7 1.6. The Maximum SAR 1g Values and Conducted Power of Each Tested Band............................. 8 1.7. Test Date ................................................................................................................................. 8 2. Operational Conditions during Test ................................................................................................. 9 2.1. General Description of Test Procedures .................................................................................. 9 2.2. GSM Test Configuration ........................................................................................................... 9 2.3. WCDMA Test Configuration ................................................................................................... 11 2.4. HSDPA Test Configuration ..................................................................................................... 11 2.5. HSUPA Test Configuration ..................................................................................................... 13 2.6. Position of Module in Portable Devices.................................................................................. 15 2.7. Picture of Host Products ........................................................................................................16 3. SAR Measurements System Configuration ................................................................................... 18 3.1. SAR Measurement Set-up .....................................................................................................18 3.2. DASY5 E-field Probe System ................................................................................................ 19 3.2.1. EX3DV4 Probe Specification .......................................................................................... 19 3.2.2. E-field Probe Calibration ................................................................................................. 20 3.3. Other Test Equipment ............................................................................................................20 3.3.1. Device Holder for Transmitters ....................................................................................... 20 3.3.2. Phantom .........................................................................................................................21 3.4. Scanning Procedure ..............................................................................................................21 3.5. Data Storage and Evaluation ................................................................................................. 23 3.5.1. Data Storage...................................................................................................................23 3.5.2. Data Evaluation by SEMCAD ......................................................................................... 23 3.6. System Check........................................................................................................................ 26 3.7. Equivalent Tissues ................................................................................................................. 27 4. Laboratory Environment................................................................................................................ 27 5. Characteristics of the Test ............................................................................................................. 28 5.1. Applicable Limit Regulations .................................................................................................. 28 5.2. Appli…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 101 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 102 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 103 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 104 of 121 ANNEX F: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 105 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 106 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 107 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 108 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 109 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 110 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 111 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 112 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 113 of 121 ANNEX G: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 114 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 115 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 116 of 121 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1101-0121SAR Page 117 of 121

FCC RF Test Report Product Name: HSPA USB Stick Model Number: E173s-3 Report No: SYBH(Z-RF)007122010-1001 FCC ID: QISE173S-3 Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of E173S-3 FCC ID: QISE173S-3 Report No: SYBH(Z-RF)007122010-1001 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total36 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 3. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-1. 4. The test report is invalid if not marked with "exclusive stamp for the test report". 5. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 8. Normally, the test report is only responsible for the samples that have undergone the test. 9. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC Test Report of E173S-3 FCC ID: QISE173S-3 Notice 2 Modification Information: Modification Information 1 2 3 4 5 6 Modification Information 7 Report No: SYBH(Z-RF)007122010-1001 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total36 FCC Test Report of E173S-3 FCC ID: QISE173S-3 REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 22 : Subpart H; START OF TEST Dec.21, 2010 END OF TEST Dec.24, 2010 Final Judgement: Pass Approved By Dec.26, 2010 Chenxiaohong Date Name Signature Reviewed By Dec.26, 2010 xuguangyi Operator Dec.26, 2010 Zhangting Date Name Signature Report No: SYBH(Z-RF)007122010-1001 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total36 FCC Test Report of E173S-3 FCC ID: QISE173S-3 Report No: SYBH(Z-RF)007122010-1001 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total36 Contents 1 Summary.................................................................................................................................................... 6 2 Product Description.................................................................................................................................. 7 2.1 PRODUCTION INFORMATION................................................................................................................... 7 2.2 MODIFICATION INFORMATION.................................................................................................................. 7 3 Test Site Description................................................................................................................................. 8 3.1 TESTING PERIOD................................................................................................................................... 8 3.2 GENERAL SET UP DESCRIPTION............................................................................................................. 8 4 Product Description.................................................................................................................................. 9 4.1 TECHNICAL CHARACTERISTICS............................................................................................................... 9 4.2 EUT IDENTIFICATION LIST.................................................................................................................... 11 5 Main Test Instruments............................................................................................................................. 12 6 Transmitter Measurements..................................................................................................................... 13 6.1 EFFECTIVE RADIATED POWER OF TRANSMITTER (ERP)......................................................................... 13 6.2 CONDUCTED POWER OF TRANSMITTER................................................................................................. 17 6.3 MODULATION CHARACTERISTICS.......................................................................................................... 21 6.4 OCCUPIED BANDWIDTH........................................................................................................................ 23 6.5 BAND EDGES COMPLIANCE.................................................................................................................. 26 6.6 SPURIOUS EMISSION AT ANTENNA TERMINAL........................................................................................ 28 6.7 FREQUENCY STABILITY........................................................................................................................ 31 7 System Measurement Uncertainty......................................................................................................... 35 8 Appendices.............................................................................................................................................. 36 FCC Test Report of E173S-3 FCC ID: QISE173S-3 Report No: SYBH(Z-RF)007122010-1001 Confidential Information of Huawei. No Distribution without Written Permission Page6, Total36 1 Summary The table below summarizes the measurements and results for the E173s-3 USB Stick. Detailed results and…

Text truncated - open the document above for the full version.

FCC Test Report of E173s-3 FCC ID: QISE173S-3 Security Level: Public Report No: SYBH(Z-RF)007122010- 1001 Confidential Information of Huawei. No Distribution without Permission Page1, Total4 Appendix A Modulation Characteristics According to FCC Part 2.1047 & Part22 Subpart H FCC Test Report of E173s-3 FCC ID: QISE173S-3 Security Level: Public Report No: SYBH(Z-RF)007122010- 1001 Confidential Information of Huawei. No …

Text truncated - open the document above for the full version.
