QISK5160LTE mobile wifi

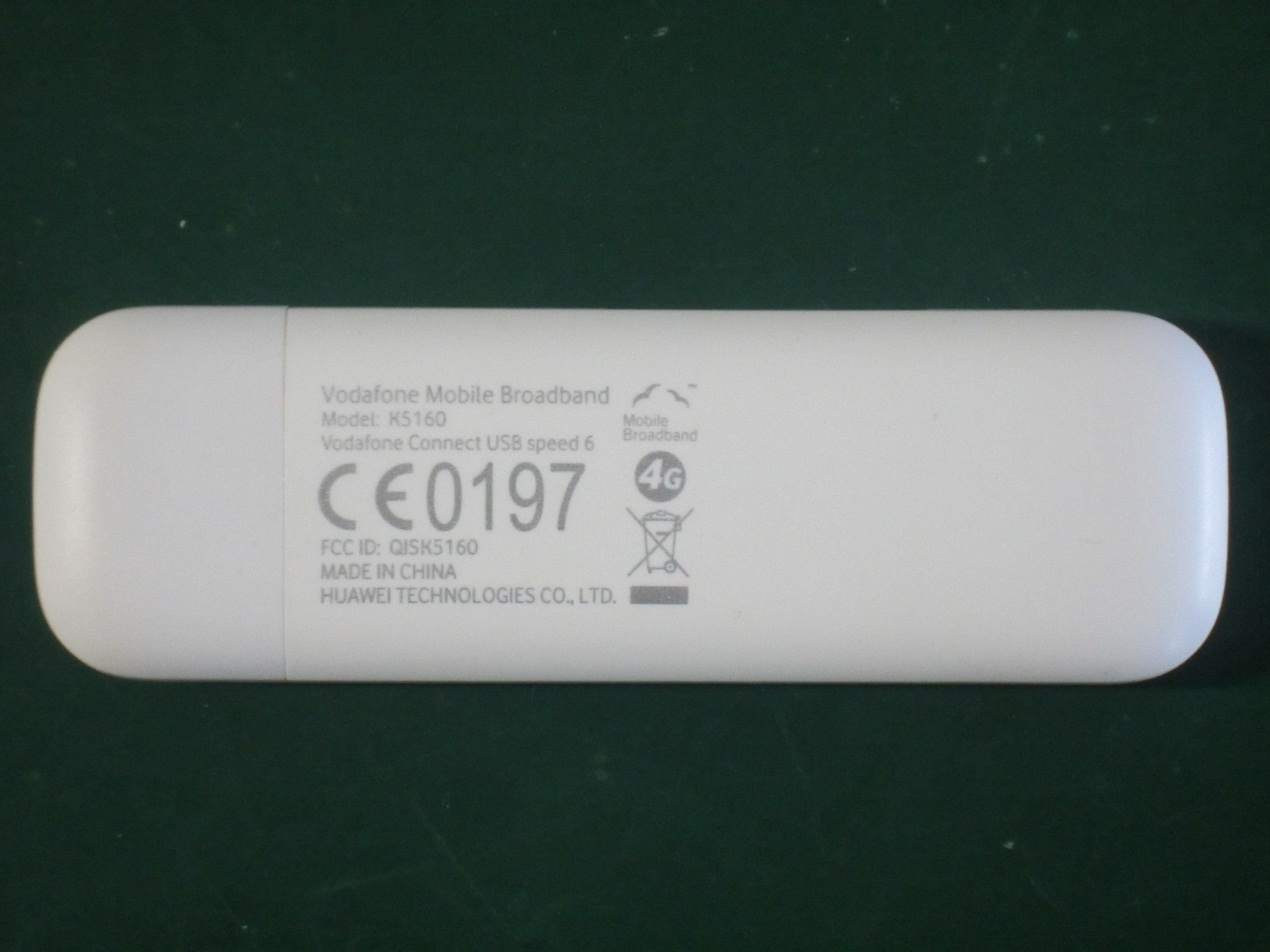

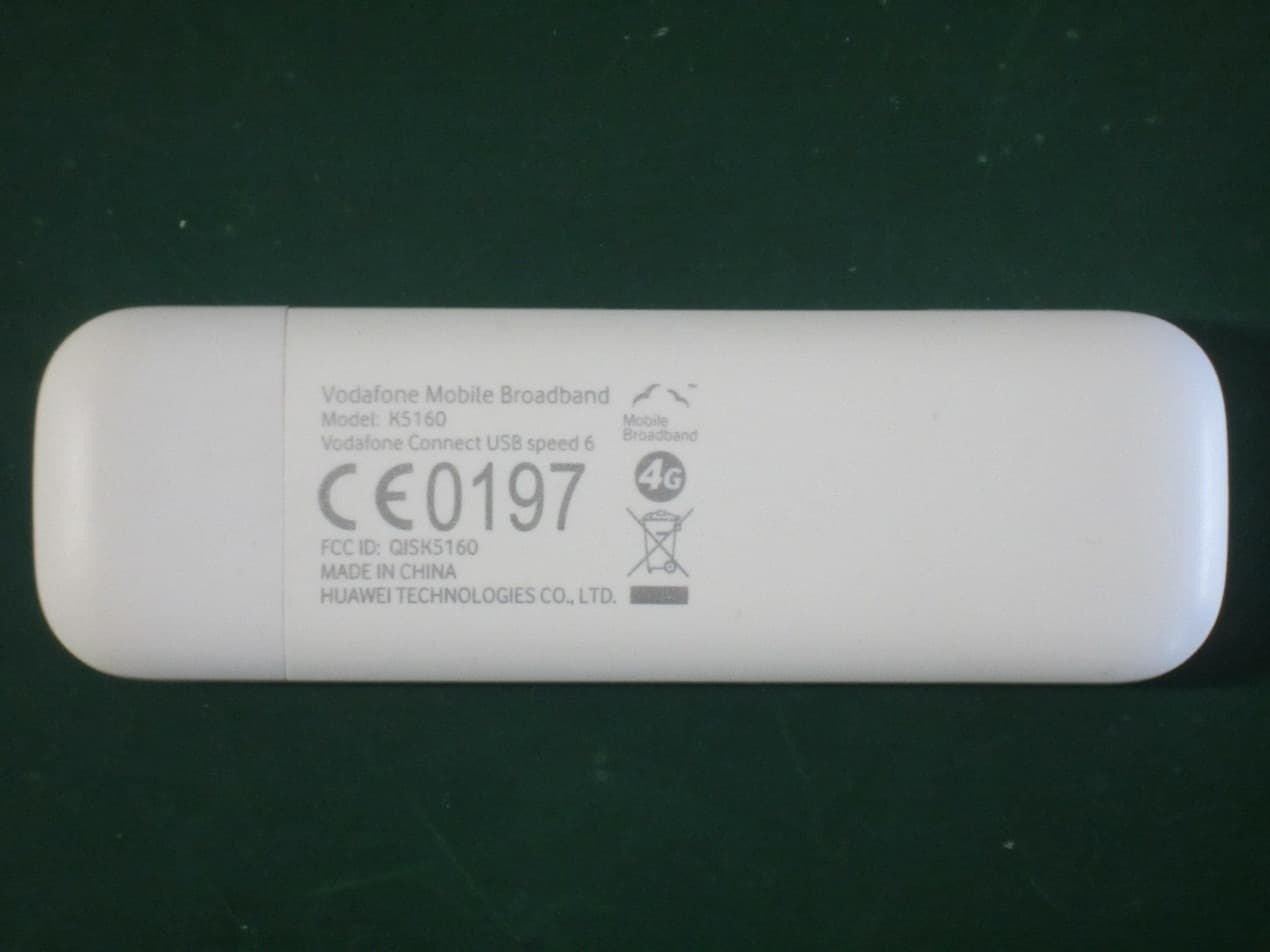

K5160 SECRET Page 1 Total1 ID Label K5160： Location： Back of EUT

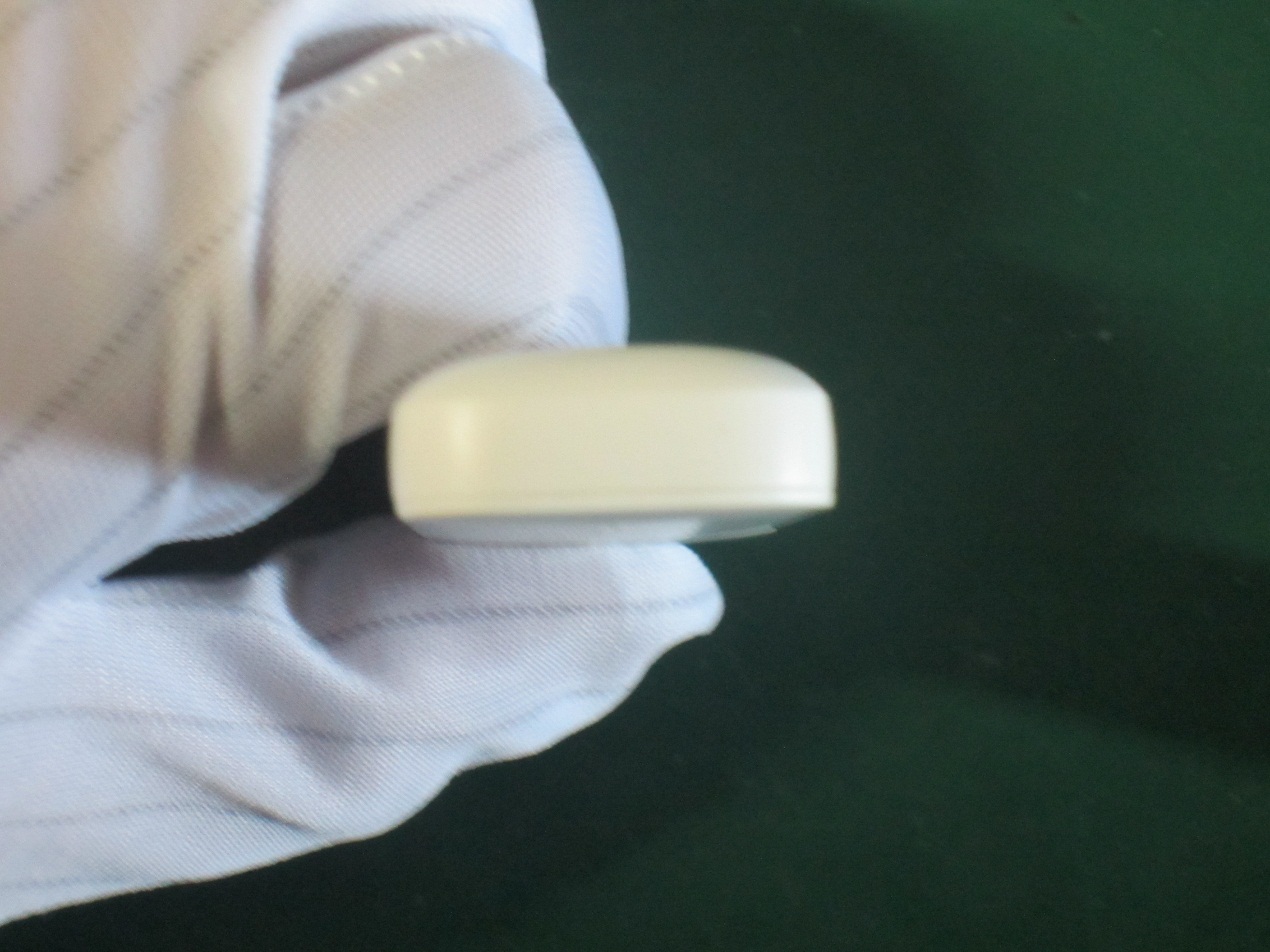

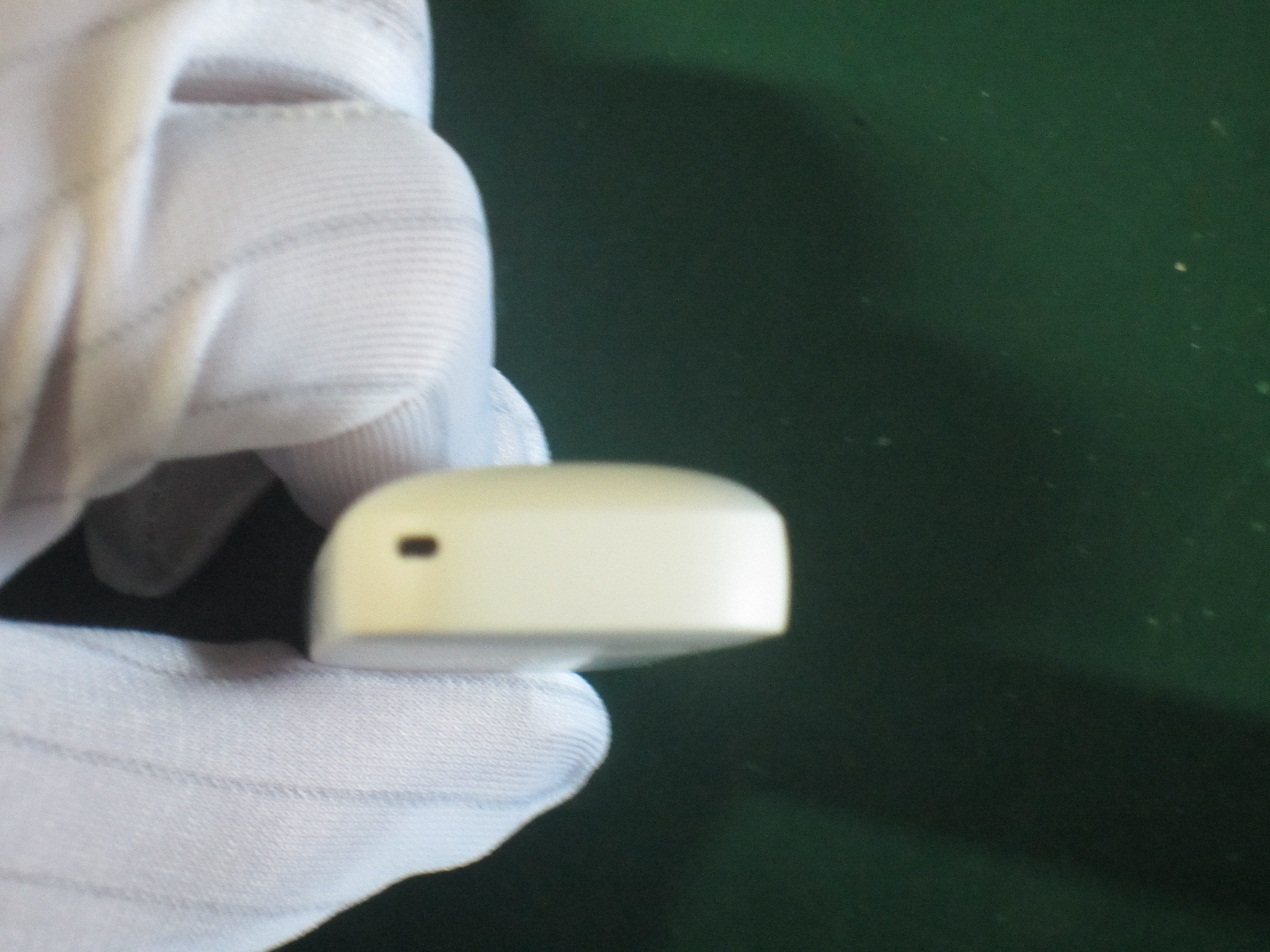

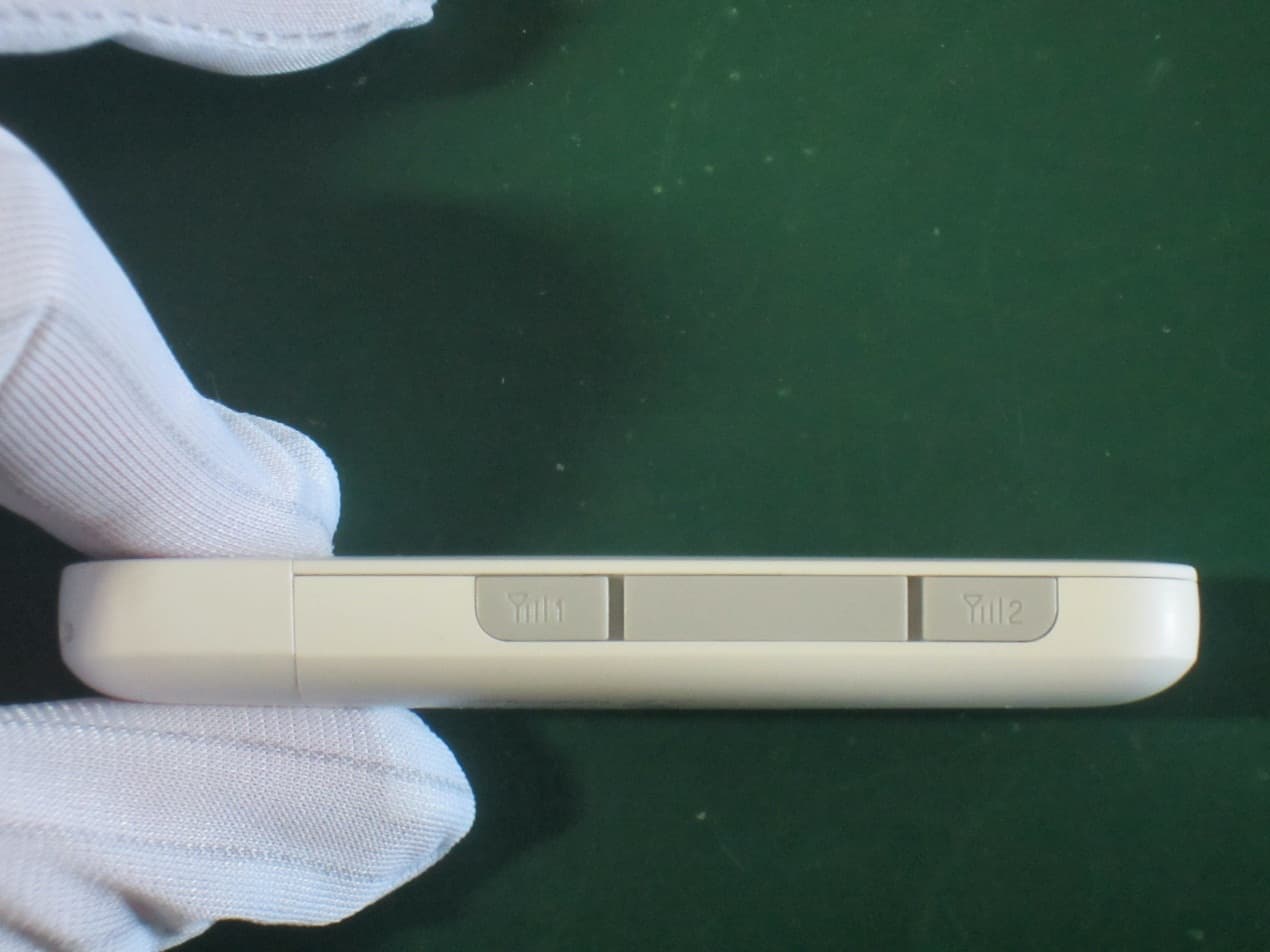

K5160 SECRET 2015-9-2 Page1, Total2 Internal Photos of K5160 K5160 SECRET 2015-9-2 Page2, Total2

©Copyright. All rights reserved by CTTL. TEST REPORT No.I15N00927-EMC for Huawei Technologies Co.,Ltd. Vodafone Connect USB speed 6 Model Name: K5160 FCC ID: QISK5160 with Hardware Version: CL2E3372HM Ver.A Software Version: v1.0 Issued Date: 2015-08-21 Test Laboratory: FCC 2.948 Listed: No.342690 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633, Fax:+86(0)10-62304633Email:[email protected], website:www.chinattl.com No.I15N00927-EMC Page 2 of 15 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Description Issue Date I15N00927-EMC Rev.0 1st edition 2015-08-18 I15N00927-EMC Rev.1 2nd edition 2015-08-21 No.I15N00927-EMC Page 3 of 15 ©Copyright. All rights reserved by CTTL. CONTENTS 1. TEST LABORATORY ......................................................................................................................... 4 1.1. TESTINGLOCATION ..................................................................................................................... 4 1.2. TESTINGENVIRONMENT ............................................................................................................ 4 1.3. PROJECT DATA .............................................................................................................................. 4 1.4. SIGNATURE ..................................................................................................................................... 4 2. CLIENTINFORMATION .................................................................................................................... 5 2.1. APPLICANT INFORMATION ....................................................................................................... 5 2.2. MANUFACTURER INFORMATION ............................................................................................ 5 3. EQUIPMENT UNDERTEST (EUT) AND ANCILLARY EQUIPMENT (AE) .............................. 6 3.1. ABOUT EUT ..................................................................................................................................... 6 3.2. INTERNAL IDENTIFICATION OF EUT ..................................................................................... 6 3.3. INTERNAL IDENTIFICATION OF AE ........................................................................................ 6 3.4. EUT SET-UPS ................................................................................................................................... 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST FACILITIES UTILIZED ........................................................................................................ 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 No.I15N00927-EMC Page 5 of 15 ©Copyright. All rights reserved by CTTL. 2. ClientInformation 2.1. Applicant Information Company Name: Huawei Technologies Co.,Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C 2.2. Manufacturer Information Company Name: Huawei Technologies Co.,Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C No.I15N00927-EMC Page 6 of 15 ©Copyright. All rights reserved by CTTL. 3. Equipment UnderTest (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description Vodafone Connect USB speed 6 Model Name K5160 Marketing Name K5160 FCC ID QISK5160 TX Band GSM850, GSM1900, LTE Band 7 RX Band GSM850, GSM1900, LTE Band 7 Remark: The above EUT's information is declared by manufacturer. Please refer to the specifications or user's manual for more detailed information. 3.2. Internal Identification of EUT EUT ID* SN or IMEI N0.1 / *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE AE ID* Description SN AE1 USB extension line / AE1 Model / Manufacturer / Length of cable 94cm / 17cm *AE ID: is used to identify the test sample in the lab internally. 3.4. EUT set-ups EUT set-up No. Combination of EUT and AE Remarks Set.1 EUT1+ AE1 USB mode No.I15N00927-EMC Page 7 of 15 ©Copyright. All rights reserved by CTTL. 4. Reference Documents 4.1. Reference Documents for testing The following documents listed in this section are referred for testing. Reference Title Version FCC Part 15, Subpart B Radio frequency devices 10-1-2014 Edition ANSI C63.4 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 2014 No.I15N00927-EMC Page 8 of 15 ©Copyright. All rights reserved by CTTL. 5. LABORATORY ENVIRONMENT Semi-anechoic chamber did not exceed following limits along the EMC testing: Temperature Min. = 15 °C, Max. = 30 °C Relative humidity Min. = 35 %, Max. = 60 % Shielding effectiveness 0.014MHz-1MHz,>60dB; 1MHz-1000MHz,>90dB Electrical insulation > 2MΩ Ground system resistance < 4 Ω Normalised site attenuation (NSA) < ±4 dB, 3 m distance, from 30 to 1000 MHz Uniformity of field strength Between 0 and 6 dB, from 80 to 3000 MHz Shidlded room did not exceed following limits along the EM…

Text truncated - open the document above for the full version.

Picture 1:CE-USB Picture 2: RE-USB Picture 3: RE-USB
