QISKII-L22Smart Phone

GR5 Quick Start Guide For more information Read the Quick Start Guide included with your device. Go to http://consumer.huawei.com/en/ to download the user guide for your device (including safety information) and read the FAQ, privacy policy, and other information. Go to Settings > About Phone > Legal information to read the legal information. Please visit http://consumer.huawei.com/en/support/hotline/ for the most up-to-date contact information for your country or region. All pictures and illustrations in this guide, including but not limited to the phone color, size, and display content, are for your reference only. The actual product may vary. Nothing in this guide constitutes a warranty of any kind, express or implied. Your phone at a glance Before you start, let's take a look at your new phone. Press and hold the power button to turn your phone on or off. To forcibly restart your phone, press and hold the power button until your phone vibrates. Camera Headset jack Flash Fingerprint scanner Microphone Speaker Front camera Earpiece Volume button Power button Micro USB port Light sensor Status indicator Getting started Follow the instructions in the following figures to set up your phone. Do not insert or remove a SIM card while your phone is on. Please exercise caution when using the SIM ejector pin to avoid hurting your fingers or damaging your phone. Store your pin in a safe place out of the reach of children to prevent them from swallowing it or injuring themselves by accident. Caution Insert the SIM card into the correct card slot to ensure that it can be recognized by the phone. single SIM card dual SIM cards Locking and unlocking the screen Press the power button to lock the screen. If your phone is idle for a specified period of time, the screen will automatically lock itself. If the screen is off, press the power button to turn it on. Slide your finger in any direction to unlock the screen. Swipe up from the bottom of the screen to open the control panel for magazine unlock. You can also quickly launch commonly used applications without unlocking the screen. Camera Touch . Frame the scene you want to capture. Let your camera focus automatically or touch the screen to focus on a specific object. Then touch to take a photo. Swipe left or right to switch between different capture modes. Light painting mode uses long exposure times to capture illuminated objects in a dark background. Time-lapse mode lets you record the slow transformation of objects or scenes, such as a blooming flower or the setting sun. Internet connection You can access the Internet over Wi-Fi or a mobile data network. Swipe down from the status bar to open the notification panel. Touch to turn on mobile data. Touch and hold to go to the Wi-Fi settings screen. Turn on Wi-Fi and connect to a Wi- Fi network. Backing up data Touch . Touch to open the settings menu. You can set how often you want to back up your data by following the onscreen instructions. Touch and select the data that you want to back up, such as your contacts, messages, and photos. Then follow the onscreen instructions to complete the backup. Personal Information and Data Security The use of some functions or third-party applications on your device could result in your personal information and data being lost or becoming accessible to others. Several measures are recommended to help you protect personal and confidential information. • Place your device in a safe area to prevent it from unauthorized use. • Set your device screen to lock and create a password or unlock pattern to open it. • Periodically back up personal information kept on your SIM card, memory card, or stored in your device memory. If you change to a different device, be sure to move or delete any personal information on your old device. • If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without opening them. • If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your personal information. • If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access. When these services are not in use, turn them off. • Install or upgrade device security software and regularly scan for viruses. • Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should be scanned for viruses. • Install security software or patches released by Huawei or third-party application providers. • Some applications require and transmit location information. As a result, a third-party may be able to share your location information. • Your device may provide detection and diagnostic information to third-party application providers. Third party vendors use this information to improve their products and services. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment • Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. • Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. • Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset • To prevent possible hearing damage, do not listen at high volume levels for long pe…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Date (2015-11-03) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISKII-L22 Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co., Ltd. Federal Communications Commission 2015/11/3 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISKII-L22 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2016-1-31: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Statements Date (2015-11-03) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China Hereby to confirm that our device, FCC ID: QISKII-L22, is shipped with the battery pre-installed and the FCC ID is readily visible when users open the product box. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

FCC ID change request letter BABT TCB Date : November 19, 2015 Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD REF: FCC ID , pursuant to section 2.1043, for FCC ID: QISKII-L22 Dear Sir or Madam, Pursuant to section 2.1043, Huawei Technologies Co., Ltd Hereby submit a request for FCC ID change to our Smart Phone, model no.: KIW-L23, FCC ID: QISKIW-L23, Grant date: 2015-11-20. Original FCC ID : QISKIW-L22, Model name : KIW-L22 Grant date : 2015-11-20 New FCC ID : QISKII-L22 Model name : HUAWEI QISKII-L22 , QISKII-L22 Description of the change: KIW-L22 and KII-L22 have same appearance, PCB, power and frequency range just has different software, model name and FCC ID for different customers. The different software did not affect the transmition antennas, RF performance, is just a different model name for different customer name, network name All original test result continue to be representative and applicable the equipment under the new FCC ID The following documents from the original application remain unchanged, applicable and representative after FCC ID change: -External Photos -Block Diagram -Schematics and PCB -Test setup photos -User Manual -Internal Photos -Bom List -Tune-up procedure -Operation Description Due to the change of ID change the following exhibit are changed: -ID Label & -Label location Compliance / Responsibility statements: -The product remains compliant with all the applicable rules and requirements once performed this FCC ID change. Sincerely, For and on behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co. Ltd Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

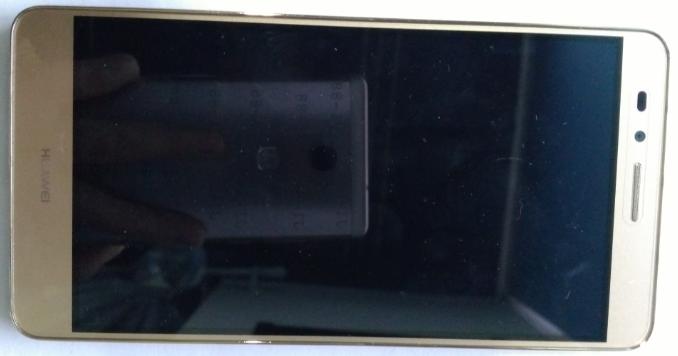

HUAWEI KII-L22, KII-L22 Smart Phone Secret 2015-11-16 Page1, Totel3 External Photos of HUAWEI KII-L22, KII-L22 HUAWEI KII-L22, KII-L22 Smart Phone Secret 2015-11-16 Page2, Totel3 01 Front-HUAWEI KII-L22, KII-L22 02 Back-HUAWEI KII-L22, KII-L22 03 Left-HUAWEI KII-L22, KII-L22 HUAWEI KII-L22, KII-L22 Smart Phone Secret 2015-11-16 Page3, Totel3 04 Right-HUAWEI KII-L22, KII-L22 05 Bottom-HUAWEI KII-L22, KII-L22 06 Top-HUAWEI KII-L22, KII-L22

HUAWEI KII-L22, KII-L22 Smart Phone SECRET 2015-11-16 Page1, Total2 Label & Label Location： HUAWEI KII-L22, KII-L22 Smart Phone SECRET 2015-11-16 Page2, Total2

HUAWEI KII-L22, KII-L22 Smart Phone Secret 2015-11-16 Page1, Total5 Internal Photos of HUAWEI KII-L22, KII-L22 HUAWEI KII-L22, KII-L22 Smart Phone Secret 2015-11-16 Page2, Total5 HUAWEI KII-L22, KII-L22 Smart Phone Secret 2015-11-16 Page3, Total5 HUAWEI KII-L22, KII-L22 Smart Phone Secret 2015-11-16 Page4, Total5 HUAWEI KII-L22, KII-L22 Smart Phone Secret 2015-11-16 Page5, Total5

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Product Name: Smart Phone Model: HUAWEI KII-L22, KII-L22 Report No.: SYBH(Z-SAR)009092015-2 FCC ID: QISKII-L22 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2015-11-16 2015-11-16 The test results of this test report relate exclusively to the item(s) tested . The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report No.: SYBH(Z-SAR)009092015-2 FCC ID: QISKII-L22 2015-11-16 Page 2 of 73 Table of Contents 1 General Information ............................................................................................................................................... 5 1.1 Statement of Compliance .............................................................................................................................. 5 1.2 RF exposure limits ......................................................................................................................................... 6 1.3 EUT Description ............................................................................................................................................ 7 1.3.1 General Description ............................................................................................................................... 9 1.3.2 Power reduction specification .............................................................................................................. 10 1.4 Test specification(s) .................................................................................................................................... 11 1.5 Testing laboratory ........................................................................................................................................ 11 1.6 Applicant and Manufacturer ........................................................................................................................ 11 1.7 Application details ........................................................................................................................................ 11 1.8 Ambient Condition ...................................................................................................................................... 11 2 SAR Measurement System ................................................................................................................................. 12 2.1 SAR Measurement Set-up .......................................................................................................................... 12 2.2 Test environment ......................................................................................................................................... 13 2.3 Data Acquisition Electronics description .................................................................................................... 13 2.4 Probe description ......................................................................................................................................... 14 2.5 Phantom description .................................................................................................................................... 15 2.6 Device holder description ............................................................................................................................ 16 2.7 Test Equipment List ..................................................................................................................................... 17 3 SAR Measurement Procedure ............................................................................................................................ 18 3.1 Scanning procedure .................................................................................................................................... 18 3.2 Spatial Peak SAR Evaluation ...................................................................................................................... 19 3.3 Data Storage and Evaluation ...................................................................................................................... 20 4 System Verification Procedure ............................................................................................................................ 22 4.1 Tissue Verification ....................................................................................................................................... 22 4.2 System Check ............................................................................................................................................. 25 4.3 System check Procedure............................................................................................................................. 26 5 SAR measurement variability and uncertainty .................................................................................................... 27 5.1 SAR measurement variability ...................................................................................................................... 27 5.2 SAR measurement uncertainty ................................................................................................................... 27 6 SAR Test Configuration ....................................................................................................................................... 28 6.1 Test Positions Configuration .................................................................…

Text truncated - open the document above for the full version.

Report No.:SYBH(Z-SAR)009092015-2 FCC ID:QISKII-L22 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-EX-Head SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1900-EX-Head SystemPerformanceCheck-D1900-EX-Body SystemPerformanceCheck-D2450-ES-Head SystemPerformanceCheck-D2450-ES-Body SystemPerformanceCheck-D2600-EX-Head SystemPerformanceCheck-D2600-EX-Body Date: 2015-10-15 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: UID 0, CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.894 S/m; ε r = 41.179; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(8.77, 8.77, 8.77); Calibrated: 2015-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2014-11-13 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=15mm, Pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.48 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.89 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.47 W/kg SAR(1 g) = 2.4 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 2.79 W/kg 0 dB = 2.79 W/kg = 4.46 dBW/kg Date: 2015-10-17 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: UID 0, CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.97 S/m; ε r = 54.546; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(8.82, 8.82, 8.82); Calibrated: 2015-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2014-11-13 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=15mm, Pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.67 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 50.56 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 3.49 W/kg SAR(1 g) = 2.37 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 2.77 W/kg 0 dB = 2.77 W/kg = 4.42 dBW/kg Date: 2015-10-20 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-1900-EX-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.432 S/m; ε r = 38.65; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(7.54, 7.54, 7.54); Calibrated: 2015-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2014-11-13 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.95 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 89.98 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 19.3 W/kg SAR(1 g) = 10.3 W/kg; SAR(10 g) = 5.3 W/kg Maximum value of SAR (measured) = 13.1 W/kg 0 dB = 13.1 W/kg = 11.17 dBW/kg Date: 2015-10-18 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.547 S/m; ε r = 52.22; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(7.24, 7.24, 7.24); Calibrated: 2015-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2014-11-13 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.57 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 80.13 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 19.0 W/kg SAR(1 g) = 10.6 W/kg; SAR(10 g) = 5.51 W/kg Maximum value of SAR (measured) = 13.4 W/kg 0 dB = 13.4 W/kg = 11.27 dBW/kg Date: 2015-11-3 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-ES-Head DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.863 S/m; ε r = 38.968; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.55, 4.55, 4.55); Calibrated: 2015-9- 28; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2014-11-13 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=10mm, Pin=250mW/Area Scan (6x11x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 15.9 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.56 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 27.7 W/kg SAR(1 g) = 13.7 W/kg; SAR(10 g) = 6.4 W/kg Maximum value of SAR (measured) = 18.0 W/kg 0 dB = 18.0 W/kg = 12.55 dBW/kg Date: 2015-11-3 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-ES-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle:…

Text truncated - open the document above for the full version.

Report No.:SYBH(Z-SAR)009092015-2 FCC ID:QISKII-L22 Appendix B. SAR Measurement Plots Table of contents GSM850 Head GSM850 Body GSM1900 Head GSM1900 Body UMTS Band V Head UMTS Band V Body LTE Band V Head LTE Band V Body LTE Band VII Head LTE Band VII Body WiFi 2450 MHz Head WiFi 2450 MHz Body Date: 2015-10-15 Test Laboratory: HUAWEI SAR/HAC Lab KIW-L22 GSM850 251CH Right hand touch cheek with battery 2# DUT: KIW-L22; Type: Smart Phone; Serial: SAR2 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 848.8 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 849 MHz; σ = 0.905 S/m; ε r = 40.215; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(8.77, 8.77, 8.77); Calibrated: 2015-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2014-11-13 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Head/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.288 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.257 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.325 W/kg SAR(1 g) = 0.265 W/kg; SAR(10 g) = 0.204 W/kg Maximum value of SAR (measured) = 0.286 W/kg 0 dB = 0.286 W/kg = -5.44 dBW/kg Date: 2015-10-18 Test Laboratory: HUAWEI SAR/HAC Lab KIW-L22 GSM850 190CH Back side 15mm with battert 2# DUT: KIW-L22; Type: Smart Phone; Serial: SAR2 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.972 S/m; ε r = 54.519; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(8.82, 8.82, 8.82); Calibrated: 2015-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2014-11-13 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.447 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.91 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.523 W/kg SAR(1 g) = 0.417 W/kg; SAR(10 g) = 0.321 W/kg Maximum value of SAR (measured) = 0.457 W/kg 0 dB = 0.457 W/kg = -3.40 dBW/kg Date: 2015-10-18 Test Laboratory: HUAWEI SAR/HAC Lab KIW-L22 GSM850 GPRS 2TS 190CH Right side 10mm with battery 2# DUT: KIW-L22; Type: Smart Phone; Serial: SAR2 Communication System: UID 0, HW-GSM\GPRS\EGPRS-2TS (0); Frequency: 836.6 MHz;Duty Cycle: 1:4.10015 Medium parameters used: f = 837 MHz; σ = 0.972 S/m; ε r = 54.519; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(8.82, 8.82, 8.82); Calibrated: 2015-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2014-11-13 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.524 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.60 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.701 W/kg SAR(1 g) = 0.492 W/kg; SAR(10 g) = 0.334 W/kg Maximum value of SAR (measured) = 0.568 W/kg 0 dB = 0.568 W/kg = -2.46 dBW/kg Date: 2015-10-20 Test Laboratory: HUAWEI SAR/HAC Lab KIW-L22 GSM1900 661CH Right hand touch cheek with SIM2 and battery 2# DUT: KIW-L22; Type: Smart Phone; Serial: SAR2 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 1880 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 1880 MHz; σ = 1.411 S/m; ε r = 38.735; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(7.54, 7.54, 7.54); Calibrated: 2015-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2014-11-13 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Head/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.173 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.414 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.234 W/kg SAR(1 g) = 0.158 W/kg; SAR(10 g) = 0.100 W/kg Maximum value of SAR (measured) = 0.183 W/kg 0 dB = 0.183 W/kg = -7.36 dBW/kg Date: 2015-10-19 Test Laboratory: HUAWEI SAR/HAC Lab KIW-L22 GSM1900 661CH Front side 15mm with Battery 2# DUT: KIW-L22; Type: Smart Phone; Serial: SAR2 Communication System: UID 0, HW-GSM\GPRS\EGPRS-1TS (0); Frequency: 1880 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 1880 MHz; σ = 1.526 S/m; ε r = 52.279; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(7.24, 7.24, 7.24); Calibrated: 2015-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2014-11-13 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (9x13x1): Mea…

Text truncated - open the document above for the full version.
