QISKIW-L22Smart Phone

Quick Start Guide For more information Read the Quick Start Guide included with your device. Go to http://consumer.huawei.com/en/ to download the user guide for your device (including safety information) and read the FAQ, privacy policy, and other information. Go to Settings > About Phone > Legal information to read the legal information. Please visit http://consumer.huawei.com/en/support/hotline/ for the most up-to-date contact information for your country or region. All pictures and illustrations in this guide, including but not limited to the phone color, size, and display content, are for your reference only. The actual product may vary. Nothing in this guide constitutes a warranty of any kind, express or implied. Your phone at a glance Before you start, let's take a look at your new phone. Press and hold the power button to turn your phone on or off. To forcibly restart your phone, press and hold the power button until your phone vibrates. Camera Headset jack Flash Fingerprint scanner Microphone Speaker Front camera Earpiece Volume button Power button Micro USB port Light sensor Status indicator Getting started Follow the instructions in the following figures to set up your phone. Do not insert or remove a SIM card while your phone is on. Please exercise caution when using the SIM ejector pin to avoid hurting your fingers or damaging your phone. Store your pin in a safe place out of the reach of children to prevent them from swallowing it or injuring themselves by accident. Caution Insert the SIM card into the correct card slot to ensure that it can be recognized by the phone. Locking and unlocking the screen Press the power button to lock the screen. If your phone is idle for a specified period of time, the screen will automatically lock itself. If the screen is off, press the power button to turn it on. Slide your finger in any direction to unlock the screen. Swipe up from the bottom of the screen to open the control panel for magazine unlock. You can also quickly launch commonly used applications without unlocking the screen. Camera Touch . Frame the scene you want to capture. Let your camera focus automatically or touch the screen to focus on a specific object. Then touch to take a photo. Swipe left or right to switch between different capture modes. Light painting mode uses long exposure times to capture illuminated objects in a dark background. Time-lapse mode lets you record the slow transformation of objects or scenes, such as a blooming flower or the setting sun. Internet connection You can access the Internet over Wi-Fi or a mobile data network. Swipe down from the status bar to open the notification panel. Touch to turn on mobile data. Touch and hold to go to the Wi-Fi settings screen. Turn on Wi-Fi and connect to a Wi- Fi network. Backing up data Touch . Touch to open the settings menu. You can set how often you want to back up your data by following the onscreen instructions. Touch and select the data that you want to back up, such as your contacts, messages, and photos. Then follow the onscreen instructions to complete the backup. Personal Information and Data Security The use of some functions or third-party applications on your device could result in your personal information and data being lost or becoming accessible to others. Several measures are recommended to help you protect personal and confidential information. • Place your device in a safe area to prevent it from unauthorized use. • Set your device screen to lock and create a password or unlock pattern to open it. • Periodically back up personal information kept on your SIM card, memory card, or stored in your device memory. If you change to a different device, be sure to move or delete any personal information on your old device. • If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without opening them. • If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your personal information. • If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access. When these services are not in use, turn them off. • Install or upgrade device security software and regularly scan for viruses. • Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should be scanned for viruses. • Install security software or patches released by Huawei or third-party application providers. • Some applications require and transmit location information. As a result, a third-party may be able to share your location information. • Your device may provide detection and diagnostic information to third-party application providers. Third party vendors use this information to improve their products and services. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment • Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. • Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. • Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset • To prevent possible hearing damage, do not listen at high volume levels for long periods. • Using a headset at high vo…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Date (2015-11-03) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISKIW-L22 Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co., Ltd. Federal Communications Commission 2015/11/3 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISKIW-L22 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2016-1-31: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Statements Date (2015-11-03) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China Hereby to confirm that our device, FCC ID: QISKIW-L22, is shipped with the battery pre-installed and the FCC ID is readily visible when users open the product box. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

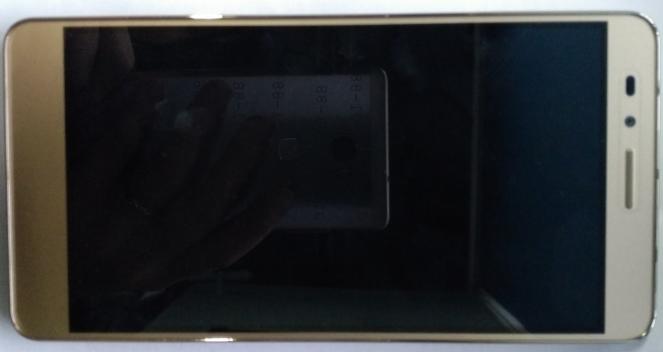

KIW-L22 Smart Phone Secret 2015-11-12 Page1, Totel3 External Photos of KIW-L22 KIW-L22 Smart Phone Secret 2015-11-12 Page2, Totel3 01 Front-KIW-L22 02 Back-KIW-L22 03 Left-KIW-L22 KIW-L22 Smart Phone Secret 2015-11-12 Page3, Totel3 04 Right-KIW-L22 05 Bottom-KIW-L22 06 Top-KIW-L22

KIW-L22 Smart Phone SECRET 2015-11-12 Page1, Total1 Label & Label Location：

KIW-L22 Smart Phone Secret 2015-11-12 Page1, Total5 Internal Photos of KIW-L22 KIW-L22 Smart Phone Secret 2015-11-12 Page2, Total5 KIW-L22 Smart Phone Secret 2015-11-12 Page3, Total5 KIW-L22 Smart Phone Secret 2015-11-12 Page4, Total5 KIW-L22 Smart Phone Secret 2015-11-12 Page5, Total5

FCC RF Test Report Product Name: Smart Phone Model Number: KIW-L22 Report No: SYBH(Z-RF) 006092015-2004 FCC ID：QISKIW-L22 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of KIW-L22 Report No: SYBH(Z-RF)006092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 21 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of KIW-L22 Report No: SYBH(Z-RF)006092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 21 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2015-10-08 Start Date of Test: 2015-10-08 End Date of Test: 2015-10-15 Test Result: Pass Approved by Senior Engineer: 2015-10-22 Liu Chunlin Date Name Signature Prepared by: 2015-10-22 Wu Tingsi Date Name Signature RF Test Report of KIW-L22 Report No: SYBH(Z-RF)006092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 21 Modification Record No. Last Report No. Modification Description First report RF Test Report of KIW-L22 Report No: SYBH(Z-RF)006092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 21 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 3 Description of the Equipment under Test (EUT) ..................................................................................................... 8 3.1 General Description ................................................................................................................................... 8 3.2 EUT Identity ............................................................................................................................................. 10 3.3 Technical Description ............................................................................................................................... 10 4 General Test Conditions / Configurations ............................................................................................................. 11 4.1 EUT Configurations .................................................................................................................................. 11 4.2 Test Environments ................................................................................................................................... 12 4.3 Antenna requirements .............................................................................................................................. 12 4.4 Description of tests................................................................................................................................... 13 4.5 Test Setups .............................................................................................................................................. 16 4.6 Test Conditions ........................................................................................................................................ 19 5 Main Test Instruments .......................................................................................................................................... 21 RF Test Report of KIW-L22 Report No: SYBH(Z-RF)006092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 21 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 2, Subpart J 2014 47 CFR FCC Part 15, Subpart C 2014 Test Method: FCC PUBLIC NOTICE DA 00-705 Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems (Released March 30, 2000) ANSI C63.4-2014, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C63.10-2013, American National Standard for Testing Unlicensed Wireless Devices. 1.2 Test Location Test Location 1: Reliability Laboratory of Hua…

Text truncated - open the document above for the full version.

RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 129 Appendix A: 20dB Emission Bandwidth (EBW) RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 129 1 Result Table EUT Conf. EBW [MHz] Verdict TM1_DH5_Ch0 0.949 Pass TM1_DH5_Ch39 0.949 Pass TM1_DH5_Ch78 0.949 Pass TM2_2DH5_Ch0 1.286 Pass TM2_2DH5_Ch39 1.286 Pass TM2_2DH5_Ch78 1.285 Pass TM3_3DH5_Ch0 1.280 Pass TM3_3DH5_Ch39 1.278 Pass TM3_3DH5_Ch78 1.278 Pass RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 129 2 Test Plot 2.1 TM1_DH5_Ch0 RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 129 2.2 TM1_DH5_Ch39 RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 129 2.3 TM1_DH5_Ch78 RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 129 2.4 TM2_2DH5_Ch0 RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 129 2.5 TM2_2DH5_Ch39 RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 129 2.6 TM2_2DH5_Ch78 RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 129 2.7 TM3_3DH5_Ch0 RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 129 2.8 TM3_3DH5_Ch39 RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 129 2.9 TM3_3DH5_Ch78 RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 129 Appendix B: Carrier Frequency Separation RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 129 1 Result Table EUT Conf. Carrier Frequency Separation [MHz] Verdict TM1_DH5_Hop 1.050 Pass TM2_2DH5_Hop 1.000 Pass TM3_3DH5_Hop 1.200 Pass RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 129 2 Test Plot 2.1 TM1_DH5_Hop RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 129 2.2 TM2_2DH5_Hop RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 129 2.3 TM3_3DH5_Hop RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 17 of 129 Appendix C: Number of Hopping Channel RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 18 of 129 1 Result Table EUT Conf. Number of Hopping Channel Verdict TM1_DH5_Hop 79 Pass TM2_2DH5_Hop 79 Pass TM3_3DH5_Hop 79 Pass RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 19 of 129 2 Test Plot 2.1 TM1_DH5_Hop RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 20 of 129 2.2 TM2_2DH5_Hop RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 21 of 129 2.3 TM3_3DH5_Hop RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 22 of 129 Appendix D: Time of Occupancy (Dwell Time) RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 23 of 129 1 Result Table The Dwell Time = Burst Width * Total Hops. The detailed calculations are showed as follows: - The duration for dwell time calculation: 0.4 [s] * hopping number = 0.4 [s] * 79 [ch] = 31.6 [s*ch]; - The burst width [ms/hop/ch], which is directly measured, refers to the duration on one channel hop. - The hops per second for all channels: The selected EUT Conf uses a slot type of 5-Tx&1-Rx and a hopping rate of 1600 [ch*hop/s] for all channels. So the final hopping rate for all channels is 1600 / 6 = 266.67 [ch*hop/s]; - The hops per second on one channel: 266.67 [ch*hop/s] / 79 [ch] =3.38 [hop/s]; - The total hops for all channels within the dwell time calculation duration: 3.38 [hop/s] * 31.6 [s*ch] = 106.67 [hop*ch]; - The dwell time for all channels hopping: 106.67 [hop*ch] * Burst Width [ms/hop/ch]. EUT Conf. Burst Width [ms/hop/ch] Total Hops [hop*ch] Dwell Time [ms] Verdict TM1_DH5_Ch39 2.900 106.67 0.309 Pass TM2_2DH5_Ch39 2.900 106.67 0.309 Pass TM3_3DH5_Ch39 2.900 106.67 0.309 Pass RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 24 of 129 2 Test Plot NOTE: The test plots are only for Burst Width measurements. 2.1 TM1_DH5_Ch39 RF Test Report of KIW-L23 Report No: SYBH(Z-RF)008092015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 25 of 129 2.2 TM2_2DH5_Ch39 RF Test Report of KIW-L23 Repor…

Text truncated - open the document above for the full version.

Photos of Test Setup For GSM&WCDMA&LTE 1．Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) Radiated Spurious Emission (1GHz to18GHz) Radiated Spurious Emission (18GHz to26.5GHz) For Wlan/BT 2．Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) Radiated Spurious Emission (1GHz to18GHz) Radiated Spurious Emission (above 18GHz) Conducted Emissions --------------------------------------------The END-------------------------------------------
