QISM2-A01WHUAWEI MediaPad M2 10.0

Quick Start 1 1 HUAWEI MediaPad M2 10.0 at a glance Avoid blocking the ambient light sensor as it may affect normal use of the M2. Choose a screen protector that has a hole above the ambient light sensor. 2 2 Card insertion Store the card eject tool in a safe place out of reach of children to prevent them from swallowing it or injuring themselves by accident. 3 3 Fingerprint identification Touch Settings > Fingerprint ID > Fingerprint management. Follow the onscreen instructions to set a PIN or password and enroll the fingerprint. After enrolling your fingerprint, you can use touch the fingerprint sensor to unlock your screen, verify your Huawei ID, and access file safe and app lock functions. In landscape mode, use the fingerprint sensor for more touch control features. For example, touch and hold the sensor to return to the home screen, swipe left to go back, and swipe right to view recent apps. 4 4 Dual windows You can split the screen into two parts and view different content simultaneously. To enable dual windows, touch and hold the recent key , or swipe up from the bottom of the screen with two fingers. On the dual windows screen, touch or dragto view more options. 5 5 M-Pen (optional accessory) The M-Pen replaces the finger to easily control the screen and optimize your efficiency. It can also work with special apps for handwriting and drawing, bringing you endless fun. The M-Pen is provided with M2 premium edition and is optional for other editions. To purchase the 6 M-Pen, please contact your M2 retailer. Eraser  When drawing, press and hold the eraser button to delete pictures. This function requires the app to use it. Function button  Press and hold and then outline the screenshot area to take a screenshot.  Press and hold and then double touch the screen to take a full screenshot.  Press and hold, and touch the screen to easily open the floating window for special apps. 7 Installing the battery 1. Unscrew the lid in a counterclockwise direction. 2. Insert the battery (AAAA only) into the pen with the plus sign at the bottom and the minus sign at the top. 8 3. Screw in the lid in a clockwise direction. Remove the battery if the M-Pen will not be used for a long time. Changing the pen tip 1. Use forceps or your fingers to clamp the pen tip. 2. Pull the pen tip out with force. Clamp tightly onto the pen tip so that you don't lose your grip. 3. Clamp the top part of the spare tip and insert the bottom part into the pen. Push it in until it is firmly in place, to prevent it from becoming loose and getting lost. Store the removed tip in a safe place out of the reach of children to prevent them from swallowing it or injuring themselves by accident. 9 6 Protective flip cover (optional accessory) M2 has many useful features which can be used easily. As you open the M2 protective flip cover, the screen turns on. As you close it, the screen turns off. Stand the M2 up with the protective flip cover to enjoy watching movies. After using the M-Pen, store it easily. 10 To purchase a protective flip cover, please contact your M2 retailer. Supporting M2 M-Pen storage Method 1: Clip the M-Pen directly onto the protective flip cover. 11 Method 2: Stand a pen holder (provided with the protective flip cover) in any position in the inner edges of the cover, and then insert the M-Pen into the holder. 12 7 Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. 13 Protecting your hearing when using a headset  To prevent possible hearing damage, do not listen at high volume levels for long periods.  Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level.  Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. 14  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Wireless devices may interfere with the airplane's flight system. Do not use your device where wireless devices are not allowed according to the airplane company's regulations. Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctio…

Text truncated - open the document above for the full version.

HUAWEI MediaPad M2 10.0 SECRET Page1, Total 1 Label Location

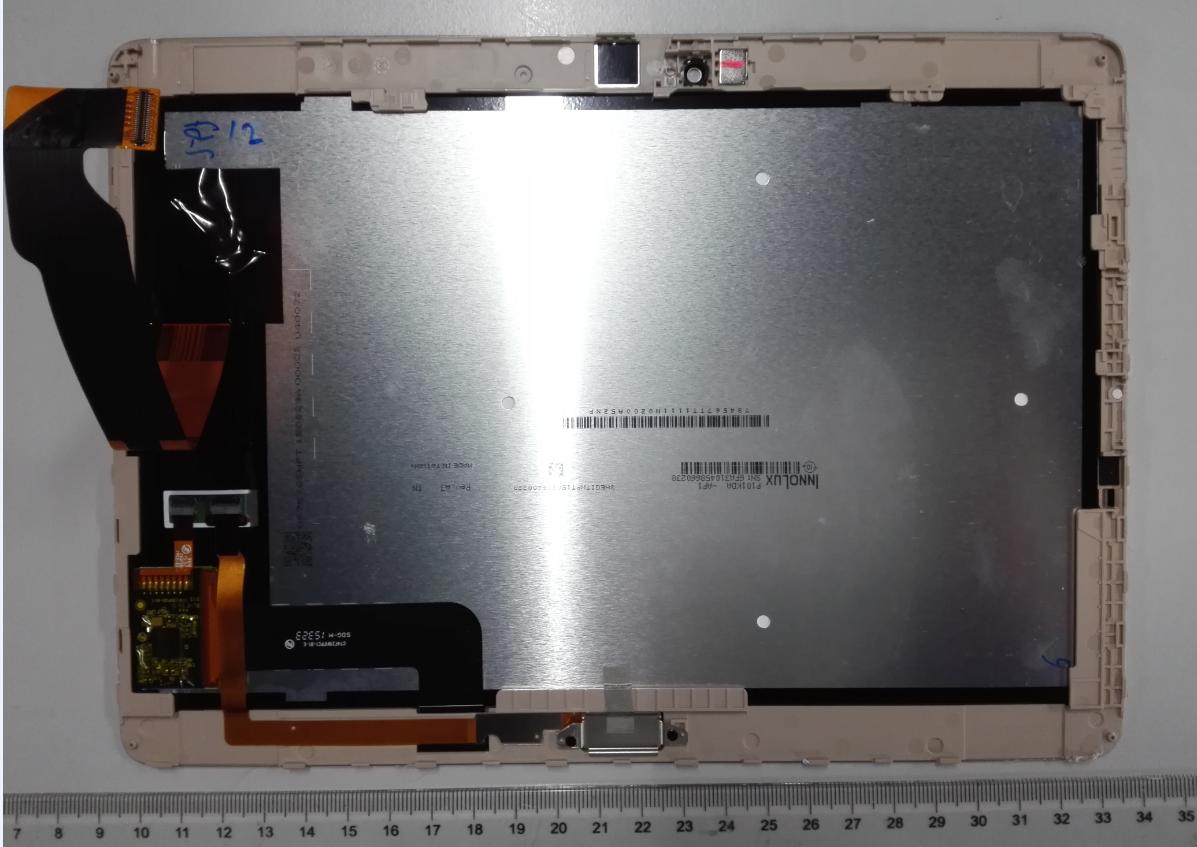

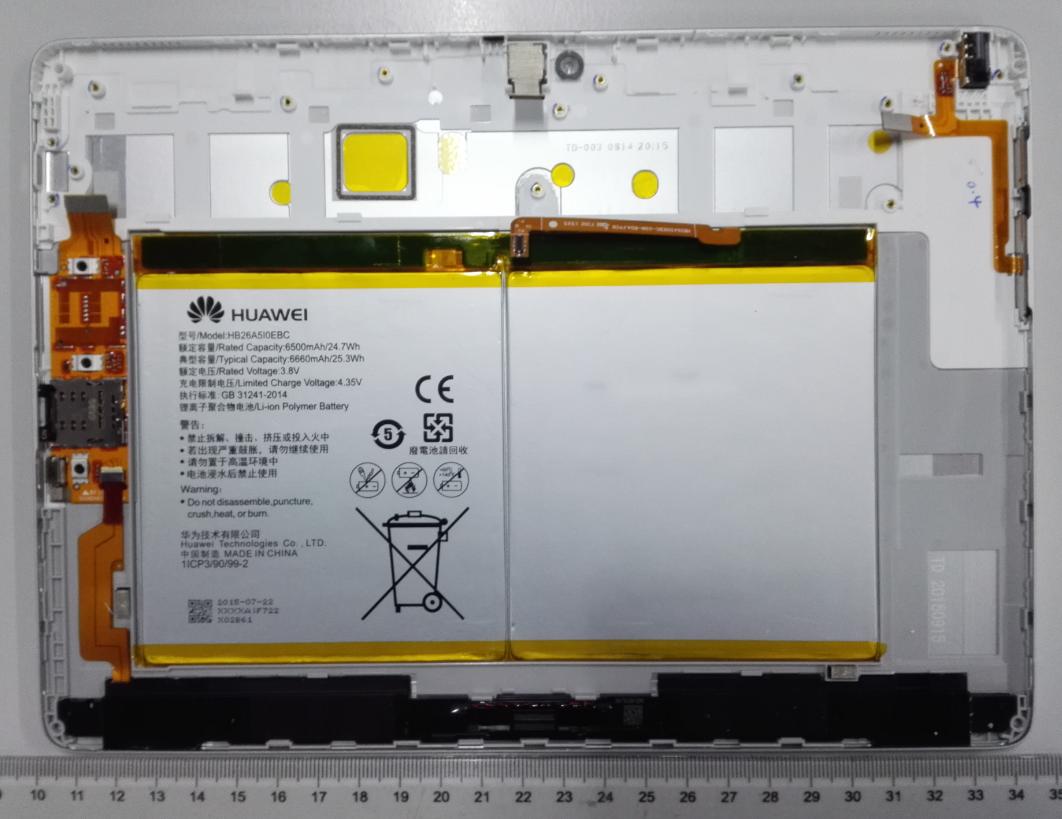

HUAWEI MediaPad M2 10.0 SECRET Page1, Total3 Photo documentation of interior of product HUAWEI MediaPad M2 10.0 SECRET Page2, Total3 HUAWEI MediaPad M2 10.0 SECRET Page3, Total3

内部公开 Page1,Total1 The differences between M2-A01L and M2-A01w are band different : M2-A01L M2-A01w PCB the same the same GPS the same the same WIFI/BT 2.4G the same the same GSM 850/1900 support Not support by Hardware and Software WCDMA 850/1900 support Not support by Hardware and Software LTE BAND 7 support Not support by Hardware and Software

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Product Name: HUAWEI MediaPad M2 10.0 Model: M2-A01w Report No.: SYBH(Z-SAR)024122015 -2 FCC ID: QISM2-A01W APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2016-01-11 2016-01-11 Reliability Laboratory of Huawei Technologies Co., Ltd. Report No.: SYBH(Z-SAR)024122015-2 FCC ID: QISM2-A01W 2016-01-11 Page 2 of 32 ※ ※ Notice ※ ※ 1. The laboratory has passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory (Reliability Lab of Huawei Technologies Co., Ltd) is also named as “Global Compliance and Testing Center of Huawei Technologies Co., Ltd”, the both names have coexisted since 2009. 4. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 5. The test report is invalid if there is any evidence of erasure and/or falsification. 6. The test report is only valid for the test samples. 7. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. Report No.: SYBH(Z-SAR)024122015-2 FCC ID: QISM2-A01W 2016-01-11 Page 3 of 32 Table of Contents 1 General Information ............................................................................................................................................... 5 1.1 Statement of Compliance ...................................................................................................................... 5 1.2 RF exposure limits ................................................................................................................................. 6 1.3 EUT Description ..................................................................................................................................... 7 1.3.1 General Description ............................................................................................................................... 8 1.4 Test specification(s) ............................................................................................................................... 9 1.5 Testing laboratory .................................................................................................................................. 9 1.6 Applicant and Manufacturer ................................................................................................................... 9 1.7 Application details .................................................................................................................................. 9 1.8 Ambient Condition ................................................................................................................................. 9 2 SAR Measurement System ................................................................................................................................. 10 2.1 SAR Measurement Set-up ................................................................................................................... 10 2.2 Test environment ................................................................................................................................. 11 2.3 Data Acquisition Electronics description ............................................................................................. 11 2.4 Probe description ................................................................................................................................. 12 2.5 Phantom description ............................................................................................................................ 13 2.6 Device holder description .................................................................................................................... 14 2.7 Test Equipment List ............................................................................................................................. 15 3 SAR Measurement Procedure ............................................................................................................................ 16 3.1 Scanning procedure ............................................................................................................................. 16 3.2 Spatial Peak SAR Evaluation .............................................................................................................. 17 3.3 Data Storage and Evaluation ............................................................................................................... 18 4 System Verification Procedure ............................................................................................................................ 20 4.1 Tissue Verification ................................................................................................................................ 20 4.2 System Check ...................................................................................................................................... 21 4.3 System check Procedure ..................................................................................................................... 22 5 SAR measurement variability and uncertainty .................................................................................................... 23 5.1 SAR measurement variability .............................................................................................................. 23 5.2 SAR measurement uncertainty ............................................................................................................ 23 6…

Text truncated - open the document above for the full version.

Report No.:SYBH(Z-SAR)024122015-2 FCC ID:QISM2-A01W Appendix B. SAR Measurement Plots Table of contents WiFi 2.4G Body BT Body Date: 2015-12- 30 Test Laboratory: HUAWEI SAR/HAC Lab M2-A01W WiFi 2.4g 802.11b 6CH Back Side 0mm DUT: M2-A01w; Type: HUAWEI MediaPad M2 10; Serial: SAR2 Communication System: UID 0, WiFi(802.11a/b/g/n/ac) (0); Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2437 MHz; σ = 1.949 S/m; ε r = 51.148; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(6.79, 6.79, 6.79); Calibrated: 2015-4- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 2015-4-27 lPhantom: ELI v5.0; Type: ELI; Serial: TP:1111 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (18x13x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.11 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0.4630 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 2.70 W/kg SAR(1 g) = 0.939 W/kg; SAR(10 g) = 0.354 W/kg Maximum value of SAR (measured) = 1.30 W/kg 0 dB = 1.30 W/kg = 1.13 dBW/kg Date: 2015-12-30 Test Laboratory: HUAWEI SAR/HAC Lab M2-A01w BT 39CH Back side 0mm DUT: M2-A01w; Type: HUAWEI MediaPad M2 10; Serial: SAR2 Communication System: UID 0, BT (0); Frequency: 2441 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2441 MHz; σ = 1.953 S/m; ε r = 51.136; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(6.77, 6.77, 6.77); Calibrated: 2015-7-24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 2015-4-27 lPhantom: ELI v5.0; Type: ELI; Serial: TP:1111 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (18x13x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.209 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0.8090 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.634 W/kg SAR(1 g) = 0.211 W/kg; SAR(10 g) = 0.082 W/kg Maximum value of SAR (measured) = 0.306 W/kg 0 dB = 0.306 W/kg = -5.14 dBW/kg

Report No.:SYBH(Z-SAR)024122015-2 FCC ID:QISM2-A01W Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D2450-EX-Body Date: 2015-12- 30 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-2450-EX-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:869 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.964 S/m; ε r = 51.106; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(6.77, 6.77, 6.77); Calibrated: 2015-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 2015-4-27 lPhantom: ELI v5.0; Type: ELI; Serial: TP:1111 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=10mm, Pin=250mW/Area Scan (6x11x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 15.5 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 79.91 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 25.1 W/kg SAR(1 g) = 12.4 W/kg; SAR(10 g) = 5.79 W/kg Maximum value of SAR (measured) = 16.2 W/kg 0 dB = 16.2 W/kg = 12.10 dBW/kg

RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 127 Appendix for Test report RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 127 Appendix A: DTS (6 dB) Bandwidth In this document, the "DTS6dBBW" refers to the measured "DTS (6 dB) Bandwidth" value. In this Appendix, the "fc(DTS6dBBW)" refers to the centre of the measured "DTS6dBBW". The introduction of the "fc(DTS6dBBW)" is due to that other measurements use it as the spectrum analyzer setting. For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. Part I - Test Results Test Mode Test Channel Frequency[MHz] Ant DTS6dBBW[MHz] Verdict 11B L 2412 Ant 1 7.08 pass 11B M 2437 Ant 1 7.10 pass 11B H 2462 Ant 1 7.09 pass 11G L 2412 Ant 1 16.08 pass 11G M 2437 Ant 1 16.37 pass 11G H 2462 Ant 1 16.38 pass 11N20 L 2412 Ant 1 17.23 pass 11N20 M 2437 Ant 1 17.61 pass 11N20 H 2462 Ant 1 17.60 pass RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 127 Part II - Test Plots 2.1 11B_L@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 127 2.3 11B_M@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 127 2.5 11B_H@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 127 2.7 11G_L@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 127 2.9 11G_M@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 127 2.11 11G_H@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 127 2.13 11N20_L@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 127 2.15 11N20_M@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 127 2.17 11N20_H@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 127 Appendix B: Occupied Bandwidth For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. Part I - Test Results Test Mode Test Channel Frequency[MHz] Ant Occupied Bandwidth [MHz] Verdict 11B L 2412 Ant 1 10.88 pass 11B M 2437 Ant 1 10.81 pass 11B H 2462 Ant 1 10.89 pass 11G L 2412 Ant 1 16.67 pass 11G M 2437 Ant 1 16.70 pass 11G H 2462 Ant 1 16.76 pass 11N20 L 2412 Ant 1 17.84 pass 11N20 M 2437 Ant 1 17.89 pass 11N20 H 2462 Ant 1 17.90 pass RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 127 Part II - Test Plots 2.1 11B_L@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 127 2.3 11B_M@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 127 2.5 11B_H@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 127 2.7 11G_L@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 17 of 127 2.9 11G_M@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 18 of 127 2.11 11G_H@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 19 of 127 2.13 11N20_L@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 20 of 127 2.15 11N20_M@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 21 of 127 2.17 11N20_H@Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 22 of 127 Appendix C: Duty cycle Part I - Test Results Test Mode TX Freq. [MHz] Ant Duty cycle [%] 11B CH1,CH6,CH11 Ant 1 99 11G CH1,CH6,CH11 Ant 1 95 11N20SISO CH1,CH6,CH11 Ant 1 95 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 23 of 127 Part II - Test Plots 2.1 11B_Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 24 of 127 2.2 11G_Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 25 of 127 2.3 11N_ Ant 1 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Pa…

Text truncated - open the document above for the full version.

RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 51 Appendix for Test report RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 51 Appendix A: DTS (6 dB) Bandwidth In this document, the "DTS6dBBW" refers to the measured "DTS (6 dB) Bandwidth" value. In this Appendix, the "fc(DTS6dBBW)" refers to the centre of the measured "DTS6dBBW". The introduction of the "fc(DTS6dBBW)" is due to that other measurements use it as the spectrum analyzer setting. For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. Part I - Test Results Test Mode Test Channel Frequency[MHz] Ant DTS6dBBW[MHz] Verdict TM1_Ch0 L 2402 Ant 1 0.51 pass TM1_Ch19 M 2440 Ant 1 0.51 pass TM1_Ch39 H 2480 Ant 1 0.51 pass RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 51 Part II - Test Plots 2.1 TM1_Ch0 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 51 2.3 TM1_Ch19 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 51 2.5 TM1_Ch39 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 51 Appendix B: Occupied Bandwidth For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. Part I - Test Results Test Mode Test Channel Frequency[MHz] Ant Occupied Bandwidth [MHz] Verdict TM1_Ch0 L 2402 Ant 1 1.05 pass TM1_Ch19 M 2440 Ant 1 1.05 pass TM1_Ch39 H 2480 Ant 1 1.05 pass RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 51 Part II - Test Plots 2.1 TM1_Ch0 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 51 2.1 TM1_Ch19 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 51 2.1 TM1_Ch39 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 51 Appendix C: Duty cycle Part I - Test Results Test Mode TX Freq. [MHz] Ant Duty cycle [%] TM1 CH0,CH19,CH39 Ant 1 15 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 51 Part II - Test Plots 2.1 TM1_Ch19 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 51 Appendix D: Maximum Conducted Average Output Power Part I - Test Results Test Mode Test Channel Frequency[MHz] Ant Power[dBm] Verdict TM1_Ch0 L 2402 Ant 1 5.00 pass TM1_Ch19 M 2440 Ant 1 5.41 pass TM1_Ch39 H 2480 Ant 1 3.83 pass RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 51 Part II - Test Plots 2.1 TM1_Ch0 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 51 2.3 TM1_Ch19 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 51 2.5 TM1_Ch39 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 51 Appendix E: Maximum Power Spectral Density Level Part I - Test Results Test Mode Test Channel Frequency[MHz] Ant PD[MHz] Verdict TM1_Ch0 L 2402 Ant 1 -3.70 pass TM1_Ch19 M 2440 Ant 1 -6.22 pass TM1_Ch39 H 2480 Ant 1 -4.97 pass RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 17 of 51 Part II - Test Plots 2.1 TM1_Ch0 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 18 of 51 2.3 TM1_Ch19 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 19 of 51 2.5 TM1_Ch39 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 20 of 51 Appendix F: Band Edges Compliance Part I - Test Results Test Mode Test Channel Frequency[MHz] Ant Carrier Power[dBm] Max.Spurious Level[dBm] Verdict TM1_Ch0 L 2402 Ant 1 4.79 -48.61 pass TM1_Ch39 H 2480 Ant 1 3.32 -49.35 pass RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 21 of 51 Part II - Test Plots 2.1 TM1_Ch0 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 22 of 51 2.3 TM1_Ch39 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 23 of 51 Appendix G: Unwanted Emissions into Non-Restricted Frequency Bands In this Appendix, the "Pref", which is used as the reference level, refers to the peak power level in any 100 kHz bandwidth within the fundamental emission, the "Puw" referrers to the maximum emission pow…

Text truncated - open the document above for the full version.

FCC RF Test Report Product Name: HUAWEI MediaPad M2 10.0 Model Number: M2-A01w Report No: SYBH(Z-RF)024122015-2003 FCC ID：QIS M2-A01W Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 14 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-1 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. 9. The laboratory (Reliability Lab of Huawei Technologies Co., Ltd) is also named as “Global Compliance and Testing Center of Huawei Technologies Co., Ltd”, the both names have coexisted since 2009. RF Test Report of M2-A01w Report No: SYBH(Z-RF)024122015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 14 Applicant: Huawei Tech…
