QISM570CDMA 1X Mobile Phone with Buetooth

M570 i Contents 1 Getting Started ................................................................ 1 Installing the Battery..................................................................1 Charging the Battery .................................................................1 Your Phone................................................................................2 Keys and Functions....................................................................3 Screen Icons ..............................................................................4 2 Call Functions .................................................................. 6 Making a Call ............................................................................6 Answering a Call .......................................................................6 Speed Dialing ............................................................................7 Call Waiting ...............................................................................7 Making a Conference Call..........................................................7 3 Text Input ........................................................................ 8 Changing the Text Input Mode ..................................................8 Entering English and Spanish .....................................................8 Entering a Number or a Symbol.................................................9 4 Contacts........................................................................... 9 Creating a Contact ....................................................................9 Searching for a Contact .............................................................9 Adding Favorites........................................................................9 Adding a Group.......................................................................10 Assigning Speed Dialing to a Contact ......................................10 5 Messaging ..................................................................... 10 Creating and Sending a SMS Message.....................................10 Creating and Sending a MMS Message ...................................10 Message Settings.....................................................................11 6 @metro App Store.......................................................... 11 ii Accessing @metro App Store...................................................11 Changing Your @metro App Store Settings .............................12 Using On-line Help ..................................................................12 7 MetroWEB ..................................................................... 13 8 Media Applications ........................................................ 13 Taking a Picture .......................................................................13 Recording a Video ...................................................................13 Recording an Audio clip ..........................................................14 9 Bluetooth....................................................................... 14 10 Security........................................................................ 15 Keypad Lock ............................................................................15 Phone Lock..............................................................................15 11 TTY Operation.............................................................. 16 Using the TTY Device ...............................................................16 Setting the TTY Mode..............................................................16 12 Troubleshooting........................................................... 17 13 Warnings and Precautions ........................................... 18 14 Limited Warranty of Huawei Device USA, Inc............... 31 15 Copyright ..................................................................... 36 1 Getting Started  All the pictures in this guide are provided for your reference only.  Please read the section "Warnings and Precautions" before using your phone for safety tips and precautions. Installing the Battery Charging the Battery  When the battery icon changes to or the charging animation becomes static, the battery is fully charged.  If the battery charge is fully depleted, it may take several minutes for 1 Your Phone 1 Earpiece 2 Screen 3 Navigation keys 4 Left soft key 5 Call/Answer key 6 Sound/Mute key 7 Number keys 8 * key 9 # key 10 Clear/Back key 11 End/Power key 12 Right soft key 13 Confirm key 14 Headset jack 15 Volume key 16 Camera 17 Charger connector 18 Speaker 2 Keys and Functions In this guide, the navigation keys of the phone are indicated by , , , and . The left soft key is indicated by , and the right soft key is indicated by . Press... To...  Dial a number or answer a call.  Access Call Logs in standby mode.  Power the phone on or off (press and hold the key for about 3 seconds).  End or reject a call.  Return to standby mode. Turn the speaker on or off (press and hold the key for about 3 seconds). Go back to the previous screen. Select the option displayed in the lower left corner of the screen. Select the option displayed in the lower right corner of the screen. Confirm a selection. 3 Press... To...  Access the functions assigned to the navigation keys in standby mode.  Scroll through a menu. –  Enter numbers, letters, and symbols.  Call voicemail in standby mode (press and hold for about 3 seconds).  Speed-dial phone numbers in standby mode (press and hold the keys – for about 3 seconds).  Enter *, +, P or T when entering phone numbers.  Switch between the current and Meeting profiles in standby mode (press and hold the key for about 3 seconds).  Access the symbol list in editing mode.  Enter #.  Lock the keypad in standby mode (press and hold the key for about 3 seconds).  Switch between input methods in editing mode. Screen Icons Screen icons listed in the following table indicate …

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Date (6/19/2012) BABT TCB Balfour House, Church field Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Huawei Industrial Base, Bantian Longgang, Shenzhen 518129, P.R China Hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No.4001 Fuqiang Road, Futian District, Shenzhen 518048 P.R. China Louis Lin Phone: +86-755-88286998 E-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988,U.S.C.862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISM570 Sincerely, Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base, Bantian Longgang, Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: Jiangsu TUV Product Service Ltd.-Shenzhen Branch Fax : NULL From：Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISM570 to be kept confidential: 1. Schematic Diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Statements Date (19/06/2012) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China Hereby to confirm that our device, Models: HUAWEI M570, FCC ID: QISM570, is not shipped with the battery pre-installed and the FCC ID is readily visible when users open the product box. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

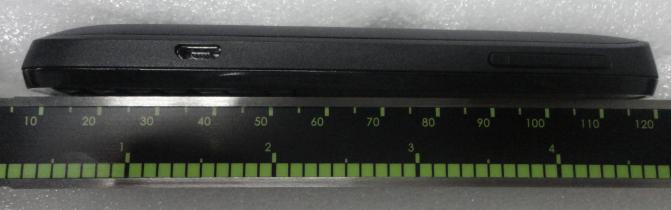

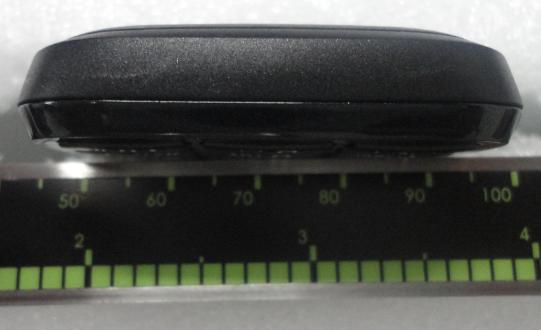

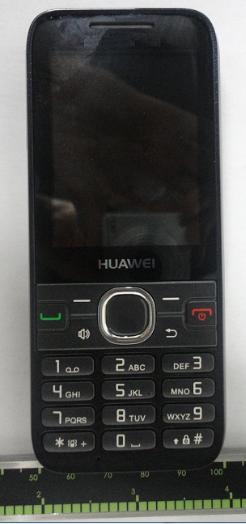

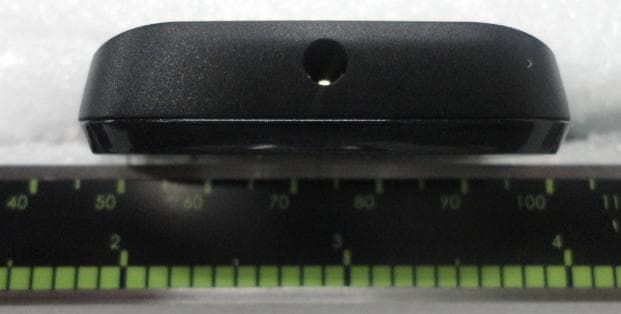

HUAWEI M570 CDMA 1X Mobile Phone SECRET 2012-05-25 Page1, Total3 External Photos of HUAWEI M570 HUAWEI M570 CDMA 1X Mobile Phone SECRET 2012-05-25 Page2, Total3 HUAWEI M570 CDMA 1X Mobile Phone SECRET 2012-05-25 Page3, Total3

HUAWEI M570 CDMA 1X Mobile Phone SECRET 2012-6-19 Page1, Total1 HUAWEI M570 Label & Label Location：

HUAWEI M570 CDMA 1X Mobile Phone SECRET 2012-05-25 Page1, Total4 Internal Photos of M570 HUAWEI M570 CDMA 1X Mobile Phone SECRET 2012-05-25 Page2, Total4 HUAWEI M570 CDMA 1X Mobile Phone SECRET 2012-05-25 Page3, Total4 HUAWEI M570 CDMA 1X Mobile Phone SECRET 2012-05-25 Page4, Total4

Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28785513 Fax: +86 755 36834474 FCC SAR Compliance Test Report Project Name: _______________________ Model : _______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED CHECKED PREPARED BY DATE 2012-06-19 2012-06-19 2012-06-19 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. HUAWEI M570 QISM570 SYBH(Z-SAR)008052012-2 CDMA 1X Mobile Phone Report No.: SYBH(Z-SAR)008052012-2 FCC ID: QISM570 2012-06-19 Page 2 of 27 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 4 1.3 EUT Description ......................................................................................................................................................... 5 1.3.1 General Description ........................................................................................................................................... 5 1.4 Test specification(s) .................................................................................................................................................. 6 1.5 Testing laboratory ....................................................................................................................................................... 6 1.6 Applicant and Manufacturer ...................................................................................................................................... 6 1.7 Application details ...................................................................................................................................................... 6 1.8 Ambient Condition ..................................................................................................................................................... 6 2 SAR Measurement System ............................................................................................................................................. 7 2.1 SAR Measurement Set-up ....................................................................................................................................... 7 2.2 Test environment ........................................................................................................................................................ 8 2.3 Data Acquisition Electronics description ................................................................................................................ 8 2.4 Probe description ....................................................................................................................................................... 9 2.5 Phantom description ................................................................................................................................................ 10 2.6 Device holder description ........................................................................................................................................ 10 2.7 Test Equipment List ................................................................................................................................................. 11 3 SAR Measurement Procedure ...................................................................................................................................... 12 3.1 Scanning procedure ................................................................................................................................................. 12 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 13 3.3 Data Storage and Evaluation .................................................................................................................................. 14 4 System Verification Procedure ........................................................................................................................................ 16 4.1 Tissue Verification .................................................................................................................................................... 16 4.2 System Check ........................................................................................................................................................... 18 4.3 Validation Procedure................................................................................................................................................ 18 5 Measurement Uncertainty Evaluation .......................................................................................................................... 19 5.1 Measurement uncertainty evaluation for SAR test .............................................................................................. 19 5.2 Measurement uncertainty evaluation for system validation ............................................................................... 20 6 SAR Test Configuration .................................…

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)008052012-2 FCC ID:QISM570 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D 835-ES-Head SystemPerformanceCheck-D 835-ES-Body SystemPerformanceCheck-D 1800-ES-Head SystemPerformanceCheck-D 1800-ES-Body SystemPerformanceCheck-D 1900-ES-Head SystemPerformanceCheck-D 1900-ES-Body Date/Time: 5/9/2012 22:31:19 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-ES-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.915 mho/m; ε r = 41.516; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.69 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.510 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 4.070 mW/g SAR(1 g) = 2.52 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 2.98 mW/g 0 dB = 2.69 mW/g = 8.59 dB mW/g Date/Time: 5/11/2012 11:56:14 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-ES-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.988 mho/m; ε r = 55.554; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.11, 6.11, 6.11); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.69 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.733 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 3.816 mW/g SAR(1 g) = 2.51 mW/g; SAR(10 g) = 1.64 mW/g Maximum value of SAR (measured) = 2.71 mW/g 0 dB = 2.69 mW/g = 8.59 dB mW/g Date/Time: 5/10/2012 21:35:58 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-ES-Head DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.453 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.35, 5.35, 5.35); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=10mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.0 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.609 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 17.676 mW/g SAR(1 g) = 9.23 mW/g; SAR(10 g) = 4.72 mW/g Maximum value of SAR (measured) = 10.4 mW/g 0 dB = 10.0 mW/g = 20.03 dB mW/g Date/Time: 5/11/2012 0:25:11 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-ES-Body DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.568 mho/m; ε r = 52.718; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.79, 4.79, 4.79); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.81 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 62.228 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 19.493 mW/g SAR(1 g) = 10.4 mW/g; SAR(10 g) = 5.35 mW/g Maximum value of SAR (measured) = 11.8 mW/g 0 dB = 9.81 mW/g = 19.84 dB mW/g Date/Time: 5/10/2012 15:43:41 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-ES-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.444 mho/m; ε r = 39.52; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.1, 5.1, 5.1); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.3 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.026 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 19.649 mW/g SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.23 mW/g Maximum value of SAR (measured) = 11.5 mW/g 0 dB = 10.3 mW/g = 20.26 dB mW/g Date/Time: 5/10/2012 10:02:15 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-ES-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.552 mho/m; ε r = 52.525; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Con…

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)008052012-2 FCC ID:QISM570 Appendix B. SAR Measurement Plots Table of contents CDMA800 MHz Head CDMA800 MHz Body CDMA1700 MHz Head CDMA1700 MHz Body CDMA1900 MHz Head CDMA1900 MHz Body Date/Time: 5/9/2012 23:04:07 Test Laboratory: HUAWEI SAR Lab M570 CDMA800 384CH Left Hand Touch Cheek DUT: M570; Type: CDMA 1X Mobile Phone ; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.916 mho/m; ε r = 41.49; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.559 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.087 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.738 mW/g SAR(1 g) = 0.567 mW/g; SAR(10 g) = 0.410 mW/g Maximum value of SAR (measured) = 0.597 mW/g Date/Time: 5/9/2012 23:30:03 Test Laboratory: HUAWEI SAR Lab M570 CDMA800 384CH Left hand tilt 15 degree DUT: M570; Type: CDMA 1X Mobile Phone ; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.916 mho/m; ε r = 41.49; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.376 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.755 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.502 mW/g SAR(1 g) = 0.378 mW/g; SAR(10 g) = 0.276 mW/g Maximum value of SAR (measured) = 0.406 mW/g 0 dB = 0.376 mW/g = -8.50 dB mW/g Date/Time: 5/9/2012 22:08:52 Test Laboratory: HUAWEI SAR Lab M570 CDMA800 384CH Right Hand Touch Cheek DUT: M570; Type: CDMA 1X Mobile Phone ; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.916 mho/m; ε r = 41.49; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.540 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.253 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.667 mW/g SAR(1 g) = 0.533 mW/g; SAR(10 g) = 0.388 mW/g Maximum value of SAR (measured) = 0.571 mW/g 0 dB = 0.540 mW/g = -5.36 dB mW/g Date/Time: 5/9/2012 22:35:47 Test Laboratory: HUAWEI SAR Lab M570 CDMA800 384CH Right Hand Tilt 15 degree DUT: M570; Type: CDMA 1X Mobile Phone ; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.916 mho/m; ε r = 41.49; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.401 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.739 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.500 mW/g SAR(1 g) = 0.392 mW/g; SAR(10 g) = 0.289 mW/g Maximum value of SAR (measured) = 0.415 mW/g 0 dB = 0.401 mW/g = -7.94 dB mW/g Date/Time: 5/10/2012 0:04:35 Test Laboratory: HUAWEI SAR Lab M570 CDMA800 384CH Left Hand Touch Cheek with battery SN-YACC301197701339 DUT: M570; Type: CDMA 1X Mobile Phone ; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.916 mho/m; ε r = 41.49; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.537 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.263 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.712 mW/g SAR(1 g) = 0.552 mW/g; SAR(10 g) = 0.400 mW/g Maximum value of SAR (measured) = 0.588 mW/g 0 dB = 0.537 mW/g = -5.39 dB mW/g Date/Time: 5/11/2012 12:21:29 Test Laboratory: HUAWEI SAR Lab M570 CDMA800 384CH Towards Phantom 15mm DUT: M570; Type: CDMA 1X Mobile Phone ; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.993 mho/m; ε r = 55.331; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.11, 6.11, 6.11); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.1(838); SEM…

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)008052012-2 FCC ID:QISM570 Appendix D. Photo documentation Table of contents Test Facility Test Positions Liquid depth Test Facility Photo 1: Measurement System DASY 5 Test Positions Photo 2: Front View Photo 3: Rear View Photo 4: Left Hand Touched Photo 5: Left Hand Tilted 15° Photo 6: Right Hand Touched Photo 7: Right Hand Tilted 15° Photo 8: Towards Phantom (15mm) Photo 9: Towards Ground (15mm) Photo 10: Towards Ground with Headset (15mm) Liquid depth Photo 11: HSL835MHz depth (15.1cm) Photo 12: MSL 835depth (15.2cm) Photo 13: HSL1800MHz depth (15cm) Photo 14: MSL1800MHz depth (15.2cm) Photo 15: HSL1900MHz depth (15.1cm) Photo 16: MSL1900MHz depth (15.2cm)
