QISM660cdma2000 Digital Mobile Phone

Welcome to Huawei User Guide Lite HUAWEI M660 Phone at a Glance All the pictures in this guide are for your reference only. If you apply protective film on the phone, please use the protective film with good transmittance. Key Functions at Your Fingertips • Press and hold to power on your mobile phone. • Press and hold to open the Phone options menu. • Press to lock the screen when your mobile phone is active. • Touch to return to the Home screen. • Touch and hold to open Recent. Touch to open the menu on an active screen. Power key Back camera Speaker Volume keys Headset jack Home Menu Back Delete Enter Alt Cap Smiley Space Symbol Installing the microSD Card If you want to expand your phone memory, you can also insert a microSD card. 1. Remove the battery cover. 2. Insert the microSD card into the card slot as shown in the diagram. Installing the Battery 1. Angle the edge labeled 1 (with the contacts) into the bottom end of the battery compartment. 2. Push the edge labeled 2 into the compartment until the battery clicks firmly into place. • Touch to return to the previous screen. • Touch to exit any application you are running. • Touch to hide the keyboard. Charging the Battery Before charging the battery, ensure that it has been properly installed on your phone. 1. Connect the USB cable that came with your mobile phone to the charger. 2. Connect the other end of the USB cable to your mobile phone. Then, to start charging, plug the charger into an electrical outlet. If you charge your mobile phone while it is powered on, the battery icon on the notification bar indicates the charging status. When the battery icon changes to , your mobile phone is fully charged. Status Indicator The color of the status indicator tells you the status of your mobile phone’s battery. Status Indicator Green: Fully charged (when connected to charger). Orange: Charging in progress (when connected to charger). Red: Battery low. Touchscreen Actions Using your finger on the touchscreen, you can operate your phone conveniently. Home Screen You can set up the Home screen according to your own preferences, for example by adding a shortcut or a widget to your Home screen, changing the wallpaper, or setting the number of Home screen extensions. Touch & hold TouchDouble touch RotateFlickDrag 10:23 Flick your finger left or right across the Home screen. When a new notification icon appears on the notification bar, place your finger on the notification bar and flick down to open the notification panel. Adding a New Home Screen Item 1. Touch and hold a blank area on the Home screen until the Select action menu is displayed. 2. Select an item to add it to the Home screen. Removing a Home Screen Item 1. Touch and hold an item on the Home screen until the item expands and the mobile phone vibrates. 2. Without lifting your finger, drag the item to the trash can. When the item and the trash can turn red, the item is ready to be removed. 3. Release the item to remove it from the Home screen. 10:23 10:23 Using the Phone Keypad Cursor: To enter an upper character of one key, press first and then the desired key. Cursor: To enter only upper characters, press twice before typing. Press again to switch back to lower-case letters. Cursor: To enter one upper-case letter, press first and then a key. Cursor: To enter only upper-case letters, press twice before typing. Press again to input lower- case letters. Press to display all expressions. Press to display all symbols. A/a aA A/a A/a A/a Adding a Contact 1. In the contact list, touch > Create contact. 2. If you have more than one account with contacts, touch the account to which you want to add the contact. 3. Enter the contact's name, and then add detailed information such as phone number and address. 4. When you are finished, touch Save to save the contact information. Making a Call with the Dialer Application On the home screen, touch to open the Dialer. Your mobile phone supports the SmartDial function, that is, when you touch numbers on the dialer, the phone automatically searches among your contacts and lists the matching results ordered according to the accuracy of the match. If no contacts match the information entered, the phone will not display any result. Creating and Sending a Multimedia Message On the home screen, touch to open the Messaging. You can use multimedia messages to make everyday communications very special. You can record a message and send it as an audio file, sing 'Happy Birthday' and send it to friend, or send a slideshow of photographs of a special event. The possibilities are endless. 1. Enter a phone number in the To field, or touch to select a contact from Contacts or Groups. 2. Touch the composition text box to start entering your message. 3. When the message is ready to be sent, touch . Connecting Internet Get online using your phone’s Wi-Fi to save your money. Turning On Wi-Fi 1. Touch > Settings. 2. Touch Wireless & networks, and then select the Wi-Fi check box to turn on Wi-Fi. Opening the Browser Touch > Browser to open the home page. When known or open Wi-Fi networks and mobile data networks are available at the same time, your phone will preferably select a Wi-Fi network for Internet access. 10:23 Opening a Webpage 1. In a browser window, touch the URL field at the top of the screen. 2. Use the keyboard to enter a webpage address. You can touch to enter the web page address by voice. 3. As you enter the address, matching webpage addresses will appear on the screen. If you see the address you want, touch it and go directly to that webpage or complete entering your desired webpage. Turning Off Your Data Service When you are not using your data service, to eliminate unwanted data traffic, you can turn it off quickly. 1. Open the notification bar. 2. Touch at the top of the screen to switch data services on or off. Opening Your Camera You can take and share photos using the camera. Your camera supports multiple capture modes and photo effects. Afte…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISM660 to be kept confidential: 1. Schematic diagram 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2012-05-02 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISM660 Product Name: cdma2000 Digital Mobile Phone; Product Model: HUAWEI M660, M660 To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 90 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify CETECOM with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely ,

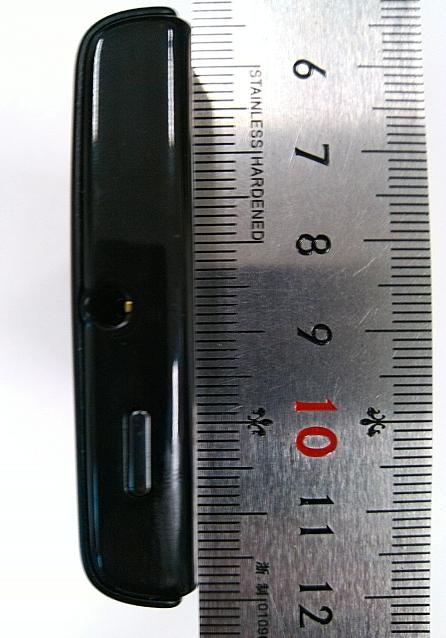

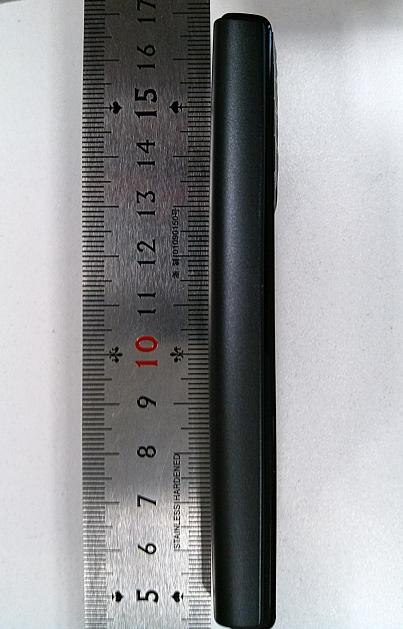

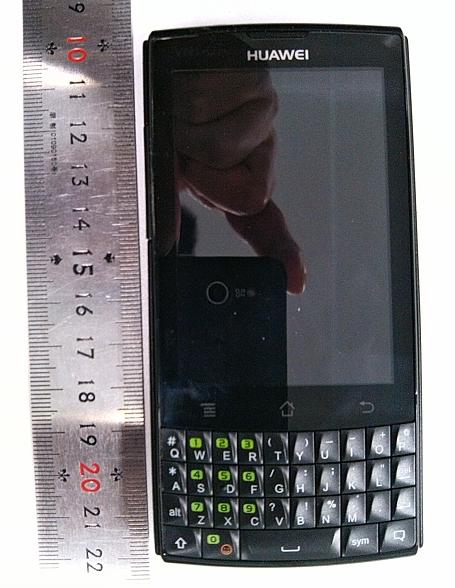

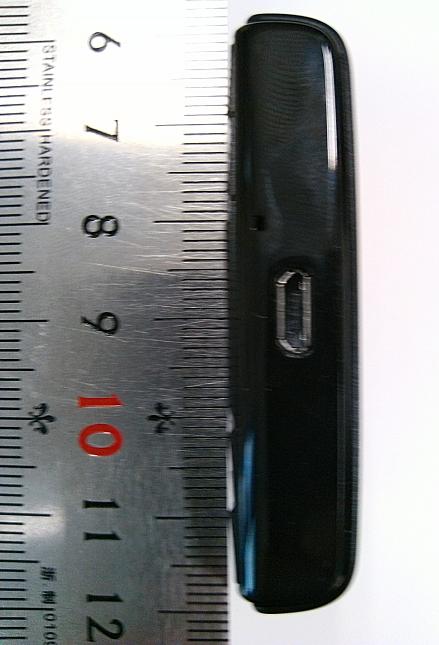

HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page1,Total 7 External Photos of HUAWEI M660, M660 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page2,Total 7 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page3,Total 7 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page4,Total 7 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page5,Total 7 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page6,Total 7 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page7,Total 7

HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page1, Total 6 Label Location of HUAWEI M660, M660 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page2, Total 6 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page3, Total 6 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page4, Total 6 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page5, Total 6

HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page1,Total 9 Internal Photos of HUAWEI M660, M660 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page2,Total 9 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page3,Total 9 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page4,Total 9 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page5,Total 9 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page6,Total 9 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page7,Total 9 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page8,Total 9 HUAWEI M660, M660 cdma2000 Digital Mobile Phone; SECRET Page9,Total 9

Report No: SYBH(Z-SAR)001042012-2 FCC ID:QISM660 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-EX-Head SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1800-EX-Head SystemPerformanceCheck-D1800-EX-Body SystemPerformanceCheck-D1900-EX-Head SystemPerformanceCheck-D1900-EX-Body SystemPerformanceCheck-D2450-EX-Head SystemPerformanceCheck-D2450-EX-Body Date/Time: 4/5/2012 11:15:12 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.886 mho/m; ε r = 42.399; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.33, 8.33, 8.33); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.495 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 46.613 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 3.6940 SAR(1 g) = 2.46 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (measured) = 2.651 mW/g 0 dB = 2.650mW/g = 8.46 dB mW/g Date/Time: 4/1/2012 0:38:28 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.984 mho/m; ε r = 53.198; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.45, 8.45, 8.45); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.676 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 44.800 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 3.8410 SAR(1 g) = 2.57 mW/g; SAR(10 g) = 1.68 mW/g Maximum value of SAR (measured) = 2.767 mW/g 0 dB = 2.770mW/g = 8.85 dB mW/g Date/Time: 4/3/2012 8:36:19 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-EX-Head DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.463 mho/m; ε r = 40.821; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(7.62, 7.62, 7.62); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.573 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 71.246 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 18.9960 SAR(1 g) = 9.98 mW/g; SAR(10 g) = 5.11 mW/g Maximum value of SAR (measured) = 11.192 mW/g 0 dB = 11.190mW/g = 20.98 dB mW/g Date/Time: 3/31/2012 9:43:29 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-EX-Body DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.561 mho/m; ε r = 53.254; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(7.19, 7.19, 7.19); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.152 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 80.841 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 17.7060 SAR(1 g) = 9.59 mW/g; SAR(10 g) = 5 mW/g Maximum value of SAR (measured) = 10.790 mW/g 0 dB = 10.790mW/g = 20.66 dB mW/g Date/Time: 4/3/2012 13:23:10 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.443 mho/m; ε r = 38.781; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(7.26, 7.26, 7.26); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.994 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.017 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 18.6100 SAR(1 g) = 9.79 mW/g; SAR(10 g) = 5.02 mW/g Maximum value of SAR (measured) = 11.013 mW/g 0 dB = 11.010mW/g = 20.84 dB mW/g Date/Time: 4/2/2012 0:03:47 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.529 mho/m; ε r = 52.954; ρ …

Text truncated - open the document above for the full version.

Report No: SYBH(Z-SAR)001042012-2 FCC ID: QISM660 Appendix B. SAR Measurement Plots Table of contents CDMA 800 MHz Head CDMA 800 MHz Body CDMA 1700 MHz Head CDMA 1700 MHz Body CDMA 1900 MHz Head CDMA 1900 MHz Body WiFi2450 MHz Head WiFi2450 MHz Body Date/Time: 4/5/2012 11:45:47 Test Laboratory: HUAWEI SAR Lab M660 CDMA800 384CH Left Hand Touch Cheek DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.891 mho/m; ε r = 42.368; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.33, 8.33, 8.33); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.559 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.072 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.7040 SAR(1 g) = 0.536 mW/g; SAR(10 g) = 0.394 mW/g Maximum value of SAR (measured) = 0.582 mW/g 0 dB = 0.580mW/g = -4.73 dB mW/g Date/Time: 4/5/2012 12:13:34 Test Laboratory: HUAWEI SAR Lab M660 CDMA800 384CH Left Hand Tilt 15 degree DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.891 mho/m; ε r = 42.368; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.33, 8.33, 8.33); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.425 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.296 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.5200 SAR(1 g) = 0.416 mW/g; SAR(10 g) = 0.319 mW/g Maximum value of SAR (measured) = 0.439 mW/g 0 dB = 0.440mW/g = -7.13 dB mW/g Date/Time: 4/5/2012 13:02:17 Test Laboratory: HUAWEI SAR Lab M660 CDMA800 384CH Right Hand Touch Cheek DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.891 mho/m; ε r = 42.368; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.33, 8.33, 8.33); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.613 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.276 V/m; Power Drift = -0.0028 dB Peak SAR (extrapolated) = 0.7630 SAR(1 g) = 0.587 mW/g; SAR(10 g) = 0.435 mW/g Maximum value of SAR (measured) = 0.619 mW/g 0 dB = 0.620mW/g = -4.15 dB mW/g Date/Time: 4/5/2012 14:11:15 Test Laboratory: HUAWEI SAR Lab M660 CDMA800 384CH Right Hand Tilt 15 degree DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.891 mho/m; ε r = 42.368; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.33, 8.33, 8.33); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.442 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.707 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.5420 SAR(1 g) = 0.430 mW/g; SAR(10 g) = 0.326 mW/g Maximum value of SAR (measured) = 0.449 mW/g 0 dB = 0.450mW/g = -6.94 dB mW/g Date/Time: 4/5/2012 14:45:41 Test Laboratory: HUAWEI SAR Lab M660 CDMA800 384CH Right Hand Touch Cheek with Battery SN-UBDC204XXAS00908 DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.891 mho/m; ε r = 42.368; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.33, 8.33, 8.33); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.669 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.179 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.7990 SAR(1 g) = 0.630 mW/g; SAR(10 g) = 0.465 mW/g Maximum value of SAR (measured) = 0.666 mW/g Date/Time: 4/1/2012 12:00:42 Test Laboratory: HUAWEI SAR Lab M660 CDMA800 384CH Towards Phantom 15mm with 1xRTT DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.981 mho/m; ε r = 53.352; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.45, 8.45, 8.45); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 3…

Text truncated - open the document above for the full version.

Date/Time: 4/1/2012 22:46:31 Test Laboratory: HUAWEI SAR Lab M660 CDMA800 384CH Towards Ground 10mm with EVDO Rev.A with Battery SN-UBDC204XXAS00908 DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.981 mho/m; ε r = 53.352; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.45, 8.45, 8.45); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.909 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.768 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 1.0860 SAR(1 g) = 0.834 mW/g; SAR(10 g) = 0.619 mW/g Maximum value of SAR (measured) = 0.897 mW/g 0 dB = 0.900mW/g = -0.92 dB mW/g Date/Time: 4/1/2012 23:27:12 Test Laboratory: HUAWEI SAR Lab M660 CDMA800 384CH Towards Ground 10mm with EVDO Rev.A with Battery SN-UBDC204XXAS00908-close Hotspot DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.981 mho/m; ε r = 53.352; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.45, 8.45, 8.45); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.197 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.804 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 1.6960 SAR(1 g) = 1.18 mW/g; SAR(10 g) = 0.852 mW/g Maximum value of SAR (measured) = 1.303 mW/g 0 dB = 1.300mW/g = 2.28 dB mW/g Date/Time: 4/3/2012 11:06:45 Test Laboratory: HUAWEI SAR Lab M660 CDMA1700 450CH Left Hand Touch Cheek DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 1732.5 MHz Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.406 mho/m; ε r = 41.14; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(7.62, 7.62, 7.62); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.572 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.914 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.9090 SAR(1 g) = 0.561 mW/g; SAR(10 g) = 0.340 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.605 mW/g 0 dB = 0.600mW/g = -4.44 dB mW/g Date/Time: 4/3/2012 11:36:22 Test Laboratory: HUAWEI SAR Lab M660 CDMA1700 450CH Left Hand Tilt 15 Degree DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 1732.5 MHz Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.406 mho/m; ε r = 41.14; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(7.62, 7.62, 7.62); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.423 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.882 V/m; Power Drift = -0.00057 dB Peak SAR (extrapolated) = 0.6120 SAR(1 g) = 0.412 mW/g; SAR(10 g) = 0.257 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.450 mW/g 0 dB = 0.450mW/g = -6.94 dB mW/g Date/Time: 4/3/2012 10:06:32 Test Laboratory: HUAWEI SAR Lab M660 CDMA1700 450CH Right Hand Touch Cheek DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 1732.5 MHz Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.406 mho/m; ε r = 41.14; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(7.62, 7.62, 7.62); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.653 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.396 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 1.0000 SAR(1 g) = 0.635 mW/g; SAR(10 g) = 0.388 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.720 mW/g 0 dB = 0.720mW/g = -2.85 dB mW/g Date/Time: 4/3/2012 10:38:06 Test Laboratory: HUAWEI SAR Lab M660 CDMA1700 450CH Right Hand Tilt 15 Degree DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 1732.5 …

Text truncated - open the document above for the full version.

Date/Time: 3/31/2012 22:04:46 Test Laboratory: HUAWEI SAR Lab M660 CDMA1700 450CH Towards Ground 10mm with 1xRTT DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 1732.5 MHz Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.49 mho/m; ε r = 53.541; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(7.19, 7.19, 7.19); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.870 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.744 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 1.3430 SAR(1 g) = 0.824 mW/g; SAR(10 g) = 0.487 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.911 mW/g 0 dB = 0.910mW/g = -0.82 dB mW/g Date/Time: 3/31/2012 23:38:53 Test Laboratory: HUAWEI SAR Lab M660 CDMA1700 450CH Towards Ground 10mm with EVDO Rev.A with Battery SN-UBDC204XXAS00908 DUT: M660; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: SAR1 Communication System: CDMA2000; Frequency: 1732.5 MHz Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.49 mho/m; ε r = 53.541; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; Conv…
