QISM866CDMA, Bluetooth, WIFI Mobile Phone

Welcome to HUAWEI Quick Start Guide Phone number: Personal Information and Data Security The use of some functions or third-party applications on your device could result in your personal information and data being lost or becoming accessible to others. Several measures are recommended to help you protect personal and confidential information. • Place your device in a safe area to prevent it from unauthorized use. • Set your device screen to lock and create a password or unlock pattern to open it. • Periodically back up personal information kept on your memory card, or stored in your device memory. If you change to a different device, be sure to move or delete any personal information on your old device. • If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without opening them. • If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your personal information. • If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access. When these services are not in use, turn them off. • Install or upgrade device security software and regularly scan for viruses. • Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should be scanned for viruses. • Install security software or patches released by Huawei or third-party application providers. • Some applications require and transmit location information. As a result, a third- party may be able to share your location information. • Your device may provide detection and diagnostic information to third-party application providers. Third party vendors use this information to improve their products and services. • If you have concerns about the security of your personal information and data, please contact [email protected]. What is in Your Box Customizing the Home Screen Adding a New Home Screen Item 1. Touch and hold a blank area on the Home screen until the Select actionSelect action menu is displayed. 2. Select an item to add it to the Home screen. Moving a Home Screen Item 1. Touch and hold an item on the Home screen until the item expands in size and the mobile phone vibrates. 2. Without lifting your finger, drag the item to the desired position on the screen, and then release it. Removing a Home Screen Item 1. Touch and hold an item on the Home screen until the item expands and the mobile phone vibrates. 2. Without lifting your finger, drag the item to the trash can. When the item and the trash can turn red, the item is ready to be removed. 3. Release the item to remove it from the Home screen. Changing the Wallpaper 1. On the Home screen, touch > Wallpaper. 2. Touch the following menu items to select a picture and set it as the wallpaper: • Gallery • Live wallpapers • Wallpapers • Mobile phone • Charger • USB cable • Quick Start Guide •User Guide Lite • Battery Application Screen The Application screen holds icons for all of the applications on your phone. You can touch on the Home screen to open the application screen. Moving Icons on the Application Screen 1. On the application screen, touch . 2. Touch and hold the icon you want to move on the application screen. 3. Without lifting your finger, drag the icon to the desired location, and then release it. To move more icons, repeat steps 2 and 3. 4. Touch or to save. Making a Call with the Dialer Application Your mobile phone supports the SmartDial function, that is, when you touch numbers on the dialer, the phone automatically searches among your contacts and lists the matching results ordered according to the accuracy of the match. If no contacts match the information entered, the phone will not display any result. 1. On the Home screen, touch > Dialer to display the dialer. 2. Touch the appropriate number keys to enter the phone number. 3. Touch to initiate the call. Answering an Incoming Call Drag to the right to answer the call. Contacts Adding a Contact 1. In the contact list, touch > Create contact. 2. If you have more than one account with contacts, touch the account to which you want to add the contact. 3. Enter the contact's name, and then add detailed information such as phone number and address. 4. When you are finished, touch Done to save the contact information. Editing a Contact You can make changes to the information you have stored for a contact at any time. 1. In the contacts list, touch and hold the contact whose details you want to edit, and then touch Edit contact in the options menu. 2. Touch the category of contact information you wish to change: name, phone number, email address, or any other information you recorded earlier. 3. Make the desired changes to the contact information, and then touch Done. To cancel all of your changes, touch Cancel. Creating and Sending a Multimedia Message You can use multimedia messages to make everyday communications very special. You can record a message and send it as an audio file, sing 'Happy Birthday' and send it to friend, or send a slideshow of photographs of a special event. The possibilities are endless. 1. Enter a phone number in the To field, or touch to select a contact from Contacts or Groups. 2. Touch the composition text box to start entering your message. 3. When the message is ready to be sent, touch Send. On the message editing screen, you can also touch, and then select your desired files to add. Adding a Slideshow If you want to attach more than one file to your message, use the Slideshow option. 1. On the message editing screen, touch to display the options panel. 2. Touch Attach > SlideshowAdd > Slideshow, and then select a slide to start editing it. 3. Touch and then touch More > Add slide to add more slides. 4. Touch Done to finish composing your message and return to the multimedia message screen. 5. To alter your multimedia message, touch the slideshow on the multimedia message screen. When the messa…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Date (04/06/2012) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Huawei Industrial Base, Bantian Longgang, Shenzhen 518129, P.R China Hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No.4001 Fuqiang Road, Futian District, Shenzhen 518048 P.R. China Louis Lin Phone:+86-755-88286998 e-mail:[email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988,U.S.C.862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: Model: H866C, FCC ID: QISM866 Sincerely, Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: Jiangsu TUV Product Service Ltd.-Shenzhen Branch Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for Model: H866C, FCC ID: QISM866 to be kept confidential: 1. Schematic diagram 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2012-05-31 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISM866 Product Name: cdma2000 Digital Mobile Phone Product Model: HUAWEI H866C, H866C To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 90 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to JIANGSU TÜV PRODUCT SERVICE LTD.–SHENZHEN BRANCH should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify JIANGSU TÜV PRODUCT SERVICE LTD.–SHENZHEN BRANCH with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify JIANGSU TÜV PRODUCT SERVICE LTD.–SHENZHEN BRANCH in the event the information regarding the product of the product is made available to the public. JIANGSU TÜV PRODUCT SERVICE LTD.–SHENZHEN BRANCH will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely ,

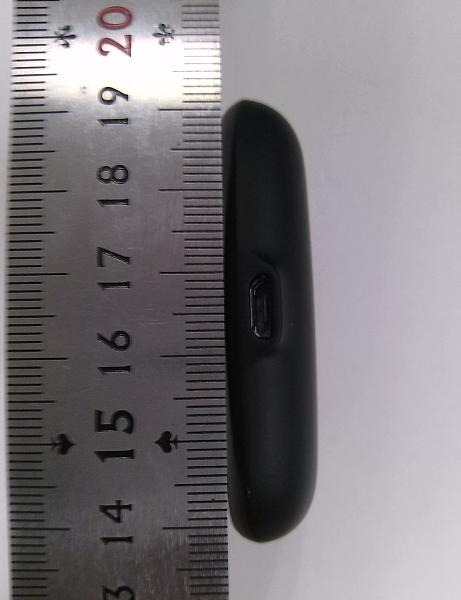

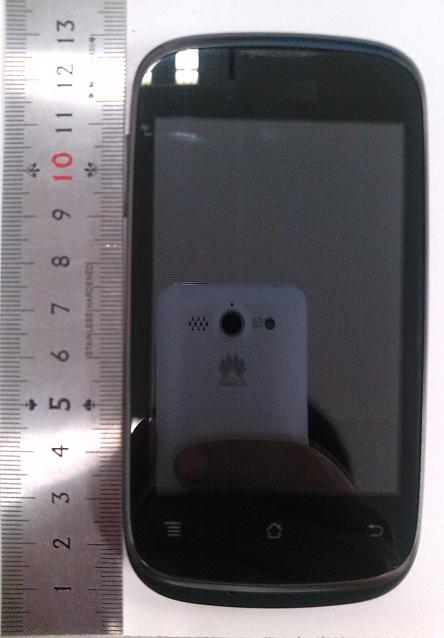

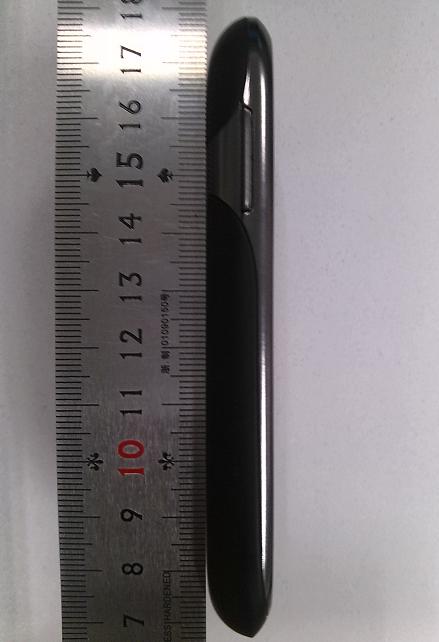

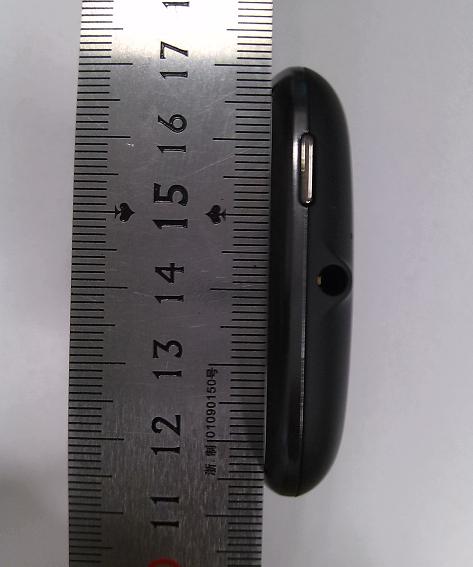

HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page1,Total 7 External Photos of HUAWEI H866C, H866C HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page2,Total 7 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page3,Total 7 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page4,Total 7 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page5,Total 7 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page6,Total 7 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page7,Total 7

HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page1, Total 3 Label Location of HUAWEI H866C, H866C HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page2, Total 3 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page3, Total 3

HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page1,Total 12 Internal Photos of HUAWEI H866C, H866C HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page2,Total 12 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page3,Total 12 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page4,Total 12 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page5,Total 12 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page6,Total 12 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page7,Total 12 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page8,Total 12 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page9,Total 12 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page10,Total 12 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page11,Total 12 HUAWEI H866C, H866C cdma2000 Digital Mobile Phone; SECRET Page12,Total 12

Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28785513 Fax: +86 755 36834474 FCC SAR Compliance Test Report Project Name: _______________________ Model : _______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED CHECKED PREPARED BY DATE 2012-05-28 2012-05-28 2012-05-28 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. HUAWEI H866C, H866C QISM866 SYBH(Z-SAR)040042012-2 cdma2000 Digital Mobile Phone Report No.: SYBH (Z-SAR)040042012-2 FCC ID: QISM866 2012-05-28 Page 2 of 31 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 4 1.3 EUT Description ......................................................................................................................................................... 5 1.3.1 General Description ........................................................................................................................................... 6 1.4 Test specification(s) .................................................................................................................................................. 7 1.5 Testing laboratory ....................................................................................................................................................... 7 1.6 Applicant and Manufacturer ...................................................................................................................................... 7 1.7 Application details ...................................................................................................................................................... 7 1.8 Ambient Condition ..................................................................................................................................................... 7 2 SAR Measurement System ............................................................................................................................................. 8 2.1 SAR Measurement Set-up ....................................................................................................................................... 8 2.2 Test environment ........................................................................................................................................................ 9 2.3 Data Acquisition Electronics description ................................................................................................................ 9 2.4 Probe description ..................................................................................................................................................... 10 2.5 Phantom description ................................................................................................................................................ 11 2.6 Device holder description ........................................................................................................................................ 11 2.7 Test Equipment List ................................................................................................................................................. 12 3 SAR Measurement Procedure ...................................................................................................................................... 13 3.1 Scanning procedure ................................................................................................................................................. 13 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 14 3.3 Data Storage and Evaluation .................................................................................................................................. 15 4 System Verification Procedure ........................................................................................................................................ 17 4.1 Tissue Verification .................................................................................................................................................... 17 4.2 System Check ........................................................................................................................................................... 19 4.3 Validation Procedure................................................................................................................................................ 19 5 Measurement Uncertainty Evaluation .......................................................................................................................... 20 5.1 Measurement uncertainty evaluation for SAR test .............................................................................................. 20 5.2 Measurement uncertainty evaluation for system validation ............................................................................... 21 6 SAR Test Configuration ................…

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)040042012-2 FCC ID:QISM866 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D 835-ES-Head SystemPerformanceCheck-D 835-ES-Body SystemPerformanceCheck-D1900-ES-Head SystemPerformanceCheck-D1900-ES-Body SystemPerformanceCheck-D 2450-ES-Head SystemPerformanceCheck-D 2450-ES-Body Date/Time: 4/27/2012 12:06:09 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-ES-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.918 mho/m; ε r = 41.41; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.691 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 43.548 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 3.6530 SAR(1 g) = 2.5 mW/g; SAR(10 g) = 1.64 mW/g 0 dB = 2.690mW/g = 8.60 dB mW/g Date/Time: 4/26/2012 21:19:10 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-ES-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.988 mho/m; ε r = 56.611; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.11, 6.11, 6.11); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.831 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.988 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 3.4590 SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.58 mW/g Maximum value of SAR (measured) = 2.473 mW/g 0 dB = 2.470mW/g = 7.85 dB mW/g Date/Time: 4/29/2012 23:34:26 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-ES-Head DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.422 mho/m; ε r = 39.769; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.1, 5.1, 5.1); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.404 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 49.741 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 19.0190 SAR(1 g) = 9.92 mW/g; SAR(10 g) = 5.06 mW/g Maximum value of SAR (measured) = 11.204 mW/g 0 dB = 11.200mW/g = 20.98 dB mW/g Date/Time: 4/29/2012 15:04:01 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-ES-Body DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.536 mho/m; ε r = 52.954; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.61, 4.61, 4.61); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 11.339 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 89.890 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 19.3900 SAR(1 g) = 10.5 mW/g; SAR(10 g) = 5.4 mW/g Maximum value of SAR (measured) = 11.917 mW/g 0 dB = 11.920mW/g = 21.53 dB mW/g Date/Time: 4/30/2012 3:02:43 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-ES-Head DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.853 mho/m; ε r = 37.696; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.4, 4.4, 4.4); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.374 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.817 V/m; Power Drift = 0.008 dB Peak SAR (extrapolated) = 30.2670 SAR(1 g) = 13.8 mW/g; SAR(10 g) = 6.18 mW/g Maximum value of SAR (measured) = 15.531 mW/g 0 dB = 15.530mW/g = 23.82 dB mW/g Date/Time: 5/3/2012 1:26:29 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-ES-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.977 mho/m; ε r = 52.28; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.19, 4.19, 4.19); Calibrated: 9/27/2011 lSensor…

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)040042012-2 FCC ID:QISM866 Appendix B. SAR Measurement Plots Table of contents CDMA 800 MHz Head CDMA 800 MHz Body CDMA 1900 MHz Head CDMA 1900 MHz Body WiFi 802.11b Head WiFi 802.11b Body Date/Time: 4/27/2012 12:32:15 Test Laboratory: HUAWEI SAR Lab H866C CDMA800 384CH Left hand touch cheek DUT: H866C; Type: cdma2000 Digital Mobile Phone; Serial: SAR1 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.926 mho/m; ε r = 41.707; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.424 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.177 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.4870 SAR(1 g) = 0.372 mW/g; SAR(10 g) = 0.282 mW/g Maximum value of SAR (measured) = 0.407 mW/g 0 dB = 0.410mW/g = -7.74 dB mW/g Date/Time: 4/27/2012 13:02:55 Test Laboratory: HUAWEI SAR Lab H866C CDMA800 384CH Left hand tilt 15 degree DUT: H866C; Type: cdma2000 Digital Mobile Phone; Serial: SAR1 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.926 mho/m; ε r = 41.707; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.288 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.570 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.3480 SAR(1 g) = 0.281 mW/g; SAR(10 g) = 0.213 mW/g Maximum value of SAR (measured) = 0.295 mW/g 0 dB = 0.290mW/g = -10.75 dB mW/g Date/Time: 4/27/2012 14:12:37 Test Laboratory: HUAWEI SAR Lab H866C CDMA800 384CH Right hand touch cheek DUT: H866C; Type: cdma2000 Digital Mobile Phone; Serial: SAR1 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.926 mho/m; ε r = 41.707; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.488 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.292 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.5550 SAR(1 g) = 0.447 mW/g; SAR(10 g) = 0.336 mW/g Maximum value of SAR (measured) = 0.475 mW/g 0 dB = 0.470mW/g = -6.56 dB mW/g Date/Time: 4/27/2012 14:36:30 Test Laboratory: HUAWEI SAR Lab H866C CDMA800 384CH Right hand tilt 15 degree DUT: H866C; Type: cdma2000 Digital Mobile Phone; Serial: SAR1 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.926 mho/m; ε r = 41.707; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.308 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.677 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.3690 SAR(1 g) = 0.298 mW/g; SAR(10 g) = 0.227 mW/g Maximum value of SAR (measured) = 0.314 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.677 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.3330 SAR(1 g) = 0.241 mW/g; SAR(10 g) = 0.161 mW/g Maximum value of SAR (measured) = 0.283 mW/g 0 dB = 0.280mW/g = -11.06 dB mW/g Date/Time: 4/27/2012 16:25:08 Test Laboratory: HUAWEI SAR Lab H866C CDMA800 384CH Right hand touch cheek with Battery UAIBC16X03016246 DUT: H866C; Type: cdma2000 Digital Mobile Phone; Serial: SAR1 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.926 mho/m; ε r = 41.707; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.489 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.119 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.5700 SAR(1 g) = 0.456 mW/g; SAR(10 g) = 0.341 mW/g Maximum value of SAR (measured) = 0.485 mW/g 0 dB = 0.490mW/g = -6.20 dB mW/g Date/Time: 4/27/2012 15:20:03 Test Laboratory: HUAWEI SAR Lab H866C CDMA800 384CH Right hand touch cheek with Battery UNDC306X03000359 DUT: H866C; Type: cdma2000 Digital Mobile Phone; Serial: SAR1 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medi…

Text truncated - open the document above for the full version.

Justification of the extended calibration of Dipole D2450V2 SN: 860 Per KDB 450824, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the…

Text truncated - open the document above for the full version.
