QISM881cdma2000 Digital Mobile Phone

Welcome to HUAWEI Quick Start Guide HUAWEI Ascend Y300 1 Phone at a Glance All the pictures in this guide are for your reference only. Your phone's actual display features may be different to those described here, depending on its software version. Key Functions at Your Fingertips • Press and hold to power on your mobile phone. • When your mobile phone is powered on, press and hold this button to display the options menu. You can then choose to power off the phone or perform shortcut operations. • Press to lock the screen when your mobile phone is active. Touch to open the menu on an active screen. Earpiece Main camera Volume key Headset jack Charger/ Data port Power key Back Home Menu Speaker Secondary camera 2 Installing the microSD Card If you want to expand your phone memory, you can also insert a microSD card. 1. Remove the battery cover. 2. Insert the microSD card into the card slot as shown in the diagram. Installing the Battery 1. Angle the edge labeled a (with the contacts) into the bottom end of the battery compartment. 2. Push the edge labeled b into the compartment until the battery clicks firmly into place. • Touch to return to the Home screen. • Touch and hold to display recently used applications. • Touch to return to the previous screen or exit the application you are running. • Touch to hide the keyboard. 12 a b 3 Charging the Battery Before charging the battery, ensure that it has been properly installed on your phone. 1. Connect the USB cable that came with your mobile phone to the charger. 2. Connect the other end of the USB cable to your mobile phone. Then, to start charging, plug the charger into an electrical outlet. If you charge your mobile phone while it is powered on, the battery icon on the notification bar indicates the charging status. When the battery icon changes to , your mobile phone is fully charged. Status Indicator The color of the status indicator tells you the status of your mobile phone's battery. Status Indicator Green: Fully charged (when connected to charger). Orange: Charging in progress (when connected to charger). Red: Battery low. 4 Touchscreen Actions Using your finger on the touchscreen, you can operate your phone conveniently. Home Screen You can set up the Home screen according to your own preferences, for example by adding a shortcut or a widget to your Home screen, changing the wallpaper, or setting the number of Home screen extensions. To return to the Home screen from any of its extensions, press . Touch & hold TouchDouble touch RotateFlickDrag 10:23 Flick your finger left or right across the Home screen. 5 When a new notification icon appears on the notification bar, place your finger on the notification bar and flick down to open the notification panel. Adding a New Home Screen Item 1. On the Home screen, touch to display the application list. 2. Press and hold an application icon, and then drag the icon to a blank area on the Home screen. Removing an Icon from the Home Screen 1. Touch and hold an item on the Home screen that you want to remove until your mobile phone vibrates. 2. Without lifting your finger, drag the item to the trash can. Wait until the item and the trash can turn red. 3. Release the item. Adding a Contact 1. In the contact list, touch . 2. From the screen displayed, create a contact in your mobile phone, or your account. Add a new account if you do not have one. 3. Enter the contact's name, and then add detailed information such as phone numbers and address. 4. Touch DONE to save the contact information. To save a contact from your call log, touch and hold the desired phone number to display the options menu, and then touch Add to contacts. 6 Making a Call with the Phone Application 1. On the Home screen, touch > Phone. If the dialer is not displayed, touch . 2. Enter the phone number. 3. Touch to initiate the call. Creating and Sending a Multimedia Message You can use multimedia messages to make everyday communications very special. You can record a message and send it as an audio file, for example, sing "Happy Birthday" and send it to a friend, or send a slideshow of photographs of a special event. The possibilities are enormous. 1. Touch > Messaging, then . 2. Enter a phone number in the To field, or touch to select a contact from People. 3. Touch the composition text box to start composing your message. 4. Touch to attach a picture, an audio file, or a video clip to the message. 5. When you are ready to send the message, touch Send MMS. Connecting Internet Get online using your phone's Wi-Fi to save your money. Turning On Wi-Fi 1. Touch > Settings. 7 2. Under WIRELESS & NETWORKS, touch the button next to Wi-Fi. Basic Operations Touch > Browser to open the home page. When known or open Wi-Fi networks and mobile data networks are available at the same time, your phone will preferably select a Wi-Fi network for Internet access. Touch on the upper section of the screen, and all web pages currently open are displayed. You can: • Touch one page to enlarge it. • Touch the cross sign (×) to close that page. • Touch (+) to open a new browser window. Opening a Webpage 1. In a browser window, touch the URL field at the top of the screen. 2. Use the keyboard to enter a webpage address. 3. As you enter the address, matching webpage addresses will appear on the screen. If you see the address you want, touch it and go directly to that webpage or complete entering your desired webpage. Turning Off Your Data Service When you are not using your data service, to eliminate unwanted data traffic, you can turn it off quickly. 1. Open the notification bar. 2. Touch at the top of the screen to switch data services on or off. 8 Play Store Android Play Store provides direct access to applications and games which you can download and install on your phone. Opening Play Store 1. On the Home screen, touch > Play Store. 2. When you open Play Store for the first time, the Google Play Terms of Service window will appear. Touch Accept to co…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2013-04-22 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISM881 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure KDB Inquiry Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2013-6-30: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

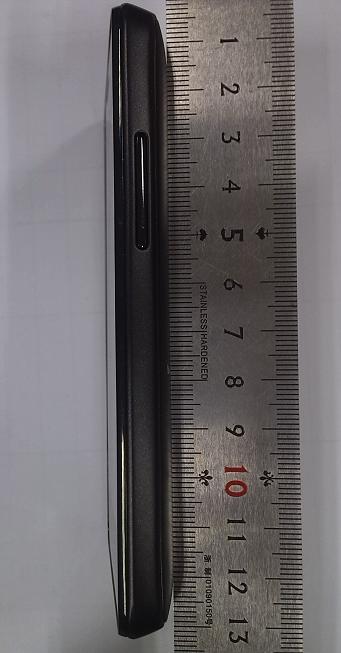

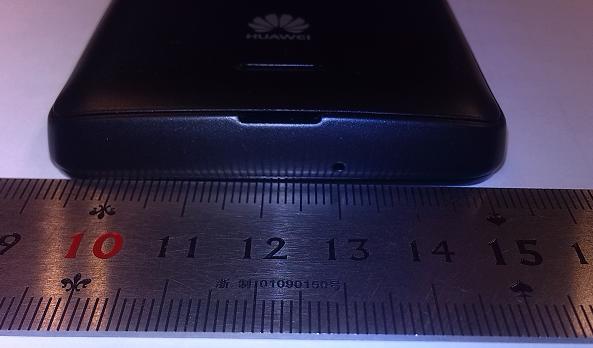

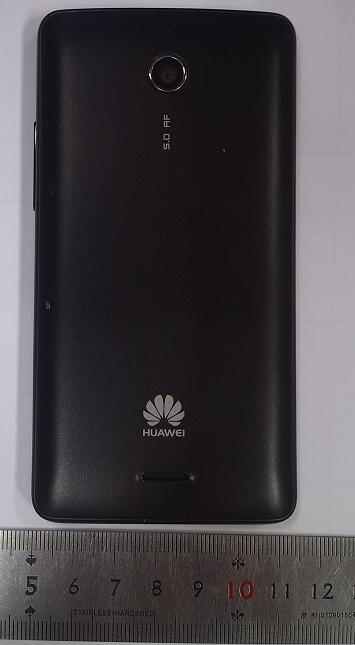

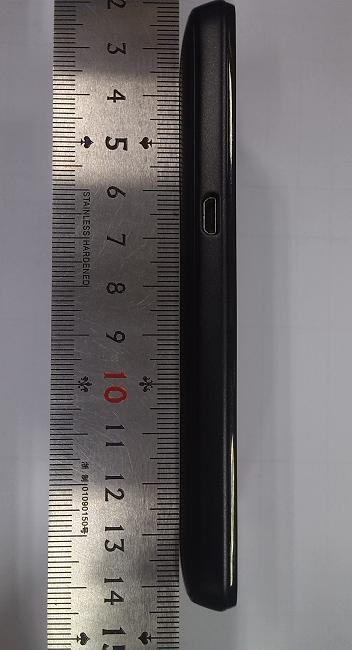

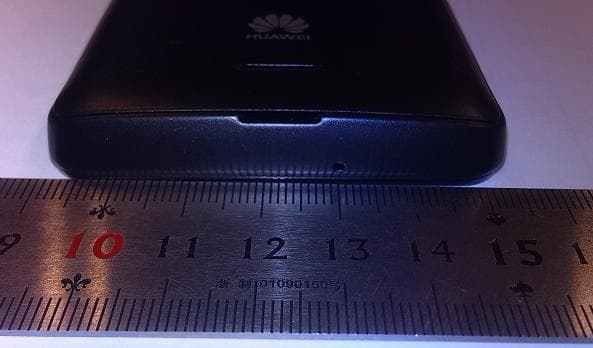

HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page1,Total 6 External Photos of HUAWEI M881, M881 HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page2,Total 6 HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page3,Total 6 HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page4,Total 6 HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page5,Total 6 HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page6,Total 6

HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page1, Total 4 Label Location HUAWEI M881, M881 HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page2, Total 4 HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page3, Total 4 HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page4, Total 4

HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page1,Total 6 Internal Photos of HUAWEI M881, M881 HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page2,Total 6 HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page3,Total 6 HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page4,Total 6 HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page5,Total 6 HUAWEI M881, M881 cdma2000 Digital Mobile Phone; Asura SECRET Page6,Total 6

Justification of the extended calibration of Dipole D835V2 SN: 4d126 Referred to 450824 D02 Dipole SAR Validation Verification v01, Published on Nov 17 2009, Otherwise, according to the IEEE Standard 1528a-2005 recommended annual calibration is expected, when happened as below the following: 1) When the most recent return-loss, measured at least annually, deviates by more than 20% from the previous measurement (i.e. 0.2 of the dB value) or not meeting the required -20 dB return-loss specification; 2) When the most recent measurement of the real or imaginary parts of the impedance, measured at least annually, deviates by more than 5 Ω from the previous measurement. Dipole835 Head TST Target Value Measured Value Difference Impedance transformed to feed point 52.2Ω-2.4jΩ 50.4Ω+1.17jΩ R=-1.8Ω, X=3.57Ω Return Loss - 30.0dB -31.73dB -5.77% Dipole835 Body TST Target Value Measured Value Difference Impedance transformed to feed point 47.8Ω-4.4jΩ 50.36Ω-0.85jΩ R=2.56Ω, X=3.55Ω Return Loss -25.9dB -27.3dB -5.41% Measure Data 2011-11-07 2012-09-13 -- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Justification of the extended calibration of Dipole D1900V2 SN:5d143 Referred to 450824 D02 Dipole SAR Validation Verification v01, Published on Nov 17 2009, Otherwise, according to the IEEE Standard 1528a-2005 recommended annual calibration is expected, when happened as below the following: 1) When the most recent return-loss, measured at least annually, deviates by more than 20% from the previous measurement (i.e. 0.2 of the dB value) or not meeting the required -20 dB return-loss specification; 2) When the most recent measurement of the real or imaginary parts of the impedance, measured at least annually, deviates by more than 5 Ω from the previous measurement. Dipole1900 Head TST Target Value Measured Value Difference Impedance transformed to feed point 53.5Ω+5.8jΩ 50.8Ω+8.57jΩ R=-2.7Ω, X=2.77Ω Return Loss - 23.7dB -24.16dB -1.94% Dipole1900 Body TST Target Value Measured Value Difference Impedance transformed to feed point 48.4Ω+6.1jΩ 45.78Ω+3.17jΩ R=-2.62Ω, X=-2.93Ω Return Loss -23.9dB -25.3dB -5.86% Measure Data 2011-09-26 2012-09-13 -- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Justification of the extended calibration of Dipole D2450V2 SN: 860 Per KDB 450824, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Calibration Date 2011-03-08 Measured Date 2012-03-07 Dipole2450 Head TST Target Value Measured Value Difference Impedance transformed to feed point 54.0Ω+2.2jΩ 54.1Ω+2.36jΩ R=0.1Ω, X=0.16Ω Return Loss -27.2dB -27.34dB -0.51% Dipole2450 Body TST Target Value Measured Value Difference Impedance transformed to feed point 49.0Ω+4.9jΩ 49.48Ω+5.13jΩ R=0.48Ω, X=0.23Ω Return Loss - 26.0dB -26.38dB -1.46% Measured Date 2011-03-08 2012-03-07 ------- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Report No.:SYBH (Z-SAR)037012013-2 FCC ID: QISM881 Appendix B. SAR Measurement Plots Table of contents CDMA BC0 Head CDMA BC0 Body CDMA BC1 Head CDMA BC1 Body WiFi 2450MHz Head WiFi 2450MHz Body Date: 2013-1-31 Test Laboratory: HUAWEI SAR/HAC Lab M881 CDMA BC0 384CH Left hand touch cheek DUT: M881; Type:cdma2000 Digital Mobile Phone; Asura; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.889 mho/m; ε r = 40.521; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.497 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.053 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.651 W/kg SAR(1 g) = 0.494 W/kg; SAR(10 g) = 0.360 W/kg Maximum value of SAR (measured) = 0.520 W/kg 0 dB = 0.520 W/kg = -2.84 dBW/kg Date: 2013-1-31 Test Laboratory: HUAWEI SAR/HAC Lab M881 CDMA BC0 384CH Left hand tilt 15 degree DUT: M881; Type:cdma2000 Digital Mobile Phone; Asura; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.889 mho/m; ε r = 40.521; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.367 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.736 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.440 W/kg SAR(1 g) = 0.350 W/kg; SAR(10 g) = 0.262 W/kg Maximum value of SAR (measured) = 0.369 W/kg 0 dB = 0.369 W/kg = -4.33 dBW/kg Date: 2013-1-31 Test Laboratory: HUAWEI SAR/HAC Lab M881 CDMA BC0 384CH Right hand touch cheek DUT: M881; Type:cdma2000 Digital Mobile Phone; Asura; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.889 mho/m; ε r = 40.521; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.536 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.412 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.640 W/kg SAR(1 g) = 0.514 W/kg; SAR(10 g) = 0.385 W/kg Maximum value of SAR (measured) = 0.541 W/kg 0 dB = 0.541 W/kg = -2.67 dBW/kg Date: 2013-1-31 Test Laboratory: HUAWEI SAR/HAC Lab M881 CDMA BC0 384CH Right hand tilt 15 degree DUT: M881; Type:cdma2000 Digital Mobile Phone; Asura; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.889 mho/m; ε r = 40.521; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.400 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.315 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.488 W/kg SAR(1 g) = 0.385 W/kg; SAR(10 g) = 0.289 W/kg Maximum value of SAR (measured) = 0.407 W/kg 0 dB = 0.407 W/kg = -3.90 dBW/kg Date: 2013-1-31 Test Laboratory: HUAWEI SAR/HAC Lab M881 CDMA BC0 384CH Right hand touch cheek with battery 2# DUT: M881; Type:cdma2000 Digital Mobile Phone; Asura; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.889 mho/m; ε r = 40.521; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.537 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.142 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.652 W/kg SAR(1 g) = 0.520 W/kg; SAR(10 g) = 0.386 W/kg Maximum value of SAR (measured) = 0.550 W/kg 0 dB = 0.550 W/kg = -2.60 dBW/kg Date: 2013-1-31 Test Laboratory: HUAWEI SAR/HAC Lab M881 CDMA BC0 384CH Towards Phantom 15mm with 1xRTT DUT: M881; Type:cdma2000 Digital Mobile Phone; Asura; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.992 mho/m; ε r = 56.478; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10-2; lSensor-Surface: 4mm (Mechanical Surf…

Text truncated - open the document above for the full version.

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Project Name:_______________________ Model :_______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED (Manager) CHECKED PREPARED BY DATE 2013-04-25 2013-04-25 2013-04-25 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. HUAWEI M881, M881 QISM881 SYBH(Z-SAR)037012013-2 cdma2000 Digital Mobile Phone; Asura Report No.:SYBH(Z-SAR)037012013-2 FCC ID:QISM881 2013-04-25 Page 2 of 37 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 4 1.3 EUT Description ......................................................................................................................................................... 5 1.3.1 General Description ........................................................................................................................................... 6 1.4 Test specification(s) .................................................................................................................................................. 7 1.5 Testing laboratory ....................................................................................................................................................... 7 1.6 Applicant and Manufacturer ...................................................................................................................................... 7 1.7 Application details ...................................................................................................................................................... 7 1.8 Ambient Condition ..................................................................................................................................................... 7 2 SAR Measurement System ............................................................................................................................................. 8 2.1 SAR Measurement Set-up ....................................................................................................................................... 8 2.2 Test environment ........................................................................................................................................................ 9 2.3 Data Acquisition Electronics description ................................................................................................................ 9 2.4 Probe description ..................................................................................................................................................... 10 2.5 Phantom description ................................................................................................................................................ 11 2.6 Device holder description ........................................................................................................................................ 11 2.7 Test Equipment List ................................................................................................................................................. 12 3 SAR Measurement Procedure ...................................................................................................................................... 13 3.1 Scanning procedure ................................................................................................................................................. 13 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 14 3.3 Data Storage and Evaluation .................................................................................................................................. 15 4 System Verification Procedure ........................................................................................................................................ 17 4.1 Tissue Verification .................................................................................................................................................... 17 4.2 System Check ........................................................................................................................................................... 19 4.3 System check Procedure ........................................................................................................................................ 20 5 Measurement Uncertainty Evaluation .......................................................................................................................... 21 5.1 Measurement uncertainty evaluation for SAR test .............................................................................................. 21 5.2 Measurement uncertainty evaluation for system check......................................................................…

Text truncated - open the document above for the full version.

Report No. :SYBH (Z-SAR) 037012013-2 FCC ID: QISM881 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-ES-Head SystemPerformanceCheck-D835-ES-Body SystemPerformanceCheck-D1900-ES-Head SystemPerformanceCheck-D1900-ES-Body SystemPerformanceCheck-D2450-ES-Head SystemPerformanceCheck-D2450-ES-Body Date: 2013-1-31 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.883 mho/m; ε r = 40.728; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.33 W/kg Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.508 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 3.73 W/kg SAR(1 g) = 2.44 W/kg; SAR(10 g) = 1.59 W/kg Maximum value of SAR (measured) = 2.67 W/kg 0 dB = 2.67 W/kg = 4.27 dBW/kg Date: 2013-1-31 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.986 mho/m; ε r = 56.702; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.48 W/kg Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.429 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 3.55 W/kg SAR(1 g) = 2.46 W/kg; SAR(10 g) = 1.63 W/kg Maximum value of SAR (measured) = 2.66 W/kg 0 dB = 2.66 W/kg = 4.25 dBW/kg Date: 2013-1-30 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-ES-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.453 mho/m; ε r = 40.132; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.26, 5.26, 5.26); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.2 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.255 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 9.62 W/kg; SAR(10 g) = 5.02 W/kg Maximum value of SAR (measured) = 10.8 W/kg 0 dB = 10.8 W/kg = 10.33 dBW/kg Date: 2013-1-30 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-ES-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.539 mho/m; ε r = 51.051; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.86, 4.86, 4.86); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.5 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.471 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 17.2 W/kg SAR(1 g) = 9.84 W/kg; SAR(10 g) = 5.2 W/kg Maximum value of SAR (measured) = 11.1 W/kg 0 dB = 11.1 W/kg = 10.45 dBW/kg Date: 2013-2-1 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-ES-Head DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.788 mho/m; ε r = 39.175; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.57, 4.57, 4.57); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 13.9 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.103 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 27.1 W/kg SAR(1 g) = 12.8 W/kg; SAR(10 g) = 5.89 W/kg Maxim…
