QISM886cdma2000 Digital Mobile Phone

All the pictures in this guide are for your reference only. The actual appearance and display features depend on the mobile phone you purchase. Welcome to Huawei User Guide HUAWEI M886 Contents i 1 Reading Before Proceeding...................................................1 1.1 Safety Precautions....................................................................... 1 1.2 Personal Information and Data Security ...................................... 2 1.3 Legal Notice................................................................................. 3 2 Getting Started.......................................................................6 2.1 Appearance ................................................................................. 6 2.2 Setting Up Your Mobile Phone .................................................... 7 2.3 Power On or Off Your Mobile Phone ......................................... 10 2.4 Using the Touchscreen.............................................................. 10 2.5 Locking and Unlocking the Screen ............................................ 11 2.6 Home Screen............................................................................. 12 2.7 Application Screen..................................................................... 17 2.8 Using a microSD Card ............................................................... 17 3 Calling..................................................................................18 3.1 Making a Call ............................................................................. 18 3.2 Answering or Rejecting a Call.................................................... 19 3.3 Other Operations During a Call ................................................. 21 3.4 Using the Call log....................................................................... 21 3.5 Using Airplane Mode ................................................................. 22 3.6 TTY Operation .......................................................................... 22 4 Contacts...............................................................................23 4.1 Opening the Contacts Application ............................................. 23 4.2 Adding a Contact ....................................................................... 23 4.3 Adding a Contact to Your Favorites........................................... 23 4.4 Indexing Contacts ...................................................................... 24 4.5 Searching for a Contact ............................................................. 24 4.6 Editing a Contact ....................................................................... 24 4.7 Communicating with Your Contacts........................................... 24 ii 4.8 Deleting a Contact ..................................................................... 25 4.9 Streams ..................................................................................... 25 4.10 Managing Groups .................................................................... 26 4.11 Joining and Separating Contacts............................................. 27 4.12 Sending Contacts .................................................................... 28 5 Using the Onscreen Keyboard.............................................29 5.1 Displaying the Keyboard ............................................................ 29 5.2 Customizing Keyboard Settings................................................. 31 6 Messaging ...........................................................................31 6.1 SMS and MMS........................................................................... 31 6.2 Email .......................................................................................... 33 7 Getting Connected...............................................................36 7.1 Mobile Networks ........................................................................ 36 7.2 Wi-Fi .......................................................................................... 36 7.3 WPS........................................................................................... 38 7.4 Browser...................................................................................... 38 7.5 Bluetooth.................................................................................... 40 8 Entertainment ......................................................................41 8.1 Taking Photos and Recording Videos ....................................... 42 8.2 Using the Gallery ....................................................................... 43 8.3 DTS Envelo™ ............................................................................ 45 8.4 Enjoying Music........................................................................... 45 9 Google Services ..................................................................47 9.1 Creating a Google Account........................................................ 48 9.2 Gmail ......................................................................................... 48 9.3 Talk ............................................................................................ 50 9.4 Maps .......................................................................................... 51 9.5 YouTube .................................................................................... 52 9.6 Market........................................................................................ 53 iii 10 Synchronizing Information .................................................54 10.1 Managing Your Accounts......................................................... 54 10.2 Customizing Your Account Synchronization ............................ 56 11 Using Other Applications ...................................................57 11.1 AppInstaller.............................................................................. 57 11.2 Smart Traffic Manager ............................…

Text truncated - open the document above for the full version.

18 1. Connect your mobile phone to your PC with the USB cable provided. Your PC will detect the microSD card as a removable storage device. 2. Open the notification bar, and then touch USB connected. 3. Touch Turn on USB storage in the dialog box that opens to confirm that you want to transfer files. You can now transfer files from your PC to your mobile phone’s microSD card. When your microSD card acts as a USB mass storage, your mobile phone will not use this memory space. Ensure that you follow the correct procedures to disconnect the USB mass storage device (your mobile phone) from the PC when you have finished transferring files. 2.8.3 Removing the microSD Card 1. On the Home screen, touch > Settings. 2. Scroll down the screen, and then touch Storage > Unmount SD card. 3. Carefully remove the microSD card. 3 Calling To make a phone call, you can dial a number using the keypad or touch a number saved in your contact list, on a webpage, or in a document. When you are in a call, you can answer other incoming calls or redirect them to your voicemail. You can also set up conference calls with several participants. 3.1 Making a Call To make a call, you can use the Dialer application, or select a number from Contacts or Call log. When you are in a call, you can touch to use other functions. To return to the call screen, flick the notification bar down and touch Current call. Be careful not to block the microphone at the bottom of your phone if you want your voice heard by the other parties in a call. 19 3.1.1 Making a Call with the Dialer Application 1. On the Home screen, touch > Dialer to display the dialer. If you are already working with Contacts or Call log, touch the Dialer tab. 2. Touch the appropriate number keys to enter the phone number. Your mobile phone supports the SmartDial function, that is, when you touch numbers on the dialer, the phone automatically searches among your contacts and lists the matching results ordered according to the accuracy of the match. If no contacts match the information entered, the phone will not display any result. 3. Touch to initiate the call. During a call, touch Dialpad to enter other numbers on the dialpad. 3.1.2 Making a Call from Contacts 1. On the Home screen, touch > Contacts to display the contact list. If you are already working with Dialer or Call log, touch the Contacts tab. 2. In the list, touch the contact you want to call. 3. Touch to dial the phone number. 3.1.3 Making a Call from Call log 1. If you are already working with Contacts or Dialer, touch the Call log tab. 2. Touch to the right of the log entry to dial. If you touch and hold a log entry, the options menu will open. 3.2 Answering or Rejecting a Call 3.2.1 Answering an Incoming Call When you receive a phone call, the incoming call screen opens. If you have previously saved the caller’s number in Contacts, the caller's name and number are displayed. If the caller’s number is not saved in Contacts the caller’s number is displayed. 20 Drag to the right to answer the call. 3.2.2 Ending a Call During a call, touch End to hang up. 3.2.3 Rejecting an Incoming Call Drag to the left to reject the call. You can also drag up the bar at the bottom of the screen to reject a call and send the caller a message. 21 3.3 Other Operations During a Call 3.3.1 Making a Conference Call If you receive a new call while you are already on a call, you can connect the second call to the call you are on. This feature is known as conference calling. You can also set up a conference call with multiple callers. Contact your network operator to learn if conference calls are supported and, if yes, how many can participate. 1. To initiate a conference call, dial the number of the first participant. After you have connected to the first participant, keep the connection open, touch Add call > Add call. 2. Enter the phone number of the next person you want to join the conversation and touch , or select someone from your Call log or Contacts. The first participant is automatically placed on hold while you do this. 3. Once you have connected to the second person, touch Merge calls to begin the conference call. 4. To end the conference call and disconnect everyone, touch End. 3.3.2 Switching Between Calls If you receive a new call while you are already in a call, you can switch between the two calls. 1. While you are in the first call and the second call comes in, answer the incoming call, and then touch Manage calls. 2. The current call is placed on hold and you are connected to the first call. 3.4 Using the Call log The Call log contains a list of calls that you have dialed, received, and missed. You can use the call log to find a recently called number quickly or add a number from the call log to your contact list. 3.4.1 Adding an Entry to Contacts 1. If you are already working with Dialer or Contacts, touch the Call log tab. 22 2. Touch and hold the entry you want to add to your Contacts. 3. Touch Save to contact in the options menu. 4. Touch Create contact or scroll through the contact list and touch an existing contact name. 3.5 Using Airplane Mode Some locations may require you to turn off your phone’s wireless connections. Rather than powering off your phone, you can place it in Airplane mode. 1. Press and hold . 2. Touch Airplane mode in the options menu. 3.6 TTY Operation 3.6.1 Using the TTY Device The Teletypewriter (TTY) is a typewriting device. By connecting the phone to the TTY device, you can use the TTY functions to send/receive messages. When you use the TTY function, do as follows: 1. Connect the TTY device to the headset jack of the phone and set the phone to the TTY mode. 2. Make or answer calls as normal. 3. When the call is put through, use the TTY device to send or receive the letters. 4. Press the End to end the call. 3.6.2 Setting the TTY Mode 1. Touch > Settings > Call settings > TTY mode. 2. Select one TTY mode. • TTY Off: The standard voice speaking mode and the listening mode. • TTY …

Text truncated - open the document above for the full version.

39 Touch to open the browser options menu and perform one of the following operations: • New window: Touch to open a new window. • Bookmarks: Touch to display bookmarks. • Windows: Touch to view thumbnails of open browser windows. You can switch to another browser window or open a new one on this screen. • Refresh: Touch to refresh the current webpage. • Forward: Touch to browse the next web page. • More: Touch to open other menus and perform operations such as searching, selecting text, downloading, or setting options. 7.4.2 Opening a Webpage 1. In a browser window, touch the URL field at the top of the screen. 2. Use the keyboard to enter a webpage address. You can touch to enter the web page address by voice. 3. As you enter the address, matching webpage addresses will appear on the screen. I f you see the address you want, touch it and go directly to that webpage or complete entering your desired webpage. 7.4.3 Setting a Home Page 1. In a browser window, touch . 2. Touch More > Settings > Set home page. 3. Enter the address of the desired home page, and then touch OK. 7.4.4 Managing Bookmarks You can store as many bookmarks as you want on your mobile phone. Adding a Bookmark 1. In a browser window, go to the webpage you want to save as a bookmark. 2. Touch , and then touch Bookmarks > Add. 3. Edit the bookmark name and then touch OK. 40 Opening a Bookmark 1. In a browser window, touch , and then touch Bookmarks. On the Bookmarks screen, touch the History tab to view the pages you have visited, or touch the Most visited tab to view the pages you have visited most frequently. 2. Touch the bookmark of the website you want to open. 7.4.5 Customizing Browser Settings Customize the browser to suit your browsing style. Use Browser to set page content, privacy, and security preferences. In the browser window, touch , and then touch More > Settings. 7.5 Bluetooth Your mobile phone has Bluetooth, which allows you to create a wireless connection with other Bluetooth devices so you can share files with your friends, talk hands-free with a Bluetooth headset, or even transfer photos from your phone to your PC. If you are using Bluetooth, remember to stay within 10 meters (33 feet) of the other Bluetooth devices to which you want to connect. Be aware that obstacles like walls or other electronic equipment may interfere with your Bluetooth connection. 7.5.1 Turning On Bluetooth 1. Touch > Settings. 2. Touch Wireless & networks, and then select the Bluetooth check box to turn on Bluetooth. When Bluetooth is turned on, the Bluetooth icon appears in the notification bar. 3. Touch Bluetooth settings, and then select the Discoverable to make your mobile phone visible to other Bluetooth devices. 7.5.2 Pairing with and Connecting to a Bluetooth Device Your mobile Bluetooth lets you do the following: • Hands Free Profile (HFP): allows you to use a hands-free Bluetooth device. • Headset Profile (HSP): allows you to use a mono Bluetooth headset. 41 • Object Push Profile (OPP): allows you to transfer files over a Bluetooth connection. • Advanced Audio Distribution Profile (A2DP): allows you to use a stereo Bluetooth headset. • A/V Remote Control Profile (AVRCP): allows you to control audio playing using a B luetooth headset remotely. Before you use Bluetooth, pair your mobile phone with another Bluetooth device as follows: 1. Ensure that the Bluetooth function on your mobile phone is enabled. 2. On the Home screen, touch > Settings > Wireless & networks > Bluetooth settings . Your mobile phone will then scan for Bluetooth devices in range. 3. Touch the device you want to pair your mobile phone with. 4. If required, enter the pairing password to complete the connection. 7.5.3 Sending Files via Bluetooth With Bluetooth, you can share pictures, videos, or music files with your family and friends. To send files via Bluetooth: 1. Touch and hold the file to be sent in your mobile phone or SD card. The active options menu is displayed. 2. Touch Share, then Bluetooth to select a paired device. 7.5.4 Disconnecting from or Unpairing with a Bluetooth Device 1. Touch > Settings > Wireless & networks > Bluetooth settings. 2. Navigate to the Bluetooth devices section, and then touch and hold the device to which you are connected. 3. Touch Unpair to disconnect from the device. 8 Entertainment In addition to being a communication device and personal assistant, your mobile phone also provides you with a multitude of entertainment possibilities. You can take photos, create videos and audio clips, and download and listen to music. 42 8.1 Taking Photos and Recording Videos The camera is a combination of camera and camcorder that you can use to shoot and share pictures and videos. 8.1.1 Opening Your Camera • Touch > Camera to open the camera. The camera opens in landscape mode, ready to take a picture or record a video. • Touch to close the camera. Capture Screen On the capture screen, touch to show the capture panel. 8.1.2 Taking a Photo 1. Open your camera application and switch it to camera mode. 2. If necessary, change the camera settings. The preview changes as you change the settings. 3. Frame your photo within the photo capture screen. 4. Touch and hold . When the frame turns green, the image is in focus. 5. Release to take your photo. Photos taken are displayed for a moment. You can take another photo or review your phot os. 3 5 Touch to customize the camera settings. Thumbnail of last photo. Touch to preview the photos or videos. Slide up to record videos; slide down to take photos. Touch to take a photo. 43 8.1.3 Viewing Your Photos 1. After taking a photo, a thumbnail of the photo you have just taken is shown in the upper right corner of the capture screen. Touch the thumbnail to view it. 2. Touch the onscreen button to do any of the following: • Touch Share to send the photo in a message or post it online. • Touch Delete to delete the photo. • Touch More > Set as to set the photo as a contact icon or the wallpaper. 8.1…

Text truncated - open the document above for the full version.

60 11.4.4 Setting Synchronization and Display 1. In any calendar view, touch . Then touch More > Calendars. The Calendars screen displays all the calendars you have added or subscribed to for each account that is configured to synchronize events to your phone, organized by account. (Calendars for accounts you have configured not to synchronize Calendar events are not included in the list.) 2. Touch the icon next to a calendar to change whether it is synchronize and whether it is displayed. You remain subscribed to Calendars that you configure not to store on the phone and you can still work with them with Google Calendar on the web. 3. Touch OK. 11.4.5 Customizing Calendar Settings In any calendar view, touch . Then touch More > Settings and choose from the following: • Hide declined events: Select to hide events for which you have declined invitations. • Set alerts & notifications: Touch to set event reminders to alert you, to send you a notification, or to turn off event notifications on your mobile phone. • Select ringtone: Touch to select the ringtone to sound when you receive an event reminder. • Vibrate: Select to vibrate the mobile phone when you receive an event notification. • Default reminder time: Touch to select the default time before an event for event reminders to occur. 11.5 File Manager File Manager is like having a pocket-sized personal assistant (PA), letting you organize, edit, and delete files and folders. 11.5.1 Opening File Manager On the Home screen, touch > File Manager to open the application. 61 11.5.2 Creating a Folder 1. On the File Manager screen, access the directory in which you want to create a new folder. 2. Touch to open the options panel, and then touch New folder. 3. Enter the name of the new folder in the text box. 4. Touch Save. 11.5.3 Moving or Copying a File 1. On the File Manager screen, press to show the options panel, and then touch Multiselect. 2. Touch the file or folder you want to move or copy. When a file or a folder is selected, a check mark will appear. To select all files, touchSelect all to select all files in a folder (touch Unselect all to cancel the selection). 3. Touch Cut or Copy to cut or copy the file. 4. Select the path where you want the file to be copied or moved. Press to open the options panel, and then touch Paste to move or copy the file to the selected path. 11.5.4 Searching for a File 1. On the File Manager screen, touch a folder to access the directory where the file you want is located. 2. Press to open the options panel, and then touch Search. 3. Write a key word of the name of your file in the search box. 4. Touch . Your mobile phone will start the search. 5. A list of search results will be displayed. Touch a file in the list to open it. 6. Touch New search for a new search or press the back key to return to the file manager screen. 62 11.5.5 Compressing or Extracting Files Your phone supports compressing and extracting files. You can only compress files and folders into .zip files, but can extract both .zip and .rar files. Compressing Files 1. On the File Manager screen, Touch , and then touch Multiselect. 2. Select the files or folders you want to compress. When a file is selected, a check mark will appear. To select all files and folders, touch Select all or Unselect all to cancel the selection. 3. Touch Compress. 4. Edit the save path and the name of the target file, and then touch OK to start compressing the files and folders. Extracting a File 1. Touch and hold a compressed file. 2. Touch Extract. 3. Edit the save path for the extracted files. 4. Touch OK to start extracting. 11.5.6 Viewing Your Memory Status On the File Manager screen, press to open the options panel, and then touch Memory Status. The memory management screen will be displayed. This screen allows you to view the memory status and available memory on your mobile phone and microSD card. 11.6 Clock In addition to displaying the date and time, the Clock application displays information about the weather and your phone. You can also use Clock to turn your mobile phone into an alarm clock. 63 11.6.1 Opening the Clock On the Home screen, touch > Clock to open the application. Clock opens with the date and time displayed on your Home screen wallpaper, along with your local weather and other useful information. 11.6.2 Opening the Alarms On the Clock screen, touch to open the Alarms. Adding an Alarm 1. On the alarm list screen, touch Add alarm. 2. Set the alarm, and then touch Done. Setting an Alarm 1. On the alarm list screen, touch one of the alarms on the screen. 2. Touch Time to set the time of the alarm. 3. Touch Repeat to set the days when you want the alarm to sound. 4. Touch Ringtone to select a ringtone for the alarm. 5. Select the Vibrate check box to enable the phone to vibrate, in addition to playing the ringtone. 6. Touch Label to enter a name for the alarm. 7. Touch Done. The alarm clock still works when the phone is powered off. Customizing Alarm Settings On the alarm list screen, touch , and then touch Settings. 11.7 Calculator Use Calculator to solve simple arithmetic problems or use its advanced operators to solve more complex equations. 11.7.1 Opening Calculator On the Home screen, touch > Calculator to open the application. 64 11.7.2 Switching Between Basic and Advanced panel On the Calculator screen, flick the screen to the right or left to switch between Advanced panel and Basic panel. 11.8 Notepad Notepad features a simple text processor. In the note list, you can add, edit, and delete notes. 1. On the Home screen, touch > Notepad to open the application. 2. Touch , and then touch Add note to create a note. 3. Touch to save the note. 11.9 Richpad Richpad combines text note and paint note functions. In the note list, you can add, edit, and delete notes. 1. Touch > Richpad to open the application. 2. Touch , and then touch Add text note or Add paint note to create a note. • While you are editing a text note, touch to change the ba…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CECTCOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISM886 to be kept confidential: 1. Schematic diagram 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

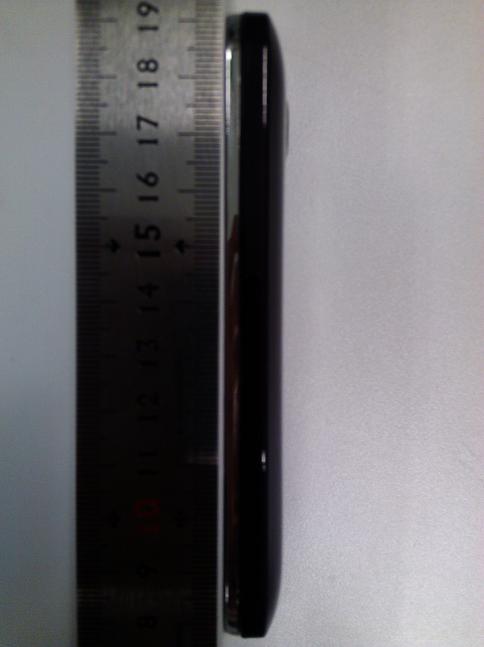

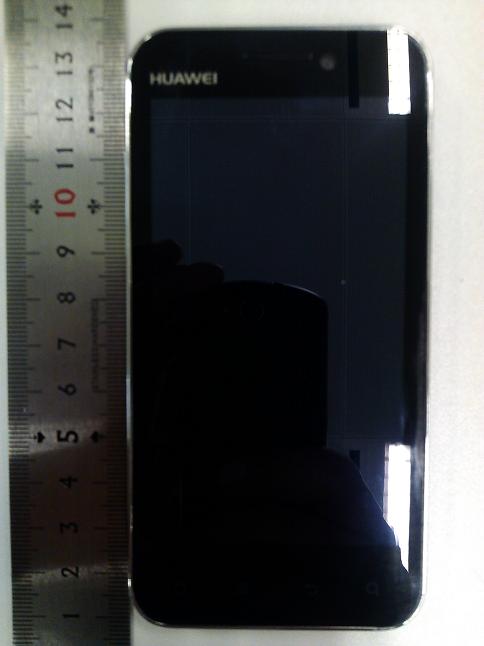

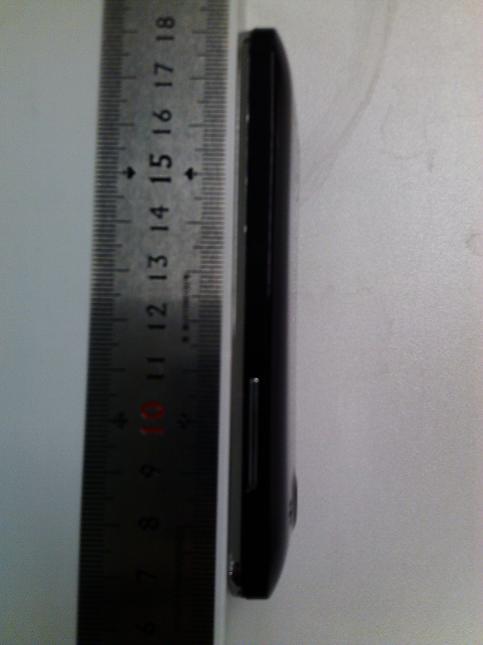

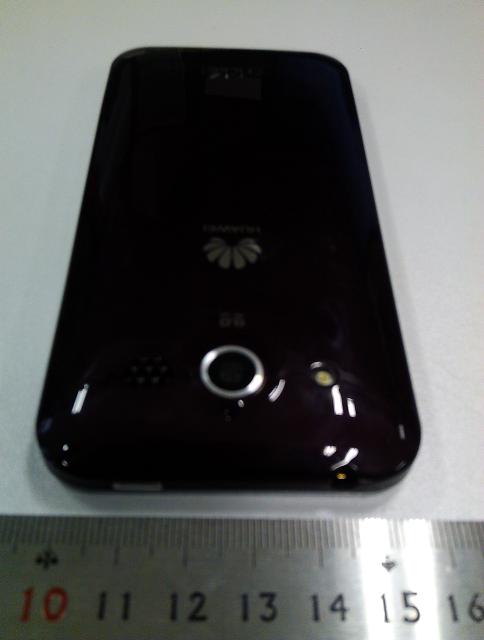

HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page1,Total 7 External Photos of HUAWEI M886, M886, HUAWEI C8860, C8860 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page2,Total 7 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page3,Total 7 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page4,Total 7 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page5,Total 7 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page6,Total 7 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page7,Total 7

HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page1, Total 6 Label Location of HUAWEI M886, M886, HUAWEI C8860, C8860 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page2, Total 6 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page3, Total 6 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page4, Total 6 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page5, Total 6

HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page1,Total 9 Internal Photos of HUAWEI M886, M886, HUAWEI C8860, C8860 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page2,Total 9 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page3,Total 9 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page4,Total 9 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page5,Total 9 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page6,Total 9 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page7,Total 9 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page8,Total 9 HUAWEI M886, M886, HUAWEI C8860, C8860 cdma2000 Digital Mobile Phone; Honor SECRET Page9,Total 9

Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28785513 Fax: +86 755 36834474 cdma2000 Digital Mobile Phone; Honor FCC SAR Compliance Test Report Project Name: _______________________ Model : _______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED CHECKED PREPARED BY DATE 2011-09-21 2011-09-21 2011-09-21 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. HUAWEI M886, M886, HUAWEI C8860, C8860 QISM886 SYBH(Z-SAR)011082011-2 Report No.: SYBH (Z-SAR) 011082011-2 FCC ID: QISM886 2011-09-21 Page 2 of 30 Reliability Laboratory of Huawei Technologies Co., Ltd. Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 4 1.3 EUT Description ......................................................................................................................................................... 5 1.3.1 General Description ........................................................................................................................................... 5 1.4 Test specification(s) .................................................................................................................................................. 6 1.5 Testing laboratory ....................................................................................................................................................... 6 1.6 Applicant and Manufacturer ...................................................................................................................................... 6 1.7 Application details ...................................................................................................................................................... 6 1.8 Ambient Condition ......................................................................…
