QISM920LTE/CDMA 1X/EVDO Mobile Phone with Bluetooth

All the pictures in this guide are for your reference only. The actual appearance and display features depend on the mobile phone you purchase. Welcome to Huawei Quick Start HUAWEI M920 Android is a trademark of Google Inc. Use of this trademark is subject to Google Permissions. © Huawei Technologies Co., Ltd. 2011. All rights reserved. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS Envelo | Headphone is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved. V100R001_01 702004

1 Personal Information and Data Security The use of some functions or third-party applications on your device could result in your personal information and data being lost or becoming accessible to others. Several measures are recommended to help you protect personal and confidential information. • Place your device in a safe area to prevent it from unauthorized use. • Set your device screen to lock and create a password or unlock pattern to open it. • Periodically back up personal information kept on your memory card or stored in your device memory. If you change to a different device, be sure to move or delete any personal information on your old device. • If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without opening them. • If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your personal information. • If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access. When these services are not in use, turn them off. • Install or upgrade device security software and regularly scan for viruses. • Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should be scanned for viruses. • Install security software or patches released by Huawei or third-party application providers. • Some applications require and transmit location information. As a result, a third-party may be able to share your location information. • Your device may provide detection and diagnostic information to third- party application providers. Third party vendors use this information to improve their products and services. • If you have concerns about the security of your personal information and data, please contact [email protected]. 2 What is in Your Box For more information about how to use your phone, please read the detailed user guide. To find the detailed user guide, do as follows: 1. Connect your device to your computer with the USB cable. 2. Choose Start > My Computer. Double-click Mobile Partner and document. Phone at a Glance • Mobile phone • Charger • USB cable • Battery •microSD card • Quick start guide • User guide • Accessory Coupon Earpiece Volume keys Speaker Charge/Data port Touch screen Home MenuBack Search Camera key Sensor Power Flash LED Camera Microphone Headset jack 3 Button basics • To turn on the phone, press and hold the key. • To turn off the phone, press and hold the key until Phone options appears, then select Power off. • To lock the phone, press the key. • To unlock the phone, press the key, then drag the unlock icon. To adjust the volume of ringer, audio playing and other sound effects, press the keys on the side of the phone. • To enable Camera, press and hold the key. • To taka a photo, press and hold the key. 4 • To return the home screen, tap the button. • To view apps you’ve recently used, touch and hold the button. 6 To open the option menu for the current screen, tap the button. 0 To return the previous screen, tap the button. : • To open the search apps, tap the button. • To open Voice Search, touch and hold the button. 4 Get started Inserting USIM card 1. Turn off the phone, then remove the back cover by lifting it from the bottom end of the device. 2. If the battery is inserted, lift the battery in the direction of the arrow to remove it. 3. Insert the USIM card. Ensure the contact area on the card is facing down . 4. Align the contacts of the battery with the corresponding connectors on the battery compartment, and insert in the direction of the arrow. 5. Replace the back cover. Inserting microSD card 1. Turn off the phone, then remove the back cover by lifting it from the bottom end of the device. 2. Insert the microSD card. Ensure the contact area on the card is facing down. 1 3 5 4 2 5 3. Replace the back cover. Charging the Battery To charge the battery: Connect the phone to a power outlet using the compatible USB cable and AC adapter. If your mobile phone is charged when it is powered on, the battery icon on the Notification bar shows the charging status. When the battery icon changes to , it indicates that your mobile phone is fully charged. 1 34 2 1 2 6 Use Touch Panel Tap To open an app or other element on the touch screen, tap it with your finger. Touch & hold To open special options, touch and hold the desired item over two seconds. Swipe To swipe, slide your finger quickly left or right on the touch screen. Flick To scroll quickly, place your finger on the touch screen, slider it quickly across the screen, then quickly lift your finger. Zoom In or Out To zoom in or out as desired while viewing photos, web pages or maps, pinch your finger together or apart. 7 Home Screen Viewing Other Parts of the Home Screen Locking the Screen • When your phone is on, press to lock the screen. When the screen is locked, you can still receive messages and calls. • If your phone is idle for a while, the screen will lock automatically. 10:23AM Notifications bar Widgets Display area Apps icons Screen switching dots Tap to access Phone app Tap to access apps list Tap to access Browser app Touch and hold the small dots to view thumbnails of the Home screen and its extensions. Touch a thumbnail to open the Home screen or its extensions. Flick your finger left or right across the Home screen. 10:23AM 8 Unlocking the Screen 1. Press to wake up the screen. 2. Drag the lock icon from left to right to unlock the screen. 9 Customize the Home Screen Rearranging icons You can arrange the icons on your Home screen in any order you want. 1. Touch and hold any icon on the home screen until it expands. 2. Without lifting your finger, arrange the icons by dragging them. Deleting icons Drag the icon to the ashcan to remove the icon from the home screen. Adding to home Screen • To add shortcuts, widgets, and folders, or change wallpapers: on the home screen, tap 6 > Add to open Add…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. 2011-11-26 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA Ref: FCC ID:QISM920 To whom it may concern: I, the undersigned, hereby authorize Mr.Mike Kuo of Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr.Mike Kuo of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd. Federal Communications Commission 2011-11-26 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISM920 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Bluetooth Block Diagram Bluetooth technology description Bluetooth Operational Description WLAN Block Diagram WLAN Operational Description Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing for ninety days after the date the grant of equipment authorization is issued: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

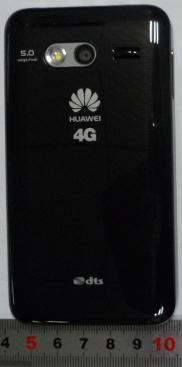

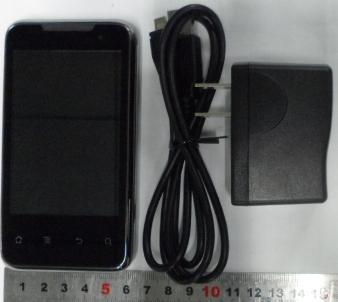

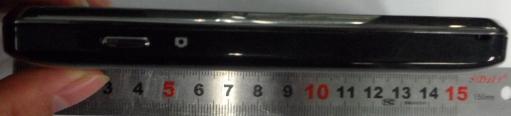

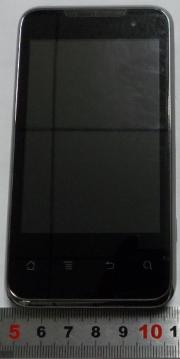

HUAWEI M920 SECRET Page1,Total 4 External Photos of HUAWEI M920 HUAWEI M920 SECRET Page2,Total 4 HUAWEI M920 SECRET Page3,Total 4 HUAWEI M920 SECRET Page4,Total 4

HUAWEI M920 SECRET Page1, Total 2 ID Label HUAWEI HUAWEI M920 HUAWEI M920 SECRET Page2, Total 2 HUAWEI M920 SECRET Page1 Label Location HUAWEI M920 HUAWEI M920 SECRET Page2

HUAWEI M920 SECRET Page1,Total 4 Internal Photos of HUAWEI M920 HUAWEI M920 SECRET Page2,Total 4 HUAWEI M920 SECRET Page3,Total 4 HUAWEI M920 SECRET Page4,Total 4

Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28785513 Fax: +86 755 36834474 FCC SAR Compliance Test Report Project Name: _______________________ Model : _______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED CHECKED PREPARED BY DATE 2011-12-05 2011-12-05 2011-12-05 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. HUAWEI M920 QISM920 SYBH(Z-SAR)010112011-2 LTE/CDMA 1X/EVDO Mobile Phone with Bluetooth Report No.: SYBH (Z-SAR) 010112011-2 FCC ID: QISM920 2011-12-05 Page 2 of 58 Table of Contents . 1 General Information ............................................................................................................................................................ 5 1.1 Statement of Compliance .......................................................................................................................................... 5 1.2 RF exposure limits...................................................................................................................................................... 5 1.3 EUT Description.......................................................................................................................................................... 6 1.3.1 General Description ........................................................................................................................................... 7 1.3.2 LTE information Summary ................................................................................................................................ 7 1.4 Test specification(s) .................................................................................................................................................. 8 1.5 Testing laboratory ....................................................................................................................................................... 8 1.6 Applicant and Manufacturer ...................................................................................................................................... 8 1.7 Application details ...................................................................................................................................................... 8 1.8 Ambient Condition ..................................................................................................................................................... 8 2 SAR Measurement System ............................................................................................................................................. 9 2.1 SAR Measurement Set-up ....................................................................................................................................... 9 2.2 Test environment ...................................................................................................................................................... 10 2.3 Data Acquisition Electronics description .............................................................................................................. 10 2.4 Probe description...................................................................................................................................................... 11 2.5 Phantom description ................................................................................................................................................ 12 2.6 Device holder description ........................................................................................................................................ 12 2.7 Test Equipment List ................................................................................................................................................. 13 3 SAR Measurement Procedure ...................................................................................................................................... 14 3.1 Scanning procedure ................................................................................................................................................. 14 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 15 3.3 Data Storage and Evaluation .................................................................................................................................. 16 4 System Verification Procedure ........................................................................................................................................ 18 4.1 Tissue Verification .................................................................................................................................................... 18 4.2 System Check ........................................................................................................................................................... 21 4.3 Validation Procedure................................................................................................................................................ 22 5 Measurement Uncertainty Evaluation .......................................................................................................................... 23 5.1 Measurement uncertainty evaluation for SAR test .............................................................................................. 23 5.2 Measurement …

Text truncated - open the document above for the full version.

Report No:SYBH (Z-SAR) 010112011-2 FCC ID:QISM920 Appendix A. System Check Plots Table of contens SystemPerformanceCheck-D835-Head SystemPerformanceCheck-D835-Body SystemPerformanceCheck-D1800-Head SystemPerformanceCheck-D1800-Body SystemPerformanceCheck-D1800-Head SystemPerformanceCheck-D1800-Body SystemPerformanceCheck-D1900-Head SystemPerformanceCheck-D1900-Body SystemPerformanceCheck-D1900-Head SystemPerformanceCheck-D1900-Body SystemPerformanceCheck-D2450-Head SystemPerformanceCheck-D2450-Body Date/Time: 11/4/2011 15:41:31, Date/Time: 11/4/2011 15:47:50 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d092 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.884 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.06, 9.06, 9.06); Calibrated: 12/13/2010  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1291; Calibrated: 2011-10-10  Phantom: SAM2; Type: SAM; Serial: TP-1474  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/d=15mm,pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.36 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 49.3 V/m; Power Drift = 0.060 dB Peak SAR (extrapolated) = 3.66 W/kg SAR(1 g) = 2.44 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 2.63 mW/g 0 dB = 2.63mW/g Date/Time: 11/6/2011 16:04:56, Date/Time: 11/6/2011 16:11:16 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d092 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.928 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.07, 9.07, 9.07); Calibrated: 12/13/2010  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1291; Calibrated: 2011-10-10  Phantom: SAM2; Type: SAM; Serial: TP-1474  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/d=15mm,pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.45 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 49.2 V/m; Power Drift = 0.153 dB Peak SAR (extrapolated) = 3.81 W/kg SAR(1 g) = 2.54 mW/g; SAR(10 g) = 1.66 mW/g Maximum value of SAR (measured) = 2.73 mW/g 0 dB = 2.73mW/g Date/Time: 11/6/2011 17:57:42, Date/Time: 11/6/2011 18:01:47 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-EX-Head DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.43 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(8.25, 8.25, 8.25); Calibrated: 12/13/2010  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1291; Calibrated: 10/10/2011  Phantom: SAM1; Type: SAM; Serial: TP-1475  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.51 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 78.1 V/m; Power Drift = 0.046 dB Peak SAR (extrapolated) = 18.2 W/kg SAR(1 g) = 9.55 mW/g; SAR(10 g) = 4.88 mW/g Maximum value of SAR (measured) = 10.7 mW/g 0 dB = 10.7mW/g Date/Time: 11/5/2011 23:34:40, Date/Time: 11/5/2011 23:38:45 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-EX-body DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.51 mho/m; ε r = 51.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(7.48, 7.48, 7.48); Calibrated: 12/13/2010  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1291; Calibrated: 10/10/2011  Phantom: SAM1; Type: SAM; Serial: TP-1475  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.46 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 75.8 V/m; Power Drift = 0.122 dB Peak SAR (extrapolated) = 18 W/kg SAR(1 g) = 9.87 mW/g; SAR(10 g) = 5.11 mW/g Maximum value of SAR (measured) = 11.1 mW/g 0 dB = 11.1mW/g Date/Time: 11/21/2011 1:33:36, Date/Time: 11/21/2011 1:37:45 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-EX-Head DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.44 mho/m; ε r = 38.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(8.25, 8.25, 8.25); Calibrated: 12/13/2010  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1291; Calibrated: 10/10/2011  Phantom: SAM2; Type: SAM; Serial: TP-1474  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 7.75 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 68.2 V/m; Power Drift = 0.144 dB Peak SAR (extrapolated) = 17.5 W/kg SAR(1 g) = 9.22 mW/g; SAR(10 g) = 4.72 mW/g Maximum value of SAR (measured) = 10.3 mW/g 0 dB = 10.3mW/g Date/Time: 11…

Text truncated - open the document above for the full version.

Report No:SYBH (Z-SAR) 010112011-2 FCC ID:QISM920 Appendix C. Calibration Certificate Table of contends Calibration report “D835-SN4d092” Calibration report “D1800-SN2d184 Calibration report “D1900-SN5d143” Calibration report “D2450-SN860” Calibration report “DAE4-SN1291” Calibration report “Probe EX3DV4-SN3753”

Report No:SYBH (Z-SAR) 010112011-2 FCC ID:QISM920 Appendix B. SAR Measurement Plots Table of contents CDMA800- head CDMA800- body CDMA 1700- head CDMA1700- body CDMA1900- head CDMA1900- body LTE Band II- head LTE Band II- body LTE Band IV- head LTE Band IV- body WiFi(802.11b)- head WiFi(802.11b)- body Date/Time: 11/5/2011 1:02:40, Date/Time: 11/5/2011 1:10:44 Test Laboratory: HUAWEI SAR Lab M920 CDMA800 384CH Left hand touch cheek DUT: M920; Type: Mobile Phone ; Serial: B7PIEB1191400041 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.895 mho/m; ε r = 42.8; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.06, 9.06, 9.06); Calibrated: 12/13/2010  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1291; Calibrated: 10/10/2011  Phantom: SAM2; Type: SAM; Serial: TP-1474  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.381 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.72 V/m; Power Drift = -0.021 dB Peak SAR (extrapolated) = 0.484 W/kg SAR(1 g) = 0.356 mW/g; SAR(10 g) = 0.257 mW/g Maximum value of SAR (measured) = 0.376 mW/g 0 dB = 0.376mW/g Date/Time: 11/5/2011 2:12:31, Date/Time: 11/5/2011 2:20:36 Test Laboratory: HUAWEI SAR Lab M920 CDMA800 384CH Left hand tilt 15 degree DUT: M920; Type: Mobile Phone ; Serial: B7PIEB1191400041 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.895 mho/m; ε r = 42.8; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.06, 9.06, 9.06); Calibrated: 12/13/2010  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1291; Calibrated: 10/10/2011  Phantom: SAM2; Type: SAM; Serial: TP-1474  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.284 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.6 V/m; Power Drift = 0.017 dB Peak SAR (extrapolated) = 0.358 W/kg SAR(1 g) = 0.284 mW/g; SAR(10 g) = 0.218 mW/g Maximum value of SAR (measured) = 0.296 mW/g 0 dB = 0.296mW/g Date/Time: 11/5/2011 4:19:51, Date/Time: 11/5/2011 4:27:53 Test Laboratory: HUAWEI SAR Lab M920 CDMA800 777CH Right hand touch cheek DUT: M920; Type: Mobile Phone ; Serial: B7PIEB1191400041 Communication System: HW-CDMA2000; Frequency: 848.31 MHz Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.903 mho/m; ε r = 42.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.06, 9.06, 9.06); Calibrated: 12/13/2010  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1291; Calibrated: 10/10/2011  Phantom: SAM2; Type: SAM; Serial: TP-1474  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.09 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.7 V/m; Power Drift = -0.096 dB Peak SAR (extrapolated) = 1.46 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.695 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.07 mW/g 0 dB = 1.07mW/g Date/Time: 11/5/2011 0:07:26, Date/Time: 11/5/2011 0:15:27 Test Laboratory: HUAWEI SAR Lab M920 CDMA800 384CH Right hand touch cheek DUT: M920; Type: Mobile Phone ; Serial: B7PIEB1191400041 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.895 mho/m; ε r = 42.8; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.06, 9.06, 9.06); Calibrated: 12/13/2010  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1291; Calibrated: 10/10/2011  Phantom: SAM2; Type: SAM; Serial: TP-1474  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.915 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.81 V/m; Power Drift = -0.066 dB Peak SAR (extrapolated) = 1.23 W/kg SAR(1 g) = 0.854 mW/g; SAR(10 g) = 0.591 mW/g Maximum value of SAR (measured) = 0.910 mW/g 0 dB = 0.910mW/g Date/Time: 11/5/2011 4:43:47, Date/Time: 11/5/2011 4:51:49 Test Laboratory: HUAWEI SAR Lab M920 CDMA800 1013CH Right hand touch cheek DUT: M920; Type: Mobile Phone ; Serial: B7PIEB1191400041 Communication System: HW-CDMA2000; Frequency: 824.7 MHz Medium parameters used: f = 825 MHz; σ = 0.876 mho/m; ε r = 42.9; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.06, 9.06, 9.06); Calibrated: 12/13/2010  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1291; Calibrated: 10/10/2011  Phantom: SAM2; Type: SAM; Serial: TP-1474  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.684 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.44 V/m; Power Drift = 0.084 dB Peak SAR (extrapolated) = 0.936 W/kg …

Text truncated - open the document above for the full version.
