QISMT841-WCBG03H802.11 b/g PCMCIA Wireless Card

Table of Contents 1 General Information.......................................................................1 1.1 Features................................................................................1 1.2 WCB-G03H Appearance.......................................................2 2 Wireless Basics.............................................................................1 3 Configuration.................................................................................1 4 WEP Glossary ................................................................................1 5 Technical Specifications...............................................................3 i 1 General Information WCB-G03H is a special 802.11g and 802.11b CardBus Card, which design to enable the wireless connection of MT841. WCB-G03H is based on Conexant Javelin chipset that complied with IEEE 802.11g and IEEE 802.11b standard from 2.412~2.462GHz, and it can be used to provide up to 54Mbps for IEEE 802.11g, or 11Mbps for IEEE 802.11b to connect your wireless LAN. With seamless roaming, fully interoperability and advanced security with WEP standard, WCB-G03H offers absolute interoperability with different vendors’ 802.11g and 802.11b wireless Cardbus card through the wireless LAN. 1.1 Features z Compatible with IEEE 802.11g high rate standard to provide wireless 54Mbps data rate z Compatible with IEEE 802.11b high rate standard to provide wireless 11Mbps data rate z Operation at 2.412~2.462GHz frequency band to meet worldwide regulations z Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, 54Mbps for IEEE 802.11g z Dynamic date rate scaling at 1, 2, 5.5, and 11Mbps for IEEE 802.11b z Maximum reliability, throughput and connectivity with automatic data rate switching 1 z Supports wireless data encryption with 64/128-bit WEP for security z Supports infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication z Integrated microstrip antenna z One-piece PC Card design to fully support PC Card type II defined mechanical and environmental stress conditions Support z WPA enhanced security Note: Environmental factors may negatively affect the wireless signal range and the performance of the WCB-G03H. 1.2 WCB-G03H Appearance Figure 1-1 WCB-G03H Appearance 2 The WCB-G03H Wireless Cardbus Adapter has two LEDs: POWER and ACTIVITY. POWER ACTIVITY Figure 1-2 LDEs LED Activity What that means LEDs are flashing alternatively The WCB-G03H is searching for a wireless network connection. LEDs are flashing in unison The WCB-G03H has made a valid wireless network connection, and there is activity on the link. LEDs are flashing in unison, but dimly The WCB-G03H has made a valid wireless network connection, but there is no activity on the link. This could be caused by an Access Point that is functioning, but not connected to the wired network. 3 2 Wireless Basics Wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home or business. Strictly adhering to the 802.11b and 802.11g standards, our wireless family of products will allow you to access the data you want, when and where you want it. No longer will you be limited to one location or forced to run new wiring through your home or office. You will be able to enjoy the freedom that wireless networking delivers. A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless LANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial for many users. Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems, support the same protocols as Ethernet adapter cards. Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Access Point (AP) is a device used to provide this link. 1 The advantages of Wireless LAN are many and varied and include: z Mobility − Productivity increases when people have access to data in any location within the operating range of the WLAN. Management decisions based on real-time information can significantly improve worker efficiency. z Low Implementation Costs – WLANs (Wireless Local Area Networks) are easy to set up, manage, change and relocate. Networks that frequently change, both physically and logically, can benefit from WLANs ease of implementation. WLANs can operate in locations where installation of wiring may be impractical. z Installation Speed and Simplicity − Installing a wireless LAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. z Network Expansion − Wireless technology allows the network to go where wires cannot go. z Reduced Cost-of-Ownership − While the initial investment required for wireless LAN hardware might be higher than the cost of wired LAN hardware, overall installation expenses and life-cycle costs will be significantly lower. Long-term cost benefits are greatest in dynamic environments requiring frequent moves, adds, and changes. z Scalability − Wireless Local Area Networks (WLANs) can be configured in a variety of topologies to meet the needs of specific applications and installations. Configurations are easily changed and range from peer-to-peer networks suitable for a small number of users to full infrastructure 2 networks of thousands of users that allow roaming over a broad area. 3 3 Configuration Insert WCB-G03H into the slot of MT841, and then enter the web-based configuration of MT841. The la…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Bantian, Longgang , Shenzhen, Guangdong, P.R.China P.C. 518129 +86-755-28780808 Federal CommunicSations Commission Authorization and Evaluation Division Confidentiality Request FCC ID: QISMT841-WCBG03H Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Li Yingzhe Cooperation Manager Huawei Technologies Co., Ltd. +86-755-28780808 e-mail:[email protected] add:Bantian, Longgang , Shenzhen, Guangdong, P.R.China

FCC ID: QISMT841-WCBG03H ADT No. 940419H01 Modular Approval Request Letter Advance Data Technology June 20, 2005 Dear Application Examiner, Alpha Networks Inc.’s 802.11b/g PCMCIA Wireless Card, FCC ID: QISMT841- WCBG03H, would like to have your authorization as a modular approval specific to the ADSL etc.. The requ irements of Public Notice DA00-140 7 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip ISL3886. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 2.84VDC powered. The miniPCI interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is ISL6411IR. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: QISMT841-WCBG03H ADT No. 940419H01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

Huawei Technologies Co., Ltd. Bantian, Longgang , Shenzhen, Guangdong, P.R.China P.C. 518129 +86-755-28780808 POWER OF ATTORNEY To whom it may concern: We, the undersigned, Huawei Technologies Co., Ltd. hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, --------------------------------------------------- Li Yingzhe Cooperation Manager Huawei Technologies Co., Ltd. e-mail:[email protected] add:Bantian, Longgang , Shenzhen, Guangdong, P.R.China

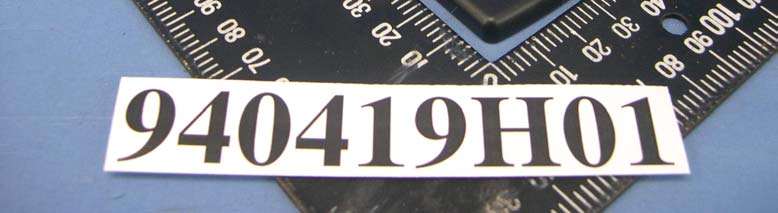

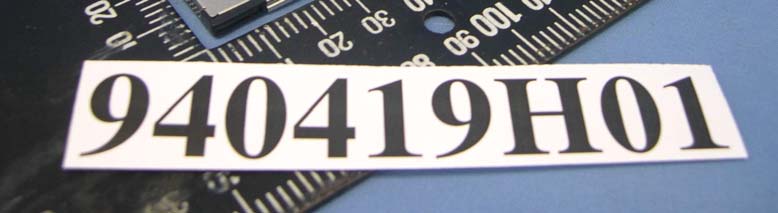

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL (Fig. 1) FCC ID: QISMT841-WCBG03H

PCMCIA Wireless Card SmartAX MT841 Accessory / WCBG03H FCC ID : QISMT841-WCBG03H

Page 2 Page 3 Page 4 Page 5

FCC ID: QISMT841-WCBG03H Report No. RF940419H01 Operational Description This device is an 802.11b/g PCMCIA Wireless Card, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise ratio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (802.11b/g PCMCIA Wireless Card) is powered by host equipment. The antenna type used in this product is PCB antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: QISMT841-WCBG03H Report No.: SA940419H01 1 RF EXPOSURE REPORT REPORT NO.: SA940419H01 MODEL NO.: SmartAX MT841 Accessory / WCBG03H PCMCIA Wireless Card ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Huawei Technologies Co., Ltd. ADDRESS: Bantian,Longgang District Shenzhen 518129 China ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: QISMT841-WCBG03H Report No.: SA940419H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: QISMT841-WCBG03H Report No.: SA940419H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: QISMT841-WCBG03H Report No.: SA940419H01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2dBi or 1.58489(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241283.56030.02631.0 6243783.36810.02631.0 11246282.79420.02611.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241276.20790.02401.0 6243779.98340.02521.0 11246279.61590.02511.0

FCC ID: QISMT841-WCBG03H Report No.: RF940419H011Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.:RF940419H01 MODEL NO.:SmartAX MT841 Accessory / WCBG03H PCMCIA Wireless Card RECEIVED:April 19, 2005 TESTED:April 25 to 26, 2005 ISSUED: April 28, 2005 APPLICANT:Huawei Technologies Co., Ltd. ADDRESS:Bantian,Longgang District Shenzhen 518129 China ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 58 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: QISMT841-WCBG03H Report No.: RF940419H012Report Format Version 2.0.1 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL: ................ 8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 9 3.5DESCRIPTION OF SUPPORT UNITS........................................................ 10 3.6CONFIGURATION OF SYSTEM UNDER TEST ......................................... 10 4TEST TYPES AND RESULTS......................................................................11 4.1CONDUCTED EMISSION MEASUREMENT ...............................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................11 4.1.2TEST INSTRUMENTS .................................................................................11 4.1.3TEST PROCEDURES................................................................................. 12 4.1.4TEST SETUP .............................................................................................. 12 4.1.5EUT OPERATING CONDITIONS................................................................ 13 4.1.6TEST RESULTS.......................................................................................... 14 4.2RADIATED EMISSION MEASUREMENT ................................................... 16 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 16 4.2.2TEST INSTRUMENTS ................................................................................ 17 4.2.3TEST PROCEDURES................................................................................. 18 4.2.4TEST SETUP .............................................................................................. 19 4.2.5EUT OPERATING CONDITIONS................................................................ 19 4.2.6TEST RESULTS.......................................................................................... 20 4.2.7TEST RESULTS – DSSS ............................................................................ 21 4.2.8TEST RESULTS – OFDM ........................................................................... 24 4.36dB BANDWIDTH MEASUREMENT .......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 27 4.3.2TEST INSTRUMENTS ................................................................................ 27 4.3.3TEST PROCEDURE ................................................................................... 28 4.3.4TEST SETUP .............................................................................................. 28 4.3.5EUT OPERATING CONDITIONS................................................................ 28 4.3.6TEST RESULTS – DSSS ............................................................................ 29 4.3.7TEST RESULTS – OFDM ........................................................................... 32 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 35 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 35 4.4.2TEST INSTRUMENTS ................................................................................ 35 4.4.3TEST PROCEDURES................................................................................. 36 4.4.4TEST SETUP .............................................................................................. 36 FCC ID: QISMT841-WCBG03H Report No.: RF940419H013Report Format Version 2.0.1 4.4.5EUT OPERATING CONDITIONS................................................................ 36 4.4.6TEST RESULTS – DSSS ............................................................................ 37 4.4.7TEST RESULTS – OFDM ........................................................................... 38 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 39 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 39 4.5.2TEST INSTRUMENTS ................................................................................ 39 4.5.3TEST PROCEDURE ................................................................................... 40 4.5.4TEST SETUP .............................................................................................. 40 4.5.5EUT OPERATING CONDITIONS................................................................ 40 4.5.6TEST RESULTS – DSSS ............................................................................ 41 4.5.7TEST RESULTS – OFD…

Text truncated - open the document above for the full version.

FCC ID: QISMT841-WCBG03H Report No.: RF940419H0155Report Format Version 2.0.1 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: QISMT841-WCBG03H Report No.: RF940419H0156Report Format Version 2.0.1 RADIATED EMISSION TEST FCC ID: QISMT841-WCBG03H Report No.: RF940419H0157Report Format Version 2.0.1
