QISMU709GS-8HSPA+ Module

Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. i Contents Getting to Know the MU709 ........................................................................................................................... 1 PCB Design ............................................................................................................................................................ 2 Assembly................................................................................................................................................................ 3 1 Thank you for purchasing HUAWEI MU709Gs-8 HSPA+ LGA Module (hereinafter referred to as the MU709) Note:  This manual briefly describes the preparation, the process for PCB Design, Assembly and safety precautions.  You are recommended to read the manual before using the MU709. Getting to Know the MU709  The package of the LGA module is 145 pin LGA with a dimension of 30 mm × 30 mm × 2.27 mm. It is applied to the user interface board, and can be used as a wireless terminal in a network environment. 2 PCB Design PCB Pad Design To achieve assembly yields and solder joints of high reliability, it is recommended that the PCB pad size be designed as follows: the sizes of the solder pads on customers' PCBs are the same as those of the module's solder pads for the high production efficiency and high reliability of solder joints. For details, see the following figure: 3 Requirements on PCB Layout  To reduce deformation, a thickness of at least 1.0 mm is recommended.  Other devices must be located more than 3 mm (5 mm recommended) away from the LGA module. The minimum distance between the LGA module and the PCB edge is 0.5 mm.  When the PCB layout is double sided, it is recommended that the LGA module be placed on the second side for assembly; so as to avoid module dropped from PCB or component (located in module) re-melding defects caused by uneven weight. Design of Solder Mask  The PCB pad design can be solder mask defined (SMD), or non-solder mask defined (NSMD).NSMD is recommended. In addition, the solder mask of the NSMD pad design is larger than the pad so the reliability of the solder joint can be improved.  The solder mask must be 100 μm to150 μm larger than the pad, that is, the single side of the solder mask must be 50 μm to 75 μm larger than the pad. The specific size depends on the processing capability of the PCB manufacturer. Assembly Stencil Design It is recommended that the stencil for the LGA module be 0.15 mm in thickness. For the stencil design, see the following figure： 4 0.6 5 Reflow Profile For the soldering temperature of the LGA module, see the following figure. Reflow profile Reflow parameters Temperature Zone Time Key Parameter Preheat zone (40°C–150°C) 60s–120s Heating rate: 0.5°C/s–2°C/s 6 Soak zone (150°C–200°C) (t1–t2): 60s–120s Heating rate: < 1.0°C/s Reflow zone (> 217°C) (t3–t4): 30s–90s Peak reflow temperature: 230°C–250°C Cooling zone Cooling rate: 1°C/s ≤ Slope ≤ 4°C/s

1 Safety Information Warnings and Precautions This section contains important information pertaining to the operating instructions of your device. It also contains information about how to use your device safely. Read this information carefully before using the device. Electronic Device Do not use your device if using the device is prohibited. Do not use the device when using the device causes danger or interference with electronic devices. Medical Device  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device when using the device is prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. For any such problems, consult your service provider.  If you are using an electronic medical device, consult the doctor or the device manufacturer to confirm whether radio waves affect the operation of this device. Potentially Explosive Atmosphere Do not use your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not use your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air 2 contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity. Traffic Security  Observe local laws and regulations while using the device. To prevent accidents, do not use your wireless device while driving.  RF signals may affect electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  In a motor vehicle, do not place the device over the air bag or in the air bag deployment area. Otherwise, the device may hurt you owing to the strong force when the air bag inflates.  Do not use your device while flying in an aircraft and before boarding an aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft and disrupt the wireless telephone network. It may also be considered illegal. Operating Environment  Do not use the device in dusty, damp, and dirty places or places with magnetic fields. Otherwise, it may result in malfunction of the circuit.  On a stormy day with thunder, do not use your device when it is being charged, to prevent any danger caused by lightning.  While using the device, observe the local laws and regulations, and respect others' privacy and legal rights.  The device should be installed and operated with a minimum distance of 20 cm between the radiator and your body. Safety of Children Comply with all precautions with regard to children's safety. Letting the child play with your device or its accessories, which may include parts that can be detached from the device, may be dangerous, as it may present a choking hazard. Ensure that small children are kept away from the device and accessories. Accessories Use the accessories delivered only by the manufacturer. Using accessories of other 3 manufacturers or vendors with this device model may invalidate any approval or warranty applicable to the device, result in the non-operation of the device, and cause danger. Cleaning and Maintenance It is normal that your wireless device gets hot when you use or charge it. Before you clean or maintain the wireless device, stop all applications and disconnect the wireless device from your PC.  Use your wireless device and accessories with care and in a clean environment. Keep the wireless device away from a fire or a lit cigarette.  Protect your wireless device and accessories from water and vapor, and keep them dry.  Do not drop, throw, or bend your wireless device.  Clean your wireless device with a piece of damp and soft antistatic cloth. Do not use any chemical detergent, powder, or other chemical agents (such as alcohol and benzene) to clean the device.  Keep the ambient temperature between -20°C to +70°C for using the device. FCC and IC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.  Note 1: This module has been certified to comply with RF exposure requirements under mobile or fixed condition, this module is to be installed only in mobile or fixed applications. The system antenna(s) used for this module must not exceed 2.5dBi.  The transmitter module may not be co-located with any other transmitter or antenna. The FCC ID label on the final system must be labeled with “Contains FCC ID:QIS MU709GS-8”.  As long as the above conditions are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. To ensure compliance with all non-transmitter functions the host manufacturer is responsible for ensuring compliance with the module(s) installed and fully operational. For example, if a host was previously authorized as an unintentional radiator under the Declaration of Conformity procedure without a transmitter certified module and a module is added, the 4 host manufacturer is responsible for ensuring that…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Date (25/06/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District 518052, Shenzhen, CHINA Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QIS MU709GS-8 Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd. Date (04/07/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Ref: Application Modular Approval Certification for Product Type: HSPA Module, Model: MU609, FCC ID: QISMU709GS-8; Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby clarify the following attestation addresses the fourth requirements to support modular approval: 1. This device is designed for mobile or fixed operation; Portable operation is subject to a class II permissive change application or to a new and separate FCC ID/IC ID. 2. The maximum antenna gain is limited to 2.5 dBi for 850MHz frequency band, 2.5 dBi in the 1900MHz frequency band, as calculated in the RF exposure exhibit. 3. The product has a FCC/IC ID label on the device itself. Also, the OEM host end product manufacturer will be informed to display a label referring to the enclosed module. The exterior label will read as follows: “Contains FCC ID: QISMU709GS-8”. 4. We request to include in the Grant the following words in device description or Grant notes: “Modular transmitter”, or “transmitter module”. If there are any additional questions or if further information is needed, please contact us. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

HUAWEI Technologies Co., Ltd. Date (03/07/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Ref: Application Modular Approval Certification for Product Type: HSPA+ Module, Model: MU709Gs-8, FCC ID: QISMU709GS-8; Dear Sir or Madam, The Huawei Technologies Co., Ltd.-HSPA+ Module- MU709Gs-8 is seeking FCC authorization as a modular transmitter. All the requirement of the FCC public notice DA00-1407 are met by following statements: 1. The modular transmitter must have its own RF Shielding. Confirmed, the shielding of radio portion can be demonstrated in exhibition “external photos”. 2. The modular transmitter must have buffered modulation/data inputs. Confirmed, the modular has its digital buffered data inputs. 3. The modular transmitter must have its own power supply regulation. Confirmed, the transmitter has its own power supply regulation. 4. The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna. Confirmed, the module has been tested with external antenna. 5. The modular transmitter must be tested in a stand-along configuration. Confirmed, see the FCC test report and test setup photos. 6. The modular transmitter must be labelled with its own FCC ID number. Confirmed, the FCC ID will be QISMU709GS-8, see exhibition “label” and “label location”. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instructions along with module to explain any such requirement. A copy of these instructions must be included in the application for equipment authorization. Confirmed, the module complies with all applicable FCC rules. Instruction for maintaining compliance are given in the user instructions. 8. The modular transmitter must comply with any application RF exposure requirements. Confirmed, see exhibition “Maximum Permissible Exposure (MPE) Estimation”. If there are any additional questions or if further information is needed, please contact us. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China Zhangxinghai EMC Laboratory

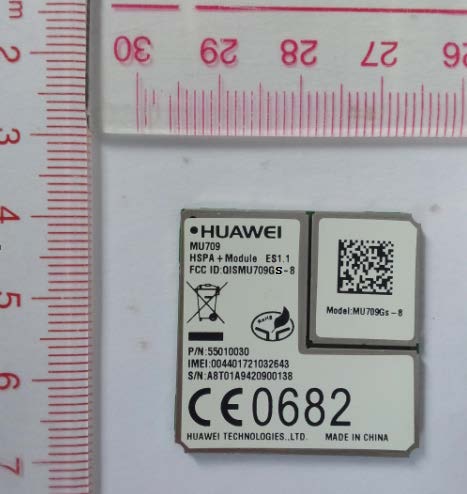

MU709GS-8 SECRET Page1, Total3 External Photos of MU709Gs-8 MU709GS-8 SECRET Page2, Total3 MU709GS-8 SECRET Page3, Total3

MU709Gs-8 SECRET Page1, Total1 ID Label MU709Gs-8

MU709Gs-8 SECRET Page1, Total1 ID Label Location_MU709Gs-8

MU709Gs-8 SECRET Page1, Total2 Internal Photos of MU709Gs-8 MU709Gs-8 SECRET Page2, Total2

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Maximum Permissible Exposure(MPE) Estimation Report Product Name: HSPA+ Module Model: MU709Gs-8 Report No.: SYBH(Z-SAR)005052014-2 FCC ID: QISMU709GS-8 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2014-05-14 2014-05-14 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report NO.: SYBH(Z-SAR)005052014-2 FCC ID:QISMU709GS-8 2014-05-14 Page 2 of 11 ※ ※ Modified History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release 2014-05-14 Gong Zhong Report NO.: SYBH(Z-SAR)005052014-2 FCC ID:QISMU709GS-8 2014-05-14 Page 3 of 11 Table of Contents 1 EUT Description .............................................................................................................................. 4 1.1 General Description ............................................................................................................. 5 2 Test specification(s) ......................................................................................................................... 6 3 Testing laboratory ............................................................................................................................ 6 4 Applicant and Manufacturer ............................................................................................................ 6 5 Application details ........................................................................................................................... 6 6 Ambient Condition ........................................................................................................................... 6 7 RF Exposure Requirements.............................................................................................................. 7 8 RF Exposure Evaluation ................................................................................................................ 10 8.1 Operation in GSM850 ........................................................................................................ 10 8.2 Operation in GSM1900 ...................................................................................................... 10 8.3 Operation in UMTS Band II .............................................................................................. 11 8.4 Operation in UMTS Band V .............................................................................................. 11 Report NO.: SYBH(Z-SAR)005052014-2 FCC ID:QISMU709GS-8 2014-05-14 Page 4 of 11 1 EUT Description Device Information： DUT Name: HSPA+ Module Type Identification: MU709GS-8 Device Type : Mobile device FCC ID: QISMU709GS-8 Device Phase: Identical Prototype Exposure Category: Uncontrolled environment/general population Hardware Version : MD1MU709M01 Software Version : 11.635.60.03.00 Antenna Type : External Antenna Device Operating Configurations: Supporting Mode(s) GSM850/1900,UMTS Band II/V Test Modulation GSM(GMSK/8PSK),UMTS(QPSK) Operating Frequency Range(s) Band Tx (MHz) Rx (MHz) GSM 850 824-849 869-894 GSM 1900 1850-1910 1930-1990 UMTS Band II 1850-1910 1930-1990 UMTS Band V 824-849 869-894 Report NO.: SYBH(Z-SAR)005052014-2 FCC ID:QISMU709GS-8 2014-05-14 Page 5 of 11 1.1 General Description MU709Gs-8 WCDMA/HSDPA/HSUPA/HSPA/GSM/GPRS/EDGE mode Wireless Module is subscriber equipment in the system. MU709Gs-8 implement such functions as RF signal receiving/transmitting, WCDMA/HSDPA/HSUPA/HSPA/GSM/GPRS/EDGE protocol processing, data service etc. Report NO.: SYBH(Z-SAR)005052014-2 FCC ID:QISMU709GS-8 2014-05-14 Page 6 of 11 2 Test specification(s) ANSI Std C95.1-1992 Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.(IEEE Std C95.1-1991) RSS-102 Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands (Issue 4 of March 2010)) KDB 447498 D01 General RF Exposure Guidance v05r02 3 Testing laboratory Test Site The Reliability Laboratory of Huawei Technologies Co., Ltd. Test Location Zone K3,Huawei Industrial Base, Bantian Industry Area, Longgang District, Shenzhen, Guangdong, China Telephone +86 755 28780808 Fax +86 755 89652518 State of accreditation The Test laboratory (area of testing) is accredited according to ISO/IEC 17025. CNAS Registration number: L0310 A2LA TESTING CERT #2174.01 4 Applicant and Manufacturer Company Name HUAWEI TECHNOLOGIES CO., LTD Address Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C 5 Application details Start Date of test 2014-05-14 End Date of test 2014-05-14 6 Ambient Condition Ambient temperature 20°C – 24°C Relative Humidity 30% – 70% Report NO.: SYBH(Z-SAR)005052014-2 FCC ID:QISMU709GS-8 2014-05-14 Page 7 of 11 7 RF Exposure Requirements An estimation of MPE in this application for product is used to ensure if it complies to the rules of the standard in the regulation list above. Maximum permissible exposure (MPE) refers to the RF energy that is acceptable for human exposure. It is broken down into two categories, Occupational/controlled and General population/uncontrolled. Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled expo…

Text truncated - open the document above for the full version.

FCC RF Test Report Product Name: HSPA+ Module Model Number: MU709Gs-8 Report No: SYBH(Z-RF)008052014-2001 FCC ID：QISMU709GS-8 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of MU709Gs-8 Report No: SYBH(Z-RF)008052014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 21 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of MU709Gs-8 Report No: SYBH(Z-RF)008052014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 21 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2014-05-12 Start Date of Test: 2014-05-12 End Date of Test: 2014-05-16 Test Result: Pass Approved by Senior Engineer: 2014-05-16 Liu Chunlin Date Name Signature Prepared by: 2014-05-16 Zhu Mingjing Date Name Signature RF Test Report of MU709Gs-8 Report No: SYBH(Z-RF)008052014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 21 Modification Record No. Last Report No. Modification Description 1 First report. RF Test Report of MU709Gs-8 Report No: SYBH(Z-RF)008052014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 21 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 2.1 Cellular Band (824-849 MHz paired with 869-894 MHz) ............................................................................ 7 2.2 PCS Band (1850-1915 MHz paired with 1930-1995 MHz) ......................................................................... 8 3 Description of the Equipment under Test (EUT) ..................................................................................................... 9 3.1 General Description ................................................................................................................................... 9 3.2 EUT Identity ............................................................................................................................................... 9 3.3 Technical Specification .............................................................................................................................. 9 4 General Test Conditions / Configurations ............................................................................................................. 11 4.1 Test Modes .............................................................................................................................................. 11 4.2 Test Environment ..................................................................................................................................... 11 4.3 Test Frequency ........................................................................................................................................ 12 4.4 DESCRIPTION OF TESTS ...................................................................................................................... 13 4.5 Test Setups .............................................................................................................................................. 16 4.6 Test Conditions ........................................................................................................................................ 18 5 Main Test Instruments .......................................................................................................................................... 20 6 Measurement Uncertainty..................................................................................................................................... 21 RF Test Report of MU709Gs-8 Report No: SYBH(Z-RF)008052014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 21 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 02:2013 47 CFR FCC Part 22: 2013 47 CFR FCC Part 24: 2013 Test Method: FCC KDB 971168 …

Text truncated - open the document above for the full version.

RF Test Report of MU709Gs-8 Report No: SYBH(Z-RF)008052014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 122 Appendix for test report RF Test Report of MU709Gs-8 Report No: SYBH(Z-RF)008052014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 122 1Appendix_A: Effective (Isotropic) Radiated Power Output Data Part I - Test Results Test Band Test Mode Test Channel Conducted Power [dBm] ERP [dBm] Limit [dBm] Verdict GSM850 GSM/TM1 LCH 32.62 32.97 38.5 PA SS MCH 32.69 33.04 38.5 PA SS HCH 32.58 32.93 38.5 PA SS GSM/TM2 LCH 26.63 26.98 38.5 PA SS MCH 26.61 26.96 38.5 PA SS HCH 26.54 26.89 38.5 PA SS WCDMA850 UMTS/TM1 LCH 23.25 23.6 38.5 PA SS MCH 23.29 23.64 38.5 PA SS HCH 23.21 23.56 38.5 PA SS Test Band Test Mode Test Channel Conducted Power [dBm] EIRP [dBm] Limit [dBm] Verdict GSM1900 GSM/TM1 LCH 29.77 32.27 33 PA SS MCH 29.75 32.25 33 PA SS HCH 29.68 32.18 33 PA SS GSM/TM2 LCH 25.98 28.48 33 PA SS MCH 26.02 28.52 33 PA SS HCH 26.01 28.51 33 PA SS WCDMA1900 UMTS/TM1 LCH 23.15 25.65 33 PA SS MCH 23.01 25.51 33 PA SS HCH 22.94 25.44 33 PA SS RF Test Report of MU709Gs-8 Report No: SYBH(Z-RF)008052014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 122 Note1: a, For getting the ERP (Efficient Radiated Power) or EIRP (Efficient Isotropic Radiated Power) in substitution method, the following formula should be taken to calculate it, ERP [dBm] = SGP …

Text truncated - open the document above for the full version.
