QISMU733HSPA+ Module

For the best experience, open this PDF portfolio in Acrobat 9 or Adobe Reader 9, or later. Get Adobe Reader Now!

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISMU733 to be kept confidential: 1. Schematic diagram . 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Federal Communication Commission Equipment Authorization Devision, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 2012-02-22 TO WHOM IT MAY CONCERN Request for Single Limited Modular Approval FCC ID: QISMU733 Huawei Technologies Co., Ltd. hereby requests a Single Limited Modular Approval for its application with FCC ID: QISMU733 . according to KDB 996369 D01 Transmitter Module Equipment Authorization Guide 1) The module has its own RF shielding 2) The module has digital input buffer 3) The module has its own power supply regulation 4) The module has been tested with external antenna 5) The module will be labelled with its own FCC ID number 6) The module complies with all applicable FCC rules. Instructions for maintaining compliance are given in the user instructions 7) The module shall be approved for mobile RF Exposure conditions only. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Zhang Xinghai EMC Laboratory Manager For and Behalf of: Huawei Technologies Co., Ltd. Huawei Industrial Base, Bantian, Longgang, Shenzhen, P.R China 0086-755-89651014

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2012-02-24 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISMU733 Product Name: HSPA+ Module Product Model: MU733 To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should the following occur: Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely,

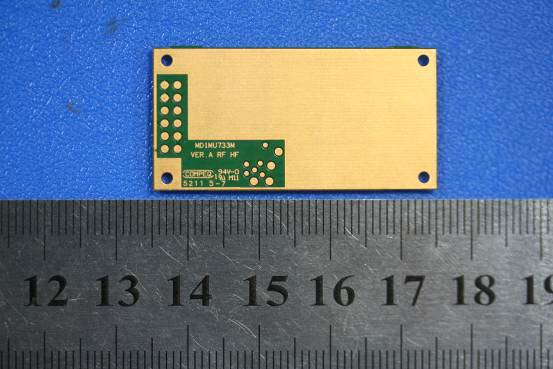

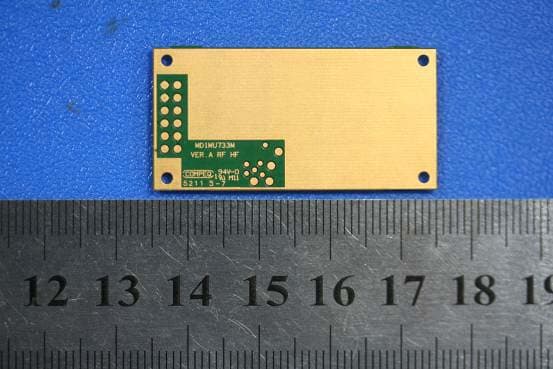

MU733 SECRET Page1, Total4 External Photos of MU733 MU733 SECRET Page2, Total4 MU733 SECRET Page3, Total4 MU733 SECRET Page4, Total4

MU733 SECRET Page1, Total2 Internal Photos of MU733 MU733 SECRET Page2, Total2

MU733 Electromagnetic Radiation Exposure Estimation 1 Maximum Permissible Exposure (MPE) Estimation for MU733 1 Introduction MU733 HSPA+/WCDMA/GSM/GPRS/EDGE dual mode Wireless Module is subscriber equipment in the UMTS/GSM system. MU733 implement such functions as RF signal receiving/transmitting, HSPA+/WCDMA and EDGE/GPRS/GSM protocol processing, data service etc. Externally it provides B2B interface. 2 Limits and Guidelines on Exposure to Electromagnetic Fields According to the FCC Part 2.1091( which reference the part1.1310), we know: mobile device (transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters radiating structure(s) and the body of the user or nearby persons). And the Cellular radiotelephone service and PCS services are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if they operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more, or if they operate at frequencies above 1.5 GHz and their ERP is 3 watts or more. Uncontrolled limits are used for general public. General population/uncontrolled exposure apply in situations is which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. The exposure levels can be expressed in terms of power density, electric field strength, or magnetic field strength, as averaged over 30 minutes for the general public and 6 minutes for trained personnel. The exposure criterion is frequency dependent, and a chart covering the range from 3 kHz to 100 GHz can be found in NCRP No.86 (references IEEE C95.1-1999). Below are the limits. MU733 Electromagnetic Radiation Exposure Estimation 2 Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) 0.3-3.0 3.0-30 30-300 300-1500 15,00-100,000 614 1842/f 61.4 -- -- 16.3/f 16.3/f 0.163 -- -- (100)* (900/f 2 )* 1.0 f/300 5 Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) 0.3-1.34 1.34-30.0 30-300 300-1500 15,00-100,000 614 824/f 27.5 -- -- 1.63 2.19/f 0.073 -- -- (100)* (180/f 2 )* 0.2 f/1500 1 Power density S [mW /cm2] for controlled area at 850 MHz ，(TX: 824MHz – 849MHz) 75.2 300 824 300 )(  MHzf S mW /cm2 Power density S [mW /cm2] for uncontrolled area at 850 MHz 55.0 1500 824 1500 )(  MHzf S mW /cm2 Power density S [mW /cm2] for uncontrolled area at 1700/1900 MHz S=1 mW/cm 2 Reference levels are provided for exposure assessment to determine whether the basic restrictions on exposure of humans to electromagnetic fields are exceeded. The basic restrictions on exposure to electromagnetic fields are based directly on established health effects and biological considerations. MU733 Electromagnetic Radiation Exposure Estimation 3 3 Location of EUT The source of the radiation is mounted on terminal; generally the direction of the antenna position is uprightness tabletop. The highest level of emission would be expected in close vicinity of the antenna and in line of sight to the antenna. 4 Prediction of the Exposure to Electromagnetic Fields Calculations can be made on a site by site basis to ensure the power density is below the limits given above, or guidelines can be done beforehand to ensure the minimum distances from the antenna is maintained through the site planning. The calculations are based on FCC OET 65 Appendix B. 4.1 Calculation of the Safe Distance Below method describes a theoretical approach to calculate possible exposure to electromagnetic radiation around a base station transceiver antenna. Precise statements are basically only possible either with measurements or complex calculations considering the complexity of the environment (e.g. soil conditions, near buildings and other obstacles) which causes reflections, scattering of electromagnetic fields. The maximum output power (given in EIRP) of a base station is usually limited by license conditions of the network operator. A rough estimation of the expected exposure in power flux density on a given point can be made with the following equation. The calculations are based on FCC OET 65 Appendix B.    )(4 )( 2 mr GWP S numeric Whereas: P = Maximum output power in W of the site G numeric = Numeric gain of the antenna relative to isotropic antenna R = distance between the antenna and the point of exposure in meters 4.2 Technical Description MU733 Technical Specification: MU733 Electromagnetic Radiation Exposure Estimation 4 Cellular Band: Power at antenna connector BTS: 32.32 dBm(GSM850)/23.61 dBm(WCDMA850) Antenna-cable attenuation: 0 dBi Input power to antenna: 32.32dBm(1.706W)(GSM850）/ 23.61dBm (0.230W) (WCDMA850) Antenna gain: 2.59 dBi (1.82) PCS Band: Power at antenna connector BTS: 29.66dBm（GSM1900）/23.49dBm（WCDMA1900） Antenna-cable attenuation: 0 dBi Input power to antenna: 29.66dBm(0.925W)(GSM1900)/23.49dBm(0.223W)(WCDMA1900) Antenna gain: 2.60 dBi (1.82) AWS Band: Power at antenna connector BTS: 23.56dBm（WCDMA1700） Antenna-cable attenuation: 0 dBi Input power to antenna: 23.56dBm（0.233W）（WCDMA1700） Antenna gain: 3.35 dBi (2.16) 4.3 Estimation of compliance boundary for indoor antenna 1) Cellular Band : GSM850 For the final determination of the compliance boundary the model for far-field calculation is used since this overestimates the field strength in the near-field region. Thus the calculated compliance boundary should be rather more conservative and on the safe side. For EUT the following compliance boundary is calculated: Compliance boundary For GSM 850MHz band: When r=20cm, so π*)(*4*8 *)( = 2 mr …

Text truncated - open the document above for the full version.
