QISP7-L12Smart Phone

Quick Start Guide P7 HUAWEI 1 Your phone at a glance Thank you for choosing the HUAWEI Ascend P7 smartphone. Before you start, let's take a look at your new phone. Micro USB port Front camera Power button Volume button micro-SIM card tray Headset jack Recent (View the recently used applications) Return Home microSD card tray 2 Installation Exercise caution when using the SIM eject tool to avoid injuring yourself or damaging your phone. Keep it away from children as well. Follow the instructions in the following figures to complete the installation. Then press and hold the power button to power on your phone. 1 2 3 4 Install the micro-SIM cards. Note: Make sure the hole position on the card tray is consistent with that in the preceding figure. Install the micro-SIM card trays. Insert the eject tool into the holes next to the micro-SIM card trays. Remove the micro-SIM card trays. 3 Locking and unlocking the screen Your phone automatically locks its screen after being idle for a specified period of time. Alternatively, you can press the power button to manually lock the screen. You can go to and touch Display > Sleep to set the screen timeout period. If the screen is off, press the power button to turn it on. Slide your finger in any direction to unlock the screen. 4 Huawei Beam Huawei Beam lets you quickly share data between two Near Field Communication (NFC) enabled phones. Go to and touch NFC. Touch NFC then Huawei Beam. To beam a web page or contact to another phone, place the two phones back to back and touch the content.   5 More information Encounter any issues while using your phone? Touch on your phone to open HiCare. For the full user guide, go to http://consumer.huawei.com/en/ and search for P7. Want to learn more about Huawei Emotion UI? Visit http://en.ui.vmall.com/ for the latest information. This guide is for reference only. The actual product, including but not limited to the color, size, and screen layout, may vary. All statements, information, and recommendations in this guide do not constitute a warranty of any kind, express or implied. 6 Legal Notice Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Android™ is a trademark of Google Inc. LTE is a trade mark of ETSI. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license. Other trademarks, product, service and company names mentioned may be the property of their respective owners. 7 Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. Third-Party Software Statement Huawei does not own the intellectual property of the third-party software and applications that are delivered with this product. Therefore, Huawei will not provide any warranty of any kind for third party software and applications. Neither will Huawei provide support to customers who use third-party software and applications, nor be responsible or liable for the functions or performance of third-party software and applications. Third-party software and applications services may be interrupted or terminated at any time, and Huawei does not guarantee the availability of any content or service. Third-party service providers provide content and services through network or transmission tools outside of the control of Huawei. To the greatest extent permitted by applicable law, it is explicitly stated that Huawei shall not compensate or be liable for services provided by third-party service providers, or the 8 interruption or termination of third-party contents or services. Huawei shall not be responsible for the legality, quality, or any other aspects of any software installed on this product, or for any uploaded or downloaded third-party works in any form, including but not limited to texts, images, videos, or software etc. Customers shall bear the risk for any and all effects, including incompatibility between the software and this product, which result from installing software or uploading or downloading the third-party works. This product is based on the open-source Android™ platform. Huawei has made necessary changes to the platform. Therefore, this product may not support all the functions that are supported by the standard Android platform or may be incompatible with third-party software. Huawei does not provide any warranty or representation in connect with any such compatibility and expressly excludes all liability in connection with such matters. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. T…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base, Bantian, Longgang, Shenzhen, P.R China Post ZIP：518129 Page ：1/1 To: TUV PS Fax : NULL From:Zhang Xinghai Fax:0086-0755-89650266 Tel:0086-0755-28970299 Email address: [email protected] Http: www.huawei.com Subject：Letter of Authorization 2014-04-25 To whom it may concern: We the undersigned, hereby authorize TUV PS to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by TUV PS on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Huawei Technologies Co., Ltd. . Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-5- 20 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISP7-L12 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2014-8- 20: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Justification Letter Date (30/05/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China Hereby we do the Justification on Huawei P7-L12, P7-L12 Application: Smart Phone, Model no.: Huawei P7-L12, P7-L12, FCC ID: QISP7-L12, as following: The new Model Huawei P7-L12, P7-L12 uses the same components and the same PCB Layout for NFC, BT and WLAN Radio. That is why, the following test reports are used from the previous application Huawei P7-L10, P7-L10 (FCC-ID QISP7-L10, IC 6369AP7L10) For DSS (BT) SYBH(Z-RF)005032014-2003 For DTS (BT (BLE)) SYBH(Z-RF)005032014-2004 For DTS (WLAN) SYBH(Z-RF)005032014-2002 For DXX (NFC) SYBH(Z-RF)005032014-2005 Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China +86 755 28780808 www.huawei.com Declaration of Letter Product Type: Smart Phone; Model No.: H U AW EI P7-L12, P7-L12 FCC ID:QISP7-L12 IC:6369A-P7L12 The two models were identical, only difference is the model name. And the two models have the same technical construction, including software design, RF module, antennas, circuit design and PCB layout. There are no differences between the two models (H U AW E I P7-L12, P7-L12) on electrical and mechanical construction. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Te l : 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, 518129 Guangdong, P.R.China Date: May 20, 2014 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISP7-L12, IC: 6369A-P7L12 has a battery, which will be placed in the battery compartment when delivery, it is not visible to the users as they purchase the products. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-5- 20 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISP7-L12 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2014-8- 20: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-5- 20 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISP7-L12 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2014-8- 20: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Justification Letter Date (30/05/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China Hereby we do the Justification on Huawei P7-L12, P7-L12 Application: Smart Phone, Model no.: Huawei P7-L12, P7-L12, FCC ID: QISP7-L12, as following: The new Model Huawei P7-L12, P7-L12 uses the same components and the same PCB Layout for NFC, BT and WLAN Radio. That is why, the following test reports are used from the previous application Huawei P7-L10, P7-L10 (FCC-ID QISP7-L10, IC 6369AP7L10) For DSS (BT) SYBH(Z-RF)005032014-2003 For DTS (BT (BLE)) SYBH(Z-RF)005032014-2004 For DTS (WLAN) SYBH(Z-RF)005032014-2002 For DXX (NFC) SYBH(Z-RF)005032014-2005 Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China +86 755 28780808 www.huawei.com Declaration of Letter Product Type: Smart Phone; Model No.: H U AW EI P7-L12, P7-L12 FCC ID:QISP7-L12 IC:6369A-P7L12 The two models were identical, only difference is the model name. And the two models have the same technical construction, including software design, RF module, antennas, circuit design and PCB layout. There are no differences between the two models (H U AW E I P7-L12, P7-L12) on electrical and mechanical construction. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Te l : 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, 518129 Guangdong, P.R.China Date: May 20, 2014 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISP7-L12, IC: 6369A-P7L12 has a battery, which will be placed in the battery compartment when delivery, it is not visible to the users as they purchase the products. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base, Bantian, Longgang, Shenzhen, P.R China Post ZIP：518129 Page ：1/1 To: TUV PS Fax : NULL From:Zhang Xinghai Fax:0086-0755-89650266 Tel:0086-0755-28970299 Email address: [email protected] Http: www.huawei.com Subject：Letter of Authorization 2014-04-25 To whom it may concern: We the undersigned, hereby authorize TUV PS to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by TUV PS on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Huawei Technologies Co., Ltd. . Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-5- 20 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISP7-L12 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2014-8- 20: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Justification Letter Date (30/05/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China Hereby we do the Justification on Huawei P7-L12, P7-L12 Application: Smart Phone, Model no.: Huawei P7-L12, P7-L12, FCC ID: QISP7-L12, as following: The new Model Huawei P7-L12, P7-L12 uses the same components and the same PCB Layout for NFC, BT and WLAN Radio. That is why, the following test reports are used from the previous application Huawei P7-L10, P7-L10 (FCC-ID QISP7-L10, IC 6369AP7L10) For DSS (BT) SYBH(Z-RF)005032014-2003 For DTS (BT (BLE)) SYBH(Z-RF)005032014-2004 For DTS (WLAN) SYBH(Z-RF)005032014-2002 For DXX (NFC) SYBH(Z-RF)005032014-2005 Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Secret 2014-5-20 华为保密信息,未经授权禁止扩散 第1页, 共1页 Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, 518129 Guangdong, P.R.China Date: May 20, 2014 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISP7-L12 use Broadcom’s BCM4334 Chipset Solution. HUAWEI P7-L12, P7-L12 doesn’t support Bluetooth HS and WiFi ad-hoc. HUAWEI P7-L12, P7-L12 support Bluetooth LE and EDR, and 2.4G WiFi Station, Mobile Hotspot and WiFi Direct. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China +86 755 28780808 www.huawei.com Declaration of Letter Product Type: Smart Phone; Model No.: H U AW EI P7-L12, P7-L12 FCC ID:QISP7-L12 IC:6369A-P7L12 The two models were identical, only difference is the model name. And the two models have the same technical construction, including software design, RF module, antennas, circuit design and PCB layout. There are no differences between the two models (H U AW E I P7-L12, P7-L12) on electrical and mechanical construction. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Te l : 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, 518129 Guangdong, P.R.China Date: May 20, 2014 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISP7-L12, IC: 6369A-P7L12 has a battery, which will be placed in the battery compartment when delivery, it is not visible to the users as they purchase the products. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

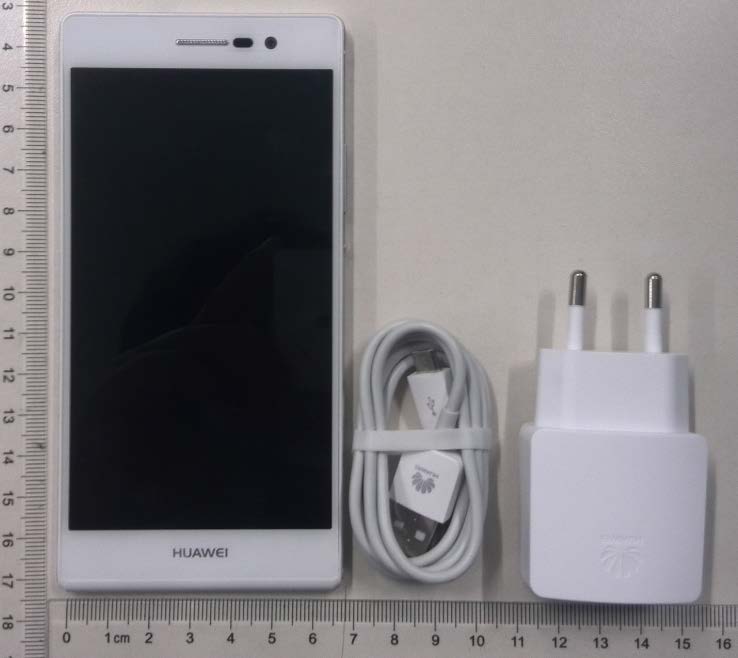

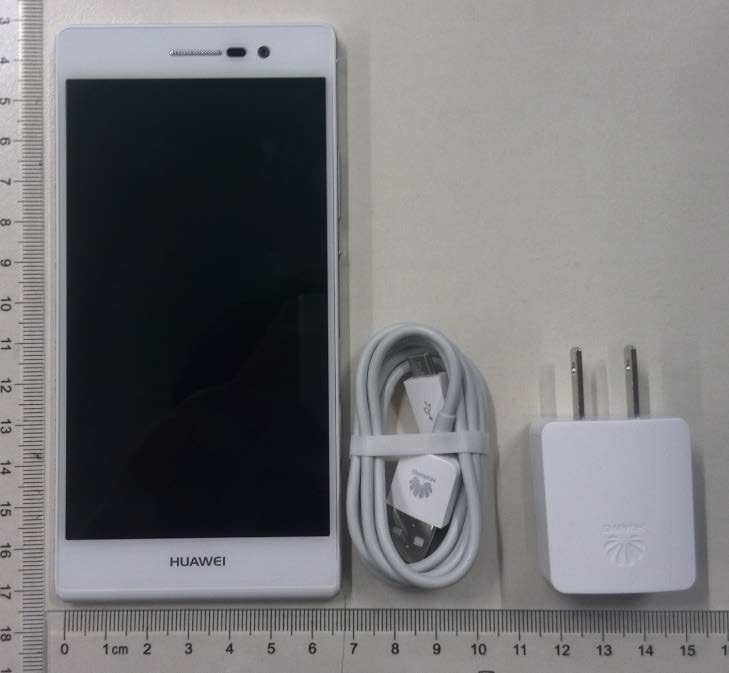

External Photos of HUAWEI P7-L12, P7-L12 SECRET Page1,Total 5 External Photos of HUAWEI P7-L12, P7-L12 External Photos of HUAWEI P7-L12, P7-L12 SECRET Page2,Total 5 External Photos of HUAWEI P7-L12, P7-L12 SECRET Page3,Total 5 External Photos of HUAWEI P7-L12, P7-L12 SECRET Page4,Total 5 External Photos of HUAWEI P7-L12, P7-L12 SECRET Page5,Total 5

HUAWEI P7-L12, P7-L12 SECRET Page1, Total 1 ID Label HUAWEI P7-L12, P7-L12 HUAWEI P7-L12, P7-L12 SECRET Page2, Total 1 HUAWEI P7-L12, P7-L12 SECRET Page3, Total 1 HUAWEI P7-L12, P7-L12 SECRET Page4, Total 1

HUAWEI P7-L12, P7-L12 SECRET Page1,Total 5 Internal Photos of HUAWEI P7-L12, P7-L12 HUAWEI P7-L12, P7-L12 SECRET Page2,Total 5 HUAWEI P7-L12, P7-L12 SECRET Page3,Total 5 HUAWEI P7-L12, P7-L12 SECRET Page4,Total 5 HUAWEI P7-L12, P7-L12 SECRET Page5,Total 5

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Product Name: Smart Phone Model: HUAWEI P7-L12, P7-L12 Report No.: SYBH(Z-SAR)018042014-2 FCC ID: QISP7-L12 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2014-05-16 2014-05-16 The test results of this test report relate exclusively to the item(s) tested. The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report No.: SYBH(Z-SAR)018042014-2 FCC ID:QISP7-L12 2014-05-16 Page 2 of 76 Table of Contents 1 General Information ............................................................................................................................................... 5 1.1 Statement of Compliance .............................................................................................................................. 5 1.2 RF exposure limits ......................................................................................................................................... 6 1.3 EUT Description ............................................................................................................................................ 7 1.3.1 General Description ............................................................................................................................... 9 1.3.2 Hotspot power reduction specification for SAR ..................................................................................... 9 1.4 Test specification(s) .................................................................................................................................... 10 1.5 Testing laboratory ........................................................................................................................................ 10 1.6 Applicant and Manufacturer ........................................................................................................................ 10 1.7 Application details ........................................................................................................................................ 10 1.8 Ambient Condition ...................................................................................................................................... 10 2 SAR Measurement System ............................................................................................................................... 11 2.1 SAR Measurement Set-up ......................................................................................................................... 11 2.2 Test environment ......................................................................................................................................... 12 2.3 Data Acquisition Electronics description .................................................................................................... 12 2.4 Probe description ......................................................................................................................................... 13 2.5 Phantom description .................................................................................................................................... 14 2.6 Device holder description ............................................................................................................................ 15 2.7 Test Equipment List ..................................................................................................................................... 16 3 SAR Measurement Procedure .......................................................................................................................... 17 3.1 Scanning procedure .................................................................................................................................... 17 3.2 Spatial Peak SAR Evaluation ...................................................................................................................... 18 3.3 Data Storage and Evaluation ...................................................................................................................... 19 4 System Verification Procedure ............................................................................................................................ 21 4.1 Tissue Verification ....................................................................................................................................... 21 4.2 System Check ............................................................................................................................................. 24 4.3 System check Procedure............................................................................................................................. 25 5 SAR measurement variability and uncertainty .................................................................................................... 26 5.1 SAR measurement variability ...................................................................................................................... 26 5.2 SAR measurement uncertainty ................................................................................................................... 26 6 SAR Test Configuration ...................................................................................................................................... 27 6.1 GSM Test Configuration .............................................................................................…
