QISR216Vodafone Mobile Wi-Fi

Quick Start 1 Thank you for purchasing the Mobile WiFi. This Mobile WiFi brings you a high speed wireless network connection. This document will help you understand your Mobile WiFi so you can start using it right away. Please read this document carefully before using your Mobile WiFi. For detailed information about the functions and configurations of the Mobile WiFi, refer to the online help on the web management page that comes with the Mobile WiFi. For detailed instructions for logging in to the web management page, refer to "Logging In to the Web Management Page". 2 Getting to Know Your Mobile WiFi Note: The Mobile WiFi function descriptions and illustrations in this document are for your reference only. The product you have purchased may vary. Application Scenarios Wi-Fi devices (such as smartphones, tablet computers, and game consoles) or computers can all access the Internet through the Mobile WiFi. The specific connection procedure depends on the operating system of the Wi-Fi device or computer. Establish a connection according to your device's specific instructions. 3 The Mobile WiFi uses your operator's LTE, 3G, or 2G network to access the Internet. 4 Appearance 1 Message indicator 2 Battery indicator  Green: Sufficient battery.  Blinking green: Charging the battery.  Red: Low battery. 3 Power button 4 Micro USB port 5 Signal indicator  Green: Strong signal.  Orange: Weak signal.  Red: No signal. 5 SSID and Wireless Network Encryption Key When a Wi-Fi device establishes a connection to the Mobile WiFi for the first time, you may need to enter the default Service Set Identifier (SSID) and wireless network encryption key. The default SSID and encryption key are printed on the Mobile WiFi label. It is recommended that you can log in to the web management page and change your SSID and wireless network encryption key. 6 Getting Started Installing Install the SIM card, and battery according to the illustration. 7 Charging the Battery If the Mobile WiFi has not been used for a long time or if the battery is fully depleted, the Mobile WiFi may not power on immediately after the charger is plugged in. Please charge the battery for a while before attempting to power on the Mobile WiFi. Method 1: Use the charger to charge the device Note:  Only use chargers compatible with the Mobile WiFi and provided by a designated manufacturer. Use of an incompatible charger or one from an unknown manufacturer may cause the Mobile WiFi to malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or implied, on the product.  The charger is an optional accessory. If it is not included in the package, you may contact an authorized dealer to buy a charger compatible with the Mobile WiFi.  The Mobile WiFi’s charger model is HW-050100XYW. X and Y represent letters or 8 numbers that vary by region. For details about the specific charger model, contact an authorized dealer. Method 2: Charge the device through a computer connection Use the data cable provided with your device to connect the Mobile WiFi to the computer. 9 Turning on the Mobile WiFi Press and hold the power button until indicator lights up, indicating that the Mobile WiFi is turned on. Note: Press and hold the power button to turn off the Mobile WiFi. Verifying the PIN If the Mobile WiFi's network parameters have been correctly configured but you cannot access the Internet after powering it on, PIN verification may be enabled. Log in to the web management page and enter the PIN when prompted. To avoid entering the PIN every time you power on the Mobile WiFi, disable PIN verification from the web management page. The PIN/PUK is delivered with your SIM card. For more details, contact your service provider. 10 Connecting to the Internet Using an LTE, 3G, or 2G Network The Mobile WiFi's management parameters have been preset according to your operator's requirements. If data is transmitted, the Mobile WiFi will automatically connect to the Internet. If data is not transmitted for a period of time, the Mobile WiFi will automatically disconnect from the network connection. Note: You can log in to the web management page and enable or disable the automatic dialing while roaming function. If this function is turned off, when the Mobile WiFi enters a roaming network, it will automatically disconnect from the Internet connection that has already been established. You will need to manually establish this network connection again. 11 Logging In to the Web Management Page 1. Make sure the connection between the Mobile WiFi and the Wi-Fi device or computer is working normally. 2. Open the browser, and enter http://192.168.0.1 in the address box. 3. Enter the user name and password to log in to the web management page. Note:  The default user name is admin.  The default password is admin. Battery Saving Mode If the Mobile WiFi has been inactive for some time, it enters the standby mode and all the indicators are off. Pressing the power button causes the indicators to light up. When the Mobile WiFi is being powered only by the battery, you can choose to enable or disable the automatic Wi-Fi off function. If this function is enabled and if no Wi-Fi devices access the Mobile WiFi for a period of time, the Wi-Fi turns off automatically. You can press the power button to turn the Wi-Fi on again. Restoring to Factory Settings If you forget the user name, password, or SSID you have set, you can restore the Mobile WiFi to its factory settings. To do so, simply press and hold the RESET button until the Mobile WiFi restarts. Example 1: Connecting to a Computer (for example, running the Windows 7 operating system) through Wi-Fi 1. Ensure that the Wi-Fi function is enabled. 2. Select Start > Control Panel > Network and Internet > Network and Sharing Center > Connect to a network. Note: Before establishing a Wi-Fi connection, ensure that the computer is equipped with a wireless network adapter. If the computer indicates a wir…

Text truncated - open the document above for the full version.

RF Exposure Your device contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When your device is in use, the system handling your connection controls the power level at which your device transmits. Specific Absorption Rate (SAR) Your wireless device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organisation ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for wireless devices is 2 watts/ kilogram (W/kg) and the highest SAR value for this device when tested complied with this limit. Body worn operation Important safety information regarding radio frequency radiation (RF) exposure To ensure compliance with RF exposure guidelines the device must be used with a minimum of 1.5 cm separation from the body. Failure to observe these instructions could result in your RF exposure exceeding the relevant guideline limits. Safety Manual Vodafone Mobile Wi-Fi Read the Safety Information section of this safety manual below Do not use hand-held while driving Small parts may cause a choking hazard Keep away from pacemakers and other personal medical devices Switch off when instructed in hospitals and medical facilities Switch off when instructed in aircrafts and airports Switch off in explosive environments Do not use while re-fuelling For body-worn operation maintain antenna separation of 1.5 cm Do not dispose of in a fire Avoid contact with magnetic media Avoid Extreme Temperatures Avoid contact with liquid, keep dry Do not try and disassemble Do not rely on this device for emergency communications Only use approved accessories CE Approval (European Union) The wireless device is approved to be used in the member states of the EU. The manufacturer declares that the wireless device is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC (R&TTE Directive). FCC Statement FCC Compliance (when US bands are supported) Federal Communications Commission Notice (United States): Before a wireless device model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The SAR limit for battery operated standalone wireless routers adopted by the USA is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The highest SAR value reported to the FCC for this device type was compliant with this limit. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,(2)this device must accept any interference received,including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Distraction Driving Full attention must be given to driving at all times in order to reduce the risk of an accident. Using this device while driving causes distraction and can lead to an accident. You must comply with local laws and regulations restricting the use of wireless devices while driving. Operating machinery Full attention must be given to operating the machinery in order to reduce the risk of an accident. Safety Manual Vodafone Mobile Wi-Fi Mobile Wi-Fi PSI_0414_350x110_en-GB Product Handling You alone are responsible for how you use your device and any consequences of its use. You must always switch off your device wherever the use of a mobile phone is prohibited. If your device has clip-on covers, do not use it without the covers attached and do not remove or change them while using the device. Use of your device is subject to safety measures designed to protect users and their environment. • Always treat your device and its accessories with care and keep it in a clean and dust-free place. • Do not expose your device or its accessories to open flames or lit tobacco products. • Do not expose your device or its accessories to liquid, moisture or high humidity. • Do not drop, throw or try to bend your device or its accessories. • Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its accessories. • Do not paint your device or its accessories. • Do not attempt to disassemble your device or its accessories: only authorised personnel must do so. • Do not expose your device or its accessories to extreme temperatures, minimum –5 and maximum +55 degrees Celsius. For optimal performance operate within a range of minimum 0 and maximum +35 degrees Celsius.…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-01-04 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISR216 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-2- 15: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

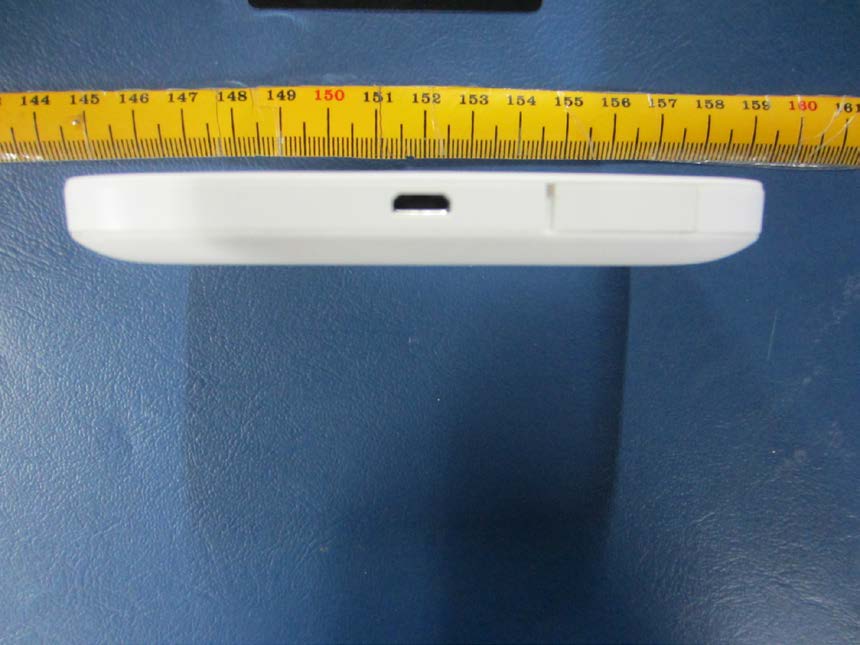

R216 Vodafone Mobile Wi-Fi SECRET Page1，Total 5 External Photos of R216 R216 Vodafone Mobile Wi-Fi SECRET Page2，Total 5 R216 Vodafone Mobile Wi-Fi SECRET Page3，Total 5 R216 Vodafone Mobile Wi-Fi SECRET Page4，Total 5 R216 Vodafone Mobile Wi-Fi SECRET Page5，Total 5

R216 Vodafone Mobile Wi-Fi SECRET Page 1 Total 1 R216 Label & Label Location:

R216 Vodafone Mobile Wi-Fi SECRET Page1，Total2 Internal Photos of R216 R216 Vodafone Mobile Wi-Fi SECRET Page2，Total2

EMC Test Report Product Name: Vodafone Mobile Wi-Fi Model Number: R216 Report No: SYBH(Z-EMC)064112014-2 FCC ID：QISR216 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 Test Report of R216 FCC ID: QISR216 Security Level: secret Report No: SYBH(Z-EMC)064112014-2 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total19 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 5. The test report is invalid if not marked with "exclusive stamp for the test report". 6. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 7. The test report is invalid if there is any evidence of erasure and/or falsification. 8. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 9. Normally, the test report is only responsible for the samples that have undergone the test. 10. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. Test Report of R216 FCC ID: QISR216 Security Level: secret Report No: SYBH(Z-EMC)064112014-2 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total19 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Test Item: Dec.01, 2014 Start Date of Test: Dec.02, 2014 End Date of Test: Dec.11, 2014 Test Result: Pass Approved By 2014-12-12 Liu Chunlin (Lab Manager) Date Name Signature Operator 2014-12-12 Xiang Zaiji (Test Engineer) Date Name Signature Test Report of R216 FCC ID: QISR216 Security Level: secret Report No: SYBH(Z-EMC)064112014-2 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total19 Modification Record No. Last Report No. Modification Description 1 NA First Report. Test Report of R216 FCC ID: QISR216 Security Level: secret Report No: SYBH(Z-EMC)064112014-2 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total19 TABLE OF CONTENT 1 General Information ............................................................................................................................. 6 1.1 EUT Description ........................................................................................................................... 6 1.2 Test Site Information .................................................................................................................... 8 1.3 Applied Standards ........................................................................................................................ 8 2 Summary of Results ............................................................................................................................. 9 3 System Configuration during EMC Test ............................................................................................ 10 3.1 Test Mode ................................................................................................................................... 10 3.2 Test System Configuration ......................................................................................................... 11 3.3 Cables Used during Test ............................................................................................................ 12 3.4 Associated Equipment Used during Test .................................................................................. 12 4 Electromagnetic Interference (EMI) ................................................................................................... 13 4.1 Radiated Disturbance 30MHz to 18GHz ................................................................................... 13 4.2 Conducted Disturbance 0.15 MHz to 30MHz ............................................................................ 15 5 Main Test Instruments ........................................................................................................................ 16 6 System Measurement Uncertainty .................................................................................................... 16 7 Test Data and Graph .......................................................................................................................... 17 7.1 Radiated Disturbance ................................................................................................................. 17 7.2 Conducted Disturbance .............................................................................................................. 19 Test Report of R216 FCC ID: QISR216 Security Level: secret Report No: SYBH(Z-EMC)064112014-2 Confidential Information of Huawei. No Distribution without Written Permission Page6, Total19 1 General Information 1.1 EUT Description EUT Description Product Name Vodafone Mobile Wi-Fi Model Number R216 Serials Number B4J0114B17000058 TX Frequency GSM850: 824MHz To 849MHz GSM1900: 1850MHz To 1910MHz WCDMA Band V: 824MHz To 849MHz LTE Band 3: 17…

Text truncated - open the document above for the full version.

FCC Test Report of R216 FCC ID: QISR216 Security Level:secret Report No: SYBH(Z-EMC)064112014-2 Confidential Information of Huawei. No Distribution without Permission Page1, Total5 Photos of EUT FCC Test Report of R216 FCC ID: QISR216 Security Level:secret Report No: SYBH(Z-EMC)064112014-2 Confidential Information of Huawei. No Distribution without Permission Page2, Total5 Figure1 EUT Appearance FCC Test Report of R216 FCC ID: QISR216 Security Level:secret Report No: SYBH(Z-EMC)064112014-2 Confidential Information of Huawei. No Distribution without Permission Page3, Total5 Photos of Test Setup FCC Test Report of R216 FCC ID: QISR216 Security Level:secret Report No: SYBH(Z-EMC)064112014-2 Confidential Information of Huawei. No Distribution without Permission Page4, Total5 1 Radiated Emissions Radiated Disturbance（30MHz-1GHz） Radiated Disturbance（above 1GHz） FCC Test Report of R216 FCC ID: QISR216 Security Level:secret Report No: SYBH(Z-EMC)064112014-2 Confidential Information of Huawei. No Distribution without Permission Page5, Total5 2 Conducted Emissions Conducted Emissions for AC Ports -------------------------------------------END--------------------------------------
