QISRRU3269700MRemote Radio Unit

RRU3269 Installation Guide IssueDraft A Date2014-10-31 HUAWEI TECHNOLOGIES CO., LTD. Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address:Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website:http://www.huawei.com Email:[email protected] Issue Draft A (2014-10-31)Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. i About This Document Purpose This document describes the process of installing a DC blade RRU3269 (referred to as RRU in this document). Product Version The following table lists the product version related to this document. Product NameSolution VersionProduct Version DBS3900 lSRAN9.0 and later versions leRAN7.0 and later versions V100R009C00 and later versions Intended Audience This document is intended for: Base station installation engineers Organization 1 Changes in the RRU3269 Installation Guide This chapter describes the changes in the RRU3269 Installation Guide. 2 Installation Preparations This chapter describes the reference documents, tools, and instruments that must be ready before the installation. In addition, it specifies the skills and prerequisites that installation engineers must have. 3 Information About the Installation Before installing an RRU, you must be familiar with its exterior, ports, indicators, installation options and installation clearance requirements. RRU3269 Installation Guide About This Document Issue Draft A (2014-10-31)Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. ii 4 Unpacking the Equipment This chapter describes how to unpack and check the delivered equipment to ensure that all the materials are included and intact. 5 Installation Process The installation process involves installing an RRU and RRU cables, checking the RRU hardware installation, and powering on the RRU. 6 Installing the RRU This chapter describes the procedure for installing the RRU. The procedure for installing the RRU varies depending on installation options. 7 Installing RRU Cables This chapter describes the procedure for installing RRU cables. 8 Checking the RRU Hardware Installation After an RRU is installed, check the hardware installation. 9 Powering On an RRU After all the devices are installed, check the power-on status of an RRU. 10 Appendix Conventions Symbol Conventions The symbols that may be found in this document are defined as follows. SymbolDescription Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. Indicates a potentially hazardous situation which, if not avoided, could result in equipment damage, data loss, performance deterioration, or unanticipated results. NOTICE is used to address practices not related to personal injury. RRU3269 Installation GuideAbout This Document Issue Draft A (2014-10-31)Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. iii SymbolDescription Calls attention to important information, best practices and tips. NOTE is used to address information not related to personal injury, equipment damage, and environment deterioration. General Conventions The general conventions that may be found in this document are defined as follows. ConventionDescription Times New RomanNormal paragraphs are in Times New Roman. BoldfaceNames of files, directories, folders, and users are in boldface. For example, log in as user root. ItalicBook titles are in italics. Courier New Examples of information displayed on the screen are in Courier New. Command Conventions The command conventions that may be found in this document are defined as follows. ConventionDescription BoldfaceThe keywords of a command line are in boldface. ItalicCommand arguments are in italics. [ ]Items (keywords or arguments) in brackets [ ] are optional. { x | y | ... }Optional items are grouped in braces and separated by vertical bars. One item is selected. [ x | y | ... ]Optional items are grouped in brackets and separated by vertical bars. One item is selected or no item is selected. { x | y | ... } * Optional items are grouped in braces and separated by vertical bars. A minimum of one item or a maximum of all items can be selected. [ x | y | ... ] * Optional items are grouped in brackets and separated by vertical bars. Several items or no item can be selected. GUI Conventions RRU3269 Installation Guide About This Document Issue Draft A (2014-10-31)Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. iv The GUI conventions that may be found in this document are defined as follows. ConventionDescrip…

Text truncated - open the document above for the full version.

Regulatory Compliance Statement RRU3269 700M 0682 Issue 01 Date 2014-9-1 HUAWEI TECHNOLOGIES CO., LTD. Issue (02) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. i Copyright © Huawei Technologies Co., Ltd. 2010. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] 1 Regulatory Compliance Statement Issue (02) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 2-1 1 Regulatory Compliance Statement About This Chapter 1.1 Declaration of Conformity to European Directives Declaration of Conformity to European Directives Figure 1-1 Declaration of Conformity to European Directives 2 Regulatory Compliance Information About This Chapter 2.1 Regulatory Compliance Standards 2.2 European Regulatory Compliance 2.3 U.S.A Regulatory Compliance 2.4 Japanese Regulatory Compliance 2.5 CISPR 22 Compliance 2 Regulatory Compliance Information 2-2 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Issue (02) 2.1 Regulatory Compliance Standards The Product complies with the standards listed in Table 2-1. Table 2-1 Regulatory compliance standards Discipline Standards EMC  CISPR22 Class B  CISPR24  EN55022 Class B  EN50024  ETSI EN 301 489 Class B  CFR 47 FCC Part 15 Class B  FCC Part 2  FCC Part 27  ICES 003 Class B  AS/NZS CISPR22 Class B  GB9254 Class B  VCCI Class B  CNS 13438 Class B  IEC/EN 61000-6-1  IEC/EN 61000-6-2  IEC/EN 61000-6-3  IEC/EN 61000-6-4 Safety  IEC 60950-1  IEC/EN60215  IEC/EN41003  EN 60950-1  UL 60950-1  UL 60950-22  CSA C22.2 No 60950-1  AS/NZS 60950.1  BS EN 60950-1  IS 13252  GB4943  GB8898 Laser safety  FDA rules, 21 CFR 1040.10 and 1040.11  IEC60825-1, IEC60825-2, EN60825-1, EN60825-2  GB7247 2 Regulatory Compliance Information Issue (02) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 2-3 Discipline Standards RF  ETSI EN 301 908-1  ETSI EN 301 908-14  ETSI EN 301 908-20  ETSI EN 302 544-1 Health  ICNIRP Guideline  1999-519-EC  EN 50385  OET Bulletin 65  IEEE Std C95.1  EN 60215 Environmental protection  2002/95/EC & 2011/65/EU (RoHS)  EC NO. 1907/2006 (REACH)  2002/96/EC&2012/19/EU(WEEE) Grounding  ITU-T K.27  ETSI EN 300 253 2 Regulatory Compliance Information 2-4 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Issue (02) Discipline Standards Note: EMC: electromagnetic compatibility NEBS: Network Equipment Build Standard RF: radio frequency CISPR: International Special Committee on Radio Interference EN: European Standard ETSI: European Telecommunications Standards Institute CFR: Code of Federal Regulations FCC: Federal Communication Commission IEC: International Electrotechnical Commission AS/NZS: Australian/New Zealand Standard VCCI: Voluntary Control Council for Interference CNS: Chinese National Standard UL: Underwriters Laboratories CSA: Canadian Standards Association BS: British Standard IS: Indian Standard GR: general requirement FDA: Food and Drug Administration BTS: base transceiver station GSM: Global System for Mobile communications WLAN: wireless local area network ICNIRP: International Commission on Non-Ionizing Radiation Protection OET: Office of Engineering Technology IEEE: Institute of Electrical and Electronics Engineers RoHS: restriction of the use of certain hazardous substances 2.2 European Regulatory Compliance The Product complies with the following European directives and regulations.  2004/108/EC (EMC)  2006/95/EC (low voltage)  1999/5/EC (R&TTE)  2002/95/EC & 2011/65/EU (RoHS)  EC NO. 1907/2006 (REACH)  2002/96/EC&2012/19/EU (WEEE) The Product complies with Directive 2002/95/EC, 2011/65/EU and other similar regulations from the countries outside the European Union, on the RoHS in electrical and electronic 2 Regulatory Compliance Information Issue (02) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 2-5 equipment. The device does not contain lead, mercury, cadmium, and hexavalent chromium and brominated flame retardants (Polybrominated Biphenyls (PBB) or Polybrominated Diphenyl Ethers (PBDE)) except for those exempted applications allowed by RoHS directive for technical reasons. Product complies with Regulation EC NO. 1907/2006 (REACH) and other similar regulations from the countries outside the European Union. Huawei will notify to the European Chemical Agency (ECHA) or the customer when necessary and regulation requires. Product complies with Directive 2002/96/EC&2012/19/EU on waste electrical and electronic equipment (WEEE). Huawei is responsible for recycling its end-of-life devices, and please contact Huawei local service center when recycling is required. Huawei s…

Text truncated - open the document above for the full version.

Compliance and Safety Manual RRU3269 700M Issue 01 Date 2014-9-1 HUAWEI TECHNOLOGIES CO., LTD. Issue (02) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. i Copyright © Huawei Technologies Co., Ltd. 2010. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] 1 Safety Issue (02) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 1-1 1 Safety About This Chapter 1.1 Health and Safety 1.2 Equipment Safety 1.3 Electromagnetic Field Exposure 1.1 Health and Safety 1.1.1 Overview 1.1.2 Electrical Safety 1.1.3 Inflammable Environment 1.1.4 Radiation 1.1.5 Working at Heights 1.1.6 Mechanical Safety 1.1.7 Bundling Signal Cables 1.1.1 Overview Introduction This section describes the safety precautions you must take before installing or maintaining Huawei equipment.  To ensure safety of humans and the equipment, pay attention to the safety symbols on the equipment and all the safety instructions in this document.  The "NOTE", "CAUTION", and "WARNING" marks in other documents do not represent all the safety instructions. They are only supplements to the safety instructions.  Installation and maintenance personnel must understand basic safety precautions to avoid hazards.  When operating Huawei equipment, in addition to following the general precautions in this document, follow the specific safety instructions given by Huawei. 1 Safety 1-2 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Issue (02)  Only trained and qualified personnel are allowed to install, operate, and maintain Huawei equipment.  To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Local Safety Regulations When operating Huawei equipment, you must follow the local laws and regulations. The safety instructions in this document are only supplements to the local laws and regulations. General Requirements To minimize risk of personal injury and damage to equipment, read and follow all the precautions in this document before performing any installation or maintenance. Ensure that the instructions provided in this document are followed completely. This section also provides guidelines for selecting the measuring and testing devices. Installation  The device (or system) must be installed in an access-controlled location.  Tighten the thumbscrews by using a tool after initial installation and subsequent access to the panel. Ground  Do not damage the ground conductor or operate the device in the absence of a properly installed ground conductor. Conduct the electrical inspection carefully.  The device (or system) must be connected permanently to the protection ground before an operation. The cross-sectional area of the protective ground conductor must be at least 1.5 mm 2 .  The device must be fixed securely on the floor or other reliable objects, such as the walls and the mounting racks before operation.  When installing the unit, always make the ground connection first and disconnect it last Power Supply  For DC-supplied model: The device applies to DC power source that complies with the Safety Extra-Low Voltage (SELV) requirements in IEC 60950-1 based safety standards.  Prepared conductors are connected to the terminal block, and only the appropriate AWG/Type of wire is secured with the lug terminals.  This device relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that a fuse or circuit breaker no larger than 80 VDC, 30A for DC supplied model is used on the phase conductors (all current-carrying conductors).  For this device, a readily accessible disconnect device shall be incorporated external to the equipment 1 Safety Issue (02) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 1-3  To minimize the risk of fire, use only No. 26 AWG or larger telecommunication line cord. Human Safety  Do not operate the device or cables during lightning strikes.  To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telecommunication network voltage (TNV) circuits.  Move or lift the chassis by holding its lower edge. Do not hold the handles on certain modules such as power supply, fans, and boards because they cannot support the weight of the device.  Do not look into the optical port without eye protection.  Do not wear jewelry or watches when you operate the device.  Reinforced insulation or double insulation must be provided to isolate DC source from AC mains supply. Operator  Only qualified professional personnel are allowed to install, configure, operate, a…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Date ( BABT TCB Balfour House, Churchfield Road, Waltonon-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: QISRRU3269 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Huawei Technologies Co., Ltd.hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematic diagram Block Diagram. Parts list (BOM) Information. Operational description. Tune-up procedure We also hereby requests short-term confidential treatment of information accompanying this application as outlined below till External Photos Internal Photos Test Setup Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, EMC Laboratory Manager: Zhangxinghai Email:[email protected] Tel: 0086-0755-28970299 700M 2015-05-05 19/12/2014)

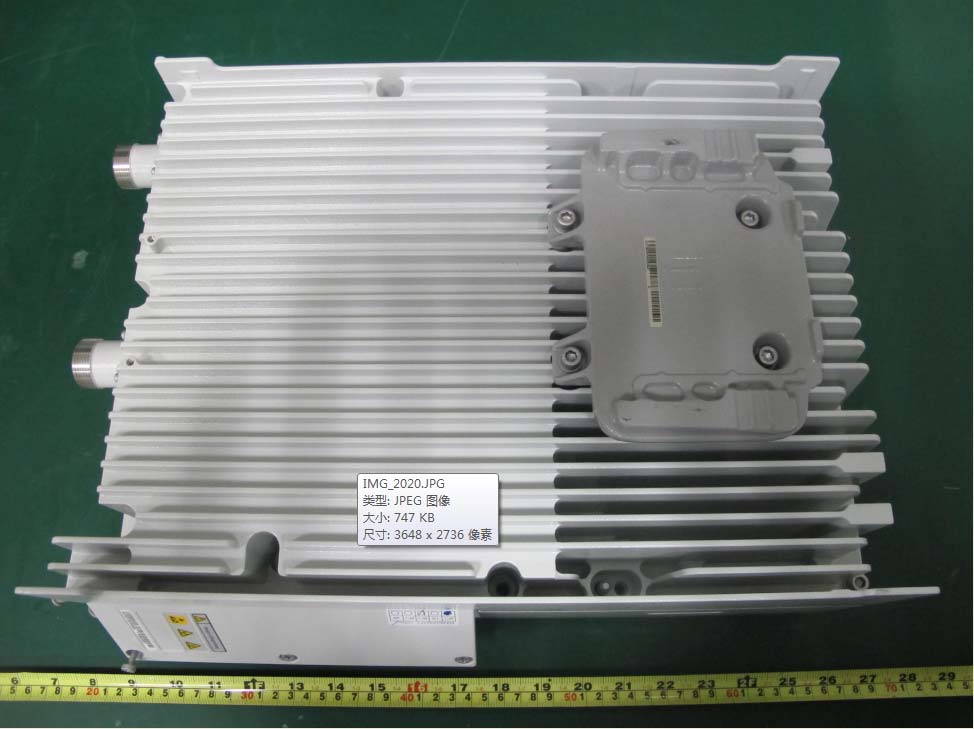

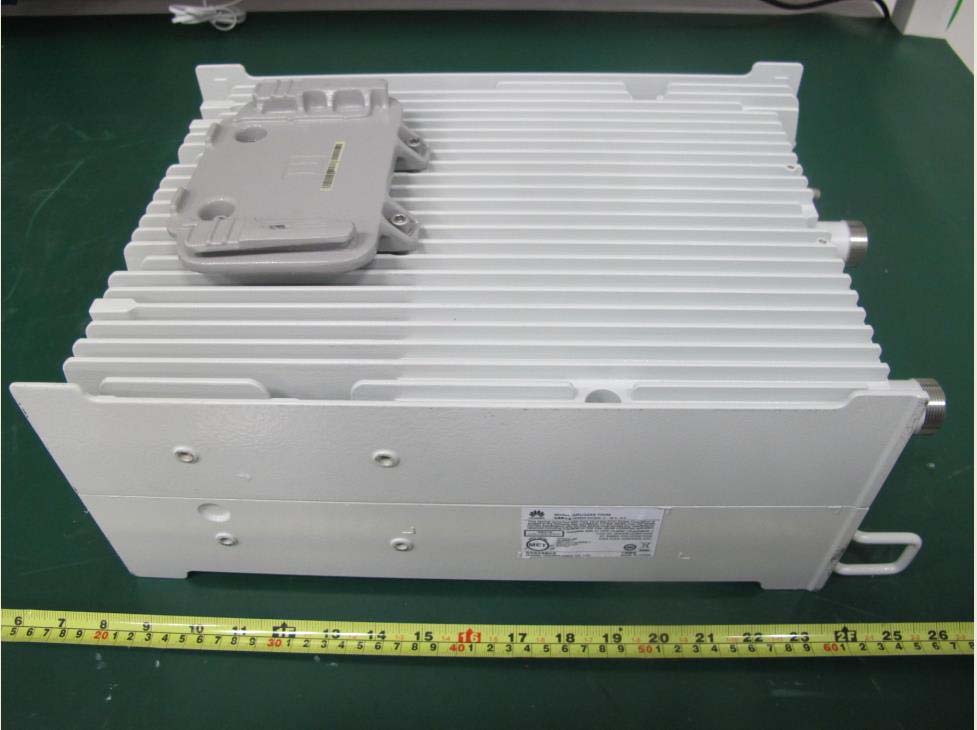

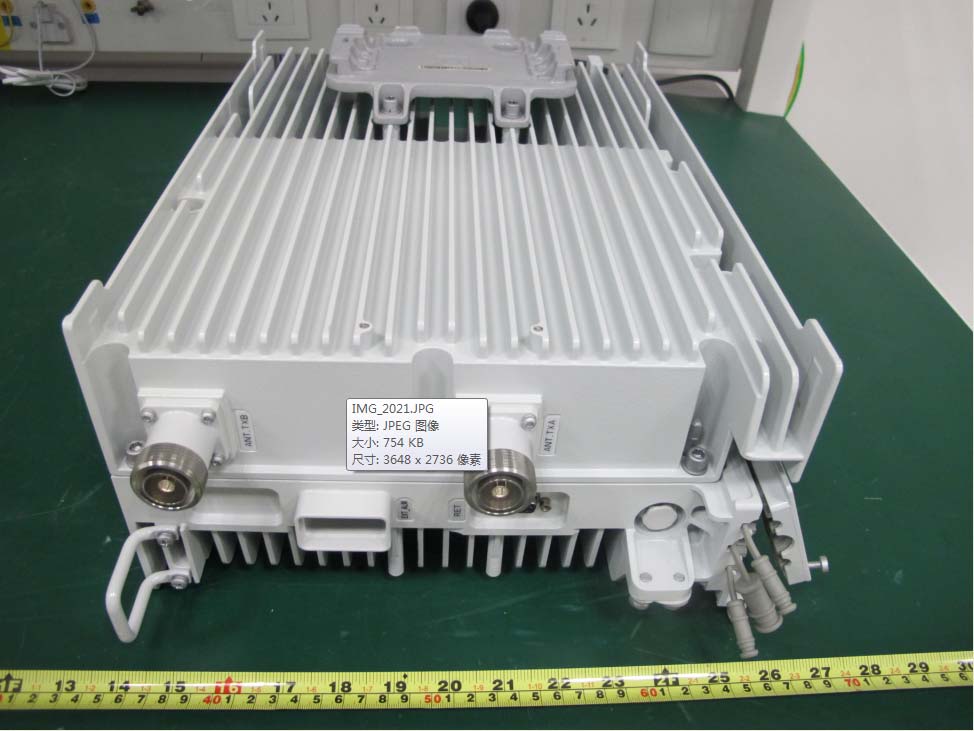

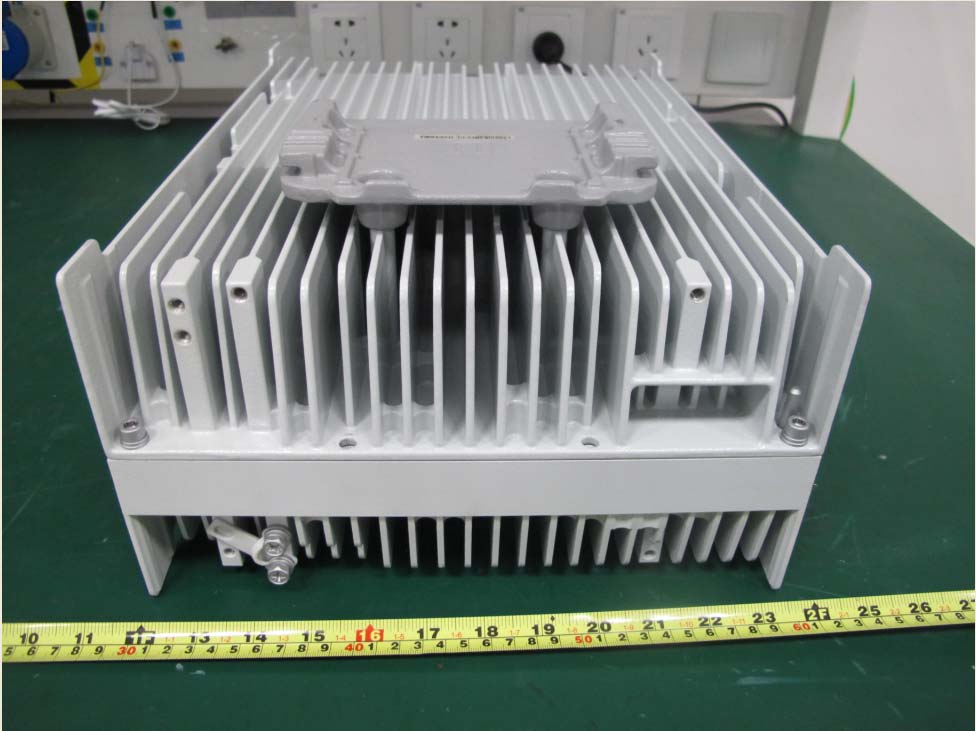

文档名称 文档密级： 2014-12-19 华为机密，未经许可不得扩散 第3页, 共7页 Photo documentation of External of RRU3269 700M 文档名称 文档密级： 2014-12-19 华为机密，未经许可不得扩散 第4页, 共7页 文档名称 文档密级： 2014-12-19 华为机密，未经许可不得扩散 第5页, 共7页 文档名称 文档密级： 2014-12-19 华为机密，未经许可不得扩散 第6页, 共7页 文档名称 文档密级： 2014-12-19 华为机密，未经许可不得扩散 第7页, 共7页

文档名称 文档密级 2014-12-19 华为保密信息,未经授权禁止扩散 第1页, 共1页

文档名称 文档密级： 2014-12-19 华为机密，未经许可不得扩散 第1页, 共7页 Photo documentation of Internal of RRU3269 700M 文档名称 文档密级： 2014-12-19 华为机密，未经许可不得扩散 第2页, 共7页

Declaration for Compliance with EMF for RRU3269 700M Security Level: Public Document No.: SYBH(R) 01599774EB-2 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 2 Declaration of Electromagnetic Field Health Compliance for RRU3269 700M (LTE MBS 700MHz) To whom it may concern, As to the product RRU3269 700M made by Huawei Technologies Co., Ltd., we declare that it complies with the Basic restrictions/Reference levels for electric, magnetic and electromagnetic fields as specified in following standards(s): Nr. Standard 1 47CFR FCC Part 1 (10-1-13 Edition) & OET Bulletin 65 2 RSS-102 (Issue4, March 2010) The compliance is demonstrated based on the following calculation model assessment: 1. The power density according to far-field model is: 2 ),( 4R GP S      Where: P = input power of the antenna. G = antenna gain relative to an isotropic antenna. , = elevation and azimuth angles. R = distance from the antenna to the point of investigation. 2. For single or multiple RF sources, the calculated power density should comply with following: 1 ,   i iLimit i S S Where: i S = the power density when the f is i . iLimit S , = the reference level requirement for power density when f is i . f = operating frequency. 3. The calculation of the power density or safe distance is: NOTE 1: The RF exposure evaluation is base on the far-field and the radiation exposure is over-estimated. NOTE 2: The maximum output power level is taken into account as a worst case for the purpose of the calculation of power density or safe distance. NOTE 3: The minimum antenna feed cable loss (assumed no cable loss) is taken into account as a worst case for the purpose of the calculation of power density or safe distance. NOTE 4: The maximum antenna radiation exposure orientation and maximum antenna gain is taken into account as a worst case for the purpose of the calculation of power density or safe distance. Declaration for Compliance with EMF for RRU3269 700M Security Level: Public Document No.: SYBH(R) 01599774EB-2 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 2 RF Source Calculation for Individual Source RF Source #1 f = 718 to 728 MHz & 746 to 756 MHz iLimit S , = = 4.787 2 W /m P , ),( G = ),( GP : P (*) = 67.6 W (per port) 135.2 W (calculated, two ports) ),( G = 539.22 (=17 dBi) (*) : The value is from: measured max (See relevant RF report), rated + declared tolerance, max allowed by RF standard. And, the transmission duty cycle is: ignored, used, that is: % (for mode: ). , = The worst condition is considered, i.e. the max G is used. i S = 2 ),( / 4 R GP     = 510.35 2 /R 2 W/m iLimit i S S , = 112.65 / 2 R RF Sources Calculation for Simultaneous Transmission Sources (Not applicable) (Not applicable) Whole Product Calculation for Whole Product Whole Product Limit S S = 112.65 / 1 2 R R  10.61 m (the minimum Safe Distance) NOTE: The result is the worst case of each individual source and simultaneous transmission sources (if applicable). Person responsible for making this declaration: ____________________________ Li Guo RF Engineer, EMC Lab Reliability Laboratory of Huawei Technologies Co., Ltd. December 1, 2014

RF Test Report Product Name: Remote Radio Unit Product Model: RRU3269 700M Report Number: SYBH(R)01599774EB-1 FCC ID: QISRRU3269700M IC: 6369A-RRU3269700M Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of RRU3269 700M FCC ID: QISRRU3269700M, IC: 6369A-RRU3269700M Security Level: Public Report No: SYBH(R)01599774EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 28 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements.  The recognition number for the test site located in Shenzhen is 97456.  The recognition number for the test site located in Shanghai is 684868.  The recognition number for the test site located in Chengdu is 216797. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements.  The recognition number for the test site located in Shenzhen is 6369A, which contains 6369A-1 (3m chamber in G2), 6369A-2 (3m chamber in K3) and 6369A-3 (10m chamber in K3).  The recognition numbers for the test site located in Shanghai is 6369D, which contains 6369D-1 (3m chamber) and 6369D-2 (10m chamber).  The recognition number for the test site located in Chengdu is 6369E-1. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of RRU3269 700M FCC ID: QISRRU3269700M, IC: 6369A-RRU3269700M Security Level: Public Report No: SYBH(R)01599774EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 28 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Product Name: Remote Radio Unit Product Model: RRU3269 700M Date of Receipt Sample: 2014-10-30 Start Date of Test: 2014-11-12 End Date of Test: 2014-11-19 Test Result: Pass Approved by Senior Engineer: 2014-12-03 Zhang Xinghai Date Name Signature Prepared by: 2014-12-03 Li Guo Date Name Signature RF Test Report of RRU3269 700M FCC ID: QISRRU3269700M, IC: 6369A-RRU3269700M Security Level: Public Report No: SYBH(R)01599774EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 28 Modification Record No. Last Report No. Modification Description 1 --- First report. RF Test Report of RRU3269 700M FCC ID: QISRRU3269700M, IC: 6369A-RRU3269700M Security Level: Public Report No: SYBH(R)01599774EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 28 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location.............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 2.1 MBS 700 MHz Lower Band (698-746 MHz) ............................................................................................... 7 2.2 MBS 700 MHz Upper Band (746-806 MHz) ............................................................................................. 11 3 Description of the Equipment under Test (EUT) ................................................................................................... 17 3.1 General Description ................................................................................................................................. 17 3.2 EUT Identity ............................................................................................................................................. 17 3.3 Technical Specification ............................................................................................................................ 18 4 General Test Conditions / Configurations ............................................................................................................. 20 4.1 Test Modes .............................................................................................................................................. 20 4.2 EUT Configurations .................................................................................................................................. 21 4.3 Test Environments ................................................................................................................................... 22 4.4 Test Setups .............................................................................................................................................. 23 4.5 Test Conditions ..................................................…

Text truncated - open the document above for the full version.

RF Test Report of RRU3269 700M FCC ID: QISRRU3269700M, IC: 6369A-RRU3269700M Security Level: Public Report No: SYBH(R)01599774EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 99 Appendix A: Transmitter Output Power RF Test Report of RRU3269 700M FCC ID: QISRRU3269700M, IC: 6369A-RRU3269700M Security Level: Public Report No: SYBH(R)01599774EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 99 1 Result Table 1.1 Channel Power, Total NOTE: If applicable, the EIPR [W ] = 10 ^ ((Channel Power [dBm] + Antenna Gain [dBi] + 10 log10 (N)) / 10 - 3), and the ERP [W] = EIRP [W] / 1.64. N is the number of transmitter output port. EUT Conf. Channel Power for Antenna Port A [W] Channel Power for Antenna Port B [W] Verdict B29_1L_5M_B 40.55 44.46 Pass B29_1L_5M_T 38.28 41.02 Pass B13_1L_5M_B 38.11 41.21 Pass B13_1L_5M_T 37.58 38.99 Pass B29_1L_10M_M 61.09 60.67 Pass B13_1L_10M_M 59.98 58.08 Pass B29_2L_5M_M 62.02 63.98 Pass B13_2L_5M_M 60.59 59.77 Pass 2L_5M+5M_M 59.32 60.50 Pass 2L_5M+10…

Text truncated - open the document above for the full version.
