QISRTN360Radio Transmission System

OptiX RTN 360 Radio Transmission V100R001C00 Product Description Issue 02 Date 2014-08-30 HUAWEI TECHNOLOGIES CO., LTD. Issue 02 (2014-08-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. i Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] OptiX RTN 360 Radio Transmission Product Description About This Document Issue 02 (2014-08-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. ii About This Document Related Versions The following table lists the product versions related to this document. Product Name Version OptiX RTN 360 V100R001C00 iManager U2000–T V200R014C50 iManager U2000–M V200R014C00 Intended Audience This document is intended for:  Network planning engineer  Hardware installation engineer  Installation and commissioning engineer  Field maintenance engineer  Data configuration engineer  System maintenance engineer Familiarity with the basic knowledge related to digital microwave communication technology will help you apply the information in this document. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. OptiX RTN 360 Radio Transmission Product Description About This Document Issue 02 (2014-08-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. iii Symbol Description Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. Indicates a potentially hazardous situation which, if not avoided, could result in equipment damage, data loss, performance deterioration, or unanticipated results. NOTICE is used to address practices not related to personal injury. Calls attention to important information, best practices and tips. NOTE is used to address information not related to personal injury, equipment damage, and environment deterioration. General Conventions The general conventions that may be found in this document are defined as follows. Convention Description Times New Roman Normal paragraphs are in Times New Roman. Boldface Names of files, directories, folders, and users are in boldface. For example, log in as user root. Italic Book titles are in italics. Courier New Examples of information displayed on the screen are in Courier New. Change History Changes between document issues are cumulative. The latest document issue contains all the changes made in earlier issues. Updates in Issue 02 (2014-08-30) Based on Product Version V100R001C00 This issue is the second release for the product version V100R001C00. OptiX RTN 360 Radio Transmission Product Description About This Document Issue 02 (2014-08-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. iv Updates are as follows. Update Description 1.2 Product Specifications Optimized the table containing product specifications. 3.4 Indicators Added an explanation for the link status of the STAT indicator. 5.1 Ethernet Service Specifications Optimized the table containing Ethernet service throughput specifications. A.2 Component Photos Added section "Component Photos." A.3 Compliance Standards Added section "Compliance Standards." Entire document Fixed known defects. Issue 01 (2014-04-30) This issue is the first release for the product version V100R001C00. OptiX RTN 360 Radio Transmission Product Description Contents Issue 02 (2014-08-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. v Contents About This Document .................................................................................................................... ii 1 Product Introduction .................................................................................................................... 1 1.1 Network Application ........................................................................................................................................ 1 1.2 Product Specifications ...................................................................................................................................... 2 1.3 Site Configurations ........................................................................................................................................... 3 1.3.1 Sites Providing One-Direction Microwave Links ................................................................................... 3 1.3.2 Sites Providing Two-Direction Microwave Links .......…

Text truncated - open the document above for the full version.

OptiX RTN 360 Radio Transmission System V100R001 Compliance and Safety Manual Issue 02 Date 2014-08-30 HUAWEI TECHNOLOGIES CO., LTD. Issue 02 (2014-08-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. i Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] OptiX RTN 360 Radio Transmission System Compliance and Safety Manual About This Document Issue 02 (2014-08-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. ii About This Document Purpose This document describes the compliance of the OptiX RTN 360 with Electromagnetic Compatibility (EMC) and other safety standards, and provides general safety guidelines for handling, installing or operating the OptiX RTN 360. Intended Audience This document is intended for:  Technical support engineers  Installation engineers  Maintenance engineers  Network planning engineers Attention Before installing or operating on equipment, read the symbol conventions and safety information to ensure safety and security in the related operations. OptiX RTN 360 Radio Transmission System Compliance and Safety Manual Contents Issue 02 (2014-08-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. iii Contents About This Document .................................................................................................................... ii 1 Regulatory Compliance Statement ............................................................................................ 1 1.1 European Community CE Certification DoC ............................................................................................................... 2 2 Regulatory Compliance Information ........................................................................................ 3 2.1 Regulatory Compliance Standards ................................................................................................................................ 3 2.2 European Directives Compliance ................................................................................................................................. 5 2.3 CISPR 22 Compliance .................................................................................................................................................. 5 2.4 USA Regulatory Compliance ........................................................................................................................................ 6 2.4.1 FCC Part 15 ............................................................................................................................................................... 6 2.5 Canada Regulatory Compliance ................................................................................................................................... 6 2.5.1 RSS-Gen statement .................................................................................................................................................... 6 2.5.2 RSS-210 statement: ................................................................................................................................................... 7 2.6 Other Markets ............................................................................................................................................................... 7 3 Safety ............................................................................................................................................... 8 3.1 Health and Safety .......................................................................................................................................................... 8 3.1.1 Overview ................................................................................................................................................................... 8 3.1.2 Electrical Safety ....................................................................................................................................................... 10 3.1.3 Inflammable Environment ....................................................................................................................................... 11 3.1.4 Battery ..................................................................................................................................................................... 12 3.1.5 Radiation .................................................................................................................................................................. 14 3.1.6 Working at Heights ...........................................................…

Text truncated - open the document above for the full version.

01 RTN 360 V100 Quick Installation Guide Date: 2014-02-15 Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. 02/03 >> Safety Precautions Thunderstorms Do not work with electrical current or work in elevated or exposed locations during a thunderstorm. Extreme weather conditions RTN 360 is usually installed outdoors. If weather conditions are extreme during an installation, personnel should follow the related local guidelines and regulations to safeguard personal health and safety. Microwave High-power radio frequency signals are harmful. Avoid exposure to transmission from the antennas of microwave equipment that has the radiation warning symbol ( ). When you are installing or performing maintenance on an antenna located on a tower that has multiple antennas, avoid exposure to radiation from other antennas. Elevated locations RTN 360 is usually installed in an elevated location, for example, on the rooftop of a building. For installation in elevated locations, installation personnel must: • Have the proper training and qualifications, and meet health requirements. • Wear helmets, safety belts, and anti-slip footwear. • Wear clothing and gloves appropriate to weather conditions. • Work in teams of two or more. • Test hoisting tools before use. • Avoid installation during extreme weather conditions, such as during thunderstorms, blizzards, or gales. In addition, all site visitors must wear helmets. High temperature If the ambient temperature reaches 55°C, the surface temperature of an RTN 360 may exceed 70°C. Therefore, wear protective gloves when handling the RTN 360. A high-temperature warning label ( ) is attached to each RTN 360. Corrosion Anti-corrosion measures are required if an RTN 360 is installed in a location that is prone to corrosion. Contact the local Huawei office for details. A location is prone to corrosion if it is: •Within 3.7 km of an ocean or a salt water lake •Within 3 km of a heavy pollution source, such as a smelting factory or coal mine •Within 2 km of a medium pollution source, such as a chemical, rubber, or electroplating plant •Within 1 km of a light pollution source, such as a food/leather processing plant or heating boiler Port protection •Fasten PG covers onto the network ports of an RTN 360, and protect unused ports with caps. •Retain removed caps for future use. Caps Unpacking •After unpacking an RTN 360, power it on within 24 hours. •Do not power off an RTN 360 for more than 24 hours during maintenance. Minimal installation space The following figure illustrates the minimal installation space required for an RTN 360. ≥ 300 mm ≥ 300 mm ≥ 500 mm ≥ 500 mm Ensure that the signal transmission path leading from the front of an RTN 360 to its peer is unobstructed. Handling of RTN 360 or mounting kits Wear clean gloves when handling the RTN 360 or mounting kits. PG covers A Appearance and ports Equipment Components Installing an RTN 360 04/05 >> Port P&E (receiving both services and power signals) Port GE(e) B Mounting kits 1.Attachment plate (installed before delivery) 2.Hose clamp (used when an RTN 360 is installed on a pole) 3.Azimuth adjustment nut 4.Fastener (with holes used for installing an RTN 360 on a wall or pole) 5.Elevation adjustment nut Maintenance compartment RSSI/NMS port USB port Inside the maintenance compartment Holes for mounting an alignment scope Ground screw Front view Rear view D USB flash drive •The recommended USB flash drive is a 4 GB Netac U208. If a different model or capacity is required, contact the local Huawei office. USB flash drives not meeting requirements may be incompatible. •The appearance of the shipped USB flash drive may differ from that shown here. E Alignment scope Mounting frame Lens Eyepiece OT terminal C Ground cable •The ground terminal can connect to a ground bar or U-shaped ground clip. •For information about how to connect the ground terminal to a U- shaped ground clip, see the usage description document supplied with the clip. Ground terminal 1 2 3 5 4 Terminating an Outdoor Network Cable with Shielded RJ45 Connectors 06/07 >> Prepare the following tools. RJ45 connector crimping tool Diagonal pliers Prepare an outdoor network cable and shielded RJ45 connectors. 1.Core wire 2.Aluminum foil 3.Braid shield 4.Outer jacket 5.Shielded RJ45 connector Strip the cable. Length of the stripped cable: 20 mm Strip off the braid shield and cut the aluminum foil and unwanted materials. When stripping off the outer jacket, take care not to damage the braid shield or aluminum foil. Remove the outer jacket. Arrange the core wires according to the pin assignments and cut them neatly (exposing a length of 12 mm). 12 mm Cut the core wires neatly. Length of each exposed core wire: 12 mm 8: brown 7: white and brown 6: green 5: white and blue 4: blue 3: white and green 2: orange 1: white and orange Insert the arranged core wires into an RJ45 connector according to the pin assignments and crimp the connector with the crimping tool. Pin assignments of an RJ45 connector Crimp the RJ45 connector. Cut off the exposed braid shield and materials along the edge of the connector. Cut off the exposed braid shield and materials. Outdoor network cable Terminate a connector on the other end of the network cable, and then test the cable for continuity using a network cable tester. The pin assignments of the connectors at the two ends must be the same. Outdoor network cables are straight-through cables. Terminating a Ground Cable with an OT Terminal Strip the ground cable. A: OT terminal B: ground cable C: exposed cable conductor L1: length of the exposed cable When you are skillful, you can determine L1 based o…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. ADD: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, China TEL: +86-755-2897-0299 FAX: +86-755-8965-0226 FCC Authorization Date: 2014-9-30 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Huawei Technologies Co., Ltd., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Zhang, Xinghai EMC Laboratory Manager QA-FR-170-B

PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Circuit Description 3 Schematic SHORT-TERM 4 External and Internal Photos 5 Test-Setup Photos 6 User Manual Huawei Technologies Co., Ltd. Add: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, China Tel: +86-755-2897-0299 Fax: +86-755-8965-0226 Date: 2014-9-30 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of confidentiality for FCC ID: QISRTN360 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Huawei Technologies Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Huawei Technologies Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Signature: Zhang, Xinghai EMC Laboratory Manager

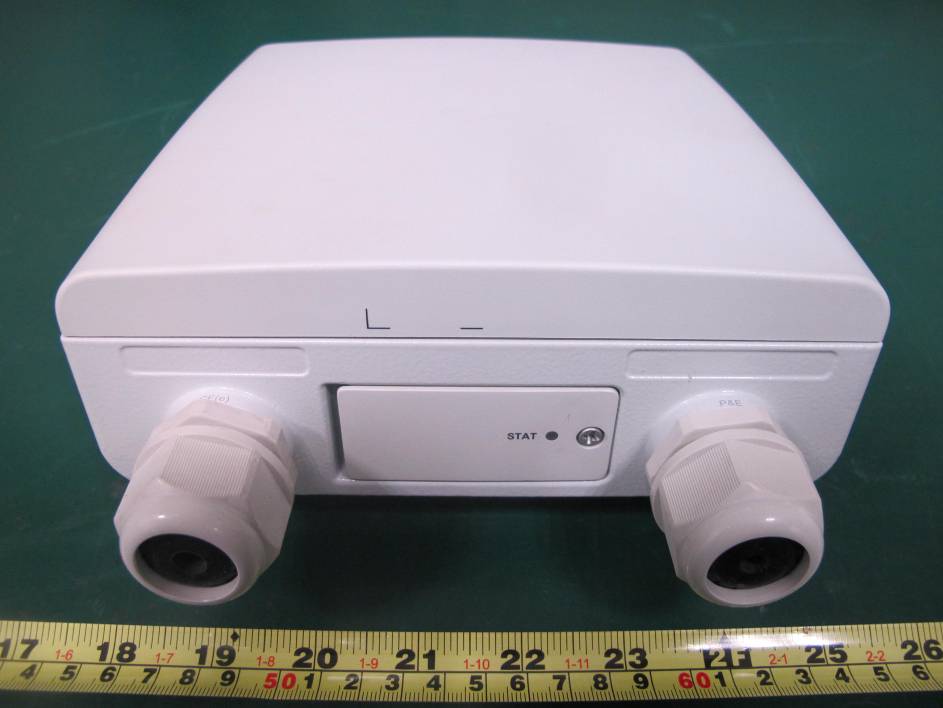

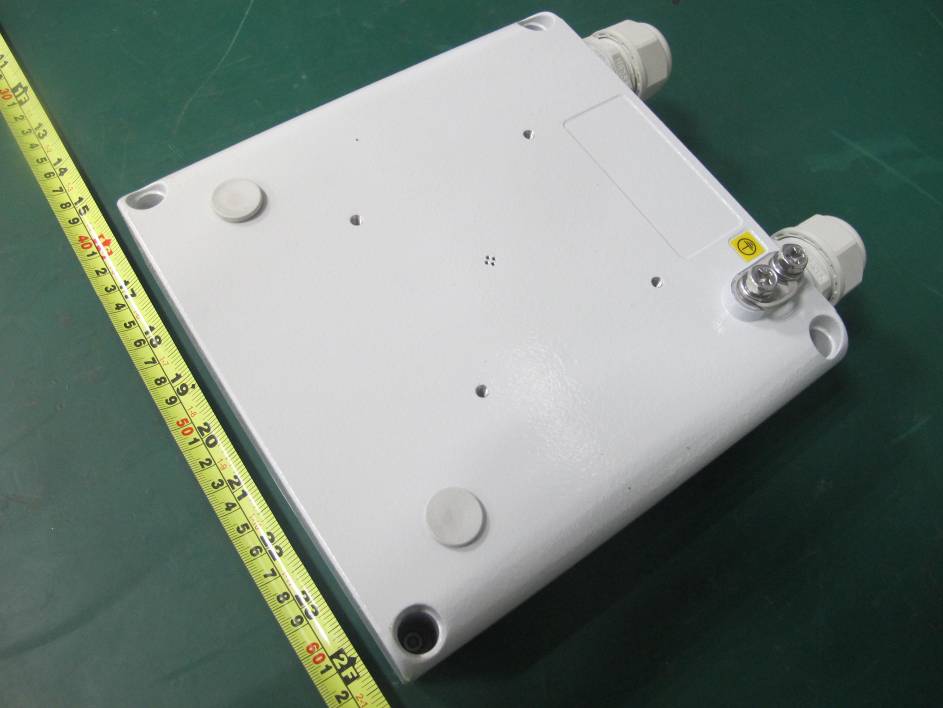

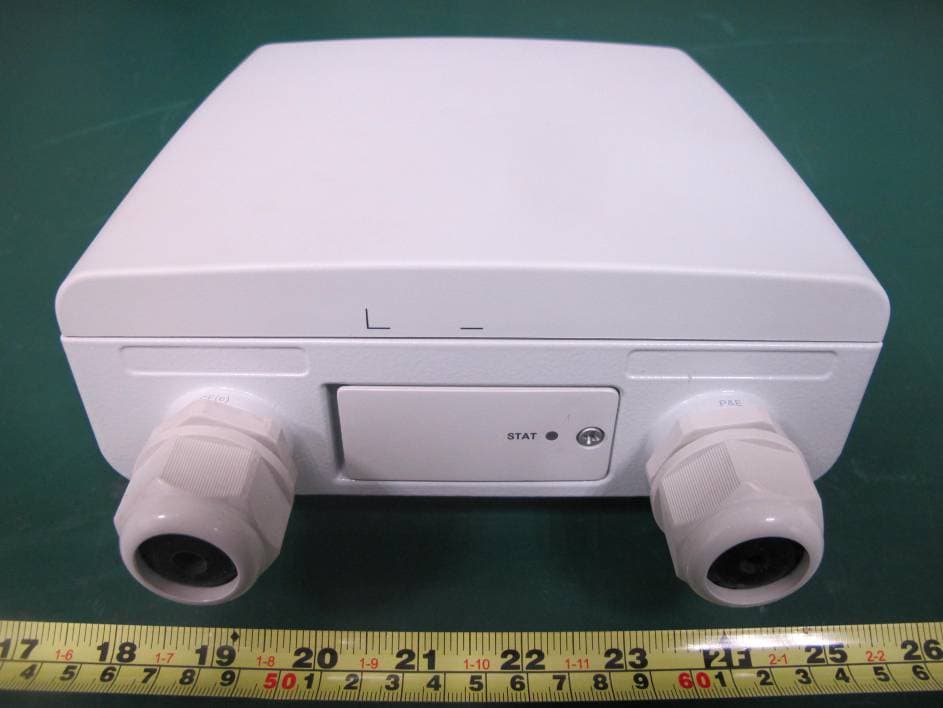

EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EUT INTERNAL PHOTOGRAPHS

Declaration for Compliance with EMF for Optix RTN 360 Security Level: Public Document No.: SYBH(R)01466066EB-2 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 2 Declaration of Electromagnetic Field Health Compliance To whom it may concern, As to the product Optix RTN 360 made by Huawei Technologies Co., Ltd., we declare that it complies with the Basic restrictions/Reference levels for electric, magnetic and electromagnetic fields as specified in following standards(s): Nr. Standard 1 47CFR FCC Part 1 (10-1-13 Edition) & OET Bulletin 65 2 RSS-102 (Issue4, March 2010) The compliance is demonstrated based on the following calculation model assessment: 1. The power density according to far-field model is: 2 ),( 4R GP S      Where: P = input power of the antenna. G = antenna gain relative to an isotropic antenna. , = elevation and azimuth angles. R = distance from the antenna to the point of investigation. 2. For single or multiple RF sources, the calculated power density should comply with following: 1 ,   i iLimit i S S Where: i S = the power density when the f is i . iLim it S , = the reference level requirement for power density when f is i . f = operating frequency. 3. The calculation of the power density or safe distance is: NOTE 1: The RF exposure evaluation is base on the far-field and the radiation exposure is over-estimated. NOTE 2: The maximum output power level is taken into account as a worst case for the purpose of the calculation of power density or safe distance. NOTE 3: The minimum antenna feed cable loss (assumed no cable loss) is taken into account as a worst case for the purpose of the calculation of power density or safe distance. NOTE 4: The maximum antenna radiation exposure orientation and maximum antenna gain is taken into account as a worst case for the purpose of the calculation of power density or safe distance. RF Source Calculation for Individual Source RF Source #1 f = 59000 to 64000 MHz Declaration for Compliance with EMF for Optix RTN 360 Security Level: Public Document No.: SYBH(R)01466066EB-2 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 2 iLimit S , = 10 2 W/m P , ),( G = EIRP (= ),( GP ): EIRP (*) = 4.5394 W (=36.57 dBm, all ports) ),( GP : P (*) = W (= dBm, per port) W (calculated, two ports) ),( G = (= dBi) _______________________ (*) : The value is from: measured max (See relevant RF report), rated + declared tolerance, max allowed by RF standard. And, the transmission duty cycle is: ignored, used, that is: % (for mode: ). , = The worst condition is considered, i.e. the max G is used. i S = 2 ),( / 4 R GP     = 0.3612 2 /R 2 W/m iLim it i S S , = 0.036 / 2 R RF Sources Calculation for Simultaneous Transmission Sources (Not applicable) (Not applicable) Whole Product Calculation for Whole Product Whole Product Lim it S S = 0.036 / 1 2 R R  0.19 m (the minimum Safe Distance) NOTE: The result is the worst case of each individual source and simultaneous transmission sources (if applicable). Person responsible for making this declaration: ____________________________ Zhang Weimin RF Engineer, EMC Lab Reliability Laboratory of Huawei Technologies Co., Ltd. September 22, 2014

RF Test Report Product Name: Radio Transmission System Product Model: Optix RTN 360 Report Number: SYBH(R)01466066EB-1 FCC ID: QISRTN360 IC: 6369A-RTN360 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of Optix RTN 360 FCC ID: QISRTN360, IC: 6369A-RTN360 Security Level: Public Report No: SYBH(R)01466066EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 25 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements.  The recognition number for the test site located in Shenzhen is 97456.  The recognition number for the test site located in Shanghai is 684868.  The recognition number for the test site located in Chengdu is 216797. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements.  The recognition number for the test site located in Shenzhen is 6369A, which contains 6369A-1 (3m chamber in G2), 6369A-2 (3m chamber in K3) and 6369A-3 (10m chamber in K3).  The recognition numbers for the test site located in Shanghai is 6369D, which contains 6369D-1 (3m chamber) and 6369D-2 (10m chamber).  The recognition number for the test site located in Chengdu is 6369E-1. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of Optix RTN 360 FCC ID: QISRTN360, IC: 6369A-RTN360 Security Level: Public Report No: SYBH(R)01466066EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 25 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Product Name: Radio Transmission System Product Model: Optix RTN 360 Date of Receipt Sample: 2014-08-08 Start Date of Test: 2014-08-08 End Date of Test: 2014-10-25 Test Result: Pass Approved by Senior Engineer: 2014-10-27 Zhang Xinghai Date Name Signature Prepared by: 2014-10-27 Zhang Weimin Date Name Signature RF Test Report of Optix RTN 360 FCC ID: QISRTN360, IC: 6369A-RTN360 Security Level: Public Report No: SYBH(R)01466066EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 25 Modification Record No. Last Report No. Modification Description 1 --- First report. RF Test Report of Optix RTN 360 FCC ID: QISRTN360, IC: 6369A-RTN360 Security Level: Public Report No: SYBH(R)01466066EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 25 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 2.1 Band 57-64 GHz (V-Band) ......................................................................................................................... 7 3 Description of the Equipment under Test (EUT) ................................................................................................... 15 3.1 General Description ................................................................................................................................. 15 3.2 EUT Identity ............................................................................................................................................. 15 3.3 Technical Description ............................................................................................................................... 16 4 General Test Conditions / Configurations ............................................................................................................. 17 4.1 EUT Configurations .................................................................................................................................. 17 4.2 Test Environments ................................................................................................................................... 18 4.3 Auxiliary Peripheries ........................................…
