QISS10-201WHUAWEI MediaPad 10 Link is a 10.1 inch tablet supporting Bluetooth, 2.4GHz/5GHz WiFi

Quick Start 1 1 For More Help Welcome to the bright new world of HUAWEI MediaPad 10 Link (HUAWEI MediaPad for short). For more help, go to http://www.huaweidevice.com to download the User Guide . To find the User Guide of your tablet quickly, enter HUAWEI MediaPad 10 Link in the webpage search box. Please visit www.huaweidevice.com/worldwide/support/hotline for recently updated hotline and email address in your country or region. The figures in this guide are provided for your reference only. The appearance and display features may vary slightly depending on the actual product version. 2 2 HUAWEI MediaPad at a Glance 1 Light sensor 2 Front camera 3 Power key 4 Volume keys 5 Microphone 6 Rear camera 7 Card slot 8 Composite headphone/audio-input jack 9 Micro-USB Port (with the charging function) 10 Speaker 3 3 Installing the microSD Card 1. Open the microSD card slot covers. 2. Insert the microSD card with its gold contacts facing up, as indicated in the preceding figure. Push the card inward until it clicks into place. 3. Replace the card slot covers. Do not remove the card slot cover from the tablet. 4 4 Powering On or Off Powering On Press and hold the power key until HUAWEI MediaPad vibrates. If HUAWEI MediaPad has not been used for a long time or the battery level is low, you may not be able to power it on immediately after you start charging the battery. Allow the battery to charge for a few minutes before attempting to use it. Powering Off Press and hold the power key until a dialog box is displayed. Then follow the onscreen instructions to power off HUAWEI MediaPad. 5 Locking the Screen When your HUAWEI MediaPad is turned on, press the Power button to lock the screen. If your HUAWEI MediaPad is idle for a preset period of time, the screen will lock automatically. 6 Unlocking the Screen 1. Press the Power button to wake up the screen. 2. Drag the lock icon to theicon on the right. 5 7 Gestures The following simple finger gestures make it easy to use your HUAWEI MediaPad. Touch: Touch an item to select or open it. Double-click: Touch the screen twice consecutively to zoom in. Touch and hold: Touch and hold the screen to display an options menu. Flick: Flick up or down to scroll up or down. Flick left or right to switch between screens. Drag: Touch and hold an item to drag it to another position. Pinch: Pinch two fingers together or apart to zoom in or out. You can use this gesture when browsing photos and web pages. 6 8 Warnings and Precautions To use the device properly and safely, read these warnings and precautions carefully and strictly observe them during operation. Unless otherwise specified, the term "device" refers to the device and its accessories. Basic Requirements During storage, transportation, and operation of the device, keep it dry and prevent it from colliding with other objects. Do not dismantle the device. In case of any fault, contact an authorized service center for assistance or repair. Without authorization, no organization or individual can change the mechanical, safety, or performance design of the device. When using the device, observe all applicable laws and regulations and respect the legal rights of other people. Environmental Requirements for Using the Device Keep the device far from sources of heat and fire, such as a heater or a candle. Keep the device far from electronic appliances that generate strong magnetic or electric fields, such as a microwave oven or a refrigerator. Place the device on a stable surface. Place the device in a cool and well-ventilated indoor area. Do not expose the device to direct sunlight. Keep the ambient temperature between 0°C and 35°C while the device is being charged. Keep the ambient temperature between 0°C to 35°C for using the device powered by a battery. Do not place any object (such as a candle or a water container) on the device. If any foreign object or liquid enters the device, stop using the device immediately, power it off, remove all the cables connected to it, and then contact an authorized service center. During thunderstorms, power off the device, and then remove all the cables connected to it to prevent it from getting damaged due to lightning strikes. 7 Traffic Security Observe local laws and regulations while using the device. In addition, if using the device while driving a vehicle, comply with the following guidelines: Concentrate on driving. Your first responsibility is to drive safely. RF signals may affect electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. In a motor vehicle, do not place the device over the air bag or in the air bag deployment area. Otherwise, the device may hurt you owing to the strong force when the air bag inflates. Do not use your device while flying in an aircraft. Power off your device before boarding an aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft and disrupt the wireless telephone network. It may also be considered illegal. Precautions for Using Wireless Devices The device complies with the RF specifications when the device is used in portable exposure conditions or at a distance of 1.5 cm from your body. Do not use the device where using wireless devices is prohibited or may cause interference or danger. The radio waves generated by the device may interfere with the operation of electronic medical devices. If you are using any electrical medical device, contact its manufacturer for the restrictions on the use of the device. Do not take the device into operating rooms, intensive care units (ICUs), or coronary care units (CCUs). Areas with Inflammables and Explosives Do not use the device where inflammables or explosives are stored, for example, in a gas station, oil depot, or chemical plant. Otherwise, explosions or fires may occur. In addition, follow the instructions indicated in text or symbols. 8 Do not store or transport the device in the same box as inflammable liquids, gase…

Text truncated - open the document above for the full version.

COMPANY LETTERHEAD Date (05/01/2013) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Bu Cookies Phone: +86-755-88286998 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISS10-201WA. FCC ID: QISS10-201W This authorization is valid until further written notice from Huawei Technologies Co., Ltd. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

COMPANY LETTERHEAD Declaration Letter Date (20/01/2013) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby declared in our application for S10-201w(FCC ID:QISS10-291W) , this device is acting as client device and operated on 2.4GHz and 5GHz. This device do not have the radar detection function specified by FCC. Also No parameter or information relating to detected radar waveforms is available or accessible to end user. The client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master. Also this device do not support Ad-Hoc mode on 5GHz WiFi bands. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2012-12-26 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISS10-201W To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2013-03-05: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

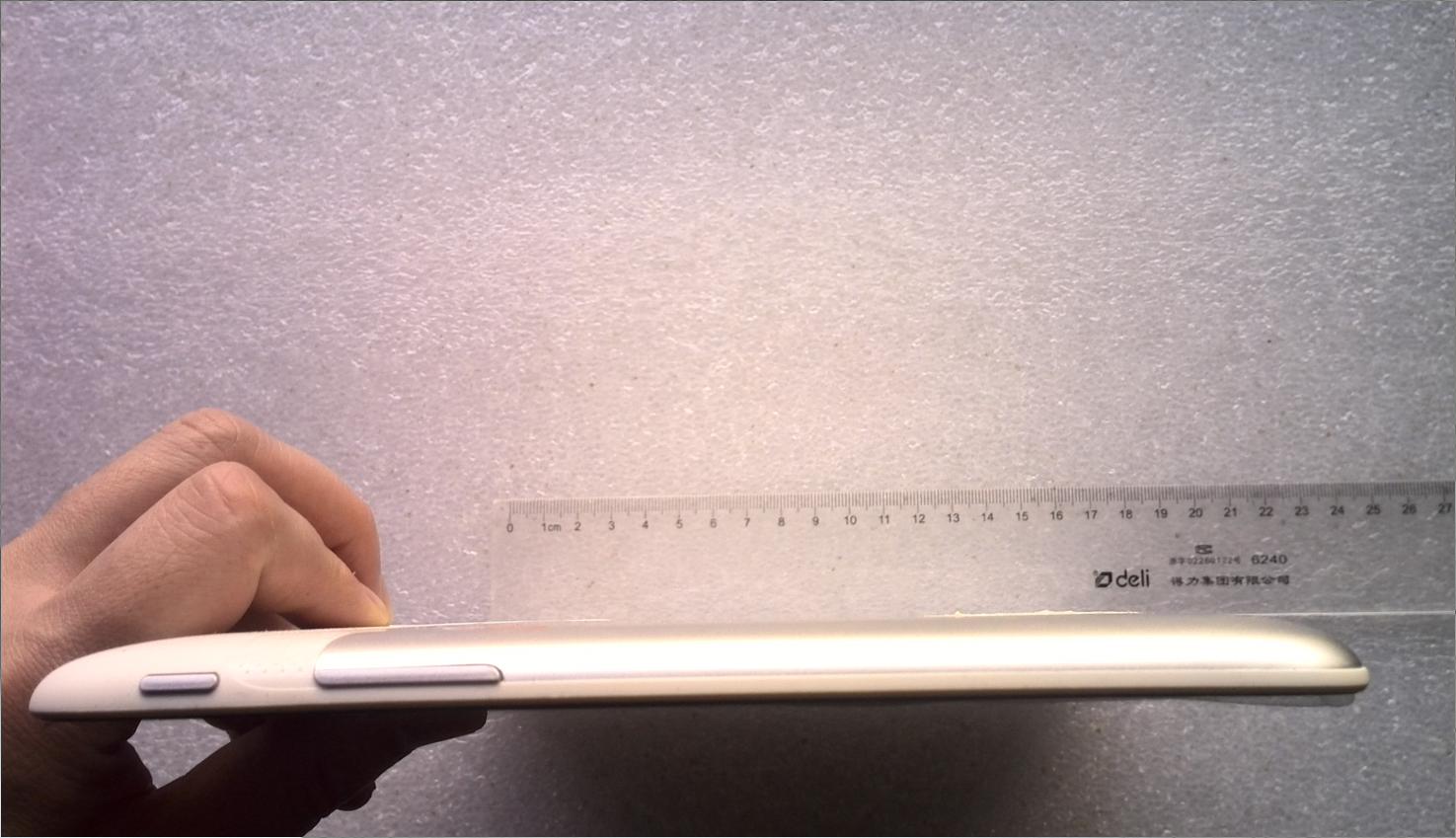

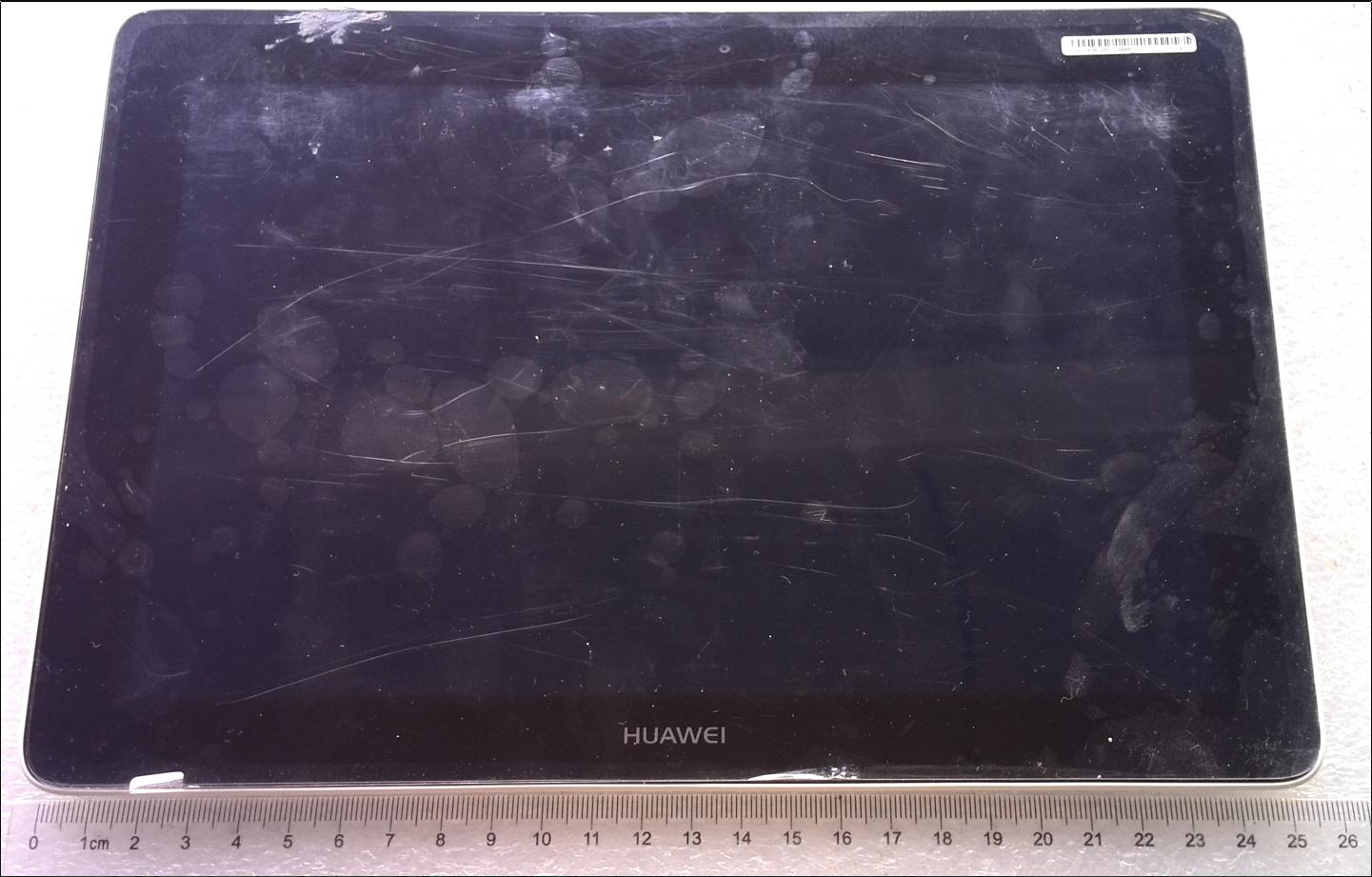

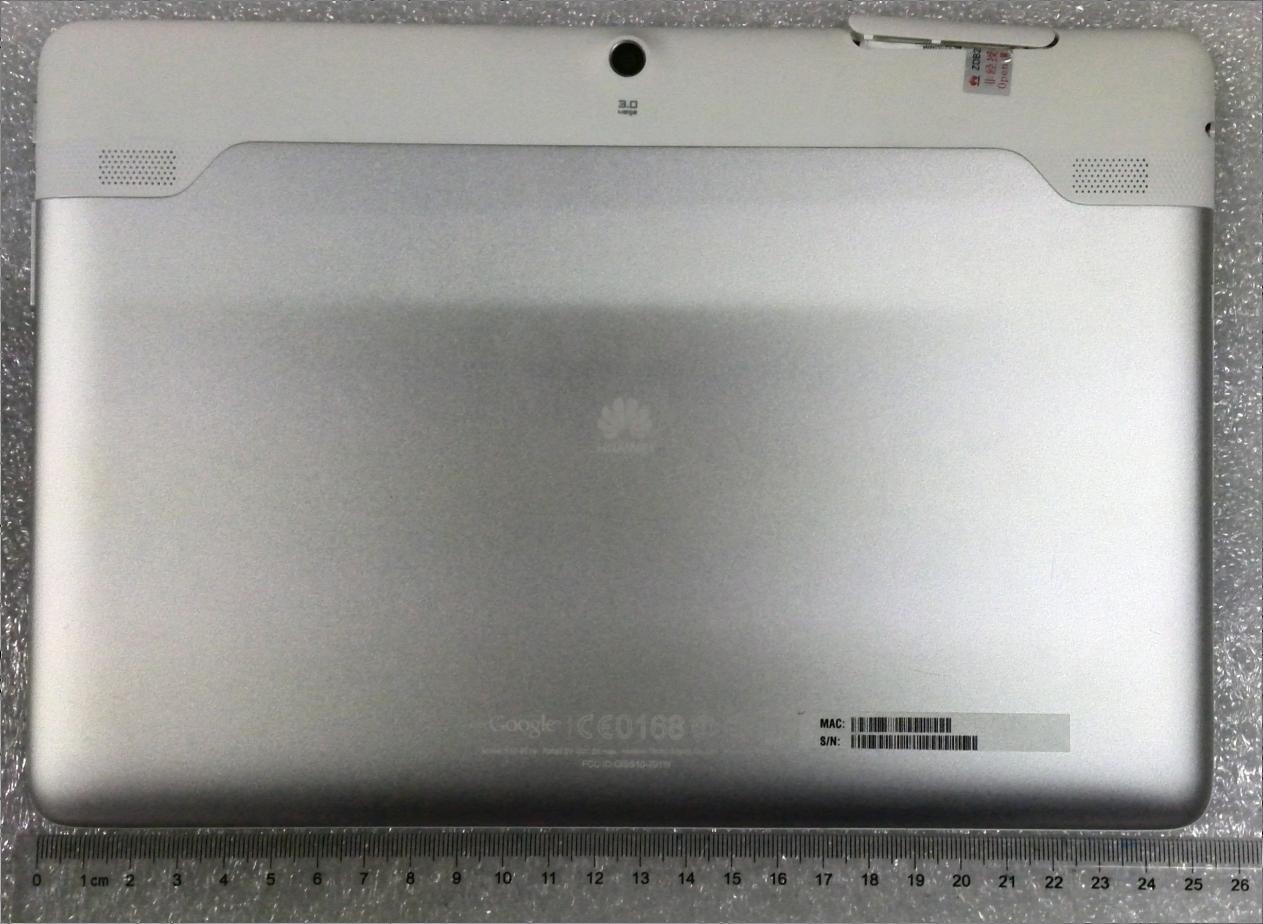

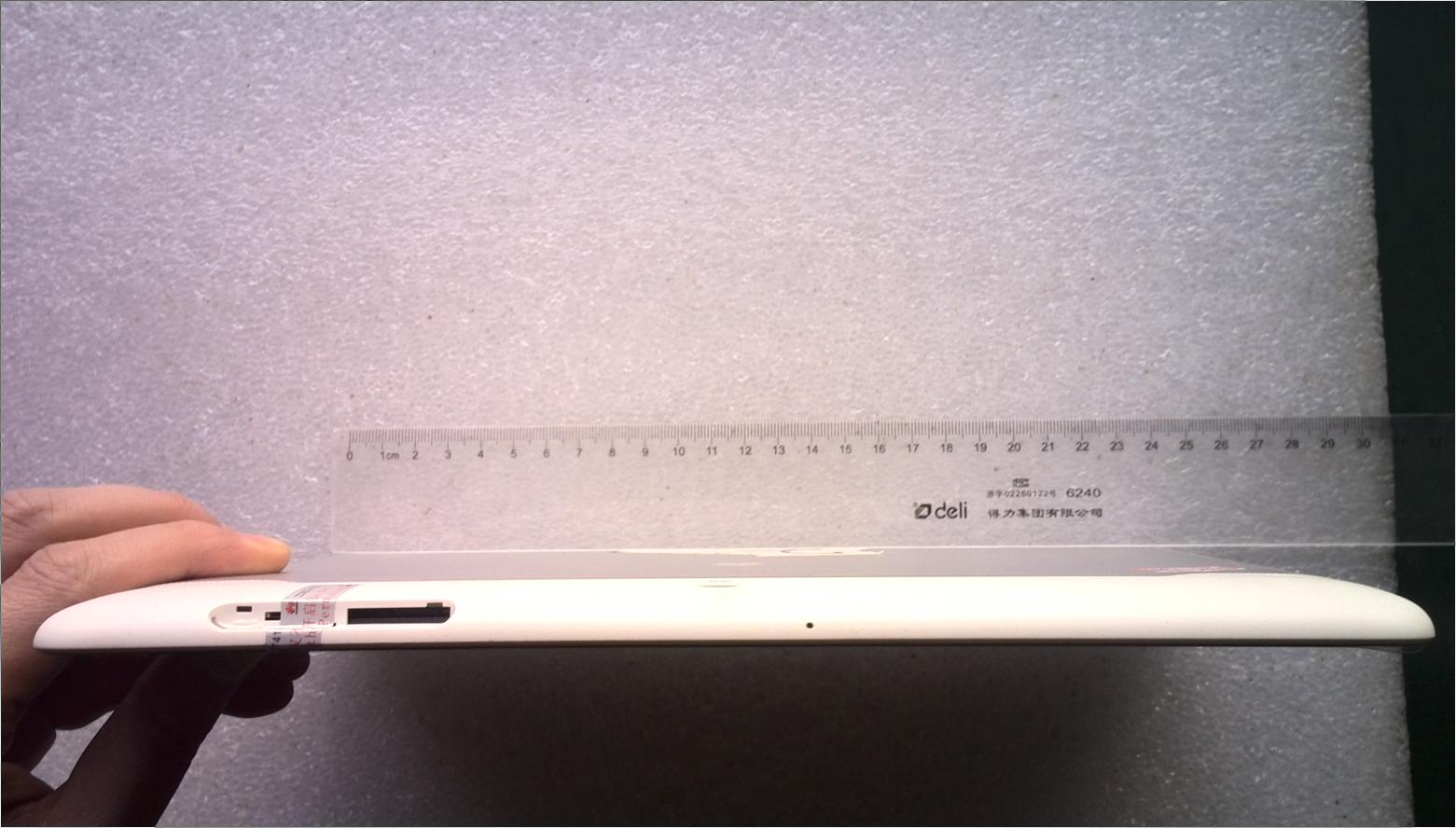

HUAWEI MediaPad SECRET Page1, Total7 Photo documentation of external of product HUAWEI MediaPad SECRET Page2, Total7 Dimensions (L × W × H)：257.4mm（length） × 175.9mm （width）× 9.9 mm（height） HUAWEI MediaPad SECRET Page3, Total7 HUAWEI MediaPad SECRET Page4, Total7 HUAWEI MediaPad SECRET Page5, Total7 HUAWEI MediaPad SECRET Page6, Total7 HUAWEI MediaPad SECRET Page7, Total7

HUAWEI MediaPad 10 Link SECRET Page1, Total 1

HUAWEI MediaPad 10 FHD SECRET Page1, Total16 Photo documentation of interior of product HUAWEI MediaPad 10 FHD SECRET Page2, Total16 HUAWEI MediaPad 10 FHD SECRET Page3, Total16 HUAWEI MediaPad 10 FHD SECRET Page4, Total16 HUAWEI MediaPad 10 FHD SECRET Page5, Total16 HUAWEI MediaPad 10 FHD SECRET Page6, Total16 HUAWEI MediaPad 10 FHD SECRET Page7, Total16 HUAWEI MediaPad 10 FHD SECRET Page8, Total16 HUAWEI MediaPad 10 FHD SECRET Page9, Total16 HUAWEI MediaPad 10 FHD SECRET Page10, Total16 HUAWEI MediaPad 10 FHD SECRET Page11, Total16 HUAWEI MediaPad 10 FHD SECRET Page12, Total16 HUAWEI MediaPad 10 FHD SECRET Page13, Total16 HUAWEI MediaPad 10 FHD SECRET Page14, Total16 HUAWEI MediaPad 10 FHD SECRET Page15, Total16 HUAWEI MediaPad 10 FHD SECRET Page16, Total16

SPORTON INTERNATIONAL INC. Page Number : 1 of 32 TEL : 886-3-327-3456 Report Issued Date : Jan. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISS10-201W FCC SAR Test Partial Report Report No. : FA2N1502-01 Partial FCC SAR Test Report APPLICANT : Huawei Technologies Co., Ltd. EQUIPMENT : Tablet BRAND NAME : HUAWEI MediaPad 10 Link MODEL NAME : S10-201w FCC ID : QISS10-201W STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) This is a partial report which is only performed WLAN 5GHz Band. The product was completely tested on Jan. 15, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 32 TEL : 886-3-327-3456 Report Issued Date : Jan. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISS10-201W FCC SAR Test Partial Report Report No. : FA2N1502-01 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................6 3.2 Maximum RF output power among production units ...............................................................................................7 3.3 Product Photos .......................................................................................................................................................7 3.4 Applied Standard .....................................................................................................................................................7 3.5 Device Category and SAR Limits ............................................................................................................................7 3.6 Test Conditions ........................................................................................................................................................8 4. Specific Absorption Rate (SAR) ....................................................................................................................................8 4.1 Introduction .............................................................................................................................................................8 4.2 SAR Definition .........................................................................................................................................................8 5. SAR Measurement System ............................................................................................................................................9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder .......................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. SAR Measurement Evaluation ................................................................................................................................…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C082 Page 1 of 45 FCC DFS TEST REPORT Issued Date : Nov. 29, 2012 Project No. : 1211C082 Equipment : Model Name : S10-201w Applicant : Huawei Technologies Co.,Ltd. Address : Bantian, Longgang District, Shenzhen China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 13, 2012 Date of Test: Nov. 13, 2012 ~ Nov. 28, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) NEUTRON ENGINEERING INC. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China.523792 TEL : +86-769-8318-3000 FAX : +86-769-8319-6000 HUAWEI MediaPad 10 Link Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C082 Page 2 of 45 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C082 Page 3 of 45 Table of Contents Page 1 . CERTIFICATION 4 2 . EUT INFORMATION 5 2.1 EUT SPECIFICATION TABLE 5 2.4 EUT MAXIMUM AND MINIMUM E.I.R.P. POWER 6 3 . U-NII DFS RULE REQUIREMENTS 7 3.1 WORKING MODES AND REQUIRED TEST ITEMS 7 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS 8 4 . TEST INSTRUMENTS 10 5 . EMC EMISSION TEST 11 5.1 DFS MEASUREMENT SYSTEM: 11 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL: 13 5.3 DEVIATION FROM TEST STANDARD 13 6 . TEST RESULTS 14 6.1 SUMMARY OF TEST RESULT 14 6.2 DETELED TEST RESULTS 15 6.2.1 TEST MODE: DEVICE OPERATING IN MASTER MODE. 15 6.2.2 DFS DETECTION THRESHOLD 15 6.2.3 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME WLAN TRAFFIC 19 7. TEST SETUP PHOTOS 45 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C082 Page 4 of 45 1. CERTIFICATION Equipment : Model Name. S10-201w Applicant : Huawei Technologies Co.,Ltd. Date of Test: Nov. 13, 2012 ~ Nov. 28, 2012 Test Item : ENGINEERING SAMPLE Standards : FCC Part 15, Subpart E (Section 15.407) FCC 06-96 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1211C082) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). HUAWEI MediaPad 10 Link Device Type Tablet Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C082 Page 5 of 45 2. EUT INFORMATION 2.1 EUT SPECIFICATION TABLE Table 1: Specification of EUT Product name Model S10-201w FCC ID QISS10-201W Software Version S10-201w V100R001C001 Firmware Version SH1201UM Operational Mode Slave Operating Frequency Range 5260~5320MHz&5500~5700MHz without 5600~5650MHz Modulation OFDM . Note: This device was functioned as a □Master ■Slave device during the DFS 2.2 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT Table 2: Antenna list. Ant. Manufacturer Model Name Antenna Type / Connector Gain (dBi) 1 SkyCross.inc,Shanghai.Branchmonopole Integral 4.95 HUAWEI MediaPad 10 Link Device Type Tablet Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C082 Page 6 of 45 2.3 CONDUCTED OUTPUT POWER AND EIRP POWER TABLE 3: THE CONDUCTED OUTPUT POWER LIST TX (11a) MAX. POWER FREQUENCY BAND (MHz) OUTPUT POWER(dBm) OUTPUT POWER(mW) 5180~5240 12.43 17.50 5260~5320 12.46 17.62 5500~5700 12.77 18.92 TX (11N20) MAX. POWER FREQUENCY BAND (MHz) OUTPUT POWER(dBm) OUTPUT POWER(mW) 5180~5240 12.51 17.82 5260~5320 12.42 17.46 5500~5700 12.74 18.79 2.4 EUT MAXIMUM AND MINIMUM E.I.R.P. POWER TABLE 4: THE MAX EIRP LIST TX (11a) MAX. POWER FREQUENCY BAND (MHz) OUTPUT POWER(dBm) OUTPUT POWER(mW) 5180~5240 17.38 54.70 5260~5320 17.41 55.08 5500~5700 17.72 59.16 TX (11 N20) MAX. POWER FREQUENCY BAND (MHz) OUTPUT POWER(dBm) OUTPUT POWER(mW) 5180~5240 17.46 55.72 5260~5320 17.37 54.58 5500~5700 17.69 58.75 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C082 Page 7 of 45 3. U-NII DFS RULE REQUIREMENTS 3.1 WORKING MODES AND REQUIRED TEST ITEMS The manufacturer shall state whether the UUT is capable of operating as a Master and/or a Client. If the UUT is capable of operating in more than one operating mode then each operating mode shall be tested separately. See tables 1 and 2 for the applicability of DFS requirements for each of the operational modes. Table 5: Applicability of DFS requirements prior to use a channel Operational Mode Requirement Master Client without radar detection Client with radar detection Non-Occupancy Period Not required DFS Detection Threshold Not required Channel Availability Check Time Not req…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-2-1211C082 Page 1 of 83 FCC Radio Test Report FCC ID: QISS10-201W This report concerns (check one): Original Grant Class I Change Issued Date : Nov. 29, 2012 Project No. : 1211C082 Equipment : Model Name : S10-201w Applicant : Huawei Technologies Co.,Ltd. Address : Bantian, Longgang District, Shenzhen China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 13, 2012 Date of Test: Nov. 13, 2012 ~ Nov. 28, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 HUAWEI MediaPad 10 Link Neutron Engineering Inc. Report No.: NEI-FCCP-2-1211C082 Page 2 of 83 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-2-1211C082 Page 3 of 83 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 21 4.2.1 RADIATED EMISSION LIMITS 21 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 22 4.2.3 TEST PROCEDURE 23 4.2.4 DEVIATION FROM TEST STANDARD 23 4.2.5 TEST SETUP 24 4.2.6 EUT OPERATING CONDITIONS 24 4.2.7 TEST RESULTS (BELOW 30MHZ) 25 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 26 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 33 5 . BANDWIDTH TEST 57 5.1 APPLIED PROCEDURES / LIMIT 57 5.1.1 MEASUREMENT INSTRUMENTS LIST 57 5.1.2 TEST PROCEDURE 57 5.1.3 DEVIATION FROM STANDARD 57 5.1.4 TEST SETUP 57 5.1.5 EUT OPERATION CONDITIONS 57 5.1.6 TEST RESULTS 58 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1211C082 Page 4 of 83 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 62 6.1 APPLIED PROCEDURES / LIMIT 62 6.1.1 MEASUREMENT INSTRUMENTS LIST 62 6.1.2 TEST PROCEDURE 62 6.1.3 DEVIATION FROM STANDARD 62 6.1.4 TEST SETUP 62 6.1.5 EUT OPERATION CONDITIONS 62 6.1.6 TEST RESULTS 63 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 64 7.1 APPLIED PROCEDURES / LIMIT 64 7.1.1 MEASUREMENT INSTRUMENTS LIST 64 7.1.2 TEST PROCEDURE 64 7.1.3 DEVIATION FROM STANDARD 64 7.1.4 TEST SETUP 64 7.1.5 EUT OPERATION CONDITIONS 64 7.1.6 TEST RESULTS 65 8 . POWER SPECTRAL DENSITY TEST 75 8.1 APPLIED PROCEDURES / LIMIT 75 8.1.1 MEASUREMENT INSTRUMENTS LIST 75 8.1.2 TEST PROCEDURE 75 8.1.3 DEVIATION FROM STANDARD 75 8.1.4 TEST SETUP 75 8.1.5 EUT OPERATION CONDITIONS 75 8.1.6 TEST RESULTS 76 9 . EUT TEST PHOTO 80 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1211C082 Page 5 of 83 1. CERTIFICATION Equipment : Model Name : S10-201w Applicant : Huawei Technologies Co.,Ltd. Date of Test : Nov. 13, 2012 ~ Nov. 28, 2012 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-2-1211C082) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Test result included in this report is only for the 5725~5825 MHz part of the product. HUAWEI MediaPad 10 Link Device Type Tablet Neutron Engineering Inc. Report No.: NEI-FCCP-2-1211C082 Page 6 of 83 2. SUMMARY OF TEST RESULTS FCC Part15 (15.247) , Subpart C / RSS-210: 2010 Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (d) Antenna conducted Spurious EmissionPASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (e) Power Spectral Density PASS 15.203 Antenna Requirement PASS 15.247(d) Transmitter Radiated Emissions FCC Limit: Table 15.209 PASS 1.1307 1.1310 2.1091 2.1093 RF Exposure Compliance PASS Test procedures according to the technical standards: NOTE: (1)” N/A” denotes test is not applicable in this te…

Text truncated - open the document above for the full version.

Report No.: NEI-FCCP-3-1211C082 Page 1 of 181 Neutron Engineering Inc. FCC Radio Test Report FCC ID: QISS10-201W This report concerns (check one) : Original Grant Class I Change Issued Date : Nov. 29, 2012 Project No. : 1211C082 Equipment : Model Name : S10-201w Applicant : Huawei Technologies Co.,Ltd. Address : Bantian, Longgang District, Shenzhen China Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 13, 2012 Date of Test: Nov. 13, 2012 ~ Nov. 28, 2012 HUAWEI MediaPad 10 Link Report No.: NEI-FCCP-3-1211C082 Page 2 of 181 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is …

Text truncated - open the document above for the full version.
