QISS7-302UHUAWEI MediaPad

Quick Start HUAWEI MediaPad 1 1 For More Help For more help, go to http://www.huaweidevice.com to download the User Guide. To find the User Guide of your tablet quickly, enter HUAWEI MediaPad in the webpage search box. The figures in this guide are provided for your reference only. The appearance and display features may vary slightly depending on the actual product version. 2 HUAWEI MediaPad at a Glance 1 Volume key 7 Speaker 2 Power button 8 Main camera 3 Light sensor 9 Microphone 4 Front camera 10 Micro-USB port 5 Headphone jack 11 HDMI port 6 Speaker 12 Charger port 2 3 Installing the SIM and microSD Cards 1. Remove the back cover. 2. Install the SIM card. When installing the SIM card, insert the card gently until it clicks firmly into place. 3. Install the microSD card. 4. Replace the back cover. 3 Do not remove the cover for the main camera. When charging your HUAWEI MediaPad's battery for the first time, charge it for at least 6 hours to ensure that your HUAWEI MediaPad displays the battery information correctly. 4 Switching Your HUAWEI MediaPad On or Off Press and hold the Power button until your HUAWEI MediaPad vibrates to switch on your HUAWEI MediaPad. The first time you switch on the tablet, complete the setup by following the on-screen instructions. To switch off your HUAWEI MediaPad, press and hold the Power button until the screen displays a dialog box, and then touch OK in the dialog box. When the HUAWEI MediaPad is switched on or malfunctions, press and hold the Power button for 10 seconds. After release, press and hold the Power button again until your HUAWEI MediaPad vibrates, indicating that it is restarting. 5 Locking the Screen When your HUAWEI MediaPad is turned on, press the Power button to lock the screen. If your HUAWEI MediaPad is idle for a preset period of time, the screen will lock automatically. 4 6 Unlocking the Screen 1. Press the Power button to wake up the screen. 2. Drag the unlock icon to any point of the circle that is around the icon. 7 Navigation Icons The following icons are commonly used on the Home screen or other application screens. Touch the icons to perform more operations. Touch... To... Return to the previous screen. Return to the Home screen. Open the list of recently used applications. 8 Warnings and Precautions To use the device properly and safely, read these warnings and precautions carefully and strictly observe them during operation. Unless otherwise specified, the term "device" refers to the device and its accessories. Basic Requirements During storage, transportation, and operation of the device, keep it dry and prevent it from colliding with other objects. Do not dismantle the device. In case of any fault, contact an authorized service center for assistance or repair. 5 Without authorization, no organization or individual can change the mechanical, safety, or performance design of the device. When using the device, observe all applicable laws and regulations and respect the legal rights of other people. Environmental Requirements for Using the Device Keep the device far from sources of heat and fire, such as a heater or a candle. Keep the device far from electronic appliances that generate strong magnetic or electric fields, such as a microwave oven or a refrigerator. Place the device on a stable surface. Place the device in a cool and well-ventilated indoor area. Do not expose the device to direct sunlight. Keep the ambient temperature between 0°C and 35°C while the device is being charged. Keep the ambient temperature between 0°C to 35°C for using the device powered by a battery. Do not place any object (such as a candle or a water container) on the device. If any foreign object or liquid enters the device, stop using the device immediately, power it off, remove all the cables connected to it, and then contact an authorized service center. During thunderstorms, power off the device, and then remove all the cables connected to it to prevent it from getting damaged due to lightning strikes. Traffic Security Observe local laws and regulations while using the device. In addition, if using the device while driving a vehicle, comply with the following guidelines: Concentrate on driving. Your first responsibility is to drive safely. Do not talk on the device while driving. Use hands-free accessories. When you have to make or answer a call, park the vehicle at the road side before using your device. 6 RF signals may affect electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. In a motor vehicle, do not place the device over the air bag or in the air bag deployment area. Otherwise, the device may hurt you owing to the strong force when the air bag inflates. Do not use your device while flying in an aircraft. Power off your device before boarding an aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft and disrupt the wireless telephone network. It may also be considered illegal. Precautions for Using Wireless Devices The device complies with the RF specifications when the device is used in portable exposure conditions or at a distance of 1.5 cm from your body. Do not use the device where using wireless devices is prohibited or may cause interference or danger. The radio waves generated by the device may interfere with the operation of electronic medical devices. If you are using any electrical medical device, contact its manufacturer for the restrictions on the use of the device. Do not take the device into operating rooms, intensive care units (ICUs), or coronary care units (CCUs). Areas with Inflammables and Explosives Do not use the device where inflammables or explosives are stored, for example, in a gas station, oil depot, or chemical plant. Otherwise, explosions or fires may occur. In addition, follow the instructions indicated in text or symbols. Do not store or transport the device in the same box as inflammable liquids, gases, or explosives. 7 A…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISS7-302U to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

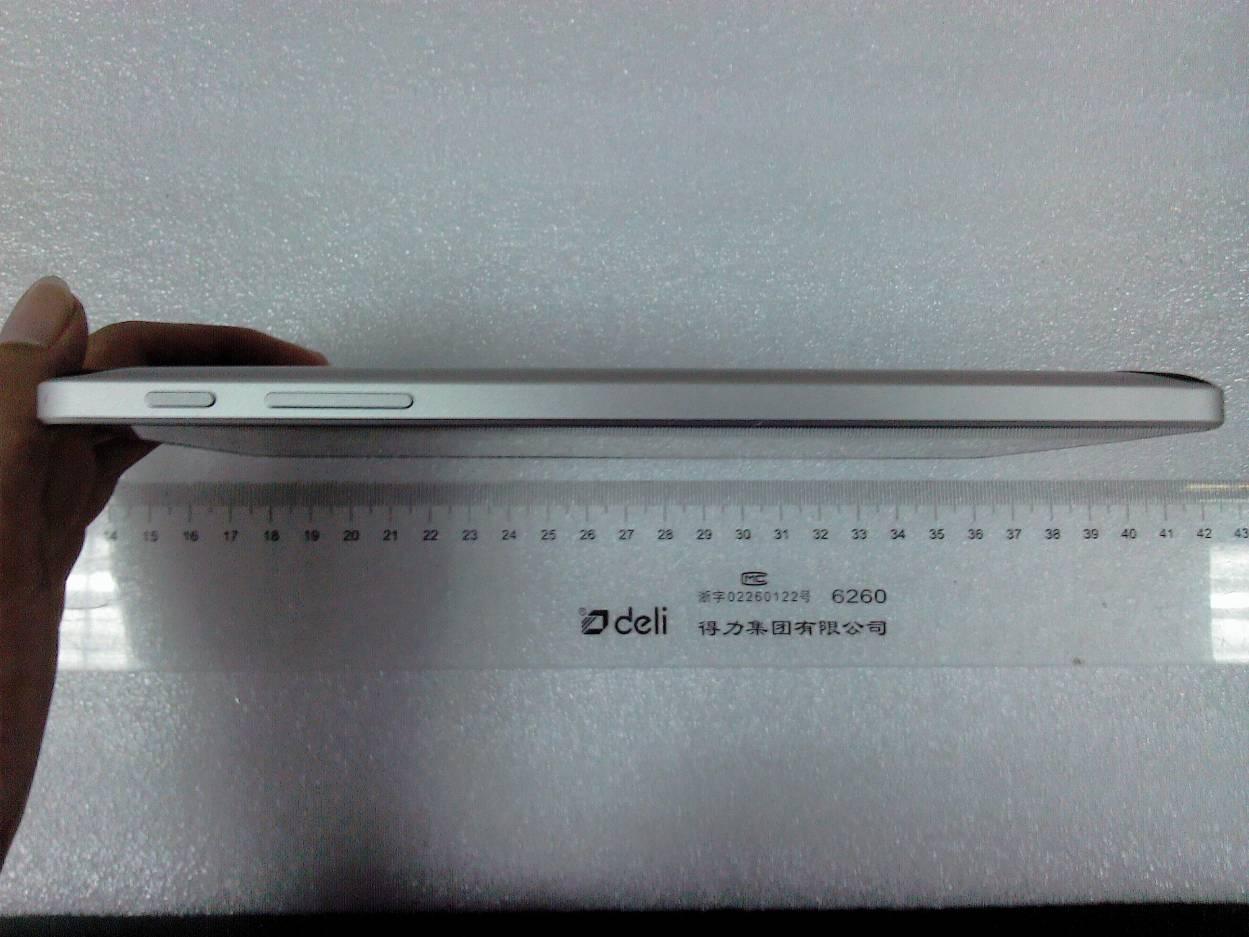

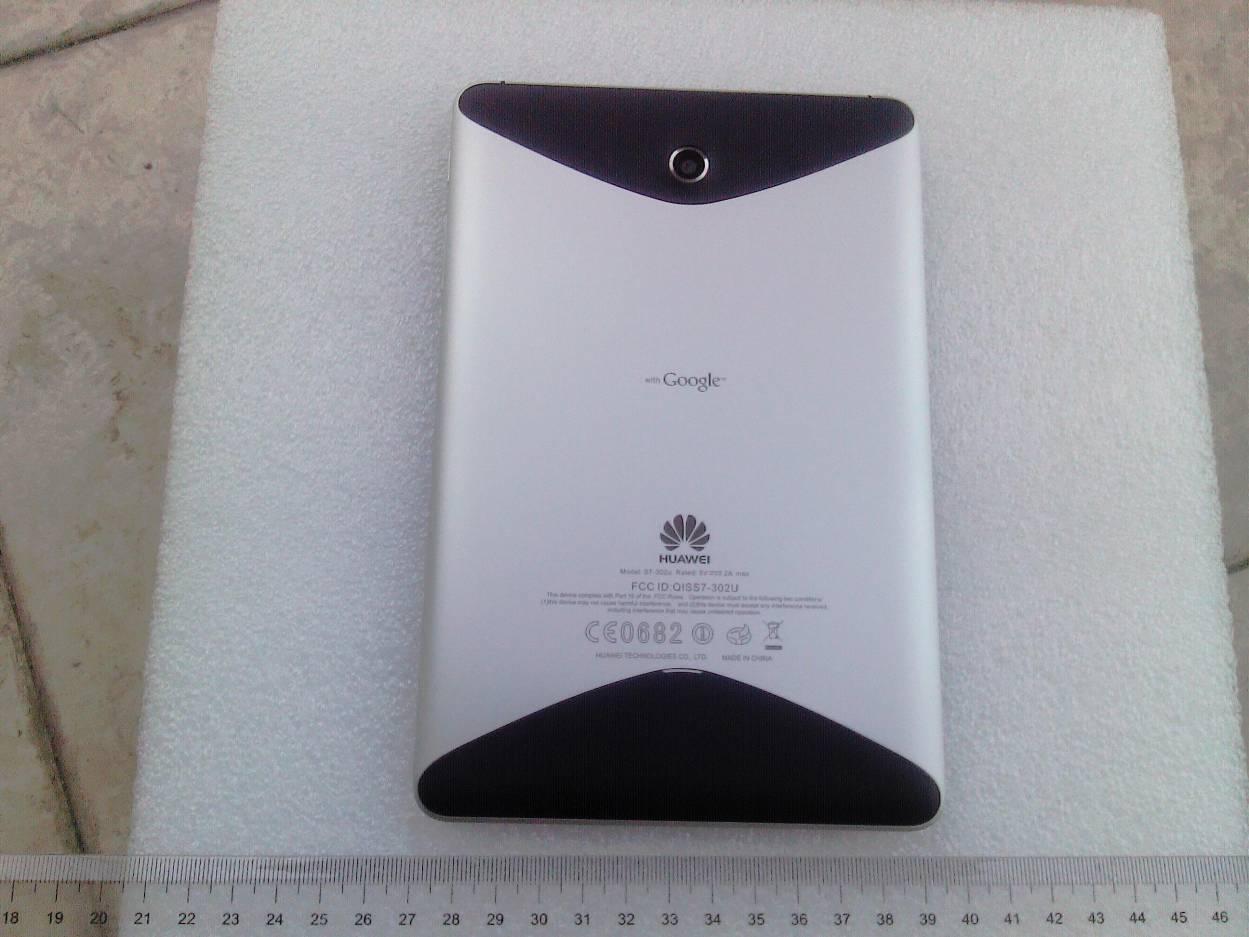

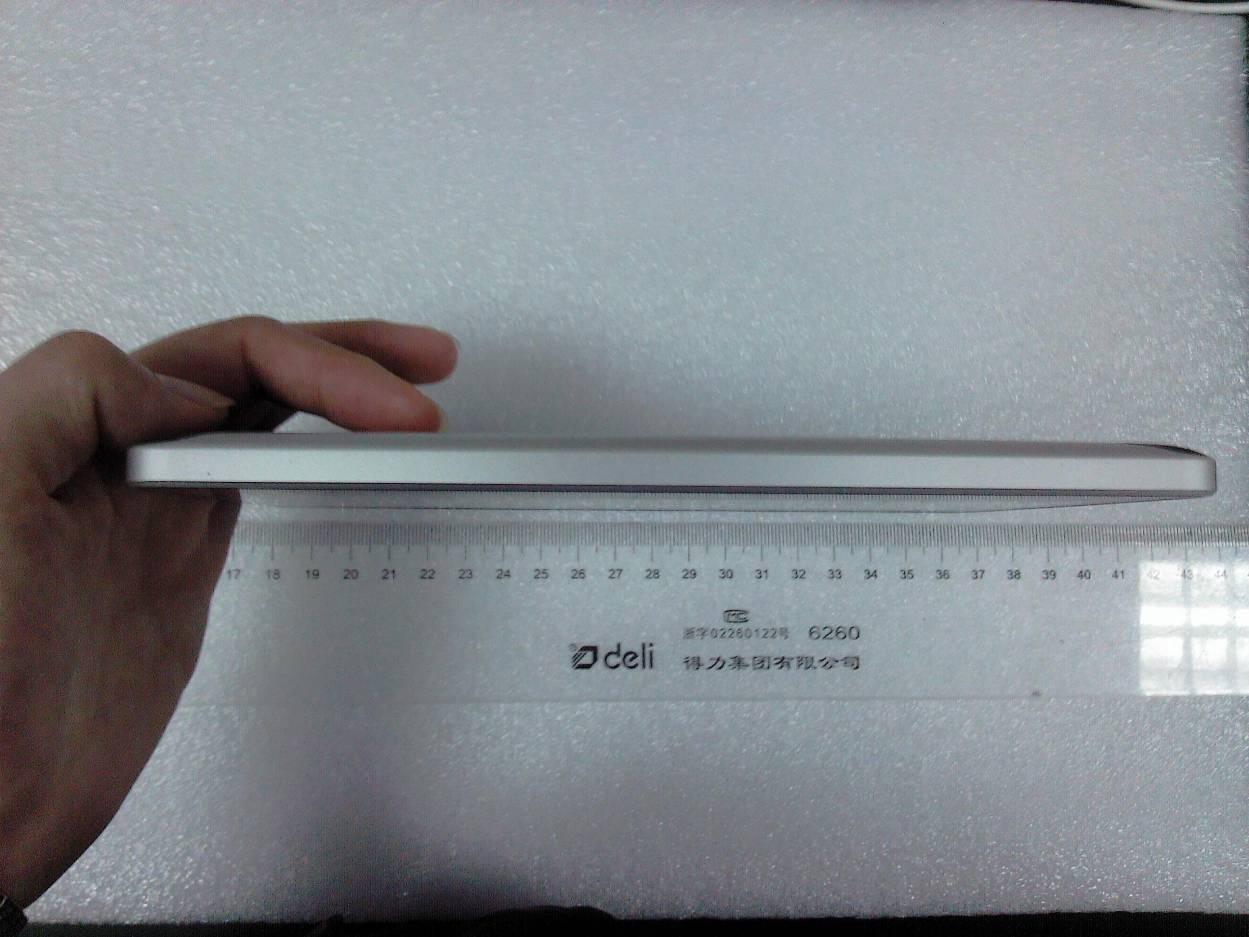

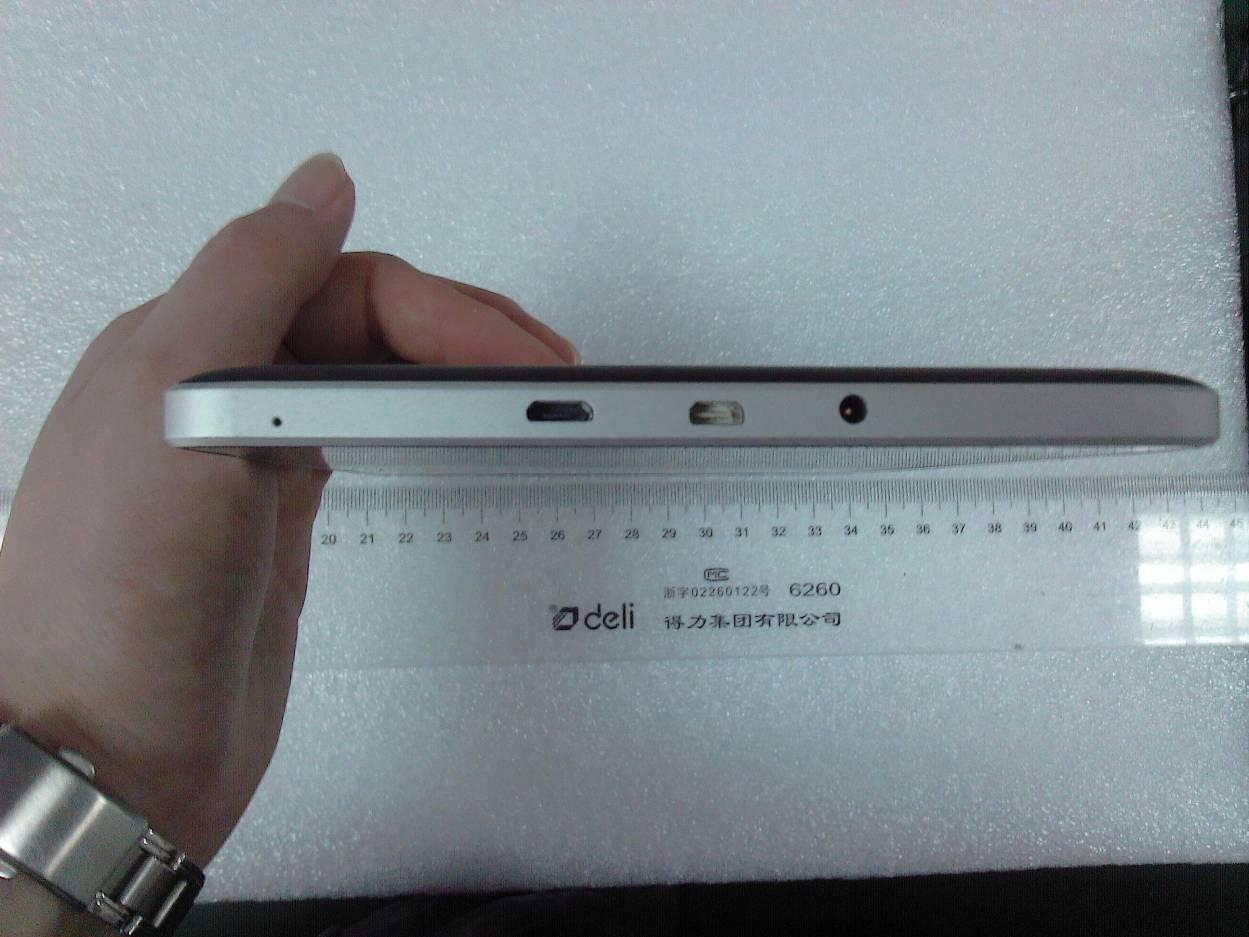

HUAWEI MediaPad SECRET Page1, Total4 Photo documentation of external of product HUAWEI MediaPad SECRET Page2, Total4 HUAWEI MediaPad SECRET Page3, Total4 HUAWEI MediaPad SECRET Page4, Total4

HUAWEI MediaPad SECRET Page1, Total 1 Label Location

HUAWEI MediaPad SECRET Page1, Total8 Photo documentation of interior of product HUAWEI MediaPad SECRET Page2, Total8 HUAWEI MediaPad SECRET Page3, Total8 HUAWEI MediaPad SECRET Page4, Total8 HUAWEI MediaPad SECRET Page5, Total8 HUAWEI MediaPad SECRET Page6, Total8 HUAWEI MediaPad SECRET Page7, Total8 HUAWEI MediaPad SECRET Page8, Total8

FCC RF Test Report Product Name: HUAWEI MediaPad Model Number: S7-302u Report No: SYBH(Z-RF)003082011-2003 FCC ID: QISS7-302U Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of S7-302u FCC ID: QISS7-302U Security Level: Public Report No: SYBH(Z-RF)003082011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total31 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 3. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 4. The test report is invalid if not marked with "exclusive stamp for the test report". 5. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 8. Normally, the test report is only responsible for the samples that have undergone the test. 9. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC Test Report of S7-302u FCC ID: QISS7-302U Security Level: Public Report No: SYBH(Z-RF)003082011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total31 REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 15: Subpart C; START OF TEST Aug.20, 2011 END OF TEST Aug.21, 2011 Final Judgement: Pass Approved By Aug.22, 2011 Dai Linjun Date Name Signature Reviewed By Aug.22, 2011 Cousy Xu Date Name Signature Operator Aug.22, 2011 Huang Qiuliang Date Name Signature FCC Test Report of S7-302u FCC ID: QISS7-302U Security Level: Public Report No: SYBH(Z-RF)003082011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total31 Contents 1 Summary .....................................................................................................................................................5 2 Product Description ...................................................................................................................................6 2.1 PRODUCTION INFORMATION ....................................................................................................................6 2.2 MODIFICATION INFORMATION ..................................................................................................................6 3 Test Site Description ..................................................................................................................................7 3.1 TESTING PERIOD ....................................................................................................................................7 3.2 GENERAL SET UP DESCRIPTION ..............................................................................................................7 4 Product Description ...................................................................................................................................8 4.1 TECHNICAL CHARACTERISTICS ................................................................................................................8 4.2 EUT IDENTIFICATION LIST .....................................................................................................................10 5 Main Test Instruments .............................................................................................................................11 6 Transmitter Measurements .....................................................................................................................12 6.1 BANDWIDTH MEASUREMENT ..................................................................................................................12 6.2 CARRIER FREQUENCY SEPARATION MEASUREMENT ................................................................................14 6.3 NUMBER OF HOPPING CHANNEL .............................................................................................................16 6.4 TIME OF OCCUPANCY ............................................................................................................................18 6.5 PEAK OUTPUT POWER ..........................................................................................................................20 6.6 BAND EDGE SPURIOUS EMISSION ...........................................................................................................22 6.7 CONDUCTED RF SPURIOUS ...................................................................................................................24 6.8 RADIATED SPURIOUS EMISSION & SPURIOUS IN RESTRICTED BAND ..........................................................26 6.9 CONDUCTED EMISSION AT POWER PORT ...............................................................................................28 7 System Measurement Uncertainty ..........................................................................................................30 8 Appendices List ........................................................................................................................................31 FCC Test Report of S7-302u FCC ID: QISS7-302U Security Level: Public Report No: SYBH(Z-RF)003082011-2003 Confidential Information of Huawei. No Distribution without Written Permissio…

Text truncated - open the document above for the full version.

Zur optimalen Anzeige dieses PDF-Portfolios sollte es in Acrobat oder Adobe Reader ab Version 9 geöffnet werden. Adobe Reader jetzt herunterladen

FCC RF Test Report - EDR Product Name: HUAWEI MediaPad Model Number: S7-302u Report No: SYBH(Z-RF)003082011-2004 FCC ID: QISS7-302U Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of S7-302u FCC ID: QISS7-302U Security Level: Public Report No: SYBH(Z-RF)003082011-2004 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total31 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 3. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 4. The test report is invalid if not marked with "exclusive stamp for the test report". 5. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 8. Normally, the test report is only responsible for the samples that have undergone the test. 9. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC Test Report of S7-302u FCC ID: QISS7-302U Security Level: Public Report No: SYBH(Z-RF)003082011-2004 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total31 REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 15: Subpart C; START OF TEST Aug.20, 2011 END OF TEST Aug.21, 2011 Final Judgement: Pass Approved By Aug.22, 2011 Dai Linjun Date Name Signature Reviewed By Aug.22, 2011 Cousy Xu Date Name Signature Operator Aug.22, 2011 Huang Qiuliang Date Name Signature FCC Test Report of S7-302u FCC ID: QISS7-302U Security Level: Public Report No: SYBH(Z-RF)003082011-2004 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total31 Contents 1 Summary .....................................................................................................................................................5 2 Product Description ...................................................................................................................................6 2.1 PRODUCTION INFORMATION ....................................................................................................................6 2.2 MODIFICATION INFORMATION ..................................................................................................................6 3 Test Site Description ..................................................................................................................................7 3.1 TESTING PERIOD ....................................................................................................................................7 3.2 GENERAL SET UP DESCRIPTION ..............................................................................................................7 4 Product Description ...................................................................................................................................8 4.1 TECHNICAL CHARACTERISTICS ................................................................................................................8 4.2 EUT IDENTIFICATION LIST .....................................................................................................................10 5 Main Test Instruments .............................................................................................................................11 6 Transmitter Measurements .....................................................................................................................12 6.1 BANDWIDTH MEASUREMENT ..................................................................................................................12 6.2 CARRIER FREQUENCY SEPARATION MEASUREMENT ................................................................................14 6.3 NUMBER OF HOPPING CHANNEL .............................................................................................................16 6.4 TIME OF OCCUPANCY ............................................................................................................................18 6.5 PEAK OUTPUT POWER ..........................................................................................................................20 6.6 BAND EDGE SPURIOUS EMISSION ...........................................................................................................22 6.7 CONDUCTED RF SPURIOUS ...................................................................................................................24 6.8 RADIATED SPURIOUS EMISSION & SPURIOUS IN RESTRICTED BAND ..........................................................26 6.9 CONDUCTED EMISSION AT POWER PORT ...............................................................................................28 7 System Measurement Uncertainty ..........................................................................................................30 8 Appendices List ........................................................................................................................................31 FCC Test Report of S7-302u FCC ID: QISS7-302U Security Level: Public Report No: SYBH(Z-RF)003082011-2004 Confidential Information of Huawei. No Distribution without Written Per…

Text truncated - open the document above for the full version.

Zur optimalen Anzeige dieses PDF-Portfolios sollte es in Acrobat oder Adobe Reader ab Version 9 geöffnet werden. Adobe Reader jetzt herunterladen

FCC Test Report of S7-302u FCC ID: QISS7-302U Security Level: Public Report No: SYBH(Z-RF)003082011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page1, Total3 Appendix J Photos of Test Setup FCC Test Report of S7-302u FCC ID: QISS7-302U Security Level: Public Report No: SYBH(Z-RF)003082011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total3 1 Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) Radiated Spurious Emission (1GHz to18GHz) FCC Test Report of S7-302u FCC ID: QISS7-302U Security Level: Public Report No: SYBH(Z-RF)003082011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total3 Radiated Spurious Emission (above 18GHz) 2 Conducted Emissions Conducted Emissions for AC Ports
