QISS7-601WMediaPad 7 Vogue

Quick Start 1 1 For More Help Welcome to the bright new world of HUAWEI MediaPad 7 Vogue (HUAWEI MediaPad for short). For more help, go to http://www.huaweidevice.com to download the User Guide. To find the User Guide of your tablet quickly, enter HUAWEI MediaPad 7 Vogue in the webpage search box. Please visit www.huaweidevice.com/worldwide/support/hotline for recently updated hotline and email address in your country or region. The figures in this guide are provided for your reference only. The appearance and display features may vary slightly depending on the actual product version. 2 2 HUAWEI MediaPad at a Glance 1 Front camera 2 Rear camera 3 Speaker 4 Power key 5 Volume key 6 Card slot 7 Composite headphone/audio-input jack 8 Microphone 9 Micro-USB Port (with the charging function) 3 3 Installing the microSD Card 1. Open the card slot cover. 2. Insert the microSD card with its gold contacts facing up, as indicated in the preceding figure. Push the card inward until it clicks into place. 3. Replace the card slot cover. Do not remove the card slot cover from the tablet. 4 4 Powering On or Off Powering On Press and hold the power key until HUAWEI MediaPad vibrates. If HUAWEI MediaPad has not been used for a long time or the battery level is low, you may not be able to power it on immediately after you start charging the battery. Allow the battery to charge for a few minutes before attempting to use it. Powering Off Press and hold the power key until a dialog box is displayed. Then follow the onscreen instructions to power off HUAWEI MediaPad. 5 Locking the Screen When your HUAWEI MediaPad is turned on, press the Power key to lock the screen. If your HUAWEI MediaPad is idle for a preset period of time, the screen will lock automatically. 6 Unlocking the Screen 1. Press the Power key to wake up the screen. 2. Follow the onscreen instructions and drag the lock icon to the icon to unlock the screen. 5 7 Gestures The following simple finger gestures make it easy to use your HUAWEI MediaPad. Touch: Touch an item to select or open it. Double-click: Touch the screen twice consecutively to zoom in. Touch and hold: Touch and hold the screen to display an options menu. Flick: Flick up or down to scroll up or down. Flick left or right to switch between screens. Drag: Touch and hold an item to drag it to another position. Pinch: Pinch two fingers together or apart to zoom in or out. You can use this gesture when browsing photos and web pages. 6 8 Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset To prevent possible hearing damage, do not listen at high volume levels for long periods. Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using 7 your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. Concentrate on driving. Your first responsibility is to drive safely. Do not hold the device while driving. Use hands-free accessories. When you must make or answer a call, pull of the road safely and park the vehicle first. RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates. Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions. Do not use your device during thunderstorms to protect your device against any danger caused by lightning. Ideal operating temperatures are 0°C to 35°C. Ideal storage temperatures are -20°C to 50°C. Extreme heat or cold may damage your device or accessories. Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods. 8 To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture. Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle. Do not place sharp metal objects, such as pins, near the earpiece or speaker. The earpiece may attract these objects and result in inju…

Text truncated - open the document above for the full version.

文档名称 文档密级 2013-4-17 华为保密信息,未经授权禁止扩散 第1页, 共1页 To whom it may concern, Letter of Agency I, an officer of HUAWEI TECHNOLOGIES CO.,LTD do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Zhang xinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2013-04-23 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISS7-601W To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2013-11-1: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755- 28970299

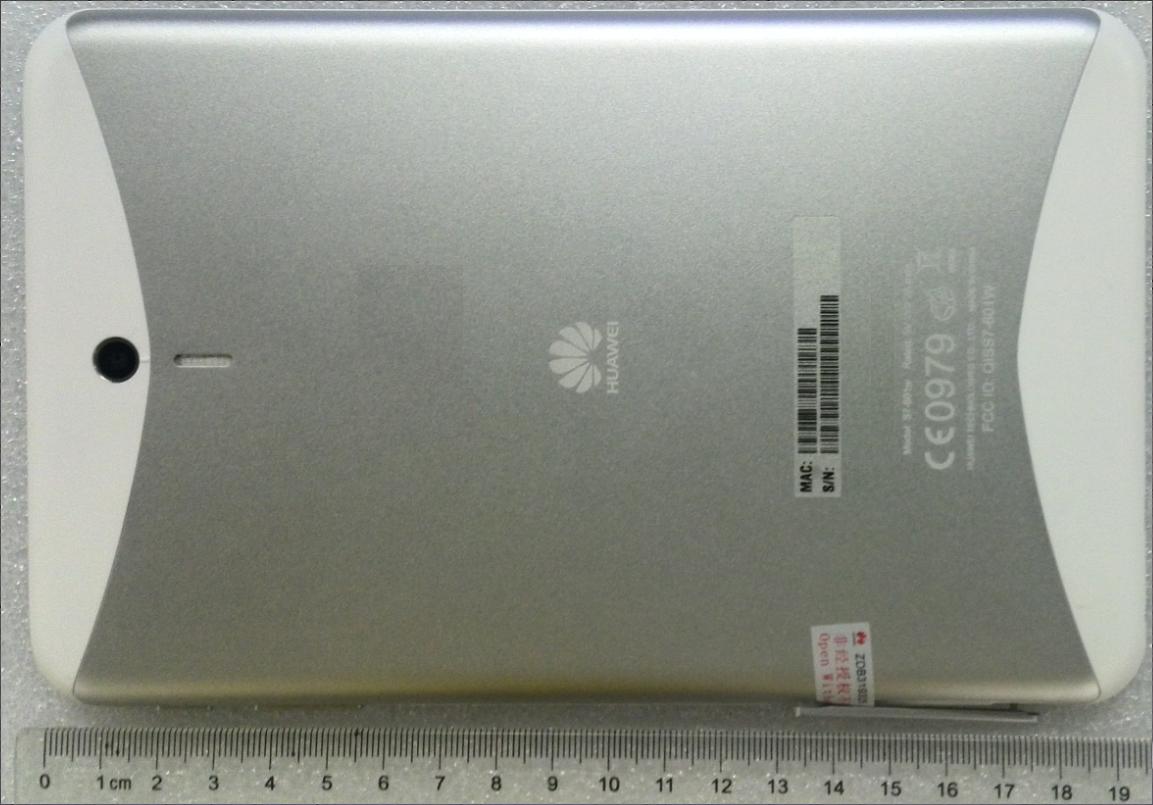

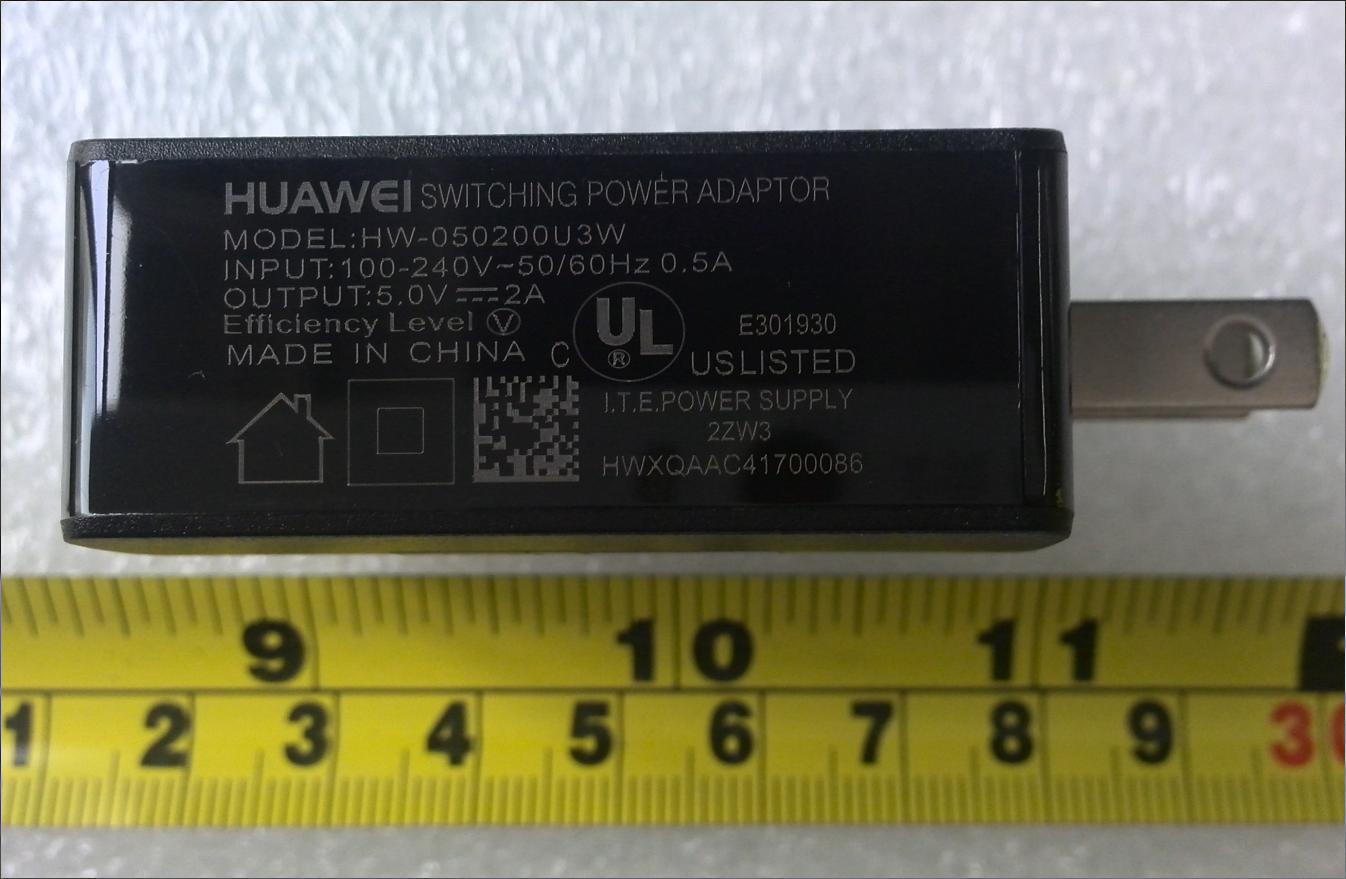

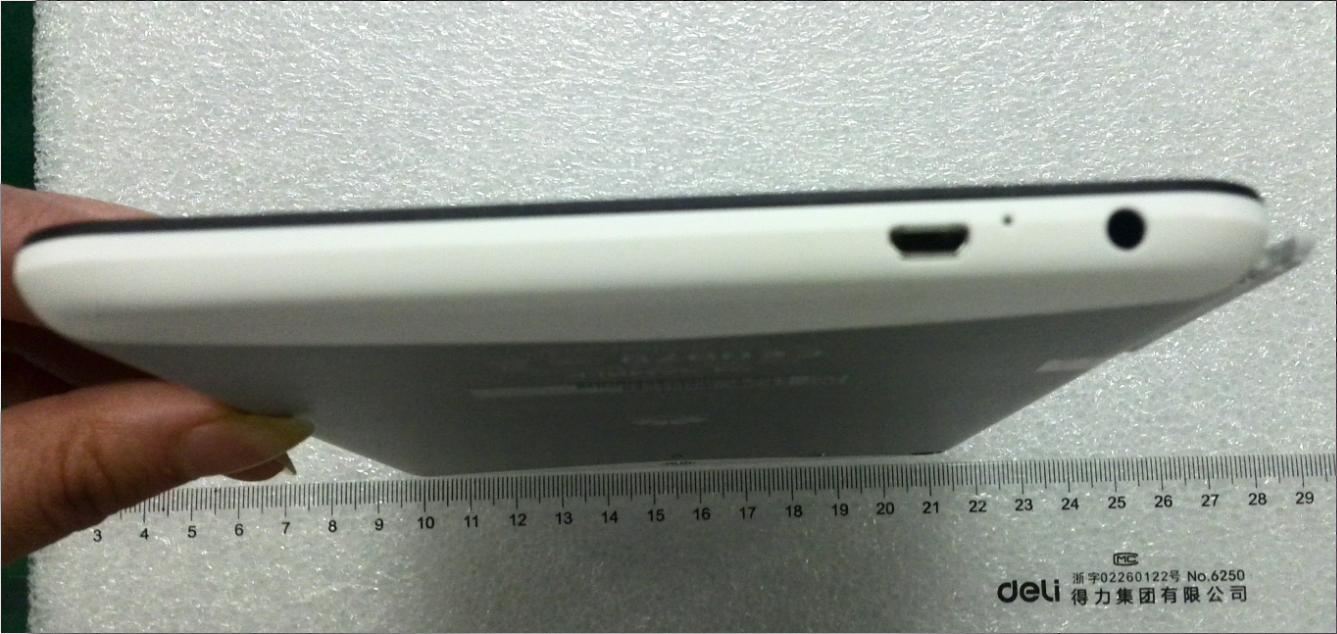

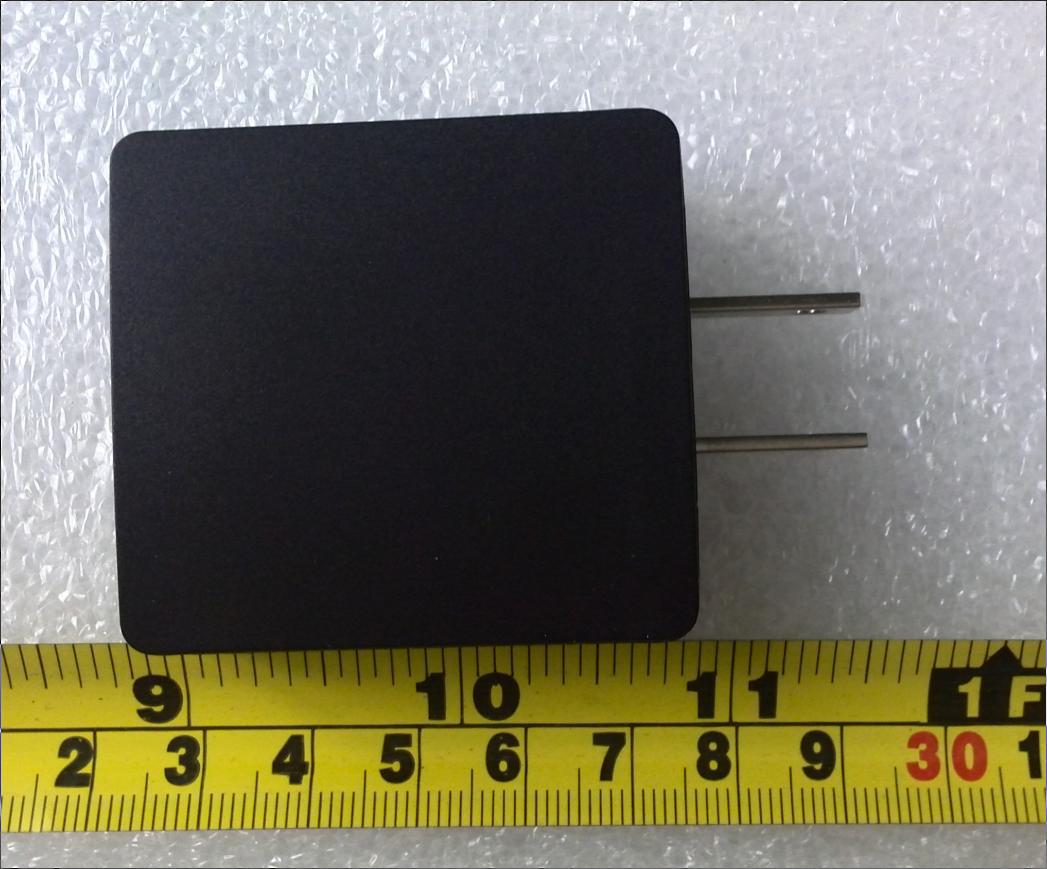

HUAWEI MediaPad 7 Vogue SECRET Page1, Total17 Photo documentation of external of product HUAWEI MediaPad 7 Vogue SECRET Page2, Total17 HUAWEI MediaPad 7 Vogue SECRET Page3, Total17 HUAWEI MediaPad 7 Vogue SECRET Page4, Total17 HUAWEI MediaPad 7 Vogue SECRET Page14, Total17 HUAWEI MediaPad 7 Vogue SECRET Page15, Total17 HUAWEI MediaPad 7 Vogue SECRET Page16, Total17 HUAWEI MediaPad 7 Vogue SECRET Page17, Total17

HUAWEI MediaPad 7 Vogue SECRET Page1, Total 1 Label Location

HUAWEI MediaPad 7 Vogue SECRET Page1, Total14 Photo documentation of interior of product HUAWEI MediaPad 7 Vogue SECRET Page2, Total14 HUAWEI MediaPad 7 Vogue SECRET Page3, Total14 HUAWEI MediaPad 7 Vogue SECRET Page4, Total14 HUAWEI MediaPad 7 Vogue SECRET Page5, Total14 HUAWEI MediaPad 7 Vogue SECRET Page6, Total14 HUAWEI MediaPad 7 Vogue SECRET Page13, Total14 HUAWEI MediaPad 7 Vogue SECRET Page14, Total14

EMC Test Report Product Name: HUAWEI MediaPad 7 Vogue Model Number: S7-601w Report No: SYBH(Z-EMC)105032013-2 FCC ID：QISS7-601W Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 Security Level: secret Report No: SYBH(Z-EMC)105032013-2 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total20 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 5. The test report is invalid if not marked with "exclusive stamp for the test report". 6. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 7. The test report is invalid if there is any evidence of erasure and/or falsification. 8. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 9. Normally, the test report is only responsible for the samples that have undergone the test. 10. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. Security Level: secret Report No: SYBH(Z-EMC)105032013-2 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total20 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Test Item: Apr.13, 2013 Start Date of Test: Apr.13, 2013 End Date of Test: Apr.17, 2013 Test Result: Pass Approved By 2013-04-22 Liuchunlin (Lab Manager) Date Name Signature Operator 213-04-22 Wenjianfeng Date Name Signature Security Level: secret Report No: SYBH(Z-EMC)105032013-2 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total20 Modification Record No. Last Report No. Modification Description 1 NA First report Security Level: secret Report No: SYBH(Z-EMC)105032013-2 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total20 TABLE OF CONTENT 1 General Information ........................................................................................................................... 6 1.1 EUT Description ................................................................................................................................. 6 1.2 Test Site Information .......................................................................................................................... 7 1.3 Applied Standards ............................................................................................................................. 7 2 Summary of Results .......................................................................................................................... 8 3 System Configuration during EMC Test ............................................................................................ 9 3.1 Test Mode .......................................................................................................................................... 9 3.2 Test System Configuration ................................................................................................................ 9 3.3 Cables Used during Test ................................................................................................................. 10 3.4 Associated Equipment Used during Test ........................................................................................ 10 4 Electromagnetic Interference (EMI) ................................................................................................. 11 4.1 Radiated Disturbance 30MHz to 18GHz ......................................................................................... 11 4.2 Conducted Disturbance 0.15 MHz to 30MHz .................................................................................. 14 5 Main Test Instruments ..................................................................................................................... 15 6 System Measurement Uncertainty .................................................................................................. 16 7 Test Data and Graph ....................................................................................................................... 17 7.1 Radiated Disturbance ...................................................................................................................... 17 7.2 Conducted Disturbance ................................................................................................................... 19 Security Level: secret Report No: SYBH(Z-EMC)105032013-2 Confidential Information of Huawei. No Distribution without Written Permission Page6, Total20 1 General Information 1.1 EUT Description EUT Description Product Name HUAWEI MediaPad 7 Vogue Model Number S7-601w Serials Number B4G01A9332000148 Working Voltage 5Vdc TX Frequency Bluetooth: 2400MHz To 2483.5MHz WIFI: 2400MHz To 2483.5MHz RX Frequency Bluetooth: 2400MHz To 2483.5MHz WIFI: 2400MHz To 2483.5MHz GPS: 1570MHz To 1580 MHz HW Version SH1S7601UM SW Version S7-601wV100R001C001B005 EUT …

Text truncated - open the document above for the full version.
