QISS7-602UMobile Cellular MediaPad supporting GSM850, PCS1900, UMTS II/V, 802.11 b/g/n, Bluetooth.

Quick Start 1 1 For More Help Welcome to the bright new world of HUAWEI MediaPad 7 Vogue (HUAWEI MediaPad for short). For more help, go to http://www.huaweidevice.com to download the User Guide. To find the User Guide of your tablet quickly, enter HUAWEI MediaPad 7 Vogue in the webpage search box. Please visit www.huaweidevice.com/worldwide/support/hotline for recently updated hotline and email address in your country or region. The figures in this guide are provided for your reference only. The appearance and display features may vary slightly depending on the actual product version. 2 2 HUAWEI MediaPad at a Glance 1 Light sensor 2 earpiece 3 Front camera 4 Rear camera 5 Speaker 6 Power key 7 Volume keys 8 Card slot 9 Composite headphone/audio-input jack 10 Microphone 11 Micro-USB Port (with the charging function) 3 3 Installing the SIM and microSD Cards 1. Open the SIM and microSD card slot cover. 2. Insert the SIM card with its gold contacts facing up, as indicated in the preceding figure. Push the card inward until it clicks into place. HUAWEI MediaPad is only compatible with standard SIM cards, whose dimensions are 0.76 mm x 15 mm x 25 mm. Inserting a SIM card with other dimensions will damage your HUAWEI MediaPad. 3. Insert the microSD card with its gold contacts facing up, as indicated in the preceding figure. Push the card inward until it clicks into place. 4. Replace the card slot cover. Do not remove the card slot cover from the tablet. 4 4 Powering On or Off Powering On Press and hold the power key until HUAWEI MediaPad vibrates. If HUAWEI MediaPad has not been used for a long time or the battery level is low, you may not be able to power it on immediately after you start charging the battery. Allow the battery to charge for a few minutes before attempting to use it. Powering Off Press and hold the power key until a dialog box is displayed. Then follow the onscreen instructions to power off HUAWEI MediaPad. 5 Locking the Screen When your HUAWEI MediaPad is turned on, press the Power key to lock the screen. If your HUAWEI MediaPad is idle for a preset period of time, the screen will lock automatically. 6 Unlocking the Screen 1. Press the Power key to wake up the screen. 2. Follow the onscreen instructions and drag the lock icon to the to unlock the screen. 5 7 Gestures The following simple finger gestures make it easy to use your HUAWEI MediaPad. Touch: Touch an item to select or open it. Double-click: Touch the screen twice consecutively to zoom in. Touch and hold: Touch and hold the screen to display an options menu. Flick: Flick up or down to scroll up or down. Flick left or right to switch between screens. Drag: Touch and hold an item to drag it to another position. Pinch: Pinch two fingers together or apart to zoom in or out. You can use this gesture when browsing photos and web pages. 6 8 Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset To prevent possible hearing damage, do not listen at high volume levels for long periods. Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using 7 your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. Concentrate on driving. Your first responsibility is to drive safely. Do not hold the device while driving. Use hands-free accessories. When you must make or answer a call, pull of the road safely and park the vehicle first. RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates. Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions. Do not use your device during thunderstorms to protect your device against any danger caused by lightning. Ideal operating temperatures are 0°C to 35°C. Ideal storage temperatures are -20°C to 50°C. Extreme heat or cold may damage your device or accessories. Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged …

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2013-05-16 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISS7-602U To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2013-11-1: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755- 28970299

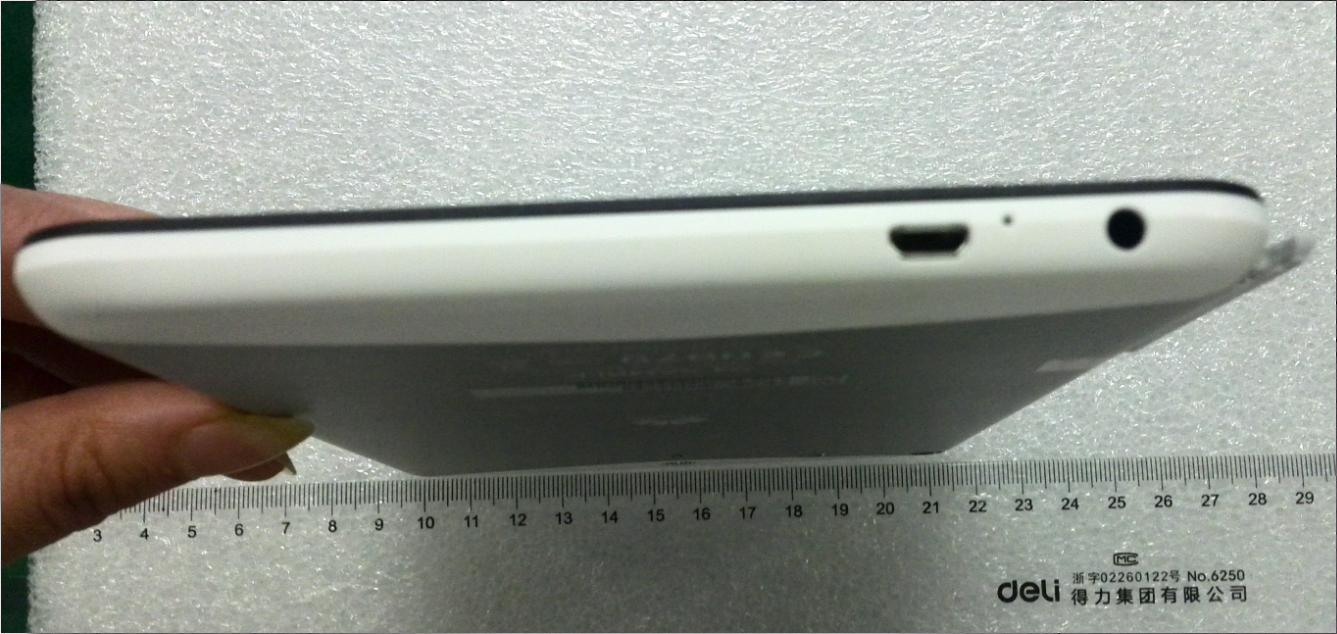

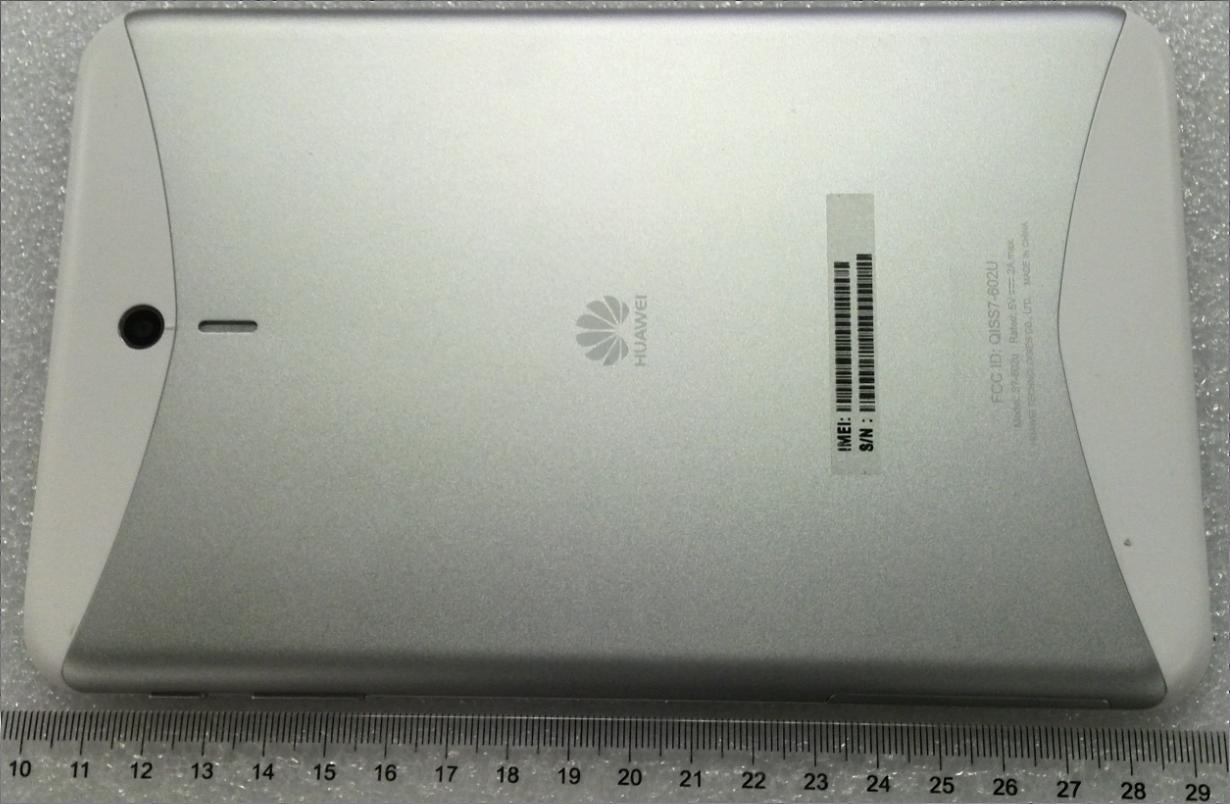

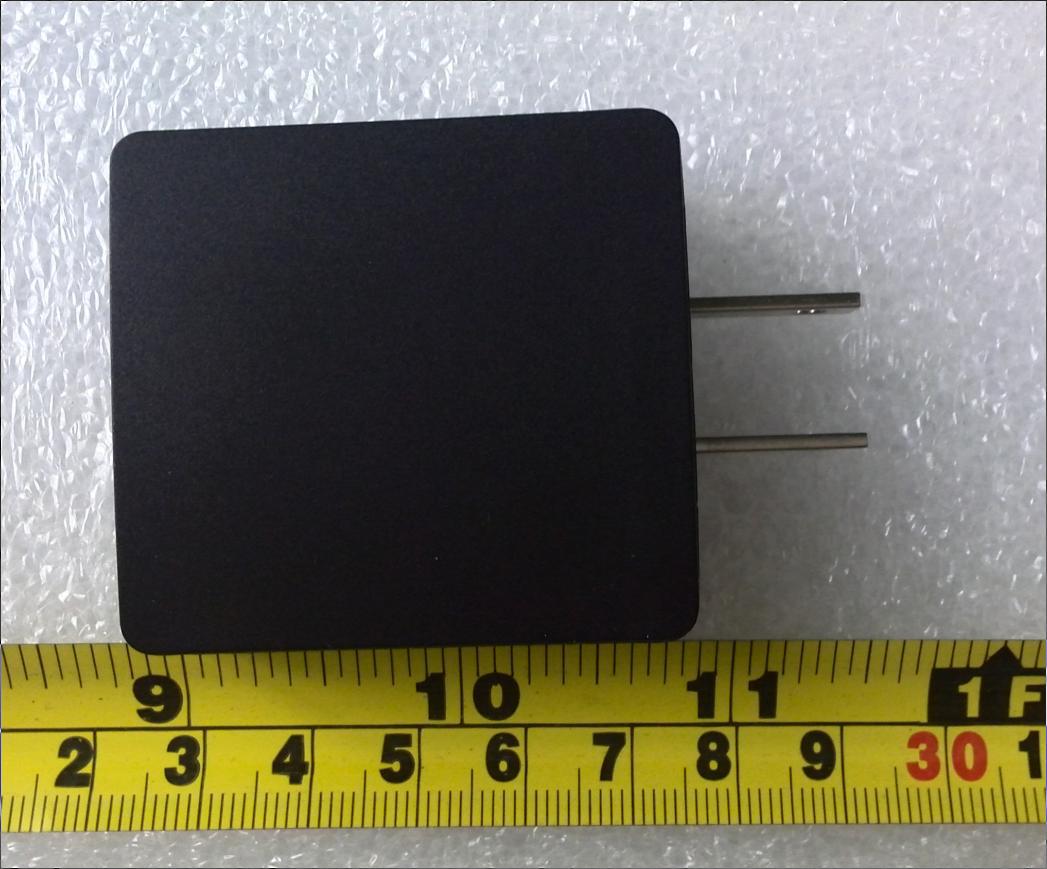

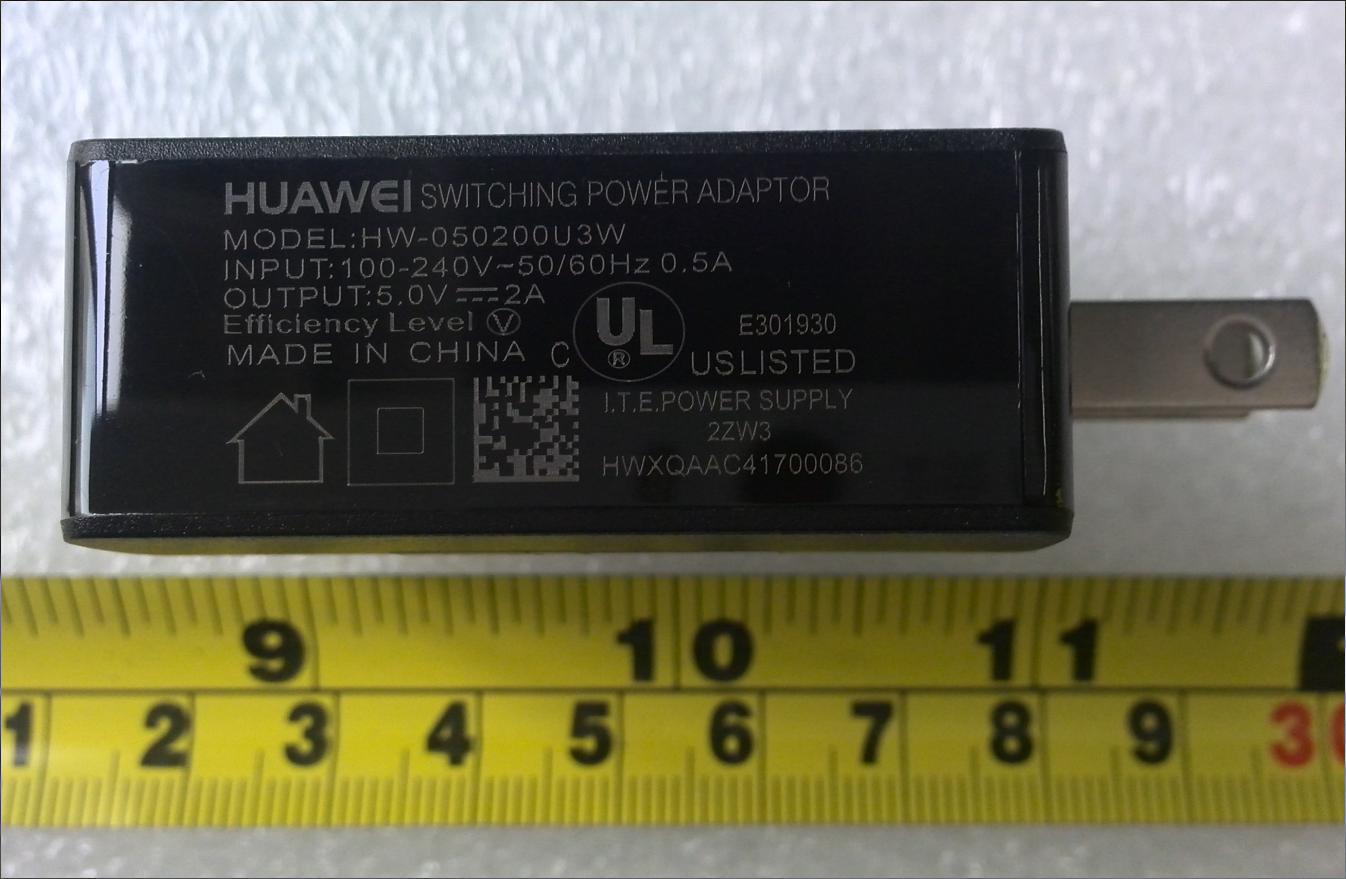

HUAWEI MediaPad 7 Vogue SECRET Page1, Total8 Photo documentation of external of product HUAWEI MediaPad 7 Vogue SECRET Page2, Total8 HUAWEI MediaPad 7 Vogue SECRET Page3, Total8 HUAWEI MediaPad 7 Vogue SECRET Page4, Total8 HUAWEI MediaPad 7 Vogue SECRET Page5, Total8 HUAWEI MediaPad 7 Vogue SECRET Page6, Total8 HUAWEI MediaPad 7 Vogue SECRET Page7, Total8 HUAWEI MediaPad 7 Vogue SECRET Page8, Total8

HUAWEI MediaPad 7 Vogue SECRET Page1, Total 1 Label Location

HUAWEI MediaPad 7 Vogue SECRET Page1, Total 1

HUAWEI MediaPad 7 Vogue SECRET Page1, Total10 Photo documentation of interior of product HUAWEI MediaPad 7 Vogue SECRET Page2, Total10 HUAWEI MediaPad 7 Vogue SECRET Page3, Total10 HUAWEI MediaPad 7 Vogue SECRET Page4, Total10 HUAWEI MediaPad 7 Vogue SECRET Page5, Total10 HUAWEI MediaPad 7 Vogue SECRET Page6, Total10 HUAWEI MediaPad 7 Vogue SECRET Page7, Total10 HUAWEI MediaPad 7 Vogue SECRET Page8, Total10 HUAWEI MediaPad 7 Vogue SECRET Page9, Total10 HUAWEI MediaPad 7 Vogue SECRET Page10, Total10

Report No.: SYBH(Z-SAR)028032013-2 FCC ID:QISS7-602U Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D 835-ES-Head SystemPerformanceCheck-D 1900-ES-Head SystemPerformanceCheck-D 2450-ES-Head SystemPerformanceCheck-D 835-ES-Body SystemPerformanceCheck-D 1900-ES-Body SystemPerformanceCheck-D 2450-ES-Body Date: 2013-4-21 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.895 S/m; ε r = 40.112; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.44 W/kg Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.458 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.80 W/kg SAR(1 g) = 2.54 W/kg; SAR(10 g) = 1.67 W/kg Maximum value of SAR (measured) = 2.74 W/kg 0 dB = 2.74 W/kg = 4.38 dBW/kg Date: 2013-4-23 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-ES-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.444 S/m; ε r = 39.52; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.26, 5.26, 5.26); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.5 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.060 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 18.6 W/kg SAR(1 g) = 9.92 W/kg; SAR(10 g) = 5.15 W/kg Maximum value of SAR (measured) = 11.1 W/kg 0 dB = 11.1 W/kg = 10.45 dBW/kg Date: 2013-4-23 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-ES-Head DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.812 S/m; ε r = 40.856; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.57, 4.57, 4.57); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 15.2 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.710 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 27.6 W/kg SAR(1 g) = 13.6 W/kg; SAR(10 g) = 6.35 W/kg Maximum value of SAR (measured) = 15.3 W/kg 0 dB = 15.3 W/kg = 11.85 dBW/kg Date: 2013-4-19 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.991 S/m; ε r = 56.525; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1038 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.45 W/kg Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.506 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 3.63 W/kg SAR(1 g) = 2.51 W/kg; SAR(10 g) = 1.69 W/kg Maximum value of SAR (measured) = 2.70 W/kg 0 dB = 2.70 W/kg = 4.31 dBW/kg Date: 2013-4-22 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-ES-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.532 S/m; ε r = 53.088; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.86, 4.86, 4.86); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1038 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.5 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.816 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 19.0 W/kg SAR(1 g) = 10.3 W/kg; SAR(10 g) = 5.34 W/kg Maximum value of SAR (measured) = 11.7 W/kg 0 dB = 11.7 W/kg = 10.69 dBW/kg Date: 2013-4-24 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-ES-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.03 S/m; ε r = 50.732; ρ = 1000 k…

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)028032013-2 FCC ID:QISS7-602U Appendix B. SAR Measurement Plots Table of contents GSM 850 MHz Head GSM 850 MHz Body GSM 1900 MHz Head GSM 1900 MHz Body UMTS Band V Head UMTS Band V B ody UMTS Band II Head UMTS Band II B ody WiFi 802.11b Head WiFi 802.11b Body Date: 2013-4-21 Test Laboratory: HUAWEI SAR/HAC Lab S7-602u GSM850 190CH Left hand touch cheek DUT: S7-602u; Type: HUAWEI MediaPad 7 Vogue; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.885 S/m; ε r = 40.182; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (11x17x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0280 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.001 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.0340 W/kg SAR(1 g) = 0.029 W/kg; SAR(10 g) = 0.023 W/kg Maximum value of SAR (measured) = 0.0299 W/kg 0 dB = 0.0299 W/kg = -15.24 dBW/kg Date: 2013-4-21 Test Laboratory: HUAWEI SAR/HAC Lab S7-602u GSM850 190CH Left hand tilt 15 degree DUT: S7-602u; Type: HUAWEI MediaPad 7 Vogue; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.885 S/m; ε r = 40.182; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (11x17x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0311 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.240 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.0390 W/kg SAR(1 g) = 0.029 W/kg; SAR(10 g) = 0.021 W/kg Maximum value of SAR (measured) = 0.0313 W/kg 0 dB = 0.0313 W/kg = -15.04 dBW/kg Date: 2013-4-21 Test Laboratory: HUAWEI SAR/HAC Lab S7-602u GSM850 190CH Right hand touch cheek DUT: S7-602u; Type: HUAWEI MediaPad 7 Vogue; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.885 S/m; ε r = 40.182; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (11x17x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0279 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.309 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.0340 W/kg SAR(1 g) = 0.028 W/kg; SAR(10 g) = 0.022 W/kg Maximum value of SAR (measured) = 0.0289 W/kg 0 dB = 0.0289 W/kg = -15.38 dBW/kg Date: 2013-4-21 Test Laboratory: HUAWEI SAR/HAC Lab S7-602u GSM850 190CH Right hand tilt 15 degree DUT: S7-602u; Type: HUAWEI MediaPad 7 Vogue; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.885 S/m; ε r = 40.182; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (11x17x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0277 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.147 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.0350 W/kg SAR(1 g) = 0.027 W/kg; SAR(10 g) = 0.021 W/kg Maximum value of SAR (measured) = 0.0286 W/kg 0 dB = 0.0286 W/kg = -15.43 dBW/kg Date: 2013-4-19 Test Laboratory: HUAWEI SAR/HAC Lab S7-602u GSM850 GPRS 2TS 128CH Rear side 0mm DUT: S7-602u; Type: HUAWEI MediaPad 7 Vogue; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 824.4 MHz;Duty Cycle: 1:4.10015 Medium parameters used: f = 824 MHz; σ = 0.979 S/m; ε r = 56.602; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: ELI v5.0; Type: QDOVA002AA; Serial: TP-1038 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Body/Area Scan (11x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.07 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.590 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.84 W/kg SAR(1 g) = 0.942 W/kg; SAR(10 g) = 0.500 W/kg 0 dB = 1.07 W/kg = 0.28 dBW/kg Date: 2013-4-19 Test Laboratory: HUAWEI SAR/HAC Lab S7-602u GSM850 GPRS 2TS 190CH Rear side 0mm DUT: S7-602u; Type: HUAWEI MediaPad 7 Vogue; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 836.6 MHz;Duty Cycle: 1:4.10015 Medium parameters used: f = 837 MHz; σ = 0.993 S/m; ε r = 56.557; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lPro…

Text truncated - open the document above for the full version.

Justification of the extended calibration of Dipole D835V2 SN: 4d126 Referred to 450824 D02 Dipole SAR Validation Verification v01, Published on Nov 17 2009, Otherwise, according to the IEEE Standard 1528a-2005 recommended annual calibration is expected, when happened as below the following: 1) When the most recent return-loss, measured at least annually, deviates by more than 20% from the previous measurement (i.e. 0.2 of the dB value) or not meeting the required -20 dB return-loss specification; 2) When the most recent measurement of the real or imaginary parts of the impedance, measured at least annually, deviates by more than 5 Ω from the previous measurement. Dipole835 Head TST Target Value Measured Value Difference Impedance transformed to feed point 52.2Ω-2.4jΩ 50.4Ω+1.17jΩ R=-1.8Ω, X=3.57Ω Return Loss - 30.0dB -31.73dB -5.77% Dipole835 Body TST Target Value Measured Value Difference Impedance transformed to feed point 47.8Ω-4.4jΩ 50.36Ω-0.85jΩ R=2.56Ω, X=3.55Ω Return Loss -25.9dB -27.3dB -5.41% Measure Data 2011-11-07 2012-09-13 -- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Justification of the extended calibration of Dipole D1900V2 SN:5d143 Referred to 450824 D02 Dipole SAR Validation Verification v01, Published on Nov 17 2009, Otherwise, according to the IEEE Standard 1528a-2005 recommended annual calibration is expected, when happened as below the following: 1) When the most recent return-loss, measured at least annually, deviates by more than 20% from the previous measurement (i.e. 0.2 of the dB value) or not meeting the required -20 dB return-loss specification; 2) When the most recent measurement of the real or imaginary parts of the impedance, measured at least annually, deviates by more than 5 Ω from the previous measurement. Dipole1900 Head TST Target Value Measured Value Difference Impedance transformed to feed point 53.5Ω+5.8jΩ 50.8Ω+8.57jΩ R=-2.7Ω, X=2.77Ω Return Loss - 23.7dB -24.16dB -1.94% Dipole1900 Body TST Target Value Measured Value Difference Impedance transformed to feed point 48.4Ω+6.1jΩ 45.78Ω+3.17jΩ R=-2.62Ω, X=-2.93Ω Return Loss -23.9dB -25.3dB -5.86% Measure Data 2011-09-26 2012-09-13 -- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Justification of the extended calibration of Dipole D2450V2 SN: 860 Per KDB 450824, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Calibration Date 2011-03-08 Measured Date 2012-03-07 Dipole2450 Head TST Target Value Measured Value Difference Impedance transformed to feed point 54.0Ω+2.2jΩ 54.1Ω+2.36jΩ R=0.1Ω, X=0.16Ω Return Loss -27.2dB -27.34dB -0.51% Dipole2450 Body TST Target Value Measured Value Difference Impedance transformed to feed point 49.0Ω+4.9jΩ 49.48Ω+5.13jΩ R=0.48Ω, X=0.23Ω Return Loss - 26.0dB -26.38dB -1.46% Measured Date 2011-03-08 2012-03-07 ------- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Project Name:_______________________ Model :_______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED (Manager) CHECKED PREPARED BY DATE 2013-05-02 2013-05-02 2013-05-02 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. S7-602u QISS7-602U SYBH(Z-SAR)028032013-2 HUAWEI MediaPad 7 Vogue Report No.: SYBH(Z-SAR)028032013-2 FCC ID:QISS7-602U 2013-05-02 Page 2 of 45 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 4 1.3 EUT Description ......................................................................................................................................................... 5 1.3.1 General Description ........................................................................................................................................... 6 1.4 Test specification(s) .................................................................................................................................................. 6 1.5 Testing laboratory ....................................................................................................................................................... 6 1.6 Applicant and Manufacturer ...................................................................................................................................... 7 1.7 Application details ...................................................................................................................................................... 7 1.8 Ambient Condition ..................................................................................................................................................... 7 2 SAR Measurement System ............................................................................................................................................. 8 2.1 SAR Measurement Set-up ....................................................................................................................................... 8 2.2 Test environment ........................................................................................................................................................ 9 2.3 Data Acquisition Electronics description ................................................................................................................ 9 2.4 Probe description ....................................................................................................................................................... 9 2.5 Phantom description ................................................................................................................................................ 10 2.6 Device holder description ........................................................................................................................................ 11 2.7 Test Equipment List ................................................................................................................................................. 12 3 SAR Measurement Procedure ...................................................................................................................................... 13 3.1 Scanning procedure ................................................................................................................................................. 13 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 14 3.3 Data Storage and Evaluation .................................................................................................................................. 15 4 System Verification Procedure ........................................................................................................................................ 17 4.1 Tissue Verification .................................................................................................................................................... 17 4.2 System Check ........................................................................................................................................................... 19 4.3 System check Procedure ........................................................................................................................................ 20 5 Measurement Uncertainty Evaluation .......................................................................................................................... 21 5.1 Measurement uncertainty evaluation for SAR test .............................................................................................. 21 5.2 Measurement uncertainty evaluation for system check.............…
