HUAWEI MediaPad 7 Lite Quick Start 1 1 For More Help For more help, go to http://www.huaweidevice.com to download the User Guide. To find the User Guide of your tablet quickly, enter HUAWEI MediaPad 7 Lite in the webpage search box. Please visit www.huaweidevice.com/worldwide/support/hotline for recently updated hotline and email address in your country or region. The figures in this guide are provided for your reference only. The appearance and display features may vary slightly depending on the actual product version. 2 HUAWEI MediaPad 7 Lite at a Glance 2 1 Front camera 2 Rear camera 3 Speaker 4 Power key 5 Volume key 6 microSD card slot 7 SIM card slot 8 Earphone or microphone jack 9 Micro-USB port 10 Microphone 3 Installation 1. Open the card slot cover. 2. Insert the microSD card. 3. Insert the SIM card. When installing the SIM card, insert it gently until it clicks firmly into place. 4. Close the card slot cover. Do not remove the cover for the rear camera. 3 4 Powering On and Off To power on your HUAWEI MediaPad 7 Lite, press and hold the power key until HUAWEI MediaPad 7 Lite vibrates. To power off HUAWEI MediaPad 7 Lite,press and hold the power key until a dialog box appears, and follow the onscreen instructions. To restart HUAWEI MediaPad 7 Lite when it is in standby mode or malfunctions, press and hold the power key for about 10 seconds until the display turns off. Then press and hold the power key until HUAWEI MediaPad 7 Lite vibrates. 5 Locking the Screen When your HUAWEI MediaPad 7 Lite is turned on, press the Power button to lock the screen. If your HUAWEI MediaPad 7 Lite is idle for a preset period of time, the screen will lock automatically. 6 Unlocking the Screen 1. Press the Power button to wake up the screen. 2. Drag the lock icon to theicon on the right. 4 7 Gestures You interact with your HUAWEI MediaPad 7 Lite using your fingers. 1 Touch Touch once to select an item or start an application. 2 Touch and hold Touch and hold an item for 2 seconds or more to access the options menu for the current screen. 3 Double- touch Touch twice. 4 Drag “Grab” an item, move it to the desired location, and release it. 5 Flick Quickly swipe a finger across the screen up, down left, right, or any other direction to navigate a list or screen. 6 Pinch out Put two fingers together and have them touch th screen. Glide them apart with continuous contact on the screen to zoom in on a view. 7 Pinch in Touch the screen with two separated fingers Glide them toward each other with continuous contact on the screen to zoom out. 5 8 Warnings and Precautions To use the device properly and safely, read these warnings and precautions carefully and strictly observe them during operation. Unless otherwise specified, the term "device" refers to the device and its accessories. Basic Requirements During storage, transportation, and operation of the device, keep it dry and prevent it from colliding with other objects. Do not dismantle the device. In case of any fault, contact an authorized service center for assistance or repair. Without authorization, no organization or individual can change the mechanical, safety, or performance design of the device. When using the device, observe all applicable laws and regulations and respect the legal rights of other people. Environmental Requirements for Using the Device Keep the device far from sources of heat and fire, such as a heater or a candle. Keep the device far from electronic appliances that generate strong magnetic or electric fields, such as a microwave oven or a refrigerator. Place the device on a stable surface. Place the device in a cool and well-ventilated indoor area. Do not expose the device to direct sunlight. Keep the ambient temperature between 0°C and 35°C while the device is being charged. Keep the ambient temperature between 0°C to 35°C for using the device powered by a battery. Do not place any object (such as a candle or a water container) on the device. If any foreign object or liquid enters the device, stop using the device immediately, power it off, remove all the cables connected to it, and then contact an authorized service center. During thunderstorms, power off the device, and then remove all the cables connected to it to prevent it from getting damaged due to lightning strikes. 6 Traffic Security Observe local laws and regulations while using the device. In addition, if using the device while driving a vehicle, comply with the following guidelines: Concentrate on driving. Your first responsibility is to drive safely. Do not talk on the device while driving. Use hands-free accessories. When you have to make or answer a call, park the vehicle at the road side before using your device. RF signals may affect electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. In a motor vehicle, do not place the device over the air bag or in the air bag deployment area. Otherwise, the device may hurt you owing to the strong force when the air bag inflates. Do not use your device while flying in an aircraft. Power off your device before boarding an aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft and disrupt the wireless telephone network. It may also be considered illegal. Precautions for Using Wireless Devices The device complies with the RF specifications when the device is used in portable exposure conditions or at a distance of 0 cm from your body. Do not use the device where using wireless devices is prohibited or may cause interference or danger. The radio waves generated by the device may interfere with the operation of electronic medical devices. If you are using any electrical medical device, contact its manufacturer for the restrictions on the use of the device. Do not take the device into operating rooms, intensive care units (ICUs), or coronary care units (CCUs). Areas with Inflammables and Explosives Do not use the device where inflammables or explosi…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 2007) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853A. Equipment: S7-932u, FCC ID: QISS7-932U Date:2012-09-12. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: Intertek Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISS7-932U to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2012-09-06 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISS7-932U To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2013-03-05: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

Declaration Manufacturer/Application:Huawei Technologies Co.,Ltd FCC ID:QISS7-932U I declare that the shielded USB cable used in the test will be marketed with the EUT. Yours sincerely, Product Manager: Email: [email protected] Tel: 02759599243 Huawei Technologies Co.,Ltd

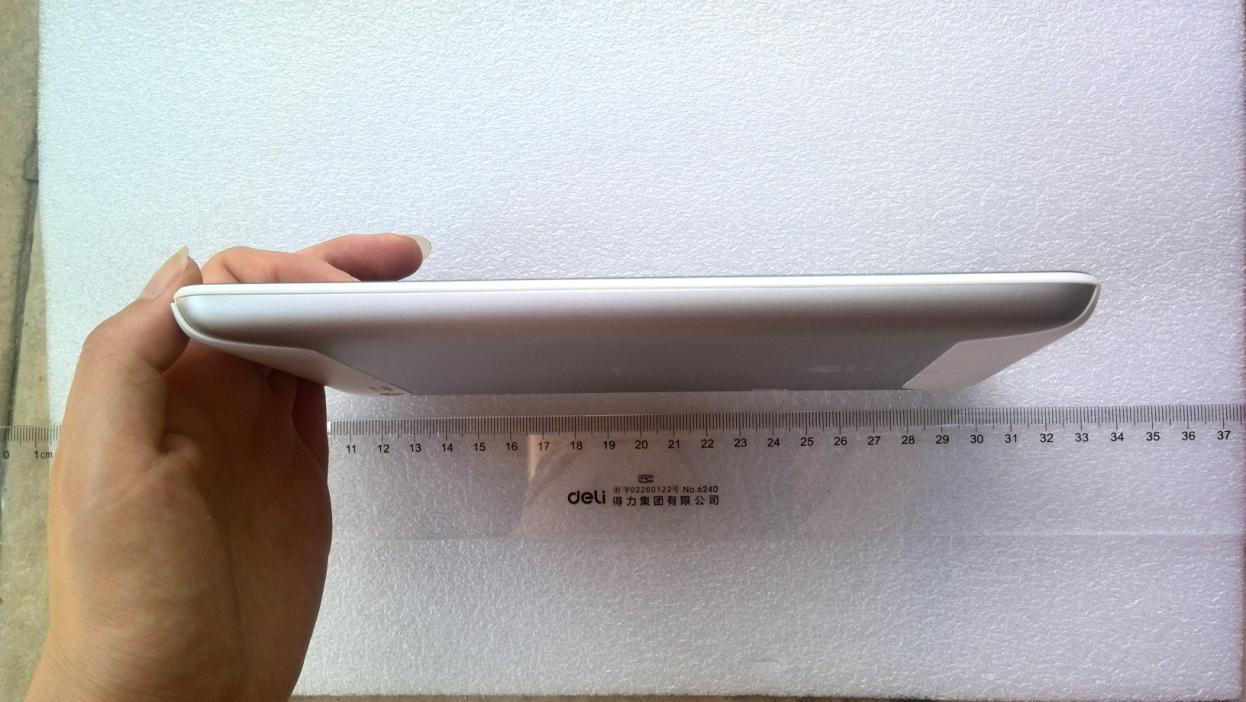

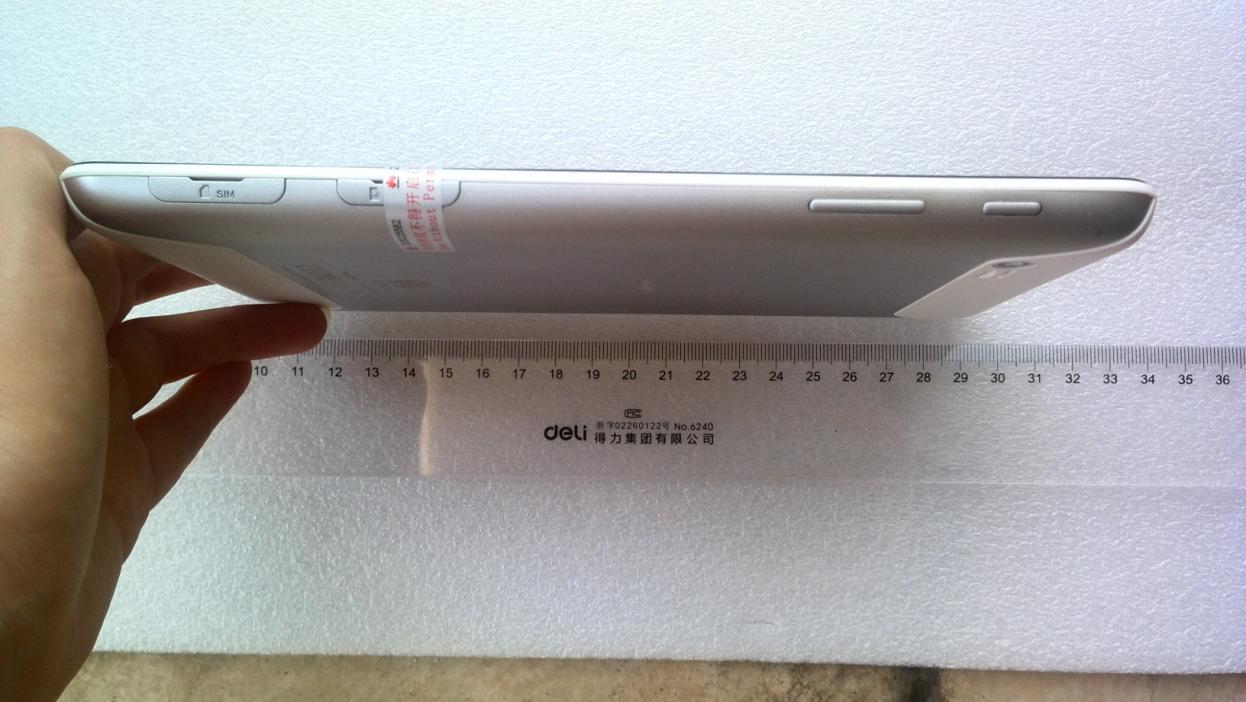

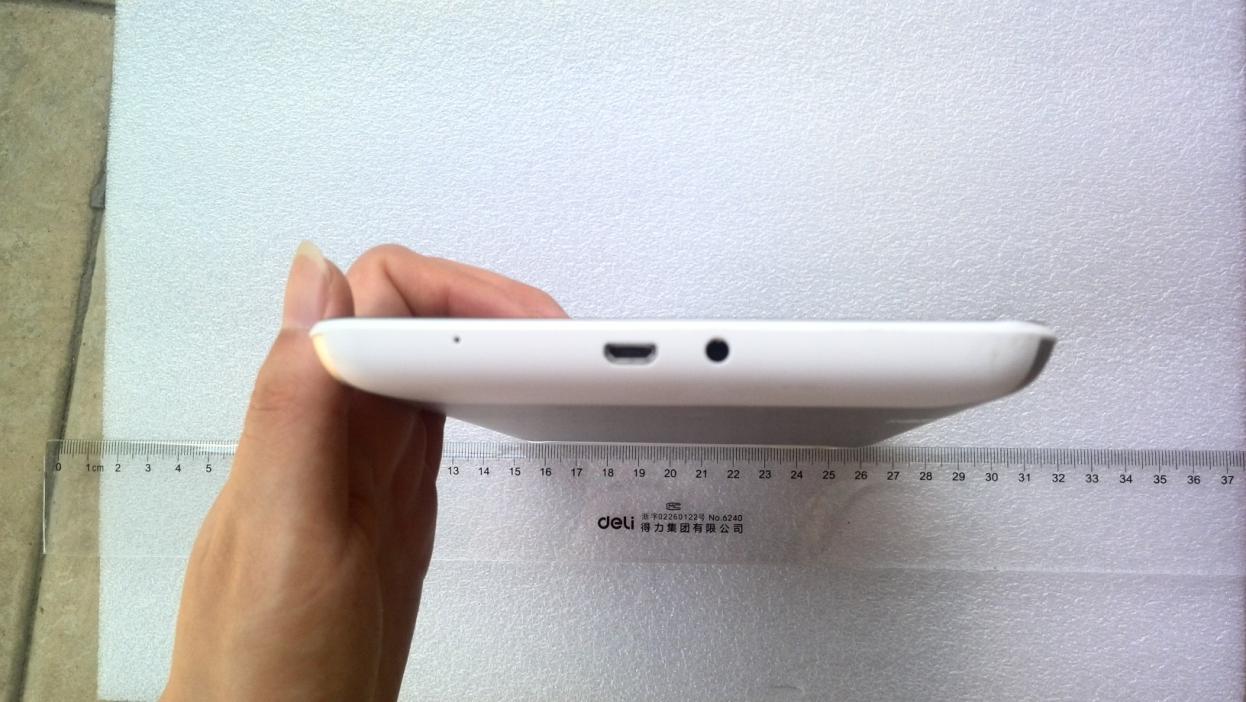

HUAWEI MediaPad 7 Lite SECRET Page1, Total4 Photo documentation of external of product HUAWEI MediaPad 7 Lite SECRET Page2, Total4 HUAWEI MediaPad 7 Lite SECRET Page3, Total4 HUAWEI MediaPad 7 Lite SECRET Page4, Total4

HUAWEI MediaPad 7 Lite SECRET Page1, Total 1

HUAWEI MediaPad 7 Lite SECRET Page1, Total 1 Label Location

HUAWEI MediaPad 7 Lite SECRET Page1, Total8 Photo documentation of interior of product HUAWEI MediaPad 7 Lite SECRET Page2, Total8 HUAWEI MediaPad 7 Lite SECRET Page3, Total8 HUAWEI MediaPad 7 Lite SECRET Page4, Total8 HUAWEI MediaPad 7 Lite SECRET Page5, Total8 HUAWEI MediaPad 7 Lite SECRET Page6, Total8 HUAWEI MediaPad 7 Lite SECRET Page7, Total8 HUAWEI MediaPad 7 Lite SECRET Page8, Total8

Report No.:SYBH (Z-SAR)040082012-2 FCC ID:QISS7-932U Appendix A. System Check Plots Table of contens SystemPerformanceCheck-D835-EX-Head SystemPerformanceCheck-D1900-EX-Head SystemPerformanceCheck-D2450-EX-Head Date/Time: 8/16/2012 12:02:31 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.971 mho/m; ε r = 53.662; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.64, 9.64, 9.64); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.2(969); SEMCAD X 14.6.6(6824) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.69 W/kg Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.086 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 3.630 mW/g SAR(1 g) = 2.46 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (measured) = 2.65 W/kg 0 dB = 2.65 W/kg = 8.46 dB W/kg Date/Time: 8/28/2012 17:19:15 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.552 mho/m; ε r = 52.191; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(7.39, 7.39, 7.39); Calibrated: 7/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn851; Calibrated: 7/25/2012 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.2(969); SEMCAD X 14.6.6(6824) Configuration/d=10mm, Pin=250mW/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 11.3 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 48.037 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 21.172 mW/g SAR(1 g) = 10.8 mW/g; SAR(10 g) = 5.4 mW/g Maximum value of SAR (measured) = 12.3 W/kg 0 dB = 12.3 W/kg = 21.80 dB W/kg Date/Time: 8/17/2012 10:29:07 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-EX-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.983 mho/m; ε r = 52.058; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(7.5, 7.5, 7.5); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.2(969); SEMCAD X 14.6.6(6824) Configuration/d=10mm, Pin=250mW/Area Scan (7x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 12.1 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 77.822 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 27.244 mW/g SAR(1 g) = 12.5 mW/g; SAR(10 g) = 5.57 mW/g Maximum value of SAR (measured) = 14.3 W/kg 0 dB = 14.3 W/kg = 23.11 dB W/kg

Report No.:SYBH (Z-SAR)040082012-2 FCC ID:QISS7-932U Appendix B. SAR Measurement Plots Table of contents GSM 850 MHz Body GSM 1900 MHz Body UMTS Band V B ody UMTS Band II Body WiFi 802.11b Body Date/Time: 8/16/2012 13:34:18 Test Laboratory: HUAWEI SAR Lab S7-932u GSM850 GPRS 1TS 128CH Rear Side 0mm DUT: S7-932u; Type: HUAWEI MediaPad 7 Lite; Serial: SAR1 Communication System: HW-GSM/GPRS/EDGE 1TS; Frequency: 824.2 MHz; Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.962 mho/m; ε r = 53.776; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.64, 9.64, 9.64); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.2(969); SEMCAD X 14.6.6(6824) Configuration/Body/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.703 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.900 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.355 mW/g SAR(1 g) = 0.774 mW/g; SAR(10 g) = 0.447 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.867 W/kg 0 dB = 0.867 W/kg = -1.24 dB W/kg Date/Time: 8/16/2012 13:07:36 Test Laboratory: HUAWEI SAR Lab S7-932u GSM850 GPRS 1TS 190CH Rear Side 0mm DUT: S7-932u; Type: HUAWEI MediaPad 7 Lite; Serial: SAR1 Communication System: HW-GSM/GPRS/EDGE 1TS; Frequency: 836.6 MHz; Duty Cycle: 1:8.3 Medium parameters used: f = 837 MHz; σ = 0.979 mho/m; ε r = 53.732; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.64, 9.64, 9.64); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.2(969); SEMCAD X 14.6.6(6824) Configuration/Body/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.848 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.492 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 1.530 mW/g SAR(1 g) = 0.873 mW/g; SAR(10 g) = 0.504 mW/g Maximum value of SAR (measured) = 0.971 W/kg 0 dB = 0.971 W/kg = -0.26 dB W/kg Date/Time: 8/16/2012 18:30:54 Test Laboratory: HUAWEI SAR Lab S7-932u GSM850 GPRS 1TS 251CH Rear Side 0mm DUT: S7-932u; Type: HUAWEI MediaPad 7 Lite; Serial: SAR1 Communication System: HW-GSM/GPRS/EDGE 1TS; Frequency: 848.8 MHz; Duty Cycle: 1:8.3 Medium parameters used: f = 849 MHz; σ = 1 mho/m; ε r = 53.411; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.64, 9.64, 9.64); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.2(969); SEMCAD X 14.6.6(6824) Configuration/Body/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.883 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.091 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 1.435 mW/g SAR(1 g) = 0.848 mW/g; SAR(10 g) = 0.494 mW/g Maximum value of SAR (measured) = 0.934 W/kg 0 dB = 0.934 W/kg = -0.59 dB W/kg Date/Time: 8/16/2012 14:58:57 Test Laboratory: HUAWEI SAR Lab S7-932u GSM850 GPRS 2TS 128CH Rear Side 0mm DUT: S7-932u; Type: HUAWEI MediaPad 7 Lite; Serial: SAR1 Communication System: HW-GSM/GPRS/EDGE 2TS; Frequency: 824.2 MHz; Duty Cycle: 1:4.1 Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.962 mho/m; ε r = 53.776; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.64, 9.64, 9.64); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.2(969); SEMCAD X 14.6.6(6824) Configuration/Body/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.801 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.666 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 1.585 mW/g SAR(1 g) = 0.886 mW/g; SAR(10 g) = 0.505 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.994 W/kg 0 dB = 0.994 W/kg = -0.05 dB W/kg Date/Time: 8/16/2012 14:35:52 Test Laboratory: HUAWEI SAR Lab S7-932u GSM850 GPRS 2TS 190CH Rear Side 0mm DUT: S7-932u; Type: HUAWEI MediaPad 7 Lite; Serial: SAR1 Communication System: HW-GSM/GPRS/EDGE 2TS; Frequency: 836.6 MHz; Duty Cycle: 1:4.1 Medium parameters used: f = 837 MHz; σ = 0.979 mho/m; ε r = 53.732; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.64, 9.64, 9.64); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.2(969); SEMCAD X 14.6.6(6824) Configuration/Body/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.912 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.136 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 1.796 mW/g SAR(1 g) = 0.996 mW/g; SAR(10 g) = 0.563 mW/g Maximum value of SAR (measured) = 1.11 W/kg 0 dB = 1.11 W/kg = 0.91 dB W/kg Date/Time: 8/16/2012 15:21:08 Test Laboratory: HUAWEI SAR Lab S7-932u GSM850 GPRS 2TS 251CH Rear Side 0mm DUT: S7-932u; Type: HUAWEI MediaPad 7 Lite; Serial: S…
