QISS8-302LHUAWEI MediaPad M1 8.0

Quick Start 1 Congratulations on your purchase of the HUAWEI MediaPad M1 8.0. Press and hold the power key to power on or off your device or restart it. Press the power key once to turn on or off the screen. HUAWEI MediaPad M1 8.0 at a Glance 2 Installing the SIM and microSD Cards 3 Charging the Battery 4 This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset  To prevent possible hearing damage, do not listen at high volume levels for long periods.  Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. Safety information 5  Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  Do not hold the device while driving. Use hands-free accessories.  When you must make or answer a call, pull off the road safely and park the vehicle first.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. 6 Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.  Do not use your device during thunderstorms to protect your device against any danger caused by lightning.  Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to 70 °C. Extreme heat or cold may damage your device or accessories.  Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.  To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.  Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.  Do not place sharp metal objects, such as pins, near the earpiece or speaker. The earpiece may attract these objects and result in injury.  Stop using your device or applications for a while if the device is overheated. If skin is exposed to an overheated device for an extended period, low temperature burn symptoms, such as red spots and darker pigmentation, may occur.  Do not touch the device's antenna. Otherwise, communication quality may be reduced.  Do not allow children or pets to bite or suck the device or accessories. Doing so may result in damage or explosion.  Observe local laws and regulations, and respect the privacy and legal rights of others. 7 Child's safety  Comply with all precautions with regard to child's safety. Letting children play with the device or its accessories may be dangerous. The device includes detachable parts that may present a choking hazard. Keep away from children.  The device and its accessories are not intended for use by children. Children should only use the device with adult supervision. Accessories  Using an unapproved or incompatible power adapter, charger or battery may cause fire, explosion or other hazards.  Choose only accessories approved for use with this model by the device manufacturer. The use of any other types of accessories may void the warranty, may violate local regulations and laws, and may be dangerous. Please contact your retailer for information about the availability of approved accessories in your area. Charger safety  For pluggable devices, the socket-outlet shall be installed near the devices and shall be easily accessible.  Unplug the charger from electrical outlets and the device when not in use.  Do not drop or cause an impact to the charger.  If the power cable is damaged (for example, the cord is exposed or broken), or the plug loosens, stop using it at once. Continued use may lead to electric shocks, short circuits, or fire.  Do not touch the power cord with wet hands or pull the power cord to disconnect the charger. 8  Do not touch the device or the charger with wet hands. Doing so may lead to short circuits, malfunctions, or electric shocks.  If your charger has been exposed to water, other liquids, or excessive moisture, take it to a…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Date (01/07/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISS8-302L Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-07-08 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISS8-302L To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2014-10-03 External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

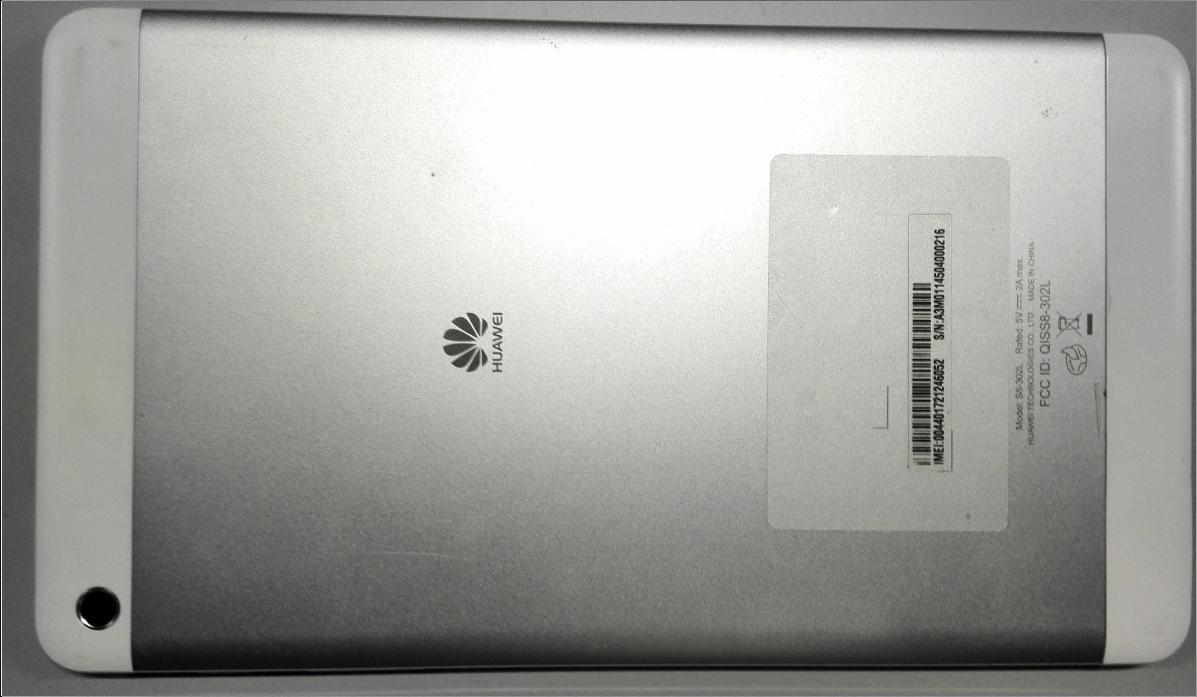

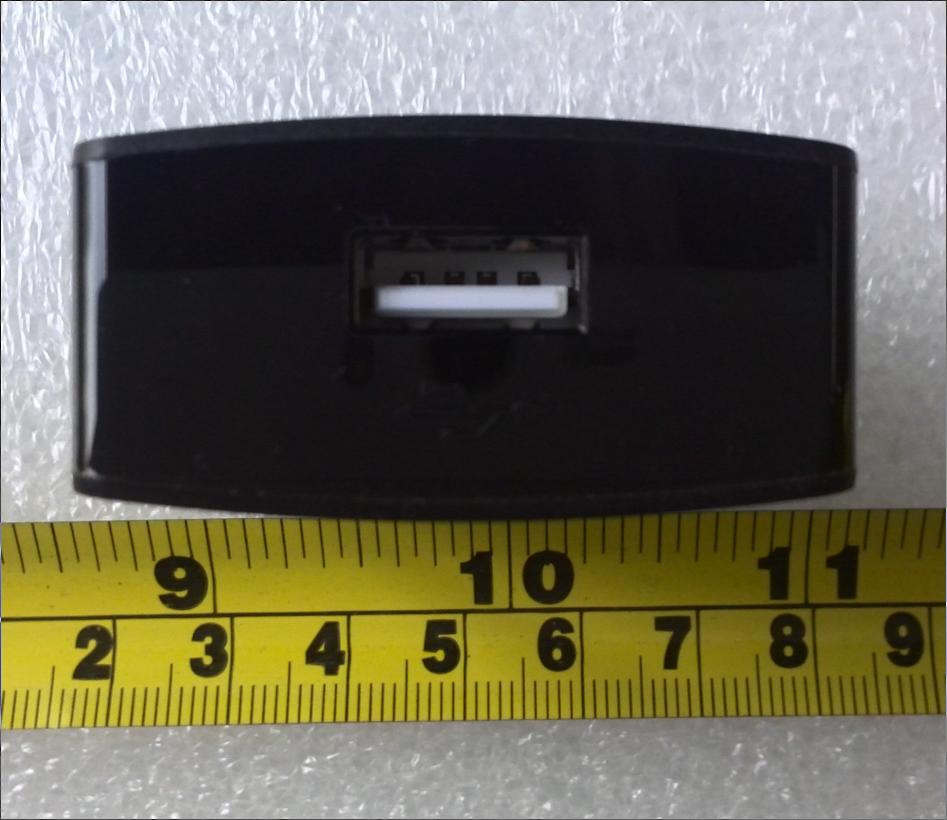

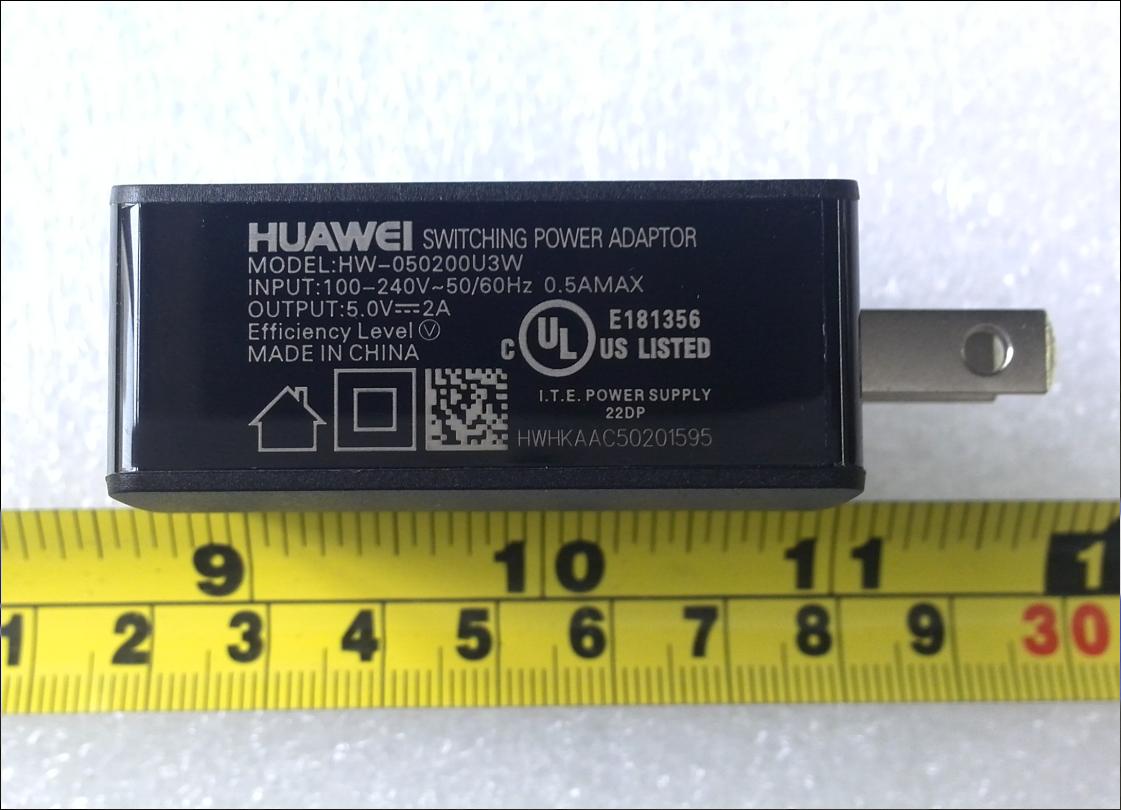

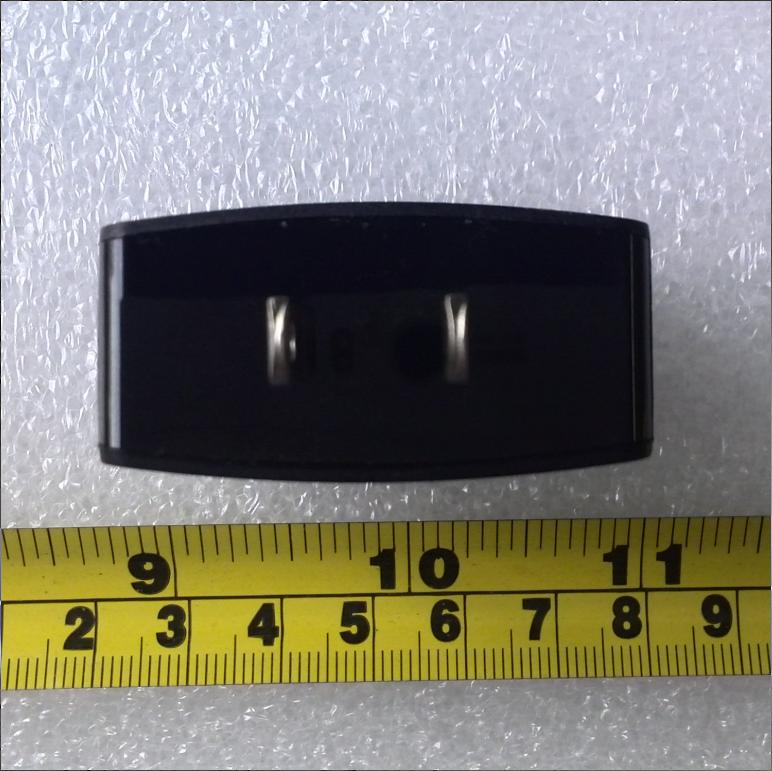

SECRET Page1, Total6 Photo documentation of external of product SECRET Page2, Total6 SECRET Page3, Total6 SECRET Page4, Total6 SECRET Page5, Total6 SECRET Page6, Total6

SECRET Page1, Total 1

SECRET Page1, Total 1 Label Location

HUAWEI MediaPad M1 8.0 SECRET Page1, Total7 Photo documentation of interior of product HUAWEI MediaPad M1 8.0 SECRET Page2, Total7 HUAWEI MediaPad M1 8.0 SECRET Page3, Total7 HUAWEI MediaPad M1 8.0 SECRET Page4, Total7 HUAWEI MediaPad M1 8.0 SECRET Page5, Total7 HUAWEI MediaPad M1 8.0 SECRET Page6, Total7 HUAWEI MediaPad M1 8.0 SECRET Page7, Total7

Report No.: RXA1406-0060SAR Page 1 of 356 TESTING No. L2264 SAR TEST REPORT Product Name HUAWEI MediaPad M1 8.0 Model Name S8-302L FCC ID QISS8-302L Applicant Huawei Technologies Co., Ltd. Manufacturer Huawei Technologies Co., Ltd. Date of issue June 27, 2014 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 2 of 356 GENERAL SUMMARY Reference Standard(s) FCC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1- 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. RSS-102 Issue 4 March 2010: Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands). KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01 General RF Exposure Guidance v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D03 SAR Test Reduction GSM/GPRS/EDGE v01: Recommended SAR Test Reduction Procedures for GSM/GPRS/EDGE KDB 616217 D04 SAR for laptop and tablets v01r01: SAR Evaluation Considerations for Laptop, Notebook, Netbook and Tablet Computers KDB 648474 D04 Handset SAR v01r02 : SAR Evaluation Considerations for Wireless Handsets KDB 941225 D02 HSPA and 1x Advanced v02r02: SAR Guidance for HSPA, HSPA+, DC-HSDPA and 1x-Advanced 248227 D01 SAR meas for 802 11 a b g v01r02 : SAR Measurement Procedures for 802.11 a/b/g Transmitters 941225 D05 SAR for LTE Devices v02r03 : SAR Evaluation Considerations for LTE Devices Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards for the tested bands only. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Weizhong Yang Director Revised by Minbao Ling SAR Manager Performed by Yi Zhang SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 3 of 356 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report ....................................................................................................... 5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT ................................................................................................................ 7 1.6. EUT Antenna Locations ........................................................................................................ 9 1.7. The Maximum Reported SAR 1g .......................................................................................... 10 1.8. Maximum Conducted Power of Each Tested Mode ............................................................ 11 1.9. Test Date ............................................................................................................................ 11 2. SAR Measurements System Configuration ................................................................................ 12 2.1. SAR Measurement Set-up .................................................................................................. 12 2.2. DASY5 E-field Probe System ............................................................................................. 13 2.2.1. EX3DV4 Probe Specification ....................................................................................... 13 2.2.2. ES3DV3 Probe Specification ....................................................................................... 14 2.2.3. E-field Probe Calibration .............................................................................................. 15 2.3. Other Test Equipment ......................................................................................................... 15 2.3.1. Device Holder for Transmitters .................................................................................... 15 2.3.2. Phantom ...................................................................................................................... 16 2.4. Scanning Procedure ........................................................................................................... 16 2.5. Data Storage and Evaluation .............................................................................................. 18 2.5.1. Data Storage ................................................................................................................ 18 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 18 3. Laboratory Environment ............................................................................................................. 20 4. Tissue-equivalent Liquid ...................................................................................................... ...... 21 4.1. Tissue-equivalent Liquid Ingredients ................................................................................... 21 4.2. Tissue-equivalent Liquid Properties .............................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 277 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 278 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 279 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 280 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 281 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 282 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 283 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 284 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 285 of 356 ANNEX F: D750V3 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 286 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 287 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 288 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 289 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 290 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 291 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 292 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 293 of 356 ANNEX G: D835V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 294 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 295 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 296 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 297 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 298 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 299 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 300 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 301 of 356 ANNEX H: D1750V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 302 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 303 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 304 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 305 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 306 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 307 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 308 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 309 of 356 ANNEX I: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 310 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 311 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 312 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 313 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 314 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 315 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 316 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 317 of 356 ANNEX J: D2450V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 318 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 319 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 320 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 321 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 322 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 323 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 324 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 325 of 356 ANNEX K: D2600V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 326 of 356

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 333 of 356 ANNEX L: D5GHzV2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 334 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 335 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 336 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 337 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 338 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 339 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 340 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 341 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 342 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 343 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 344 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 345 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 346 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 347 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 348 of 356 ANNEX M: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 349 of 356 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 350 of 356

FCC RF Test Report Product Name: HUAWEI MediaPad M1 8.0 Model Number: S8-302L Report No: SYBH(Z-RF)024052014-2004 FCC ID：QISS8-302L Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of S8-302L Report No: SYBH(Z-RF)024052014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 18 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-1 and 6369A-3. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of S8-302L Report No: SYBH(Z-RF)024052014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 18 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2014-05-27 Start Date of Test: 2014-05-28 End Date of Test: 2014-06-18 Test Result: Pass Approved by Senior Engineer: 2014-06-27 Liu Chunlin Date Name Signature Prepared by: 2014-06-27 Zhang Guocai Date Name Signature RF Test Report of S8-302L Report No: SYBH(Z-RF)024052014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 18 Modification Record No. Last Report No. Modification Description First Report RF Test Report of S8-302L Report No: SYBH(Z-RF)024052014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 18 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 3 Description of the Equipment under Test (EUT) ..................................................................................................... 8 3.1 General Description ................................................................................................................................... 8 3.2 EUT Identity ............................................................................................................................................... 8 3.3 Technical Description ................................................................................................................................. 9 4 General Test Conditions / Configurations ............................................................................................................. 10 4.1 Test Modes .............................................................................................................................................. 10 4.2 EUT Configurations .................................................................................................................................. 10 4.3 Test Environments ................................................................................................................................... 11 4.4 Antenna requirements .............................................................................................................................. 11 4.5 Description of tests................................................................................................................................... 12 4.6 Test Setups .............................................................................................................................................. 14 4.7 Test Conditions ........................................................................................................................................ 17 5 Main Test Instruments .......................................................................................................................................... 18 RF Test Report of S8-302L Report No: SYBH(Z-RF)024052014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 18 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 2, Subpart J 2013 47 CFR FCC Part 15, Subpart C 2013 Test Method: FCC KDB 558074 D01 DTS Meas Guidance v03r01 ANSI C63.10-2009, American National Standard for Testing Unlicensed Wireless Devices. 1.2 Test Location Test Location 1: Reliability Laboratory of Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei …

Text truncated - open the document above for the full version.

RF Test Report of S8-302L Report No: SYBH(Z-RF)024052014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 1 Appendix for Test report Appendix A: DTS (6 dB) Bandwidth In this document, the "DTS6dBBW" refers to the measured "DTS (6 dB) Bandwidth" value. In this Appendix, the "fc(DTS6dBBW)" refers to the centre of the measured "DTS6dBBW". The introduction of the "fc(DTS6dBBW)" is due to that other measurements use it as the spectrum analyzer setting. For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. Part I - Test Results Test Mode Test Channel Frequency[MHz] DTS6dBBW[MHz] Verdict 11B L 2412 8.83 pass 11B M 2437 9.32 pass 11B H 2462 9.06 pass 11G L 2412 16.47 pass 11G M 2437 16.54 pass 11G H 2462 16.49 pass 11N20 L 2412 17.24 pass 11N20 M 2437 17.73 pass 11N20 H 2462 17.66 pass RF Test Report of S8-302L Report No: SYBH(Z-RF)024052014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 2 Part II - Test Plots 2.1 11B_L RF Test Report of S8-302L Report No: SYBH(Z-RF)024052014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 3 2.2 11B_M RF Test Report of S8-302L Report No: SYBH(Z-RF)024052014-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 4 2.3 11B_H RF Test…

Text truncated - open the document above for the full version.
