QIST1-701WHUAWEI MediaPad T1 7.0

Quick Start 1 1 HUAWEI MediaPad T1 7.0 at a Glance Congratulations on your purchase of the HUAWEI MediaPad T1 7.0. Press and hold the power key to power on or off your device or restart it. Press the power key once to turn on or off the screen. 2 2 Installation 3 Charging the Battery 3 4 Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset  To prevent possible hearing damage, do not listen at high volume levels for long periods. 4  Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level.  Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. 5 Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.  Do not use your device during thunderstorms to protect your device against any danger caused by lightning.  Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -40 °C to 70 °C. Extreme heat or cold may damage your device or accessories.  Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.  To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.  Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.  Do not place sharp metal objects, such as pins, near the earpiece or speaker. The earpiece may attract these objects and result in injury.  Stop using your device or applications for a while if the device is overheated. If skin is exposed to an overheated device for an extended period, low temperature burn symptoms, such as red spots and darker pigmentation, may occur.  Do not touch the device's antenna. Otherwise, communication quality may be reduced.  Do not allow children or pets to bite or suck the device or accessories. Doing so may result in damage or explosion.  Observe local laws and regulations, and respect the privacy and legal rights of others. 6 Child's safety  Comply with all precautions with regard to child's safety. Letting children play with the device or its accessories may be dangerous. The device includes detachable parts that may present a choking hazard. Keep away from children.  The device and its accessories are not intended for use by children. Children should only use the device with adult supervision. Accessories  Using an unapproved or incompatible power adapter, charger or battery may cause fire, explosion or other hazards.  Choose only accessories approved for use with this model by the device manufacturer. The use of any other types of accessories may void the warranty, may violate local regulations and laws, and may be dangerous. Please contact your retailer for information about the availability of approved accessories in your area. Charger safety  For pluggable devices, the socket-outlet shall be installed near the devices and shall be easily accessible.  Unplug the charger from electrical outlets and the device when not in use.  Do not drop or cause an impact to the charger.  If the power cable is damaged (for example, the cord is exposed or broken), or the plug loosens, stop using it at once. Continued use may lead to electric shocks, short circuits, or fire.  Do not touch the power cord with wet hands or pull the power cord to disconnect the charger. 7  Do not touch the device or the charger with wet hands. Doing so may lead to short circuits, malfunctions, or electric shocks.  If your charger has been exposed to water, other liquids, or excessive moisture, take it to an authorized service center for inspection.  Ensure that the charger meets the requirements of Clause 2.5 in IEC60950-1/EN60950-1/UL60950-1 and has been tested and approved acco…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-4-21 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QIST1-701W To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-08-31: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755- 28970299

Huawei Technologies Co.,Ltd. Date: April 21, 2015 Statement We , Huawei Technologies Co.,Ltd, states that our device, FCC ID: QIST1-701W, has a battery, But the battery will not be placed in the battery compartment when delivery, it is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Te l : 0086-0755-28970299 Fax: 0086-0755-89650226

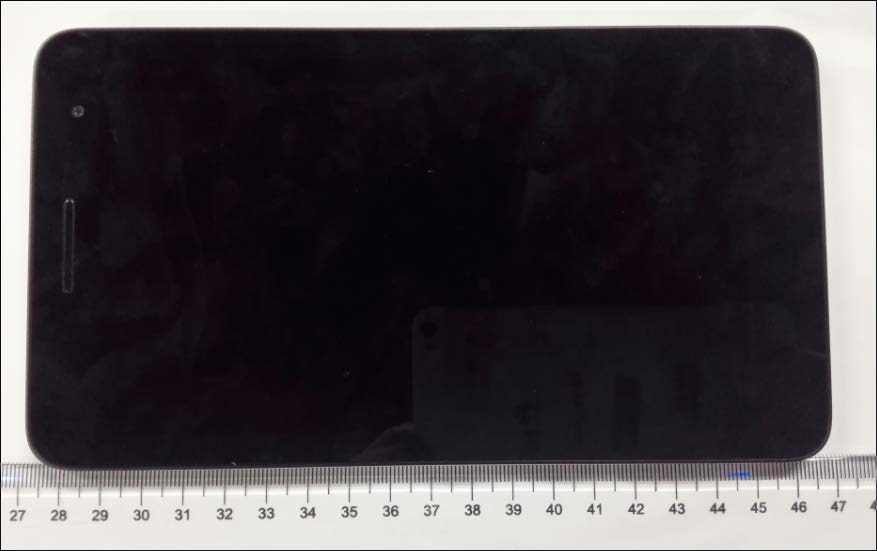

SECRET Page1, Total4 Photo documentation of external of product SECRET Page2, Total4 SECRET Page3, Total4 SECRET Page4, Total4

HUAWEI MediaPad T1 7.0 SECRET Page1, Total 1

HUAWEI MediaPad T1 7.0 SECRET Page1, Total2 Photo documentation of interior of product HUAWEI MediaPad T1 7.0 SECRET Page2, Total2

Report No.: BTL-FCCE-1-1503C049A Page 2 of 77 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or an y agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCE-1-1503C049A Page 3 of 77 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 9 3.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 3.4 DESCRIPTION OF SUPPORT UNITS 12 4 .EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION 13 4.1.2 TESTPROCEDURE 13 4.1.3 DEVIATIONFROMTESTSTANDARD 13 4.1.4 TESTSETUP 14 4.1.5 EUT OPERATING CONDITIONS 14 4.1.6 TEST RESULTS 14 4.2 RADIATED EMISSION MEASUREMENT 15 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT 15 4.2.2 TEST PROCEDURE 16 4.2.3 DEVIATIONFROMTESTSTANDARD 16 4.2.4 TESTSETUP 17 4.2.5 EUT OPERATING CONDITIONS 17 4.2.6 TEST RESULTS(30 TO 1000 MHZ) 18 4.2.7 TEST RESULTS (ABOVE 1000 MHZ) 18 5 . MEASUREMENT INSTRUMENTS LIST 19 6.EUT TEST PHOTO 20 ATTACHMENT A - CONDUCTED EMISSION 23 ATTACHMENT B - RADIATED EMISSION (30MHZ TO 1000MHZ) 34 ATTACHMENT C - RADIATED EMISSION (ABOVE 1000MHZ) 49 Report No.: BTL-FCCE-1-1503C049A Page 4 of 77 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCE-1-1503C049 Original Report. Mar. 26, 2015 BTL-FCCE-1-1503C049A Compared with Previous report (BTL-FCCE-1-1503C049), model name is changed, and the GSM850/1900 and WCDMA1900/850 function are not supported. Apr. 17, 2015 Report No.: BTL-FCCE-1-1503C049A Page 5 of 77 1. CERTIFICATION Equipment : HUAWEI MediaPad T1 7.0 Brand Name : N/A Model Name : T1-701w Applicant : Huawei Technologies Co.,Ltd. Manufacturer : Huawei Technologies Co.,Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District Shenzhen China Factory : BYD Huizhou Electronics Co.,Ltd. Address : Xiangshui River Daya Bay Economic Development Zone Huizhou Guangdong P.R China Date of Test : Mar. 06, 2015~ Mar. 24, 2015 Standard(s) : FCC Part 15, Subpart B: 2014 ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCE-1-1503C049A) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCE-1-1503C049A Page 6 of 77 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): EMC Emission Standard(s) Test Item Limit Judgment Remark FCC Part15, Subpart B:2014 Conducted Emission Class B PASS Radiated Emission Class B PASS NOTE: (1) ” N/A” denotes test is not applicable in this test report. Report No.: BTL-FCCE-1-1503C049A Page 7 of 77 2.1 TEST FACILITY The test facilities used to collect the test data in this report is C02/CB08 at the location of 1F., No. 61, Ln. 77, Sing-ai Rd., Neihu Dist., Taipei City 114, Taiwan 2.2 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR16-4-2: The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95%。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U, (dB) NOTE C02 CISPR 150 KHz~30MHz 2.59 B. Radiated Measurement : Test Site Method Measurement Frequency Range Ant. H / V U, (dB) NOTE CB08 CISPR 30MHz~200MHz V 3.22 30MHz~200MHz H 3.55 200MHz~ 1,000MHz V 3.24 200MHz~ 1,000MHz H 3.11 1,000MHz~18,000MHz V 4.05 1,000MHz~18,000MHz H 3.97 18,000MHz~40,000MHz V 4.04 18,000MHz~40,000MHz H 4.01 Report No.: BTL-FCCE-1-1503C049A Page 8 of 77 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment HUAWEI MediaPad T1 7.0 Brand Name N/A Model Name T1-701w Model Difference N/A PowerSource #1 DC voltage supplied from AC/DC adapter. Brand/Model: HUAWEI/HW-050100U2W Brand/Model: HUAWEI/HW-050100C2W #2 Supplied from Li-ion battery. Brand/Model: HUAWEI/HB474284RBC Power Rating #1 I/P: 100-240V~50/60Hz 0.2A O/P: 5.0V/1.0A #2 DC 3.8V 2000mAH Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2 The EUT has two earphones with different manufacturer. Item Manufacturer Earphone GOERTEK INC United Elecronics Co.Ltd Jiangxi Report No.: BTL-FCCE-…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCE-1-1503C049A Page 49 of 77 ATTACHMENT C - RADIATED EMISSION (ABOVE 1000MHZ)

Photos of Test Setup For GSM&WCDMA 1．Radiated Spurious Emissions --------------------------------------------The END-------------------------------------------
