QIST1-702UHUAWEI MediaPad T1 7.0

Quick Start 1 1 HUAWEI MediaPad T1 7.0 at a Glance Congratulations on your purchase of the HUAWEI MediaPad T1 7.0. Press and hold the power key to power on or off your device or restart it. Press the power key once to turn on or off the screen. 2 2 Installing the SIM and microSD Cards 3 3 Charging the Battery 4 4 Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset  To prevent possible hearing damage, do not listen at high volume levels for long periods. 5  Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level.  Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  Do not hold the device while driving. Use hands-free accessories.  When you must make or answer a call, pull off the road safely and park the vehicle first.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates. 6  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.  Do not use your device during thunderstorms to protect your device against any danger caused by lightning.  Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are –40 °C to 70 °C. Extreme heat or cold may damage your device or accessories.  Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.  To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.  Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.  Do not place sharp metal objects, such as pins, near the earpiece or speaker. The earpiece may attract these objects and result in injury.  Stop using your device or applications for a while if the device is overheated. If skin is exposed to an overheated device for an extended period, low temperature burn symptoms, such as red spots and darker pigmentation, may occur.  Do not touch the device's antenna. Otherwise, communication quality may be reduced. 7  Do not allow children or pets to bite or suck the device or accessories. Doing so may result in damage or explosion.  Observe local laws and regulations, and respect the privacy and legal rights of others. Child's safety  Comply with all precautions with regard to child's safety. Letting children play with the device or its accessories may be dangerous. The device includes detachable parts that may present a choking hazard. Keep away from children.  The device and its accessories are not intended for use by children. Children should only use the device with adult supervision. Accessories  Using an unapproved or incompatible power adapter, charger or battery may cause fire, explosion or other hazards.  Choose only accessories approved for use with this model by the device manufacturer. The use of any other types of accessories may void the warranty, may violate local regulations and laws, and may be dangerous. Please contact your retailer for information about the availability of approved accessories in your area. Charger safety  For pluggable devices, the socket-outlet shall be installed near the devices and shall be easily accessible.  Unplug the charger from electrical outlets and the device when not in use.  Do not drop or cause an impact to the charger. 8  If the power cable is damaged (for example, the cord is exposed or broken), or the plug loosens, stop using it at once. Continued use may lead to electric shocks, short circuits, or fire.  Do not touch the power cord with wet hands or pull the power cord to disconnect the charger.  Do not touch the device or the charger with wet hands. Doing so may lead to short circuits, malfunctions, or electric shocks.  If your charger has been exposed to water, other liquids, or excessive moisture, take…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-4-7 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QIST1-702U To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-08-31: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755- 28970299

Huawei Technologies Co.,Ltd. Date: April 16, 2015 Statement We , Huawei Technologies Co.,Ltd, states that our device, FCC ID: QIST1-702U, has a battery, But the battery will not be placed in the battery compartment when delivery, it is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Te l : 0086-0755-28970299 Fax: 0086-0755-89650226

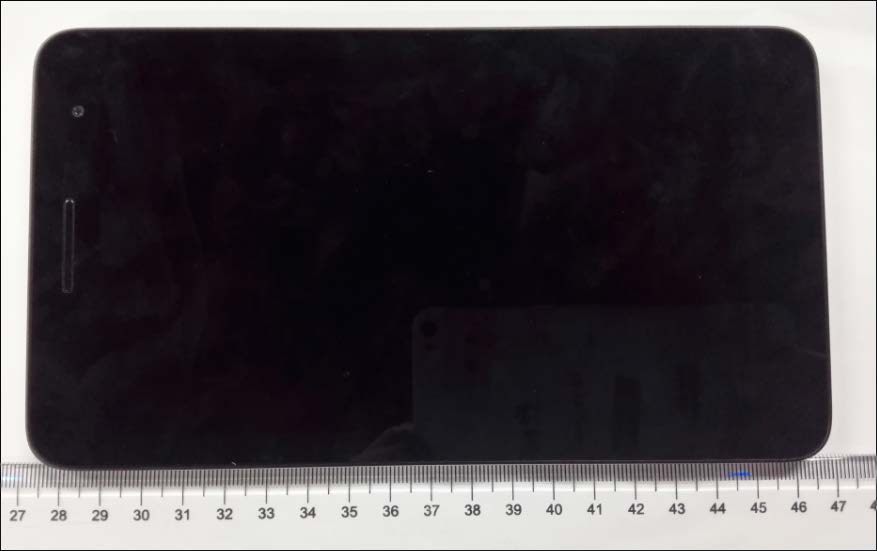

SECRET Page1, Total4 Photo documentation of external of product SECRET Page2, Total4 SECRET Page3, Total4 SECRET Page4, Total4

HUAWEI MediaPad T1 7.0 SECRET Page1, Total 1

HUAWEI MediaPad T1 7.0 SECRET Page1, Total4 Photo documentation of internal of product HUAWEI MediaPad T1 7.0 SECRET Page2, Total4 HUAWEI MediaPad T1 7.0 SECRET Page3, Total4 HUAWEI MediaPad T1 7.0 SECRET Page4, Total4

Report No.: BTL-FCC-SAR-1503C049 Page 1 of 160 FCC SAR Test Report FCC ID: QIST1-702U Project No. : 1503C049 Equipment : HUAWEI MediaPad T1 7.0 Model Name : T1-702u Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District Shenzhen China Date of Receipt : Mar. 16, 2015 Date of Test : Mar. 23, 2015~ Apr. 08, 2015 Issued Date : Apr. 09, 2015 Tested by : BTL Inc. Testing Engineer : ( Super Jiang) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) B T L I N C . No.3,Jinshagang 1st Road, Shixia,Dalang Town, Dongguan, China. TEL: +86-769-8318-3000FAX: +86-769-8319-6000 Report No.: BTL-FCC-SAR-1503C049 Page 2 of 160 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML), or National Institute of Standards and Technology (NIST) . BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCC-SAR-1503C049 Page 3 of 160 Table of Contents Page 1 . GENERAL SUMMARY 6 2 . RF EMISSIONS MEASUREMENT 7 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 STATEMENT OF COMPLIANCE 8 3.2 GENERAL DESCRIPTION OF EUT 9 3.3 LABORATORY ENVIRONMENT 10 3.4 MAIN TEST INSTRUMENTS 10 4 .SAR MEASUREMENTS SYSTEM CONFIGURATION 11 4.1 SAR MEASUREMENT SET-UP 11 4.2 DASY5E-FIELDPROBESYSTEM 12 5 . SYSTEM VERIFICATION PROCEDURE 20 5.1 TISSUE VERIFICATION 20 5.2 SYSTEM CHECK 22 5.3 SYSTEM CHECK PROCEDURE 23 6 .SAR MEASUREMENT VARIABILITY AND UNCERTAINTY 24 6.1 SAR MEASUREMENT VARIABILITY 24 6.2 SAR MEASUREMENT UNCERTAINTY 24 7 . OPERATIONAL CONDITIONS DURING TEST 25 7.1 SAR TEST CONFIGURATION 25 7.1 .1 GSM TEST CONFIGURATION 25 7.1.2 UMTS TEST CONFIGURATION 26 7.1.3 WIFI 2.4G TEST CONFIGURATION 29 7.2 TEST POSITION 30 7.2.1 TEST POSITION REQUIREMENTS 30 7.2.2 SAR TEST REDUCTION AND EXCLUSION GUIDANCE 30 8 .TEST RESULT 34 8.1 CONDUCTED POWER RESULTS 34 8.2 SAR TEST RESULTS 39 8.3 MULTIPLE TRANSMITTER EVALUATION 46 Report No.: BTL-FCC-SAR-1503C049 Page 4 of 160 Table of Contents Page APPENDIX 56 1. TEST LAYOUT 56 2. SYSTEM CHECK PLOTS 58 3.SAR MEASUREMENT PLOTS 65 4. CALIBRATION CERTIFICATE 118 6. DAE4 CALIBRATION CERTIFICATE 153 5. EUT TESTING POSITION AND ANTENNA LOCATION 156 Report No.: BTL-FCC-SAR-1503C049 Page 5 of 160 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCC-SAR-1503C049 Original Issue. Apr. 09, 2015 Report No.: BTL-FCC-SAR-1503C049 Page 6 of 160 1. GENERAL SUMMARY Equipment HUAWEI MediaPad T1 7.0 Model Name T1-702u; Brand Name HUAWEI Manufacturer Huawei Technologies Co., Ltd. Address Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen,518129, P.R.C Standard(s) ANSI Std C95.1-1992Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE Std 1528-2003Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEEE Std 1528a-2005IEEE Recommended Practice for Determining the Peak Spatial-AvSpecific Absorption Rate (SAR) in the Human Head from WirelessCommunications Devices: Measurement Techniques Amendment 1: CAD File for Human Head Model (SAM Phantom) KDB941225 D01 3G SAR Procedures v03 KDB616217 D04 SAR for laptop and tablets v01r01 KDB447498 D01 General RF Exposure Guidance v05r02 KDB648474 D04 SAR Handsets Multi Xmiter and Ant v01r02 KDB248227 D01 SAR meas for 802.11 a/b/g v01r02 KDB865664 D01 SAR measurement 100 MHz to 6 GHz v01r03 KDB865664 D02 SAR Reporting v01r01 KDB690783 D01 SAR Listings on Grants v01r03 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCC-SAR-1503C049) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCC-SAR-1503C049 Page 7 of 160 2. RF EMISSIONS MEASUREMENT 2.1 TEST FACILITY The test facilities used to collect the test data in this report is SAR room at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town,Dong Guan, China.523792 2.2 MEASUREMENT UNCERTAINTY Uncertainty Component Uncertainty Value Probability Distribution Divisor C i (1g) Standard Uncertainty ±1% V i or V eff Measurement System Probe Calibration (k=1) 5.9 Normal 1 1 5.9 ∞ Axial Isotropy 4.7 Rectangular 3 5.0 1.9 ∞ Hemispherical Iso ropy 9.6 Rectangular 3 5.0 3.9 ∞ Boundary Effect 1.0 Rectangular 3 1 0.6 ∞ Linearity 4 7 Rectangular 3 1 2.7 ∞ System Dete…

Text truncated - open the document above for the full version.

Report No.: BTL-FCC-SAR-1503C049 Page 129 of 160 5. Libration Certificate 1) D835V2 –SN: 4d160 Report No.: BTL-FCC-SAR-1503C049 Page 130 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 131 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 132 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 133 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 134 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 135 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 136 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 137 of 160 2) D1900V2 –SN: 5d179 Report No.: BTL-FCC-SAR-1503C049 Page 138 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 139 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 140 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 141 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 142 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 143 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 144 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 145 of 160 3) D2450V2 – SN919 Report No.: BTL-FCC-SAR-1503C049 Page 146 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 147 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 148 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 149 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 150 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 151 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 152 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 153 of 160 6. DAE4 Calibration Certificate Report No.: BTL-FCC-SAR-1503C049 Page 154 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 155 of 160 Report No.: BTL-FCC-SAR-1503C049 Page 156 of 160 5. EUT Testing Position and Antenna Location Test Position Left hand tilted Test Position Left hand touch cheek Report No.: BTL-FCC-SAR-1503C049 Page 157 of 160 Test Position Right hand tilted Test Position Right hand touch cheek Report No.: BTL-FCC-SAR-1503C049 Page 158 of 160 Test Position Back Test Position Left Report No.: BTL-FCC-SAR-1503C049 Page 159 of 160 Test Position Right Test Position Top Report No.: BTL-FCC-SAR-1503C049 Page 160 of 160 Test Position Bottom Test Position Bottom With Earphone

RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 56 Appendix for Testreport RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 56 1Appendix A: DTS (6 dB) Bandwidth In this document, the "DTS6dBBW" refers to the measured "DTS (6 dB) Bandwidth" value. In this Appendix, the "fc(DTS6dBBW)" refers to the centre of the measured "DTS6dBBW". The introduction of the "fc(DTS6dBBW)" is due to that other measurements use it as the spectrum analyzer setting. For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. 1.1Part I - Test Results Test Mode Test Channel Frequency[MHz] DTS6dBBW[MHz] Verdict TM1 _Ch0 L 2402 0.70 pass TM1 _Ch19 M 2440 0.68 pass TM1 _Ch39 H 2480 0.72 pass RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 56 1.2Part II - Test Plots 1.2.1 TM1_Ch0_L RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 56 1.2.2 TM1_Ch19_M RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 56 1.2.3 TM1_Ch39_H RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 56 2 Appendix B: Occupied Bandwidth For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. 2.1Part I - Test Results Test Mode Test Channel Frequency[MHz] Occupied Bandwidth [MHz] Verdict TM1 _Ch0 L 2402 1.06 pass TM1 _Ch19 M 2440 1.06 pass TM1 _Ch39 H 2480 1.06 pass RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 56 2.2Part II - Test Plots 2.2.1 TM1_Ch0_L RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 56 2.2.2 TM1_Ch19_M RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 56 2.2.3 TM1_Ch39_H RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 56 3 Appendix C: Maximum Conducted Average Output Power 3.1Part I - Test Results Test Mode Test Channel Frequency[MHz] Power[dBm] Verdict TM1 _Ch0 L 2402 0.12 pass TM1 _Ch19 M 2440 1.19 pass TM1 _Ch39 H 2480 1.51 pass RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 56 3.2Part II - Test Plots 3.2.1 TM1_Ch0_L RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 56 3.2.2 TM1_Ch19_M RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 56 3.2.3 TM1_Ch39_H RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 56 4Appendix D: Maximum Power Spectral Density Level 4.1 Part I - Test Results Test Mode Test Channel Frequency[MHz] Duty Cycle [%] PD[MHz] Verdict TM1 _Ch0 L 2402 64 -13.22 pass TM1 _Ch19 M 2440 64 -13.14 pass TM1 _Ch39 H 2480 64 -11.35 pass RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 56 4.2Part II - Test Plots 4.2.1 TM1_Ch0_L RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 56 4.2.2 TM1_Ch19_M RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 17 of 56 4.2.3 TM1_Ch39_H RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 18 of 56 5 Appendix E: Band Edges Compliance 5.1Part I - Test Results Test Mode Test Channel Frequency[MHz] Carrier Power[dBm] Max.Spurious Level[dBm] Verdict TM1_Ch0 L 2402 -0.70 -54.28 pass TM1_Ch39 H 2480 1.01 -53.61 pass RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 19 of 56 5.2 Part II - Test Plots 5.2.1 TM1_Ch0_L RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 20 of 56 5.2.2 TM1_Ch39_H RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 21 of 56 6Appendix F: Unwanted Emissions into Non-Restricted Frequency Bands In this Appendix, the "Pref", which is used as the reference level, refers to the peak power level in any 100 kHz bandwidth within the fundamental emission, the "Puw" referrers to the maximum emission power in 100 kHz band segments outside of the authorized frequency band. Considering that the higher ratio of RBW to the span for the frequency ranges below 30 MHz makes the results determination be complicated,a narrower RBW other than 100 kHz is used for these ranges. The measured value should add a RBW correction factor (RBWCF) where RBWCF [dB] = 10 x lg(100 [kHz]/narrower RBW [kHz]). As to this Appendix, the narrower RBW …

Text truncated - open the document above for the full version.

RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 138 Appendix for Testreport RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 138 Appendix A: DTS (6 dB) Bandwidth In this document, the "DTS6dBBW" refers to the measured "DTS (6 dB) Bandwidth" value. In this Appendix, the "fc(DTS6dBBW)" refers to the centre of the measured "DTS6dBBW". The introduction of the "fc(DTS6dBBW)" is due to that other measurements use it as the spectrum analyzer setting. For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. Part I - Test Results Test Mode Test Channel Frequency[MHz] Ant DTS6dBBW[MHz] Verdict 11B L 2412 Ant 1 7.22 pass 11B M 2437 Ant 1 7.63 pass 11B H 2462 Ant 1 7.45 pass 11G L 2412 Ant 1 16.49 pass 11G M 2437 Ant 1 16.49 pass 11G H 2462 Ant 1 16.47 pass 11N20 L 2412 Ant 1 17.70 pass 11N20 M 2437 Ant 1 17.72 pass 11N20 H 2462 Ant 1 17.71 pass RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 138 Part II - Test Plots 2.1 11B_L@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 138 2.2 11B_M@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 138 2.3 11B_H@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 138 2.4 11G_L@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 138 2.5 11G_M@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 138 2.6 11G_H@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 138 2.7 11N20_L@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 138 2.8 11N20_M@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 138 2.9 11N20_H@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 138 Appendix B: Occupied Bandwidth For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. Part I - Test Results Test Mode Test Channel Frequency[MHz] Ant Occupied Bandwidth [MHz] Verdict 11B L 2412 Ant 1 11.68 pass 11B M 2437 Ant 1 11.93 pass 11B H 2462 Ant 1 11.81 pass 11G L 2412 Ant 1 16.43 pass 11G M 2437 Ant 1 16.39 pass 11G H 2462 Ant 1 16.41 pass 11N20 L 2412 Ant 1 17.59 pass 11N20 M 2437 Ant 1 17.59 pass 11N20 H 2462 Ant 1 17.63 pass RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 138 Part II - Test Plots 2.1 11B_L@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 138 2.2 11B_M@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 138 2.3 11B_H@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 138 2.4 11G_L@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 17 of 138 2.5 11G_M@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 18 of 138 2.6 11G_H@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 19 of 138 2.7 11N20_L@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 20 of 138 2.8 11N20_M@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 21 of 138 2.9 11N20_H@Ant 1 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 22 of 138 Appendix C: Duty Cycle Part I - Test Results Test Mode TX Freq. [MHz] Duty cycle [%] 11B Ant 1: CH1,CH6,CH11 99 11G Ant 1: CH1,CH6,CH11 95 11N_20M_SISO Ant 1: CH1,CH6,CH11 94 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 23 of 138 Part II - Test Plots 2.1 11B RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 24 of 138 2.2 11G RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 25 of 138 2.3 11N20 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 26 of 138 Appendix D …

Text truncated - open the document above for the full version.

FCC RF Test Report Product Name: HUAWEI MediaPad T1 7.0 Model Number: T1-702u Report No: SYBH(Z-RF)011032015-2004 FCC ID：QIST1-702U Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of T1-702u Report No: SYBH(Z-RF)011032015-2004 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 15 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognitio…

Text truncated - open the document above for the full version.
