QIST1-A21WHUAWEI MediaPad T1 10

Quick Start 1 1 HUAWEI MediaPad T1 10 at a Glance Congratulations on your purchase of the HUAWEI MediaPad T1 10. Press and hold the power key to power on or off your device or restart it. Press the power key once to turn on or off the screen. 2 2 Installing the microSD Card 3 3 Charging the Battery 4 4 Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset  To prevent possible hearing damage, do not listen at high volume levels for long periods. 5  Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level.  Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. 6 Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.  Do not use your device during thunderstorms to protect your device against any danger caused by lightning.  Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are —40 °C to 70 °C. Extreme heat or cold may damage your device or accessories.  Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.  To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.  Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.  Do not place sharp metal objects, such as pins, near the earpiece or speaker. The earpiece may attract these objects and result in injury.  Stop using your device or applications for a while if the device is overheated. If skin is exposed to an overheated device for an extended period, low temperature burn symptoms, such as red spots and darker pigmentation, may occur.  Do not touch the device's antenna. Otherwise, communication quality may be reduced.  Do not allow children or pets to bite or suck the device or accessories. Doing so may result in damage or explosion.  Observe local laws and regulations, and respect the privacy and legal rights of others. 7 Child's safety  Comply with all precautions with regard to child's safety. Letting children play with the device or its accessories may be dangerous. The device includes detachable parts that may present a choking hazard. Keep away from children.  The device and its accessories are not intended for use by children. Children should only use the device with adult supervision. Accessories  Using an unapproved or incompatible power adapter, charger or battery may cause fire, explosion or other hazards.  Choose only accessories approved for use with this model by the device manufacturer. The use of any other types of accessories may void the warranty, may violate local regulations and laws, and may be dangerous. Please contact your retailer for information about the availability of approved accessories in your area. Charger safety  For pluggable devices, the socket-outlet shall be installed near the devices and shall be easily accessible.  Unplug the charger from electrical outlets and the device when not in use.  Do not drop or cause an impact to the charger.  If the power cable is damaged (for example, the cord is exposed or broken), or the plug loosens, stop using it at once. Continued use may lead to electric shocks, short circuits, or fire.  Do not touch the power cord with wet hands or pull the power cord to disconnect the charger. 8  Do not touch the device or the charger with wet hands. Doing so may lead to short circuits, malfunctions, or electric shocks.  If your charger has been exposed to water, other liquids, or excessive moisture, take it to an authorized service center for inspection.  Ensure that the charger meets the requirements of Clause 2.5 in IEC60950-1/EN60950-1/UL60950-1 and has been tested an…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Statement We, Huawei Technologies Co.,Ltd, states that this device supports client mode only and states that the client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master. This includes restriction on transmissions for beacons and support for ad-hoc peer-to- peer modes.. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd Date (01/03/2015) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QIST1-A21W Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-3- 1 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QIST1-A21W To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-03-20: External Photos Internal Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755- 28970299

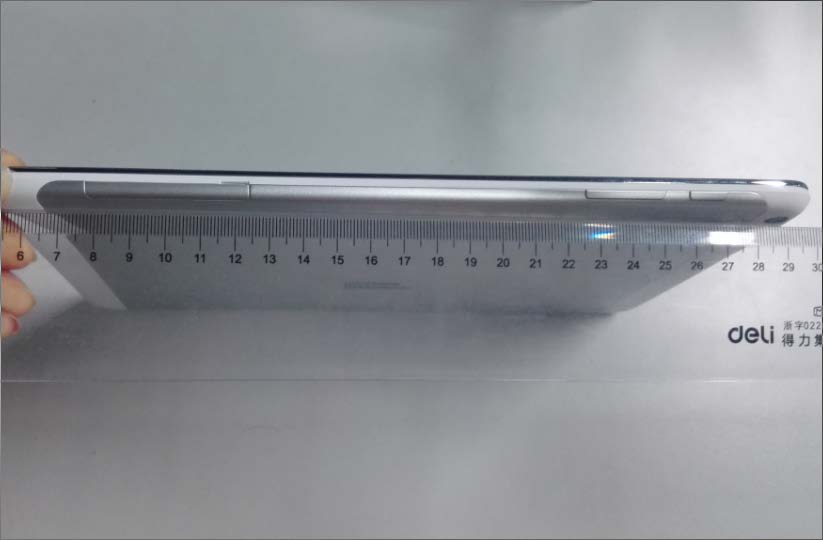

SECRET Page1, Total4 Photo documentation of external of product SECRET Page2, Total4 SECRET Page3, Total4 SECRET Page4, Total4

SECRET Page1, Total 1

HUAWEI MediaPad T1 10 LTE SECRET Page1, Total 1 Label Location

HUAWEI MediaPad T1 10 SECRET Page1, Total4 Photo documentation of interior of product HUAWEI MediaPad T1 10 SECRET Page2, Total4 HUAWEI MediaPad T1 10 SECRET Page3, Total4 HUAWEI MediaPad T1 10 SECRET Page4, Total4

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Product Name: HUAWEI MediaPad T1 10 Model: T1-A21w Report No.: SYBH(Z-SAR)024012015-2 FCC ID: QIST1-A21W APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2015-02-14 2015-02-14 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report No.: SYBH(Z-SAR)024012015-2 FCC ID: QIST1-A21W 2015-02-14 Page 2 of 33 Table of Contents 1 General Information ............................................................................................................................................... 4 1.1 Statement of Compliance .............................................................................................................................. 4 1.2 RF exposure limits ......................................................................................................................................... 5 1.3 EUT Description ............................................................................................................................................ 6 1.3.1 General Description ............................................................................................................................... 6 1.4 Test specification(s) ...................................................................................................................................... 7 1.5 Testing laboratory .......................................................................................................................................... 7 1.6 Applicant and Manufacturer .......................................................................................................................... 7 1.7 Application details .......................................................................................................................................... 7 1.8 Ambient Condition ........................................................................................................................................ 7 2 SAR Measurement System ................................................................................................................................. 8 2.1 SAR Measurement Set-up ........................................................................................................................... 8 2.2 Test environment ........................................................................................................................................... 9 2.3 Data Acquisition Electronics description ...................................................................................................... 9 2.4 Probe description ......................................................................................................................................... 10 2.5 Phantom description .................................................................................................................................... 11 2.6 Device holder description ............................................................................................................................ 12 2.7 Test Equipment List ..................................................................................................................................... 13 3 SAR Measurement Procedure .......................................................................................................................... 14 3.1 Scanning procedure .................................................................................................................................... 14 3.2 Spatial Peak SAR Evaluations .................................................................................................................... 15 3.3 Data Storage and Evaluation ...................................................................................................................... 16 4 System Verification Procedure ............................................................................................................................ 18 4.1 Tissue Verification ....................................................................................................................................... 18 4.2 System Check ............................................................................................................................................. 20 4.3 System check Procedure............................................................................................................................. 20 5 SAR measurement variability and uncertainty .................................................................................................... 22 5.1 SAR measurement variability ...................................................................................................................... 22 5.2 SAR measurement uncertainty ................................................................................................................... 22 6 SAR Test Configuration ...................................................................................................................................... 23 6.1 WiFi 2.4G Test Configuration ...................................................................................................................... 23 6.2 WiFi 5G Test Configuration ..................................................................…

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)024012015-2 FCC ID QIST1-A21W Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D2450-ES-Body SystemPerformanceCheck-D5200-EX-Body SystemPerformanceCheck-D5300-EX-Body SystemPerformanceCheck-D5600-EX-Body SystemPerformanceCheck-D5800-EX-Body Date: 2015-2-4 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-ES-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.003 S/m; ε r = 50.735; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.29, 4.29, 4.29); Calibrated: 2014-9- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2014-4-30 lPhantom: ELI v5.0; Type: ELI; Serial: TP:1111 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=10mm, Pin=250mW/Area Scan (6x11x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 13.5 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.64 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 29.9 W/kg SAR(1 g) = 14 W/kg; SAR(10 g) = 6.44 W/kg Maximum value of SAR (measured) = 18.4 W/kg 0 dB = 18.4 W/kg = 12.65 dBW/kg Date: 2015-2-5 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D5200-EX-Body DUT: Dipole D5GHzV2; Type: D5GHzV2; Serial: D5GHzV2 - SN:1155 Communication System: UID 0, CW (0); Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; σ = 5.194 S/m; ε r = 50.975; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(4.27, 4.27, 4.27); Calibrated: 2014-4- 24; lSensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 25.0 lElectronics: DAE4 Sn852; Calibrated: 2014-4-30 lPhantom: ELI v5.0; Type: ELI; Serial: TP:1111 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) System Performance Check with D5GHzV2 Dipole (graded grid)/d=10mm, Pin=100mW, f=5300 MHz/Area Scan (8x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 15.8 W/kg System Performance Check with D5GHzV2 Dipole (graded grid)/d=10mm, Pin=100mW, f=5300 MHz/Zoom Scan (4x4x1.4mm, graded), dist=1.4mm (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 69.71 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 34.0 W/kg SAR(1 g) = 8.02 W/kg; SAR(10 g) = 2.24 W/kg Maximum value of SAR (measured) = 19.1 W/kg 0 dB = 19.1 W/kg = 12.81 dBW/kg Date: 2015-2-5 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D5300-EX-Body DUT: Dipole D5GHzV2; Type: D5GHzV2; Serial: D5GHzV2 - SN:1155 Communication System: UID 0, CW (0); Frequency: 5300 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5300 MHz; σ = 5.373 S/m; ε r = 49.893; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(4.05, 4.05, 4.05); Calibrated: 2014-4- 24; lSensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 25.0 lElectronics: DAE4 Sn852; Calibrated: 2014-4-30 lPhantom: ELI v5.0; Type: ELI; Serial: TP:1111 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) System Performance Check with D5GHzV2 Dipole (graded grid)/d=10mm, Pin=100mW, f=5300 MHz/Area Scan (8x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 15.9 W/kg System Performance Check with D5GHzV2 Dipole (graded grid)/d=10mm, Pin=100mW, f=5300 MHz/Zoom Scan (4x4x1.4mm, graded), dist=1.4mm (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 70.38 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 36.1 W/kg SAR(1 g) = 8.25 W/kg; SAR(10 g) = 2.28 W/kg Maximum value of SAR (measured) = 19.8 W/kg 0 dB = 19.8 W/kg = 12.97 dBW/kg Date: 2015-2-6 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D5600-EX-Body DUT: Dipole D5GHzV2; Type: D5GHzV2; Serial: D5GHzV2 - SN:1155 Communication System: UID 0, CW (0); Frequency: 5600 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5600 MHz; σ = 5.616 S/m; ε r = 49.157; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(3.78, 3.78, 3.78); Calibrated: 2014-4- 24; lSensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 25.0 lElectronics: DAE4 Sn852; Calibrated: 2014-4-30 lPhantom: ELI v5.0; Type: ELI; Serial: TP:1111 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) System Performance Check with D5GHzV2 Dipole (graded grid)/d=10mm, Pin=100mW, f=5300 MHz/Area Scan (8x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 18.0 W/kg System Performance Check with D5GHzV2 Dipole (graded grid)/d=10mm, Pin=100mW, f=5300 MHz/Zoom Scan (4x4x1.4mm, graded), dist=1.4mm (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 69.36 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 39.0 W/kg SAR(1 g) = 8.46 W/kg; SAR(10 g) = 2.34 W/kg Maximum value of SAR (measured) = 20.5 W/kg 0 dB = 20.5 W/kg = 13.12 dBW/kg Date: 2015-2-7 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D5800-EX-Body DUT: Dipole D5GHzV2; Type: D5GHzV2; Serial: D5GHzV2 - SN:1155 Communication System: UID 0, CW (0); Frequency: 5800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5800 MHz; σ = 5.983 S/m; ε r = 48.025; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(3.9, 3.9, 3.9); Calibrated: 2014-4- 24; lSensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 25.0 lElectronics: DAE4 Sn852; Calibrated: 2014-4-30 lPhantom: ELI v5.0; Type: ELI; Serial: TP:1111 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) System Performance Check with D5GHzV2 Dipole (graded grid)/d=10mm, Pin=100mW, f=5300 MHz/Area Scan (8x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 16.1 W/kg System Performance Check with D5GHzV2 Dipole (graded grid)/d=10mm, Pin=100mW, f=5300 MHz/Zoom Scan (4x4x1.4mm, graded), dist=1.4mm (8x8x7)/Cub…

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)024012015-2 FCC ID: QIST1-A21W Appendix B. SAR Measurement Plots Table of contents WiFi 2.4GHz Body WiFi 5GHz Body Date: 2015-2-4 Test Laboratory: HUAWEI SAR/HAC Lab T1-A21w WIFI2.4G 802.11b 6CH Back Side 0mm- Repeated DUT: T1-A21w; Type: HUAWEI MediaPad T1 10; Serial: SAR2 Communication System: UID 0, WiFi(802.11a/b/g/n/ac) (0); Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2437 MHz; σ = 1.98 S/m; ε r = 50.813; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.29, 4.29, 4.29); Calibrated: 2014-9- 24; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2014-4-30 lPhantom: ELI v5.0; Type: ELI; Serial: TP:1111 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (16x16x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.900 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 3.15 W/kg SAR(1 g) = 1.04 W/kg; SAR(10 g) = 0.377 W/kg Maximum value of SAR (measured) = 1.23 W/kg 0 dB = 1.23 W/kg = 0.90 dBW/kg Date: 2015-2-5 Test Laboratory: HUAWEI SAR/HAC Lab T1-A21w WIFi5G 802.11a 52CH Back Side 0mm DUT: T1-A21w; Type: HUAWEI MediaPad T1 10; Serial: SAR2 Communication System: UID 0, WiFi(802.11a/b/g/n/ac) (0); Frequency: 5260 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5260 MHz; σ = 5.625 S/m; ε r = 49.215; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(4.05, 4.05, 4.05); Calibrated: 2014-4- 24; lSensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 25.0 lElectronics: DAE4 Sn852; Calibrated: 2014-4-30 lPhantom: ELI v5.0; Type: ELI; Serial: TP:1111 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (17x17x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 3.40 W/kg Configuration/Body/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 0 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 7.13 W/kg SAR(1 g) = 1.1 W/kg; SAR(10 g) = 0.216 W/kg Maximum value of SAR (measured) = 3.35 W/kg 0 dB = 3.35 W/kg = 5.25 dBW/kg

FCC PART 15 TEST REPORT No. I15Z40276-SRD01 for Huawei Technologies Co.,Ltd Tablet Model Name: T1-A21w FCC ID: QIST1-A21W With Hardware Version: SH1T1A21LM Software Version: T1-A21wV100R001C001 Issued Date: 2015-02-15 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P.R.China 100191 Tel: +86(0)10-62304633-2512, Fax: +86(0)10-62304633-2504 Email: [email protected]. www.chinattl.com TESTING CNAS L0570 No. I15Z40276-SRD01 Page2 of 142 CONTENTS 1. TEST LATORATORY ......................................................................................................... 8 1.1. T ESTING LOCATION .............................................................................................................. 8 1.2. P ROJECT DATA ..................................................................................................................... 8 1.3. S IGNATURE .......................................................................................................................... 8 2. CLIENT INFORMATION .................................................................................................... 9 2.1. A PPLICANT INFORMATION ..................................................................................................... 9 2.2. M ANUFACTURER INFORMATION ............................................................................................. 9 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT(AE) .................... 10 3.1. A BOUT EUT ....................................................................................................................... 10 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................................. 10 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST .................................................... 10 3.4. G ENERAL DESCRIPTION ..................................................................................................... 10 4. REFERENCE DOCUMENTS .......................................................................................... 11 4.1. D OCUMENTS SUPPLIED BY APPLICANT .................................................................................. 11 4.2. R EFERENCE DOCUMENTS FOR TESTING ............................................................................... 11 5. LABORATORY ENVIRONMENT .................................................................................... 11 6. SUMMARY OF TEST RESULTS ..................................................................................... 12 6.1. S UMMARY OF TEST RESULTS .............................................................................................. 12 6.2. S TATEMENTS...................................................................................................................... 12 6.3. T EST CONDITIONS .............................................................................................................. 12 7. TEST EQUIPMENTS UTILIZED...................................................................................... 13 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 14 A.1. MEASUREMENT METHOD ....................................................................................................... 14 A.2. MAXIMUM OUTPUT POWER ..................................................................................................... 15 A.3. PEAK POWER SPECTRAL DENSITY (CONDUCTED) ................................................................... 16 A.4. OCCUPIED 26DB BANDWIDTH(CONDUCTED) ........................................................................... 18 F IG. 1 OCCUPIED 26DB BANDWIDTH (802.11A, 5180MHZ) .................................................... 19 F IG. 2 OCCUPIED 26DB BANDWIDTH (802.11A, 5200MHZ) .................................................... 19 F IG. 3 OCCUPIED 26DB BANDWIDTH (802.11A, 5240MHZ) .................................................... 20 F IG. 4 OCCUPIED 26DB BANDWIDTH (802.11A, 5260MHZ) .................................................... 20 F IG. 5 OCCUPIED 26DB BANDWIDTH (802.11A, 5280MHZ) .................................................... 21 F IG. 6 OCCUPIED 26DB BANDWIDTH (802.11A, 5320MHZ) .................................................... 21 F IG. 7 OCCUPIED 26DB BANDWIDTH (802.11A, 5500MHZ) .................................................... 22 F IG. 8 OCCUPIED 26DB BANDWIDTH (802.11A, 5600MHZ) .................................................... 22 F IG. 9 OCCUPIED 26DB BANDWIDTH (802.11A, 5700MHZ) .................................................... 23 F IG. 10 OCCUPIED 26DB BANDWIDTH (802.11N-HT20, 5180MHZ) .......................................... 23 F IG. 11 OCCUPIED 26DB BANDWIDTH (802.11N-HT20, 5200MHZ) .......................................... 24 No. I15Z40276-SRD01 Page3 of 142 FIG. 12 OCCUPIED 26DB BANDWIDTH (802.11N-HT20, 5240MHZ) .......................................... 24 F IG. 13 OCCUPIED 26DB BANDWIDTH (802.11N-HT20, 5260MHZ) .......................................... 25 F IG. 14 OCCUPIED 26D…

Text truncated - open the document above for the full version.
